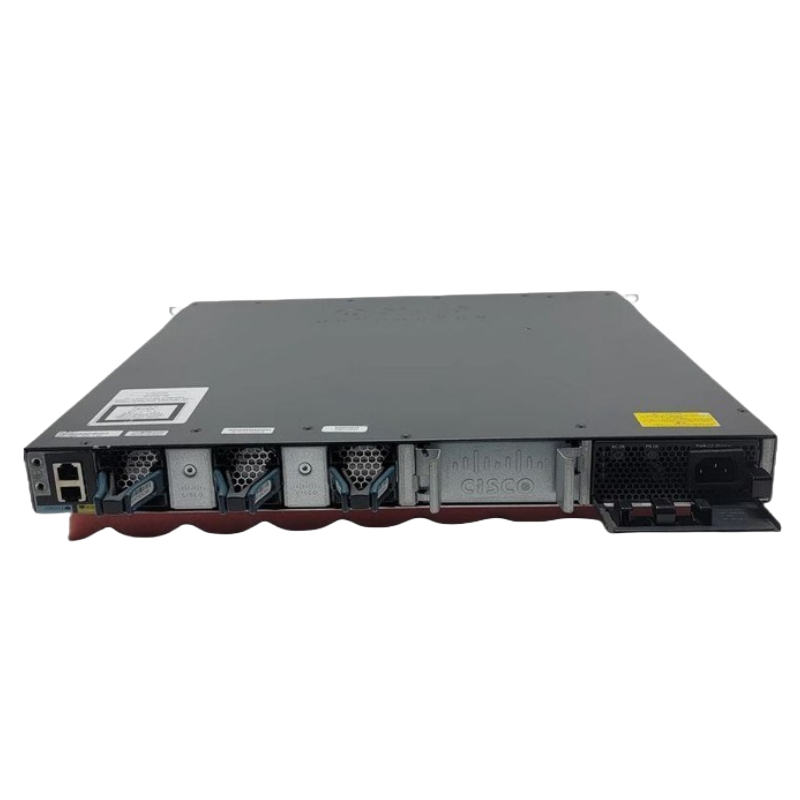

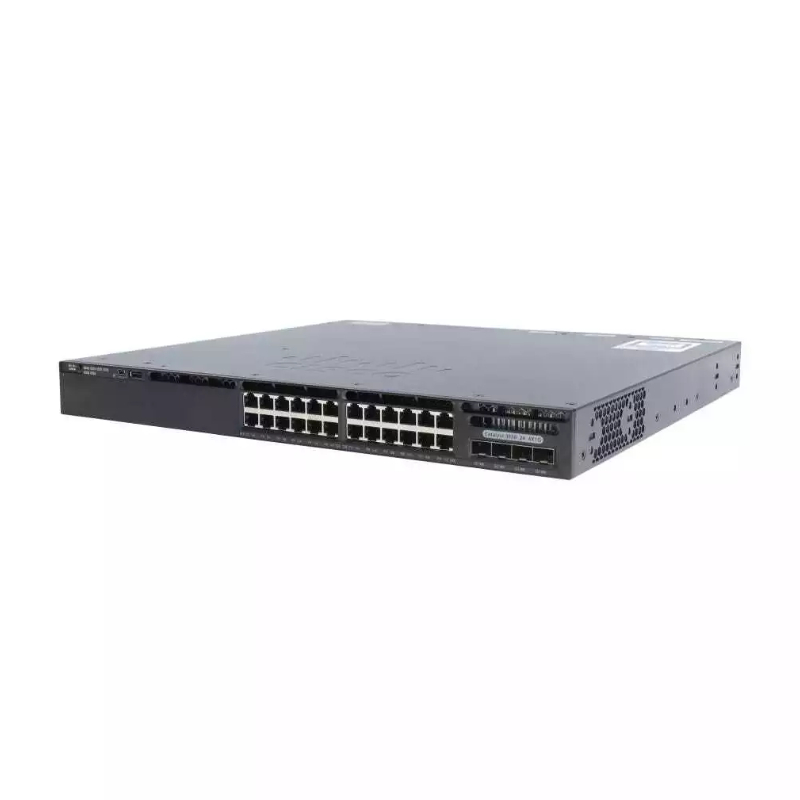

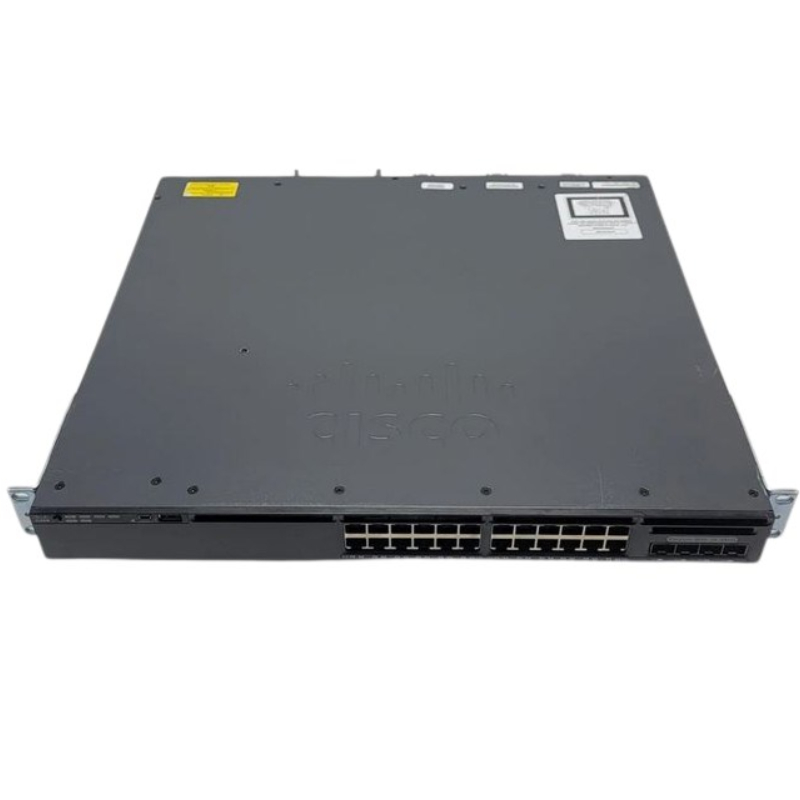

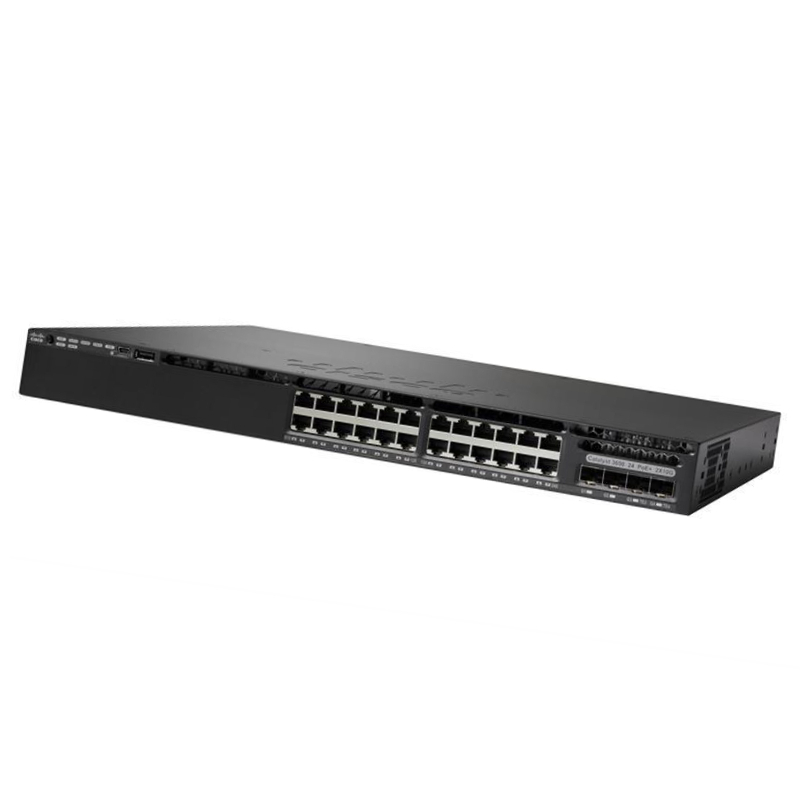

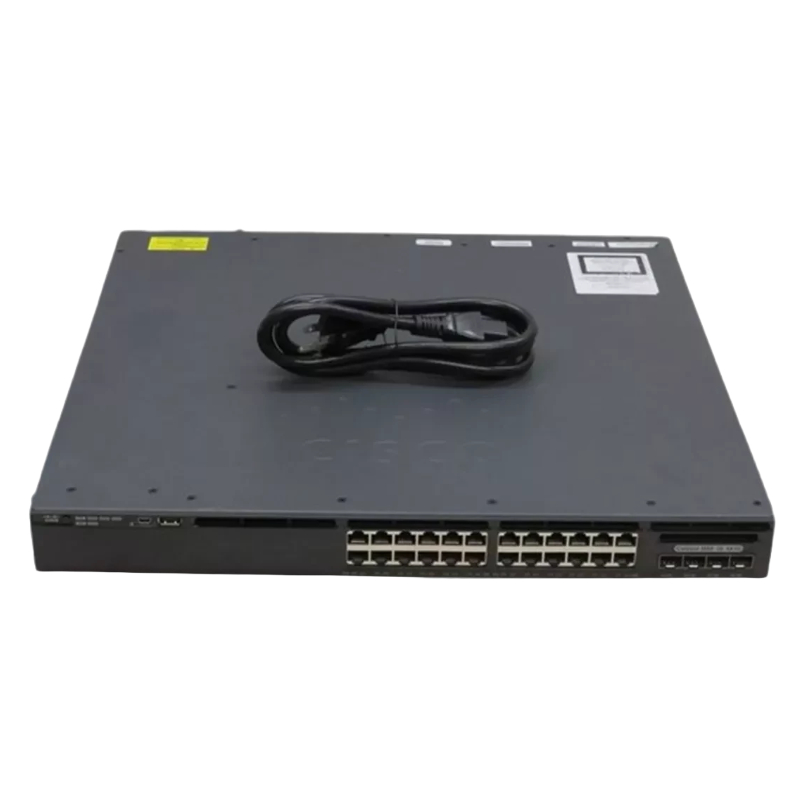

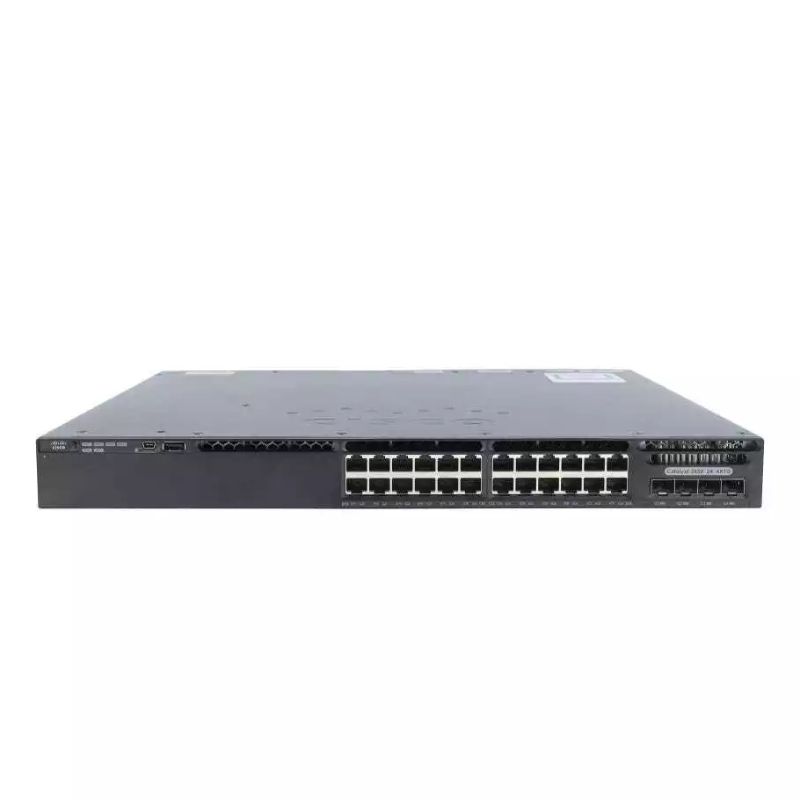

Cisco WS-C3650-24TS-L Layer2 Rack-mountable Stackable Switch

Overview of Cisco WS-C3650-24TS-L Ethernet Switch

Manufacturer Details

• Brand: Cisco
• Part Number: WS-C3650-24TS-L
• Series: Catalyst 3650
• Type: Ethernet Switch

Network Ports and Interfaces

• Total Network Ports: 24
• Token Ring Port: Not Available
• LRE Port: Not Supported
• Bypass Feature: Not Included
• Management Port: Present

Performance Metrics

• Switching Capacity: 88 Gbps
• Forwarding Rate: 65.47 Million Packets Per Second (Mpps)

Capacity Specifications

• IPv4 Routing Table Size: 24,000 Routes
• Virtual LANs (VLANs): Up to 255
• Switched Virtual Interfaces (SVIs): 1,000
• MAC Address Table: 32,000 Entries
• Jumbo Frame Support: Up to 9,198 Bytes

Routing Capabilities

• Supported Protocol: Static IP Routing

Remote Management Features

• SNMP (Versions 1, 2c, 3)
• RMON (1, 2, 3, 9)
• Telnet
• SSH
• CLI

Advanced Features

• Layer 2 Switching
• ARP Support
• Trunking Capabilities
• VLAN Support
• IGMP Snooping
• Rapid Spanning Tree Protocol (RSTP)
• Multiple Spanning Tree Protocol (MSTP)
• DHCP Snooping
• Port Aggregation Protocol (PAGP)
• Access Control List (ACL)
• Quality of Service (QoS)
• RADIUS Authentication
• MLD Snooping
• Dynamic ARP Inspection (DAI)
• Uni-directional Link Detection (UDLD)
• Rapid Per-VLAN Spanning Tree Plus (PVRST+)
• Link Aggregation Control Protocol (LACP)
• Remote Switch Port Analyzer (RSPAN)
• Energy Efficient Ethernet (EEE)

Standards Compliance

• IEEE 802.3
• IEEE 802.3u
• IEEE 802.3z
• IEEE 802.1D
• IEEE 802.1Q
• IEEE 802.3ab
• IEEE 802.1p
• IEEE 802.3x
• IEEE 802.3ad (LACP)
• IEEE 802.1w
• IEEE 802.1x
• IEEE 802.1s
• IEEE 802.1ab (LLDP)

PowerSpecifications

• Input Voltage: AC 120/230 V
• Frequency: 50/60 Hz

Features

The Cisco WS-C3650-24TS-L Rack-mountable Layer2 Desktop Stackable Switch is a powerful networking device that offers a range of features designed to enhance network performance and reliability. This switch is particularly well-suited for businesses and organizations that require a robust and scalable network infrastructure. Its key features include Layer 2 switching, rack-mountable design, and stackable capability.

Layer 2 Switching

Layer 2 switching is a fundamental networking technology that operates at the data link layer of the OSI model. It enables the switch to forward data packets based on the MAC addresses of devices connected to it. This allows for efficient and reliable communication between devices within the same local area network (LAN). The Cisco WS-C3650-24TS-L switch utilizes Layer 2 switching to facilitate fast and secure data transmission, reducing network congestion and improving overall network performance.

Benefits of Layer 2 Switching

One of the key benefits of Layer 2 switching is its ability to segment the network into smaller broadcast domains, known as VLANs (Virtual Local Area Networks). VLANs help to enhance network security by isolating different groups of devices from each other, preventing unauthorized access and reducing the risk of network attacks. Additionally, Layer 2 switching enables the implementation of Quality of Service (QoS) policies, allowing network administrators to prioritize certain types of traffic, such as voice or video data, for optimal performance.

Importance of Layer 2 Switching

Layer 2 switching is essential for modern network infrastructures as it provides a solid foundation for building scalable and reliable networks. By efficiently forwarding data packets based on MAC addresses, Layer 2 switches reduce unnecessary network traffic and improve overall network performance. The Cisco WS-C3650-24TS-L switch's support for Layer 2 switching ensures that businesses can reliably transmit data between connected devices, facilitating seamless communication and collaboration.

Rack-Mountable Design

The Cisco WS-C3650-24TS-L switch features a rack-mountable design, making it easy to install in standard server racks or cabinets. This design allows for efficient space utilization and simplifies cable management, contributing to a neat and organized network infrastructure. The switch's compact size and sleek form factor also make it suitable for deployment in various environments, including data centers, server rooms, and office spaces.

Benefits of Rack-Mountable Design

The rack-mountable design of the Cisco WS-C3650-24TS-L switch offers several benefits to users. First and foremost, it maximizes the use of available space by securely mounting the switch alongside other networking equipment in a standard rack. This not only helps to reduce clutter but also facilitates easier access to the switch for maintenance and troubleshooting purposes. Additionally, the rack-mountable design allows for better airflow and cooling, ensuring optimal performance and longevity of the device.

Importance of Rack-Mountable Design

The rack-mountable design is particularly important for businesses and organizations that require a scalable and organized network infrastructure. By securely mounting the Cisco WS-C3650-24TS-L switch in a rack, businesses can effectively manage their networking equipment, minimize downtime, and simplify maintenance tasks. Furthermore, the rack-mountable design enables seamless integration with existing network setups, making it easier to expand the network as business needs evolve.

Stackable Capability

The Cisco WS-C3650-24TS-L switch offers stackable capability, allowing users to connect multiple switches together to create a unified and highly scalable network infrastructure. Stackable switches operate as a single logical unit, enabling simplified management and enhanced network performance. This feature is particularly beneficial for businesses that require a large number of ports and want to avoid the complexity associated with managing multiple standalone switches.

Benefits of Stackable Capability

Stackable switches provide several benefits to users. Firstly, they offer increased scalability, allowing businesses to easily expand their network by adding more switches to the stack. This eliminates the need for complex configurations and reduces the overall management overhead. Additionally, stackable switches enable simplified network management through a single management interface, streamlining administrative tasks and reducing the potential for human error.

Importance of Stackable Capability

The stackable capability of the Cisco WS-C3650-24TS-L switch is crucial for businesses that require a flexible and scalable network infrastructure. By connecting multiple switches together, businesses can create a resilient network architecture with improved redundancy and performance. Furthermore, the stackable capability simplifies network troubleshooting and monitoring, allowing administrators to quickly identify and resolve any issues that may arise. Overall, the stackable feature enhances the reliability, scalability, and manageability of the network infrastructure.

Ports

The Cisco WS-C3650-24TS-L switch boasts 24 ports, making it an ideal solution for businesses that require a sufficient number of connections for their network devices. These ports provide users with flexibility and versatility in connecting various devices such as computers, printers, servers, and IP phones.

Benefits of 24 Ports

Having 24 ports on the Cisco WS-C3650-24TS-L switch offers several benefits to users. Firstly, it eliminates the need for additional networking equipment or switches to accommodate multiple devices. With 24 ports available, businesses can easily connect their essential devices without worrying about port availability.

Scalability

The 24 ports on this switch allow for future scalability. As businesses grow and expand, they often need to add more devices to their network. The 24 ports provide room for growth and ensure that businesses can easily connect new devices without the hassle of purchasing additional switches or networking equipment.

Flexibility

Having 24 ports on a switch provides users with flexibility in connecting different types of devices. Whether it's a computer, printer, server, or IP phone, the Cisco WS-C3650-24TS-L switch's 24 ports can accommodate a wide range of devices. This flexibility allows businesses to create a customized and efficient network infrastructure tailored to their specific needs.

Importance of 24 Ports

The 24 ports on the Cisco WS-C3650-24TS-L switch are essential for businesses that require a robust and versatile network infrastructure. With 24 ports available, businesses can easily connect their critical devices, ensuring seamless communication and collaboration. Furthermore, the ample number of ports allows for future scalability, enabling businesses to expand their network as needed without the hassle of investing in additional switches.

Streamlined Connectivity

The 24 ports on this switch provide streamlined connectivity, eliminating the need for excessive cabling and reducing the complexity of the network infrastructure. With all devices connected directly to the switch, businesses can enjoy efficient data transfer and minimize potential bottlenecks. Additionally, streamlined connectivity simplifies troubleshooting and maintenance tasks, as administrators can easily identify and resolve issues by examining the connected devices.

Cost-Effective Solution

The Cisco WS-C3650-24TS-L switch's 24 ports offer a cost-effective solution for businesses that require multiple connections. Instead of investing in multiple switches or networking equipment, businesses can rely on this single switch to accommodate their device connectivity needs. This not only reduces upfront costs but also minimizes ongoing maintenance and management expenses.

Conclusion

In conclusion, the Cisco WS-C3650-24TS-L Rack-mountable Layer2 Desktop Stackable Switch is a highly versatile and feature-rich networking device. Its Layer 2 switching capability ensures efficient and secure data transmission, while the rack-mountable design allows for easy installation and space utilization. The stackable capability enhances scalability and simplifies network management. With 24 ports, this switch provides businesses with flexibility, scalability, and streamlined connectivity. Overall, the Cisco WS-C3650-24TS-L switch is an excellent choice for businesses that require a reliable and scalable network infrastructure.
