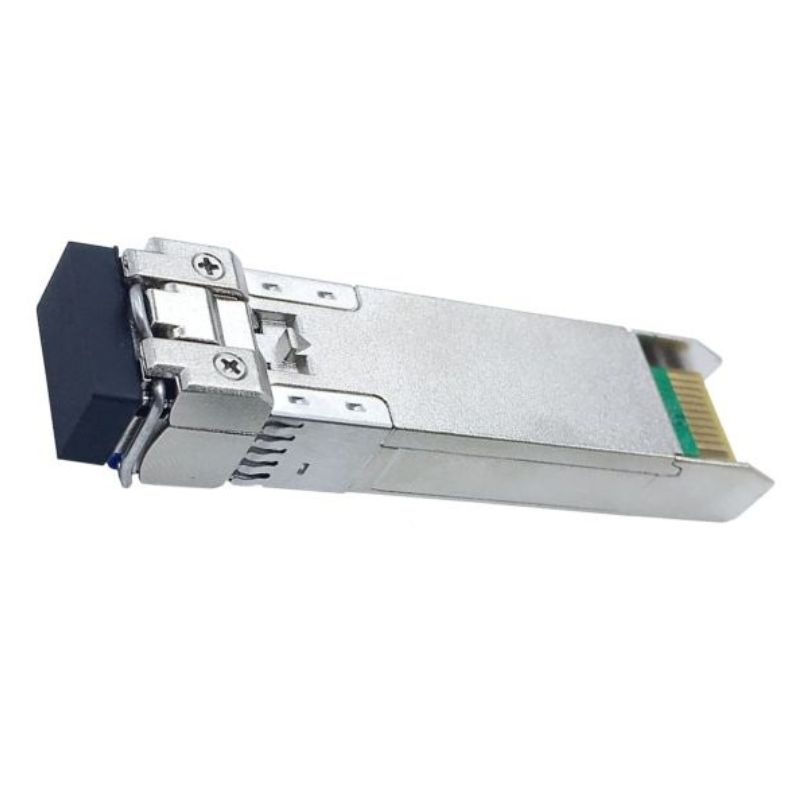

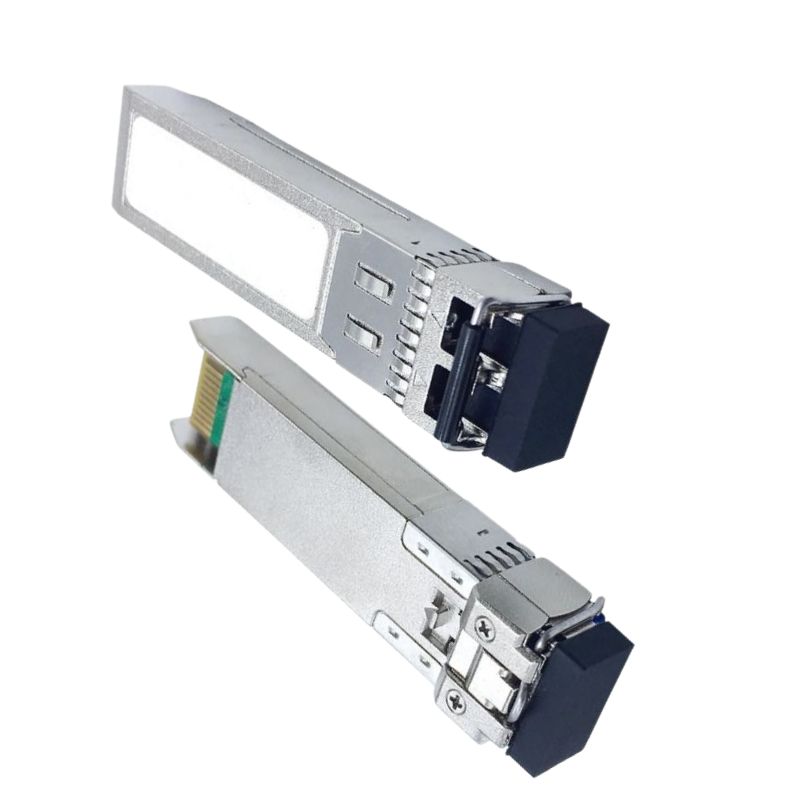

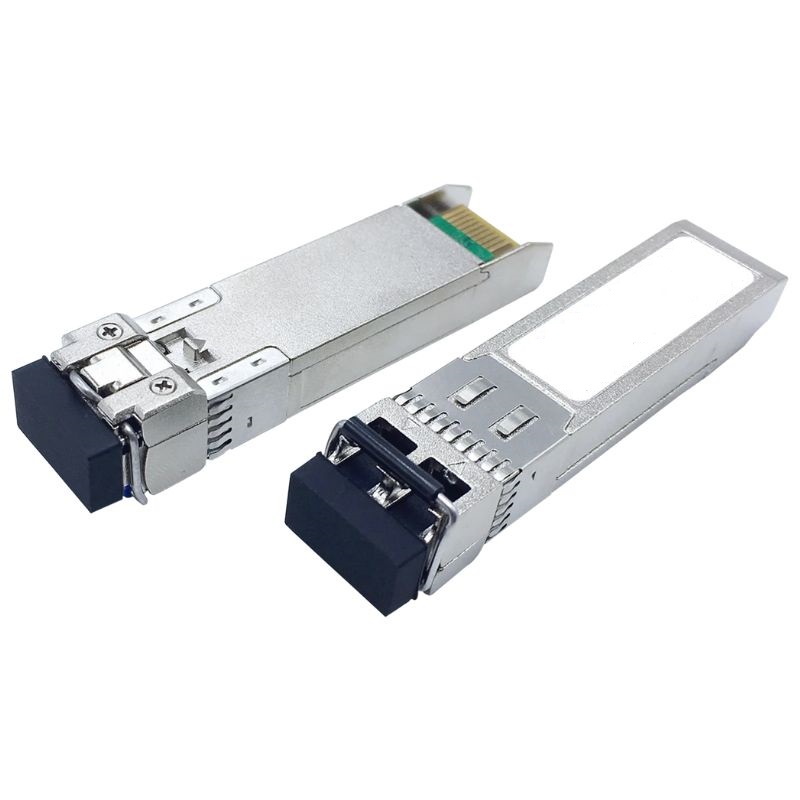

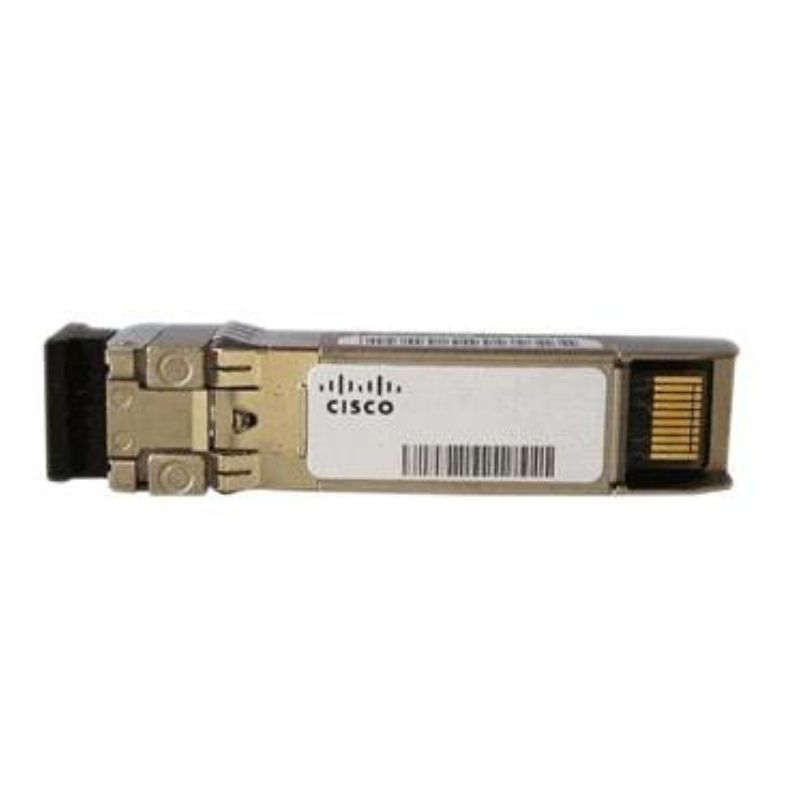

Cisco 10 GigE CWDM Single-Mode Fiber 1550nm SFP+ Transceiver Module. CWDM-SFP10G1550

CWDM-SFP10G1550 Cisco 10 GigE Single-Mode Fiber 1550nm SFP+ Transceiver Module Overview

The CWDM-SFP10G1550 is a high-performance, cost-effective optical transceiver module designed for 10 Gigabit Ethernet (10GbE) and other high-speed fiber optic applications. Engineered for use with Cisco networking equipment, this transceiver supports single-mode fiber (SMF) connections, utilizing a 1550nm wavelength for extended reach and minimal signal degradation.

Key Features of CWDM-SFP10G1550

High-Speed Data Transmission

The CWDM-SFP10G1550 supports 10GbE data rates, making it ideal for high-bandwidth applications in enterprise networks, data centers, and metropolitan area networks (MANs).

1550nm Wavelength for Long-Distance Communication

Operating at a 1550nm wavelength, this SFP+ module offers improved signal integrity over long distances, enabling fiber connections up to 80 km with appropriate optical fiber and network configurations.

Compatibility with Cisco Networking Equipment

Engineered to be fully compatible with Cisco routers and switches, the CWDM-SFP10G1550 provides seamless integration, ensuring optimal performance in Cisco network environments.

Hot-Pluggable Design

With a hot-swappable form factor, this transceiver module allows for easy deployment and replacement without network downtime, enhancing network flexibility and maintenance efficiency.

Low Power Consumption

The CWDM-SFP10G1550 is designed for energy-efficient operation, consuming minimal power while maintaining high-performance optical communication capabilities.

Benefits of CWDM-SFP10G1550 in Network Applications

Scalability and Cost Efficiency

The CWDM technology allows multiple wavelengths to be transmitted over a single fiber, significantly increasing network capacity while reducing infrastructure costs.

Extended Reach for Metropolitan Networks

Supporting long-distance fiber optic links, this transceiver is ideal for MAN applications, allowing seamless data transmission across extended geographic areas.

High Reliability and Performance

With rigorous testing and compliance with industry standards, the CWDM-SFP10G1550 ensures robust performance in critical network environments.

Reduced Network Downtime

The hot-pluggable design facilitates quick replacements and upgrades, reducing maintenance time and minimizing disruptions to network operations.

Technical Specifications

Optical and Electrical Characteristics

• Wavelength: 1550nm
• Maximum Data Rate: 10Gbps
• Transmission Distance: Up to 80 km (with SMF)
• Connector Type: LC Duplex
• Operating Temperature: 0 to 70°C
• Power Consumption: < 1.5W

Applications of CWDM-SFP10G1550

Enterprise Networks

Ideal for high-speed intra-office data transmission, supporting large-scale business operations with seamless connectivity.

Data Centers

Enables high-bandwidth data transfer between servers, ensuring efficient data processing and storage.

Telecommunication Networks

Widely used by ISPs and telecom providers for expanding fiber-optic backbone infrastructure.

Campus and Metropolitan Area Networks

Supports inter-building and city-wide networking, allowing cost-effective, high-speed communication.

How to Install and Configure the CWDM-SFP10G1550

Installation Steps

1. Ensure the network device is powered off before inserting the transceiver.
2. Align the module with the SFP+ slot and gently push it in until it clicks into place.
3. Connect the appropriate fiber optic cable to the LC Duplex connector.
4. Power on the network device and verify the link status.

Troubleshooting and Maintenance

• Check for proper seating of the transceiver in the SFP+ slot.
• Ensure fiber optic cables are clean and properly connected.
• Monitor signal strength and power levels using Cisco’s diagnostic tools.
