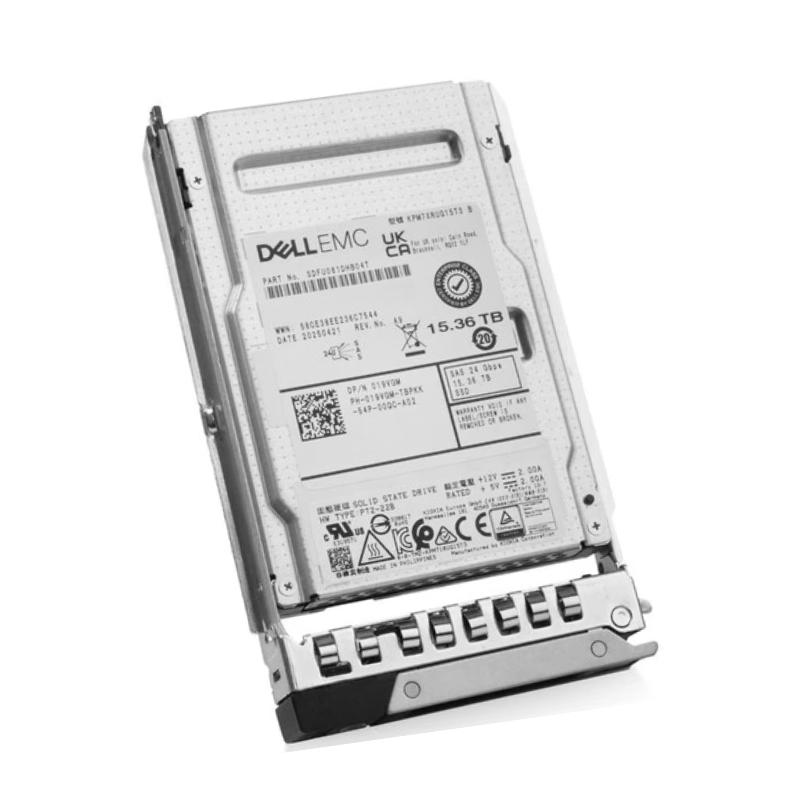

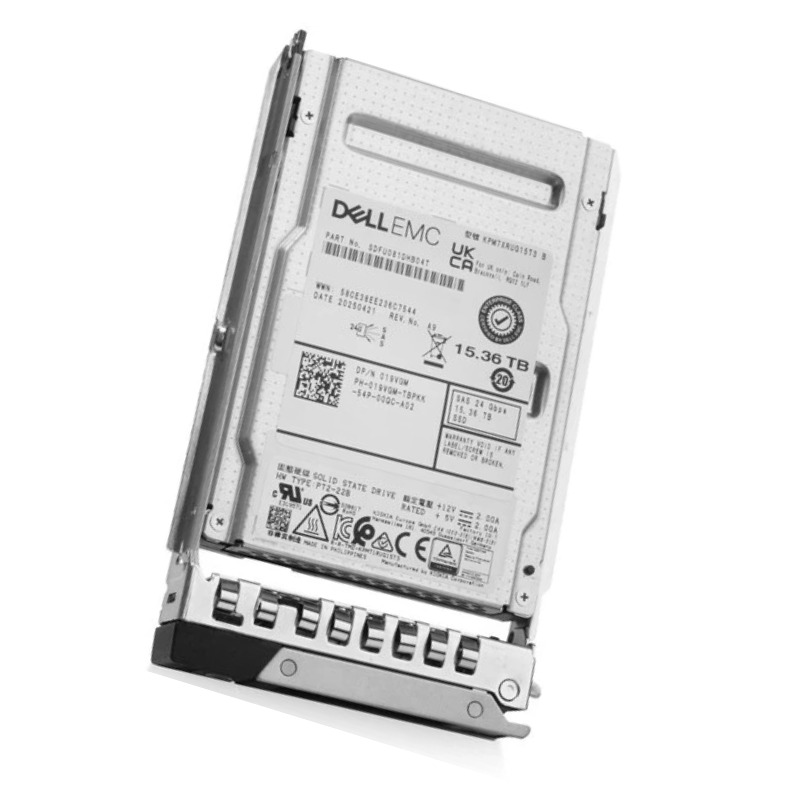

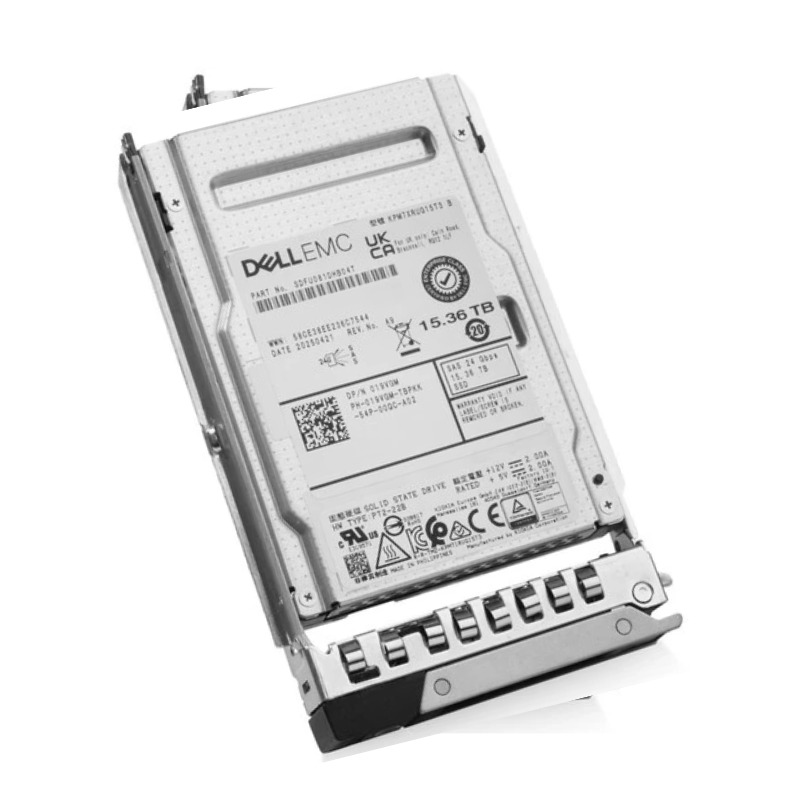

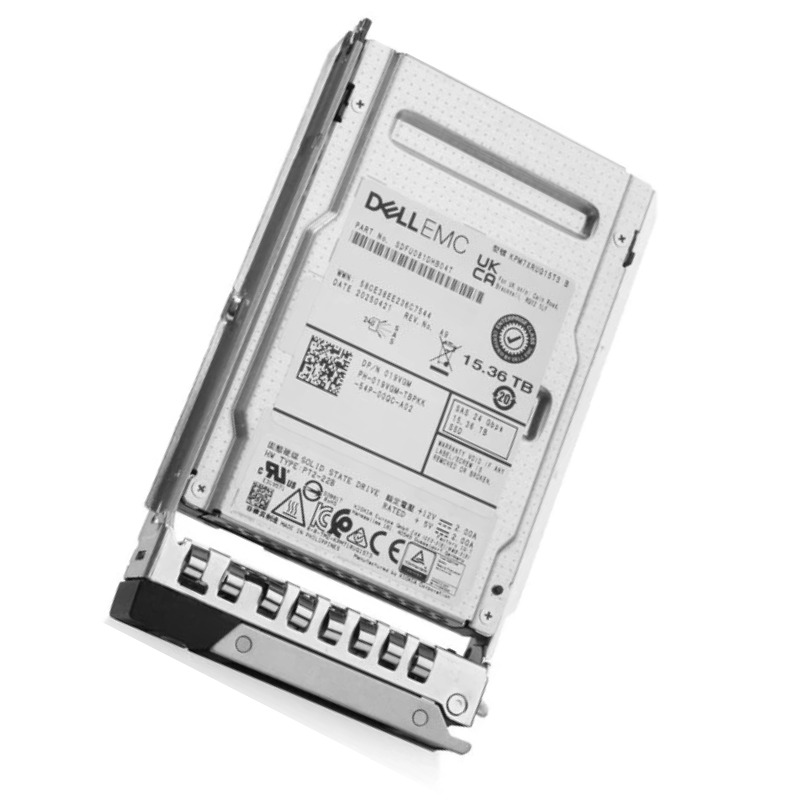

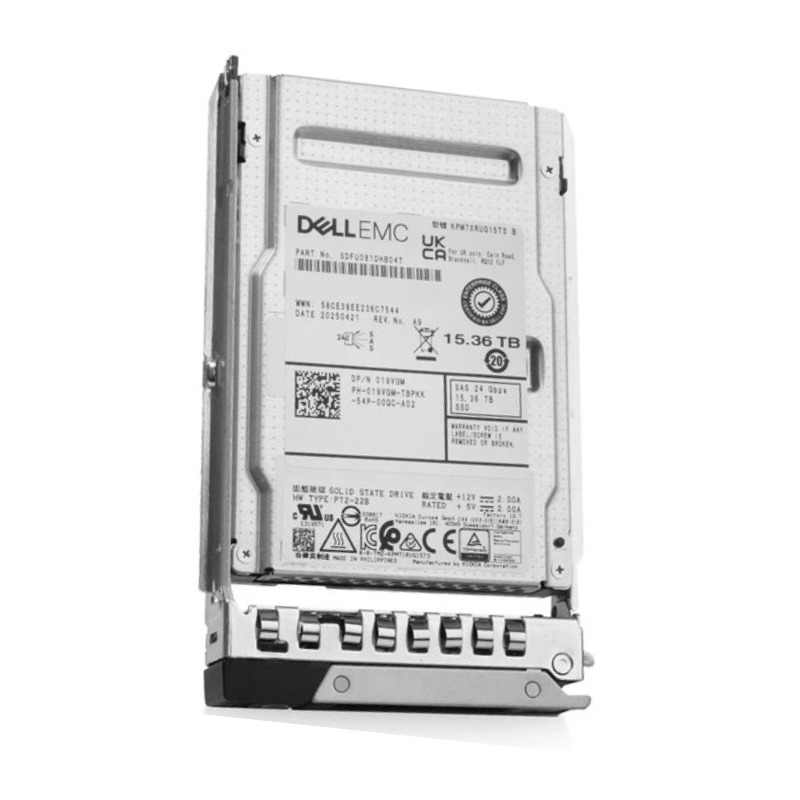

019VGM Dell 15.36TB SAS 24GBPS Read-Intensive 2.5Inch Hot-Plug Solid State Drive

 Overview of the High-Capacity Storage Drive

This Dell hot-swappable solid state drive is engineered for demanding data center workloads, delivering massive storage density with consistent, low-latency performance. Designed for read-focused applications, it supports modern server infrastructures that require reliability, speed, and long-term endurance.

Main Specifications

• Brand: Dell
• Part Reference: 019VGM
• Drive Category: Enterprise-grade solid state drive

Drive Architecture & Design

• Total Storage Size: 15.36 TB
• Usage Profile: Read-intensive environments
• Flash Technology: BiCS Flash™ TLC NAND
• Physical Size: 2.5-inch form factor
• Drive Thickness: 15 mm
• Hot-Swap Support: Yes, for uninterrupted maintenance
• Connection Standard: SAS-4
• Maximum Interface Bandwidth: SAS 24 Gb/s

Performance Metrics

• Sequential Read (128 KiB): Up to 4200 MB/s
• Sequential Write (128 KiB): Up to 4100 MB/s
• Random Read (4 KiB): Up to 720,000 IOPS
• Random Write (4 KiB): Up to 160,000 IOPS

Reliability & Endurance

• Data Protection: Built-in power loss protection
• Drive Writes Per Day: 1 DWPD
• Mean Time Between Failures: 2.5 million hours

Supported Dell Server Platforms

• PowerEdge C6420, C6520, C6525, C6620
• PowerEdge HS5610, HS5620
• PowerEdge R350, R440, R450, R550
• PowerEdge R640, R650, R650xs, R6515, R6525
• PowerEdge R660, R660xs, R6615, R6625
• PowerEdge R740, R740xd
• PowerEdge R750, R750xa, R750xs, R7515, R7525
• PowerEdge R760, R760xa, R760xs, R7615, R7625
• PowerEdge R840, R860
• PowerEdge R940, R940xa, R960
• PowerEdge T550, T560
• PowerEdge XE9680, XR7620
• PowerVault MD2424

SAS Solid State Storage

The category of enterprise-grade SAS solid state drives represents a critical segment of modern data center and mission-critical IT infrastructure. Products such as the Dell 019VGM 15.36TB SAS 24Gbps Read-Intensive 2.5-Inch Hot-Plug Solid State Drive are designed to address the growing demand for high-capacity, high-throughput, and highly reliable storage solutions. This category focuses on drives engineered for sustained performance, predictable latency, and long operational lifespans in environments where downtime and data loss are unacceptable.

SAS (Serial Attached SCSI) solid state drives differentiate themselves from consumer and entry-level enterprise SATA solutions by offering superior bandwidth, dual-port capability, advanced command queuing, and enterprise-grade firmware. These attributes make them especially suitable for large-scale virtualization platforms, cloud infrastructures, high-performance databases, analytics workloads, and software-defined storage systems. The Dell 019VGM SSD exemplifies this category by combining extremely high storage density with next-generation SAS interface speeds and optimized endurance for read-intensive workloads.

Positioning Within the Enterprise Storage Ecosystem

Within the broader enterprise storage ecosystem, read-intensive SAS SSDs occupy a strategic position between high-end NVMe solutions and capacity-focused hard disk drives. They provide a balanced combination of cost efficiency, capacity scalability, and performance consistency. Unlike HDDs, which suffer from mechanical latency and limited IOPS, SAS SSDs deliver microsecond-level response times and dramatically higher throughput. At the same time, they offer more predictable thermal and power profiles than many ultra-high-performance NVMe devices, making them ideal for dense rack deployments.

The Dell 019VGM 15.36TB SAS SSD fits into this category as a high-capacity option optimized for environments where read operations dominate. Examples include data warehousing, content delivery networks, large-scale virtual desktop infrastructure (VDI), and backup repositories that require fast data retrieval. Its design allows enterprises to consolidate storage, reduce physical drive counts, and simplify infrastructure while maintaining enterprise-grade reliability.

High-Capacity 2.5-Inch Form Factor Advantages

The 2.5-inch form factor remains a standard in enterprise servers and storage arrays due to its optimal balance between density, cooling efficiency, and compatibility. Drives in this category are designed to fit seamlessly into existing server bays, enabling straightforward upgrades and expansions without requiring changes to chassis or backplane configurations. The Dell 019VGM SSD leverages this form factor to deliver an impressive 15.36TB of usable capacity within a compact footprint.

High-capacity 2.5-inch SAS SSDs enable organizations to maximize storage per rack unit. This is particularly important in colocation facilities and hyperscale data centers where space efficiency directly impacts operational costs. By deploying fewer drives to achieve the same or greater capacity, enterprises can reduce cabling complexity, minimize power consumption, and simplify maintenance workflows.

Hot-Plug Capability

Hot-plug functionality is a defining characteristic of enterprise storage categories, allowing drives to be inserted or removed without powering down the system. This capability is essential for maintaining uptime in mission-critical environments. The Dell 019VGM SAS SSD supports hot-plug operations, enabling administrators to replace or upgrade drives during active workloads with minimal disruption.

In clustered and redundant storage architectures, hot-plug support enhances fault tolerance and serviceability. Failed drives can be swapped quickly, reducing mean time to repair (MTTR) and lowering the risk of cascading failures. This feature aligns with the needs of enterprises operating under strict service level agreements (SLAs) and regulatory requirements.

SAS 24Gbps Interface and Performance Characteristics

The SAS 24Gbps interface represents a significant evolution in enterprise storage connectivity. By doubling the bandwidth of previous SAS generations, it allows solid state drives to deliver higher sustained throughput and improved scalability. Drives in this category are engineered to take full advantage of this interface, ensuring that performance bottlenecks are minimized even under heavy workloads.

The Dell 019VGM SSD, as part of this category, benefits from the increased link speed by supporting faster data transfers between the drive and the host system. This is particularly advantageous in environments with multiple concurrent read operations, such as analytics engines, search platforms, and large-scale application servers. The higher bandwidth also improves performance consistency during peak usage periods.

Dual-Port Architecture for High Availability

Enterprise SAS SSDs typically feature a dual-port architecture, allowing two independent data paths between the drive and the host. This design enhances availability and resilience by enabling redundant connections. If one path fails due to a cable, controller, or port issue, the other path can maintain access to the data without interruption.

This dual-port capability is a key differentiator of SAS-based storage categories and is especially valuable in shared storage environments such as SANs and clustered servers. It supports advanced failover mechanisms and load balancing, contributing to higher overall system reliability.

Read-Intensive Workload

Read-intensive SSD categories are specifically optimized for scenarios where read operations significantly outnumber writes. These drives use firmware tuning and endurance profiles that prioritize read performance and capacity while maintaining sufficient write durability for metadata updates and occasional write bursts. The Dell 019VGM 15.36TB SSD exemplifies this category by offering an optimal balance of endurance and performance for read-heavy use cases.

Common applications for read-intensive SAS SSDs include media streaming, content repositories, online transaction processing with read-dominant access patterns, and business intelligence platforms. By selecting drives designed for these workloads, organizations can achieve better cost efficiency compared to mixed-use or write-intensive SSDs, without sacrificing reliability.

Endurance Metrics and Reliability Considerations

Enterprise read-intensive SSDs are rated with endurance metrics that reflect their intended usage patterns. These metrics, often expressed as drive writes per day (DWPD), indicate how much data can be written to the drive daily over its warranty period. While optimized for reads, these drives still incorporate robust wear-leveling, error correction, and data protection mechanisms to ensure long-term reliability.

The category emphasizes predictable performance over the drive’s lifespan, avoiding sudden degradation as the drive ages. This predictability is crucial for enterprise planning and capacity management, allowing IT teams to forecast maintenance cycles and replacement schedules accurately.

Enterprise and Data Protection Features

A defining aspect of enterprise SAS SSD categories is the inclusion of advanced firmware features designed to protect data integrity and ensure consistent operation. These features include power-loss protection, end-to-end data path protection, and advanced error correction codes. Such capabilities are essential in environments where data accuracy and availability are paramount.

The Dell 019VGM SSD benefits from enterprise-grade firmware validation and testing, ensuring compatibility and stability within Dell server ecosystems. Firmware optimizations help maintain steady latency, reduce jitter, and support advanced management and monitoring tools.

Power-Loss Protection and Data Integrity

Power-loss protection is a critical feature in enterprise SSD categories. It ensures that data in transit is safely committed to non-volatile memory in the event of an unexpected power failure. This prevents data corruption and maintains file system consistency, which is especially important for databases and transactional systems.

Combined with end-to-end data protection, which verifies data integrity from the host to the NAND flash and back, these features provide confidence that stored information remains accurate and accessible under all operating conditions.

Scalability and Storage Density Benefits

High-capacity SAS SSD categories enable significant scalability improvements for enterprise storage architectures. With capacities reaching and exceeding 15TB per drive, organizations can design storage pools that scale vertically without increasing physical complexity. This is particularly beneficial for software-defined storage platforms that rely on dense, high-performance drives.

The Dell 019VGM 15.36TB SSD allows enterprises to consolidate multiple lower-capacity drives into fewer high-capacity units. This consolidation reduces the number of drive bays required, frees up slots for future expansion, and simplifies inventory management.

Impact on Power, Cooling, and TCO

Storage density has a direct impact on power consumption and cooling requirements. Fewer drives generally translate to lower aggregate power draw and reduced heat output. Enterprise SAS SSDs are designed to operate efficiently within server thermal envelopes, contributing to overall data center energy efficiency.

From a total cost of ownership (TCO) perspective, high-capacity read-intensive SSDs can offer significant savings over time. Reduced hardware counts, lower maintenance overhead, and improved performance efficiency all contribute to a more favorable long-term cost profile.

Compatibility with Enterprise Server Platforms

Enterprise storage categories must ensure broad compatibility with server platforms, RAID controllers, and storage management software. SAS SSDs like the Dell 019VGM are designed to integrate seamlessly with enterprise-grade servers, supporting common operating systems, hypervisors, and storage stacks.

This compatibility simplifies deployment and reduces the risk of integration issues. It also allows organizations to leverage existing infrastructure investments while upgrading storage performance and capacity.

RAID, Virtualization, and Cloud Integration

Read-intensive SAS SSDs are well-suited for use in RAID configurations, providing fast rebuild times and consistent performance. Their predictable latency characteristics improve overall array responsiveness, which is critical in virtualized environments where multiple workloads share the same storage resources.

In private and hybrid cloud deployments, these drives support scalable storage architectures that can adapt to changing workload demands. Their reliability and performance consistency make them a preferred choice for cloud service providers and large enterprises alike.

Use Cases Across Industries

The category encompassing high-capacity, read-intensive SAS SSDs serves a wide range of industries, including finance, healthcare, media, education, and government. Each of these sectors relies on fast, reliable access to large volumes of data, often under strict compliance and availability requirements.

In financial services, these drives support rapid access to historical transaction data and real-time analytics. In healthcare, they enable quick retrieval of imaging and patient records. Media and entertainment organizations benefit from fast content delivery and large media libraries, while educational and research institutions leverage them for data-intensive simulations and analysis.
