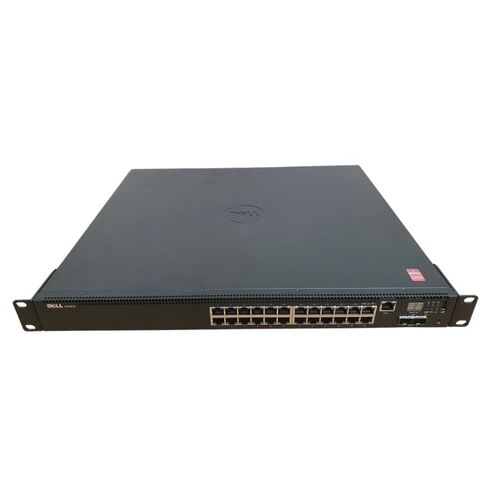

Dell 0P06N N2024P Layer 3 Network Switches - 24 Ports, POE+ Management
- — Free Ground Shipping
- — Min. 6-month Replacement Warranty
- — Genuine/Authentic Products
- — Easy Return and Exchange
- — Different Payment Methods
- — Best Price
- — We Guarantee Price Matching
- — Tax-Exempt Facilities
- — 24/7 Live Chat, Phone Support
- — Visa, MasterCard, Discover, and Amex
- — JCB, Diners Club, UnionPay
- — PayPal, ACH/Wire Transfer
- — Apple Pay, Amazon Pay, Google Pay
- — Buy Now, Pay Later - Affirm, Afterpay
- — GOV/EDU/Institutions PO's Accepted
- — Invoices
- — Deliver Anywhere
- — Express Delivery in the USA and Worldwide
- — Ship to -APO -FPO
- — For USA - Free Ground Shipping
- — Worldwide - from $30
Product Overview
- The Dell 0P06N N2024p Layer 3 Switch provides advanced networking capabilities with 24-port PoE+ functionality, ensuring robust and efficient network management for businesses and enterprises. It offers a highly manageable and stackable solution with exceptional performance for high-speed data handling and optimized traffic flow.
Key Features
Device Type and Enclosure
- Manufacturer: Dell
- Part Number: 0P06N
- Device Type: 24-port L2+ managed stackable switch
- Enclosure Type: Rack-mountable (1U)
Network and Connectivity Specifications
- Subtype: Gigabit Ethernet
- Ports: 24 x 10/100/1000 Ethernet + 2 x 10 Gigabit SFP+
- PoE+ Support: Power over Ethernet (PoE+)
Performance and Bandwidth
- Switching Fabric Bandwidth: 172 Gbps
- Forwarding Performance: 128 Mpps
- Stacking Bandwidth: 84 Gbps
Capacity and Virtual Interfaces
- Virtual Interfaces (VLANs): Up to 4096
- ARP Entries: 1024
- NDP Entries: 400
- Priority Queues per Port: 8
- IPv4 Routes (Static): 256
- IPv6 Routes (Static): 128
- IPv4 Routes (Dynamic): 256
ACL and VLAN Routing Specifications
- VLAN Routing Interfaces: 256
- System-wide ACL Rules: 2048 maximum
- Ingress/Egress Rules per Interface (IPv4): Up to 1024 Ingress, 512 Egress
- Ingress/Egress Rules per Interface (IPv6): Up to 512 Ingress, 256 Egress
- MAC Address Table: 8192 entries
Management and Security Protocols
- Remote Management Protocols: Telnet, TFTP
- Encryption Algorithms: MD5, AES, SSL, TLS
- Authentication Methods: SSH, RADIUS, TACACS+
Supported Networking Features
- Flow control, auto-negotiation, VLAN support, and port mirroring
- DiffServ support for traffic prioritization
- Broadcast storm control and ACL support
- Front-to-back airflow and energy-efficient Ethernet (EEE)
- Redundant fan design for enhanced cooling
Memory and Storage
- RAM: 1 GB
- Flash Memory: 256 MB
Expansion and Connectivity
- Interfaces:
- 24 x Gigabit LAN RJ-45 with PoE+ (30.8 W per port)
- 2 x 10Gb LAN SFP+
- 1 x Serial (RS-232) RJ-45 management
- 1 x USB Type A
- 2 x Network stack device ports
Power Specifications
- Power Supply: Internal
- Power Output: 1000 Watts
- Operational Power Consumption: 42.9 Watts
- Additional Feature: Redundant Power System (RPS) connector
Ports
The Dell N2024P Layer 3 Network Switches are equipped with 24 ports, making them an ideal choice for small to medium-sized businesses that require a reliable networking solution. The 24 ports offer ample connectivity options, allowing users to connect multiple devices such as computers, servers, printers, and more.
Increased Flexibility
With 24 ports, the Dell N2024P Layer 3 Network Switches provide users with increased flexibility in setting up their network infrastructure. This means that businesses can easily connect and manage a variety of devices simultaneously, without the need for additional switches or complicated setups. Whether you have a growing team or a demanding network environment, the 24 ports ensure you have enough connectivity options to accommodate your needs.
Efficient Network Expansion
The 24 ports on the Dell N2024P Layer 3 Network Switches allow for efficient network expansion. As your business grows and more devices need to be connected to the network, having additional ports readily available eliminates the need for investing in new switches or complex configurations. This not only saves your business valuable time but also reduces costs associated with network expansion.
Streamlined Connectivity
Having 24 ports on the Dell N2024P Layer 3 Network Switches ensures streamlined connectivity throughout your network infrastructure. Whether you need to connect devices in different rooms or across different floors, the ample number of ports allows for easy and efficient connectivity. This eliminates the hassle of running multiple cables or relying on additional equipment to achieve seamless connectivity.
POE+
One standout feature of the Dell N2024P Layer 3 Network Switches is their support for Power over Ethernet Plus (POE+). With POE+ technology, these switches can deliver both data and power over a single Ethernet cable, eliminating the need for separate power sources for connected devices.
Powering Devices
POE+ support on the Dell N2024P Layer 3 Network Switches means that users can power various devices directly through the Ethernet cable. This includes IP phones, wireless access points, surveillance cameras, and other network devices. By eliminating the need for separate power sources, businesses can simplify their network setup and reduce clutter caused by multiple power cables.
Cost Savings
The POE+ feature on the Dell N2024P Layer 3 Network Switches offers significant cost savings for businesses. By eliminating the need for separate power outlets and adapters, businesses can reduce their overall infrastructure costs. Additionally, the ability to remotely power and manage devices through the switch's interface saves time and resources by eliminating the need for manual intervention or site visits.
Flexibility in Device Placement
With POE+ support, the Dell N2024P Layer 3 Network Switches provide flexibility in device placement. Devices powered via Ethernet cables can be installed in locations where power outlets are not easily accessible or where it is not feasible to run additional power cables. This allows for greater flexibility in deploying network devices, making it easier to meet specific business requirements and optimize network performance.
Management
The Dell N2024P Layer 3 Network Switches come equipped with comprehensive management capabilities to ensure smooth operation and efficient network management.
Centralized Control
With the management feature of the Dell N2024P Layer 3 Network Switches, users gain centralized control over their network infrastructure. Through a user-friendly interface, administrators can easily configure and monitor the switch, ensuring optimal network performance. Centralized control simplifies network management tasks, saving time and effort in maintaining a stable and secure network.
Enhanced Security
The management feature of the Dell N2024P Layer 3 Network Switches allows for enhanced security measures. Administrators can implement access controls, create VLANs, and monitor network traffic to detect and prevent unauthorized access or malicious activities. This ensures the integrity of the network and protects sensitive data from potential threats.
Efficient Troubleshooting
The management capabilities of the Dell N2024P Layer 3 Network Switches enable efficient troubleshooting in case of network issues. Administrators can access real-time information about the switch's performance, monitor port activity, and identify potential bottlenecks or connectivity problems. This proactive approach to troubleshooting helps minimize downtime and ensures a reliable and responsive network.
In conclusion, the Dell N2024P Layer 3 Network Switches offer numerous benefits with their 24 ports, POE+ support, and comprehensive management features. The 24 ports provide increased flexibility, efficient network expansion, and streamlined connectivity. The POE+ feature enables powering devices through Ethernet cables, resulting in cost savings, flexibility in device placement, and simplified infrastructure. The management capabilities offer centralized control, enhanced security, and efficient troubleshooting, ensuring a stable and secure network environment. Whether you are a small business or a growing enterprise, the Dell N2024P Layer 3 Network Switches are an excellent choice for your networking needs.
