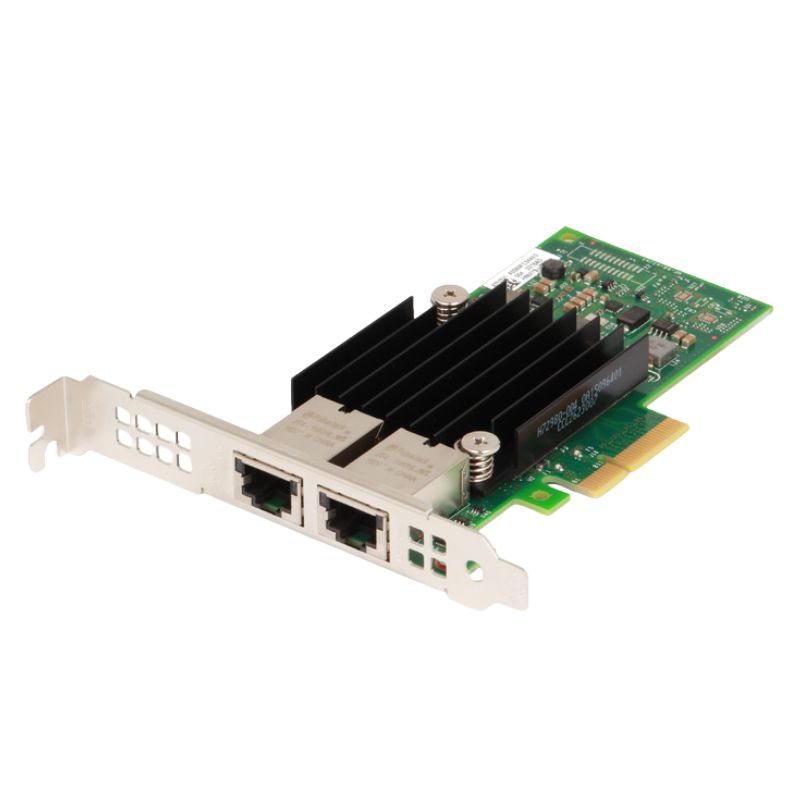

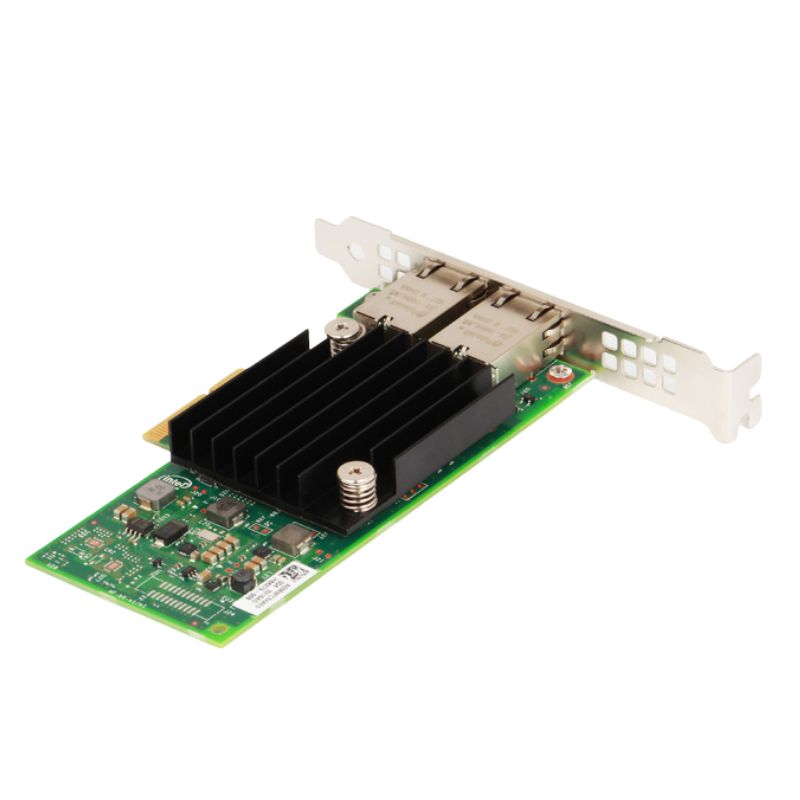

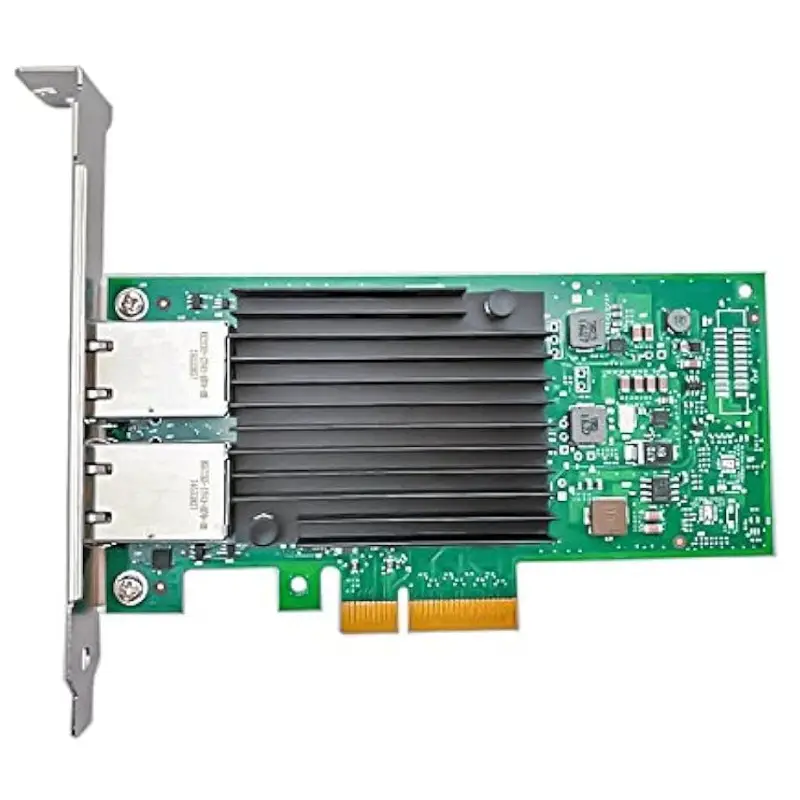

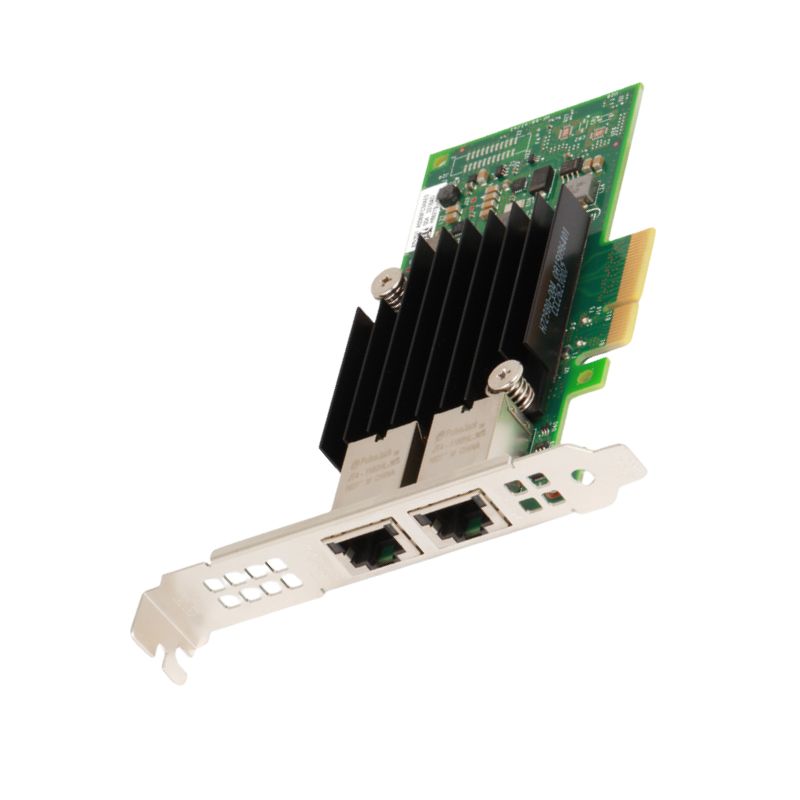

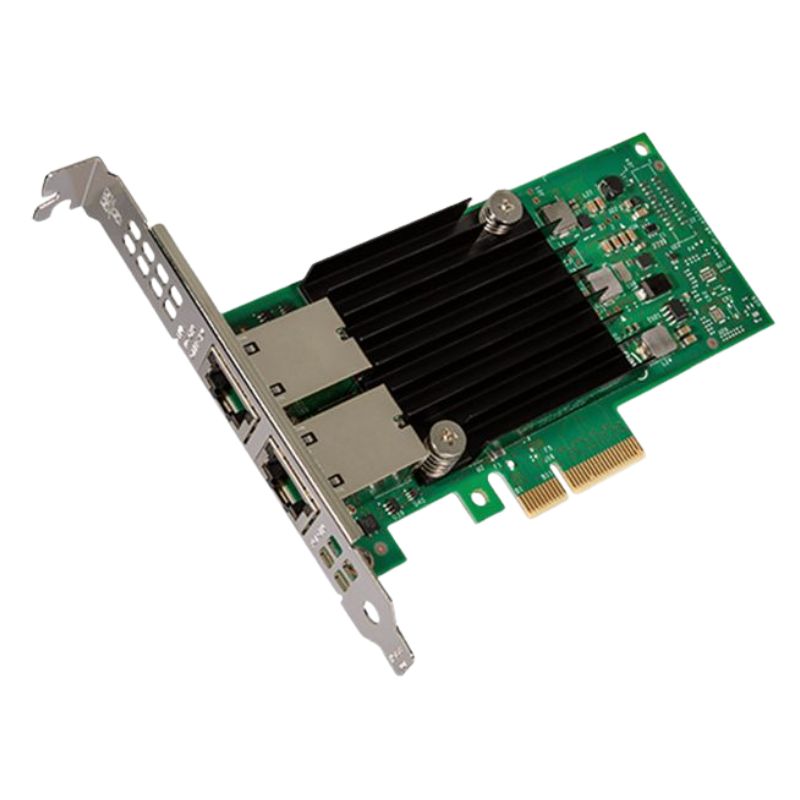

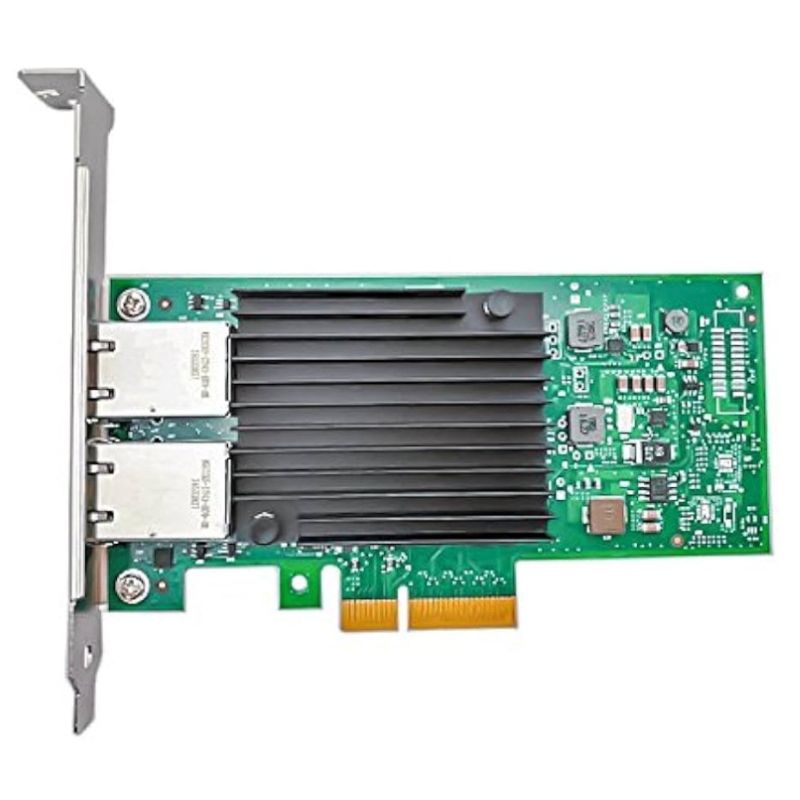

540-BBZX Dell 10 Gigabit Ethernet PCI-E 2 Ports Converged Network Adapter

Dell 540-BBZX 10 Gigabit PCI-E Converged Network Adapter

High-Performance Dual-Port Networking Solution

The Dell 540-BBZX Converged Network Adapter is engineered to deliver ultra-fast 10 Gigabit Ethernet connectivity with enhanced reliability for enterprise-grade systems. Designed for demanding server environments, it ensures stable and efficient data transmission across high-bandwidth workloads.

Key Product Highlights

• Brand: Dell
• Part Number / SKU: 540-BBZX
• Product Category: Converged Network Adapter (CNA)
• Port Configuration: Dual-Port (2 Ports)

Advanced Hardware & Build Specification

Form Factor and Interface

Built as a plug-in expansion card, this adapter utilizes a PCI Express 3.0 x16 interface, ensuring high-speed data communication between the server motherboard and network infrastructure.

Technical Architecture Benefits

• Optimized for server and data center deployments
• Stable high-throughput performance for virtualization and storage traffic
• Reduced latency with PCIe 3.0 x16 lane bandwidth

Networking Capabilities and Performance

Speed and Connectivity Standards

This adapter supports 10GBase-T technology across two RJ-45 ports, enabling seamless integration with standard copper Ethernet cabling while delivering 10 Gbps data transfer speeds per port.

Core Networking Features

• Data Link Protocol: 10 Gigabit Ethernet (10 GbE)
• Transmission Medium: Wired Ethernet connection
• Maximum Data Rate: Up to 10 Gbps per port

Expansion and Interface Details

Dual RJ-45 Port Configuration

The adapter includes two 10GBase-T RJ-45 interfaces, providing flexible connectivity options for high-speed LAN environments and enterprise switching systems.

Connectivity Advantages

• Supports standard RJ-45 copper cabling infrastructure
• Enables cost-effective network upgrades without fiber dependency
• Ideal for scalable data center networking

Enterprise Use Cases

Optimized for Modern IT Environments

• High-performance cloud computing infrastructure
• Virtualized server environments requiring high bandwidth
• Enterprise data centers with heavy network traffic loads
• Storage area network (SAN) and unified communication systems

Operational Advantages

• Improved network throughput for critical applications
• Enhanced system efficiency under heavy workloads
• Reliable dual-port redundancy for continuous connectivity

Dell 540-BBZX 10 Gigabit 2 Ports Converged Network Adapter

The Dell 540-BBZX Intel 10 Gigabit Ethernet PCI-E 2 Ports Converged Network Adapter is a high-performance networking solution designed for enterprise-level servers, data centers, and virtualization environments that demand ultra-fast, reliable, and low-latency network connectivity. Built on Intel’s advanced Ethernet controller architecture and optimized for Dell PowerEdge systems, this dual-port Converged Network Adapter (CNA) delivers scalable bandwidth, improved workload efficiency, and seamless integration into modern IT infrastructures.

This category of dual-port 10GbE PCI-E adapters plays a crucial role in enabling high-speed data transfer between servers, storage systems, and network backbones. It is widely used in cloud computing, virtualization clusters, storage area networks (SAN), and high-performance computing (HPC) environments where consistent throughput and reduced CPU overhead are essential.

Dell 540-BBZX 10GbE Converged Network Adapter

Intel-Based Controller Technology

At the heart of the Dell 540-BBZX adapter lies Intel’s proven Ethernet controller technology, engineered to deliver deterministic performance and high reliability under heavy network loads. Intel’s hardware acceleration features reduce CPU utilization by offloading networking tasks such as checksum calculations, segmentation, and packet processing. This ensures that server resources remain available for critical application workloads.

PCI Express Interface Design

The adapter utilizes a PCI Express (PCI-E) interface, providing a direct and high-bandwidth connection to the server motherboard. PCI-E architecture ensures low latency communication between the network adapter and system bus, enabling consistent throughput for demanding applications such as real-time analytics, virtualization, and database replication.

Lane Efficiency and Bandwidth Optimization

Depending on system configuration, the PCI-E interface ensures efficient lane utilization to support full 10 Gigabit speeds per port. This makes the adapter suitable for environments where multiple virtual machines or containers require simultaneous high-speed network access without congestion.

Dual-Port 10 Gigabit Ethernet Capability

High-Speed Network Throughput

The Dell 540-BBZX adapter features two independent 10GbE ports, allowing for a combined potential throughput of up to 20Gbps under optimal conditions. This dual-port configuration enhances redundancy, load balancing, and traffic segmentation within enterprise environments.

Load Balancing and Failover Support

Network administrators often deploy dual-port adapters like the 540-BBZX for failover configurations, ensuring uninterrupted connectivity in case one link experiences failure. Load balancing techniques distribute traffic across both ports, improving overall efficiency and reducing bottlenecks.

Redundancy in Mission-Critical Systems

In mission-critical deployments such as financial systems, healthcare databases, and cloud hosting environments, redundancy is essential. The dual-port architecture ensures continuous availability and minimizes downtime risks associated with single-port network failures.

Converged Network Adapter (CNA) Functionality

Integration of LAN and SAN Traffic

As a Converged Network Adapter, the Dell 540-BBZX supports convergence of LAN (Local Area Network) and SAN (Storage Area Network) traffic over a single infrastructure. This reduces hardware complexity and cabling requirements while improving overall data center efficiency.

Support for iSCSI and FCoE Protocols

CNA technology enables support for protocols such as iSCSI and Fibre Channel over Ethernet (FCoE), allowing organizations to unify storage and networking infrastructure. This simplifies management and reduces operational costs while maintaining high-speed storage access.

Optimized Storage Performance

By offloading storage-related network processing tasks, the adapter ensures consistent and optimized performance for storage-heavy workloads, including virtual machine disk access, database storage, and backup operations.

Enterprise Use Cases and Deployment Scenarios

Data Center Virtualization

The Dell 540-BBZX adapter is widely deployed in virtualized environments powered by platforms such as VMware, Microsoft Hyper-V, and KVM. Its ability to handle multiple virtual machine traffic streams simultaneously makes it ideal for dense virtualization clusters.

VMware Optimization Features

Features such as VMware NetQueue and SR-IOV support allow virtual machines to directly access network resources, reducing latency and improving throughput. This results in enhanced VM performance and better workload isolation.

Cloud Infrastructure Environments

Cloud service providers rely heavily on high-speed networking hardware like the Dell 540-BBZX to maintain service-level agreements (SLAs). The adapter supports scalable network architectures that are essential for multi-tenant cloud platforms.

Scalability in Multi-Tenant Systems

The dual-port design allows cloud environments to segment traffic between tenants, ensuring fair bandwidth distribution and minimizing cross-tenant interference.

High-Performance Computing (HPC)

In HPC clusters, network latency and throughput are critical factors. The 10GbE performance of this adapter ensures fast node-to-node communication, enabling efficient parallel processing for scientific simulations, AI model training, and big data analytics.

Performance Optimization Features

TCP/IP Offloading Engine

The adapter incorporates TCP/IP offloading capabilities that reduce CPU workload by handling segmentation and checksum processing at the hardware level. This improves overall system efficiency and frees CPU cycles for application-level tasks.

Large Send Offload (LSO)

LSO improves network performance by allowing large data packets to be segmented by the network adapter instead of the CPU, reducing processing overhead and increasing throughput efficiency.

Receive Side Scaling (RSS)

RSS distributes incoming network traffic across multiple CPU cores, ensuring balanced processing and reducing bottlenecks in multi-core server environments.

Interrupt Moderation Technology

Interrupt moderation reduces CPU overhead by limiting the number of interrupts generated by network traffic. This allows the system to process packets more efficiently, improving overall network performance under heavy load conditions.

Compatibility and System Integration

Dell PowerEdge Server Compatibility

The Dell 540-BBZX adapter is optimized for integration with Dell PowerEdge server platforms. This ensures maximum compatibility, firmware stability, and driver support across enterprise-grade server configurations.

Driver and Firmware Support

Regular driver updates and firmware enhancements ensure long-term reliability and compatibility with modern operating systems such as Windows Server, Linux distributions, and VMware ESXi environments.

Operating System Support

This network adapter supports a wide range of enterprise operating systems, making it suitable for heterogeneous IT environments. Compatibility with Linux kernels and Windows Server editions ensures flexibility in deployment.

Network Security and Data Integrity

Hardware-Based Security Features

Security is a critical aspect of enterprise networking, and the Dell 540-BBZX adapter incorporates hardware-level features that help protect data integrity and prevent packet-level vulnerabilities.

Checksum Offload and Validation

Checksum offloading ensures that data integrity checks are performed efficiently at the hardware level, reducing CPU load and improving packet processing accuracy.

Secure Virtualization Support

Virtualization security features ensure isolation between virtual machines while maintaining high-speed network communication. This is essential for multi-tenant environments where data separation is critical.

Energy Efficiency and Thermal Management

Low Power Consumption Design

The Dell 540-BBZX adapter is designed with energy efficiency in mind, ensuring minimal power consumption even under heavy workloads. This is particularly important in large-scale data centers where energy costs are a significant operational concern.

Dynamic Power Adjustment

The adapter can dynamically adjust power usage based on network load, reducing energy consumption during low-traffic periods while maintaining full performance under peak demand.

Thermal Stability in Server Environments

Efficient thermal design ensures that the adapter operates within safe temperature ranges, even in densely packed server racks. This contributes to long-term hardware reliability and reduced failure rates.

Scalability in Modern IT Infrastructure

Support for Growing Network Demands

As organizations scale their IT infrastructure, the demand for higher bandwidth and lower latency continues to increase. The Dell 540-BBZX adapter provides a scalable solution that meets evolving enterprise networking requirements.

Future-Ready Networking Architecture

With support for 10 Gigabit Ethernet and advanced offloading technologies, this adapter ensures compatibility with future network upgrades and hybrid cloud environments.

Integration with Software-Defined Networking (SDN)

The adapter is suitable for SDN environments where network control is abstracted from hardware. This allows administrators to dynamically manage traffic flows and optimize network performance programmatically.
