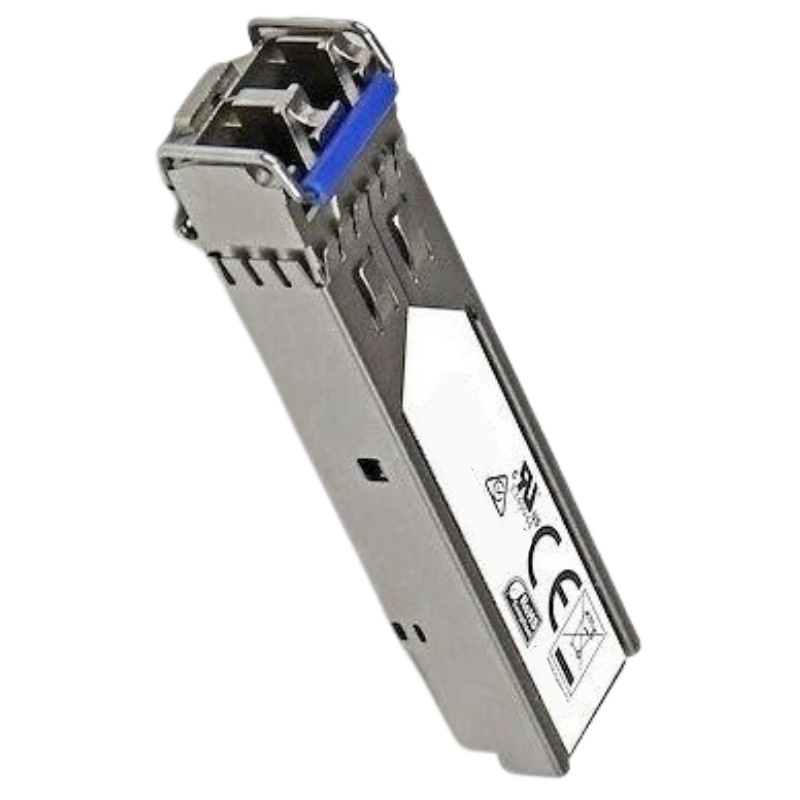

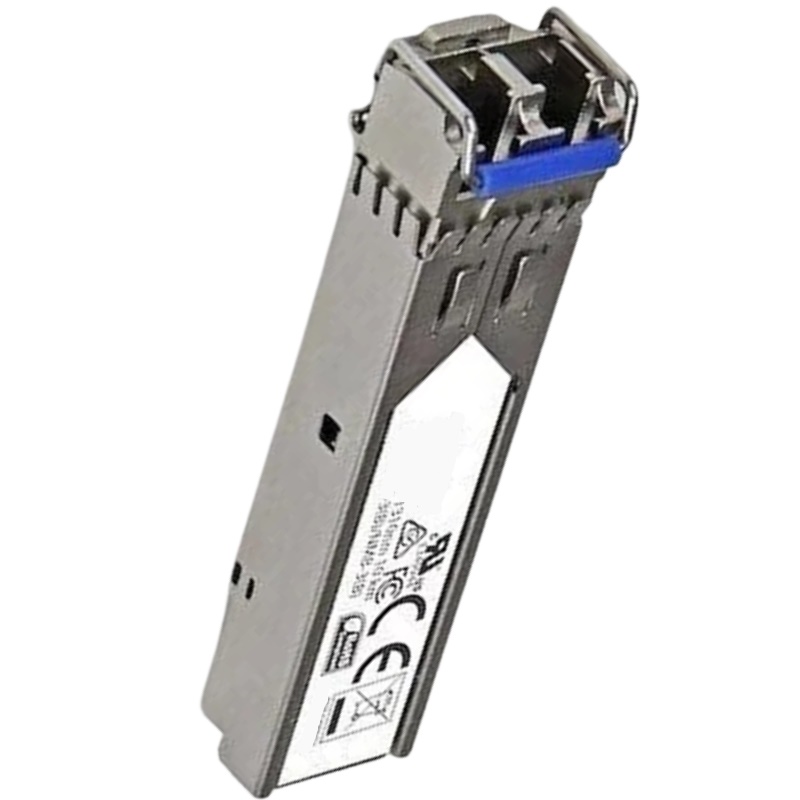

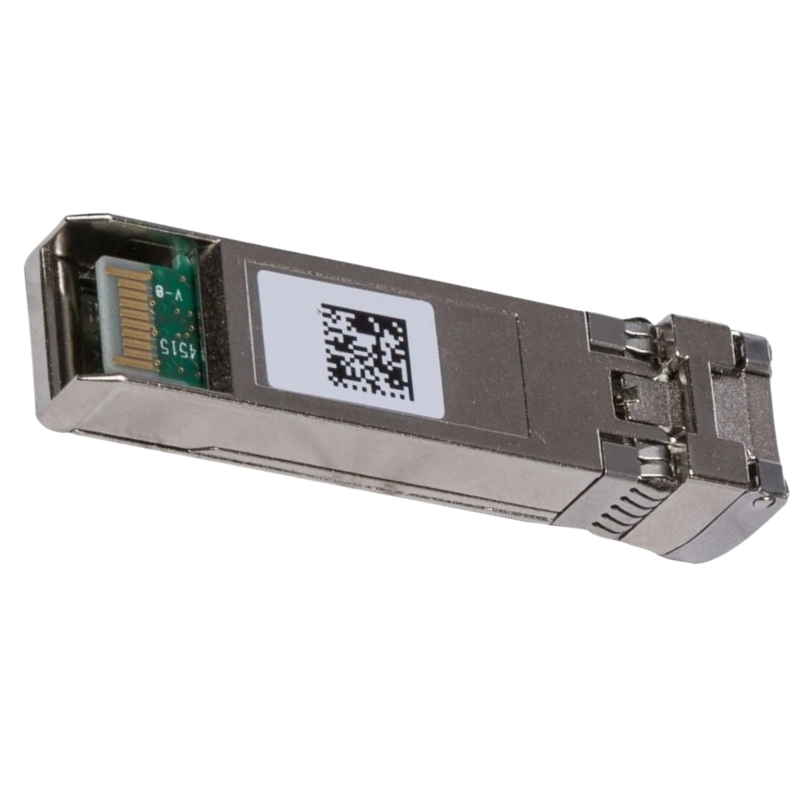

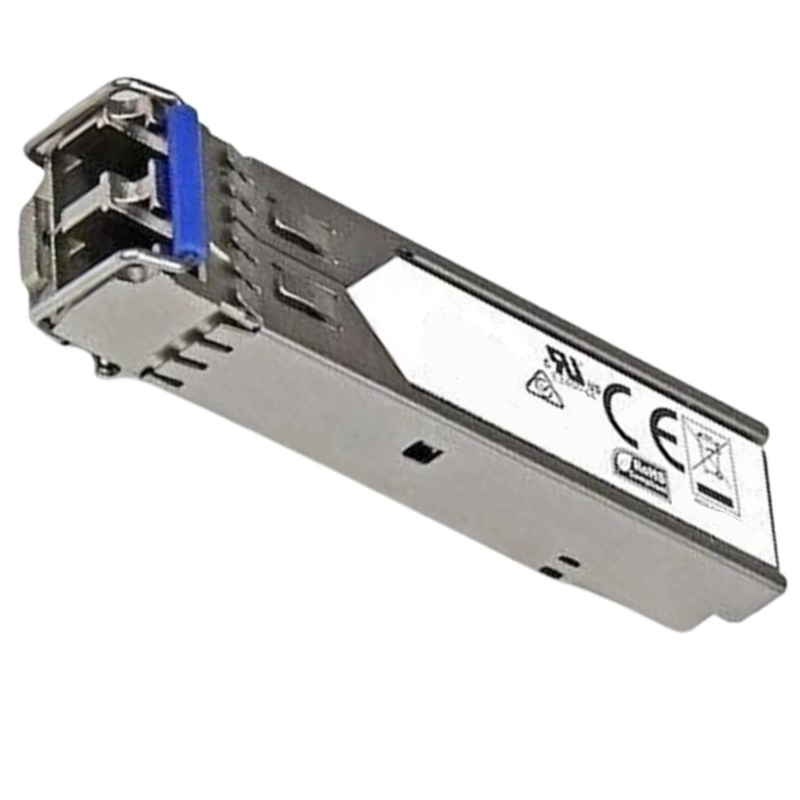

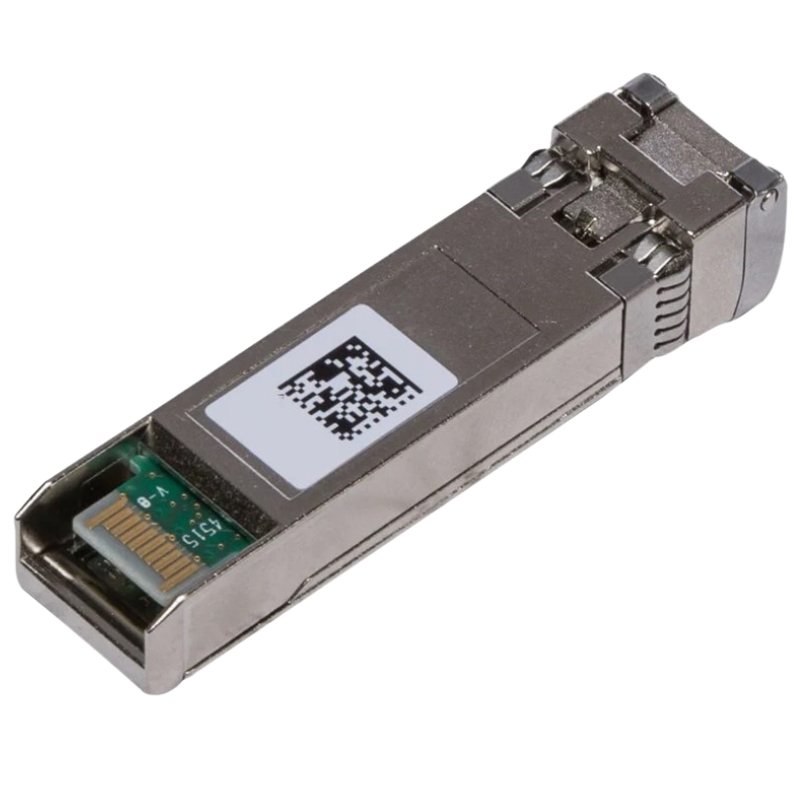

HN12K Dell 10G SFP+ SR Transceiver Module

Dell HN12K Optical GBIC 10G SFP+ SR Transceiver Module

The Dell HN12K Optical GBIC 10G SFP+ SR Transceiver Module is a high-performance, hot-pluggable fiber optic networking component designed for modern data center environments. It delivers reliable 10 Gigabit Ethernet connectivity over multi-mode fiber (MMF), ensuring stable, low-latency communication for enterprise servers and switching systems.

General Information

• Manufacturer: Dell
• Part Number: HN12K
• Product Type: Optical Transceiver Module

Core Networking & Specifications

• Hot-pluggable SFP+ (Small Form-factor Pluggable Plus) design
• 10GBASE-SR short-range Ethernet standard support
• Data transfer rate up to 10 Gbps
• Multi-rate operation from 1.25 Gbps to 11.32 Gbps
• 850 nm short-wavelength optical transmission

Optical Technology

• Oxide VCSEL (Vertical-Cavity Surface-Emitting Laser) transmitter
• PIN photodiode receiver for accurate signal detection
• Duplex LC / UPC fiber connector interface
• Multi-mode fiber (MMF) optimized architecture

Transmission Distance & Optical Reach

• Up to 400 meters over OM4 (50/125 µm MMF)
• Up to 300 meters over OM3 (50/125 µm MMF)
• Average link budget: 6.1 dB

Power & Electrical Characteristics

• Standard +3.3V single power supply
• Transmitting power range: -5 dBm to 0 dBm
• Receiver sensitivity: -11.1 dBm
• Optimized for low power consumption in data centers

Advanced Monitoring & Diagnostic Features

• Real-time laser power tracking
• Temperature monitoring system
• Voltage status diagnostics
• Improved network fault detection and maintenance

Hot-Plug & Operational Flexibility

• Hot-swappable SFP+ module design
• No system downtime required during replacement
• Plug-and-play installation capability
• Improved maintenance efficiency for IT teams

Compliance & Industry

• RoHS compliant (environmentally friendly design)
• CE marked for safety and performance standards
• Class 1 Laser safety compliance
• TAA compliant for government deployment use

Server Compatibility

• Pre-coded to prevent unsupported module errors
• Compatible with Dell PowerEdge servers (R620, R720, R630, R730, R740)
• Seamless integration with modern Dell server infrastructure
• Reliable operation in enterprise environments

Dell HN12K Transceiver

• Stable 10Gbps high-speed fiber transmission
• Long-distance support up to 400 meters (OM4)
• Advanced VCSEL laser optical technology
• Low power and energy-efficient operation
• Reliable Dell server ecosystem compatibility

Dell HN12K Optical GBIC 10G SFP+ SR Transceiver Overview

The Dell HN12K Optical GBIC 10G SFP+ SR Transceiver Module represents a high-performance optical networking component designed for modern enterprise-grade data transmission environments. Developed for high-speed switching, server connectivity, and storage networking, this transceiver module is optimized for 10 Gigabit Ethernet (10GbE) short-range fiber communication. In enterprise infrastructure deployments, it plays a critical role in ensuring stable, low-latency, and high-throughput optical communication across data centers and cloud networks. Manufactured under the engineering standards of this module is widely recognized for reliability, compatibility, and performance efficiency in mission-critical networking systems.

Understanding 10G SFP+ SR Transceiver Technology

The SFP+ (Small Form-Factor Pluggable Plus) architecture is a compact, hot-swappable optical interface used in 10 Gigabit Ethernet applications. The Dell HN12K module adheres to this architecture, allowing seamless integration into compatible switches, routers, and network interface cards. It is engineered to support high-density port configurations while maintaining energy efficiency and thermal stability in data center environments.

Short Range (SR) Optical Communication Design

The SR designation indicates that the module is optimized for short-range transmission over multimode fiber cables. Typically, the Dell HN12K operates efficiently within a range of up to 300 meters using OM3 fiber and approximately 400 meters using OM4 fiber. This makes it ideal for intra-data center connectivity, where devices are located in close proximity but require ultra-fast data exchange capabilities.

10 Gigabit Ethernet Performance Capabilities

Designed for 10GbE networking, the module ensures consistent high-speed data throughput essential for virtualization, cloud computing, and enterprise storage systems. The optical transceiver supports full-duplex communication, reducing latency and enabling simultaneous transmission and reception of data packets without congestion.

Technical Specifications

The Dell HN12K module utilizes vertical-cavity surface-emitting laser (VCSEL) technology to deliver reliable optical signals. This technology ensures minimal signal distortion, improved bandwidth efficiency, and reduced power consumption. The module is optimized for stable performance even in high-density networking environments where electromagnetic interference may be present.

Wavelength and Fiber Compatibility

This transceiver operates at an 850nm wavelength, which is standard for SR optical modules. It is compatible with multimode fiber (MMF) cabling, particularly OM3 and OM4 fiber types. The wavelength consistency ensures predictable signal behavior across short-distance fiber runs within enterprise racks and structured cabling systems.

Power Consumption and Thermal Control

One of the key advantages of the Dell HN12K is its low power consumption profile. Designed for energy-efficient data centers, it minimizes heat output while maintaining high-speed performance. This contributes to reduced cooling requirements and improved overall system efficiency in large-scale IT infrastructures.

Hot-Swappable Design Advantages

The hot-swappable capability allows IT administrators to install or replace the module without shutting down the system. This feature significantly reduces downtime and enhances operational continuity in enterprise networks where uptime is critical. It also simplifies maintenance and hardware upgrades.

Data Center Networking Infrastructure

The Dell HN12K Optical GBIC module is widely used in data center environments where high-speed interconnectivity between servers, switches, and storage arrays is required. It supports spine-leaf architecture commonly used in modern hyperscale data centers, ensuring efficient traffic flow and reduced network congestion.

Enterprise Storage

Storage Area Networks benefit significantly from the use of 10G SFP+ SR transceivers. The Dell HN12K ensures fast data replication, backup operations, and storage clustering, making it suitable for mission-critical business continuity applications where data integrity and speed are essential.

Compatibility

The module is designed for compatibility with a wide range of Dell networking equipment, including enterprise switches and modular routers. Its standardized SFP+ interface ensures interoperability with multi-vendor networking environments, provided they support 10GbE SFP+ SR specifications.

Fiber Cabling Requirements

To achieve optimal performance, the module requires high-quality multimode fiber optic cabling. OM3 and OM4 fibers are recommended due to their low attenuation and high bandwidth support. Proper cable management is essential to maintain signal integrity and avoid transmission loss.

Performance Optimization

The Dell HN12K module is engineered to reduce latency in packet transmission, which is essential for real-time applications such as financial trading systems, video streaming platforms, and enterprise communication tools. Its optical design minimizes delay caused by electrical-to-optical signal conversion.

Bandwidth Scalability

With 10GbE capability, the module supports scalable bandwidth expansion in growing network infrastructures. Organizations can deploy multiple modules across switching layers to achieve higher aggregate throughput without redesigning the entire network architecture.

Installation and Operational Considerations

The module is designed for plug-and-play installation into SFP+ slots. Proper handling procedures must be followed to avoid contamination of optical connectors. Dust caps should be used when the module is not in operation to preserve optical clarity and performance reliability.

System Configuration Requirements

Once installed, network devices may require configuration to recognize and optimize the transceiver module. This includes port speed configuration, duplex settings, and optical diagnostics setup to ensure maximum operational efficiency.

Scalability for Future Network Expansion

Organizations can deploy the module as part of scalable network architectures that support future expansion. Whether upgrading existing infrastructure or building new systems, the module ensures compatibility with evolving 10GbE standards.

Advanced Networking Scenarios

In clustered computing environments, the module enables seamless communication between nodes, ensuring synchronized operations and balanced workload distribution across systems.

High-Density Rack Deployments

The compact SFP+ design allows deployment in high-density rack configurations where space optimization is essential. This supports modern data center designs that prioritize compact yet powerful networking solutions.

Hybrid Cloud Infrastructure Support

The module plays a role in hybrid cloud systems by facilitating fast data transfer between on-premises infrastructure and cloud environments. This ensures seamless integration and data mobility across platforms.

Reliability Engineering

Produced under strict quality control processes, the module meets international networking standards for optical communication devices. Each unit undergoes rigorous testing to ensure consistent performance.
