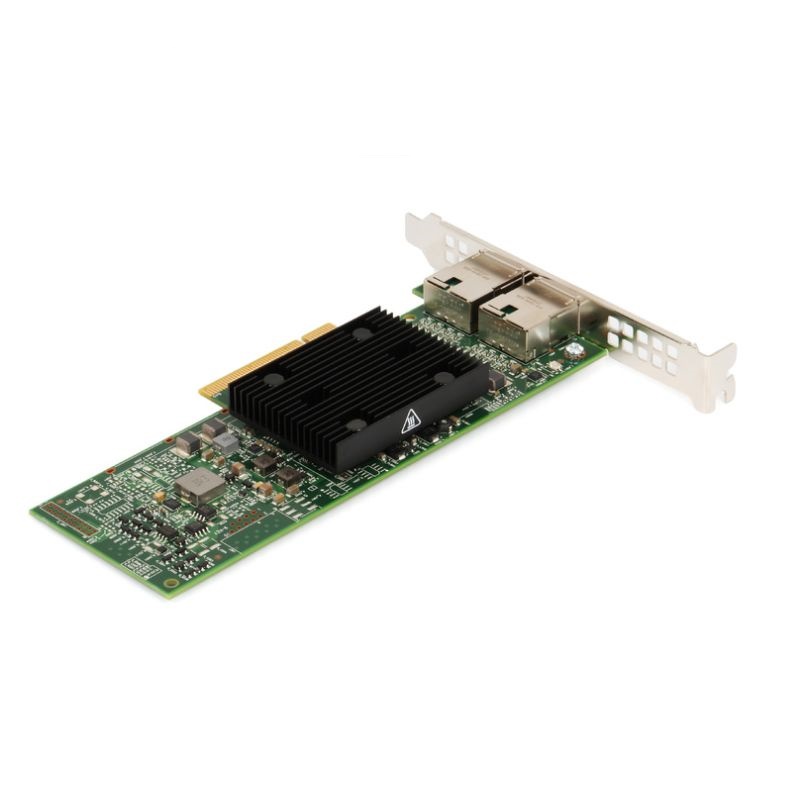

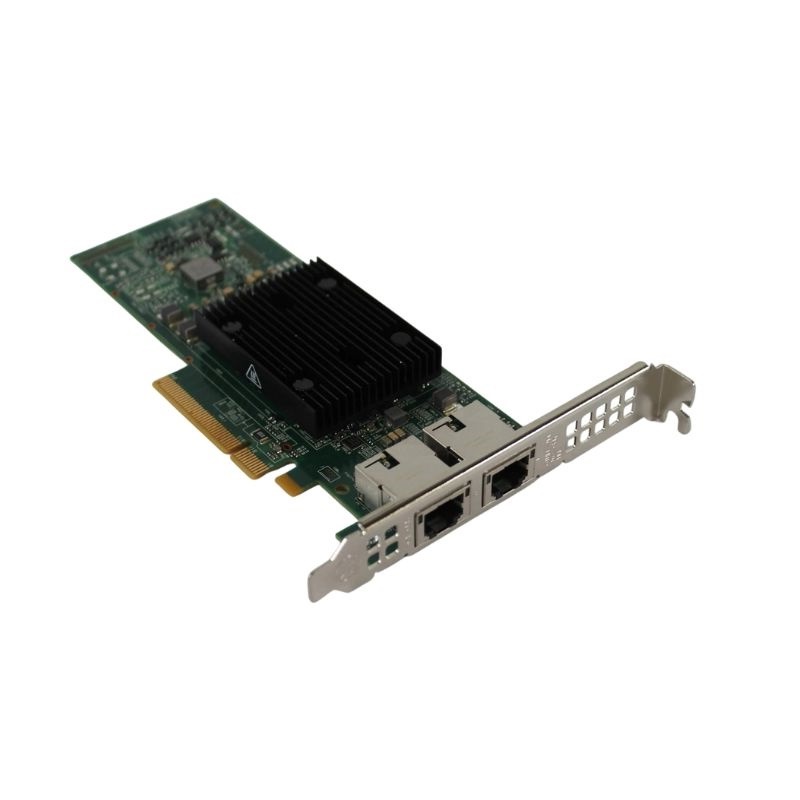

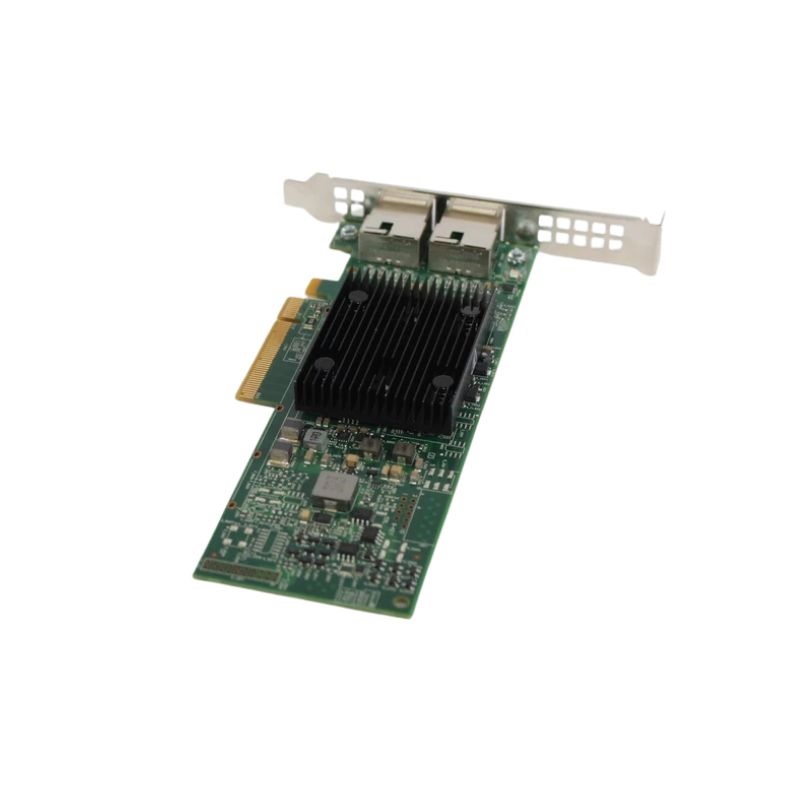

540-BBUO Dell 10GB Base-T Ethernet PCI-Express Network Adapters 2 Ports.

Dell 540-BBUO PCI-Express Network Adapter

The Dell 540-BBUO represents a pinnacle of network interface engineering, specifically designed for data-intensive environments where bandwidth, low latency, and unwavering reliability are non-negotiable. This dual-port 10GBASE-T adapter bridges the gap between legacy copper infrastructure and the burgeoning demands of modern virtualized data centers, high-performance computing clusters, and cloud service providers. By leveraging the ubiquitous RJ-45 connector, the Dell 540-BBUO allows organizations to achieve 10 Gigabit Ethernet speeds over existing Category 6a or Category 7 cabling, eliminating the costly and time-consuming process of migrating to fiber-optic networks. This adapter is not merely a component; it is a strategic asset that future-proofs server deployments, ensuring that network throughput scales seamlessly with application requirements, from massive database transactions to real-time analytics and high-definition media streaming.

10GBASE-T Advantage

While fiber optics often dominate conversations around high-speed networking, the 10GBASE-T standard, embodied by the Dell 540-BBUO, offers a compelling and pragmatic alternative. The primary advantage lies in its use of twisted-pair copper cabling, which is already prevalent in most enterprise data centers and server rooms. Furthermore, 10GBASE-T supports auto-negotiation, allowing the adapter to seamlessly downshift to 5GBASE-T, 2.5GBASE-T, 1000BASE-T, or even 100BASE-TX, providing unparalleled flexibility when connected to older network switches or during phased network upgrades. This feature ensures that the Dell 540-BBUO remains a versatile and long-lasting investment, adaptable to varying network speeds without the need for hardware replacement.

Key Specifications and Performance Metrics

At the heart of the Dell 540-BBUO lies a robust controller architecture optimized for high-throughput and low CPU utilization. The adapter utilizes a PCI-Express interface, typically Gen 2 or Gen 3 x8 lanes, providing a dedicated bandwidth of up to 16 GT/s, which is more than sufficient to handle full-duplex 10Gbps traffic on both ports simultaneously. Key performance indicators for this adapter include near wire-speed throughput, which minimizes packet loss and ensures consistent data flow even under peak loads. The hardware-based offload capabilities—including TCP/IP checksum offload, Large Send Offload (LSO), and Receive Segment Coalescing (RSC)—significantly reduce host processor overhead, freeing up CPU cycles for critical application processing. This makes the Dell 540-BBUO an ideal choice for virtualized environments where CPU resources are shared among multiple virtual machines (VMs).

Critical for Time-Sensitive Applications

In the realm of financial trading, high-frequency data acquisition, and real-time control systems, latency is the ultimate currency. The Dell 540-BBUO is engineered to deliver consistently low and predictable latency, with hardware-accelerated packet processing that minimizes interrupt moderation delays. The adapter supports advanced features such as Priority Flow Control (PFC) and Enhanced Transmission Selection (ETS), which are foundational for implementing Data Center Bridging (DCB). These capabilities allow network administrators to guarantee bandwidth for specific traffic classes (e.g., storage traffic via iSCSI or FCoE), ensuring that mission-critical data flows are never starved of network resources. The result is a deterministic network environment where jitter is virtually eliminated, fostering stability for latency-sensitive workloads.

Virtualization and Scalability

Virtualization has transformed the data center, and the Dell 540-BBUO is meticulously designed to support this paradigm. The adapter features advanced virtualization technologies, including Single Root I/O Virtualization (SR-IOV) and Virtual Machine Device Queues (VMDq). SR-IOV allows physical functions of the adapter to be partitioned into multiple virtual functions, which can be directly assigned to individual VMs. This bypasses the hypervisor's virtual switch, delivering near-native performance and dramatically reducing CPU overhead. VMDq, on the other hand, intelligently distributes network traffic to the appropriate VM receive queues, improving throughput and scalability in dense virtual environments. Whether you are managing a private cloud, a virtual desktop infrastructure (VDI), or a containerized microservices architecture, the Dell 540-BBUO provides the scalable, high-performance network fabric required to support dynamic workload mobility.

Advanced Network Offloads and Security Features

Beyond basic TCP/UDP offload, the Dell 540-BBUO incorporates a suite of sophisticated offload technologies that enhance both performance and security. The adapter supports IPsec offload, enabling the hardware to handle the computationally intensive encryption and decryption processes associated with secure VPN tunnels. This offload not only accelerates encrypted traffic but also secures communication without burdening the server's main processors. Furthermore, the adapter includes support for Remote Direct Memory Access (RDMA) over Converged Ethernet (RoCE) and iWARP, though specific implementation depends on the firmware and operating system. RDMA allows data to be transferred directly from the memory of one server to another without involving the CPU, dramatically reducing latency and CPU utilization for storage and clustering applications, a crucial feature for modern hyper-converged infrastructures.

Deployment Scenarios and Use Cases

The versatility of the Dell 540-BBUO makes it suitable for a wide array of deployment scenarios across various industry verticals. In enterprise data centers, it serves as the backbone for high-speed server-to-server communication, storage area networks (SANs) using iSCSI or FCoE, and high-availability clustering. For cloud service providers and web hosting companies, the adapter's ability to handle massive concurrent connections and deliver high throughput is crucial for ensuring service-level agreements (SLAs). In the media and entertainment industry, the Dell 540-BBUO enables seamless 4K/8K video editing and rendering workflows by providing the necessary bandwidth to transfer large uncompressed files across the network. Similarly, in scientific research and high-performance computing (HPC), the adapter facilitates the rapid exchange of simulation data and complex datasets between compute nodes, accelerating time-to-insight.

Integration with Dell PowerEdge Servers and Ecosystem

As a Dell-branded product, the 540-BBUO is rigorously validated and optimized for integration within the Dell PowerEdge server portfolio. This symbiotic relationship ensures absolute hardware compatibility, driver stability, and firmware consistency, minimizing the risk of unforeseen conflicts. The adapter is often a factory-installed option or a validated aftermarket addition, and it fully leverages Dell's OpenManage systems management framework. This tight integration allows for streamlined lifecycle management, including BIOS configuration, firmware updates, and health monitoring, all through a unified interface. For organizations standardized on Dell infrastructure, the 540-BBUO represents a seamless and reliable choice, supported by Dell's enterprise-level customer support and warranty, providing peace of mind for mission-critical deployments.

Power Efficiency

In modern data centers, energy efficiency is a critical operational concern. The Dell 540-BBUO is designed with power-saving technologies that reduce overall energy consumption without compromising performance. The adapter supports Energy-Efficient Ethernet (EEE), also known as IEEE 802.3az, which reduces power consumption during periods of low network activity by automatically transitioning to a lower-power state. Additionally, the adapter is built with efficient power regulation and thermal dissipation mechanisms, featuring a passive heatsink design that minimizes cooling requirements. By reducing both power draw and heat output, the Dell 540-BBUO contributes to a lower Power Usage Effectiveness (PUE) ratio for the data center, lowering operational costs and supporting corporate sustainability goals.

Physical Design and Form Factor

The physical footprint of the Dell 540-BBUO adheres to the standard PCI-Express low-profile form factor, allowing it to be installed in a wide variety of servers, including dense 1U and 2U rackmount systems. The included full-height bracket provides additional installation flexibility for larger chassis. The adapter's dual RJ-45 ports are clearly labeled and positioned for easy cable routing, minimizing the potential for cable management conflicts. The robust PCB construction and high-quality components are designed to withstand the thermal and electrical demands of a continuous 24/7 operational environment, ensuring long-term reliability and signal integrity.

Comparison with SFP+ Alternatives

While SFP+ based network adapters offer fiber connectivity, the Dell 540-BBUO's 10GBASE-T copper interface presents distinct operational advantages. SFP+ modules require separate transceivers, adding to the per-port cost and inventory complexity. In contrast, the Dell 540-BBUO utilizes integrated RJ-45 ports, eliminating the need for additional optics. For data centers with copper cabling already in place, the 540-BBUO represents a more cost-effective and faster deployment option, as it avoids the expense and labor of installing new fiber infrastructure. Furthermore, 10GBASE-T cabling is typically more durable and less susceptible to physical damage than fiber optic cables, simplifying cable management and maintenance in busy data center environments. For distances up to 100 meters over Cat6a, the 540-BBUO provides ample reach for most rack-to-rack and row-to-row connections.

Reliability

Dell applies rigorous quality assurance and reliability testing to all its branded components, and the 540-BBUO is no exception. The adapter undergoes extensive validation testing, including thermal cycling, vibration stress, electromagnetic interference (EMI) compliance, and extended burn-in testing to ensure it meets enterprise-class reliability standards. Furthermore, Dell's global supply chain and quality control processes ensure that each adapter is manufactured to consistent specifications, providing a uniform experience across all units deployed in your data center. The use of high-grade capacitors, precision clock generators, and robust PCB materials contributes to the adapter's overall durability and signal fidelity.

Firmware and Security Updates

Maintaining the security and performance of network infrastructure requires a proactive firmware management strategy. Dell provides regular firmware updates for the 540-BBUO, which can be easily deployed via Dell's Update Packages (DUP) or integrated with tools like OpenManage Enterprise. These updates often include bug fixes, performance optimizations, and critical security patches designed to address potential vulnerabilities. It is recommended to establish a firmware update schedule, ideally during planned maintenance windows, to ensure that all adapters remain up-to-date with the latest enhancements and security fixes. Dell's detailed release notes accompanying each firmware version provide transparency into the changes, allowing administrators to assess the impact and plan updates accordingly.

Optimizing for Storage and Data Protection Workloads

In storage-centric environments, the Dell 540-BBUO excels by providing a high-bandwidth, low-latency transport for protocols like iSCSI, NFS, and SMB. The adapter's support for jumbo frames (up to 9KB MTU) reduces the overhead associated with TCP/IP processing, increasing throughput and efficiency for large block transfers. Its hardware offload capabilities ensure that storage I/O operations do not overwhelm the server's CPU, which is particularly beneficial for all-flash arrays that can saturate a 10GbE link. The adapter also facilitates the deployment of software-defined storage (SDS) solutions, enabling the creation of high-performance, scalable storage pools using commodity hardware. For environments utilizing hyper-converged infrastructure (HCI), the Dell 540-BBUO provides the network foundation for seamless data replication and migration between nodes.

Interoperability and Standards Compliance

The Dell 540-BBUO is built upon a foundation of industry-wide standards, ensuring seamless interoperability with a vast ecosystem of networking equipment. It adheres to the IEEE 802.3an standard for 10GBASE-T, along with all subordinate standards for lower speeds. Its compliance with the PCI Express Base Specification ensures compatibility with a wide range of server platforms from various vendors. The adapter is also compliant with the Advanced Configuration and Power Interface (ACPI) and PCI Power Management specifications, enabling intelligent power management features. This commitment to standards-based design guarantees that the Dell 540-BBUO will integrate smoothly with any standards-compliant switch, router, or other network infrastructure, avoiding vendor lock-in and promoting architectural flexibility.
