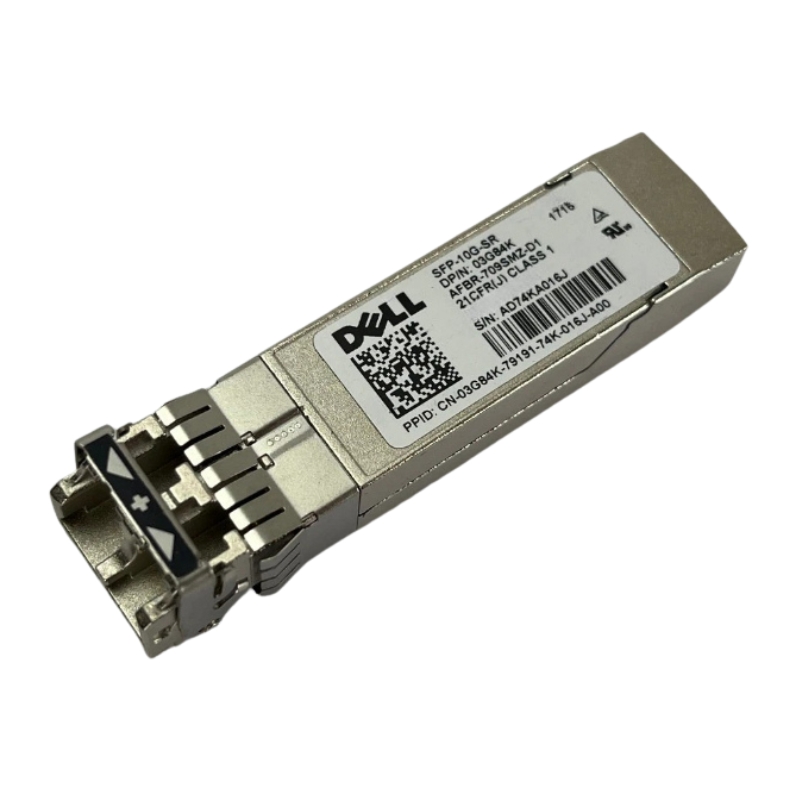

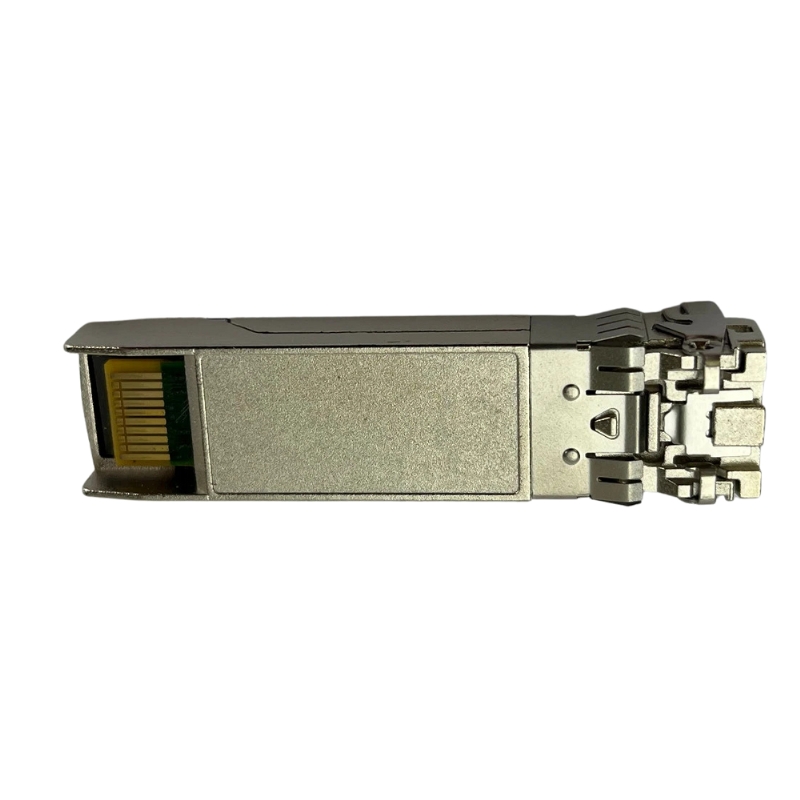

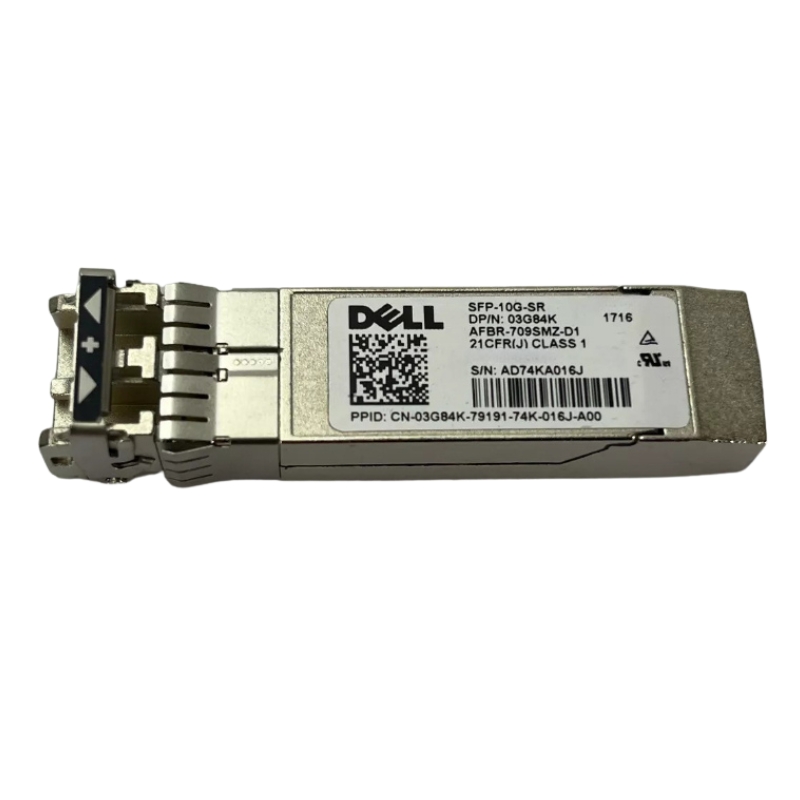

AFBR-709SMZ-D1 Dell 10GBASE-SR SFP+ Transceiver

Overview of the Dell AFBR-709SMZ-D1 SFP+ Transceiver

The Dell AFBR-709SMZ-D1 is a high-performance 10GBASE-SR SFP+ optical transceiver module designed to deliver stable and ultra-fast data communication in modern networking environments. Engineered for enterprise-grade infrastructure, this compact plug-in unit ensures efficient short-range fiber connectivity while maintaining low latency and reliable throughput. It is widely used in data centers, business networks, and high-bandwidth applications where consistent 10 Gigabit Ethernet performance is required.

General Information

• Brand: Dell Technologies
• Model Identifier: AFBR-709SMZ-D1
• Product Type: SFP+ Optical Transceiver Module

Technical Specifications

• Module Design: Hot-pluggable SFP+ form factor for flexible deployment
• Maximum Data Rate: Up to 10.3 Gbps high-speed transmission
• Supported Standards: 10GBASE-SR and 10GBASE-SW protocols
• Optical Wavelength: 850 nm optimized for multimode fiber
• Operating Range: Supports transmission distances up to 300 meters (approximately 980 feet)

Advanced Optical Performance

• Optimized for multimode fiber communication systems
• Ensures low signal loss and stable transmission quality
• Supports high-efficiency short-range optical networking

Enhanced Connectivity Advantages

• Delivers consistent 10G Ethernet performance for demanding workloads
• Reduces network latency in high-traffic environments
• Improves scalability for expanding IT infrastructure
• Supports efficient multi-device communication within LAN systems

Compatibility

• Compatible with Dell networking switches and servers featuring SFP+ ports
• Works with devices supporting 10GBASE-SR and 10GBASE-SW standards
• Supports multimode fiber optic cabling systems
• Suitable for SFP+ slot-based network equipment across enterprise-grade networks
• Interoperable with standard 10 Gigabit Ethernet infrastructure components

The Dell AFBR-709SMZ-D1 10GBASE-SR SFP+ Transceiver

The Dell AFBR-709SMZ-D1 10GBASE-SR SFP+ Transceiver category represents a high-performance optical networking solution designed for modern enterprise, data center, and high-speed communication environments. This transceiver is engineered to deliver reliable 10 Gigabit Ethernet connectivity over multimode fiber infrastructure, ensuring stable and efficient data transmission across short-range distances. Built to meet industry-standard specifications, it plays a critical role in supporting scalable and high-bandwidth network architectures.

This category of optical transceivers is widely used in environments where low latency, high throughput, and dependable signal integrity are essential. The Dell-branded module ensures compatibility with supported networking hardware while maintaining adherence to 10GBASE-SR optical standards, making it a dependable choice for IT infrastructures requiring consistent performance.

10GBASE-SR Optical Networking Standard

The 10GBASE-SR standard is one of the most widely adopted Ethernet specifications for short-range optical communication. It is optimized for multimode fiber usage and supports data centers and enterprise networks that require fast and stable interconnectivity between devices. The “SR” stands for Short Range, highlighting its optimized performance over distances typically within 300 meters.

This standard ensures interoperability between different vendors and networking equipment, making it a universal choice for organizations upgrading from legacy Gigabit Ethernet systems. The Dell AFBR-709SMZ-D1 aligns with this standard, ensuring seamless integration into compliant infrastructure.

SFP+ Form Factor

The SFP+ form factor is a compact, hot-swappable module design that allows network administrators to easily upgrade or replace transceivers without shutting down the system. This design significantly enhances operational flexibility and reduces downtime in mission-critical environments.

Its compact size enables high port density in networking switches and patch panels, making it ideal for environments where space optimization is crucial. The Dell AFBR-709SMZ-D1 benefits from this standardized design, ensuring compatibility across a wide range of networking equipment.

Data Center

Data centers rely heavily on high-speed, low-latency communication between servers, storage systems, and networking devices. The Dell AFBR-709SMZ-D1 plays a key role in enabling these connections through fiber-optic links that support rapid data transfer.

Common applications include server-to-switch connectivity, rack-to-rack communication, and aggregation layer networking. Its ability to maintain stable performance under heavy traffic loads makes it suitable for virtualization clusters, cloud infrastructure, and high-performance computing environments.

Enterprise Networking Use Cases

In enterprise networks, the demand for high-speed connectivity continues to grow due to increased data consumption and application complexity. The Dell AFBR-709SMZ-D1 supports enterprise switching environments where bandwidth-intensive applications such as video conferencing, large file transfers, and database operations are common.

Organizations deploy these transceivers to upgrade backbone networks and ensure smooth communication between departments, branch offices, and centralized servers. The use of fiber-optic technology also reduces electromagnetic interference, improving signal reliability.

Performance and Signal Integrity

Signal integrity is a critical factor in optical communication. The Dell AFBR-709SMZ-D1 is engineered to maintain high-quality signal transmission with minimal attenuation and dispersion. The use of VCSEL laser technology enhances modulation efficiency and reduces power consumption.

Advanced error correction and optical design principles help ensure that data packets are transmitted accurately even under heavy network loads. This reliability is essential for mission-critical systems where data loss is unacceptable.

Energy Efficiency

Energy efficiency is a growing concern in modern networking infrastructure. The Dell AFBR-709SMZ-D1 is designed to operate with low power consumption while maintaining high performance. This contributes to reduced operational costs and improved thermal efficiency within networking equipment.

Efficient heat dissipation ensures that the module remains stable during continuous operation. This is particularly important in high-density deployments where multiple transceivers operate simultaneously within confined spaces.

Reliability and Quality Assurance

Reliability is a core requirement for enterprise-grade transceivers. The Dell AFBR-709SMZ-D1 undergoes strict quality testing to ensure compliance with optical communication standards. These tests include stress testing, temperature variation analysis, and signal performance validation.

Such rigorous quality assurance processes help ensure long-term operational stability and reduce the risk of network failures in production environments.

Switches and Router Integration

The transceiver integrates seamlessly with compatible switches and routers that support SFP+ 10G ports. It enables flexible network design by allowing administrators to choose appropriate fiber connectivity based on distance and bandwidth requirements.

This flexibility supports modular network architecture, where components can be upgraded independently without redesigning the entire infrastructure.

Storage Area Networks (SANs)

Storage Area Networks (SANs) require high-speed and reliable data transfer between storage arrays and servers. The Dell AFBR-709SMZ-D1 supports these environments by providing low-latency optical connectivity that enhances storage performance and access speed.

Its ability to handle high data throughput makes it suitable for backup systems, virtualization storage clusters, and distributed storage architectures.

Virtualization and Cloud Infrastructure

Modern virtualization environments depend heavily on high-speed networking to support virtual machines and containerized applications. The transceiver enables efficient communication between hypervisors, storage systems, and network controllers.

In cloud infrastructure, scalability is essential, and the modular nature of SFP+ transceivers allows easy expansion of network capacity as demand increases.

Network Scaling and Upgrades

Organizations frequently upgrade from lower-speed networks to 10G infrastructure to meet increasing bandwidth demands. The Dell AFBR-709SMZ-D1 facilitates this transition by offering a cost-effective and standardized upgrade path.

Its compatibility with existing fiber cabling reduces infrastructure overhaul costs, making it a practical choice for network modernization projects.

Security and Data Transmission Stability

Fiber-optic communication provides inherent security advantages due to its resistance to electromagnetic interception. The Dell AFBR-709SMZ-D1 contributes to secure data transmission by minimizing exposure to external interference.

Stable optical signaling also reduces packet loss and ensures consistent network performance, which is essential for secure enterprise applications.

Comparison with Other 10G Transceivers

Compared to copper-based 10G solutions, optical transceivers like the Dell AFBR-709SMZ-D1 offer significantly longer reach and better signal integrity. While DAC (Direct Attach Copper) cables are cost-effective for very short distances, fiber solutions provide greater scalability and flexibility.

Within the 10GBASE-SR category, this module is optimized for balanced performance, energy efficiency, and compatibility, making it a widely preferred option.

Future-Proof Networking Considerations

As networking technology evolves, scalable optical solutions remain essential for future-proof infrastructure. The Dell AFBR-709SMZ-D1 supports existing 10G networks while allowing smooth integration into higher-capacity systems through structured upgrades.

Its standardized design ensures long-term usability in evolving network architectures, making it a strategic component for organizations planning infrastructure expansion.
