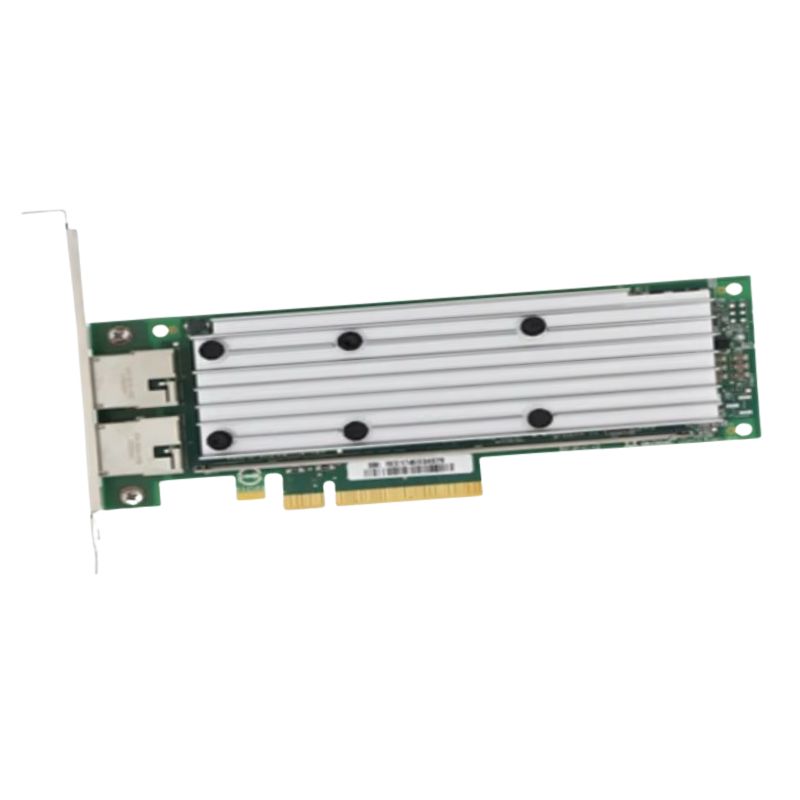

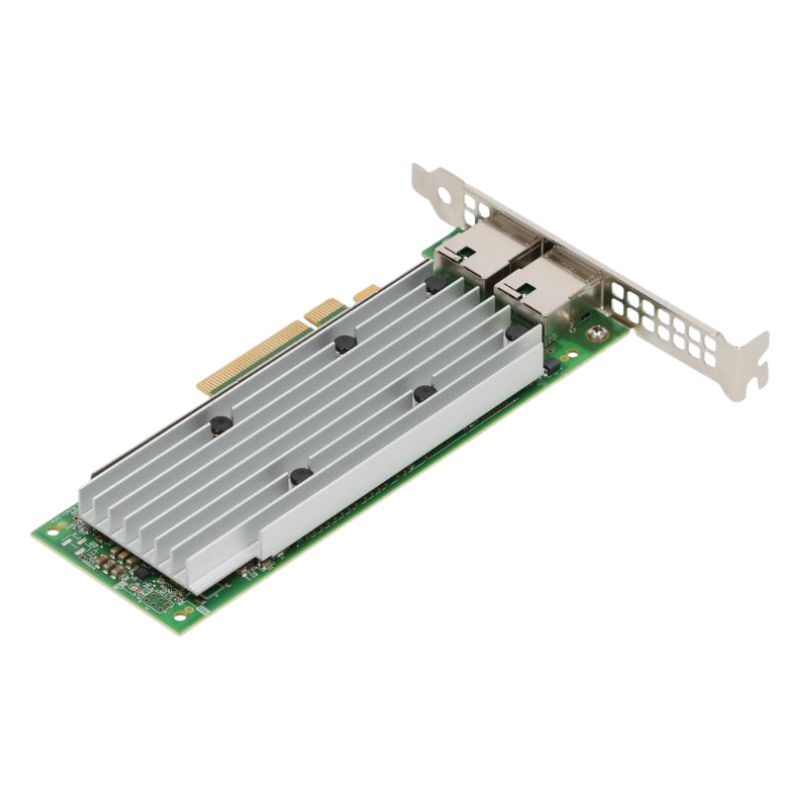

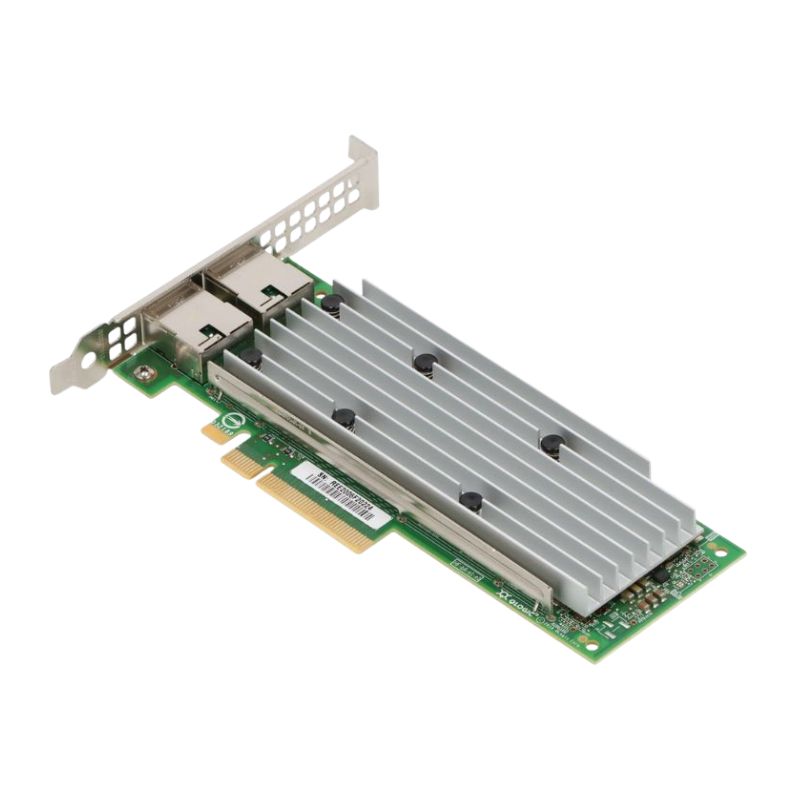

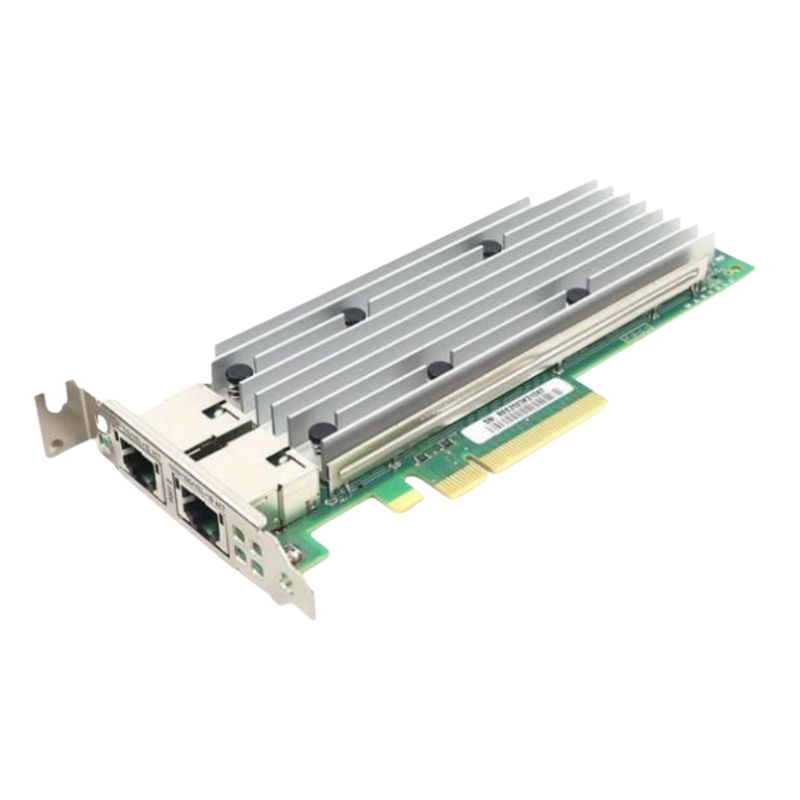

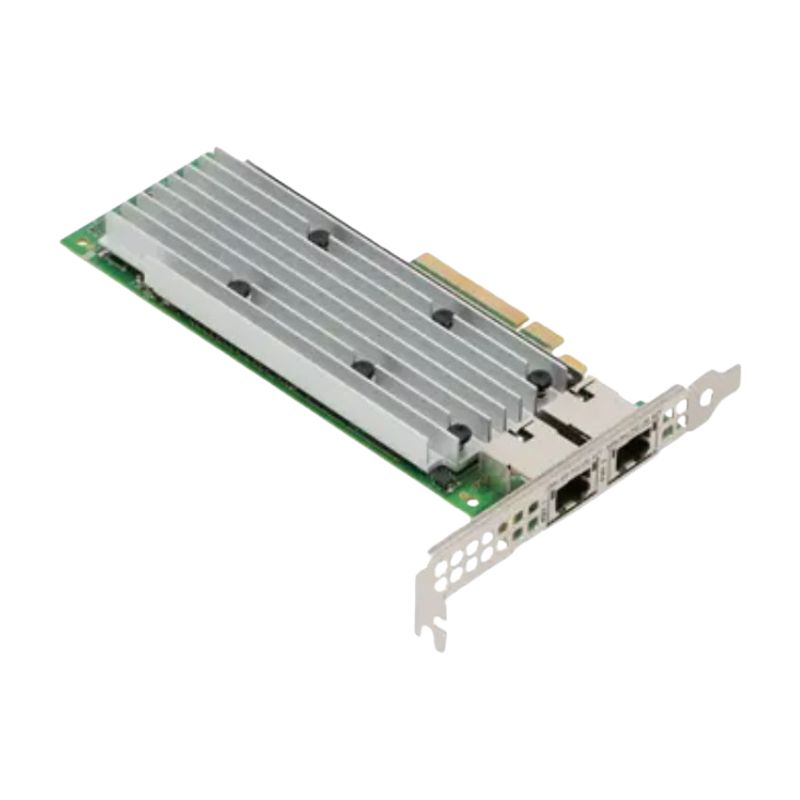

540-BBYJ Dell 10GBPS Ethernet PCI-E Converged Network Adapter

Dell 540-BBYJ 2-Port 10GbE PCIe Converged Network Adapter

High-Performance Networking Solution for Enterprise Environments

The Dell 540-BBYJ QLogic FastLinQ network adapter is engineered to deliver reliable and high-speed connectivity for data-intensive computing environments. Designed as a converged network adapter (CNA), it integrates storage and networking traffic efficiently, ensuring optimized server performance and reduced latency.

Core Product Highlights

• Manufacturer: Dell
• Part Number / SKU: 540-BBYJ
• Product Category: Converged Network Adapter
• Network Ports: Dual-port configuration
• Target Usage: Enterprise servers and data centers

Technical Specifications and Hardware Details

Model and Architecture

• Model Identifier: QL41162
• Product Line: FastLinQ series
• Device Type: High-speed PCI Express network interface card

Connectivity and Performance Capabilities

• Data Transfer Rate: Up to 10Gb/s per port
• Network Technology Standard: 10GBase-T Ethernet
• Interface Type: PCI Express (PCIe)
• Number of Ethernet Ports: 2 (RJ-45 / SFP+ supported variants)
• Total Network Interfaces: 2

Physical and Form Factor Attributes

• Card Height: Full-height bracket design
• Media Support: Twisted pair copper cabling
• Installation Type: Internal server expansion slot

Advanced Functional Benefits

Optimized Data Center Efficiency

• Reduces network congestion through dual-port traffic balancing
• Improves virtualization performance in enterprise workloads
• Enhances bandwidth utilization for high-demand applications

Unified Networking and Storage Traffic

• Converged architecture supports both LAN and storage networking
• Minimizes hardware complexity inside server systems
• Helps streamline infrastructure management

Use Cases and Deployment Scenarios

Enterprise Server Integration

• Ideal for cloud computing platforms and virtualization clusters
• Supports database-heavy and analytics workloads
• Suitable for scalable IT infrastructure environments

High-Speed Network Environments

• Data centers requiring low latency and high throughput
• Virtual machine hosting and distributed applications
• Storage area networks and converged infrastructures

Interface and Port Configuration Details

Network Port Structure

• Dual Ethernet ports for redundant connectivity
• Supports RJ-45 and SFP/SFP+ depending on configuration
• Designed for flexible network deployment options

PCIe Integration

• Seamless installation into standard PCI Express slots
• Compatible with modern enterprise server motherboards
• Ensures stable and scalable performance output

Performance Optimization Features

Bandwidth and Speed Efficiency

• Delivers consistent 10 Gigabit Ethernet throughput
• Minimizes packet loss in high-traffic environments
• Supports advanced networking protocols for enterprise use

Reliability and Stability Enhancements

• Designed for continuous 24/7 data center operation
• Improves fault tolerance with dual-port redundancy
• Maintains stable network performance under heavy loads

Dell 540-BBYJ QLogic FastLinQ 2-Port PCI-E CNA Overview

The Dell 540-BBYJ QLogic FastLinQ 2-Port 10Gbps Ethernet PCI-E Converged Network Adapter is a high-performance networking solution designed for enterprise-grade data centers, virtualization environments, and cloud infrastructure deployments. Built to deliver efficient converged networking capabilities, this adapter integrates advanced Ethernet connectivity with optimized PCI Express architecture, enabling seamless data, storage, and network traffic handling within a unified hardware platform. The Dell 540-BBYJ QLogic FastLinQ adapter is widely recognized for its reliability, scalability, and ability to support modern workloads requiring low latency and high throughput.

As a converged network adapter (CNA), this hardware eliminates the need for multiple separate network interface cards by combining LAN and SAN functionalities into a single device. This makes the Dell 540-BBYJ QLogic FastLinQ 2-Port 10Gbps Ethernet PCI-E adapter an essential component for organizations seeking to optimize server performance, reduce hardware complexity, and improve total cost of ownership in large-scale IT environments.

Core Features of Dell 540-BBYJ QLogic FastLinQ Adapter

Dual-Port 10Gbps High-Speed Ethernet Connectivity

The adapter features dual 10 Gigabit Ethernet ports, enabling high-speed network communication between servers, storage systems, and network infrastructure. Each port is capable of delivering consistent 10Gbps throughput, ensuring uninterrupted data flow even under heavy workloads. This makes it suitable for virtualization clusters, database servers, and high-performance computing environments where bandwidth is critical.

PCI Express Interface for Enhanced Bandwidth Efficiency

Designed with a PCI-E interface, the Dell 540-BBYJ QLogic FastLinQ adapter ensures low-latency communication between the network hardware and the host system. The PCI Express architecture allows for scalable bandwidth allocation, reducing bottlenecks and improving overall system responsiveness. This is especially important in environments that demand real-time processing and fast data access.

Converged Networking Capability

One of the most important features of the Dell 540-BBYJ QLogic FastLinQ adapter is its converged networking capability. By integrating Ethernet networking and storage networking protocols into a single adapter, it simplifies infrastructure design and reduces the need for multiple adapters. This convergence improves efficiency in data centers and supports unified fabric architectures.

Support for Storage and Data Traffic Unification

The converged architecture allows both storage traffic (such as iSCSI) and traditional network traffic to coexist on the same hardware. This reduces hardware overhead and streamlines server design while maintaining high performance and reliability across workloads.

Performance Optimization and Efficiency

Low Latency Data Processing

The Dell 540-BBYJ QLogic FastLinQ 2-Port 10Gbps Ethernet PCI-E Converged Network Adapter is engineered for low latency data transmission, making it ideal for applications where response time is critical. Financial systems, cloud applications, and real-time analytics platforms benefit significantly from reduced latency and optimized packet processing.

High Throughput for Data-Intensive Applications

With dual 10Gbps ports, the adapter provides a combined potential throughput of up to 20Gbps, depending on configuration and workload distribution. This ensures smooth handling of data-intensive tasks such as virtualization migration, backup operations, and large-scale database synchronization.

Offloading Capabilities

The adapter supports hardware-based offloading features that reduce CPU utilization by handling networking tasks directly on the card. This improves server efficiency and frees up processing power for application-level workloads, enhancing overall system performance.

TCP/IP Offload Engine Support

By leveraging TCP/IP offload technologies, the adapter reduces overhead associated with packet processing. This is particularly beneficial in environments with high network traffic, as it ensures consistent performance and reduced CPU strain.

Data Center Integration and Use Cases

Virtualized Infrastructure Environments

The Dell 540-BBYJ QLogic FastLinQ adapter is widely used in virtualized environments powered by hypervisors such as VMware and Microsoft Hyper-V. It supports efficient virtual machine networking, ensuring that multiple VMs can communicate simultaneously without congestion or performance degradation.

Cloud Computing Deployments

Cloud infrastructure providers rely on high-speed, scalable networking solutions. This adapter enables seamless connectivity between compute nodes and storage systems in private and hybrid cloud environments. Its converged design simplifies cloud network architecture and reduces operational complexity.

Enterprise Storage Networks

In storage-intensive environments, the adapter supports high-speed access to SAN and NAS systems. Its compatibility with iSCSI and other storage protocols ensures reliable data transfer and efficient storage utilization across enterprise systems.

Database and Analytics Systems

Large-scale databases and analytics platforms benefit from the adapter’s ability to handle continuous data streams with minimal latency. It supports real-time querying, replication, and synchronization processes required in modern enterprise data ecosystems.

Technical Architecture and Design

Advanced QLogic FastLinQ Technology

Built on QLogic FastLinQ technology, the Dell 540-BBYJ adapter delivers advanced networking capabilities including intelligent packet processing, adaptive load balancing, and enhanced error correction mechanisms. This ensures stable and reliable network performance even in high-demand environments.

Hardware-Based Acceleration

The adapter incorporates hardware acceleration features that improve packet processing efficiency. These include checksum offloading, segmentation offloading, and interrupt moderation, all of which reduce CPU overhead and enhance throughput performance.

Energy Efficient Design

Despite its high performance, the adapter is designed to be energy efficient, minimizing power consumption while maintaining optimal performance levels. This makes it suitable for large-scale deployments where energy efficiency is a critical factor.

Compatibility and System Integration

Server Compatibility

The Dell 540-BBYJ QLogic FastLinQ 2-Port 10Gbps Ethernet PCI-E Converged Network Adapter is compatible with a wide range of Dell PowerEdge servers and enterprise-grade hardware platforms. Its plug-and-play design ensures easy integration into existing infrastructure.

Operating System Support

This adapter supports multiple operating systems including Linux distributions, Windows Server environments, and virtualization hypervisors. This broad compatibility ensures flexibility in diverse IT ecosystems.

Driver and Firmware Optimization

Optimized drivers and firmware updates enhance performance stability and ensure compatibility with evolving network standards. Regular updates help maintain peak performance and security compliance.

Virtualization and Network Efficiency

Support for Virtual NICs

The adapter supports virtual NIC creation, enabling multiple virtual interfaces to operate independently on a single physical port. This is essential in modern virtualized data centers where resource isolation and network segmentation are required.

Traffic Segmentation and QoS

Quality of Service (QoS) features allow administrators to prioritize network traffic based on application requirements. This ensures critical workloads receive the necessary bandwidth while maintaining overall system balance.

SR-IOV and VM Optimization

Single Root I/O Virtualization (SR-IOV) support enables direct hardware access for virtual machines, reducing latency and improving performance in virtualized workloads. This enhances efficiency in cloud-native applications and enterprise virtualization stacks.

Deployment Scenarios in Enterprise IT Infrastructure

High-Density Data Centers

In high-density data centers, the Dell 540-BBYJ QLogic FastLinQ adapter helps optimize space and reduce cabling complexity by combining multiple networking functions into a single card. This improves airflow, reduces maintenance overhead, and simplifies infrastructure scaling.

Disaster Recovery and Backup Systems

The adapter supports high-speed data replication required for disaster recovery solutions. Its dual-port configuration ensures redundancy and failover capabilities, improving system resilience.

Load Balancing and Failover

Built-in load balancing ensures that network traffic is evenly distributed across available ports. In case of a port failure, traffic is automatically rerouted to maintain uninterrupted connectivity.
