Product Specifications

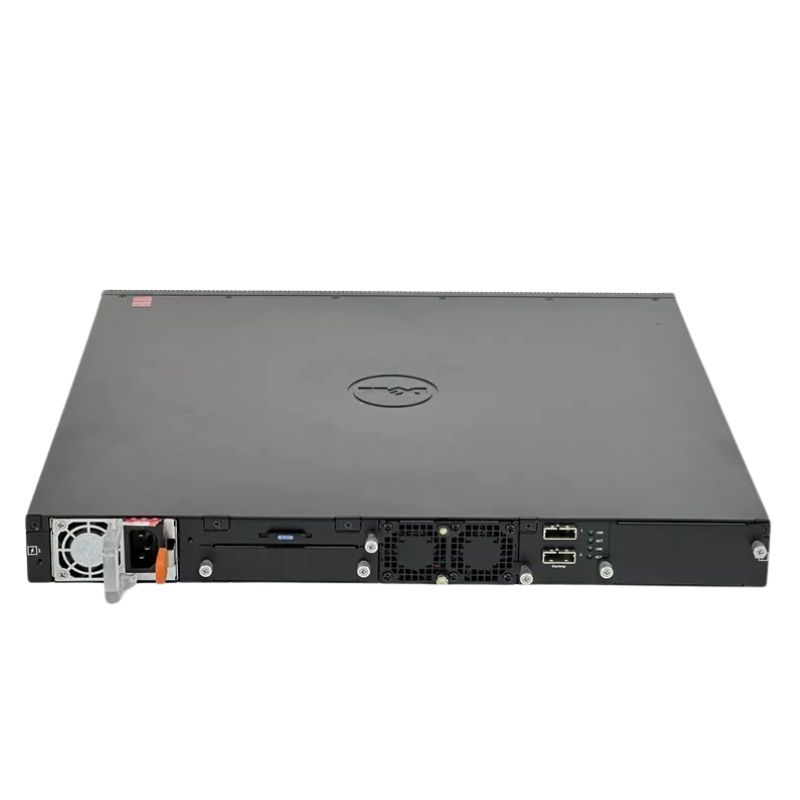

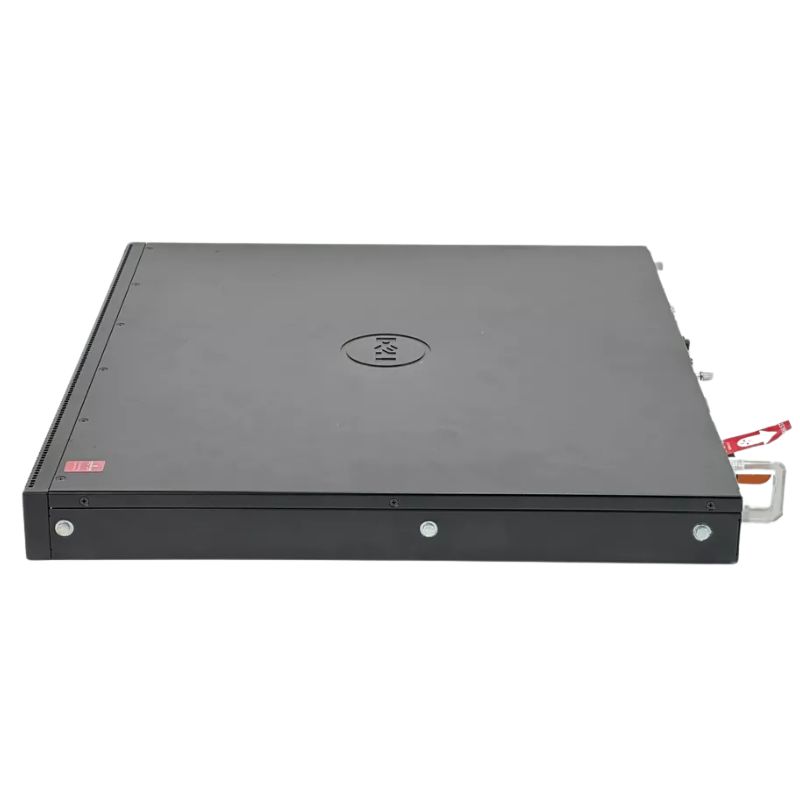

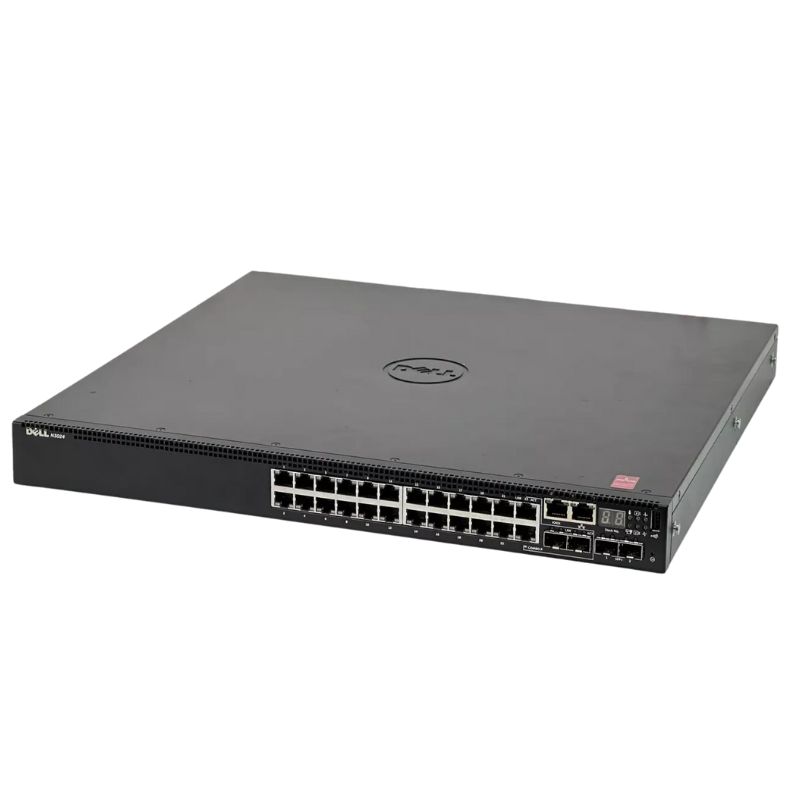

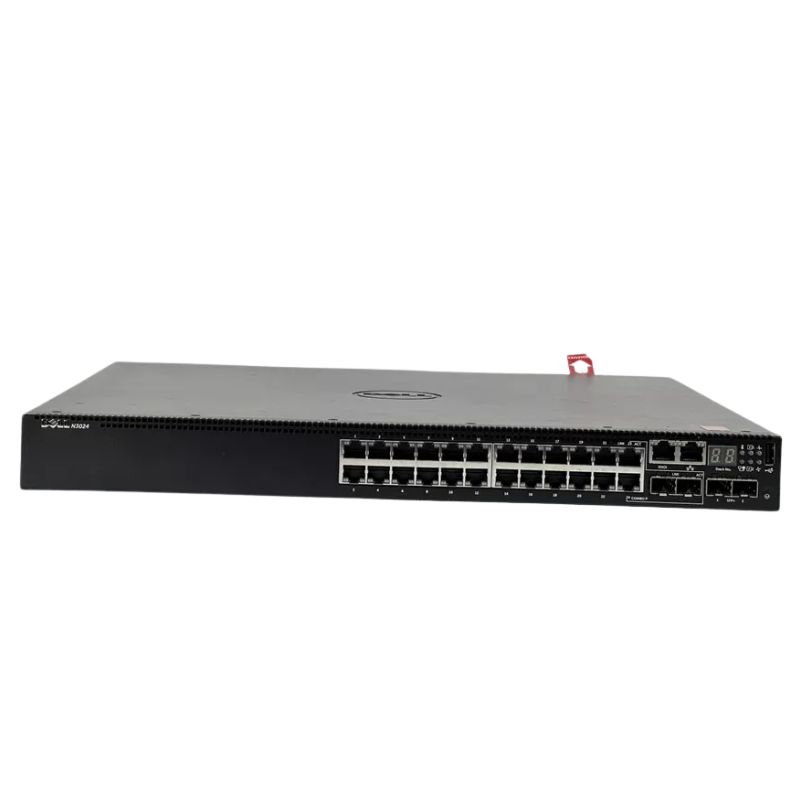

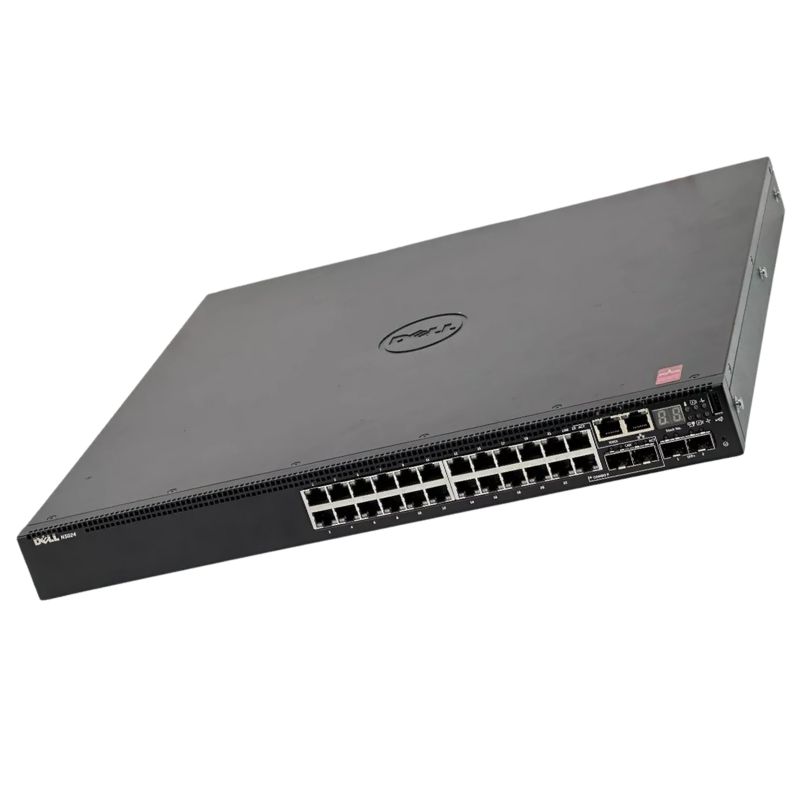

Overview of the DELL 210-ABOF Networking N3024p
The DELL 210-ABOF Networking N3024p is a high-performance, rack-mounted switch designed for robust networking needs. This managed switch features 24 ports and advanced Layer 3 capabilities, making it ideal for enterprise environments.
Core Attributes
- Device Type: Managed Layer 3 Switch
- Port Configuration: 24 Gigabit Ethernet Ports
- Rack Form Factor: 1U
- Stacking Capability: Yes
Connectivity Options
Port Types
- 24 x 10/100/1000 Mbps Ethernet Ports
- 2 x 10 Gigabit SFP+ Ports
- 2 x Combo Gigabit SFP Ports
Power Over Ethernet (PoE)
Supports PoE+ for enhanced power delivery to connected devices.
Performance Metrics
Switching Capabilities
- Switching Fabric Bandwidth: 212 Gbps
- Forwarding Performance: 158 Mpps
- Stacking Bandwidth: 84 Gbps
Address and Route Capacities
- MAC Address Table: 16,384 entries
- IPv4 Routes: Up to 8,160 dynamic, 1,024 static
- IPv6 Routes: Up to 4,096 dynamic, 1,024 static
- VLAN Support: 4,094 VLANs
Advanced Features
Security Protocols
- Encryption Algorithms: MD5, AES, SSL, TLS
- Authentication Methods: Secure Shell (SSH), RADIUS, TACACS+
Routing Protocols Supported
- OSPF, RIP-1, RIP-2, IGMPv2, VRRP, PIM-SM
- Multiple Spanning Tree Protocol (MSTP) Support
- Dynamic VLAN Support (GVRP)
Expansion and Connectivity Features
Available Interfaces
- 24 x Gigabit LAN (RJ-45)
- 2 x 10Gbit LAN (SFP+)
- 1 x Serial Management Port (RS-232)
- 1 x USB Type A Port
Expansion Slots
1 total expansion slot is available for future upgrades.
Power Specifications
Power Supply Details
- Type: Internal Power Supply (Hot-plug)
- Installed Quantity: 1 (maximum of 2)
- Power Redundancy: Optional
- Power Output: 715 Watts
Ports
The Dell N3024P Managed Rack Mountable Network Switch is equipped with 24 ports, making it an ideal choice for small to medium-sized businesses that require a reliable and efficient network infrastructure. These 24 ports provide users with the ability to connect multiple devices to the network, allowing for seamless communication and data transfer.
Increased Connectivity
One of the major benefits of having 24 ports on the Dell N3024P is the increased connectivity it offers. With 24 ports, users can connect a wide range of devices such as computers, servers, printers, and IP cameras to the network. This ensures that all devices in the network can communicate with each other, facilitating efficient collaboration and productivity.
Flexibility and Scalability
Having 24 ports also provides users with the flexibility to expand their network as their business grows. Whether it's adding new workstations or integrating new technologies, the Dell N3024P can accommodate these changes without requiring any additional equipment. This scalability feature saves businesses both time and money by eliminating the need for costly upgrades or replacements.
Improved Performance
The 24 ports on the Dell N3024P are designed to deliver high-performance networking capabilities. Each port supports Gigabit Ethernet speeds, ensuring fast and reliable data transmission between devices. This is especially important for bandwidth-intensive applications such as video streaming, VoIP, and large file transfers. With the Dell N3024P, users can experience smooth and uninterrupted network performance, enhancing overall productivity.
Enhanced Network Management
The Dell N3024P comes with advanced management features that allow users to monitor and control their network effectively. With 24 ports, users can easily segment their network into different VLANs (Virtual Local Area Networks) for improved security and performance. The switch also supports features like Quality of Service (QoS) and traffic prioritization, enabling users to optimize network resources and ensure critical applications receive the necessary bandwidth.
Redundancy and Reliability
The 24 ports on the Dell N3024P are built to provide redundancy and reliability. The switch supports features such as link aggregation and spanning tree protocol, which ensure that network connections are automatically rerouted in case of a link failure or network congestion. This redundancy feature minimizes downtime and ensures uninterrupted network connectivity for mission-critical applications.
Cost-Efficiency
Having 24 ports on the Dell N3024P offers cost-efficiency for businesses. Instead of investing in multiple switches to accommodate a growing network, users can rely on the 24 ports provided by the Dell N3024P. This reduces both initial investment costs and ongoing maintenance expenses, making it an affordable solution for businesses of all sizes.
Future-Proofing
With the increasing demand for network connectivity, having 24 ports ensures that businesses are prepared for future growth and technological advancements. The Dell N3024P provides users with the flexibility to adapt to emerging technologies without having to replace their existing network infrastructure. This future-proofing feature allows businesses to stay ahead of the curve and remain competitive in the ever-evolving digital landscape.
Speed
The Dell N3024P Managed Rack Mountable Network Switch boasts impressive speed capabilities, specifically its 1GBE L3 technology. This high-speed performance is crucial for businesses that require fast and efficient data transfer across their network.
Fast Data Transfer
The 1GBE L3 technology of the Dell N3024P enables lightning-fast data transfer speeds between connected devices. With a data transfer rate of up to 1 Gigabit per second, users can experience near-instantaneous file transfers, seamless video streaming, and smooth VoIP communication. This speed is particularly advantageous in environments where large amounts of data need to be transmitted quickly, such as multimedia production or data-intensive applications.
Improved Work Efficiency
The high-speed capabilities of the Dell N3024P contribute to improved work efficiency within the network. Employees can access and share files rapidly, leading to faster decision-making processes and enhanced collaboration. Additionally, applications that rely on real-time data, such as video conferencing or cloud-based services, can operate seamlessly with minimal latency. This increased efficiency translates into higher productivity and customer satisfaction.
Reduced Network Congestion
The 1GBE L3 technology of the Dell N3024P helps alleviate network congestion by providing ample bandwidth for data transmission. With higher speeds, multiple devices can simultaneously transfer data without causing bottlenecks or slowing down other network activities. This is particularly important in environments where a large number of users are accessing network resources simultaneously.
Support for Bandwidth-Intensive Applications
Bandwidth-intensive applications such as video editing or virtualization require substantial network resources to function smoothly. The 1GBE L3 technology of the Dell N3024P ensures that these applications receive the necessary bandwidth to operate at their full potential. Users can run resource-intensive tasks without worrying about network performance limitations, resulting in improved productivity and user experience.
Enhanced Security
The high-speed capabilities of the Dell N3024P also contribute to enhanced network security. With faster data transfer speeds, security protocols such as encryption and authentication can be implemented more efficiently, ensuring that sensitive data remains protected during transmission. Additionally, the switch's advanced security features, such as Access Control Lists (ACLs) and port-level security, can be effectively utilized without compromising network performance.
Future-Proofing
The 1GBE L3 technology of the Dell N3024P ensures that businesses are future-proofed against increasing network demands. As technology evolves and network requirements grow, the switch's high-speed capabilities allow for seamless integration of new devices and technologies without compromising performance. This future-proofing feature saves businesses from costly upgrades or replacements, providing a long-term and scalable network solution.
Additional Ports
In addition to its 24 ports, the Dell N3024P Managed Rack Mountable Network Switch offers 2 additional ports, providing users with even more connectivity options. These additional ports further enhance the switch's capabilities and flexibility, making it a versatile choice for various networking scenarios.
Expanded Connectivity
The 2 additional ports on the Dell N3024P expand the connectivity options available to users. These extra ports can be used to connect devices that require a dedicated connection or devices that are located in a different area of the network. This flexibility allows users to customize their network setup based on their specific requirements, ensuring seamless communication and data sharing.
Network Segmentation
The additional ports on the Dell N3024P enable users to further segment their network, enhancing security and performance. By creating separate VLANs or virtual networks using these additional ports, businesses can isolate sensitive data or prioritize traffic for specific applications. This segmentation feature helps prevent unauthorized access to critical resources and ensures consistent network performance.
Device Expansion
The 2 additional ports provide users with the ability to expand their network infrastructure easily. Whether it's adding new devices or integrating new technologies, the Dell N3024P can accommodate these changes without requiring any additional equipment. This scalability feature saves businesses time and money by eliminating the need for costly upgrades or replacements.
Redundancy and Load Balancing
The additional ports on the Dell N3024P can be utilized for redundancy and load-balancing purposes. By connecting multiple devices to these ports, businesses can ensure that network connections are automatically rerouted in case of a link failure or distribute network traffic evenly across multiple paths. This redundancy and load balancing feature improves network reliability and performance, minimizing downtime and maximizing efficiency.
Cost-Efficiency
Having 2 additional ports on the Dell N3024P offers cost-efficiency for businesses. Instead of investing in a separate switch or additional networking equipment, users can leverage the extra ports provided by the Dell N3024P. This reduces both initial investment costs and ongoing maintenance expenses, making it an economical solution for businesses seeking expansion without breaking the bank.
Future-Proofing
The 2 additional ports on the Dell N3024P ensure that businesses are prepared for future growth and evolving networking requirements. As technology advances and network demands increase, having these extra ports allows businesses to easily integrate new devices or technologies without disrupting their existing network infrastructure. This future-proofing feature provides businesses with a scalable and adaptable networking solution.
Additional Speed
The Dell N3024P Managed Rack Mountable Network Switch offers impressive additional speed capabilities with its 10GBE Poe+ feature. This high-speed performance is essential for businesses that require fast and reliable data transfer, especially in demanding networking environments.
Ultra-Fast Data Transfer
The 10GBE Poe+ feature of the Dell N3024P enables ultra-fast data transfer speeds between connected devices. With a data transfer rate of up to 10 Gigabits per second, users can experience lightning-fast file transfers, seamless multimedia streaming, and rapid access to network resources. This speed is particularly beneficial in environments where large amounts of data need to be transferred quickly and reliably.
High-Bandwidth Applications
The high-speed capabilities of the Dell N3024P make it ideal for high-bandwidth applications such as data centers, multimedia production, or virtualization. These applications require substantial network resources to operate smoothly and efficiently. With 10GBE Poe+, users can ensure that their network can handle the demands of bandwidth-intensive tasks without compromising performance or causing bottlenecks.
Enhanced Work Collaboration
The additional speed provided by the 10GBE Poe+ feature contributes to enhanced work collaboration within the network. Employees can access and share large files quickly, facilitating seamless collaboration and reducing waiting times. Real-time applications such as video conferencing or cloud-based collaboration tools can operate smoothly, ensuring efficient communication and decision-making processes.
Improved Network Performance
The 10GBE Poe+ feature of the Dell N3024P significantly improves network performance by delivering higher bandwidth capabilities. With increased speed, users can experience reduced latency, minimized packet loss, and improved overall network responsiveness. This enhanced network performance translates into increased productivity and user satisfaction.
Power over Ethernet (PoE) Support
In addition to its high-speed capabilities, the Dell N3024P also supports Power over Ethernet (PoE) technology. This means that the switch can provide power to PoE-enabled devices such as IP cameras, wireless access points, or VoIP phones through the Ethernet cables. The combination of high-speed data transfer and PoE support simplifies network deployment and reduces cable clutter, making it an efficient and cost-effective solution for businesses.
Future-Proofing
The 10GBE Poe+ feature of the Dell N3024P ensures that businesses are prepared for future networking requirements. As technology advances and network demands escalate, having this additional speed capability allows businesses to seamlessly integrate new devices or technologies without compromising performance. This future-proofing feature provides businesses with a scalable and adaptable network solution that can meet their evolving needs.
