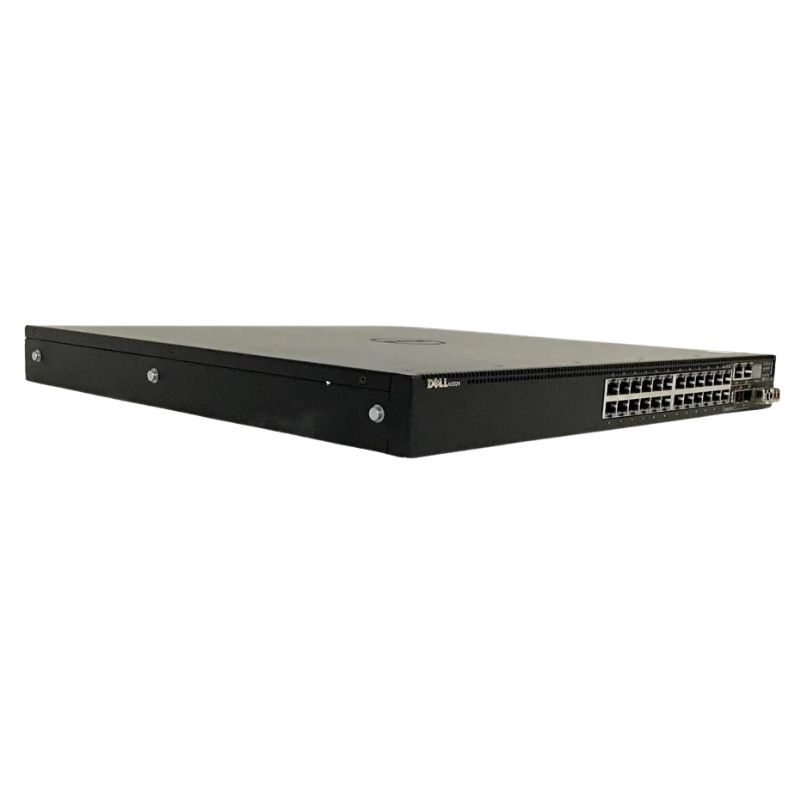

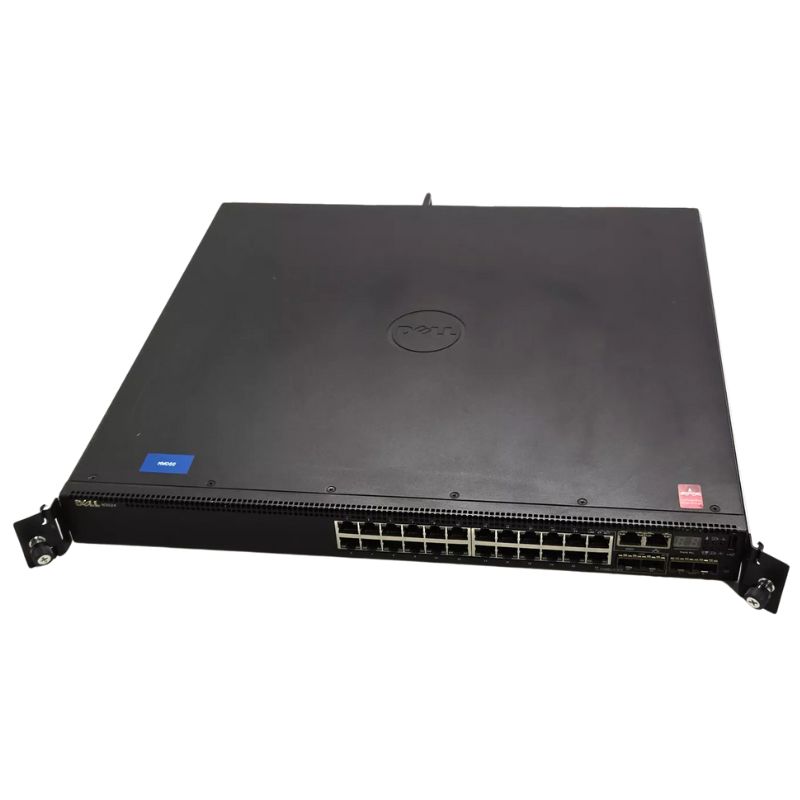

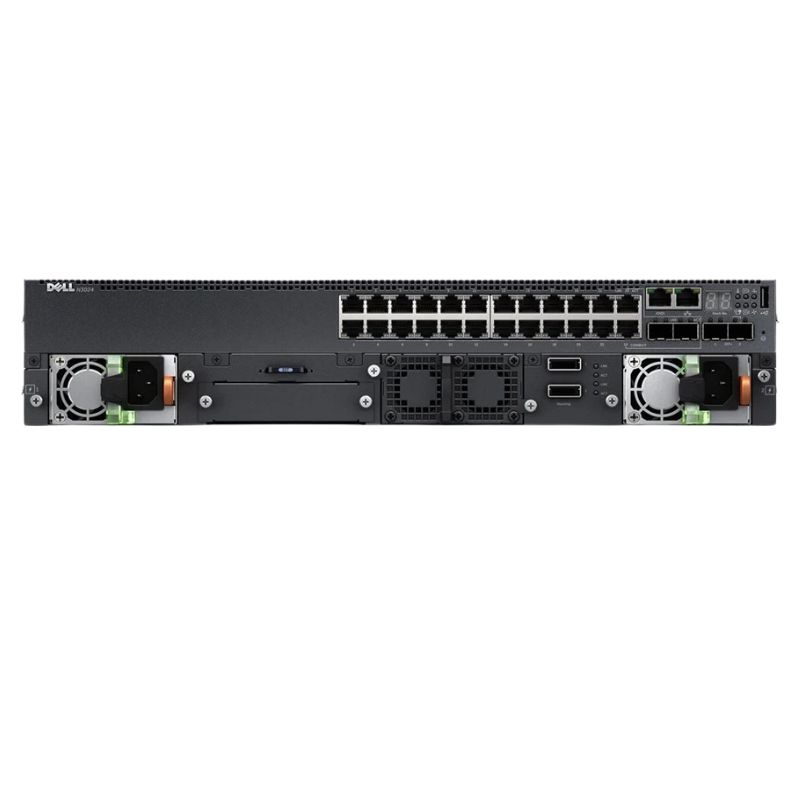

Dell N2024 L3 24-Port Managed Stackable Network Switch 210-ABPP.

Product Overview

The Dell 210-ABPP N2024 Switch is a high-performance, 24-port, managed, rack-mountable network switch, designed for seamless data flow, reliability, and flexibility in enterprise environments.

Device Specifications

• Manufacturer: Dell
• Model Number: 210-ABPP
• Device Type: Managed, L2+ Stackable Switch
• Enclosure: Rack-mountable (1U)

Connectivity and Port Configuration

• Primary Ports: 24 x 10/100/1000 Mbps Gigabit Ethernet
• Uplink Ports: 2 x 10 Gbps SFP+ for high-speed connectivity
• Stacking Bandwidth: 84 Gbps for enhanced switch stack performance

Network Performance

• Switching Fabric Capacity: 172 Gbps
• Forwarding Rate: 128 Mpps

Supported Protocols and Security Features

• Routing Protocols: RIP-1, RIP-2, IGMPv2, IGMP, IGMPv3, Static IPv4 and IPv6
• Remote Management Protocols: SNMP 1, SNMP 2, RMON (1, 2, 3, 9), Telnet, SNMP 3, TFTP
• Encryption Algorithms: MD5, AES, SSL, TLS for enhanced security
• Authentication Support: Secure Shell (SSH), RADIUS, TACACS+

Advanced Features

• Flow Control for optimized data transmission
• Support for ARP, VLAN, and Port Mirroring
• Quality of Service (QoS) for prioritizing network traffic
• IPv4 and IPv6 support for scalable network solutions
• Energy-Efficient Ethernet (EEE) to reduce power consumption
• Dual Firmware Images for system recovery and stability

Compliance and Standards

• IEEE Standards Compliance: 802.2, 802.3, 802.3u, 802.3z, 802.1D, 802.1Q, 802.3ab, 802.1p, 802.3x, 802.3ad, 802.1w, 802.1X, 802.3ae, 802.3ac, 802.1s, 802.1v, 802.1AB, 802.3az

Memory and Capacity

• RAM: 1 GB
• Flash Memory: 256 MB
• VLAN Support: Up to 4,096 Virtual LANs (VLANs)
• MAC Address Table: Supports up to 8,192 entries

Routing and ACL Capacities

• IPv4/IPv6 Routes: 256 IPv4 Static, 128 IPv6 Static, 256 Dynamic
• ACL Rules: 2,048 system-wide, with flexible ACL configuration per interface

Power and Environmental Efficiency

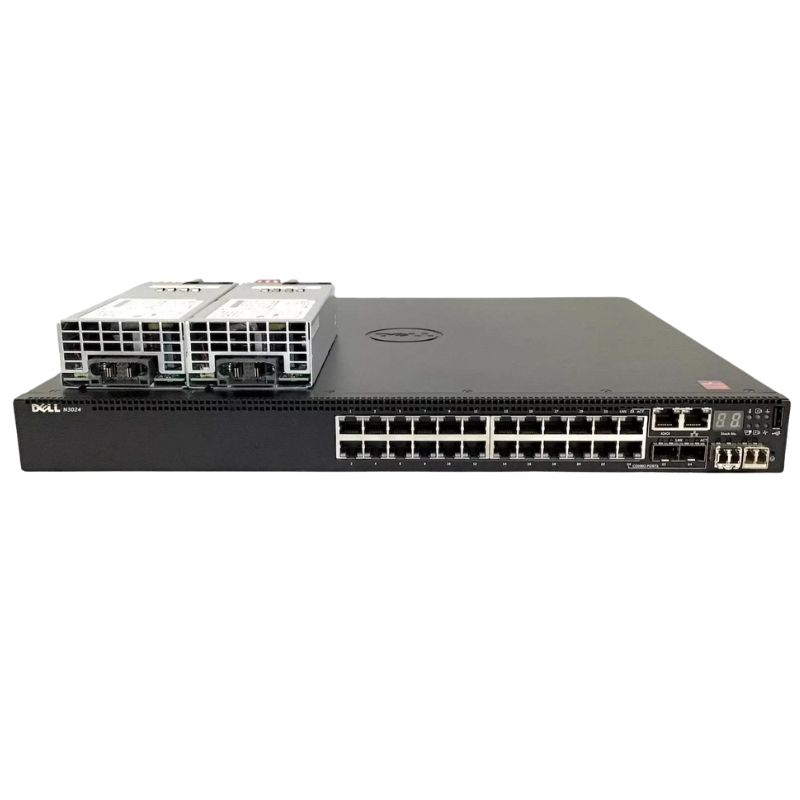

• Power Device: Internal Power Supply, 100 Watts
• Power Consumption: 42.9 Watts (operational)

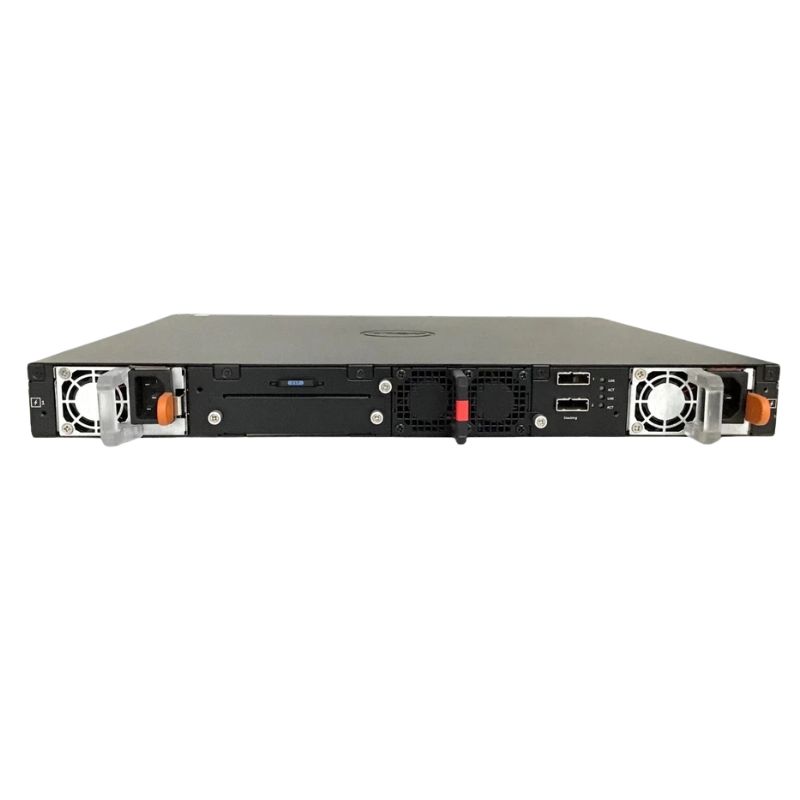

• Redundant Power System (RPS) Connector: Ensures uninterrupted performance

Expansion and Management Ports

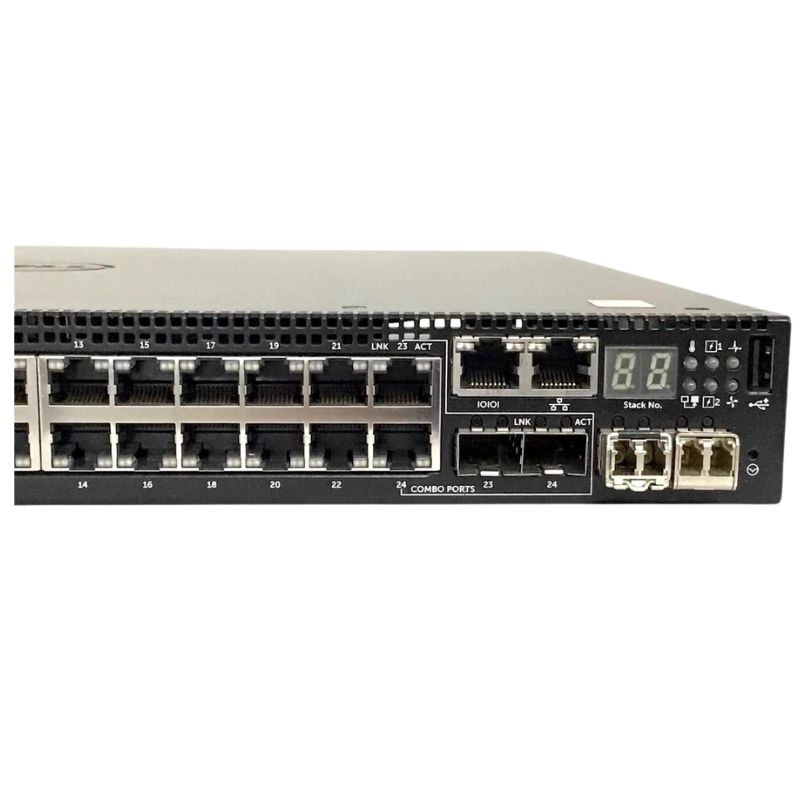

• Network Interfaces: 24 x RJ-45, 2 x 10 Gbps SFP+, 1 x Serial (RS-232), 1 x USB Type-A, 2 x Network Stack Devices

Ports

The Dell N2024 Managed Stackable Network Switch is equipped with a remarkable total of 24 ports, making it an ideal solution for small to medium-sized businesses that require high-performance networking capabilities. With this extensive number of ports, users can easily connect multiple devices to the switch, enabling seamless communication and data transfer across the network.

Improved Connectivity

One of the primary benefits of having 24 ports on the Dell N2024 is the enhanced connectivity it offers. Each port acts as a gateway for connecting different devices such as computers, servers, printers, and other network-enabled equipment. The availability of multiple ports ensures that users can establish secure and reliable connections without any limitations. This is particularly advantageous in office environments where numerous devices need to be connected simultaneously.

Flexibility and Scalability

The 24 ports on this network switch provide users with the flexibility to expand their network infrastructure as their business grows. With additional ports available, users can easily accommodate new devices or connect more workstations without having to invest in additional networking equipment. This scalability allows businesses to adapt to changing demands and future-proof their network investments.

Efficient Traffic Management

Having 24 ports on the Dell N2024 allows for efficient traffic management within the network. Each port can be configured with specific settings to prioritize certain types of traffic, ensuring that critical applications receive the necessary bandwidth for optimal performance. This granular control over traffic management helps in preventing bottlenecks and congestion, resulting in improved overall network efficiency.

Layer

The Dell N2024 Managed Stackable Network Switch operates at Layer 3 of the OSI model, providing advanced routing capabilities that are crucial for modern networks. This layer of functionality offers significant benefits and plays a vital role in ensuring efficient data transmission and network management.

Enhanced Network Performance

By operating at Layer 3, the Dell N2024 switch can perform routing functions, allowing it to make intelligent decisions on how to transmit data packets between different networks. This enhances network performance by optimizing the routing process and ensuring that data reaches its intended destination in the most efficient manner. With Layer 3 capabilities, the switch can handle the complex routing tasks required for large networks without compromising on speed or reliability.

Improved Network Segmentation

Layer 3 functionality enables network segmentation, which is essential for enhancing security and improving overall network performance. With the Dell N2024 switch, users can create separate virtual LANs (VLANs) based on different departments, projects, or security requirements. This segmentation helps in isolating network traffic and reducing the risk of unauthorized access or data breaches. It also allows for better control and management of network resources, as different VLANs can have their own policies and settings.

Inter-VLAN Routing

The Layer 3 capabilities of the Dell N2024 switch enable inter-VLAN routing, which facilitates communication between different VLANs. This is particularly useful in environments where multiple VLANs are deployed to segregate various departments or user groups. Inter-VLAN routing ensures that devices in different VLANs can communicate seamlessly, promoting collaboration and information sharing while maintaining network security.

In conclusion, the Dell N2024 Managed Stackable Network Switch with its 24 ports offers improved connectivity, flexibility, scalability, and efficient traffic management. The Layer 3 functionality enhances network performance, enables network segmentation for improved security, and facilitates inter-VLAN routing for seamless communication between different VLANs. These features make the Dell N2024 an excellent choice for businesses seeking a reliable and powerful networking solution.
