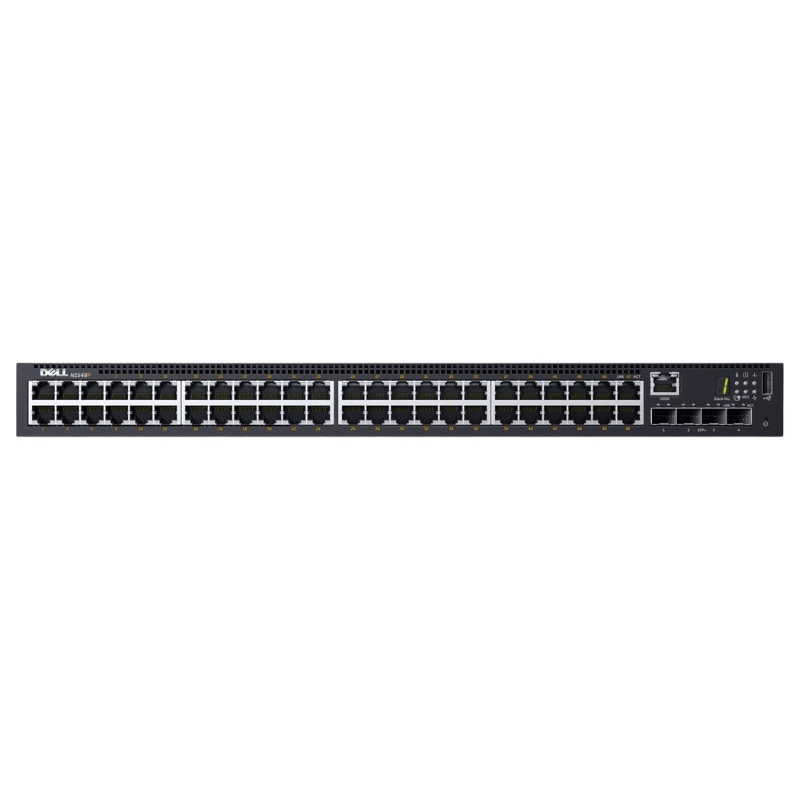

Dell 210-AEWB Networking N1548P Switch Overview
Experience unparalleled network performance with the Dell 210-AEWB Networking N1548P switch, designed for both efficiency and reliability in demanding environments.
Key Specifications
- Device Type: 48-Port L2+ Managed Stackable Switch
- Form Factor: 1U Rack-mountable Enclosure
- Network Technology: Gigabit Ethernet
- Ports Configuration: 48 x 10/100/1000 + 4 x 10 Gigabit SFP+
- Power Over Ethernet: POE+
- POE Budget: 30.8 Watts
Performance Metrics
Switching Capacity
- Switch Fabric Bandwidth: 176 Gbps
- Forwarding Rate: 164 Mpps
Advanced Features
- Virtual Interfaces (VLANs): Supports up to 512
- ARP Entries: 1024
- NDP Entries: 400
- Priority Queues Per Port: 8
- Static IPv4 Routes: 256
- Static IPv6 Routes: 128
- Dynamic IPv4 Routes: 256
- VLAN Routing Interfaces: 128
- ACL Support: 100 Maximum ACL Rules System-wide
- Max ACL Rules Per Port: 1023 (IPv4 Ingress and Egress)
- Max Dynamic Ports Per Switch Stack: 144
- MAC Address Capacity: 16,000 Addresses
Routing and Management Protocols
Supported Routing Protocols
- RIP-1 and RIP-2
- Static IPv4 and IPv6 Routing
Remote Management Features
- Protocols: Telnet, TFTP
- Encryption Methods: MD5, AES, SSL, TLS
- Authentication: SSH, RADIUS, TACACS+
Unique Features
- Auto-negotiation and Auto-uplink (Auto MDI/MDI-X)
- Port Mirroring capabilities
- Broadcast Storm Control to manage network traffic
- Optimized for Front-to-Back Airflow
- Redundant Fan support for enhanced cooling
Memory and Connectivity
Hardware Specifications
- RAM: 1 GB
- Flash Memory: 256 MB

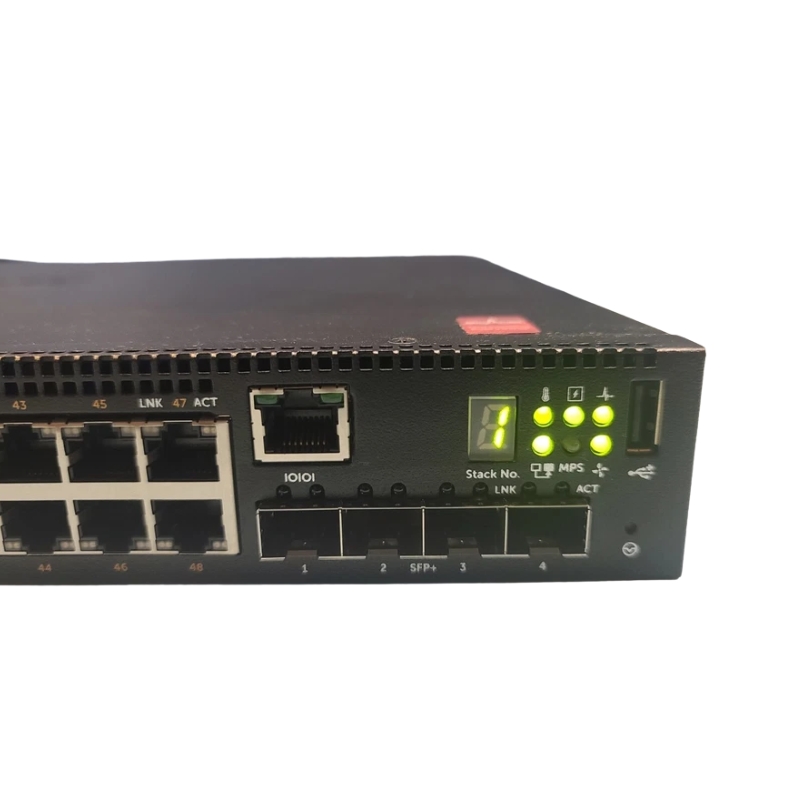

Interface Options
- 48 x Gigabit LAN - RJ-45
- 4 x 10 Gigabit LAN - SFP+
- 1 x Serial Management - RJ-45
- 1 x USB - Type A

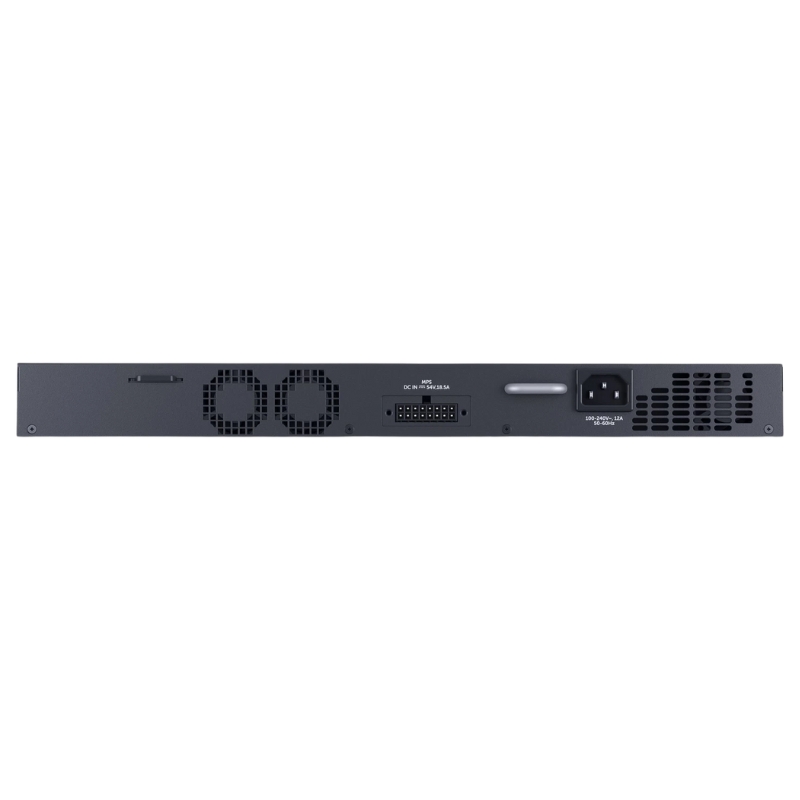

Power Specifications
- Power Supply: Internal
- Power Rating: 600 Watts
Ports
The Dell N1548P Gigabit Ethernet Network Switch is equipped with an impressive 48 ports, making it an ideal choice for businesses with high network connectivity requirements. These ports enable users to connect multiple devices such as computers, printers, servers, and other networking equipment to create a seamless and efficient network infrastructure.
Increased Scalability
The 48 ports offered by the Dell N1548P Gigabit Ethernet Network Switch allow for increased scalability within an organization's network. With more ports available, businesses can easily expand their network and accommodate additional devices without the need for additional switches or complex configurations. This ensures smooth operations and uninterrupted connectivity as the organization grows and evolves.
Efficient Network Management
Having 48 ports on the Dell N1548P Gigabit Ethernet Network Switch simplifies network management and reduces the need for additional hardware. With fewer switches required, IT administrators can easily monitor and manage the network from a centralized location, saving time and resources. The switch also supports various management protocols, providing flexibility and ease of use for efficient network administration.
Enhanced Connectivity Options
The ample number of ports offered by the Dell N1548P Gigabit Ethernet Network Switch provides users with enhanced connectivity options. Whether it's connecting multiple devices within a department or establishing connections across different floors or buildings, the switch's 48 ports ensure that there are enough connections available to support various networking needs. This versatility allows businesses to design their networks according to their specific requirements, enhancing overall productivity and collaboration.
Power Over Ethernet (PoE+)
The Dell N1548P Gigabit Ethernet Network Switch comes with Power over Ethernet (PoE+) capability, which enables both data and power transmission over a single Ethernet cable. This feature is particularly beneficial in scenarios where devices such as IP cameras, wireless access points, and VoIP phones need to be powered through the network infrastructure.
Simplified Deployment
The PoE+ feature of the Dell N1548P Gigabit Ethernet Network Switch simplifies deployment by eliminating the need for separate power sources for connected devices. With PoE+, users can easily install and position devices in locations where power outlets might not be readily available. This flexibility ensures that devices can be deployed in optimal locations without the constraints of power source proximity, reducing installation time and costs.
Cost Savings
By utilizing PoE+, businesses can achieve significant cost savings. The availability of power through the network infrastructure eliminates the need for additional electrical wiring or power adapters, reducing installation and maintenance costs. Furthermore, PoE+ allows for centralized power management, enabling businesses to efficiently monitor and control power consumption, resulting in lower energy costs.
Improved Reliability
The PoE+ feature of the Dell N1548P Gigabit Ethernet Network Switch enhances network reliability. By integrating power delivery with data transmission, businesses can ensure uninterrupted connectivity for critical devices. In case of a power outage, the switch can provide backup power through its internal power supply or an external redundant power supply, ensuring that essential network devices remain operational.
In conclusion, the Dell N1548P Gigabit Ethernet Network Switch's 48 ports offer increased scalability, efficient network management, and enhanced connectivity options. Additionally, its Power over Ethernet (PoE+) capability simplifies deployment, reduces costs, and improves network reliability. These features make the Dell N1548P an excellent choice for businesses looking to optimize their network infrastructure and support a wide range of devices and applications.
