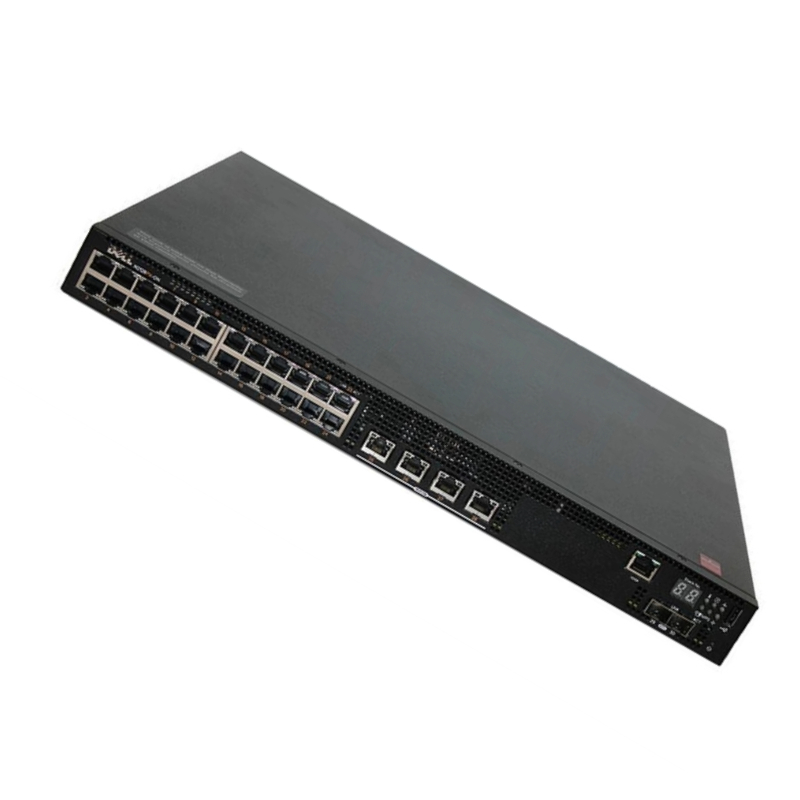

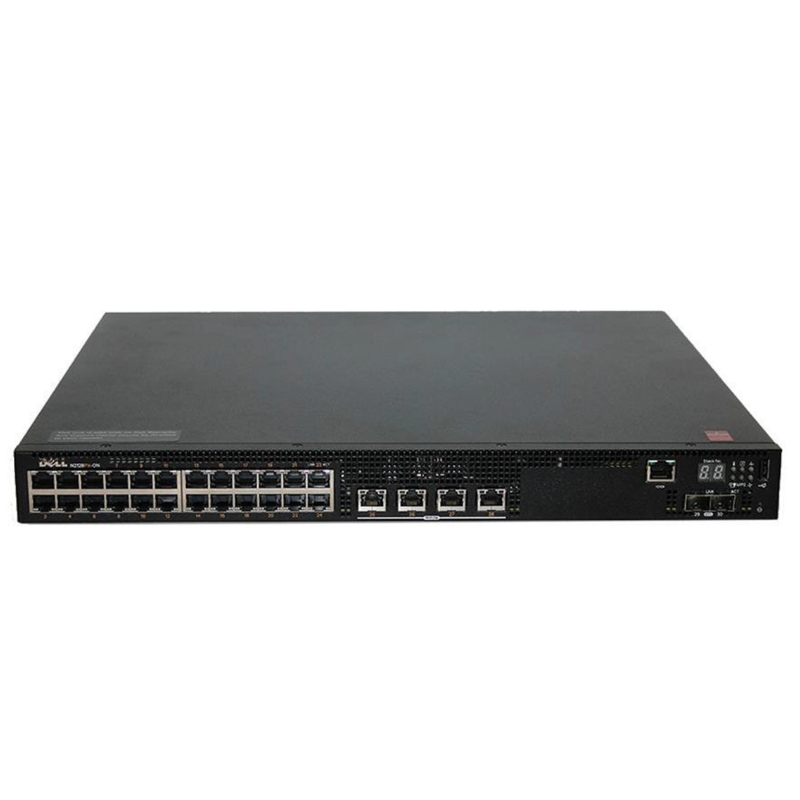

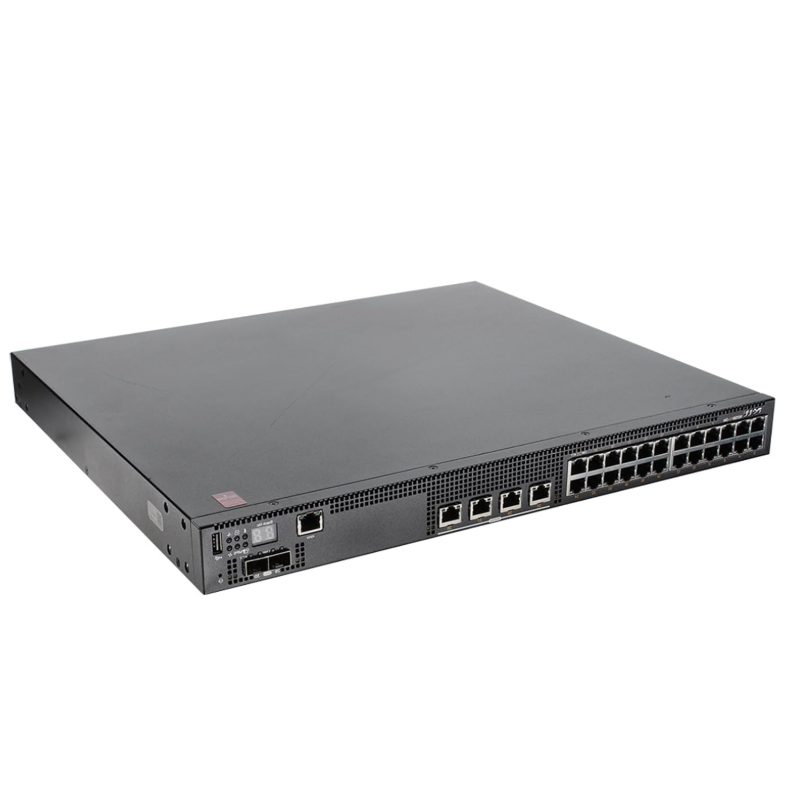

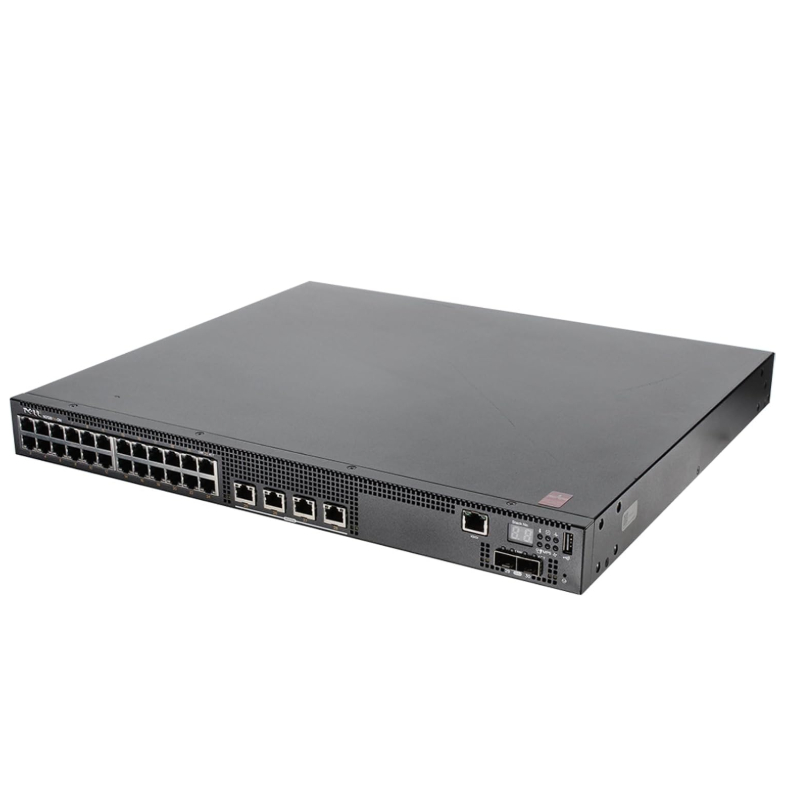

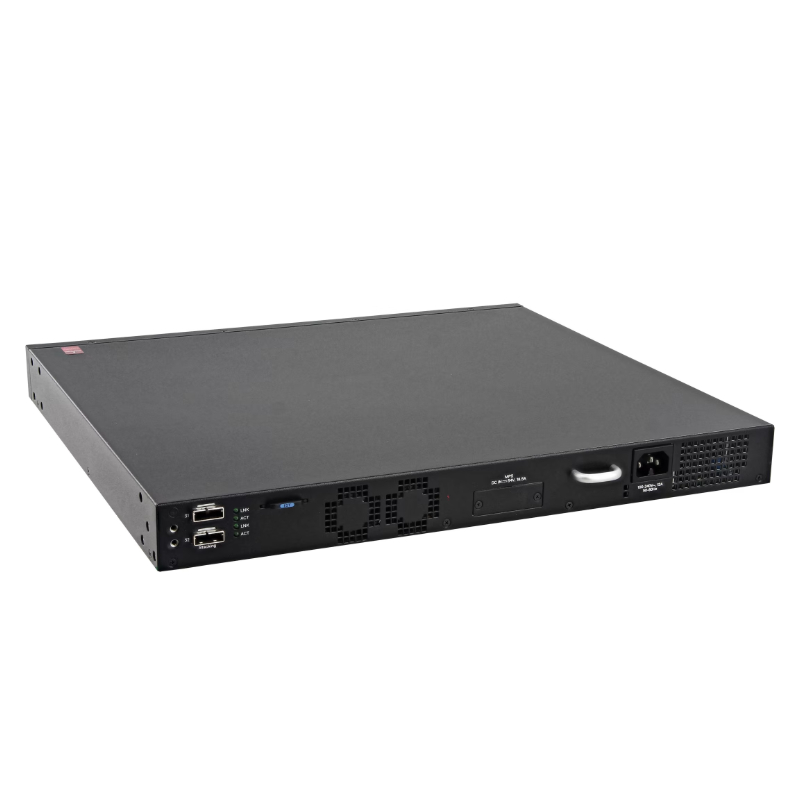

Dell EMC N2128PX-ON Switch - 28 Ports, Managed, Rack-mountable - 210-AISI

Dell EMC 210-AISI Networking N2128PX-ON Switch Overview

General Specifications

• Type of Device: Managed Layer 3 Switch with 28 ports, designed for rack-mounting
• Form Factor: 1U Rack-Mountable Enclosure
• Network Subtype: Gigabit Ethernet

Port Configuration

• Standard Ports:
  • 24 x 10/100/1000 Mbps RJ-45 (PoE+)
  • 4 x 100/1000/2.5G/5G RJ-45 (PoE)
  • 2 x 10 Gigabit SFP+
• Power over Ethernet: Supports PoE+

Performance Metrics

• Switching Fabric Bandwidth: 220 Gbps
• Forwarding Rate: 256 Mpps
• MAC Address Capacity: 32,000
• Dynamic Aggregated Links: 144
• Link Aggregation Groups: 128
• Queues Per Port: 8
• Supported VLANs: 4,094
• ARP Entries: 1,024
• NDP Entries: 400

Access Control and Security

• Maximum ACL Rules System-wide: 2,048
• Ingress Rules for IPv4: 1,024
• Egress Rules for IPv4: 512
• Ingress Rules for IPv6: 512
• Egress Rules for IPv6: 256

Routing and Management Protocols

• Supported Routing Protocols: RIP, IGMPv2, IGMPv3
• Remote Management: SNMP, Telnet, SSH-2, HTTP, TFTP
• Encryption Standards: AES, SSL, TLS 1.0
• Authentication Methods: RADIUS, TACACS+, LDAP

Advanced Features

• Switch Features: MDI/MDI-X auto-negotiation, port mirroring, IP address filtering, and QoS support
• Airflow Design: Front-to-back airflow for efficient cooling
• Dual Firmware Images: Ensures high availability during updates
• Support for LLDP: Link Layer Discovery Protocol
• Redundant Fans: Enhances reliability in critical applications

Compliance and Specifications

• RAM: 2 GB
• Flash Memory: 512 MB
• Compliant Standards: IEEE 802.2, 802.3, 802.1Q, among others

Connectivity Options

• Interface Types:
  • 24 x Gigabit LAN (RJ-45, PoE+)
  • 4 x 5Gbit LAN (RJ-45, PoE)
  • 2 x 10Gbit LAN (SFP+)
  • 1 x 1000BASE-T (RJ-45, Management)
  • 1 x USB Type A

Power Specifications

• Power Supply: Internal, with a total power output of 1,000 Watts
• Installed Quantity: 1

Dell EMC Networking N2128PX-ON Switch - 28 Ports, Managed, Rack-mountable - 210-AISI

Ports

The Dell EMC N2128PX-ON Switch is equipped with an impressive 28 ports, providing users with a high level of connectivity and flexibility. This feature sets it apart from other switches on the market and makes it an ideal choice for businesses and organizations that require a large number of ports to support their network infrastructure.

Increased Connectivity

With 28 ports, this switch offers a significant increase in connectivity options compared to switches with fewer ports. It allows users to connect multiple devices such as computers, servers, printers, and network storage devices simultaneously, without the need for additional equipment. This is particularly beneficial for businesses with a growing number of devices or those that require multiple connections in different locations.

Efficient Network Management

The abundance of ports on the Dell EMC N2128PX-ON Switch simplifies network management by reducing the need for additional switches or cascading setups. With all devices directly connected to the switch, network administrators can easily monitor and troubleshoot network issues, ensuring optimal performance and minimizing downtime.

Scalability and Future-Proofing

The 28 ports on this switch provide scalability and future-proofing capabilities for businesses and organizations. As technology advances and more devices are added to the network, having extra ports ensures that there is room for growth without the need for costly upgrades or replacements. This can save both time and money in the long run.

Flexibility in Network Design

The Dell EMC N2128PX-ON Switch's 28 ports offer flexibility in network design. Users have the freedom to create complex network topologies or implement redundancy measures without running out of available ports. This level of flexibility allows businesses to customize their networks according to their specific requirements, ensuring optimal performance and reliability.

Enhanced Data Transfer Speeds

With 28 ports, this switch supports high-speed data transfer rates, allowing for quick and efficient communication between devices. Whether it's transferring large files or streaming media, the increased number of ports ensures that data flows smoothly and consistently, without bottlenecks or congestion.

Management

The Dell EMC N2128PX-ON Switch comes with advanced management capabilities, making it a reliable and efficient solution for businesses seeking a managed switch. With its emphasis on "Managed," this feature is designed to provide users with comprehensive control and monitoring of their network infrastructure.

Centralized Network Control

The managed nature of this switch enables centralized network control, allowing administrators to configure and manage multiple aspects of the network from a single interface. This level of control provides enhanced security, as administrators can implement access controls, monitor traffic, and detect any suspicious activities in real-time.

Improved Network Performance

By offering management features such as Quality of Service (QoS) and VLAN support, the Dell EMC N2128PX-ON Switch ensures improved network performance. Administrators can prioritize critical applications or services, allocate bandwidth efficiently, and segment the network to enhance security and optimize performance for specific devices or departments.

Remote Management

With remote management capabilities, administrators can monitor and manage the switch from anywhere, at any time. This is particularly valuable for businesses with multiple locations or distributed networks as it eliminates the need for physical access to the switch. Remote management also enables quick troubleshooting and reduces downtime, ensuring uninterrupted network connectivity.

Network Visibility and Troubleshooting

The managed features of this switch provide network administrators with detailed visibility into the network. They can monitor traffic patterns, identify potential bottlenecks or congestion points, and troubleshoot issues effectively. This proactive approach helps prevent network slowdowns or failures and ensures a smooth and reliable network experience for users.

Security and Access Control

With its managed capabilities, the Dell EMC N2128PX-ON Switch offers robust security features. Administrators can implement access controls, authenticate users, and enforce policies to protect sensitive data and prevent unauthorized access. By closely monitoring network traffic and implementing security measures, businesses can mitigate potential risks and ensure the integrity of their network infrastructure.

Mounting

The Dell EMC N2128PX-ON Switch is rack-mountable, providing users with a convenient and space-saving solution for their networking needs. With its emphasis on "Rack-mountable," this feature offers several benefits and is highly important for organizations looking to optimize their physical infrastructure.

Space Efficiency

Rack-mountable switches are designed to be mounted in standard server racks or cabinets, maximizing the use of space in data centers or server rooms. By vertically stacking multiple switches in a rack, users can efficiently utilize the available space, minimizing clutter and improving overall organization. This is particularly valuable for businesses with limited space or those looking to optimize their physical infrastructure.

Easier Cable Management

Rack-mountable switches allow for better cable management compared to standalone switches. With cables neatly organized within the rack, users can easily identify and trace connections, reducing the likelihood of accidental disconnections or cable damage. This simplifies troubleshooting processes and improves overall network reliability.

Scalability and Expansion

The rack-mountable design of the Dell EMC N2128PX-ON Switch facilitates scalability and expansion. As businesses grow or require additional network equipment, they can simply add more switches to the existing rack without the need for additional floor space or reconfiguration. This scalability ensures that organizations can adapt their infrastructure to meet evolving needs.

Improved Cooling and Ventilation

When mounted in a rack, switches benefit from improved cooling and ventilation. Rack enclosures typically feature built-in cooling mechanisms, such as fans or airflow management systems, which help dissipate heat generated by the switches. This prevents overheating and ensures optimal performance and longevity of the network equipment.

Physical Security

Rack-mountable switches offer enhanced physical security compared to standalone switches. They can be easily locked within the rack, preventing unauthorized access and reducing the risk of tampering or theft. This added layer of security is crucial for businesses that handle sensitive data or operate in environments where physical security is a concern.

Sku

The Dell EMC N2128PX-ON Switch has a unique SKU (Stock Keeping Unit) number, specifically "210-AISI". This identifier is important for users as it helps in product identification, tracking, and inventory management.

Product Differentiation

The SKU number distinguishes the Dell EMC N2128PX-ON Switch from other similar products in the market. It serves as a unique identifier that enables users to easily identify and differentiate this specific switch model from others offered by Dell EMC or competitors. This is particularly useful when comparing specifications, pricing, or compatibility with other network devices.

Efficient Inventory Management

The SKU number plays a vital role in inventory management for businesses and organizations. With a unique SKU assigned to each product variant, it becomes easier to track stock levels, reorder products when necessary, and maintain accurate records of available inventory. Efficient inventory management helps businesses avoid stockouts, streamline procurement processes, and optimize their supply chain.

Warranty and Support

The SKU number is often linked to warranty and support information for the Dell EMC N2128PX-ON Switch. By referencing the SKU, users can quickly access relevant documentation, warranty terms, and support channels specific to this switch model. This simplifies the process of seeking assistance or accessing resources in case of any technical issues or inquiries.

Compatibility and Expansion

The SKU number can also provide information about compatible accessories or expansion modules for the Dell EMC N2128PX-ON Switch. Users can refer to the SKU to identify and procure additional components that are specifically designed to work seamlessly with this switch model. This ensures compatibility and facilitates future expansion or customization of the network infrastructure.
