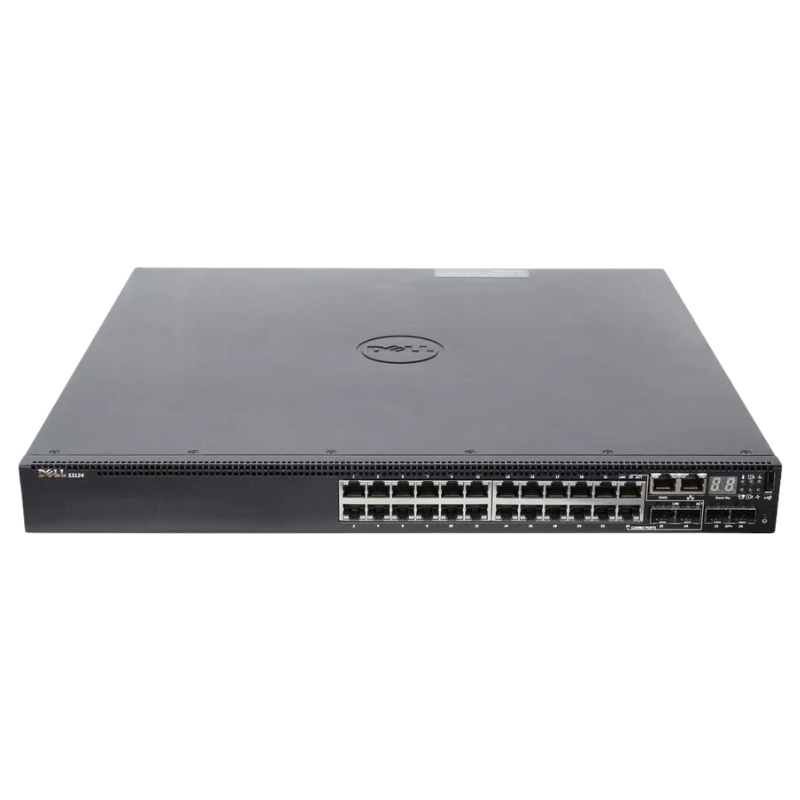

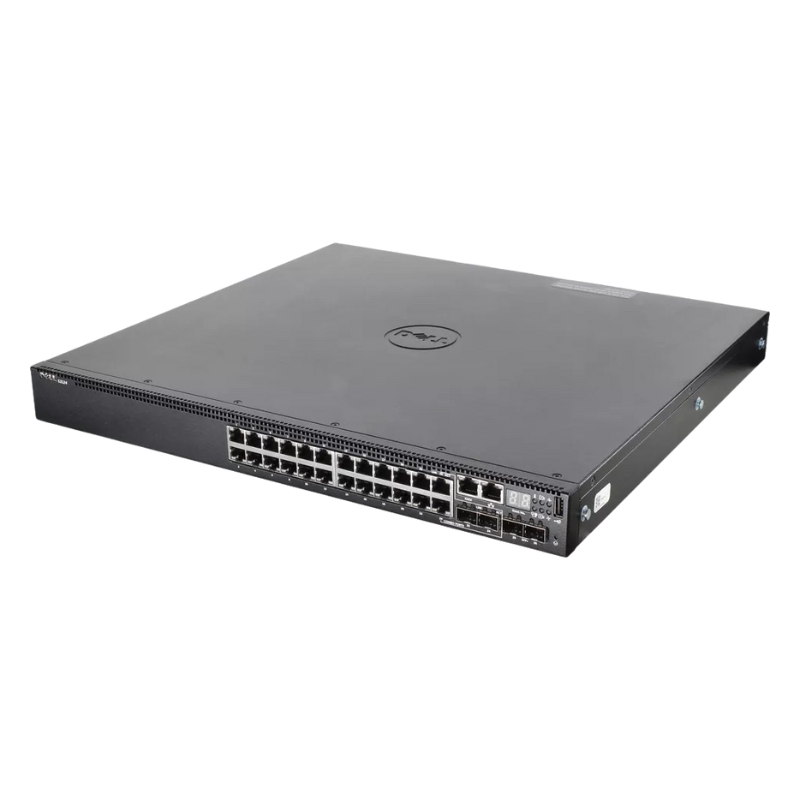

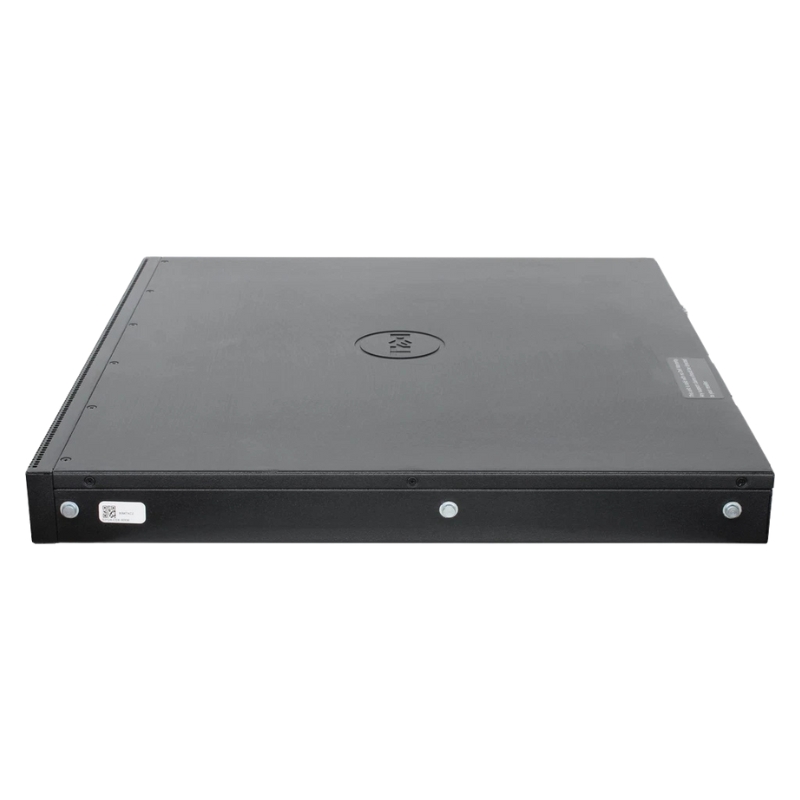

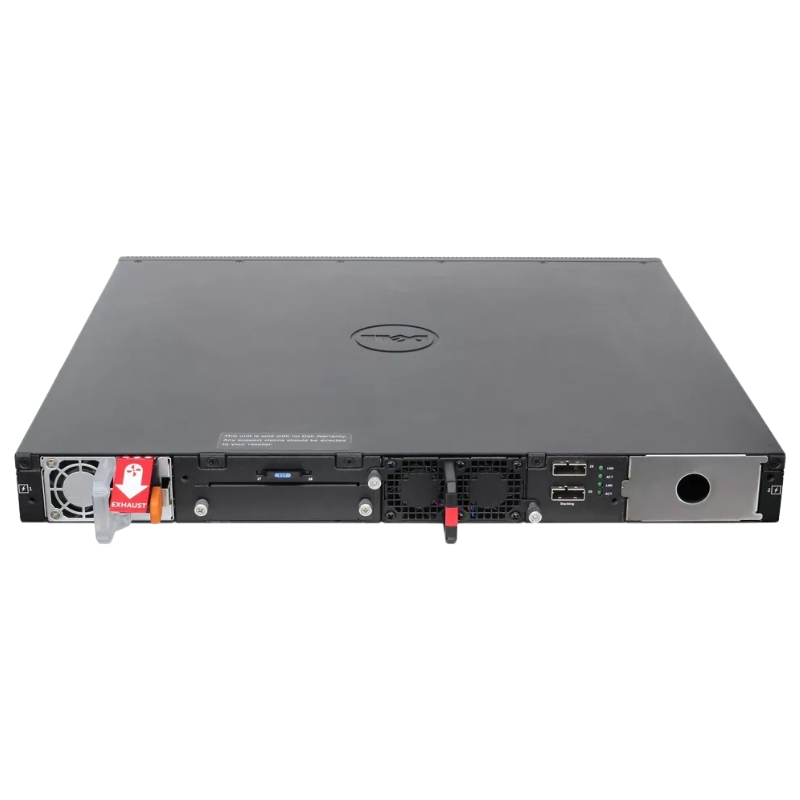

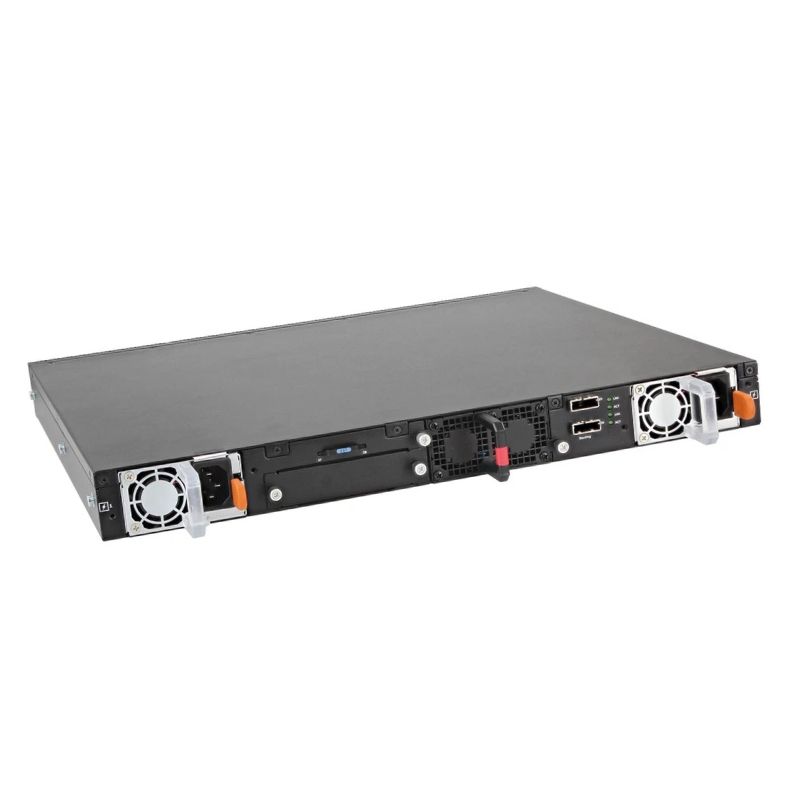

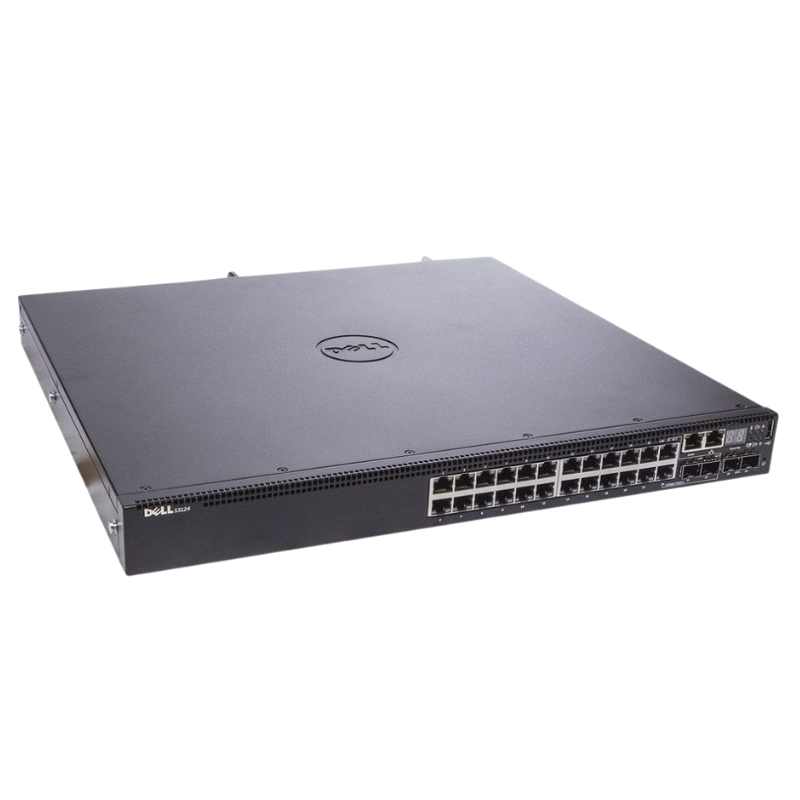

Dell EMC N1124T-ON 24-Port 1U Stackable Managed Network Switches 210-AJIS.

Product Details

Manufacturer Information

• Brand: Dell
• Part Number: 210-AJIS
• Category: Networking
• Switch Type: 24-Port Switch
• Technical Specifications

Switching Fabric and Forwarding Capacity

• Switching Fabric Bandwidth: 128 Gbps
• Forwarding Performance: 96 Mpps

Capacity and Performance

• MAC Addresses Supported: Up to 16,000 entries
• Aggregated Links: 144 (Dynamic)
• Link Aggregation Groups (LAG): 64
• Queues Per Port: 8
• Supported VLANs: 512
• ARP Table Capacity: 2048 entries
• NDP Entries: 400
• ACL Rules Capacity (System-wide): 4000 rules
• ACL Rules per Interface (IPv4): Ingress - 1023, Egress - 1023
• ACL Rules per Interface (IPv6): Ingress - 1021, Egress - 253

Routing Protocols and Remote Management

• Supported Protocols: IGMPv2, IGMP, IGMPv3
• Remote Management Protocols: SNMP (v1, v2), RMON, Telnet, HTTP, TFTP, SSH-2

Security Features

• Encryption: AES, SSL, TLS 1.0
• Authentication Methods: RADIUS, TACACS+, LDAP

Switch Features

Layer and Connectivity Options

• Layer 2 Switching: Supported
• Auto-Negotiation: Enabled
• MDI/MDI-X Support: Available
• Port Mirroring: Supported
• IP Address Filtering: Supported
• Quality of Service (QoS): Supported

Advanced Features

• Access Control Lists (ACLs): MAC and IP-based, Time-Controlled
• Front-to-Back Airflow: Supported
• LLDP Support: Enabled
• Remote Switch Port Analyzer (RSPAN): Available
• Management Information Base (MIB): Supported
• Dual Firmware Images: Available
• Redundant Fans: Installed

Standards Compliance

• IEEE 802.2, IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p
• IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.3ac, IEEE 802.1s, IEEE 802.1v
• ANSI/TIA-1057, IEEE 802.1AB (LLDP), IEEE 802.3az, IEEE 802.3ax

Memory Specifications

RAM and Flash Memory

• RAM: 1 GB
• Flash Memory: 1 GB

Expansion and Connectivity

Interface Options

• LAN Ports: 24 x Gigabit RJ-45
• 10G LAN SFP+ Ports: 4
• USB Ports: 1 x Type A, 1 x Micro-USB

Power Specifications

Power Supply and Consumption

• Power Device: Internal Power Supply
• Installed Quantity: 1
• Power Provided: 40 Watts

Dimensions and Weight

Physical Measurements

• Depth: 10 inches
• Height: 1.75 inches
• Width: 17 inches
• Weight: 7 lbs

Ports

The Dell EMC N1124T-ON Stackable Managed Network Switches come equipped with 24 ports, providing users with ample connectivity options. These ports are essential for establishing network connections between various devices, such as computers, servers, printers, and more. With 24 ports available, users have the flexibility to connect multiple devices simultaneously without any limitations or bottlenecks.

Enhanced Connectivity

The 24 ports on the Dell EMC N1124T-ON switches ensure enhanced connectivity for businesses of all sizes. Whether you have a small office or a large enterprise, these switches can handle the demands of a growing network infrastructure. Each port enables high-speed data transfer rates and ensures seamless communication between devices.

Scalability

The abundance of ports on the Dell EMC N1124T-ON switches allows for easy scalability. As your business grows and more devices need to be connected, these switches can accommodate the increasing demands without requiring additional hardware investments. This scalability is particularly beneficial for businesses that anticipate expansion in the future.

Improved Network Performance

Having 24 ports on the Dell EMC N1124T-ON switches significantly improves network performance. With more ports available, the overall network congestion is reduced, resulting in faster data transfer speeds and improved efficiency. Users can experience seamless connectivity and reduced latency, ensuring smooth operation of critical applications and services.

Flexibility in Device Configuration

The 24 ports provide users with the flexibility to configure their network devices according to their specific requirements. Whether you need to connect computers, printers, IP phones, or other network-enabled devices, these switches offer the necessary connectivity options. The ability to connect multiple devices simultaneously enables seamless collaboration and efficient resource utilization.

Size

The Dell EMC N1124T-ON Stackable Managed Network Switches feature a compact 1U form factor. This size is essential for users who have limited rack space or require efficient utilization of their network infrastructure. The 1U design allows these switches to be easily mounted in standard racks, maximizing the available space without compromising on performance.

Space Optimization

The 1U form factor of the Dell EMC N1124T-ON switches is ideal for businesses that have limited physical space for their networking equipment. By utilizing just one unit of rack space, these switches provide a compact solution that doesn't take up excessive room in server rooms or data centers. This space optimization enables businesses to make the most of their available infrastructure.

Cost Savings

The compact size of the Dell EMC N1124T-ON switches contributes to cost savings. With limited rack space required, businesses can avoid the need for larger racks or additional physical infrastructure, saving on both initial setup costs and ongoing maintenance expenses. Additionally, the smaller form factor reduces power consumption, further driving down operational costs.

Efficient Cable Management

The 1U size of these switches facilitates efficient cable management. With a reduced footprint, cable routing and organization become more streamlined, minimizing the risk of tangled or messy cables. Neat and organized cabling not only improves aesthetics but also simplifies troubleshooting and maintenance tasks, saving time and effort for IT personnel.

Improved Airflow and Cooling

The compact size of the Dell EMC N1124T-ON switches allows for better airflow and cooling within server racks. By occupying only 1U of space, these switches ensure that there is sufficient room for air circulation, preventing overheating and enhancing the overall reliability of the network infrastructure. Improved cooling efficiency also contributes to prolonging the lifespan of the switches.

In conclusion, the Dell EMC N1124T-ON Stackable Managed Network Switches offer users the advantage of 24 ports, providing enhanced connectivity, scalability, improved network performance, and flexibility in device configuration. Additionally, the compact 1U size of these switches enables space optimization, cost savings, efficient cable management, and improved airflow and cooling. With these features, businesses can establish a robust and efficient network infrastructure to meet their growing connectivity needs.
