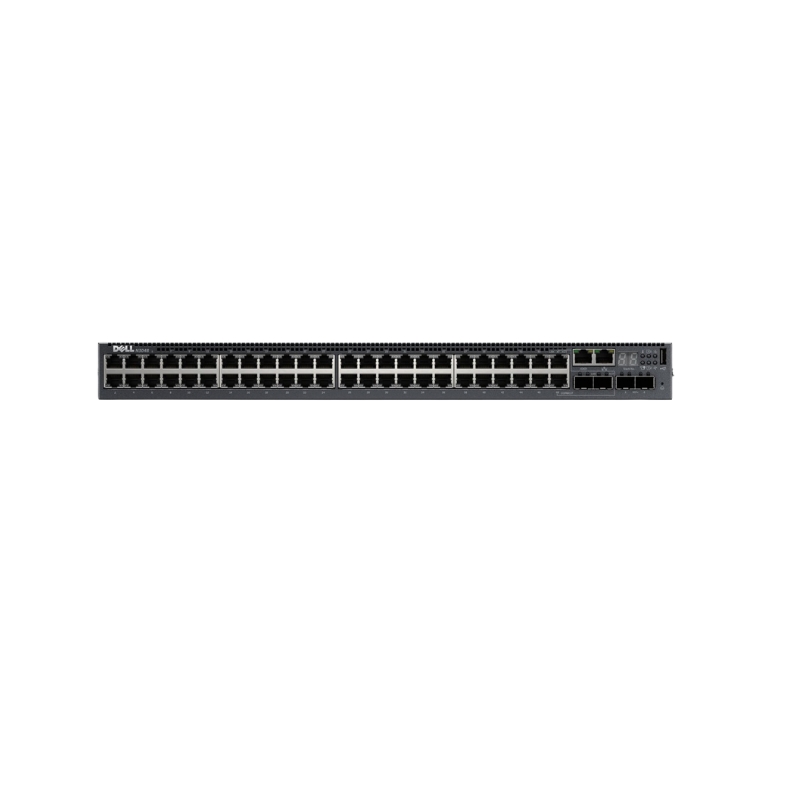

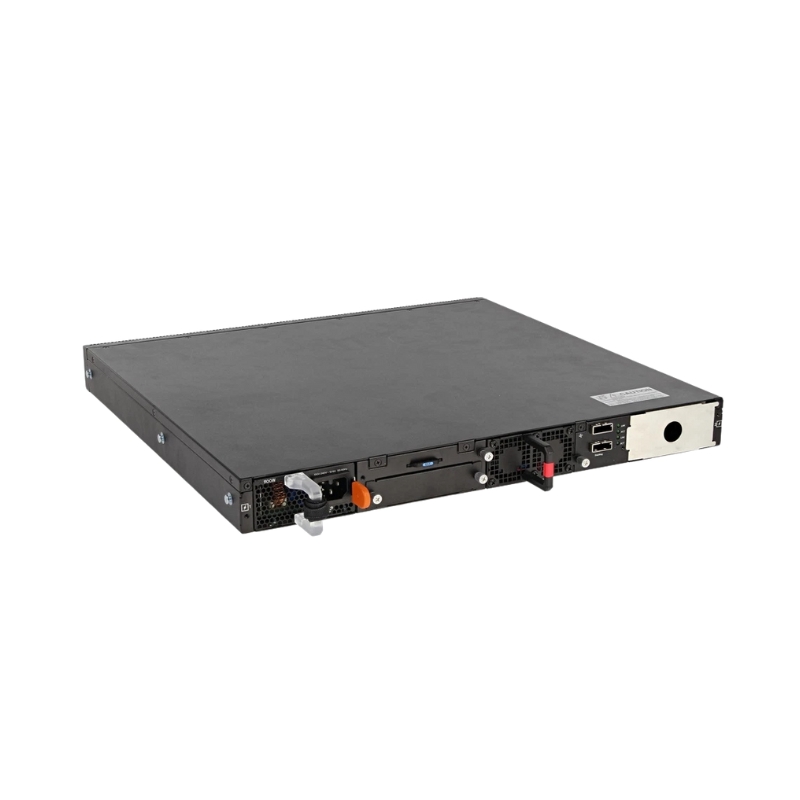

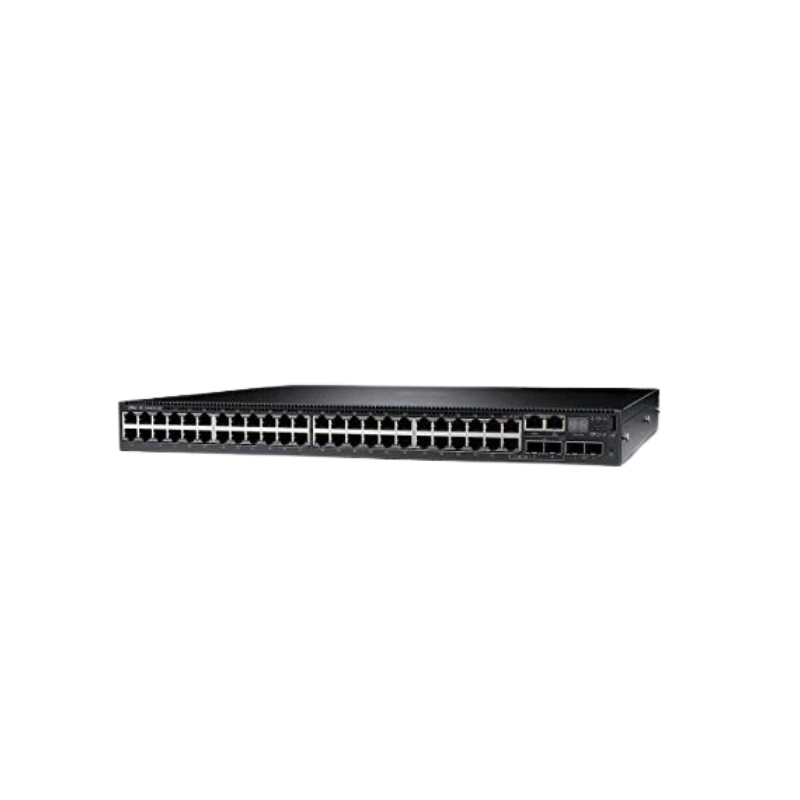

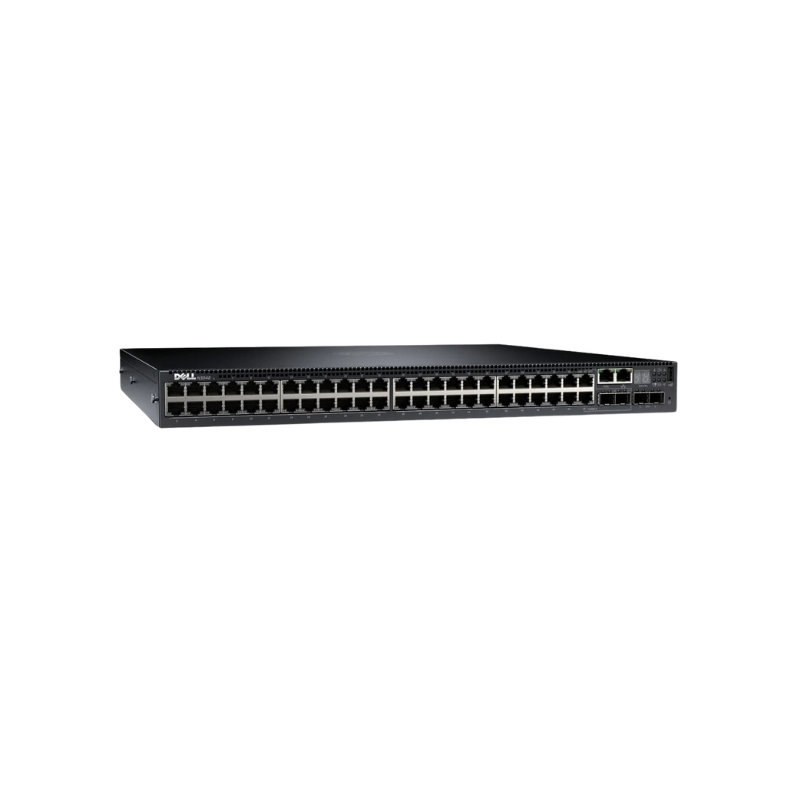

Dell EMC N3048EP-ON 48 Ports 10GbE Network Switch - 210-AOFM

DELL 210-AOFM EMC Networking N3048EP-ON - 48-Port Managed Rack-Mountable Switch

Key Characteristics of the DELL 210-AOFM EMC Networking N3048EP-ON

• Device Type: Layer 3 switch with 48 ports, offering stackable and fully managed capabilities for efficient network management.
• Enclosure: Rack-mountable 1U unit, ideal for data centers or server rooms with space-saving requirements.
• Network Subtype: 10 Gigabit Ethernet support for enhanced data transmission rates.

Port Configuration and High Performance

• Ports: 48 x 10/100/1000 PoE+ ports, complemented by 2 x 10Gb SFP+ uplinks and 2 x Combo Gigabit SFP ports for versatile connectivity.
• Switching Fabric Bandwidth: A total bandwidth of 260 Gbps for seamless network performance.
• Forwarding Rate: Capable of forwarding at a rate of 193 Mpps, ensuring fast and efficient network operations.
• Stacking Bandwidth: Offers 21 Gbps of stacking bandwidth, allowing the switch to be stacked with others to expand the network.

Advanced Networking Capacity

• Routing: Supports up to 1024 static routes for both IPv4 and IPv6, with dynamic routing capabilities for 8160 IPv4 and 4096 IPv6 routes.
• VLAN Support: Up to 4094 VLANs and 128 VLAN routing interfaces enable extensive network segmentation and security.
• Multicast & ARP Entries: 1536 multicast entries for IPv4 and 512 for IPv6, supporting up to 6144 ARP entries and 400 NDP entries.
• Access Control Lists (ACLs): Maximum ACL rules per interface (IPv4) include 1024 egress rules and 3072 ingress rules, while for IPv6, the device supports 512 egress and 1021 ingress rules.

Comprehensive Security and Remote Management

• Routing Protocols: Includes support for OSPF, RIP-1, RIP-2, IGMPv2, IGMP, VRRP, PIM-SM, PIM-DM, IGMPv3, OSPFv3, MLDv2, and MLD.
• Remote Management Protocols: Manage your network with SNMP 1/2/3, RMON (1, 2, 3, 9), Telnet, HTTP, TFTP, and SSH-2 for secure and efficient management.
• Encryption & Authentication: Advanced security with encryption algorithms like MD5, AES, SSL, TLS, and authentication via RADIUS, TACACS+, and SSH version 2.

Connectivity and Expansion Options

• Primary Interfaces: Features 48 x Gigabit RJ-45 ports (36 PoE+ and 12 PoE), delivering up to 30.8W per port.
• High-Speed Uplinks: 2 x 10Gb SFP+ ports for rapid uplink connections and 2 x Combo Gigabit RJ-45/SFP ports for flexible network expansion.
• Management Ports: 1 x RJ-45 Serial (RS-232) port for network management and 1 x USB Type-A port for simple device configuration.
• Stacking Interfaces: Equipped with 2 network stack interfaces to enable switch stacking for larger networks.

Power Supply and Energy Efficiency

• Power Device: Hot-plug internal power supply, offering up to 1100 watts for heavy-duty network operations.
• Redundant Power Supply: Optional power redundancy ensures continuous network operation in the event of power supply failure.
• Installed Power Units: Comes with 2 power supply units pre-installed, with a total capacity of up to 2 units for enhanced reliability.

Compliant Standards and Memory Capacity

• Standards Compliance: Adheres to multiple IEEE standards such as 802.2, 802.3, 802.1Q, 802.1X, 802.3ad (LACP), 802.3at, 802.3x, and others to ensure compatibility with various networking devices.
• Memory: Features 2GB RAM for optimal network processing performance, and 1GB flash memory for stable and secure configuration storage.

Ports

The Dell EMC N3048EP-ON Network Switch is equipped with an impressive 48 ports, making it an ideal solution for businesses and organizations that require a high number of network connections. With this extensive port capacity, users can effortlessly connect multiple devices and ensure seamless communication within their network infrastructure.

Increased Connectivity

The 48 ports on the Dell EMC N3048EP-ON Network Switch provide users with a wide range of connectivity options. This allows businesses to easily connect various devices such as computers, servers, printers, and other network peripherals. With such extensive connectivity options, organizations can effectively expand their network infrastructure without worrying about running out of ports.

Scalability

The abundance of ports on the Dell EMC N3048EP-ON Network Switch enables businesses to scale their network infrastructure as their needs grow. Whether it's due to an increase in the number of employees or the addition of new devices, this switch offers the flexibility to accommodate expanding network requirements. Users can simply connect additional devices without the need for external switches or complex configurations.

Improved Performance

The Dell EMC N3048EP-ON Network Switch ensures optimal performance by providing dedicated ports for each device. This eliminates any potential bottlenecks or slowdowns caused by shared connections. Each device connected to the switch can enjoy its own dedicated bandwidth, resulting in improved data transfer speeds and reduced latency. This is particularly beneficial for businesses that rely on real-time data processing or require high-speed communication between devices.

Enhanced Network Management

With 48 ports, the Dell EMC N3048EP-ON Network Switch simplifies network management by providing a centralized hub for all connected devices. Administrators can easily monitor and control network traffic, apply security measures, and troubleshoot any issues from a single point of access. This streamlines network management processes, saves time, and improves overall network efficiency.

Speed

The Dell EMC N3048EP-ON Network Switch boasts an impressive speed of 10GbE, making it an ideal choice for businesses that require high-performance networking capabilities. With its exceptional speed, this switch can handle large volumes of data with ease, ensuring smooth and uninterrupted network operations.

High Data Transfer Rates

The 10GbE speed of the Dell EMC N3048EP-ON Network Switch enables lightning-fast data transfer rates. This is particularly beneficial for businesses that deal with large file sizes or require real-time data processing. By leveraging such high-speed networking capabilities, organizations can significantly reduce data transfer times and improve overall productivity.

Support for Bandwidth-Intensive Applications

Bandwidth-intensive applications such as video conferencing, multimedia streaming, and large-scale data transfers require a network infrastructure that can handle the demand. The 10GbE speed of the Dell EMC N3048EP-ON Network Switch ensures that these applications run smoothly without any lag or buffering issues. Users can enjoy seamless collaboration, enhanced multimedia experiences, and efficient data transfers.

Future-Proof Networking

As technology continues to advance, the demand for higher network speeds will only increase. By investing in a switch with 10GbE capabilities like the Dell EMC N3048EP-ON, businesses can future-proof their network infrastructure. This switch allows organizations to keep up with evolving technological requirements without the need for costly upgrades or replacements.

Easier Network Expansion

The 10GbE speed of the Dell EMC N3048EP-ON Network Switch simplifies network expansion by providing ample bandwidth for new devices and increased traffic. As businesses grow and add more devices to their network, this switch ensures that there is enough capacity to handle the additional load. Users can connect new devices without worrying about network congestion or performance degradation.

Part Number

The Dell EMC N3048EP-ON Network Switch is identified by its unique part number, 210-AOFM. This alphanumeric code not only helps in product identification but also provides important information about the switch, making it easier for users to find the exact model they need.

Accurate Ordering

The part number, 210-AOFM, serves as a precise identifier for the Dell EMC N3048EP-ON Network Switch. When placing an order, users can simply provide this part number to ensure that they receive the exact model they require. This eliminates any confusion or potential errors that may occur when relying solely on product names or descriptions.

Compatibility Assurance

The part number, 210-AOFM, also helps in ensuring compatibility with other networking equipment. By referencing this unique identifier, users can verify that the switch is compatible with their existing network infrastructure and other devices such as routers, servers, and access points. This eliminates the risk of purchasing incompatible equipment and saves both time and money.

Easy Identification

With numerous models and variations available in the market, it can be challenging to identify the specific network switch required. The part number, 210-AOFM, simplifies this process by providing a clear and unique identifier for the Dell EMC N3048EP-ON Network Switch. Users can easily search for this part number online or in product catalogs to quickly locate the desired switch.

Product Documentation and Support

The part number, 210-AOFM, is often referenced in product documentation and support materials provided by Dell EMC. Users can easily find relevant information, user manuals, technical specifications, and firmware updates specific to their switch model by using the part number as a search parameter. This ensures that users have access to accurate and up-to-date resources for proper installation, configuration, and troubleshooting.

In conclusion, the Dell EMC N3048EP-ON Network Switch offers an extensive range of ports, with its 48-port capacity providing increased connectivity, scalability, improved performance, and enhanced network management. Additionally, its 10GbE speed delivers high data transfer rates, supports bandwidth-intensive applications, future-proofs networking, and eases network expansion. The part number, 210-AOFM, ensures accurate ordering, compatibility assurance, easy identification, and access to relevant product documentation and support materials. Overall, these features make the Dell EMC N3048EP-ON Network Switch a powerful and versatile solution for businesses and organizations seeking reliable and high-performance networking capabilities.
