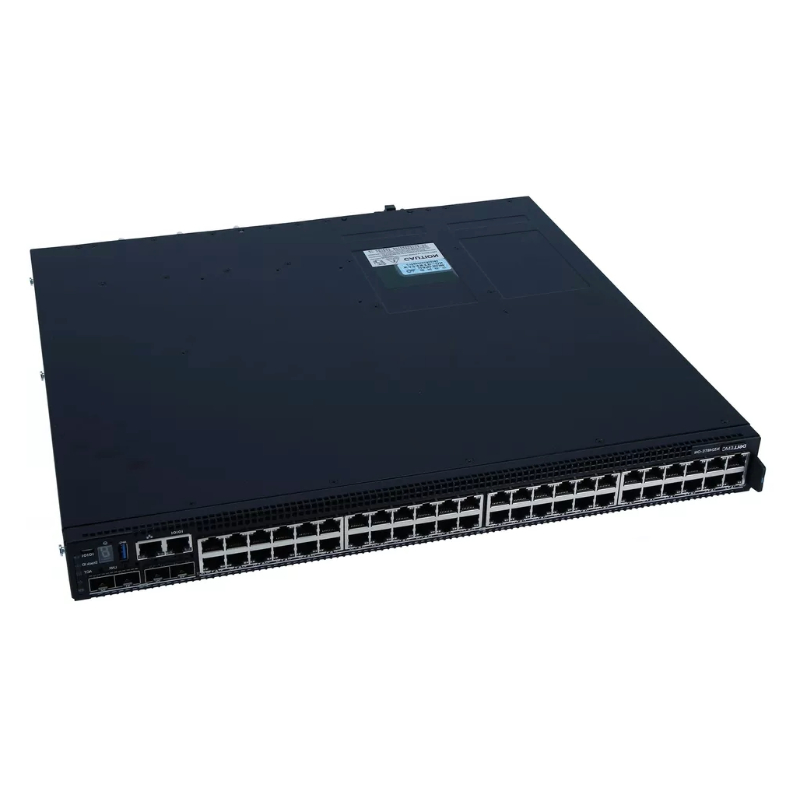

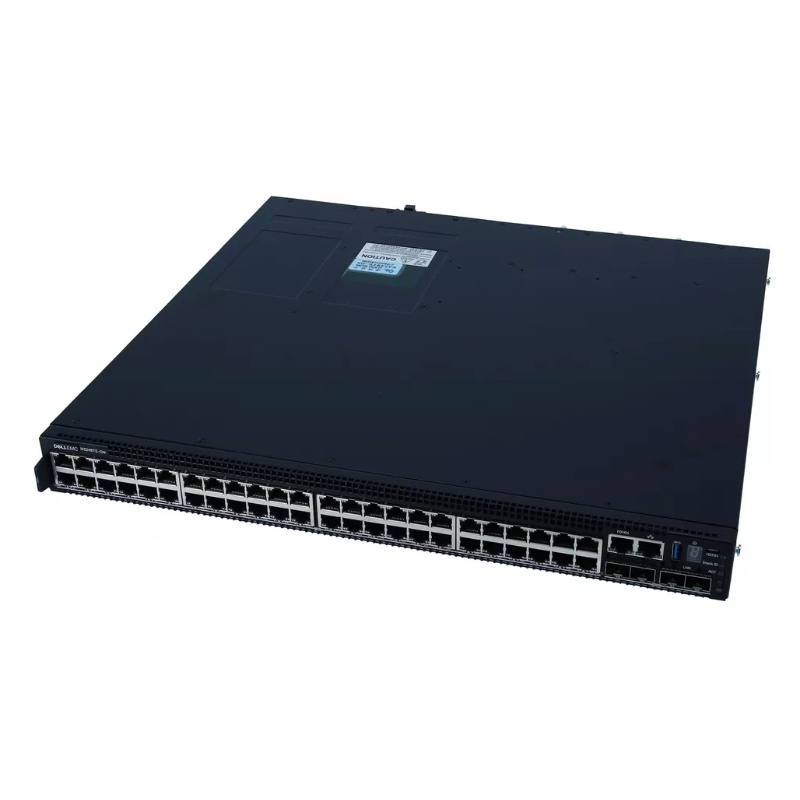

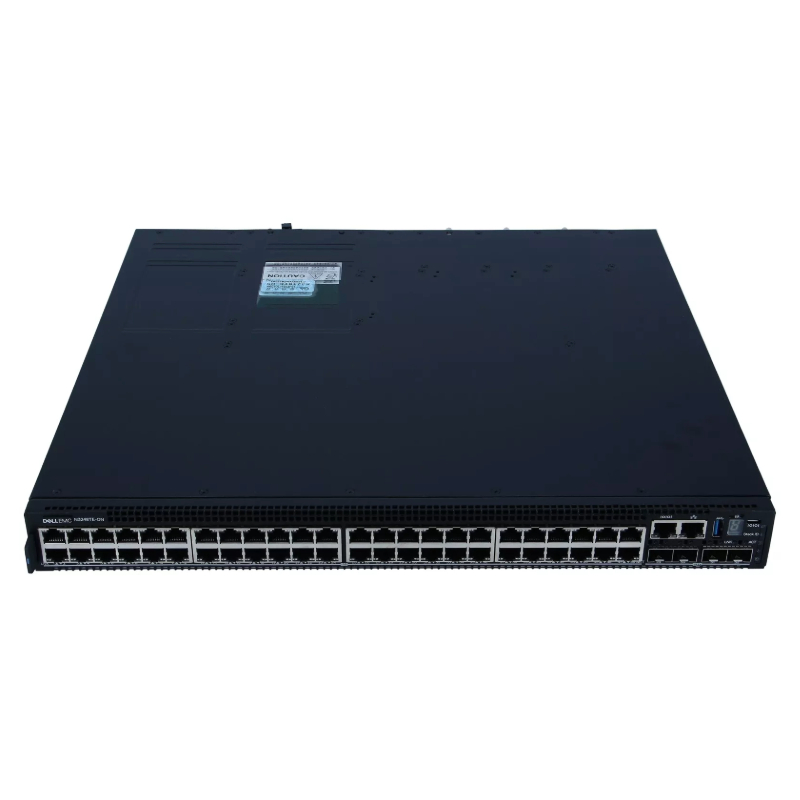

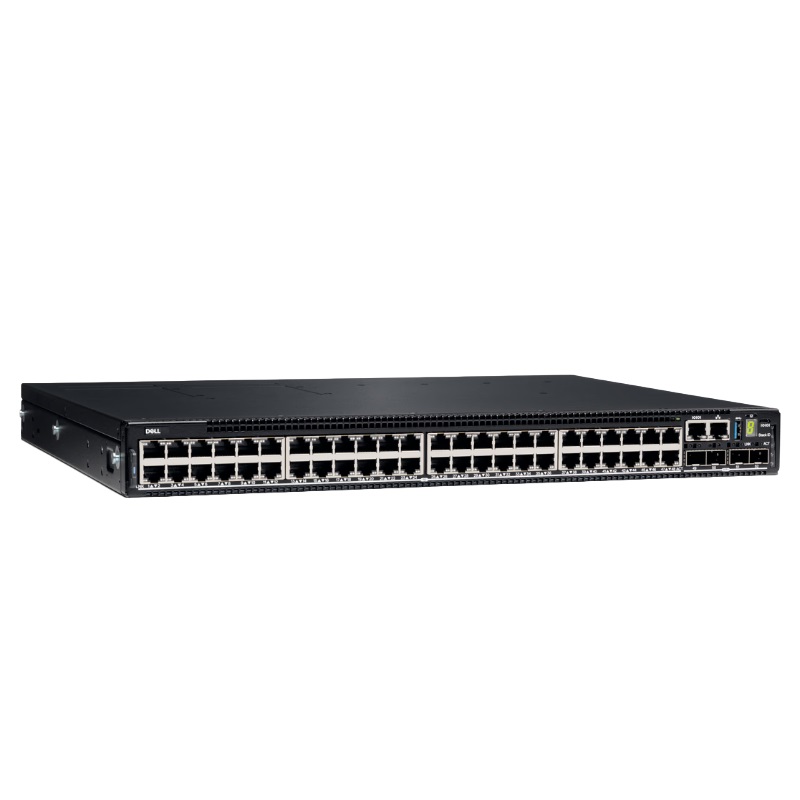

Dell 210-APWZ 48-Port Managed Rack Mountable Switch

Overview of the Dell 210-APWZ Networking Switch

Key Specifications

• Manufacturer: Dell
• Model Number: 210-APWZ
• Product Category: Network Switches
• Port Configuration: 48 Ports

Primary Features

Device Specifications

• Device Type: 48 Ports Layer 3 Managed Switch (Stackable)
• Form Factor: Rack-mountable (1U)
• Networking Type: Gigabit Ethernet
• Port Configuration:
  • 48 x 10/100/1000 Mbps
  • 2 x 10 Gigabit SFP+
  • 2 x Combo Gigabit SFP

Performance Metrics

• Switching Fabric Bandwidth: 260 Gbps
• Forwarding Performance: 193 Mpps
• Stacking Bandwidth: 21 Gbps

Capacity and Routing Information

Routing Capabilities

• IPv4 Static Routes: 1024
• IPv6 Static Routes: 1024
• Dynamic IPv4 Routes: 8160
• Dynamic IPv6 Routes: 4096
• Maximum LAG Member Ports: 8
• Maximum Dynamic Ports per Stack: 144
• OSPF Routes: 8160
• RIP Routes: 512
• Multicast Entries (IPv4): 1536
• Multicast Entries (IPv6): 512

Access Control and Security Features

• Maximum ACL Rules per Interface (IPv4 Ingress): 3072
• Maximum ACL Rules per Interface (IPv6 Egress): 512
• Authentication Protocols: RADIUS, TACACS+, Secure Shell (SSH v2)
• Encryption Algorithms: MD5, AES, SSL, TLS

Management and Monitoring

Remote Management Protocols

• SNMP Versions 1, 2, and 3
• RMON (1, 2, 3, 9)
• Telnet, HTTP, TFTP, SSH-2

Quality of Service (QoS) Features

• Flow Control, MDI/MDI-X Switching
• Port Mirroring, Weighted Round Robin Queuing
• Broadcast Storm Control, VLAN Support

Compliance and Standards

• Standards Compliance: IEEE 802.2, IEEE 802.3, IEEE 802.1Q, IEEE 802.1X, among others
• Supports Rapid Spanning Tree Protocol (RSTP) and Multiple Spanning Tree Protocol (MSTP)

Memory and Expansion

Specifications

• RAM: 2 GB
• Flash Memory: 1 GB

Expansion Options

• 48 x Gigabit LAN RJ-45 Ports
• 2 x 10-Gigabit SFP+ Ports
• 1 x Serial RJ-45 Management Port
• 1 x USB Type A Port

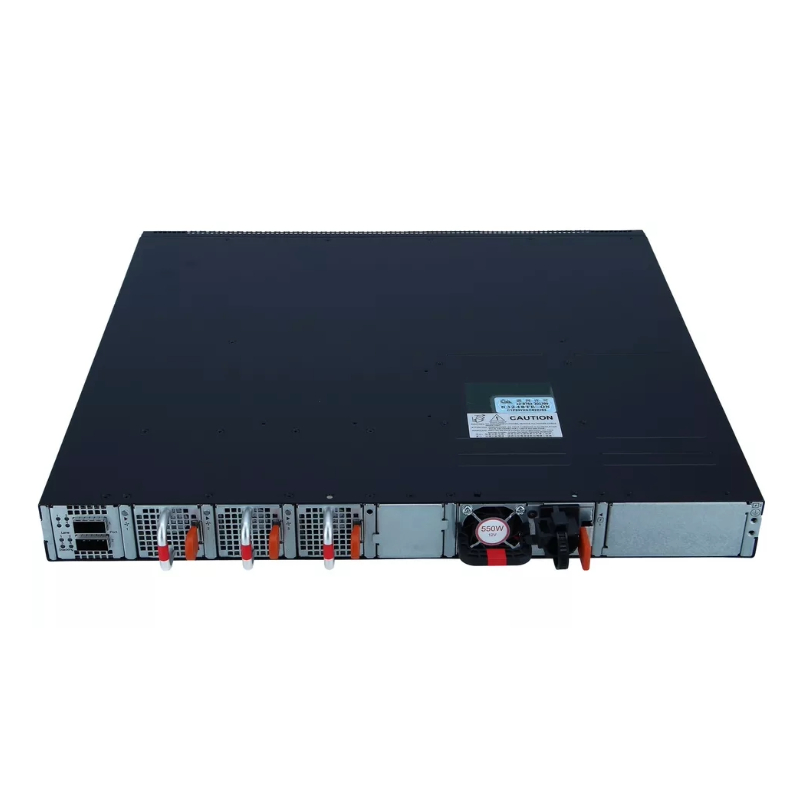

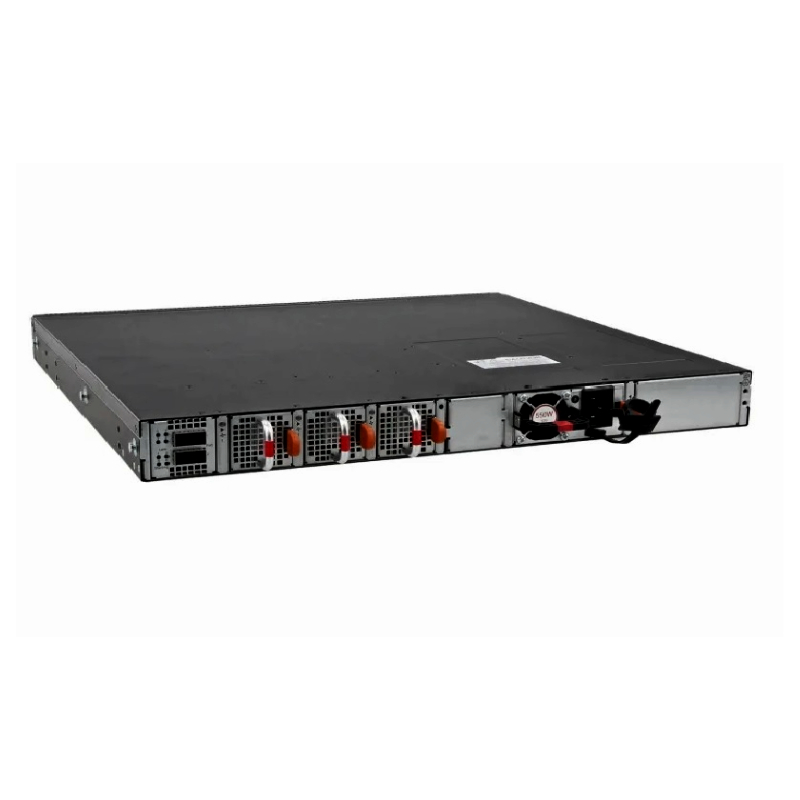

Power Supply Features

Power Specifications

• Power Supply Type: Internal Hot-plug
• Installed Power Supply Units: 1 (max 2)
• Redundant Power Supply: Optional (1+1 scheme)
• Power Capacity: 200 Watts

Ports

The Dell 210-APWZ Switch comes equipped with an impressive 48 ports, making it an ideal choice for businesses and organizations that require a high number of network connections. Whether you are setting up a large office or managing a data center, this switch offers the scalability and flexibility needed to handle your network requirements.

Increased Connectivity

With 48 ports, the Dell 210-APWZ Switch provides an extensive range of connectivity options to meet the demands of modern networking. Each port can be used to connect devices such as computers, servers, printers, IP phones, and other network-enabled devices. This allows for seamless communication and data transfer across your network infrastructure.

Efficient Data Transfer

The abundance of ports on the Dell 210-APWZ Switch ensures that data can flow smoothly and efficiently between connected devices. With multiple ports available, you can distribute network traffic evenly, reducing congestion and ensuring optimal performance. This is particularly beneficial in high-traffic environments where large amounts of data need to be transmitted simultaneously.

Scalability

Having 48 ports provides room for expansion and growth. As your business expands or your network requirements increase, you can easily add more devices without worrying about running out of available ports. This scalability allows you to future-proof your network infrastructure, saving you time and money in the long run.

Flexibility in Network Design

The Dell 210-APWZ Switch's 48 ports offer flexibility in designing your network topology. You can create different VLANs (Virtual Local Area Networks) or segregate traffic based on specific requirements. This level of flexibility allows you to tailor your network to suit your organization's unique needs, ensuring efficient communication and data management.

Improved Productivity

With 48 ports, the Dell 210-APWZ Switch enables you to connect a wide range of devices simultaneously, enhancing productivity across your organization. Employees can easily access network resources, collaborate seamlessly, and share data without any bottlenecks. This leads to improved workflow and efficiency, enabling your team to accomplish more in less time.

Mounting

One of the standout features of the Dell 210-APWZ Switch is its ability to be rack-mounted. This feature allows for convenient installation and efficient use of space in server rooms or data centers. Let's explore the benefits and importance of this rack-mountable design.

Space Efficiency

Rack-mountable switches, like the Dell 210-APWZ, are designed to fit into standard server racks. By mounting the switch vertically, you can save valuable floor space in your server room or data center. This is especially crucial in environments where space is limited, allowing you to maximize the utilization of your available area.

Organized Cable Management

Rack-mountable switches offer excellent cable management capabilities. The switch can be mounted at the rear of the rack, ensuring that cables are neatly organized and easily accessible for maintenance or troubleshooting purposes. This not only improves the aesthetic appeal of your network infrastructure but also simplifies future upgrades or modifications.

Enhanced Cooling Efficiency

By rack-mounting the Dell 210-APWZ Switch, you can take advantage of the server rack's built-in cooling systems. These racks are designed to efficiently manage airflow and dissipate heat, keeping your switch and other network equipment at optimal operating temperatures. This helps prevent overheating issues that can lead to performance degradation or even hardware failures.

Easy Installation and Maintenance

Rack-mounted switches are relatively straightforward to install and maintain. The switch can be securely mounted using the included rack-mounting hardware, ensuring stability and reliability. Additionally, the accessibility provided by the rack-mounted design makes it easier to troubleshoot and replace components if necessary, minimizing downtime and reducing the overall cost of ownership.

Scalability and Future-Proofing

Rack-mounted switches offer excellent scalability. As your network requirements grow, you can easily add more switches to your existing rack setup without the need for additional floor space or complex wiring. This scalability ensures that your network infrastructure can adapt to future changes and expansions, saving you time and resources in the long run.

Management

The Dell 210-APWZ Switch is a managed switch, providing advanced management capabilities that are essential for businesses and organizations with complex networking needs. Let's delve into the benefits and importance of this managed feature.

Network Control and Monitoring

As a managed switch, the Dell 210-APWZ offers extensive control and monitoring capabilities over your network. You can configure settings such as VLANs, Quality of Service (QoS), and security protocols to optimize network performance and ensure data integrity. Additionally, you can monitor network traffic, identify bottlenecks or anomalies, and take proactive measures to maintain a stable and secure network environment.

Enhanced Security

Managed switches provide robust security features that are vital for protecting sensitive data and preventing unauthorized access. With the Dell 210-APWZ Switch, you can implement features like Access Control Lists (ACLs), Port Security, and Secure Shell (SSH) encryption to safeguard your network against potential threats. These security measures help maintain the confidentiality, integrity, and availability of your data.

Quality of Service (QoS) Optimization

QoS is crucial for prioritizing network traffic based on specific requirements. The Dell 210-APWZ Switch allows you to configure QoS parameters, ensuring that critical applications and services receive the necessary bandwidth and network resources. This results in improved performance for real-time applications such as voice or video conferencing, minimizing latency and ensuring a seamless user experience.

Remote Management

Managed switches like the Dell 210-APWZ offer remote management capabilities, allowing network administrators to monitor and configure the switch from a central location. This eliminates the need for physically accessing the switch every time a configuration change or troubleshooting is required. Remote management saves time, reduces operational costs, and enhances overall network management efficiency.

Advanced Troubleshooting and Diagnostics

The Dell 210-APWZ Switch's managed feature provides advanced troubleshooting and diagnostic tools that simplify the identification and resolution of network issues. Through features such as Port Mirroring, Spanning Tree Protocol (STP), and Link Aggregation Control Protocol (LACP), administrators can quickly isolate problems, pinpoint faulty connections, or identify bottlenecks. These tools streamline the troubleshooting process, minimizing downtime and maximizing network availability.

In conclusion, the Dell 210-APWZ Switch's 48 ports offer increased connectivity, efficient data transfer, scalability, flexibility in network design, and improved productivity. Its rack-mountable design provides space efficiency, organized cable management, enhanced cooling efficiency, easy installation and maintenance, scalability, and future-proofing. Lastly, its managed feature offers network control and monitoring, enhanced security, QoS optimization, remote management, and advanced troubleshooting and diagnostics. With these features, the Dell 210-APWZ Switch is an excellent choice for organizations seeking a reliable and high-performance networking solution.
