Dell 210-AWZR N3224P-ON 24 Ports Rack-mountable Switch - 210-AWZR

210-AWZR
Hover on image to enlarge

Brief Overview of 210-AWZR

Dell 210-AWZR EMC N3224P-ON 24 Ports Rack-mountable Switch - 210-AWZR with 6-Month Replacem
QR Code of Dell 210-AWZR N3224P-ON 24 Ports Rack-mountable Switch - 210-AWZR
$2,268.00
$1,680.00
You save: $588.00 (26%)
Ask a question
+
Quote
Additional 7% discount at checkout
SKU/MPN210-AWZRAvailability✅ In StockProcessing TimeUsually ships same day ManufacturerDell Product/Item ConditionExcellent Refurbished ServerOrbit Replacement WarrantySix-Month (180 Days)
Our Advantages
  • Free Ground Shipping
  • — Min. 6-month Replacement Warranty
  • — Genuine/Authentic Products
  • — Easy Return and Exchange
  • — Different Payment Methods
  • — Best Price
  • — We Guarantee Price Matching
  • — Tax-Exempt Facilities
  • — 24/7 Live Chat, Phone Support
Payment Options
  • — Visa, MasterCard, Discover, and Amex
  • — JCB, Diners Club, UnionPay
  • — PayPal, ACH/Wire Transfer
  • — Apple Pay, Amazon Pay, Google Pay
  • — Buy Now, Pay Later - Affirm, Afterpay
  • — GOV/EDU/Institutions PO's Accepted
  • — Invoices
Delivery
  • — Deliver Anywhere
  • — Express Delivery in the USA and Worldwide
  • — Ship to -APO -FPO
  • For USA - Free Ground Shipping
  • — Worldwide - from $30
Description

Product Overview Of DELL 210-AWZR

 Specifications

  • Device Type: Managed Switch - 24 Ports - Layer 3 - Stackable
  • Form Factor: 1U Rack-mountable with Front to Back Airflow
  • Subtype: 10 Gigabit Ethernet / 25 Gigabit Ethernet

Port Configuration

  • Total Ports:
    • 24 x 10/100/1000/2.5G/5G/10GBase-T (PoE++)
    • 4 x 25 Gigabit SFP28
    • 2 x 100 Gigabit QSFP28

Power Over Ethernet (PoE)

  • Standard: PoE++
  • Power Capacity: 1600 Watts
  • Operational Power Consumption: 2740 Watts

Performance Metrics

  • Switching Capacity: 1.08 Bpps
  • Forwarding Rate: 1500 Mpps

Routing Capabilities

  • IPv4 Static Routes: 1024
  • IPv6 Static Routes: 1024
  • Dynamic IPv4 Routes: 8160
  • Dynamic IPv6 Routes: 4096
  • Maximum Ports per LAG: 8
  • Maximum Ports per Switch Stack: 144
  • OSPF Routes: 8158
  • RIP Routes: 512
  • VLAN Support: Up to 4094

Advanced Features

  • Supports multiple routing protocols, including OSPF and RIP
  • Robust access control with up to 3914 ACL rules system-wide
  • Comprehensive multicast support with IPv4 and IPv6
  • Quality of Service (QoS) management for optimal traffic flow
  • Protocol-based VLANs and Dynamic VLAN Support (GVRP)
  • Enhanced security protocols including RADIUS and TACACS+

Compliance and Standards

  • Adheres to IEEE standards, including 802.1Q, 802.3, and more
  • Supports a wide range of Layer 2 and Layer 3 standards for interoperability

Memory and Storage

  • RAM: 4 GB
  • Flash Memory: 8 GB

Connectivity Options

Interfaces

  • 24 x 10/100/1000/2.5G/5G/10GBase-T (PoE++) RJ-45
  • 4 x 25 Gigabit SFP28
  • 1 x 10/100/1000 Base-T RJ-45 Management Port
  • 2 x 100 Gigabit QSFP28 for stacking
  • 1 x USB Type A
  • 1 x Micro-USB 2.0 Type B Console
  • 1 x Serial (RS-232) RJ-45 Console

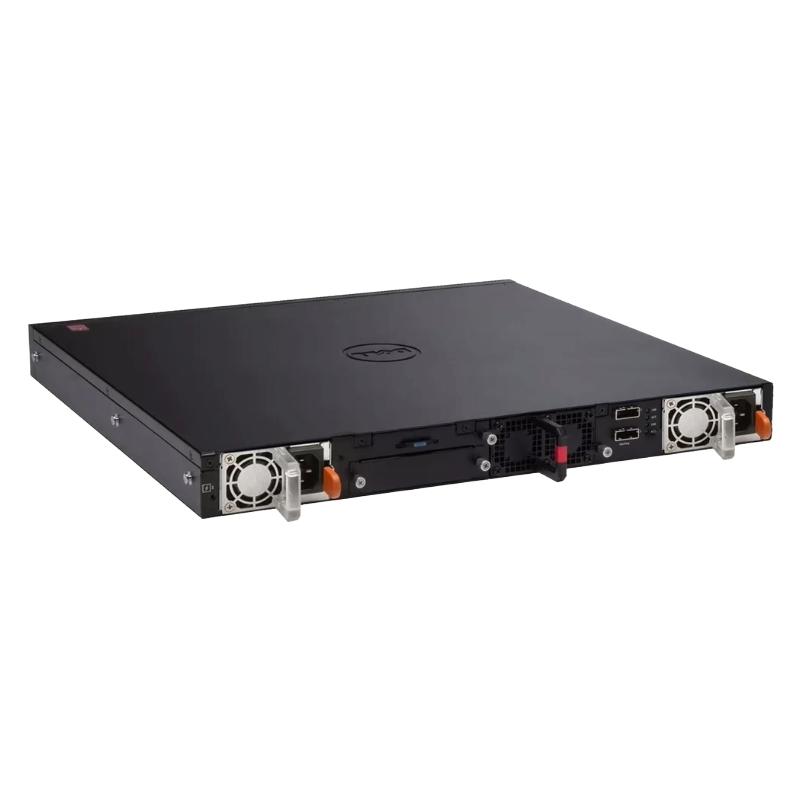

Power Supply Features

  • Power Supply Type: Internal Hot-plug
  • Installed Quantity: 1 (max 2)
  • Power Redundancy: Optional (1+1 configuration)
  • 80 Plus Certification: 80 Plus Platinum

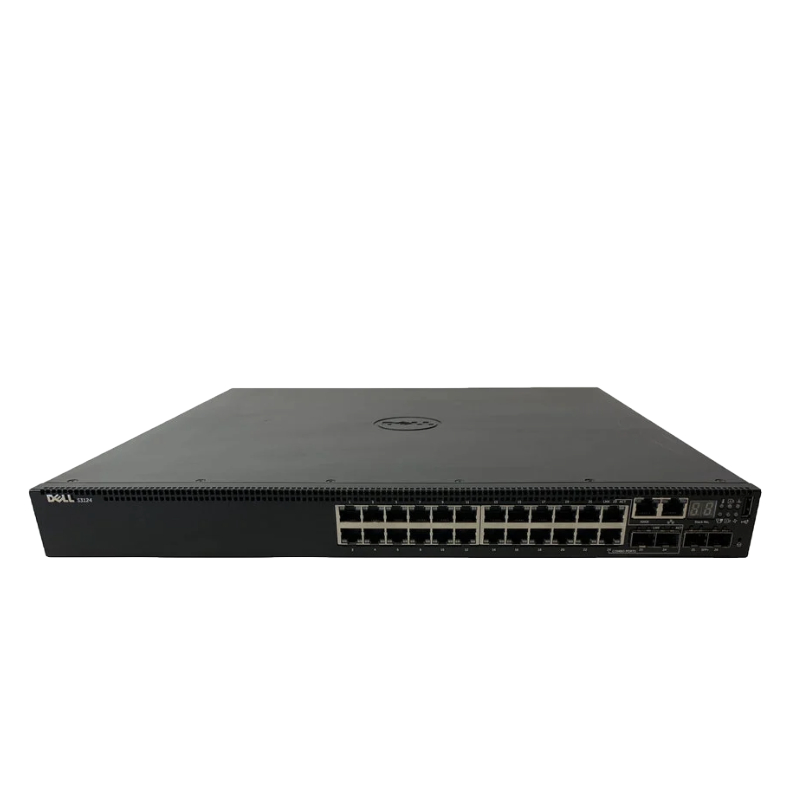

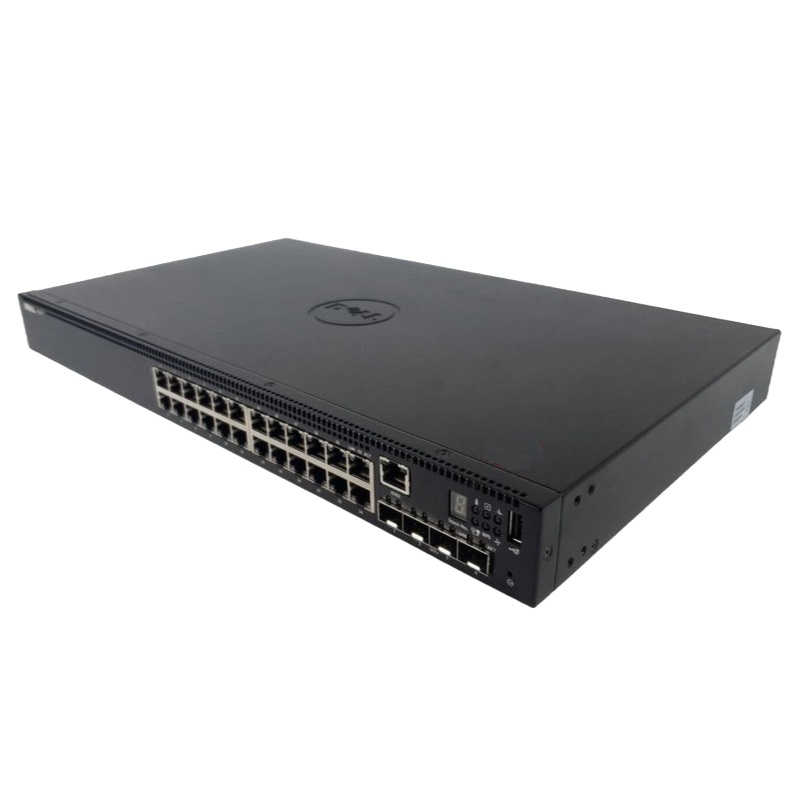

Dell 210-AWZR EMC N3224P-ON 24 Ports Rack-mountable Switch - 210-AWZR

Ports

The Dell N3224P-ON Rack-mountable Switch is equipped with 24 high-performance ports, making it an ideal choice for users who require a reliable and efficient networking solution. The availability of 24 ports offers numerous benefits and importance for users in various scenarios.

Increased Connectivity

Having 24 ports on the Dell N3224P-ON allows for increased connectivity options. This is particularly important for businesses that require the connection of multiple devices to their network infrastructure. With 24 ports, users can connect a wide range of devices such as computers, servers, printers, and IP phones, ensuring smooth and uninterrupted communication and data transfer.

Flexibility and Scalability

The 24-port configuration of the Dell N3224P-ON provides users with flexibility and scalability. Whether you are setting up a small office network or a larger enterprise environment, having 24 ports ensures that you have enough room to accommodate your current needs while allowing room for future expansion. This flexibility allows businesses to scale their network infrastructure as their needs grow without the need for additional switches or equipment.

Power over Ethernet (PoE) Support

One of the standout features of the Dell N3224P-ON is its support for Power over Ethernet (PoE) on all 24 ports. PoE technology enables the switch to deliver both power and data over the Ethernet cables, eliminating the need for separate power cables and adapters for connected devices. This feature is particularly beneficial in environments where power outlets are limited or not easily accessible, such as ceiling-mounted access points or IP cameras.

Simplified Installation

The PoE support on all 24 ports simplifies the installation process by reducing cable clutter and eliminating the need for additional power sources. With PoE, devices can be conveniently powered and connected through a single Ethernet cable, reducing installation time and costs. This simplicity not only saves time but also enhances the aesthetics of the network setup, making it more organized and easier to manage.

Cost Savings

The PoE support on the Dell N3224P-ON can lead to significant cost savings for businesses. By eliminating the need for separate power infrastructure, businesses can save on the costs of additional power outlets, electrical wiring, and power adapters. Additionally, PoE enables efficient power management, allowing devices to go into low-power mode or turn off when not in use, further reducing energy consumption and associated costs.

Enhanced Network Performance

With 24 ports, the Dell N3224P-ON ensures enhanced network performance by providing dedicated connections for each device. The ample number of ports eliminates the need for shared connections or daisy-chaining devices, which can lead to bottlenecks and reduced network speeds. Each device connected to the switch can enjoy its dedicated bandwidth, ensuring optimal performance and eliminating congestion.

Improved Productivity

The enhanced network performance offered by the 24 ports allows for improved productivity in a business setting. With faster and more reliable connections, employees can seamlessly access shared resources, transfer large files, and collaborate in real-time without experiencing lag or delays. This improved productivity translates into better workflow efficiency and overall business performance.

Optimized Network Segmentation

Network segmentation is crucial for businesses that deal with sensitive data or have different departmental requirements. The Dell N3224P-ON's 24 ports allow for efficient network segmentation by providing dedicated connections for different departments or functions. This segmentation enhances network security, reduces the risk of unauthorized access to sensitive data, and allows for independent management of each segment.

Easy Troubleshooting and Maintenance

The 24-port configuration simplifies troubleshooting and maintenance tasks. With dedicated ports for each device, it becomes easier to identify and isolate issues if they arise. Network administrators can quickly pinpoint the problematic device or connection without disrupting the entire network. This targeted approach to troubleshooting saves time, reduces downtime, and streamlines maintenance efforts.

Future-Proof Investment

Investing in a switch with 24 ports, such as the Dell N3224P-ON, ensures that users are future-proofing their network infrastructure. As technology continues to evolve, the demand for network connectivity will only increase. By opting for a switch with ample ports, users can prepare their network for future growth and emerging technologies without the need for immediate hardware upgrades.

In conclusion, the Dell N3224P-ON Rack-mountable Switch's 24-port configuration offers several benefits and importance for users. The increased connectivity, flexibility, and scalability ensure that users can meet their current networking requirements while accommodating future growth. The Power over Ethernet support on all 24 ports simplifies installation, reduces costs, and enhances network performance. Furthermore, the 24-port configuration allows for optimized network segmentation, improved productivity, and streamlined troubleshooting and maintenance processes. Investing in a switch with 24 ports is a future-proof decision that ensures users can adapt to evolving networking needs without disruption or additional expenses.
