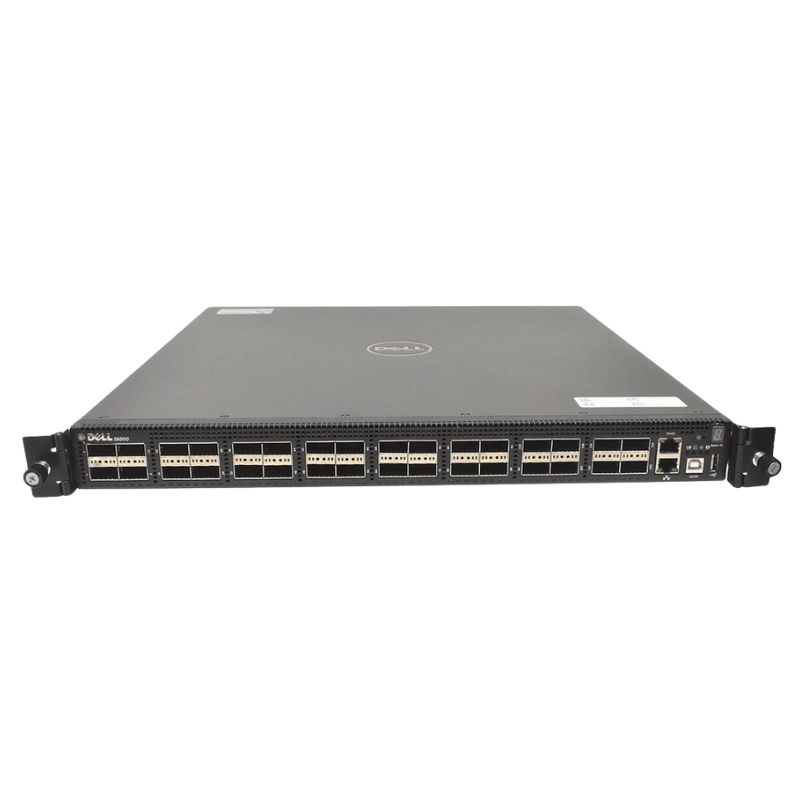

210-AXRL Dell Z9432F-on 32P 400GBE QSFP56-DD OS10 Switch with Dual AC Power Supply

Dell 210-AXRL Z9432F-ON 32-Port 400GbE Data Center Switch Overview

The Dell 210-AXRL Z9432F-on 32P 400GbE QSFP56-DD OS10 Switch is a high-performance, next-generation data center networking solution engineered to support demanding enterprise and hyperscale cloud environments. With 32 ports of 400GbE connectivity through QSFP56-DD interfaces, this switch is designed for exceptional bandwidth, low latency, and scalable performance. Its modular design, dual AC power supplies, and OS10 network operating system make it a versatile and reliable choice for network architects seeking to build resilient and future-proof infrastructures.

Positioned within Dell's Z-series, the Z9432F-on represents the pinnacle of Dell Networking's capabilities in spine and leaf architectures. It is purpose-built to meet the evolving needs of modern data centers, enabling ultra-high throughput, agile network segmentation, and simplified management through automation and open networking principles. Whether deployed in core aggregation layers or as a high-density leaf switch, the Dell 210-AXRL delivers consistent and predictable performance even in the most data-intensive scenarios.

Key Features and Benefits of the Dell Z9432F-ON 400GbE Switch

High-Density 400GbE Connectivity

The Dell Z9432F-on switch offers 32 ports of 400GbE through QSFP56-DD connectors, enabling up to 25.6 Tbps of switching capacity. This dense port configuration is ideal for hyperscale environments where maximizing bandwidth per rack unit is critical. The switch supports flexible port breakout configurations, allowing for 2x200GbE or 4x100GbE breakouts per port, facilitating seamless integration with existing network infrastructures and optimizing link utilization.

Advanced OS10 Network Operating System

Running Dell's OS10 Enterprise Edition, the Z9432F-on switch benefits from a robust, modular, and programmable operating system designed for modern data center operations. OS10 enables advanced Layer 2 and Layer 3 networking features, automation through RESTful APIs, and support for open networking standards. Network administrators can leverage OS10 to simplify deployment, streamline operations, and ensure interoperability with multi-vendor environments, all while maintaining enterprise-grade reliability and security.

Dual AC Power Supplies for Redundancy

The inclusion of dual hot-swappable AC power supplies ensures continuous operation and redundancy in critical deployments. This power configuration minimizes the risk of downtime due to power failures, providing consistent energy delivery and enabling maintenance without disrupting network availability. The redundant design aligns with best practices for high-availability architectures in mission-critical data centers.

Flexible and Future-Ready Design

Engineered for scalability, the Dell Z9432F-on supports evolving network demands through its flexible port configurations and open networking approach. The switch's design accommodates rapid technological advancements, including increasing adoption of 400GbE connectivity, NVMe over Fabrics (NVMe-oF), and high-performance computing (HPC) workloads. Its future-ready architecture ensures investment protection and adaptability in dynamic IT environments.

Applications and Use Cases of the Dell Z9432F-ON Switch

Data Center Spine and Leaf Architectures

The Z9432F-on switch is optimized for deployment in both spine and leaf roles within data center networks. Its high port density and robust throughput make it an ideal choice for spine layers, facilitating high-speed east-west traffic and interconnecting multiple leaf switches. In leaf deployments, its flexible port breakouts allow seamless connectivity to servers, storage, and other network devices, supporting agile and scalable topologies.

Hyperscale and Cloud Computing Environments

Hyperscale data centers and cloud service providers demand networking solutions that deliver exceptional performance, efficiency, and manageability. The Dell Z9432F-on excels in these environments by providing high-bandwidth connectivity, programmability through OS10, and support for automation frameworks. Its scalability supports rapid expansion of cloud infrastructure, ensuring consistent service delivery and user experience.

High-Performance Computing (HPC) and AI Workloads

With the proliferation of AI, machine learning, and HPC workloads, networks require switches capable of handling massive data transfers with minimal latency. The Z9432F-on's 400GbE ports and low-latency architecture make it a perfect fit for these demanding applications. Its ability to support NVMe-oF further enhances storage performance, enabling faster data access and improved computational efficiency for HPC clusters and AI training models.

Technical Specifications of the Dell 210-AXRL Z9432F-ON Switch

Port and Interface Details

The Dell Z9432F-on features 32 QSFP56-DD ports, each capable of delivering up to 400Gbps throughput. These ports support a variety of transceiver and cable options, including QSFP-DD optical modules and direct attach copper (DAC) cables, providing deployment flexibility. Breakout support for 2x200GbE or 4x100GbE further enhances connectivity options, ensuring compatibility with existing network infrastructures.

Performance Metrics

Delivering a switching capacity of 25.6 Tbps and a forwarding rate of up to 19.05 billion packets per second (Bpps), the Z9432F-on ensures high-speed data processing and minimal network bottlenecks. Its low-latency architecture is designed to support time-sensitive applications, making it suitable for financial services, scientific computing, and content delivery networks (CDNs).

Power and Cooling

Equipped with dual hot-swappable AC power supplies, the switch provides redundancy and uninterrupted operation. The device also features front-to-back airflow for optimized cooling in data center environments, supporting thermal management strategies and maintaining operational efficiency. The modular power and cooling design allows for easy maintenance and scalability as network demands grow.

Advantages of QSFP56-DD Technology in the Dell Z9432F-ON

Enhanced Bandwidth and Density

QSFP56-DD (Quad Small Form-factor Pluggable Double Density) technology doubles the number of high-speed electrical interfaces compared to previous-generation QSFP modules. This advancement enables each port to deliver 400Gbps throughput, facilitating high-bandwidth connections in a compact form factor. The increased port density allows data centers to achieve greater performance per rack unit, optimizing space and reducing operational costs.

Interoperability and Future-Proofing

QSFP56-DD modules offer backward compatibility with existing QSFP form factors, ensuring seamless integration with current network infrastructure. This interoperability protects investments in legacy equipment while enabling gradual network upgrades to 400GbE speeds. The technology's scalability aligns with industry trends toward higher bandwidth demands, positioning the Dell Z9432F-on as a future-proof networking solution.

Reduced Power Consumption per Gbps

Despite delivering higher bandwidth, QSFP56-DD modules are designed to minimize power consumption per Gbps of throughput. This efficiency contributes to lower overall energy usage in data centers, supporting sustainability initiatives and reducing total cost of ownership (TCO). The combination of high performance and energy efficiency makes QSFP56-DD an ideal choice for modern data center deployments.

Operational Efficiency with Dell OS10 in the Z9432F-ON

Automation and Programmability

OS10 supports extensive automation capabilities through RESTful APIs, Ansible playbooks, and integration with network orchestration platforms. These features streamline routine tasks such as configuration management, software upgrades, and network monitoring, reducing manual intervention and human error. Automation enhances operational efficiency, allowing IT teams to focus on strategic initiatives.

Open Networking and Ecosystem Compatibility

Built on open networking principles, OS10 ensures interoperability with multi-vendor environments and supports a wide range of protocols and standards. This openness fosters innovation and flexibility, enabling organizations to build best-of-breed solutions tailored to their unique needs. The open ecosystem also facilitates integration with software-defined networking (SDN) and network function virtualization (NFV) frameworks, enhancing agility and scalability.

Enhanced Security and Compliance

OS10 incorporates advanced security features, including role-based access control (RBAC), secure boot, and encryption protocols, to safeguard network infrastructure. These capabilities help organizations meet stringent compliance requirements and protect sensitive data from evolving cyber threats. Regular security updates and patches ensure continuous protection and mitigate vulnerabilities.

Deployment Considerations for the Dell Z9432F-ON 400GbE Switch

Rack Mounting and Space Optimization

While the Dell Z9432F-on is designed for standard rack deployment, it is important to note that rack mounts are not included with the unit. Organizations should plan accordingly to acquire compatible mounting kits to ensure secure installation. The switch's compact design optimizes space utilization, enabling high-density deployments that maximize rack efficiency and reduce data center footprint.

Cabling and Connectivity Planning

Proper cabling and transceiver selection are critical for achieving optimal performance and minimizing signal loss in 400GbE deployments. The Z9432F-on supports a range of optical and copper connectivity options, allowing network architects to tailor solutions based on distance, budget, and performance requirements. Comprehensive planning ensures seamless integration with existing infrastructure and facilitates scalable growth.

Power and Cooling Requirements

Given its high-performance capabilities, the Dell Z9432F-on demands adequate power and cooling infrastructure. Dual AC power supplies provide redundancy, while front-to-back airflow supports efficient thermal management. Data center operators must ensure sufficient power availability and airflow management to maintain optimal operating conditions and prevent thermal-related performance degradation.
