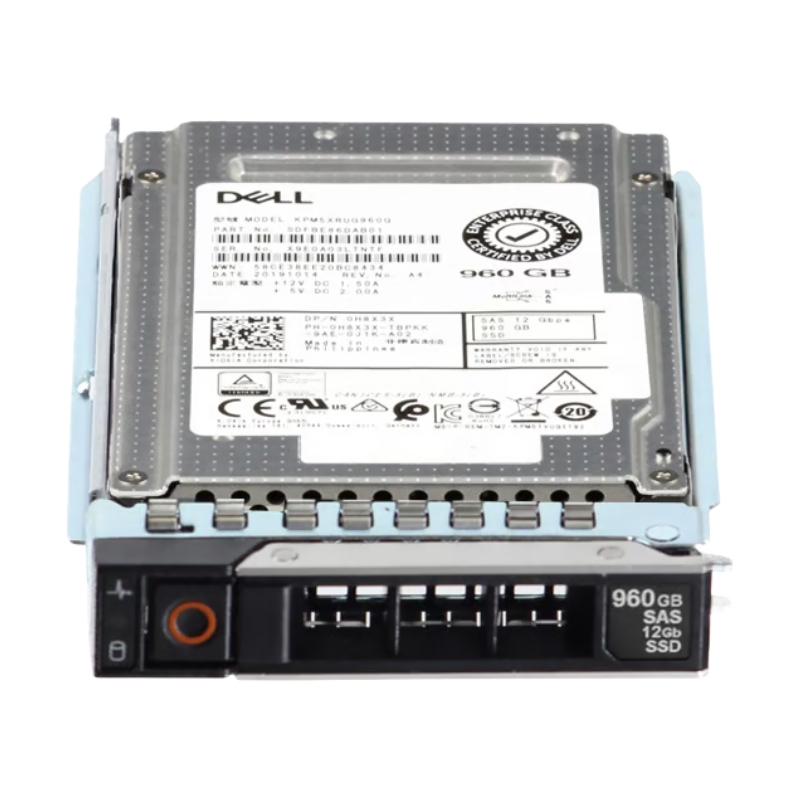

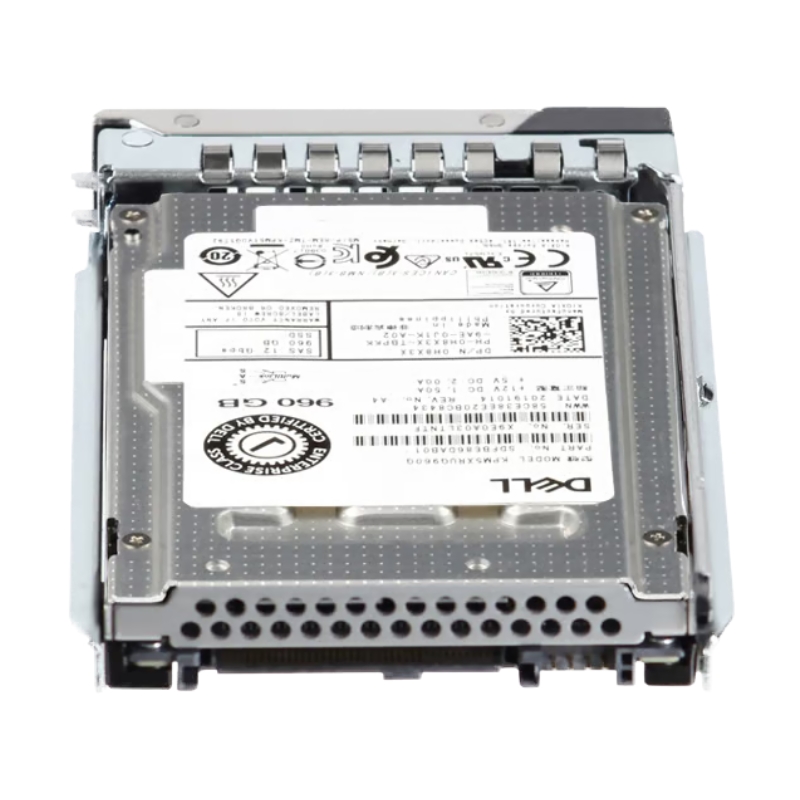

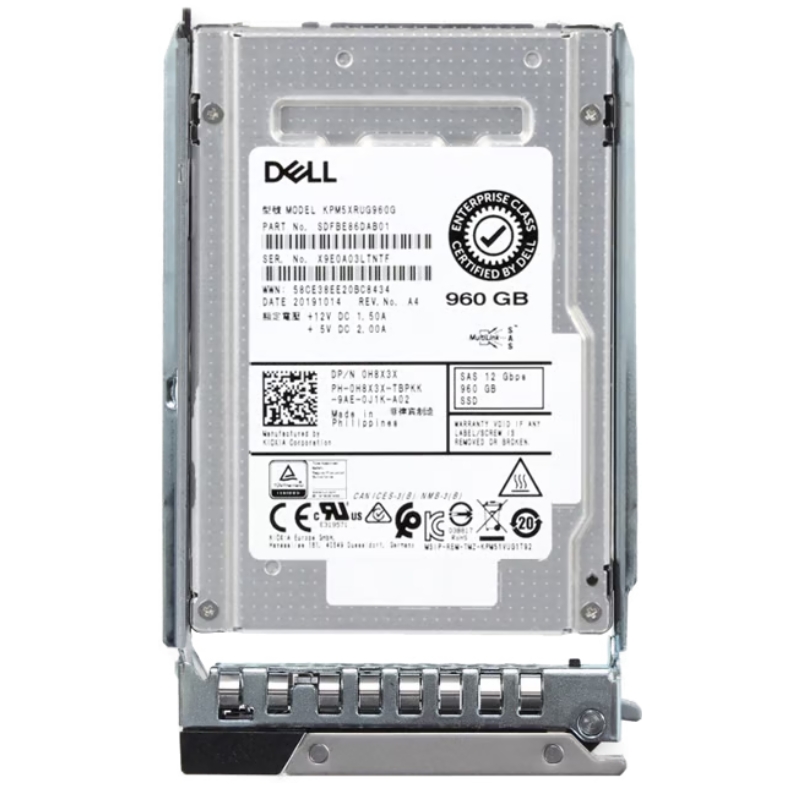

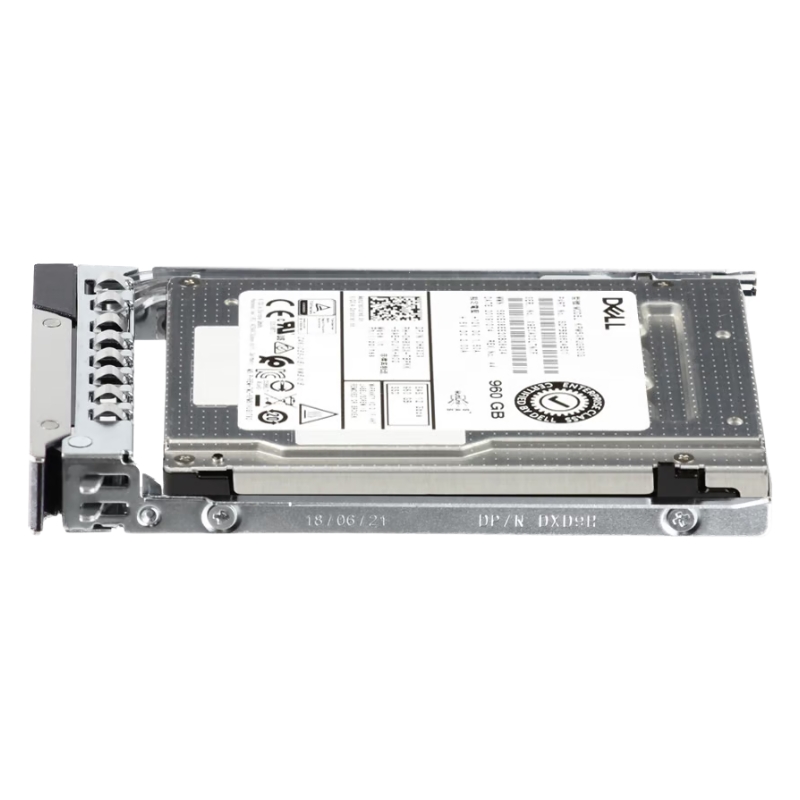

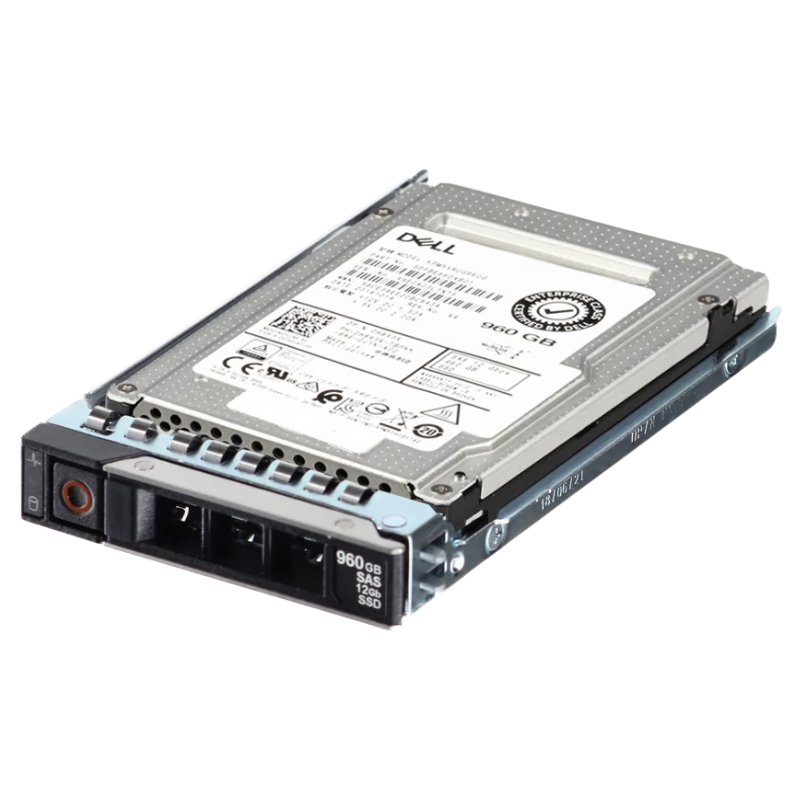

345-BCRP Dell 960GB SAS-12GBPS Read Intensive TLC 2.5Inch Hot-plug SSD.

Enterprise SSD Technology Overview

Enterprise SSDs differ significantly from consumer-grade storage solutions in their design philosophy, components, and capabilities. While consumer drives prioritize cost-effectiveness, enterprise SSDs like the Dell 345-BCRP emphasize performance consistency, extreme endurance, and advanced data protection features—even under continuous 24/7 operation with heavy workloads.

SAS Interface Advantages

The Serial Attached SCSI (SAS) interface provides numerous benefits over SATA in enterprise environments:

• Higher transfer rates with SAS-12Gbps supporting up to 12Gb/s per port
• Full duplex communication allowing simultaneous read and write operations
• Enhanced scalability through expanders supporting hundreds of devices on a single controller
• Improved reliability with better error detection and correction mechanisms
• Dual-port capability for high availability configurations and failover protection

Self-Encrypting Drive (SED) Technology

The encryption capabilities of the Dell 345-BCRP SSD provide a critical layer of security for sensitive enterprise data. Unlike software-based encryption solutions that consume host resources, the hardware-based encryption in this SSD occurs within the drive controller itself, eliminating performance overhead.

Trusted Computing Group Enterprise Standard

This SSD complies with the TCG Enterprise security specification, providing a standardized approach to managing encryption policies across the storage infrastructure. The implementation includes:

• Advanced Encryption Standard (AES) 256-bit encryption
• Cryptographic erase capability for instant data sanitization
• Multiple authentication methods for security management
• Protection against brute-force attacks

Managing Encryption

The encryption features can be managed through Dell OpenManage, industry-standard management tools, or the drive's own command set. Security policies can be configured to meet organizational requirements, including automatic locking when drives are moved between systems.

Performance Characteristics

The Dell 345-BCRP delivers exceptional performance for read-intensive applications, with consistent low latency and high IOPS that significantly outperform traditional hard disk drives and approach the performance of more expensive write-intensive SSDs for read operations.

Read vs. Write Performance

As a read-optimized drive, the 345-BCRP excels at sequential and random read operations while maintaining respectable write performance. The advanced controller architecture includes features such as:

• Large DRAM cache for metadata and frequently accessed data
• Advanced garbage collection algorithms
• Wear leveling to extend NAND lifespan
• Read disturbance management

Consistent Performance Profile

Enterprise applications require consistent storage performance rather than peak speeds that quickly degrade. The Dell 345-BCRP maintains predictable performance even during sustained operations, thanks to:

• Intelligent write throttling to prevent performance drops
• Over-provisioning to maintain write performance
• Quality of Service (QoS) optimizations

Comparison with Other Enterprise SSD Types

Reliability and Endurance

Enterprise SSDs must operate reliably under constant use for years. The Dell 345-BCRP incorporates multiple technologies to ensure data integrity and extended service life.

Error Correction and Data Integrity

Advanced error correction algorithms detect and correct more bit errors than consumer SSDs, protecting against data corruption. Additional data integrity features include:

• End-to-end data protection
• Power-loss protection (optional on some models)
• RAID support with enhanced error recovery controls

Wear Leveling and SSD Endurance

The SSD controller employs sophisticated wear-leveling algorithms to distribute writes evenly across all NAND cells, preventing premature failure of frequently written cells. The 1 DWPD rating indicates this drive can handle 960GB of writes daily for five years, totaling approximately 1.75 petabytes written over its lifespan.

Compatibility and Integration

As a Dell-certified component, the 345-BCRP SSD is tested and validated for compatibility with a wide range of Dell systems, including:

• PowerEdge servers across the product portfolio
• Dell EMC PowerVault storage arrays
• Dell EMC Unity storage systems
• Dell EMC SC Series storage arrays

Management and Monitoring

The SSD can be monitored and managed through standard interfaces including S.M.A.R.T., SES-2, and Dell OpenManage tools. These provide insights into drive health, remaining lifespan, performance metrics, and encryption status.

Environmental and Power Considerations

Compared to traditional hard drives, SSDs consume less power and generate less heat, contributing to reduced data center cooling requirements and lower operational costs. The Dell 345-BCRP operates within typical enterprise temperature ranges and complies with relevant environmental regulations.
