370-BCFV Dell 96GB DDR5 Pc5-44800 SDRAM 288-pin Rdimm Memory.

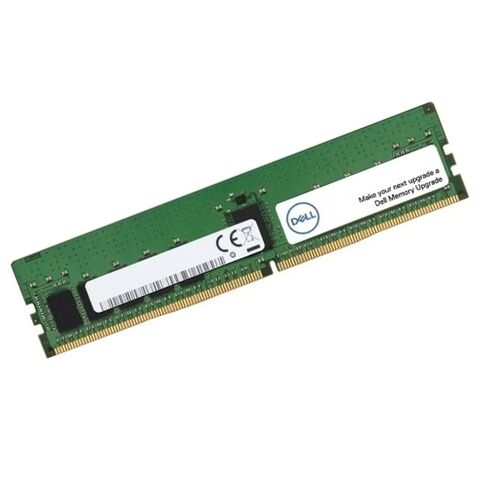

Dell 370-BCFV 96GB DDR5 Server Memory Module

The Dell 370-BCFV represents the pinnacle of server memory technology, delivering exceptional performance and reliability for enterprise-level computing environments. This 96GB DDR5 module operates at 5600MT/s, providing the bandwidth necessary for demanding server applications while maintaining ECC registered integrity for mission-critical operations.

Memory Capacity

This memory module features a substantial 96GB capacity in a single 1x96GB configuration, making it ideal for memory-intensive applications. The 2Rx4 (2 Rank x4) organization optimizes memory access patterns and enhances overall system performance. With this high-density design, servers can achieve maximum memory capacity with fewer DIMM slots occupied, allowing for more efficient resource allocation and future expansion capabilities.

Performance Characteristics

Operating at 5600 million transfers per second (5600MT/s), the Dell 370-BCFV delivers exceptional data throughput that significantly outperforms previous generation DDR4 memory. The PC5-44800 designation confirms compliance with industry standards for DDR5-5600 modules. The CAS Latency of CL46 represents the optimized timing parameters that balance speed with reliability in server environments, ensuring rapid data access while maintaining system stability.

Advanced Memory Architecture

DDR5 Technology Advantages

DDR5 architecture introduces several groundbreaking improvements over previous generations. The implementation of two independent 40-bit data channels (32 data bits with 8 ECC bits each) per module effectively doubles the burst length and bank groups compared to DDR4. This architectural enhancement allows for improved concurrent operations and reduced latency, resulting in superior performance for multi-threaded server applications and virtualized environments.

Power Management Features

Operating at an efficient 1.1V, the Dell 370-BCFV demonstrates significant power efficiency improvements over DDR4 modules. The integrated Power Management IC (PMIC) distributes power management from the motherboard to the memory module itself, enabling more precise voltage regulation and improved power delivery. This architecture reduces noise and signal integrity issues while providing better power efficiency, which is crucial for data centers focused on reducing operational costs and environmental impact.

Enterprise-Grade Reliability Features

Error Correction Code (ECC) Technology

The Dell 370-BCFV incorporates advanced ECC (Error Correction Code) capabilities that automatically detect and correct single-bit memory errors in real-time. This technology is essential for maintaining data integrity in mission-critical server applications where even minor memory errors could lead to significant system crashes or data corruption. The ECC functionality works in conjunction with the registered design to provide comprehensive memory protection for 24/7 operational environments.

On-Die ECC Implementation

Beyond traditional ECC, this module utilizes on-die ECC which corrects bit errors within the DRAM chips themselves before they reach the memory buffer. This additional layer of protection addresses errors that occur during cell refresh operations and provides enhanced reliability for high-density memory configurations. The combination of on-die ECC and traditional ECC creates a robust error correction system that maximizes data integrity.

Registered DIMM (RDIMM) Architecture

As a Registered DIMM, the 370-BCFV incorporates memory buffers (registers) that sit between the memory controller and the DRAM chips. These buffers reduce the electrical load on the memory controller by handling signal timing and driving, enabling support for higher memory capacities and more DIMMs per channel. This registered design is particularly beneficial in multi-processor server systems where large memory configurations are essential for optimal performance.

Signal Integrity Enhancement

The registered architecture significantly improves signal integrity by reducing the electrical load on the memory controller. This allows for more stable operation at higher speeds and enables support for larger memory capacities per channel. The 288-pin design is specifically engineered for DDR5 technology, providing the necessary interface for advanced features while maintaining compatibility with Dell server platforms designed for registered memory modules.

Dell Server Platform

The Dell 370-BCFV is engineered specifically for compatibility with Dell PowerEdge server platforms that support DDR5 memory technology. This module undergoes rigorous testing and validation within Dell's server ecosystem to ensure seamless integration and optimal performance. The memory module is designed to work within Dell's specific thermal and power specifications, guaranteeing reliable operation in various server configurations and environmental conditions.

Application Scenarios

Data Center and Enterprise Deployment

The high capacity and reliability of the Dell 370-BCFV make it ideally suited for data center environments where uptime and data integrity are paramount. These modules excel in applications such as database servers, virtualization hosts, and large-scale transaction processing systems. The 96GB capacity per module enables substantial memory configurations that can support numerous virtual machines or large in-memory databases without compromising performance.

Virtualization and Cloud Infrastructure

In virtualized environments, memory capacity and performance directly impact the number of virtual machines that can be hosted on a single physical server. The 370-BCFV's high density allows for greater VM density while maintaining performance isolation between virtual instances. The ECC protection ensures that memory errors in one virtual machine do not affect others, maintaining overall system stability in multi-tenant environments.

High-Performance Computing Applications

For scientific computing, financial modeling, and engineering simulations that require large memory spaces, the Dell 370-BCFV provides the necessary capacity and bandwidth. The DDR5-5600 speed enables faster data access for computational algorithms, while the ECC protection ensures the accuracy of calculation results. These characteristics make this memory module suitable for high-performance computing clusters where both performance and reliability are critical.

In-Memory Database Systems

Modern database systems increasingly leverage in-memory processing to achieve unprecedented performance levels. The 96GB capacity of the 370-BCFV allows substantial portions of databases to reside entirely in memory, eliminating storage I/O bottlenecks. The high bandwidth of DDR5-5600 memory enables rapid data access and manipulation, while ECC protection safeguards against data corruption that could compromise database integrity.

Technical Details and Specifications

Electrical Characteristics

The Dell 370-BCFV operates at a nominal voltage of 1.1V, representing a significant reduction from DDR4's 1.2V operation. This lower voltage contributes to improved power efficiency while maintaining signal integrity at higher speeds. The module incorporates advanced power delivery networks with the PMIC managing multiple voltage rails including VDD, VDDQ, and VPP, ensuring stable operation under varying load conditions.

Signal Timing Parameters

Beyond the primary CAS Latency (CL46), the Dell 370-BCFV operates with carefully optimized timing parameters that balance performance with reliability. These include Row Address to Column Address Delay (tRCD), Row Precharge Time (tRP), and Row Active Time (tRAS). The specific timing configuration is designed to maximize performance within the thermal and electrical constraints of enterprise server environments, ensuring stable operation across the supported temperature range.

Key Specifications

Physical Dimensions and Layout

The module conforms to the standard 288-pin DDR5 RDIMM form factor with precise dimensions ensuring compatibility with Dell server memory slots. The PCB (Printed Circuit Board) utilizes high-quality materials with optimized layer stackup to maintain signal integrity at 5600MT/s data rates. The component placement and routing follow Dell's engineering specifications to minimize crosstalk and electromagnetic interference while maximizing reliability.

Connector Design

The 288-edge connector features gold-plated contacts that ensure reliable electrical connection and corrosion resistance. The connector includes a keying notch that prevents incorrect installation in incompatible memory slots. The design incorporates features that facilitate proper insertion and extraction while withstanding repeated installation cycles during server maintenance and upgrades.

Performance Metrics

Bandwidth and Latency Characteristics

The 5600MT/s data rate of the Dell 370-BCFV translates to a peak theoretical bandwidth of approximately 44.8 GB/s per module in a dual-channel configuration. The actual achievable bandwidth depends on factors including processor architecture, memory controller efficiency, and application access patterns. The CL46 latency represents a balance between speed and stability that is optimized for server workloads where consistent performance is more critical than absolute lowest latency.

Multi-Channel Performance Scaling

When installed in multi-channel memory configurations, the Dell 370-BCFV enables significant memory bandwidth scaling. Modern server platforms typically support multiple memory channels per processor, allowing aggregate bandwidth to increase nearly linearly with additional populated channels. The registered architecture ensures signal integrity is maintained even with all memory channels populated at maximum capacity, delivering consistent performance across the entire memory subsystem.

Comparative Performance Advantages

Compared to previous generation DDR4 memory, the Dell 370-BCFV DDR5 module offers substantial improvements in both bandwidth and power efficiency. The architectural enhancements in DDR5 technology provide approximately 1.5x the bandwidth of DDR4-3200 memory while operating at lower voltage. The improved bank group architecture and burst length provide better concurrency, which benefits server applications with multiple concurrent threads and virtual machines.
