370-BCFV Dell 96GB DDR5 Pc5-44800 SDRAM 288-pin Rdimm Memory.

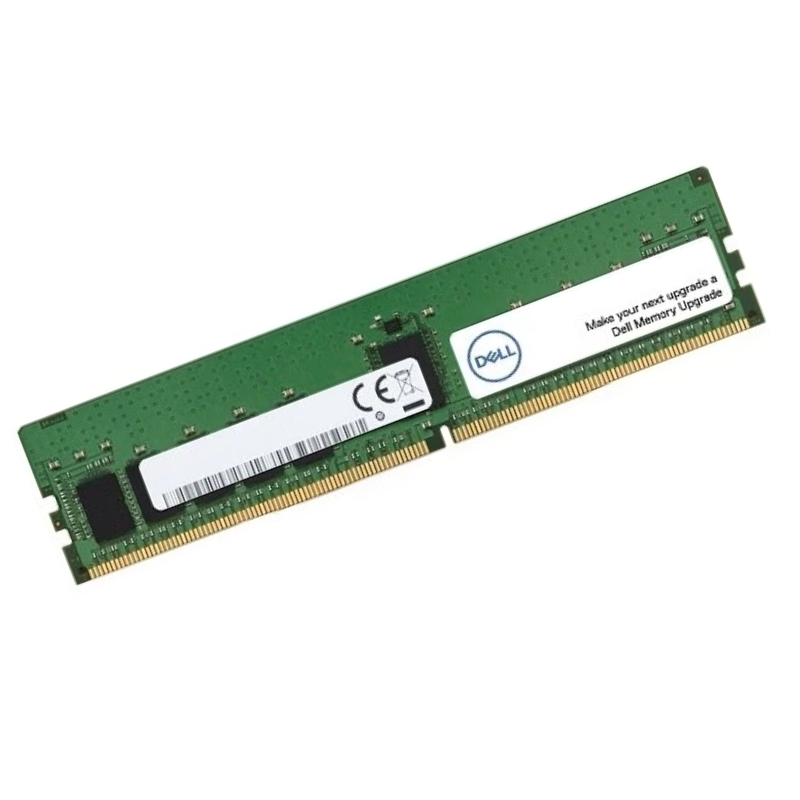

Dell 370-BCFV 96GB DDR5 Server Memory Kit

The Dell 370-BCFV is a high-performance, high-capacity memory module engineered specifically for enterprise-grade servers and workstations. This 96-gigabyte module represents a significant leap in memory technology, utilizing the latest DDR5 standard to deliver enhanced speed, bandwidth, and reliability for data-intensive applications. It is a crucial component for IT infrastructure, designed to ensure seamless operation in virtualized environments, large-scale databases, high-performance computing (HPC), and other mission-critical business operations. As a genuine Dell part, it is validated and tested for optimal compatibility and performance within Dell PowerEdge server systems, providing peace of mind and reducing deployment risks.

Detailed Key Specifications

Understanding the technical specifications of the Dell 370-BCFV memory module is essential for making an informed procurement decision and ensuring system compatibility. The following breakdown covers every critical aspect of the module's design and capabilities.

Memory Capacity

The module boasts a substantial 96GB (96 gigabytes) of memory capacity. This single-module capacity is ideal for servers that require a large total memory footprint without immediately populating all available DIMM slots. The configuration is specified as 1x96GB, indicating a single module. The internal architecture is 2 Rank by 4 (2Rx4). This means the memory chips are organized into two independent sets (ranks) on the same module, with a 4-bit wide data prefetch. This 2Rx4 configuration is common in server memory as it offers a good balance of performance, capacity, and electrical loading on the memory controller.

DDR5 Memory Technology Generation

This module is built on DDR5 SDRAM technology, the successor to the widely used DDR4 standard. DDR5 introduces several fundamental architectural improvements that result in higher performance and greater power efficiency. The key advancement is the separation of the voltage regulator from the motherboard to the DIMM itself. This integrated voltage regulation allows for more precise power delivery and management, which is critical for server stability. Furthermore, DDR5 features a burst length of 16, doubling that of DDR4, which improves data transfer efficiency by allowing larger chunks of data to be moved with each command.

Speed and Data Transfer Rates

The Dell 370-BCFV operates at a data rate of 5600 Megatransfers per second (MT/s). This is often colloquially referred to as 5600MHz. In terms of peak bandwidth, this translates to PC5-44800. The PC5 designation confirms it is a DDR5 module, and the 44800 number represents the theoretical peak bandwidth in megabytes per second (MB/s) for a single module. This is calculated as 5600 MT/s * 8 bytes (64-bit bus) = 44,800 MB/s. This high-speed data transfer is vital for reducing latency and accelerating application performance in server environments.

Module Type and Form Factor

This memory is classified as an ECC Registered RDIMM. ECC, or Error Correcting Code, is a non-negotiable feature for server memory. It can detect and correct single-bit memory errors in real-time, preventing data corruption and system crashes that could result from soft errors. The "Registered" component refers to the presence of a register, or buffer, on the DIMM that sits between the memory controller and the DRAM chips. This register buffers the command and address signals, reducing the electrical load on the memory controller and allowing the system to support a higher number of memory modules and greater total capacity. The physical form factor is a 288-pin Dual In-line Memory Module (DIMM), which is the standard pin count for DDR5 modules and is not physically compatible with DDR4 slots.

Voltage and Timing Parameters

The module operates at a low voltage of 1.1 volts. This reduced operating voltage, compared to DDR4's 1.2 volts, contributes to the improved power efficiency of the DDR5 standard, which is a critical consideration for data centers focused on reducing their power consumption and cooling costs. The CAS Latency (CL) is specified as CL46. CAS Latency is the number of clock cycles between a read command and the moment data is available. While a lower number is generally faster, CL values are specific to the memory technology generation and operating speed. A CL46 at 5600 MT/s for a server-grade DDR5 RDIMM is a standard and performant timing for this class of memory.

Key Features and Technological Advantages

The Dell 370-BCFV is more than just a collection of specifications; it embodies a set of features designed to deliver robust, reliable, and high-performance server operation. These features address the core needs of modern data centers and enterprise IT environments.

Error Correcting Code (ECC) for Maximum Data Integrity

In a server environment, data integrity is paramount. A single bit flip in memory can lead to miscalculations, application errors, or even system instability. The ECC functionality built into this module continuously scans the data being written to and read from memory. It uses sophisticated algorithms to detect single-bit errors and correct them on the fly without any interruption to server operations. It can also detect, though not correct, multi-bit errors, alerting the system management console so that preventative action can be taken. This feature is essential for ensuring the accuracy of financial transactions, scientific computations, and database integrity.

Registered DIMM (RDIMM) Architecture for System Stability

The Registered DIMM design is a cornerstone of scalable server memory systems. By incorporating a register between the memory controller and the DRAM chips, the RDIMM architecture reduces the electrical load on the memory controller. This buffering of signals allows server platforms to support a much larger number of DIMMs per channel and a significantly higher total system memory capacity compared to Unbuffered DIMMs (UDIMMs). This makes the 370-BCFV an ideal choice for memory-intensive applications where scaling total RAM into the terabytes is a requirement. The result is a more stable and scalable system capable of handling massive workloads.

On-Die ECC (ODECC) for Enhanced Chip Reliability

Beyond the module-level ECC, DDR5 technology introduces a feature called On-Die ECC. This is an additional layer of error correction that operates internally within each individual DRAM chip on the module. ODECC is designed to correct minor, transient errors that occur within the chip itself before the data is even sent to the module's main ECC logic. This proactive internal error management increases the overall reliability and longevity of the memory chips, contributing to a lower failure rate and higher mean time between failures (MTBF) for the module as a whole.

DDR5 Architectural Breakthroughs

The transition to DDR5 brings with it several architectural changes that collectively deliver a substantial performance uplift over previous generations. These are not merely incremental speed boosts but fundamental redesigns of how memory subsystems operate.

Dual 32-bit Sub-Channels for Improved Efficiency

Unlike DDR4, which uses a single 64-bit data channel per DIMM, a DDR5 module like the 370-BCFV splits its interface into two independent 32-bit sub-channels. Each sub-channel has its own burst length and bank addressing. This design allows for finer-grained memory access, which can significantly improve efficiency, especially when handling multiple, simultaneous memory requests from different CPU cores. It effectively reduces contention and can lower effective latency for certain types of workloads, leading to smoother multitasking and better overall system responsiveness under load.

Integrated Voltage Regulator (PMIC) for Superior Power Management

One of the most significant shifts in DDR5 is the relocation of the main voltage regulation from the motherboard to the memory module itself. Each DDR5 DIMM features a Power Management Integrated Circuit (PMIC). This PMIC on the 370-BCFV module is responsible for taking a 12V supply from the server motherboard and efficiently converting it down to the various voltages required by the DRAM chips. This distributed power management allows for more precise voltage control, reduces electrical noise, and improves signal integrity. It also enables better power scaling and management features, allowing the system to power down unused portions of memory more effectively.

Higher Bandwidth and Future-Proofing

The 5600 MT/s speed of the Dell 370-BCFV provides a clear and immediate bandwidth advantage over previous-generation DDR4 modules, which typically top out at 3200 MT/s. This increased bandwidth is critical for feeding data-hungry multi-core processors, preventing the CPU from becoming starved for data and sitting idle. By investing in DDR5 technology, organizations are future-proofing their server infrastructure, ensuring compatibility with next-generation platforms and preparing for applications that will demand even greater memory performance.

Intended Use Cases

The Dell 370-BCFV is not a universal memory module; it is engineered for specific Dell server platforms that support DDR5 technology. Understanding its compatibility and ideal applications is key to a successful deployment.

Designed for Dell PowerEdge Server Systems

This memory module is validated, tested, and certified by Dell for use in specific generations of Dell PowerEdge servers. It is crucial to consult the official Dell documentation for your specific server model, such as the PowerEdge T560, R760, R760xa, or other 16th generation and newer platforms that utilize DDR5 memory. Using this genuine Dell part ensures full compatibility, avoids potential system errors or boot failures, and guarantees that the memory will perform at its advertised specifications without compromising system stability.

Optimized for Memory-Intensive Enterprise Workloads

The high capacity and advanced technology of the 370-BCFV make it perfectly suited for a wide range of demanding enterprise applications. Its primary use cases include in-memory databases like SAP HANA, which require massive amounts of RAM to hold entire datasets for lightning-fast query responses. It is also ideal for server virtualization, where a single physical host runs dozens of virtual machines, each requiring its own dedicated memory allocation. Other key applications include big data analytics, high-performance computing (HPC) clusters, and large-scale Microsoft SQL Server deployments, where high memory bandwidth and capacity directly translate to reduced processing times and improved user productivity.

Reliability and Serviceability

As a component intended for 24/7 operation in a data center, the Dell 370-BCFV is built to the highest standards of reliability. It undergoes rigorous testing and validation processes that go beyond standard industry practices to ensure it can withstand the constant thermal and electrical stresses of a server environment. Furthermore, as a genuine Dell part, it is fully supported by Dell's technical support and service infrastructure. If a module were to fail, it is covered by Dell's warranty, and a replacement can be sourced and deployed quickly, minimizing potential downtime.
