370-BCQW Dell 96GB DDR5-5600 ECC RDIMM PC5-44800 RAM

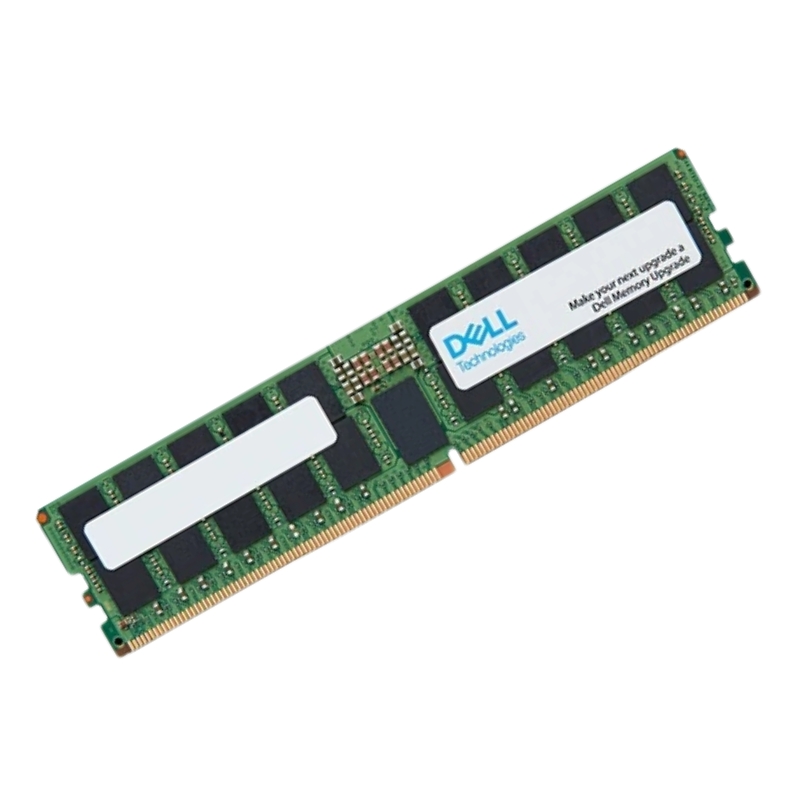

Dell 370-BCQW 96GB DDR5 Server Memory

Understanding DDR5 Server Memory Technology

The Evolution from DDR4 to DDR5 in Server Environments

The transition from DDR4 to DDR5 memory represents a quantum leap in server performance capabilities. Dell's 370-BCQW 96GB module embodies this technological evolution with significant improvements in speed, capacity, and power efficiency. Unlike DDR4, which typically operated at 1.2V, DDR5 operates at a reduced 1.1V while delivering substantially higher data transfer rates. This voltage reduction translates to meaningful power savings in data center environments where hundreds or thousands of modules may be deployed simultaneously.

Key Architectural Differences in DDR5

DDR5 introduces a revolutionary architecture with independent sub-channels that allow for more efficient data access patterns. This dual-subchannel design effectively doubles the burst length from 8 bytes to 16 bytes per channel, significantly improving memory efficiency for enterprise workloads. The 370-BCQW leverages this architecture to deliver superior performance for database applications, virtualization, and high-performance computing tasks.

DDR5 5600MT/s: What This Speed Means for Your Servers

The 5600MT/s (MegaTransfers per second) specification of the Dell 370-BCQW represents the pinnacle of current server memory performance. This translates to a peak transfer rate of 44.8 GB/s per module, substantially higher than previous-generation DDR4 modules. For server applications, this increased bandwidth means faster data processing, reduced latency in memory-intensive operations, and improved overall system responsiveness under heavy workloads.

Key Specifications Deep Dive

Capacity and Configuration: 96GB 2RX4 Architecture

The 96GB capacity of the 370-BCQW module makes it ideal for memory-intensive enterprise applications. The 2RX4 designation indicates a dual-rank configuration with four-bit prefetch architecture. In practical terms, this means the module organizes its memory chips into two independent groups (ranks) that can be accessed separately, improving memory controller efficiency and reducing access contention in multi-processor server environments.

Benefits of Dual-Rank Configuration

Dual-rank modules like the 370-BCQW offer several advantages over single-rank alternatives. They provide better memory controller utilization by allowing overlapping access to different ranks, effectively hiding precharge and activation delays. This results in higher sustained bandwidth and improved performance for database servers, virtualization hosts, and other enterprise applications where memory throughput is critical.

ECC Registered Technology: Ensuring Data Integrity

The ECC (Error Correcting Code) functionality in the Dell 370-BCQW is a critical feature for server environments where data integrity is paramount. ECC memory can detect and correct single-bit errors automatically, while also detecting multi-bit errors. This capability prevents data corruption, system crashes, and silent data errors that could compromise business operations or computational accuracy in scientific and financial applications.

Registered vs. Unbuffered DIMMs

As an RDIMM (Registered Dual In-Line Memory Module), the 370-BCQW includes register chips that buffer the address and command signals between the memory controller and the DRAM chips. This reduces the electrical load on the memory controller, enabling support for higher memory capacities and more modules per channel. For enterprise servers requiring large memory configurations, RDIMMs like the 370-BCQW are essential for maintaining signal integrity and system stability.

PC5-44800 and CL46 Timing Explained

The PC5-44800 designation refers to the module's peak transfer rate of 44800 MB/s, while the CL46 (CAS Latency 46) specification indicates the number of clock cycles between a read command and data availability. While higher than DDR4 CAS latencies in terms of clock cycles, the significantly faster clock speed of DDR5 means actual latency in nanoseconds is comparable or better, resulting in excellent performance for both latency-sensitive and bandwidth-hungry applications.

Performance and Application Scenarios

Enterprise Workload Optimization

The 96GB capacity and 5600MT/s speed of the 370-BCQW make it exceptionally well-suited for memory-intensive enterprise applications. Database servers running SQL Server, Oracle, or MySQL benefit from the high bandwidth for query processing and transaction handling. Virtualization hosts can support more virtual machines with better performance, while in-memory databases like SAP HANA achieve faster data processing and analytics capabilities.

High-Performance Computing Applications

In technical and scientific computing environments, the 370-BCQW's combination of high capacity and bandwidth accelerates complex simulations, financial modeling, and genomic analysis. The ECC protection ensures computational accuracy, while the DDR5 architecture provides the memory throughput needed for parallel processing workloads common in HPC clusters.

Cloud and Hyperscale Deployments

For cloud service providers and hyperscale data centers, the 370-BCQW offers an optimal balance of density, performance, and power efficiency. The 96GB capacity allows for higher virtual machine density per server, while the 1.1V operating voltage reduces power consumption and cooling requirements at scale. These characteristics translate to lower total cost of ownership and improved sustainability metrics for large-scale deployments.

Reliability and Serviceability Features

Enterprise-Grade Reliability Mechanisms

The Dell 370-BCQW incorporates multiple reliability features beyond basic ECC protection. These include temperature sensors for thermal monitoring, fault detection circuits, and advanced error logging capabilities. The modules are designed for 24/7 operation in demanding data center environments with extensive burn-in testing and validation to ensure consistent performance under continuous workload pressures.

Thermal Management and Cooling

DDR5 modules generate significant heat at high speeds, and the 370-BCQW includes an optimized thermal design to maintain stable operation. The module features carefully selected components with appropriate thermal characteristics and is tested to operate within specification across the full range of server environmental conditions. Proper server airflow is essential to maintain optimal memory temperatures and prevent thermal throttling.

Dell ProSupport and Service Integration

When deployed as part of a Dell server solution, the 370-BCQW memory module is covered by Dell's comprehensive support services. This includes ProSupport with next-business-day advanced exchange, proactive monitoring through Dell SupportAssist, and integrated firmware updates through Dell's repository. This service ecosystem ensures maximum uptime and simplified maintenance for enterprise IT teams.

Comparative Analysis

Competitive Landscape in Server Memory

The Dell 370-BCQW occupies a premium position in the server memory market, competing with similar offerings from other OEMs and third-party memory manufacturers. Dell's differentiation lies in the tight integration with their server platforms, comprehensive validation testing, and enterprise support services. While compatible third-party modules may offer lower initial cost, they may lack the same level of optimization and support coverage.

Price-to-Performance Considerations

With its 96GB capacity and 5600MT/s speed, the 370-BCQW delivers an excellent balance of performance and density for enterprise buyers. The higher initial investment in DDR5 technology is justified by the improved performance per watt, increased virtualization density, and future-proofing for upcoming workload demands. For organizations running memory-bound applications, the performance benefits typically yield a strong return on investment through improved application performance and server consolidation opportunities.

Future-Proofing Your Server Investment

Investing in DDR5 technology with the 370-BCQW ensures compatibility with current and future server platforms as the industry transitions away from DDR4. The module's specifications align with the direction of enterprise computing needs, offering ample headroom for growing memory requirements and increasingly demanding applications. This future-proofing is particularly valuable for organizations with refresh cycles that extend multiple years.
