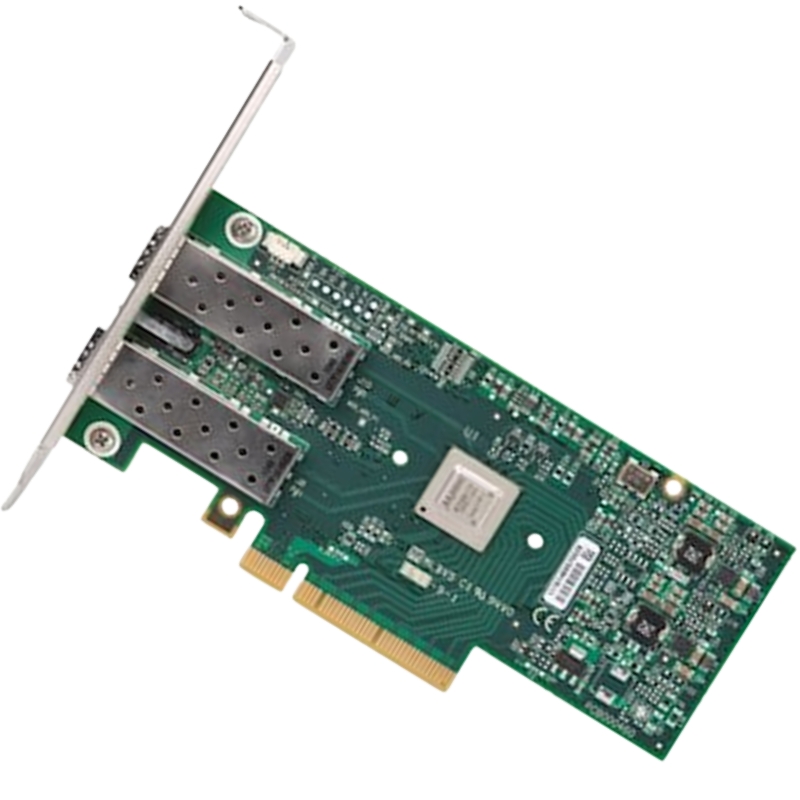

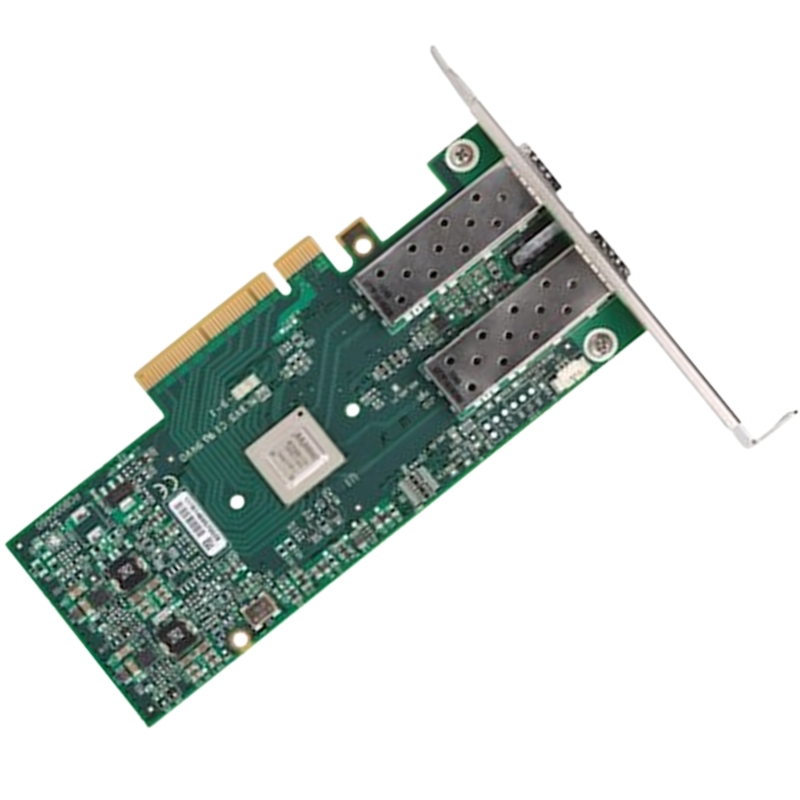

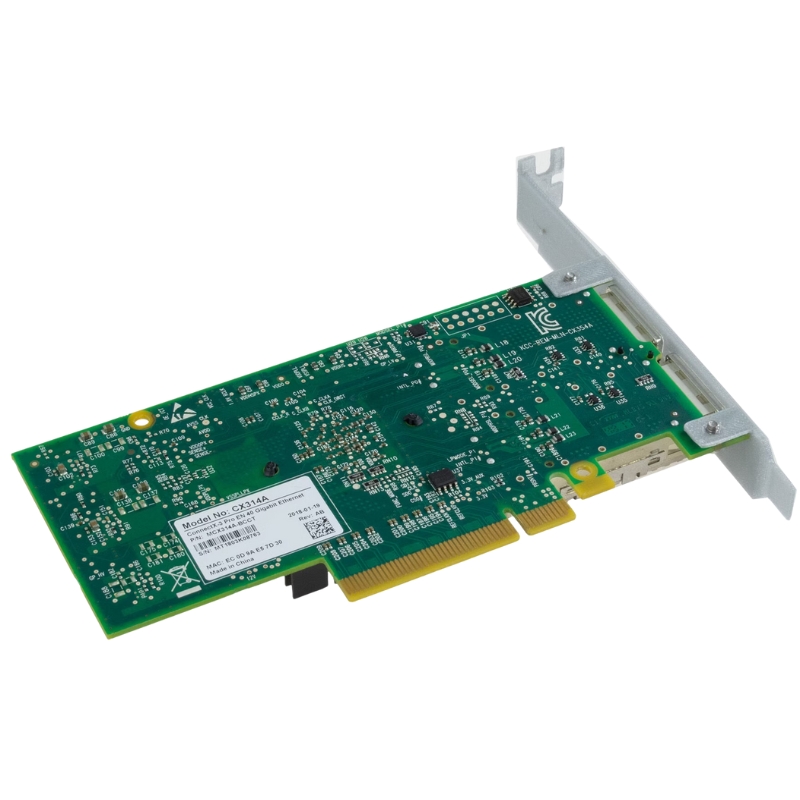

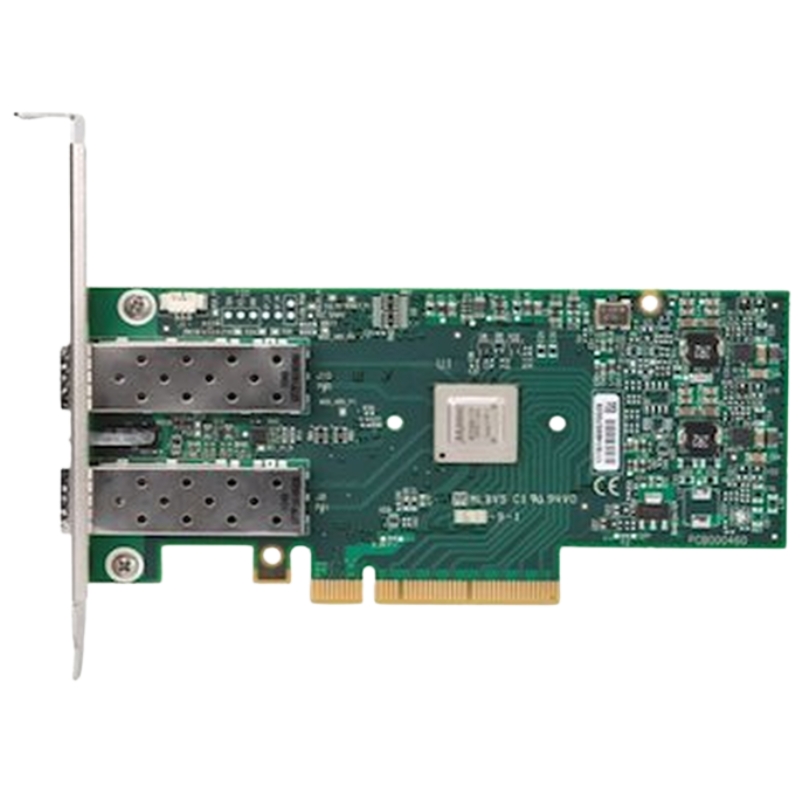

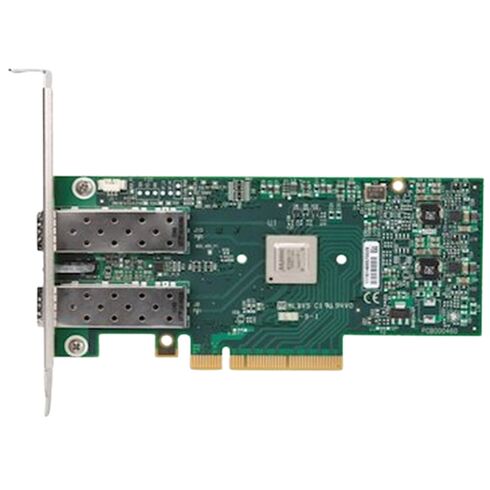

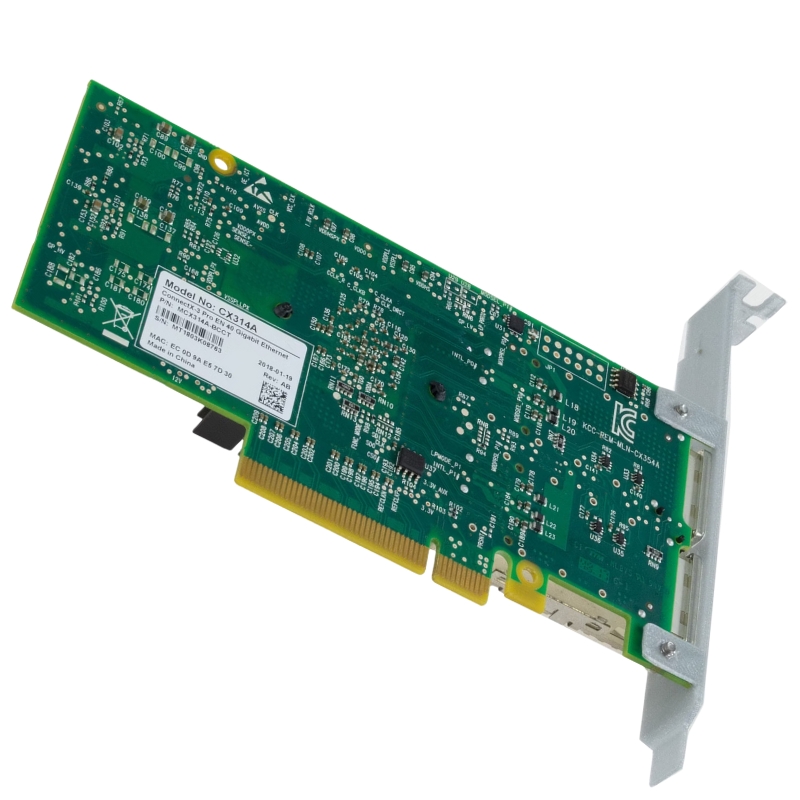

384-BBHR Dell Mellanox Connectx-3 Pro Dual Port Pcie Adapter

Overview of Dell Mellanox Dual Port Pcie Adapter

The 384-BBHR ConnectX-3 Pro Dual-Port 40GbE QSFP+ PCIe Network Interface Card is a powerful enterprise-grade Ethernet solution designed for ultra-fast data transfer, low latency computing, and scalable data center networking environments. Engineered for reliability and high throughput, this adapter is ideal for demanding workloads, virtualization platforms, and cloud infrastructure deployments.

General Specifications

• Manufacturer: Dell
• Part Number: 384-BBHR
• Device Type: PCI-E Adapter

Expansion and Port Configuration

• Number of QSFP+ slots: 2
• Total expansion interfaces: 2
• Hot-plug capable QSFP-based connectivity

Next-Generation 40 Gigabit Ethernet Connectivity

• Ultra-fast 40GbE throughput for enterprise workloads
• Low latency packet processing for optimized performance
• Enhanced scalability for modern data center architectures
• Reliable connection stability under heavy traffic loads

Physical Dimensions and Build

• Height: 5.6 inches
• Width: 6.7 inches
• Form Factor: Standard expansion plug-in card

Host Interface and System Compatibility

• PCIe x8 high-bandwidth connection
• No RJ-45 Ethernet port dependency
• No USB, serial, or legacy AUI interfaces
• Dedicated high-speed QSFP+ networking architecture

Supported Standards Include

• IEEE 802.3ae (10 Gigabit Ethernet)
• IEEE 802.3ba (40/100 Gigabit Ethernet)
• IEEE 802.3ad (Link Aggregation)
• IEEE 802.3az (Energy Efficient Ethernet)
• IEEE 802.1Q (VLAN tagging)
• IEEE 802.1p (Traffic prioritization)
• IEEE 802.1Qau, 802.1Qbg, 802.1Qaz, 802.1Qbb enhancements

Performance Highlights

• Supports high-speed 10GBASE-X networking environments
• Improved packet processing efficiency
• Reduced CPU overhead through hardware acceleration
• Ideal for data center switching and routing systems

Use Cases and Deployment Scenarios

• Cloud computing infrastructure and virtualization clusters
• High-performance computing (HPC) environments
• Enterprise storage area networks (SAN)
• Big data analytics and processing systems
• Mission-critical server networking setups

Operational Advantages

• Enhanced bandwidth aggregation for large-scale workloads
• Reduced latency for real-time applications
• Improved reliability in mission-critical systems
• Seamless integration with modern data center networks

Core Engineering Strengths

• Robust thermal and power efficiency design
• Optimized for continuous 24/7 operation
• Minimal downtime in enterprise deployments
• Future-ready network expansion capability

Outline of Dell 384-BBHR 2-Port 40GbE QSFP+ PCIe Adapter

The Dell 384-BBHR ConnectX-3 Pro 2-Port 40GbE QSFP+ PCIe Adapter represents a high-performance networking solution designed for enterprise-grade data centers, cloud infrastructure, virtualization environments, and high-throughput computing systems. Built on advanced InfiniBand and Ethernet convergence architecture, this adapter is engineered to deliver ultra-low latency, high bandwidth, and efficient CPU offloading capabilities. It is widely adopted in environments where scalable network performance and reliable data transfer rates are essential for mission-critical workloads.

As modern IT infrastructures continue to evolve toward hyper-converged systems and software-defined networking, the demand for 40 Gigabit Ethernet connectivity has increased significantly. This adapter meets that demand by offering dual-port QSFP+ interfaces capable of supporting 40GbE per port, enabling aggregated throughput that is suitable for large-scale virtualization, storage networking, and distributed computing tasks.

Enterprise-Grade Network Performance and Architecture

Advanced ConnectX-3 Pro Controller Design

At the core of the Dell 384-BBHR adapter lies the Mellanox ConnectX-3 Pro controller architecture, a widely recognized silicon platform known for its robust performance and scalability. The controller is optimized for both Ethernet and InfiniBand protocols, allowing seamless integration into hybrid network environments. This dual-protocol capability enhances flexibility in deployment scenarios, particularly in environments transitioning from legacy networking systems to modern high-speed infrastructures.

The architecture is designed to minimize CPU overhead by offloading network processing tasks such as checksum calculations, segmentation, and packet steering. This results in improved overall system performance, especially in virtualized environments where CPU resources must be carefully allocated across multiple workloads.

40GbE Dual-Port High-Speed Connectivity

The adapter features two QSFP+ ports, each supporting up to 40GbE bandwidth. This dual-port configuration enables network administrators to implement redundancy, load balancing, or link aggregation strategies to enhance network reliability and throughput. The high-speed data transfer capability ensures smooth handling of large datasets, making it ideal for data-intensive applications such as cloud storage replication, real-time analytics, and high-frequency trading systems.

Each port operates independently, allowing flexible configuration depending on network topology requirements. Whether deployed in spine-leaf architecture or traditional hierarchical data center designs, the adapter ensures consistent and predictable network performance under heavy workloads.

PCI Express Interface and System Integration

PCIe Gen3 x8 Host Interface

The Dell 384-BBHR adapter utilizes a PCI Express Gen3 x8 interface, providing sufficient bandwidth to support dual 40GbE throughput without bottlenecks. The PCIe interface ensures compatibility with a wide range of server platforms, particularly Dell PowerEdge servers and other enterprise-grade systems that support high-speed expansion cards.

The PCIe architecture enhances data transfer efficiency between the network adapter and the host system memory. This reduces latency and ensures that high-speed network traffic can be processed without delay, which is critical in latency-sensitive applications such as virtualization clusters and storage area networks.

Seamless Server Compatibility and Deployment

Designed for enterprise integration, this adapter is compatible with various server operating systems, including Linux distributions, Windows Server environments, and virtualization platforms such as VMware ESXi. The driver support ecosystem ensures stable performance and simplified deployment across heterogeneous IT environments.

The adapter is commonly deployed in rack-mounted servers within data centers, where high-density networking and predictable performance are essential. Its low-profile form factor allows it to fit into space-constrained server chassis while maintaining optimal thermal and electrical performance.

Virtualization and Cloud Optimization Capabilities

Efficient Virtual Machine Networking

In virtualized environments, network adapters must handle multiple virtual machines simultaneously while maintaining isolation and performance consistency. The Dell 384-BBHR adapter supports advanced virtualization features such as SR-IOV (Single Root I/O Virtualization), enabling direct assignment of virtual functions to virtual machines. This reduces hypervisor overhead and improves network efficiency across multi-tenant environments.

By bypassing traditional software-based network stacks, SR-IOV enables near-native network performance for virtual machines, which is particularly beneficial in cloud service provider infrastructures and enterprise private clouds.

Cloud Data Center Efficiency

Cloud environments require scalable and resilient networking infrastructure capable of handling dynamic workloads. The dual-port 40GbE capability of this adapter ensures that cloud data centers can maintain high throughput while supporting rapid provisioning and workload migration. This is especially important for containerized applications and microservices architectures, where network traffic patterns can change rapidly.

The adapter’s ability to handle east-west traffic efficiently within data centers contributes to reduced congestion and improved application responsiveness. This makes it a preferred choice for cloud-native deployments and hybrid cloud integration strategies.

Storage Networking and Data Acceleration

High-Speed Storage Access

Modern storage systems require extremely fast network connections to support distributed storage architectures such as SAN, NAS, and hyper-converged storage platforms. The Dell 384-BBHR adapter provides the necessary bandwidth to ensure seamless data replication, backup operations, and real-time storage access across clustered environments.

Its low-latency design significantly reduces the time required for storage transactions, improving overall system responsiveness and enabling faster application performance in data-intensive environments.

RDMA and Low-Latency Data Transfer

The adapter supports Remote Direct Memory Access (RDMA) over Converged Ethernet (RoCE), allowing data to be transferred directly between memory spaces without involving the CPU. This reduces latency and increases throughput, making it ideal for high-performance computing clusters and database acceleration workloads.

RDMA capability is particularly valuable in environments where microsecond-level latency differences can impact performance outcomes, such as financial modeling, scientific simulations, and large-scale analytics processing.

Reliability, Scalability, and Enterprise Stability

Designed for Continuous Operation

Enterprise environments require hardware that can operate continuously under heavy load without performance degradation. The Dell 384-BBHR adapter is built with reliability in mind, incorporating advanced thermal management and error correction mechanisms to ensure stable operation in demanding conditions.

Its robust design supports long-term deployment cycles, reducing the need for frequent hardware replacements and minimizing operational downtime in critical infrastructure environments.

Scalability for Growing Infrastructure

As organizations expand their digital infrastructure, scalable networking solutions become essential. This adapter supports scalable deployment across multiple servers and network nodes, enabling organizations to expand bandwidth capacity without redesigning their entire network architecture.

The dual-port design also allows for future-proofing network infrastructure, ensuring compatibility with evolving data center standards and increasing bandwidth requirements.

Security and Data Integrity Features

Secure Data Transmission

Network security is a critical consideration in enterprise environments, and this adapter incorporates features that support secure and reliable data transmission. By reducing reliance on CPU-based processing, it minimizes attack surfaces associated with software networking stacks.

Additionally, hardware-level packet processing helps ensure data integrity during high-speed transmission, reducing the risk of packet loss or corruption in congested network environments.

Enterprise Compliance Support

The adapter supports enterprise compliance requirements by ensuring predictable and auditable network performance. This is particularly important in regulated industries such as finance, healthcare, and telecommunications, where data transmission reliability and security are essential.

Use Cases in Modern IT Infrastructure

High-Performance Computing Environments

In HPC clusters, where computational workloads depend heavily on fast inter-node communication, the Dell 384-BBHR adapter provides the necessary bandwidth and low latency required for parallel processing tasks. Scientific simulations, machine learning model training, and data analytics pipelines benefit significantly from its performance capabilities.

Enterprise Data Centers and Virtualization Farms

Large-scale enterprise data centers rely on high-density virtualization and distributed workloads. This adapter ensures efficient communication between virtual machines and storage systems while maintaining consistent network performance across multiple physical hosts.

Cloud Service Provider Infrastructure

Cloud service providers require networking hardware that can handle multi-tenant traffic efficiently. The adapter’s support for virtualization, high throughput, and RDMA makes it suitable for cloud infrastructure where performance isolation and scalability are critical.

Performance Optimization and Efficiency

CPU Offloading and System Efficiency

By offloading network processing tasks from the CPU to the adapter hardware, system resources are freed for application-level processing. This improves overall server efficiency and allows higher workload density per physical server.

This optimization is particularly beneficial in environments where CPU utilization is a critical performance metric, such as virtual desktop infrastructure and application hosting platforms.

Bandwidth Aggregation and Load Distribution

The dual-port configuration enables intelligent load distribution across network paths. This ensures that no single link becomes a bottleneck, thereby maintaining consistent performance even under peak traffic conditions.
