Product Overview

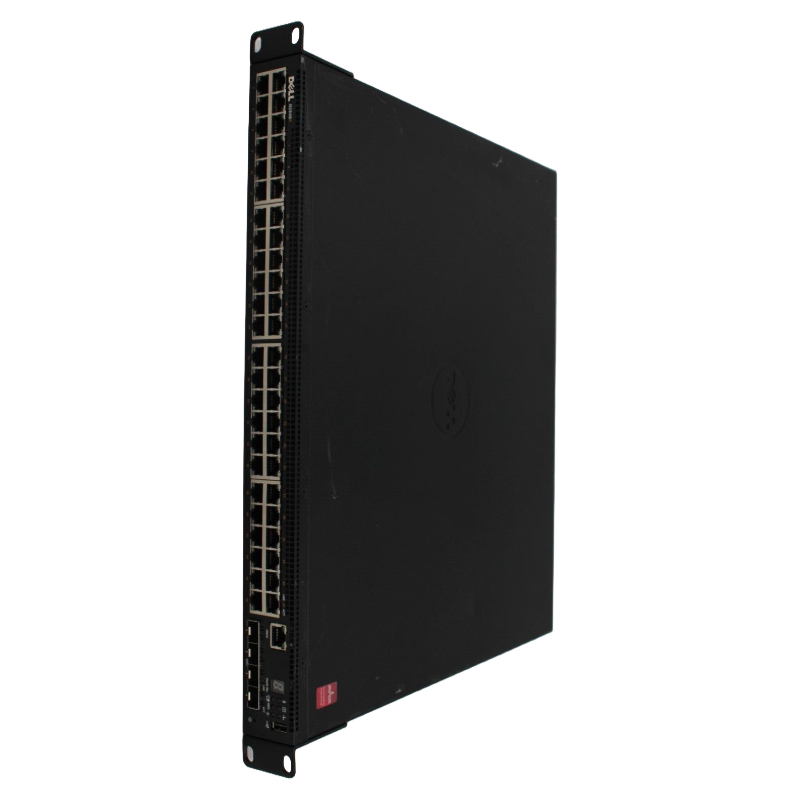

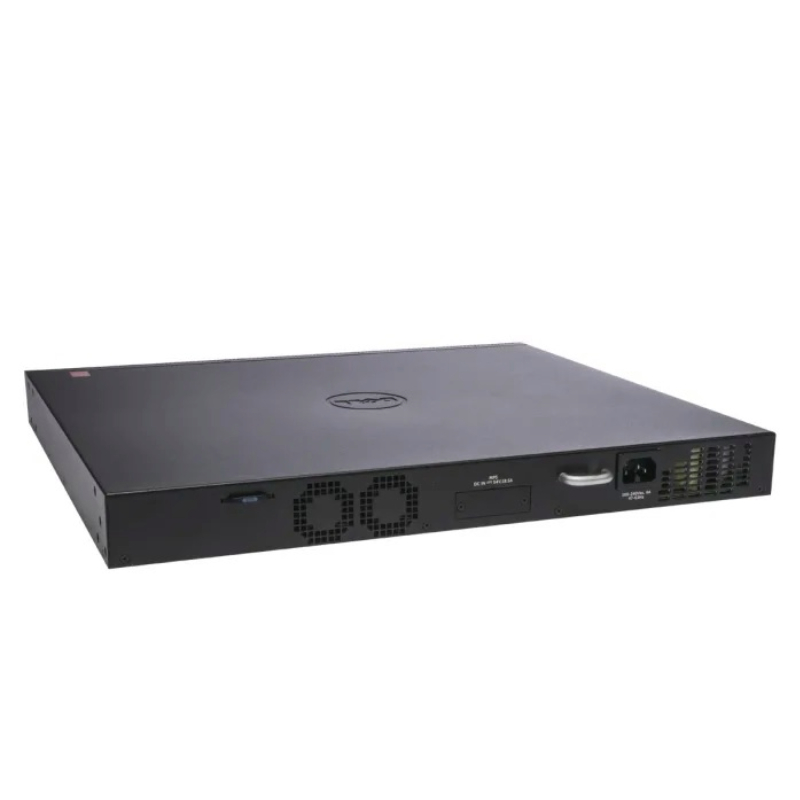

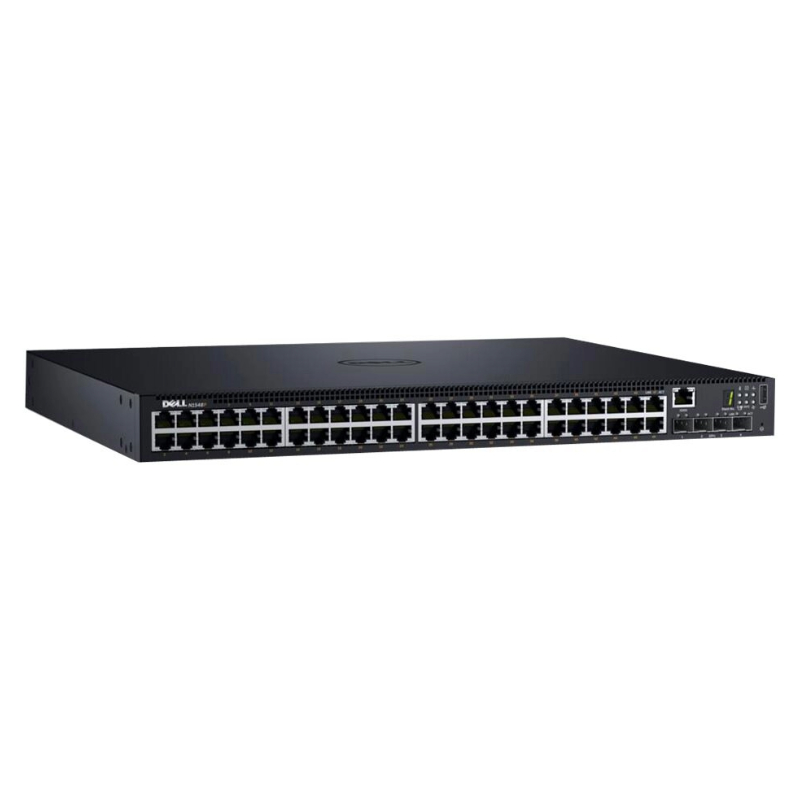

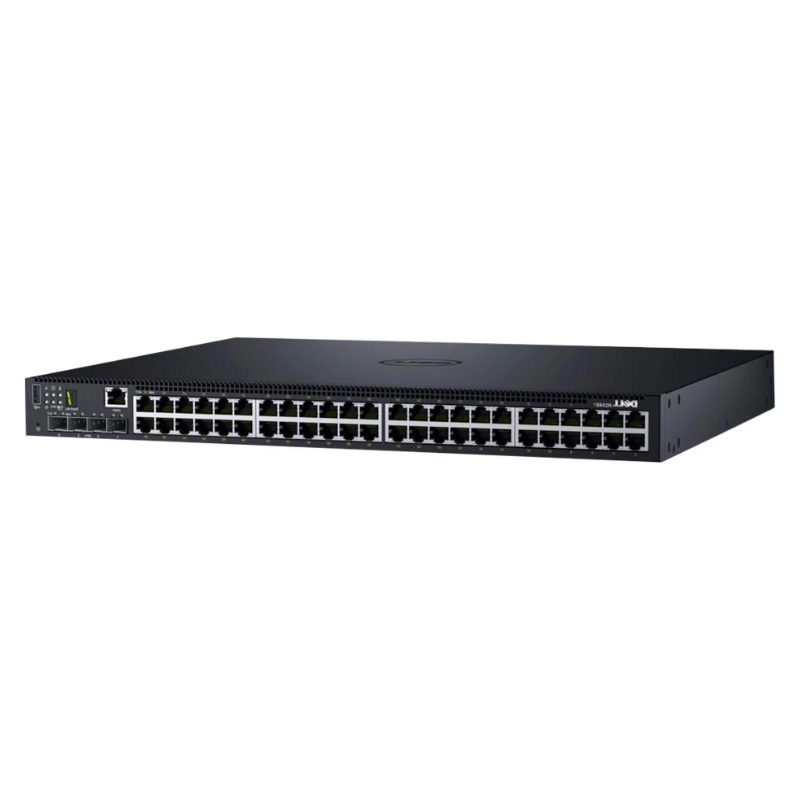

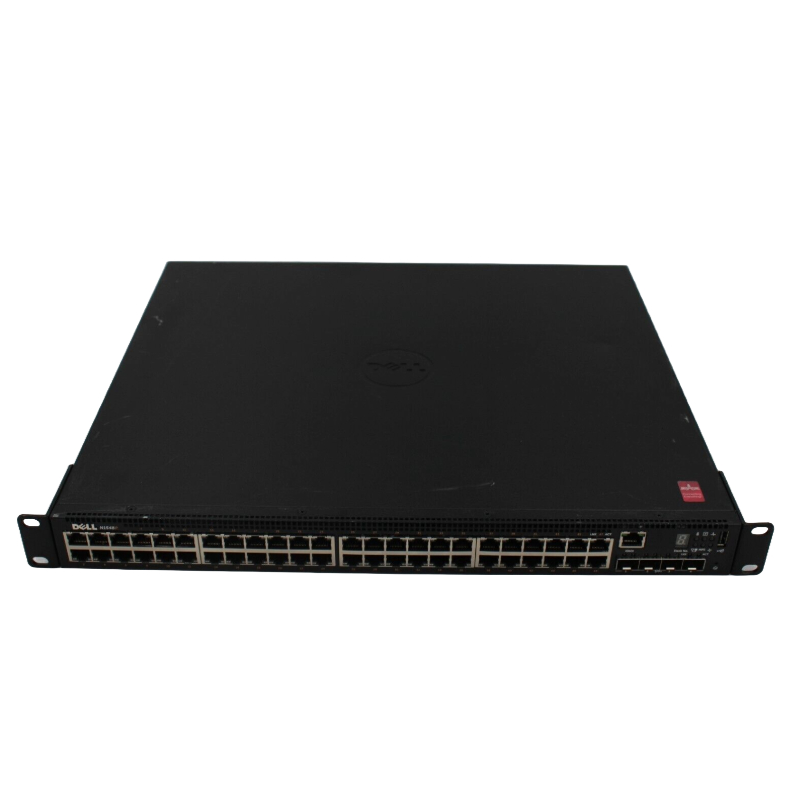

Dell 3WY51 Networking N1548p Switch
48-Port 1GbE Switch with Integrated PSU
Key Features
- Manufacturer: Dell
- Part Number: 3WY51
- Device Type: 48-Port L2+ Managed Stackable Switch
- Enclosure Type: 1U Rack-Mountable Design
- Network Subtype: Gigabit Ethernet
- Ports: 48 x 10/100/1000 + 4 x 10 Gigabit SFP+
- Power Over Ethernet (PoE): PoE+
- PoE Budget: 30.8 Watts
Performance Specifications
- Switching Fabric Bandwidth: 176 Gbps
- Forwarding Performance: 164 Mpps
Capacity Overview
- Virtual Interfaces (VLANs): 512
- ARP Entries: 1,024
- NDP Entries: 400
- Priority Queues Per Port: 8
- Static IPv4 Routes: 256
- Static IPv6 Routes: 128
- Dynamic IPv4 Routes: 256
- VLAN Routing Interfaces: 128
- Access Control Lists (ACL): 100
- Maximum System-wide ACL Rules: 2,048
- Maximum Rules Per ACL: 1,023
- Maximum VLAN Interfaces With ACLs: 24
- Maximum Dynamic Ports Per Switch Stack: 144
- Maximum Member Ports Per LAG: 8
- MAC Addresses: 16,000
Routing and Management Protocols
- Supported Routing Protocols: RIP-1, RIP-2, Static IPv4 and IPv6 Routing
- Remote Management Protocols: Telnet, TFTP
- Encryption Algorithms: MD5, AES, SSL, TLS
- Authentication Methods: SSH, RADIUS, TACACS+
Additional Features
The Dell N1548p Switch is equipped with a variety of advanced functionalities:
- Auto-Negotiation and Auto-Uplink (Auto MDI/MDI-X) Capabilities
- Port Mirroring for Efficient Traffic Monitoring
- Broadcast Storm Control for Enhanced Network Stability
- Front-to-Back Airflow Design with Redundant Fans
Memory and Power Specifications
- RAM: 1 GB
- Flash Memory: 256 MB
- Power Device: Internal Power Supply
- Installed Power Supply Quantity: 1
- Power Output: 600 Watts
Expansion and Connectivity Options
- 48 x Gigabit LAN: RJ-45 Interfaces
- 4 x 10 Gigabit LAN: SFP+ Interfaces
- 1 x Serial: RS-232 RJ-45 (Management)
- 1 x USB: Type A Port
Port
The Dell 3WY51 Managed switch boasts an impressive 48-port capacity, making it an ideal choice for businesses and organizations that require extensive network connectivity. With this abundance of ports, users can easily connect multiple devices, such as computers, printers, servers, and IP phones, to create a comprehensive and efficient network infrastructure.
Increased Scalability
One of the key benefits of the 48-port feature is its ability to accommodate the growth and expansion of a network. As businesses evolve and add more devices to their operations, having additional ports ensures that there is enough capacity to handle the increased network traffic. This scalability improves productivity and allows for seamless integration of new devices without compromising network performance.
Flexibility in Network Design
The Dell 3WY51 Managed switch's 48-port configuration offers users the freedom to design their networks according to their specific requirements. With a multitude of ports at their disposal, IT administrators can segment the network into different VLANs (Virtual Local Area Networks) or create dedicated connections for different departments or floors within an organization. This flexibility enables efficient network management, enhances security, and optimizes overall network performance.
Reduced Network Congestion
With 48 available ports, the Dell 3WY51 Managed switch significantly reduces the likelihood of network congestion. Congestion occurs when there is an excessive amount of data traffic on a particular network segment, leading to slower speeds and potential data packet loss. By distributing devices across numerous ports, the switch effectively balances the network load, preventing bottlenecks and ensuring smooth data transmission.
Power Over Ethernet (PoE+)
Another standout feature of the Dell 3WY51 Managed switch is its Power over Ethernet capability. PoE+ technology enables the switch to provide both power and data connectivity to compatible devices, eliminating the need for separate power sources or adapters. This feature is particularly advantageous in environments where power outlets are limited, or when devices need to be installed in hard-to-reach locations.
Efficient Power Management
PoE+ technology allows for centralized power management, enabling IT administrators to control and monitor the power consumption of connected devices. This feature is especially useful for organizations looking to reduce their energy footprint and implement green initiatives. By remotely managing power allocation, businesses can optimize energy usage, reduce electricity costs, and contribute to a more sustainable environment.
Flexibility in Device Placement
With PoE+ support, the Dell 3WY51 Managed switch enables users to deploy devices in locations where traditional power sources are not readily available. This flexibility is particularly beneficial for wireless access points, IP cameras, and Voice over IP (VoIP) phones. Without the need for separate power outlets or adapters, these devices can be conveniently installed in areas such as ceilings, walls, or outdoor environments, enhancing network coverage and accessibility.
Streamlined Installation and Maintenance
By combining power and data transmission into a single Ethernet cable, PoE+ simplifies the installation and maintenance of network devices. IT personnel can avoid the hassle of running separate power lines, reducing the overall complexity and cost associated with deploying new equipment. Additionally, troubleshooting becomes more efficient as power-related issues can be easily identified and addressed through centralized power management.
Interface
The Dell 3WY51 Managed switch features SFP+ (Small Form-factor Pluggable Plus) interfaces, offering users enhanced connectivity options and increased bandwidth capabilities. SFP+ interfaces provide flexibility and scalability in network design while delivering high-speed data transmission.
Modular Connectivity
The SFP+ ports on the Dell 3WY51 Managed switch allow for the use of a wide range of transceivers, including fiber optic and copper modules. This modularity provides versatility in connecting devices across different distances and media types. Whether it is connecting to long-range fiber networks or short-range copper connections, the SFP+ interfaces offer seamless integration and compatibility.
Superior Bandwidth Performance
SFP+ interfaces support higher data transfer rates than standard Ethernet ports, enabling faster and more efficient communication between devices. With speeds of up to 10 gigabits per second (Gbps), users can transmit large amounts of data quickly and reliably. This increased bandwidth is particularly advantageous in bandwidth-intensive applications such as video streaming, cloud computing, and data backups.
Future-Proof Network Infrastructure
The use of SFP+ interfaces ensures that the Dell 3WY51 Managed switch is ready for future advancements in network technology. As network requirements evolve, SFP+ modules can be easily upgraded or replaced to support newer standards and higher data rates. This future-proofing capability protects investments and allows businesses to adapt to emerging technologies without replacing the entire switch infrastructure.
Mounting
The Dell 3WY51 Managed switch is designed to be rack-mountable, offering users a convenient and efficient way to organize their network equipment. Rack-mountable switches provide several benefits, including improved cable management, enhanced accessibility, and simplified maintenance.
Optimized Space Utilization
Rack-mountable switches allow for neat and organized cable management within server racks or network cabinets. By consolidating multiple devices into a single location, IT administrators can eliminate clutter and reduce the risk of cable damage or disconnection. This streamlined organization not only improves aesthetics but also enhances system reliability and minimizes downtime caused by cable-related issues.
Easy Accessibility
With rack-mountable switches, accessing and maintaining network equipment becomes significantly easier. IT personnel can quickly identify and troubleshoot any issues, perform regular maintenance, or make necessary configuration changes without the need to dismantle the entire setup. This accessibility results in faster response times, reduced downtime, and improved overall network performance.
Scalable Expansion
Rack-mountable switches provide a scalable solution for expanding network infrastructure. As businesses grow and require additional switches, rack space can be efficiently utilized to accommodate new devices. This scalability simplifies the process of adding or replacing switches while maintaining a tidy and organized network setup.
In conclusion, the Dell 3WY51 Managed switch offers a comprehensive range of features that cater to the connectivity, power management, interface, and mounting needs of businesses. With its 48-port capacity, Power over Ethernet support, SFP+ interfaces, and rack-mountable design, this switch provides users with the flexibility, scalability, and efficiency required to build and maintain a robust network infrastructure.
