400-BFOP Dell SAS-12GBPS 7.68TB Read Intensive 1DWPD 2.5-Inch Hot Plug SSD

Dell 400-BFOP SAS 7.68TB Enterprise SSD

In the realm of enterprise data storage, where performance, reliability, and capacity converge, the Dell 400-BFOP SAS-12GBPS 7.68TB Read-Intensive Solid State Drive stands as a benchmark. This 2.5-inch hot-plug drive is engineered specifically for data centers and businesses that demand consistent, high-speed access to large volumes of data without compromising on endurance or efficiency. As part of Dell's trusted lineup of enterprise-grade components, this SSD is designed to integrate seamlessly into existing server and storage infrastructure, providing a direct upgrade path from slower HDDs or lower-capacity SSDs.

SAS-12Gbps The Speed Advantage

With a theoretical bandwidth of 12 gigabits per second (Gbps), 400-BFOP the SAS-12Gbps interface effectively doubles the speed of the previous SAS-6Gbps generation and significantly outpaces SATA III's 6Gbps limit. This translates to faster data transfer rates, reduced latency for I/O operations, and the ability to handle more simultaneous requests, which is crucial for multi-user applications and virtualized environments.

Capacity 7.68TB

The massive 7.68TB capacity point places this drive in a sweet spot for enterprises dealing with expansive datasets. This capacity is not arbitrary; it is a common high-end point that allows for significant data consolidation, reducing the physical footprint and power consumption per terabyte compared to deploying numerous smaller drives.

High-Capacity Read-Intensive SSDs

The "Read-Intensive" classification and substantial capacity make the Dell 400-BFOP ideal for several specific workloads where the majority of operations are data reads.

Endurance 1 DWPD Really Means

Drive endurance is a critical metric for enterprise SSDs, quantified as Drive Writes Per Day (DWPD). Understanding this specification is key to selecting the right drive for your workload and ensuring its long-term viability.

1 DWPD in a Real-World Context

A 1 DWPD rating is perfectly suited for its designated read-intensive use cases. Consider a scenario where the drive is 80% full (approx. 6.1 TB). To hit the 1 DWPD limit, you would need to write 6.1 TB of new data to the drive every single day. In applications like data warehousing or media streaming, the write workload is a small fraction of the read workload, making it nearly impossible to exceed this endurance limit under normal operating conditions.

Power-Loss Protection (PLP)

Enterprise SSDs are equipped with sophisticated Power-Loss Protection circuits, often involving onboard capacitors. In the event of a sudden power failure, these capacitors provide enough temporary power for the drive to complete any in-progress writes from its volatile cache (DRAM) to the non-volatile NAND flash memory. This prevents data corruption and ensures data-at-rest remains consistent.

End-to-End Data Protection

As data moves from the host system, through the drive's DRAM cache, and finally to the NAND media, it is protected by error-correcting codes (ECC) at every stage. 400-BFOP This end-to-end data path integrity check summing ensures that any corruption introduced during transit is detected and corrected, guaranteeing that the data read is identical to the data written.

The 2.5-Inch Hot-Plug Form Factor

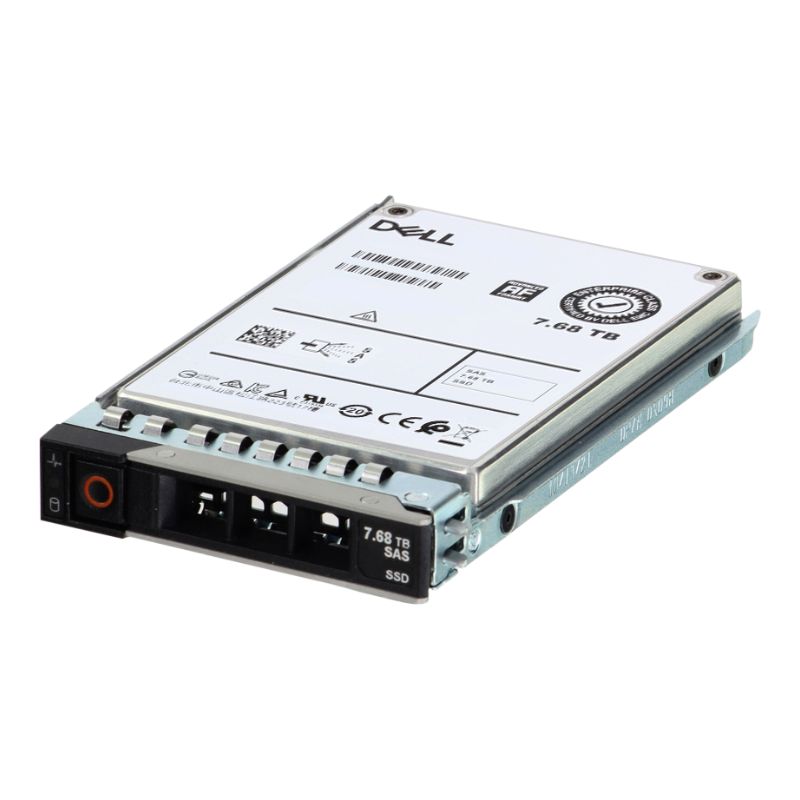

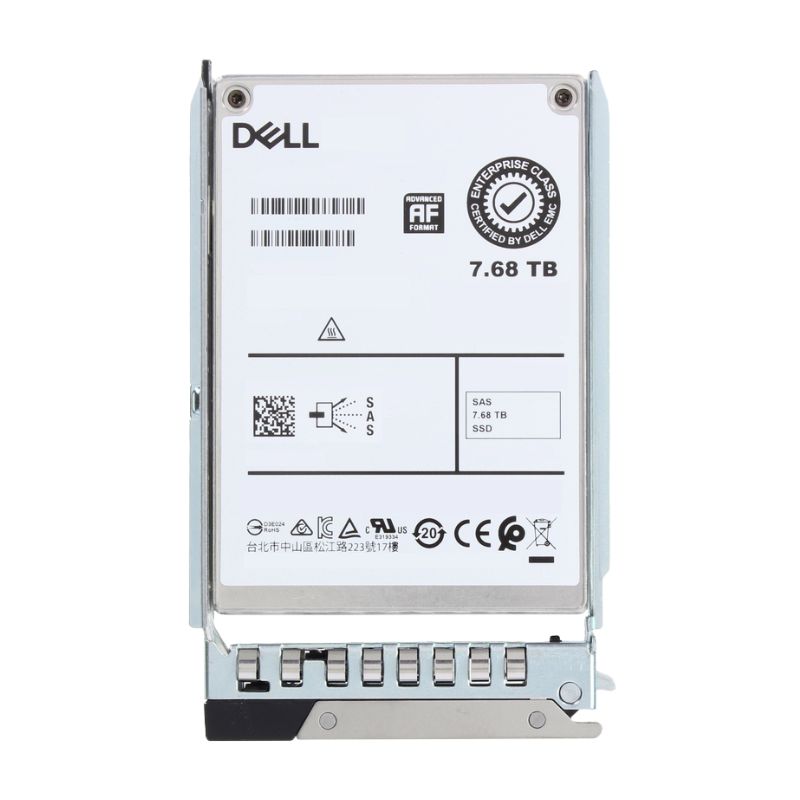

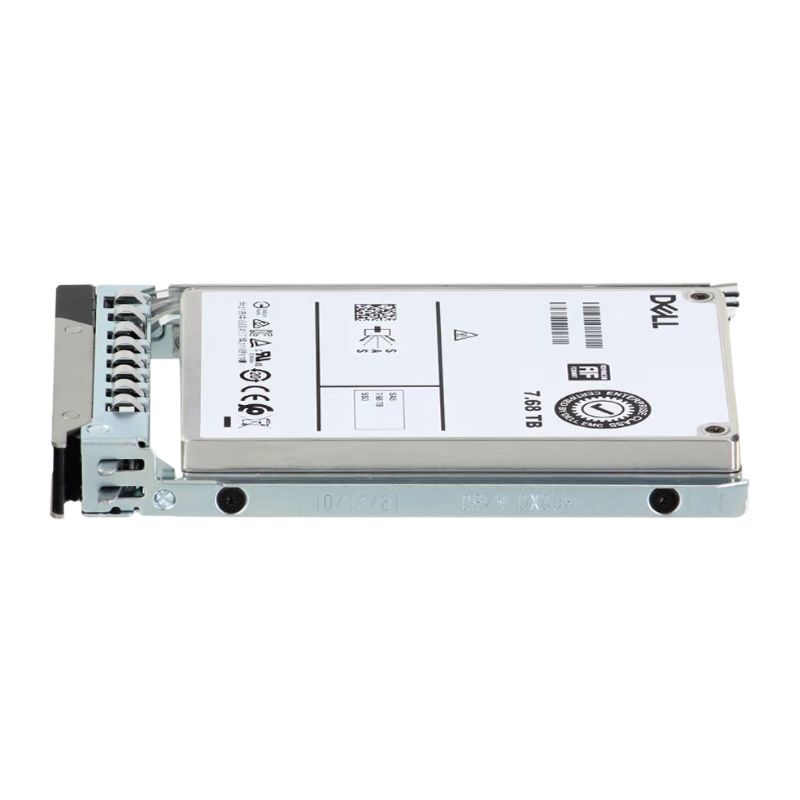

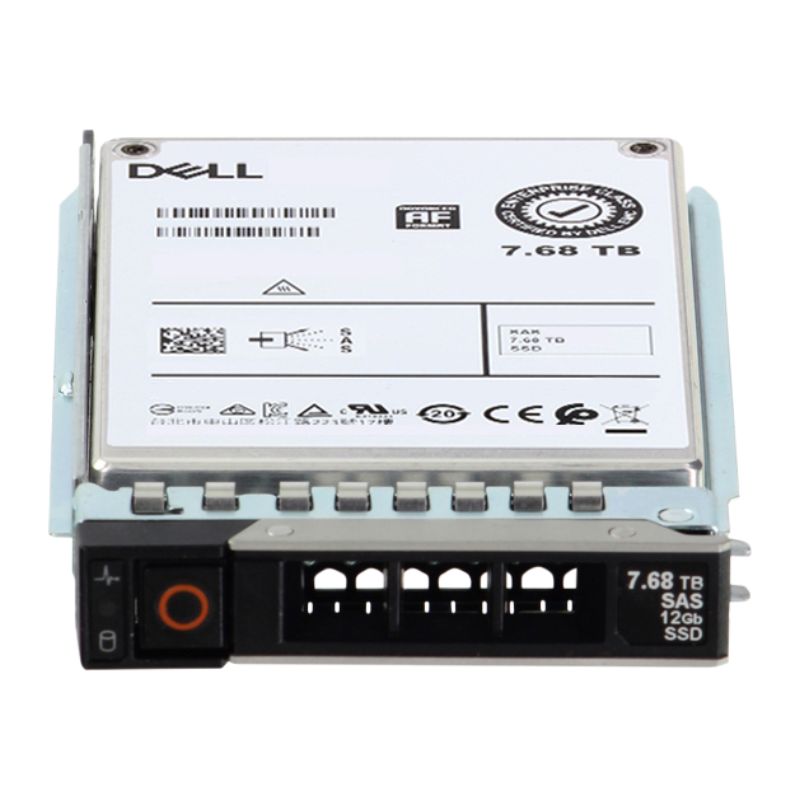

The physical design of the Dell 400-BFOP is as crucial to its enterprise role as its internal components. The 2.5-inch hot-plug form factor represents the current standard for modern server and storage array design.

Benefits of the 2.5-Inch Form Factor

Compared to the older 3.5-inch drives, 2.5-inch drives allow for a significantly higher number of drives to be installed in the same physical rack unit (e.g., a 2U server might hold 12 or 24x 2.5" drives vs. 8x 3.5" drives). This increased density translates to more terabytes per rack unit, maximizing the utilization of expensive data center real estate and power capacity.

Capability

The "Hot-Plug" designation is a non-negotiable feature for any enterprise storage component intended for use in systems requiring high availability.

Seamless Scalability and Maintenance

Hot-plug capability also simplifies capacity expansion. Additional drives can be added to empty bays to increase total storage pool capacity without any service interruption. This provides unparalleled flexibility for growing businesses to scale their storage infrastructure on-demand.

NAND Flash Technology

The drive utilizes high-quality, enterprise-grade Triple-Level Cell (TLC) NAND flash memory. TLC NAND stores three bits of data per cell, striking an excellent balance between cost, capacity, and endurance. When coupled with a powerful controller and sophisticated firmware—as found in this Dell drive—TLC NAND is more than capable of meeting the demands of read-intensive enterprise workloads.

Compatibility

While optimized for 400-BFOP Dell systems, this SAS-12Gbps drive adheres to industry standards and is generally compatible with any server or storage array that supports SAS-12Gbps (or backward compatible SAS-6Gbps) 2.5-inch hot-plug drives. It is always recommended to verify compatibility with the specific system vendor before purchase.
