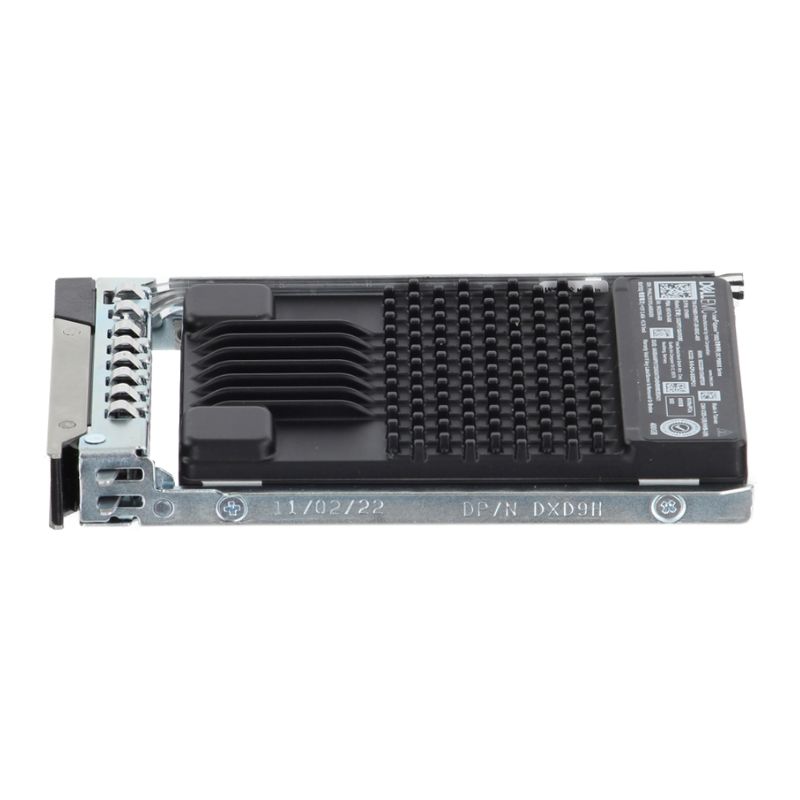

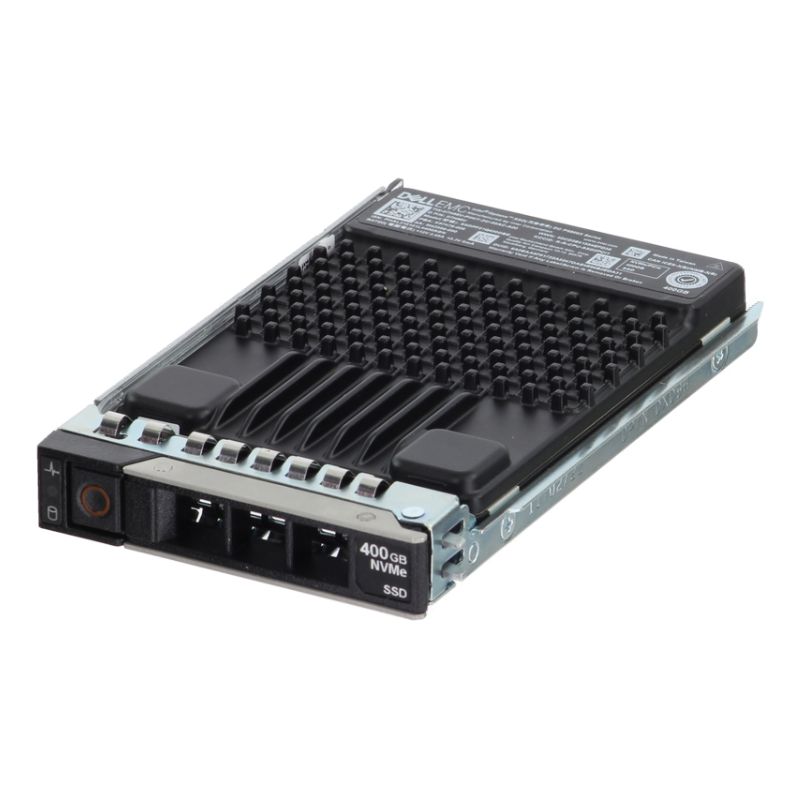

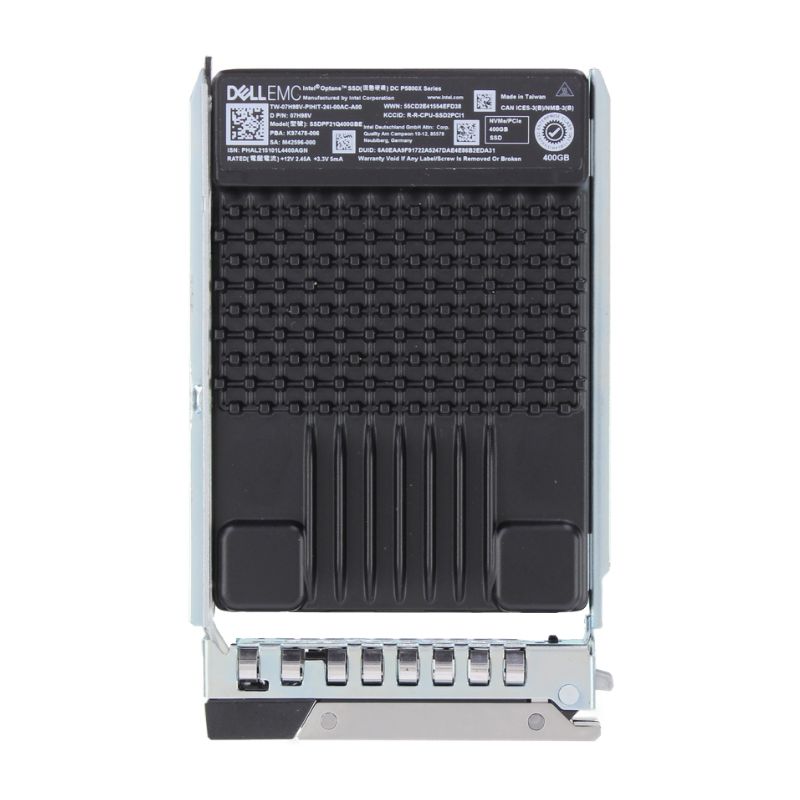

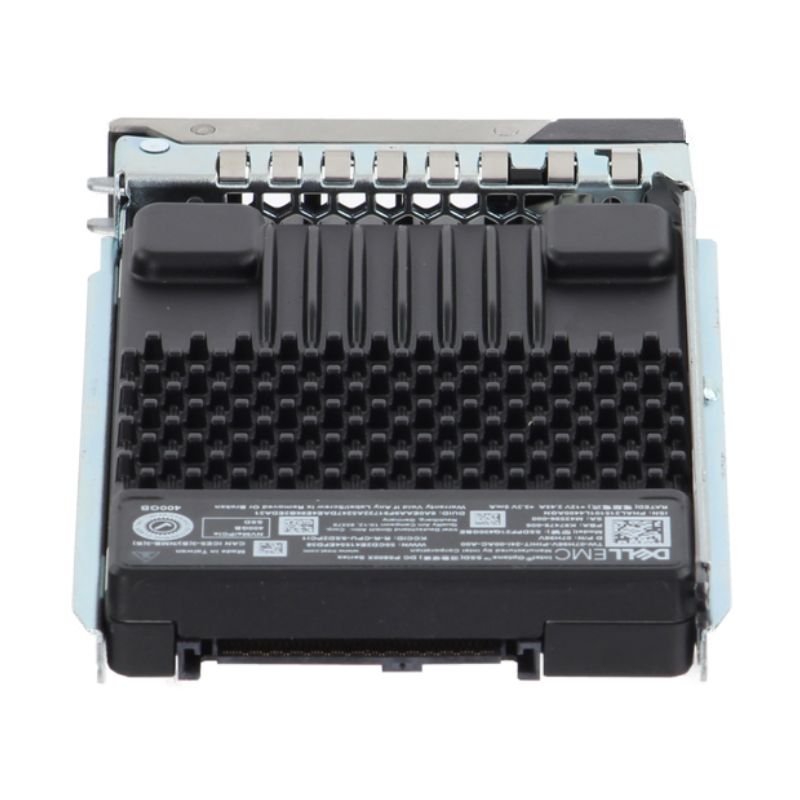

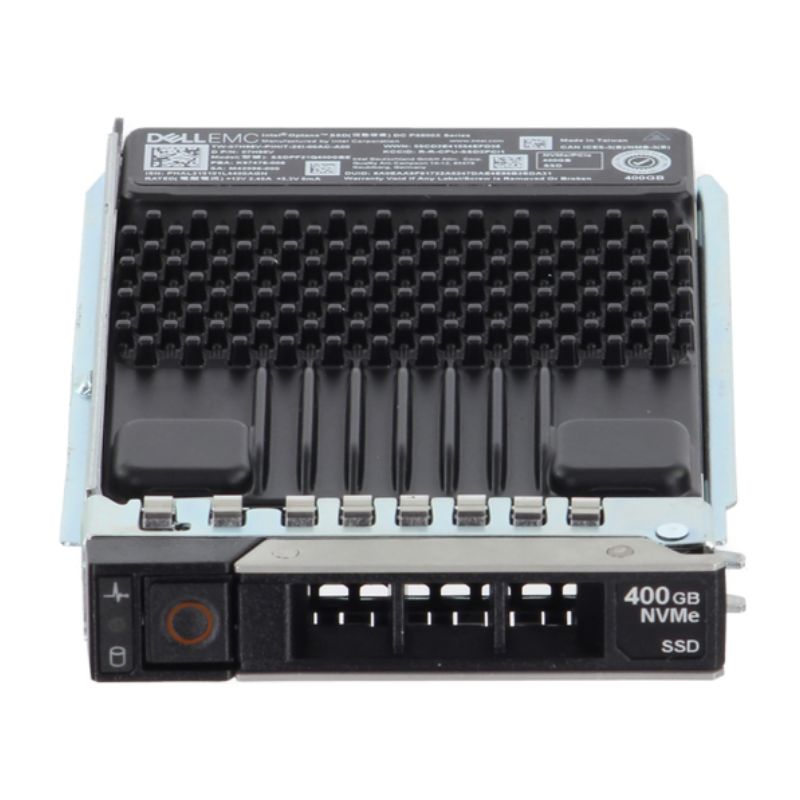

400-BMTU Dell NVMe U.2 SFF DC P5800X Series 400GB PCIe 4.0 X4 SSD

Dell 400-BMTU NVMe SFF P5800X Series SSD

The Dell 400-BMTU NVMe U.2 SFF DC P5800X Series represents a transformative advancement in enterprise solid-state storage technology. Built upon Intel's groundbreaking Optane memory medium, this 400GB PCIe 4.0 x4 SSD delivers unprecedented performance characteristics that redefine what's possible in data-intensive environments. Unlike conventional NAND-based SSDs that face inherent limitations in latency, endurance, and quality of service, the P5800X leverages 3D XPoint technology to bridge the gap between memory and storage, creating a new category of storage class memory that excels in the most demanding enterprise workloads.

PCIe 4.0 Interface and NVMe Protocol

The P5800X 400-BMTU fully leverages the PCIe 4.0 interface, delivering double the bandwidth of PCIe 3.0 with 16 GT/s per lane data rate. The x4 lane configuration provides up to 64 Gb/s of theoretical bandwidth, ensuring the drive never becomes the bottleneck in high-performance systems. Combined with the NVMe 1.4 protocol, which reduces command overhead and enables deep queue depths, this interface allows the P5800X to maximize the potential of the underlying Optane media. The drive supports multiple namespaces, enhanced power management states, and virtualization features critical for modern data center environments.

U.2 SFF-8639 Form Factor

The 2.5-inch U.2 form factor (SFF-8639) provides enterprise compatibility with existing server and storage infrastructure while supporting the full PCIe 4.0 x4 interface. This compact form factor enables high-density deployments in standard server bays and storage arrays, with hot-swap capability for maintenance without system downtime. The U.2 interface delivers both power and high-speed data connectivity through a single cable, simplifying system design and improving reliability compared to add-in card alternatives.

Consistent Low Latency Performance

Traditional NAND-based SSDs often exhibit variable performance, particularly as write workloads increase and the drive must perform background garbage collection. The P5800X eliminates this performance variability through its unique media architecture that allows in-place writes without the erase-before-write cycle required by NAND flash. This results in consistently low latency regardless of workload intensity or the drive's fill level, a critical characteristic for applications requiring predictable performance such as real-time transaction processing and virtualized environments with quality of service requirements.

Mixed Use SSD

Enterprise applications rarely operate at pure read or write extremes, instead presenting mixed I/O patterns that challenge storage subsystems. The P5800X excels in these realistic scenarios, maintaining high IOPS and low latency even with complex 70/30 or 50/50 read/write mixtures. This balanced performance profile makes it particularly valuable for database applications, virtualization hosts, and consolidated workloads where storage must respond efficiently to diverse I/O patterns simultaneously.

Reliability

The Dell P5800X 400GB model offers an extraordinary endurance rating of 27.38 Petabytes Written (PBW), equivalent to approximately 100 drive writes per day (DWPD) over its 5-year warranty period. This represents a 6-10x improvement over enterprise-grade NAND SSDs of similar capacity and eliminates write endurance as a constraint in even the most write-intensive applications. This exceptional durability makes the P5800X suitable for write-heavy workloads such as write-ahead logging, journaling file systems, and temporary data processing where conventional SSDs would wear out prematurely.

Enterprise Use Cases and Applications

The P5800X 400-BMTU is ideally suited for the most demanding database workloads, including OLTP systems, in-memory databases with persistent storage requirements, and NoSQL databases with high update frequencies. Its consistent low latency significantly reduces transaction commit times, while its high random IOPS capability enables support for more concurrent users and transactions. Database applications typically experience performance improvements of 2-4x compared to high-end NAND SSDs, with the greatest benefits seen in write-intensive operations such as index maintenance, checkpoint operations, and transaction log writes.

Financial Services and Low-Latency Trading

In financial services, particularly algorithmic trading and risk analysis systems, microsecond differences in storage latency can translate to significant competitive advantages. The P5800X's consistent sub-20 microsecond write latency makes it ideal for market data capture, order execution logging, and risk calculation engines where storage performance directly impacts system responsiveness and throughput. The drive's endurance characteristics also ensure reliable operation through high-volume trading sessions without performance degradation.

Virtualization and Container Environments

Virtualized infrastructure often generates random I/O patterns as multiple virtual machines access storage concurrently. The P5800X handles these mixed workloads efficiently, reducing I/O wait times and enabling higher virtual machine density per host. For containerized environments with persistent storage requirements, the drive provides the low-latency access needed for stateful applications while handling the logging and monitoring data generated by orchestration platforms.

Capacity and Performance Specifications

The Dell 400-BMTU P5800X is available in a 400GB capacity, with other capacities in the series including 800GB and 1.6TB models. Performance varies slightly by capacity due to parallelism advantages in larger models, but the 400GB version maintains the essential performance characteristics that define the series. All capacities share the same PCIe 4.0 x4 interface, U.2 form factor, and fundamental architecture, allowing organizations to select the appropriate capacity for their performance and budget requirements.

Physical and Environmental Specifications

The drive measures 100.2mm x 69.85mm x 7mm (consistent with 2.5-inch U.2 specifications) and weighs approximately 130 grams. Operating temperature range is 0°C to 70°C, with a maximum non-operating storage temperature of -40°C to 85°C. The drive operates at altitudes up to 3,000 meters and can withstand vibration levels of 2.17 Grms (5-700 Hz) and operational shock of 1,000 G/0.5ms, meeting or exceeding enterprise storage requirements for ruggedness and environmental tolerance.s.

Dell Enterprise Management Capabilities

The P5800X 400-BMTU seamlessly integrates with Dell's systems management portfolio, including iDRAC for PowerEdge servers and Open Manage Enterprise for centralized management. This integration provides comprehensive health monitoring, predictive failure analysis, and firmware update capabilities through familiar management interfaces. Administrators can monitor drive health, temperature, wear indicators, and performance metrics alongside other system components, simplifying operational oversight in heterogeneous environments.

NVMe Management Interface

As an NVMe-compliant device, the P5800X supports the full NVMe Management Interface specification, enabling standardized management through host-based tools and scripts. This includes SMART attribute monitoring, firmware update capabilities, namespace management, and sanitization operations. The drive provides extensive telemetry data that can be leveraged by monitoring systems to predict maintenance needs and optimize performance through workload analysis.

Enterprise NAND SSDs

When compared to high-end enterprise NAND SSDs using TLC or QLC NAND flash, the P5800X demonstrates superior performance in virtually every metric, particularly in latency-sensitive and write-intensive scenarios. The performance advantage is most pronounced at low queue depths where application I/O typically occurs, with the P5800X delivering 2-3x higher IOPS and significantly lower latency than even the fastest NAND-based competitors. This performance comes at a premium price point, positioning the P5800X for workloads where storage performance directly impacts business outcomes or operational efficiency.

Part Number and Identification

The Dell 400-BMTU part number specifically identifies the 400GB capacity model of the P5800X series in the U.2 form factor. This part number ensures compatibility with Dell systems and access to Dell firmware updates and support services. Organizations should verify this part number when procuring drives to ensure they receive the genuine Dell-qualified product with full warranty coverage, rather than generic or third-party alternatives that may lack proper qualification or support.

Future Roadmap and Technology

As the storage industry continues to evolve, technologies like CXL (Compute Express Link) may eventually complement or supplant current storage interfaces for memory-like storage devices. The P5800X represents the current pinnacle of NVMe-based storage class memory, providing a migration path for organizations preparing for future memory-centric architectures. Its exceptional performance characteristics make it well-positioned to handle emerging workloads in AI, real-time analytics, and other data-intensive applications that will define the next generation of enterprise computing.

Compatibility

The P5800X 400-BMTU requires a system with PCIe 4.0 support to achieve maximum performance, though it maintains backward compatibility with PCIe 3.0 systems at reduced bandwidth. Compatible operating systems include Windows Server 2016/2019/2022, RHEL, SUSE Linux Enterprise Server, VMware ESXi, and other enterprise Linux distributions with NVMe driver support. The drive is qualified for use in Dell PowerEdge servers and Dell storage solutions, with firmware and management tools integrated into Dell's systems management ecosystem.
