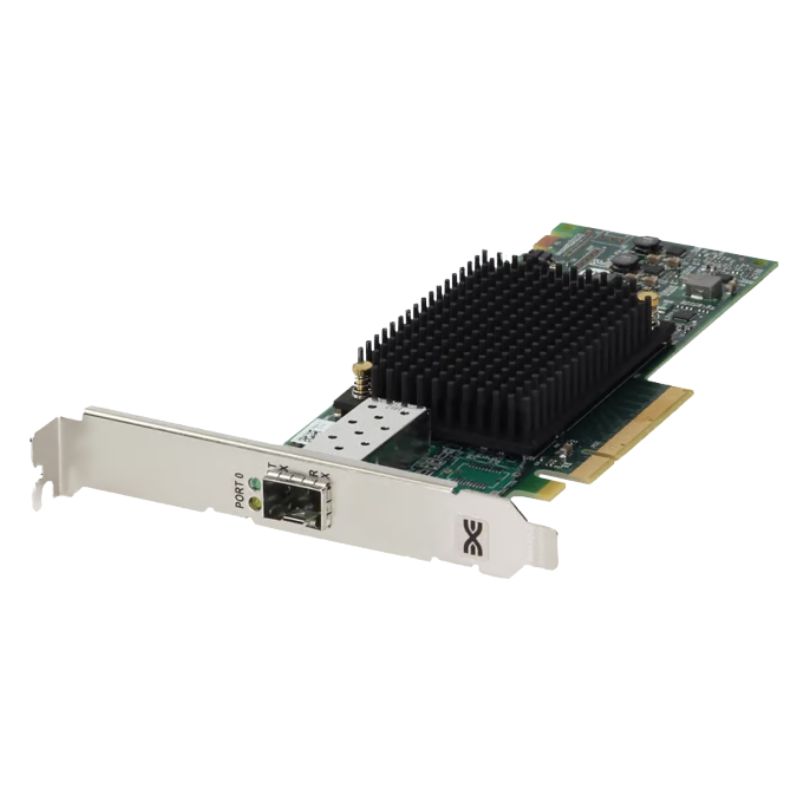

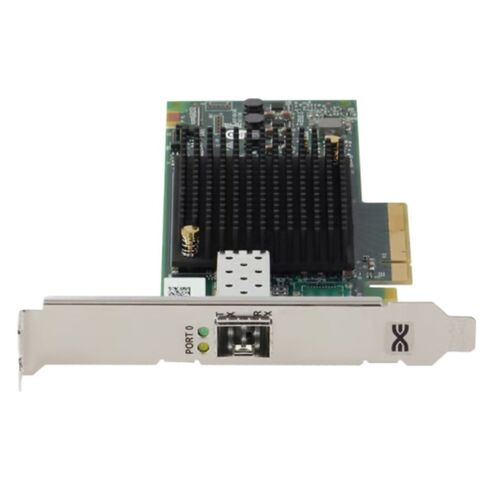

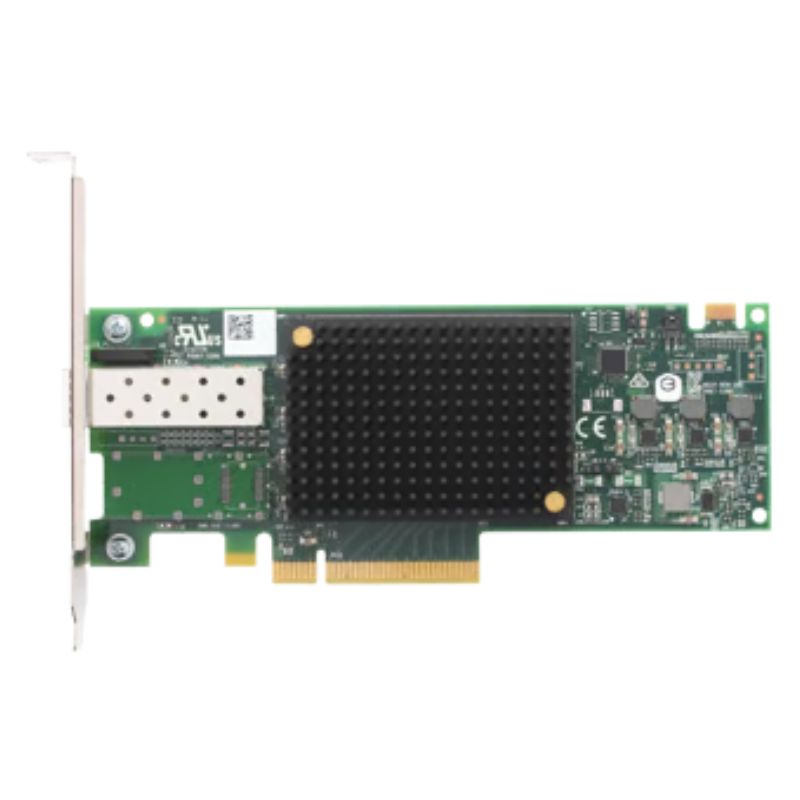

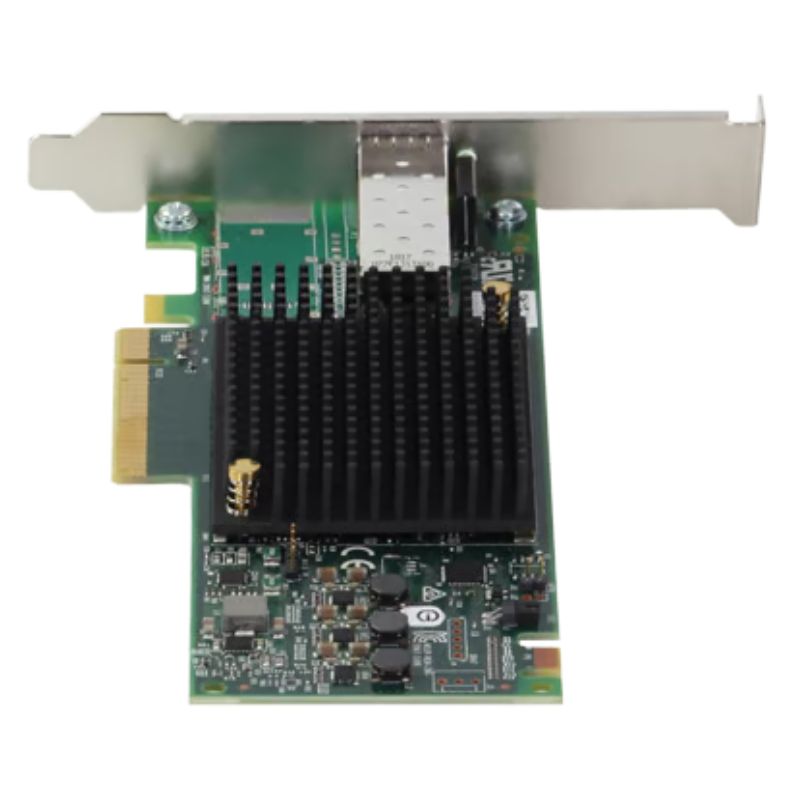

406-BBQJ Dell Emulex Single Port PCI-E 4.0 32G/64G Fibre Channel HBA.

Dell 406-BBQJ Emulex PCI-E 4.0 Fibre Channel Adapter

The Dell 406-BBQJ Emulex Single Port PCI-E 4.0 32G/64G Fibre Channel Host Bus Adapter is a high-performance connectivity solution designed for enterprise-class storage networks. It ensures low latency, reliable performance, and advanced scalability for data-intensive workloads.

Main Product Highlights

• Manufacturer: Dell
• Part Number / SKU: 406-BBQJ
• Category: Fibre Channel Adapter
• Sub-Type: Host Bus Adapter (HBA)
• Generation: Gen 7, supporting 64GFC/32GFC
• Ports: Single-port design
• Connector Type: LC type optics

Technical Specifications

Performance and Speed

• Data rates include 28.05 Gb/s, 14.025 Gb/s, and 8.5 Gb/s with auto-detection.
• Supports Gen 7 technology, enabling 64GFC and 32GFC transmission.
• Designed for seamless data throughput with PCIe Gen4 x8 host bus interface.

Cable and Distance Compatibility

• OM4 MMF: 0.5m to 100m at 64GFC/32GFC
• OM5 MMF: 0.5m to 100m at 64GFC/32GFC
• OM3 MMF: up to 70m at 64GFC/32GFC
• Single-mode fiber: up to 10 km at 32GFC/16GFC with approved longwave optics

Hardware Environment Support

• Compatible with Intel x64, Intel x86, and PowerPC platforms
• Optimized for demanding enterprise storage systems

Connectivity Features

Optics and I/O

• Short-wave laser optics with LC connector for high-speed links
• I/O controller: XE601 for reliable data handling

Environmental Conditions

• Operating temperature: 0°C to 55°C
• Storage temperature: -20°C to 85°C (-4°F to 185°F)
• Humidity range: 5% to 95% non-condensing

Software and OS Compatibility

• Microsoft Windows
• Oracle Linux and Oracle Linux with UEK
• Oracle Solaris
• Red Hat Enterprise Linux
• SUSE Linux Enterprise Server
• VMware vSphere
• Additional OEM and partner-supported operating systems

Dell 406-BBQJ Emulex Single Port FC Host Bus Adapter

The Dell 406-BBQJ Emulex Single Port PCI-E 4.0 32G/64G Fibre Channel Host Bus Adapter represents a high-performance interconnect designed for modern data centers that demand consistent low latency, high throughput, and enterprise-grade reliability. As organizations consolidate workloads onto flash-accelerated storage arrays and deploy virtualized, containerized, and cloud-connected architectures, the network path between servers and storage becomes a decisive factor in application performance. This category highlights the capabilities, use cases, technical underpinnings, and deployment best practices for the Dell 406-BBQJ adapter, helping infrastructure teams, solution architects, and procurement specialists understand why a PCI Express 4.0, 32G/64G Fibre Channel HBA is an essential foundation for mission-critical SAN environments.

Within this category, readers will discover how the Emulex architecture used in the Dell 406-BBQJ unites advanced ASIC design, lossless link management, and hardware offloads to sustain predictable performance under demanding conditions such as mixed read-write workloads, large-scale virtual machine densities, and intensive database transaction profiles. The narrative emphasizes the relationship between the PCIe 4.0 host interface and the 32G/64G Fibre Channel link layer, explaining how each hop is optimized to unlock the full potential of all-flash arrays, NVMe-over-Fibre Channel capabilities, and multipath I/O frameworks commonly deployed with enterprise operating systems and hypervisors.

Positioning the 32G/64G Fibre Channel HBA in Modern SAN Architectures

The transition from legacy 8G and 16G Fibre Channel to 32G and 64G has been driven by the widespread adoption of solid-state storage and the need for deterministic latency across shared fabrics. The Dell 406-BBQJ Emulex Single Port PCI-E 4.0 32G/64G Fibre Channel Host Bus Adapter delivers the bandwidth headroom and protocol efficiencies necessary to ensure that flash arrays are not constrained by the server interconnect. With PCIe 4.0 delivering twice the per-lane throughput of PCIe 3.0, server I/O stacks can fully utilize the line rates of 32G and scale toward 64G where supported, thereby preventing adapter-side congestion and maximizing the benefit of multi-queue I/O submission and completion on multicore CPUs.

Fibre Channel remains the preferred choice for many enterprises because of its isolated, deterministic, and lossless characteristics. It is purpose-built for storage traffic, separate from Ethernet-based data and management networks, and benefits from decades of incremental enhancements to link reliability, flow control, and fabric services. The Dell 406-BBQJ leverages these strengths while providing forward compatibility pathways to NVMe-over-Fibre Channel, enabling organizations to migrate to NVMe namespaces seamlessly without re-architecting the entire transport. This balanced approach protects capital investments in existing SAN switches and cabling while opening the door to next-generation storage performance.

Core Technical Attributes of the Dell 406-BBQJ Emulex Adapter

At the heart of the Dell 406-BBQJ Emulex Single Port PCI-E 4.0 32G/64G Fibre Channel HBA is an advanced controller designed to maintain wire-speed throughput with minimal CPU overhead. The controller implements deep command queues, intelligent interrupt moderation, and adaptive buffering to match the I/O patterns generated by virtualized hosts and latency-sensitive applications. It also supports robust error detection and recovery mechanisms such as link error diagnostics, credit management, and end-to-end CRC verification, all of which contribute to the stability demanded by enterprise workloads.

The 406-BBQJ takes advantage of hardware offloads that accelerate common storage operations. These include support for T10 Protection Information to safeguard data integrity as payloads traverse from application buffers to storage media, and features that streamline SCSI and NVMe command handling over Fibre Channel. By performing these operations in silicon rather than software, the adapter reduces host CPU utilization, allowing compute resources to remain focused on application logic and database processing rather than on the mechanics of storage transport.

PCIe 4.0 Server-Side Interface and System Integration

The PCIe 4.0 host interface is fundamental to the adapter’s performance profile. By doubling the per-lane bandwidth relative to PCIe 3.0, the adapter ensures the server bus is not a bottleneck when pushing traffic at or near 32G line rates and when scaling toward 64G capability. In practical deployment terms, this means that heavily threaded database engines, big-memory analytics nodes, and dense virtualization hosts can drive more I/O per second while keeping latency steady and predictable. The adapter’s firmware is optimized for multi-core CPU topologies and NUMA architectures, exposing multiple queues and interrupt vectors that can be affinitized to specific cores to reduce cross-socket traffic and cache thrashing.

Administrators benefit from driver packages that align with mainstream enterprise operating systems and hypervisors, ensuring straightforward integration with multipath frameworks, device mapper constructs, and volume managers. The result is a streamlined path from installation to provisioning, with consistent behavior across bare-metal Linux distributions, Windows Server environments, and hypervisor platforms commonly used in large data centers.

32G/64G Fibre Channel Link Performance and Determinism

On the wire, the 32G/64G Fibre Channel link brings the adapter into harmony with modern director-class and fixed-port SAN switches. Credit-based flow control and the reliable, lossless nature of Fibre Channel mean that high-priority storage traffic is not contending with bursty data workloads on shared Ethernet fabrics. The adapter’s ability to maintain link utilization under sustained load, coupled with automatic link negotiation, ensures that mixed environments comprising 16G, 32G, and emerging 64G elements interoperate seamlessly while still delivering tangible performance gains to upgraded segments of the fabric.

Importantly, the deterministic behavior of Fibre Channel translates to consistent application experience. Database checkpoint spikes, backup windows, and boot storms in virtual desktop infrastructures can be absorbed without unpredictable jitter, because the fabric and the adapter cooperate to keep queues balanced and to prevent head-of-line blocking. This predictability is central to meeting service-level objectives for transaction latency and throughput.

Workload Scenarios and Application Fit

Enterprises adopt the Dell 406-BBQJ Emulex Single Port PCI-E 4.0 32G/64G Fibre Channel HBA to elevate a wide spectrum of workloads. In online transaction processing and high-frequency trading platforms, every microsecond matters. The adapter’s low-latency design and efficient interrupt handling allow application threads to issue I/O and receive acknowledgments with minimal delay, which directly supports shorter transaction commit times and tighter consistency windows. In analytics clusters and data warehousing, where large block sequential reads dominate, the adapter’s ability to sustain line-rate transfers ensures that data pipelines feed CPU and memory without stalls. For virtualization, the adapter helps maintain steady performance even when many virtual machines or containers share the same host, because multi-queue support and virtualization-aware driver features preserve parallelism across vCPUs.

Backup and recovery operations also benefit. With higher link speeds, backup windows can be compressed, reducing the impact on production workloads and enabling more frequent restore points. The hardware offloads that protect data integrity work in concert with backup software that expects strict adherence to data protection standards, which in turn strengthens the reliability of long-term retention strategies. Even edge use cases, such as remote data center extensions and metro-cluster replication, see advantages from the adapter’s consistent throughput and fabric-wide flow control.

All-Flash and NVMe-oF-Ready Deployments

The growing prevalence of all-flash arrays highlights the importance of an HBA that can keep pace. The Dell 406-BBQJ excels by bridging the PCIe 4.0 host and the 32G/64G fabric with minimal added latency. When deployed with arrays that support NVMe over Fibre Channel, the adapter helps unlock lower command overhead and improved parallelism compared to legacy SCSI, improving small-block random read and write performance in IO-intensive applications. This positions the adapter as a long-term asset for organizations planning to transition to NVMe namespaces while maintaining operational continuity with existing Fibre Channel switches and zoning practices.

For mixed arrays that still host a combination of SSD and HDD tiers, the adapter’s bandwidth headroom prevents write-back cache flushes and tiering operations from congesting links. The result is smoother performance across day-to-day operations and during maintenance windows, firmware upgrades, or background consistency checks running on the storage side.

Reliability, Availability, and Serviceability Aspects

Data center operators evaluate infrastructure components not only by their performance but also by their contribution to overall system availability. The Dell 406-BBQJ Emulex Single Port PCI-E 4.0 32G/64G Fibre Channel HBA features a design philosophy that emphasizes fault isolation, comprehensive diagnostics, and graceful recovery. Firmware exposes detailed counters and health indicators that allow administrators to pinpoint issues such as CRC discrepancies, credit starvation, or cable signal degradation before they escalate into outages. When combined with SAN switch telemetry and storage array analytics, the adapter’s visibility becomes a cornerstone of predictive operations.

Serviceability is enhanced by consistent driver packaging and lifecycle update workflows that fit into standard change management practices. Firmware updates can be coordinated with maintenance windows, and rollback mechanisms ensure rapid recovery if unexpected interactions occur with new switch code or storage microcode. This disciplined approach to RAS characteristics supports the stringent uptime commitments found in financial services, healthcare, and large e-commerce platforms.

Data Integrity and T10 PI Support

Data integrity is maintained through end-to-end verification based on the T10 Protection Information standard. By appending and validating metadata tags through the I/O path, the adapter and storage system can detect and prevent silent data corruption that might otherwise slip past software-only checks. In environments where regulatory compliance and forensic auditability are mandatory, this capability is not optional; it is a core requirement for maintaining trust in the data lifecycle from application to disk and back.

The adapter’s integrity features are implemented in hardware so that protection is not traded off against throughput. This is especially important when the storage array itself performs de-duplication, compression, or encryption, as the adapter’s integrity checks coexist without measurable performance penalties, ensuring that data services do not compromise latency objectives.
