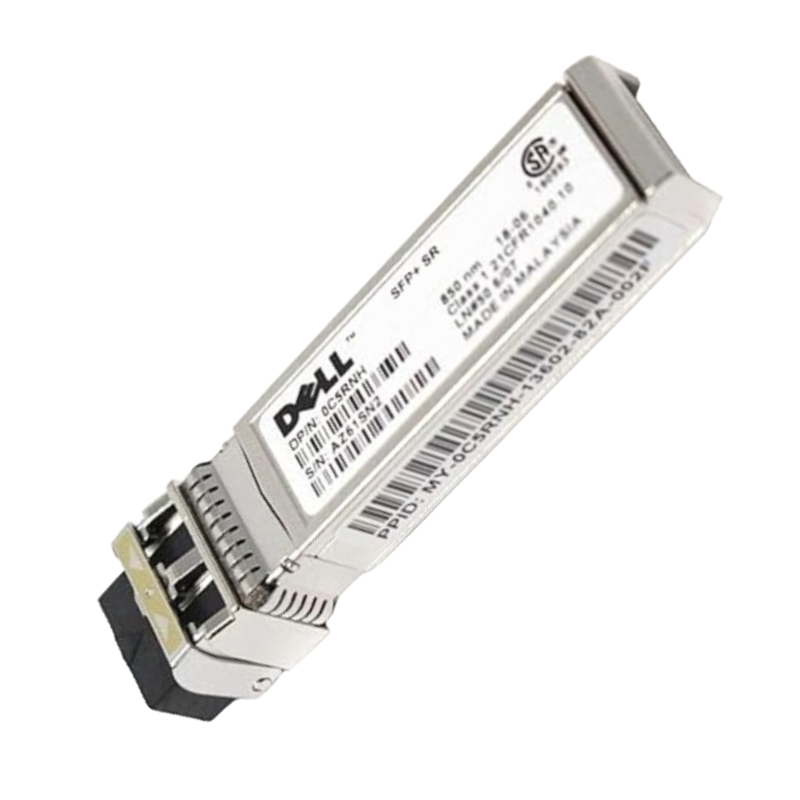

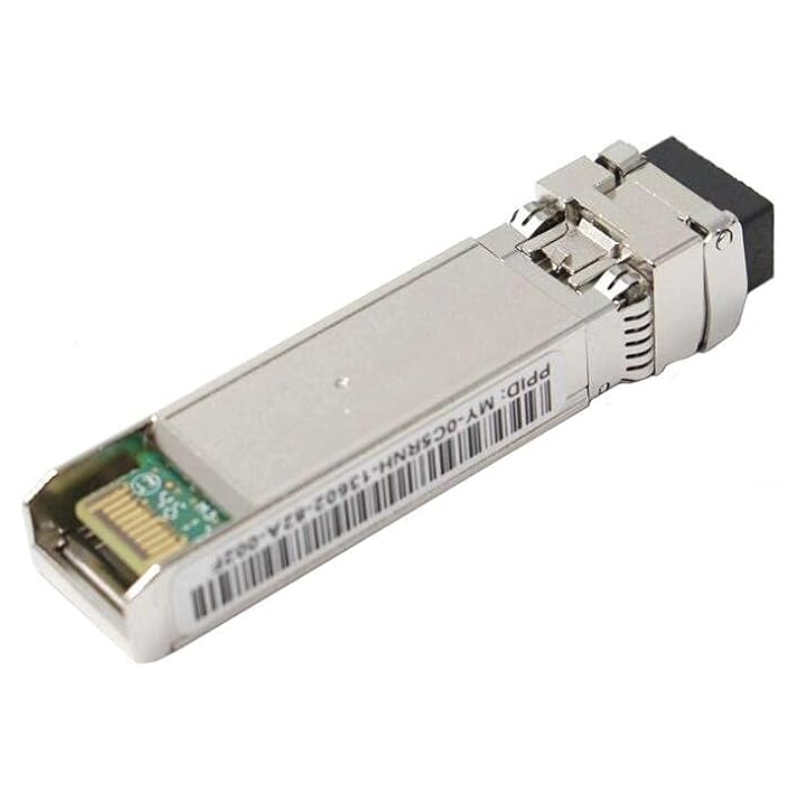

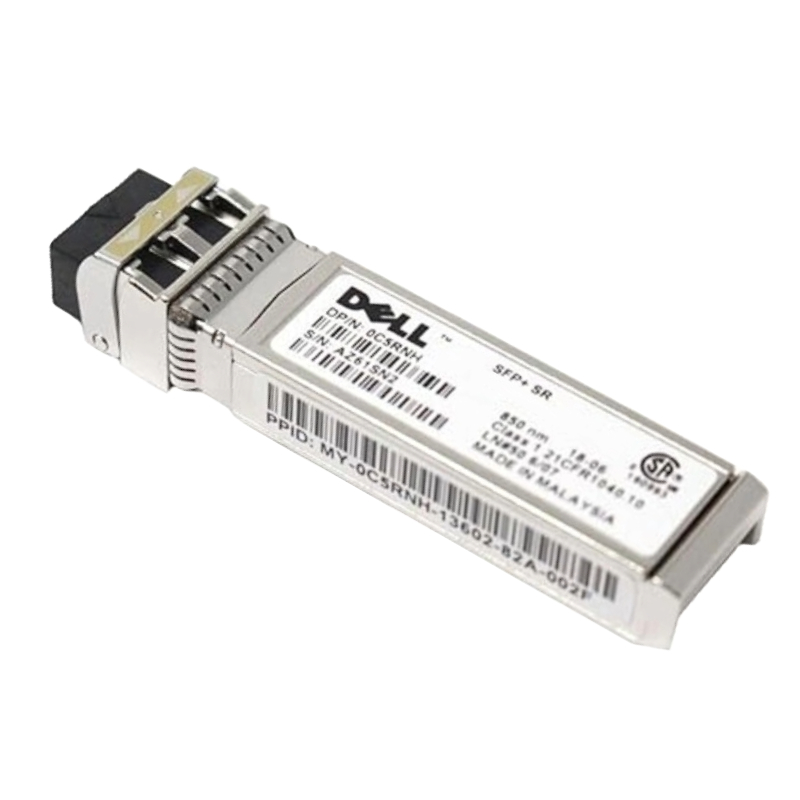

407-BBCN Dell SFP+ Transceiver Module 1000BASE-SX 10GBASE-SR Gigabit Ethernet

Overview of Dell 10GBASE-SR Transceiver Module

The Dell 407-BBCN 1000BASE-SX / 10GBASE-SR SFP+ Transceiver Module is engineered to deliver reliable, high-speed optical data transmission for modern networking environments. Designed for scalability and efficiency, this plug-in module enhances fiber optic communication performance in data centers, enterprise infrastructures, and high-demand IT ecosystems.

General Information

• Manufacturer: Dell
• Part Number: 407-BBCN
• Device Type: SFP+ Transceiver Module

Core Technical Specifications

• Data transfer speed: up to 10 Gbps
• Supports Gigabit Ethernet (1G) and 10 Gigabit Ethernet (10G)
• Stable short-range fiber optic transmission
• Interface Type: SFP+ (Enhanced Small Form-Factor Pluggable)

Optimized Design for Seamless Integration

• Compact plug-in SFP+ form factor for flexible deployment
• Hot-swappable design for uninterrupted network maintenance
• Compatible with enterprise-grade switching systems
• Engineered for fiber optic high-speed communication

SFP+ Interface Architecture

• Designed for fiber optic uplinks and high-speed switching
• Supports flexible network expansion and upgrades

Reliability and Efficiency in Network Operations

• Enhanced signal integrity for reduced transmission loss
• Reliable performance in enterprise network environments
• Optimized for continuous 24/7 operation
• Energy-efficient design for reduced power consumption

Application Areas and Use Cases

• Data center interconnectivity and server networking
• Enterprise backbone and core switching systems
• Cloud infrastructure and virtualization platforms
• High-bandwidth storage area networks (SAN)

Durability and Long-Term Stability

• Industrial-grade build quality for extended lifespan
• Stable optical signal transmission over fiber channels
• Reduced maintenance requirements

Outline of Dell 407-BBCN 10GBASE-SR SFP+ Transceiver Module

The Dell 407-BBCN 1000BASE-SX 10GBASE-SR SFP+ Transceiver represents a high-performance optical networking component designed to deliver reliable, scalable, and efficient data transmission in modern enterprise and data center environments. This transceiver module belongs to the Small Form-Factor Pluggable Plus (SFP+) family, which is widely recognized for its compact size, hot-swappable capability, and high-speed networking support. Built to meet stringent networking requirements, this module supports both 1 Gigabit Ethernet (1000BASE-SX) and 10 Gigabit Ethernet (10GBASE-SR) standards, making it a versatile solution for hybrid network infrastructures where scalability and backward compatibility are essential.

In contemporary networking architecture, the demand for higher bandwidth, lower latency, and energy-efficient connectivity has driven the adoption of optical fiber-based transceivers. The Dell 407-BBCN module is engineered to fulfill these requirements while maintaining seamless integration with compatible Dell networking equipment. Its dual-standard capability ensures that organizations can transition from legacy 1G systems to advanced 10G infrastructure without requiring a complete overhaul of existing optical networks.

Advanced Architecture of SFP+ Optical Transceiver Modules

SFP+ transceivers such as the Dell 407-BBCN are designed with a modular architecture that allows them to be inserted into network switches, routers, and other communication devices. The SFP+ form factor is an enhancement of the original SFP standard, optimized to support higher data rates of up to 10 Gbps. This advancement is achieved through improved electrical signaling, reduced power consumption, and enhanced thermal management capabilities.

The internal architecture of the module integrates a transmitter and receiver optical subassembly. The transmitter converts electrical signals into optical signals using a vertical-cavity surface-emitting laser (VCSEL), while the receiver performs the reverse operation using a photodiode. These components are precisely aligned to ensure minimal signal degradation, allowing for stable and high-speed communication over multimode fiber cables.

Understanding 10GBASE-SR and 1000BASE-SX Standards

The Dell 407-BBCN transceiver supports both 10GBASE-SR and 1000BASE-SX standards, making it a dual-purpose solution for network environments requiring flexibility. The 10GBASE-SR standard is designed for short-range 10 Gigabit Ethernet connections over multimode fiber, typically operating at an 850nm wavelength. It is widely used in data centers for high-speed server-to-switch and switch-to-switch connectivity.

On the other hand, 1000BASE-SX is a Gigabit Ethernet standard that also operates over multimode fiber using the same 850nm wavelength. This backward compatibility allows the transceiver to function efficiently in environments where both 1G and 10G infrastructure coexist. The ability to support both standards significantly enhances operational flexibility and reduces hardware replacement costs.

Multimode Fiber Compatibility and Cabling Considerations

The Dell 407-BBCN SFP+ transceiver is optimized for multimode fiber (MMF) cabling, including OM2, OM3, and OM4 fiber types. These fiber categories differ in their bandwidth capacity and maximum transmission distance. OM3 and OM4 fibers are laser-optimized and provide significantly higher performance, making them ideal for 10GBASE-SR applications.

In enterprise environments, selecting the appropriate fiber type is crucial for achieving optimal performance. OM3 fiber can typically support 10Gbps transmission over distances up to 300 meters, while OM4 fiber can extend this range up to 400 meters under ideal conditions. OM2 fiber, although still used in legacy systems, offers reduced distance capabilities and is more suitable for 1Gbps transmission scenarios.

Performance Characteristics of Dell 407-BBCN Transceiver

Performance is a defining factor in optical transceivers, and the Dell 407-BBCN module is engineered to deliver consistent high-speed data transmission with minimal latency. The module supports data rates of 1.25 Gbps for Gigabit Ethernet and 10.3125 Gbps for 10 Gigabit Ethernet, ensuring compatibility across different network generations.

One of the most critical aspects of its performance is signal integrity. The transceiver employs advanced signal processing techniques to reduce noise, minimize bit error rates, and maintain stable communication even under heavy network loads. This makes it highly suitable for mission-critical applications such as cloud computing, virtualization, and real-time data analytics.

Wavelength Optimization and Optical Efficiency

The Dell 407-BBCN operates at an 850nm wavelength, which is standard for short-range multimode fiber communication. This wavelength is chosen because it provides an optimal balance between cost efficiency and performance. VCSEL technology used in the transmitter ensures high modulation efficiency and low power consumption, contributing to overall network energy savings.

The receiver component is engineered to detect subtle variations in optical signals, converting them into electrical signals with high precision. This ensures that data integrity is maintained even over longer cable distances within the supported range. The combination of wavelength optimization and advanced optical components makes this transceiver highly reliable in dense networking environments.

Enterprise Networking Applications of Dell 407-BBCN

The Dell 407-BBCN SFP+ transceiver is widely used in enterprise networking environments where scalability, reliability, and performance are essential. It supports a variety of applications, including core network switching, server interconnects, storage area networks, and virtualization infrastructure.

In enterprise data centers, the module is often deployed to connect top-of-rack (ToR) switches to aggregation or core switches. This ensures high-speed data flow between servers and central processing systems. The dual compatibility with 1G and 10G networks allows organizations to gradually upgrade their infrastructure without disrupting existing services.

Cloud Computing and Virtualization Environments

Cloud computing platforms rely heavily on high-speed interconnectivity between virtual machines, storage systems, and application servers. The Dell 407-BBCN transceiver plays a crucial role in enabling these high-bandwidth connections. Its low latency and high throughput capabilities ensure that virtualized environments operate efficiently, even under heavy workloads.

Virtualization technologies such as hypervisors require consistent and reliable network performance. The transceiver's ability to maintain stable optical communication ensures that virtual machines can migrate seamlessly across servers without performance degradation or downtime.

Storage Area Networks and High-Speed Data Transfer

Storage Area Networks (SANs) require extremely fast and reliable data transfer capabilities. The Dell 407-BBCN module supports these requirements by providing high-speed connectivity between storage arrays and servers. This ensures rapid data access, backup operations, and disaster recovery processes.

In environments where large-scale databases are used, the efficiency of data transfer directly impacts application performance. The transceiver's high bandwidth capacity ensures that large datasets can be moved quickly and securely across the network.

Data Center Deployment and Scalability

Modern data centers are designed for scalability, redundancy, and efficiency. The Dell 407-BBCN SFP+ transceiver fits seamlessly into these environments due to its modular design and hot-swappable functionality. Network administrators can install or replace modules without shutting down systems, ensuring continuous uptime.

Scalability is achieved through the ability to deploy multiple transceivers across different network layers. As data demands increase, additional modules can be integrated into existing infrastructure without requiring major hardware changes. This flexibility makes the transceiver an ideal choice for growing organizations.

High-Density Networking Architecture

In high-density networking environments, space optimization is critical. The compact SFP+ form factor allows for multiple ports to be installed within a single switch chassis. This enables efficient use of physical space while maximizing port availability.

The Dell 407-BBCN module supports dense deployments without compromising thermal performance. Efficient heat dissipation mechanisms ensure stable operation even when multiple transceivers are active simultaneously within confined spaces.

Reliability, Energy Efficiency, and Operational Stability

Reliability is a core design principle of the Dell 407-BBCN transceiver. The module is engineered to operate consistently under varying environmental conditions, including temperature fluctuations and high network loads. Its robust design ensures long-term operational stability.

Energy efficiency is another important characteristic, as the module consumes minimal power while delivering high-speed performance. This contributes to reduced operational costs in large-scale data centers where hundreds or thousands of transceivers may be deployed simultaneously.

Networking Standards Compliance and Industry Integration

The Dell 407-BBCN SFP+ transceiver complies with established IEEE networking standards for both Gigabit and 10 Gigabit Ethernet communication. This ensures interoperability with a wide range of networking equipment beyond Dell’s ecosystem, provided compatibility requirements are met.

Standards compliance guarantees that the module adheres to industry-defined performance, safety, and interoperability benchmarks. This makes it a dependable choice for organizations that require consistent and standardized network infrastructure components.

Integration into Hybrid Network Environments

Hybrid networks that combine legacy systems with modern high-speed infrastructure benefit significantly from the dual-standard capability of this transceiver. The ability to operate in both 1G and 10G environments allows seamless integration without requiring immediate full-scale upgrades.

This flexibility is particularly valuable in large enterprises where gradual infrastructure modernization is preferred over complete system replacement.

Future Scalability and Network Evolution

As networking technology continues to evolve, transceivers like the Dell 407-BBCN play a vital role in bridging the gap between existing infrastructure and next-generation systems. Its dual compatibility ensures that it remains relevant in both current and future network deployments.

Future scalability is achieved through its ability to integrate into expanding network architectures without requiring significant hardware changes. This makes it a cost-effective solution for long-term network planning and development.

Role in Next-Generation Data Infrastructure

Next-generation data infrastructures demand higher bandwidth, lower latency, and greater energy efficiency. The Dell 407-BBCN transceiver is well-positioned to support these requirements through its advanced optical technology and flexible compatibility.

As organizations continue to adopt cloud computing, edge computing, and AI-driven workloads, the importance of reliable high-speed interconnects will continue to grow, making this transceiver a key component in modern networking ecosystems.
