4F5GF Dell 15.36TB SAS 12GBPS Read Intensive TLC SFF Internal SSD

Core Specifications and Form Factor

At its core, the 4F5GF is defined by a strategic balance of immense capacity, robust interface speed, and tailored endurance. The 2.5-inch hot-plug U.2 (SFF-8639) form factor is the industry standard for enterprise servers and storage arrays, enabling high-density deployments. This physical specification ensures the drive can be efficiently installed and serviced in the dedicated drive bays of PowerEdge servers without downtime.

Capacity and NAND Flash Technology

15.36 Terabytes Usable Storage

This drive offers a massive 15.36 terabytes (TB) of formatted capacity. This specific capacity point is crucial for maximizing storage density within the finite drive bays of a server, allowing organizations to consolidate data and reduce physical footprint. It is ideally suited for large-scale repositories, data lakes, and archival systems where space efficiency is paramount.

TLC (Triple-Level Cell) NAND Architecture

The drive leverages 3D TLC NAND flash memory. In the enterprise context, TLC offers an optimal balance between cost per gigabyte, density, and endurance, especially for read-intensive applications. Advanced wear-leveling, over-provisioning, and error correction technologies mitigate the inherent endurance limitations of TLC, making it highly reliable for its designated workload profile.

Interface and Performance

SAS-12Gbps (Serial Attached SCSI)

The SAS-12Gbps interface is a critical differentiator. Offering a full duplex 12 gigabits per second (Gbps) link, it provides significantly higher sequential bandwidth compared to SATA. Its dual-port capability, inherent to the SAS protocol, is essential for high-availability configurations and multi-path I/O (MPIO), ensuring there is no single point of failure for the storage path. This makes the drive suitable for RAID configurations and critical applications.

Read-Intensive Performance Profile

Classified as a Read-Intensive (RI) drive, the 4F5GF is engineered for workloads where read operations constitute the vast majority (typically 70-90%) of I/O activity. This includes database querying, web content delivery, virtual desktop infrastructure (VDI) boot volumes, and data analytics. While write performance is robust, the drive's internal architecture, including cache algorithms and garbage collection, prioritizes sustaining high read throughput and low latency.

Dell Certified for PowerEdge 14G Servers

This is not a generic SAS SSD. The "Dell Certified" designation is paramount. It signifies that the drive's firmware, physical dimensions, thermal characteristics, and management protocols have been rigorously validated by Dell Engineering for use in specific PowerEdge 14th Generation (14G) servers. This certification prevents potential incompatibility issues, ensures the drive is recognized correctly by iDRAC (Integrated Dell Remote Access Controller), and allows for seamless firmware updates via Dell repositories. Using a Dell Certified drive preserves the server's overall support and warranty status.

Mean Time Between Failure (MTBF) and Error Rates

Like all enterprise SSDs, the 4F5GF is built to superior reliability standards. It typically features an MTBF rating in the range of 2 million hours and an extremely low unrecoverable read error rate (URE), often 1 in 10^17 bits read. These specifications translate to years of continuous, error-resistant operation in a properly cooled server environment.

Integration with Dell PowerEdge 14G Server Ecosystem

The value of the 4F5GF is fully realized within the Dell PowerEdge 14G architecture. These servers, such as the R740xd, R740, R940xa, and MX740c modular infrastructure, are designed with advanced storage controllers and management tools that unlock the drive's potential.

Hot-Plug Capability

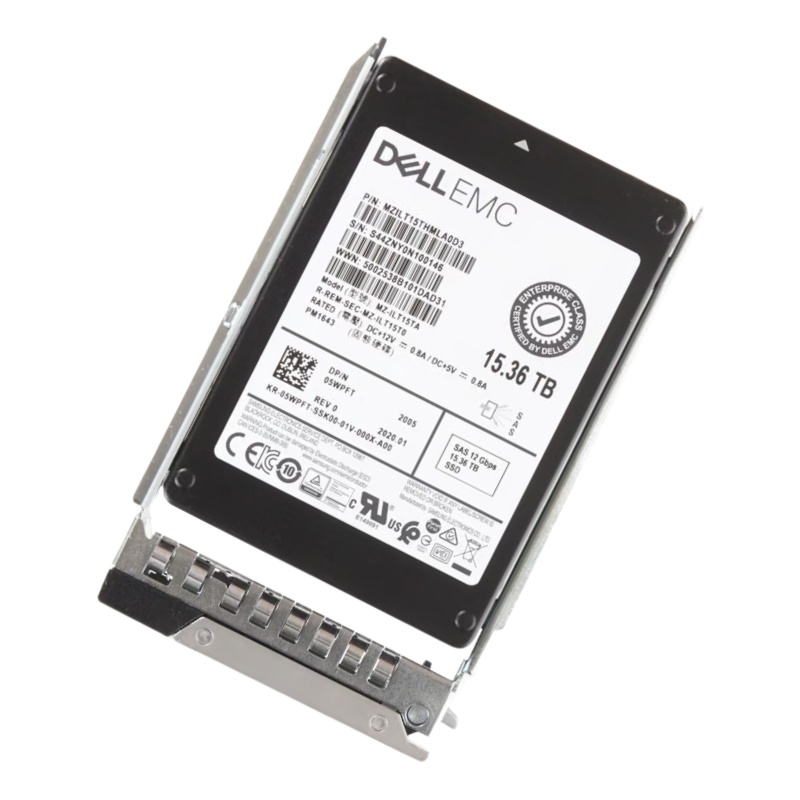

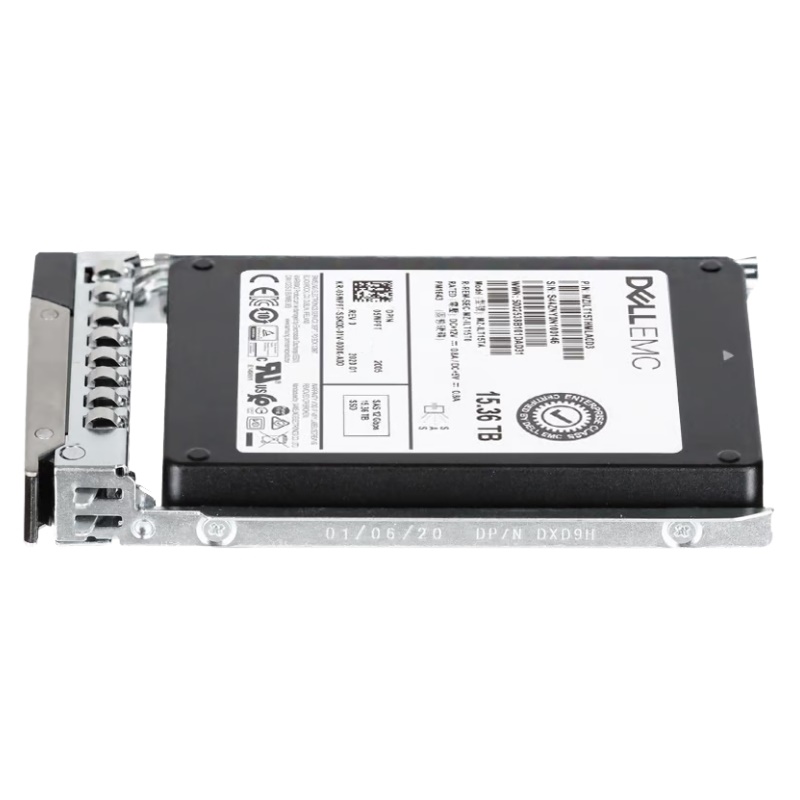

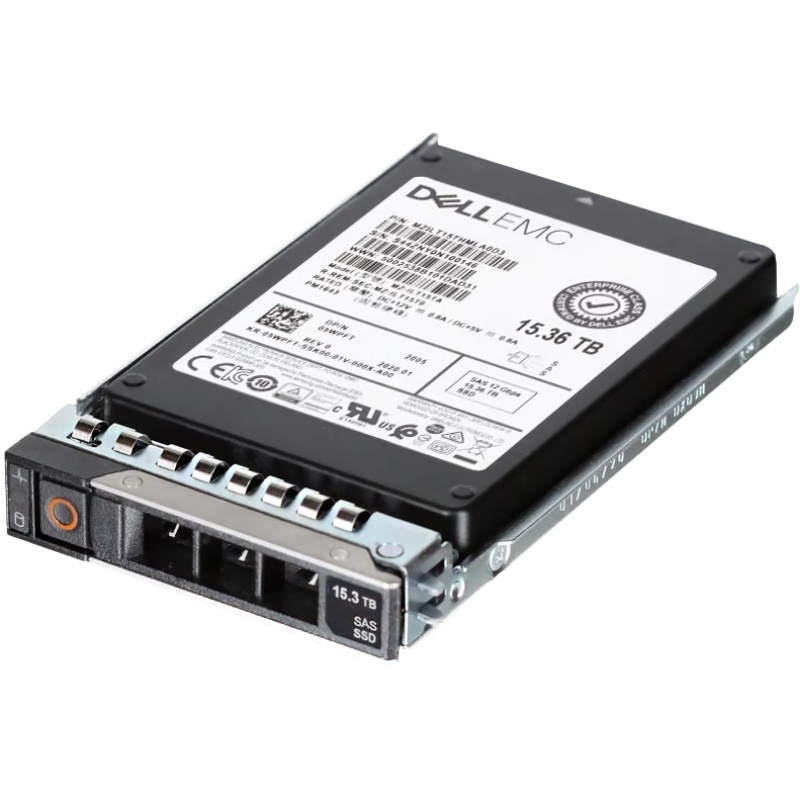

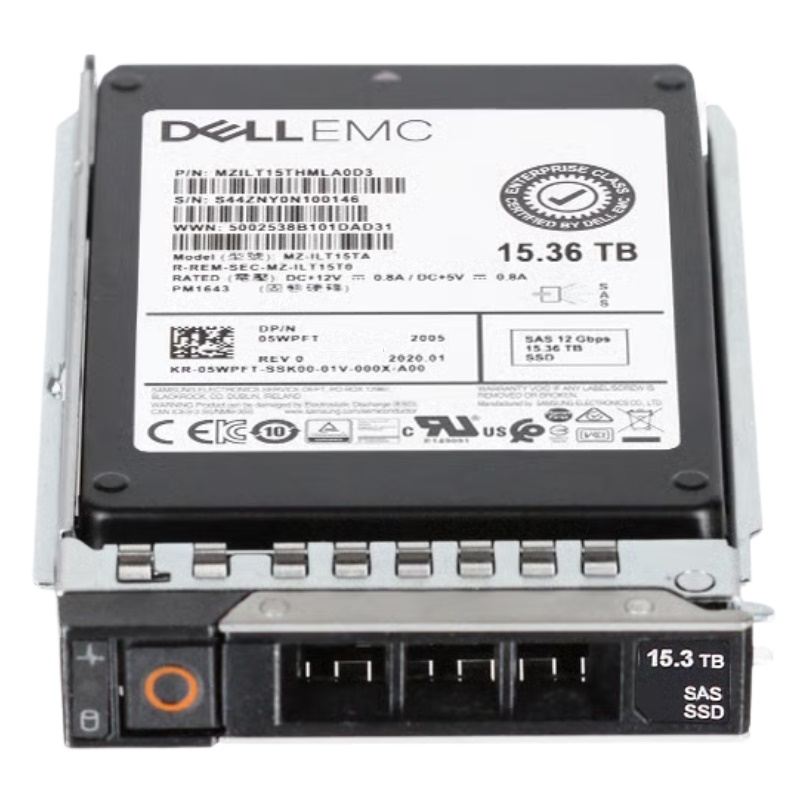

The drive is supplied with its appropriate hot-plug carrier (tray). This tray is specifically keyed and designed to fit the drive bays of 14G servers. Hot-plug functionality is non-negotiable in enterprise environments, allowing for drive removal and replacement while the server remains powered on and operational, thereby maintaining system availability.

Optimal Workload Applications

The specific combination of high capacity, read-centric performance, and high-reliability SAS interface makes the 4F5GF ideal for several key enterprise use cases within a PowerEdge server.

Data Warehousing and Analytics

In platforms like SQL Server data warehouses or Hadoop clusters, large datasets are primarily read for query processing and reporting. The drive's high capacity allows large fact tables to be stored on fewer drives, while the SAS bandwidth ensures fast data streaming to CPUs.

VDI (Virtual Desktop Infrastructure)

In VDI deployments, boot storms—where hundreds of virtual desktops boot simultaneously—generate an intense, random read workload. The low latency and high random read IOPS of the 4F5GF help smooth these storms, improving user login times. Its capacity allows for hosting a large number of linked clones or persistent desktop images.

High-Capacity Database Replicas

This drive is perfectly suited for housing read-only replicas or reporting instances of primary transactional databases. It provides fast access to replicated data for business intelligence tools without impacting the performance of the primary OLTP storage tier.

Technical Deep Dive: Architecture and Features

Beyond the marketing specifications, the underlying architecture of the 4F5GF incorporates several enterprise-grade features that ensure data integrity and consistent performance.

Power-Loss Protection (PLP)

Enterprise SSDs are equipped with sophisticated Power-Loss Protection circuits. This involves onboard capacitors that, in the event of a sudden power failure, provide enough hold-up energy to flush all data from volatile DRAM cache to the persistent NAND flash. This prevents data corruption and ensures write operations are completed atomically, a critical requirement for transactional integrity.

Advanced Error Correction and Data Integrity

The drive employs a strong low-density parity-check (LDPC) code-based ECC engine to detect and correct bit errors arising from NAND flash wear or interference. Combined with end-to-end data path protection, it ensures that data written by the host is exactly the data read back, guarding against silent data corruption within the drive's internal components.

RAID Optimization Features

SAS drives like the 4F5GF often include features like T10 Protection Information (T10 PI or DIF), which adds extra metadata to each sector to verify data integrity across the entire storage stack from host to drive. This is particularly valuable in hardware RAID configurations common in PowerEdge servers, as it allows the RAID controller to offload integrity checks.

Performance Consistency

Unlike consumer-grade SSDs which may throttle heavily under sustained writes, the 4F5GF is designed for predictable Quality of Service (QoS). Its performance, particularly for reads, remains consistent even as the drive fills up, thanks to ample over-provisioning (spare NAND area not visible to the host) and aggressive background management.

Over-Provisioning Impact

A portion of the NAND (e.g., the difference between a 16TB raw NAND and 15.36TB usable capacity) is reserved for the controller. This space is used for wear leveling, garbage collection, and bad block replacement, which is essential for maintaining performance and longevity, especially as the drive approaches full capacity.

Comparison and Context Within the Enterprise SSD Tiering

Understanding the 4F5GF requires placing it within Dell's broader enterprise SSD strategy, which typically involves three tiers: Read-Intensive, Mixed-Use, and Write-Intensive.

Read-Intensive vs. Mixed-Use Drives

Mixed-Use (MU) drives, such as a Dell 3.84TB SAS MU drive, might offer a higher DWPD rating (e.g., 3 DWPD) but at a significantly higher cost per gigabyte and often lower maximum capacities. The 4F5GF provides a more cost-effective solution when the workload analysis confirms a strong read bias.

Read-Intensive vs. Write-Intensive Drives

Write-Intensive (WI) drives use more endurance-optimized NAND like eMLC or offer massive over-provisioning, supporting 10+ DWPD for extreme write workloads like high-frequency transaction logging. For most general-purpose and read-heavy applications, this level of endurance is overkill and not cost-justifiable.
