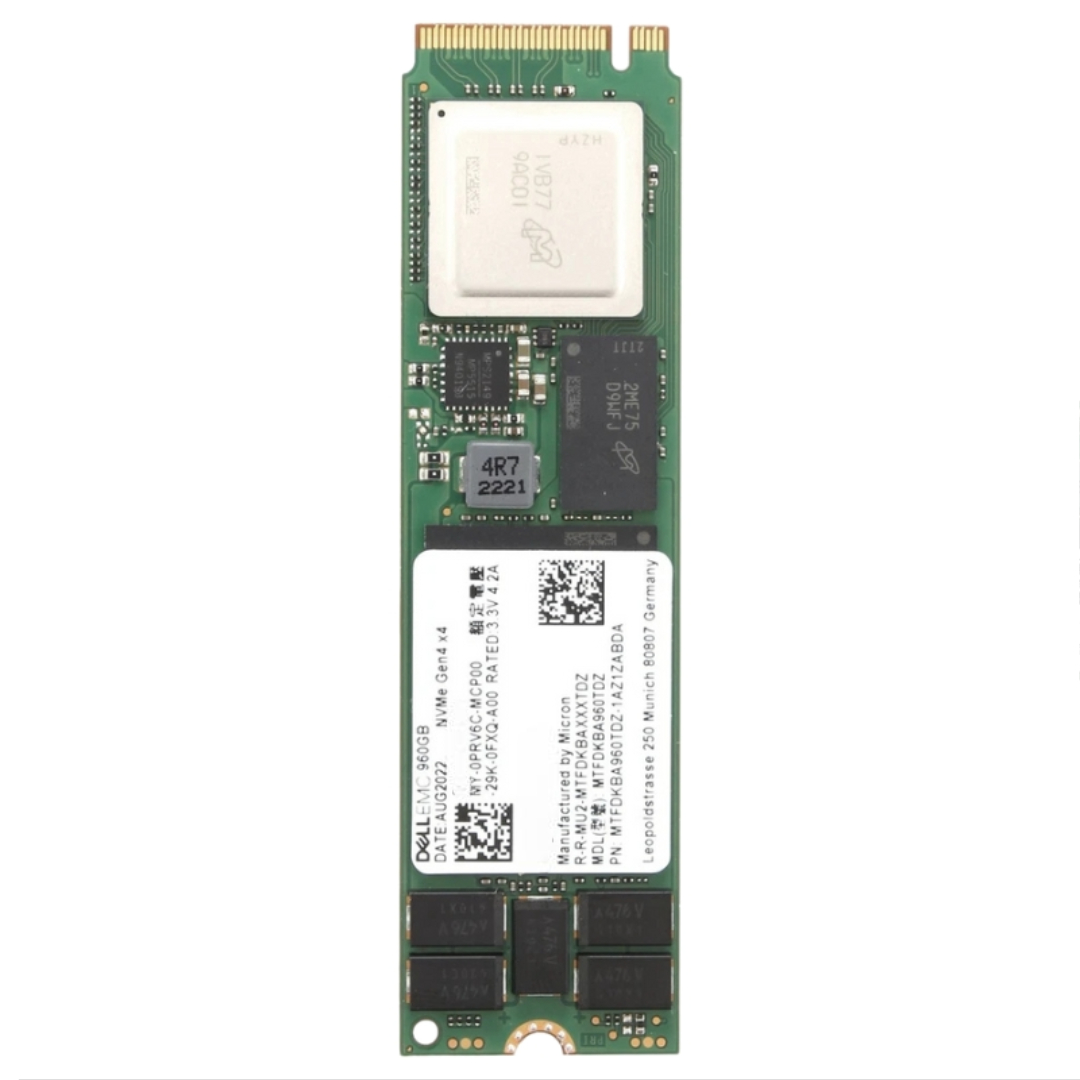

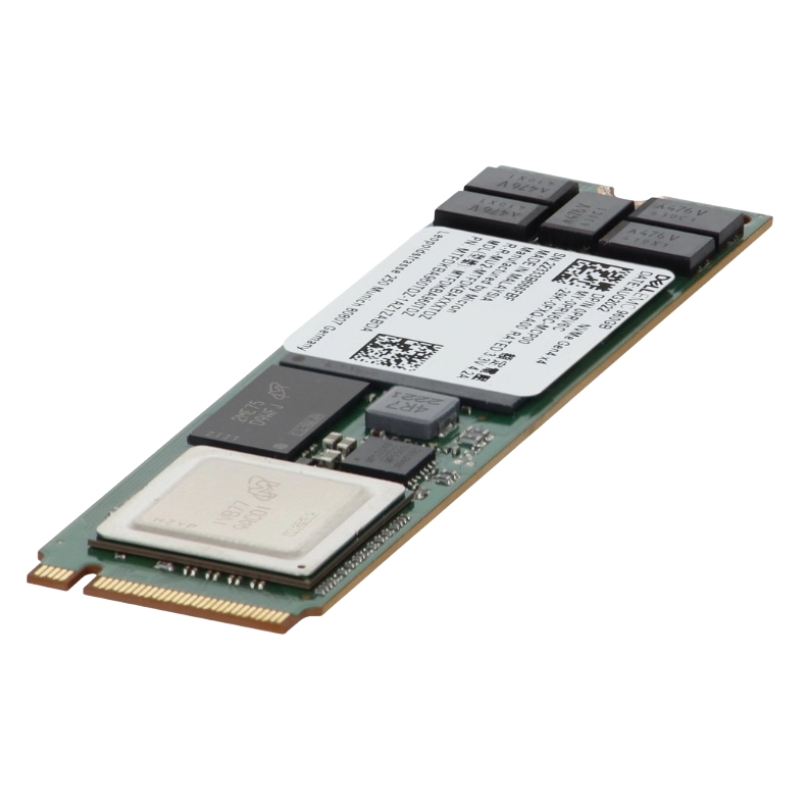

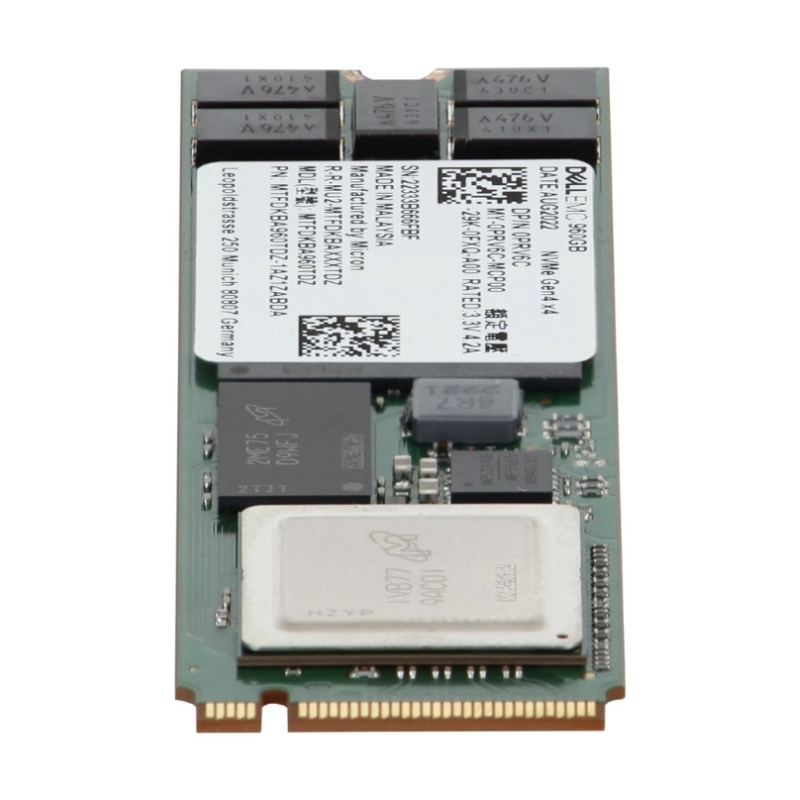

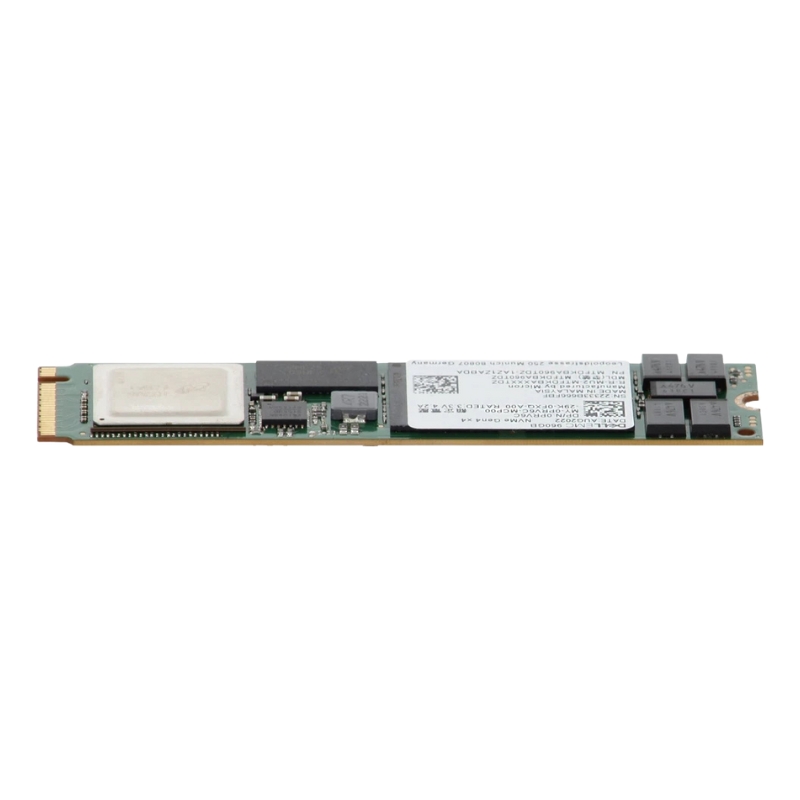

4H05X Dell 960GB PCIe Gen4 X4 NVMe M.2 2280 Solid State Drive

Dell 4H05X Enterprise 960GB SSD

The Dell 4H05X represents a significant advancement in enterprise storage technology, specifically engineered for read-intensive applications requiring high-performance, reliability, and endurance. This 960GB PCIe Gen4 NVMe SSD leverages the latest interface technology to deliver exceptional throughput and low latency, making it an ideal solution for modern data centers, cloud infrastructure, and enterprise server environments.

Key Product Specifications

The Dell 4H05X is a 960GB solid-state drive utilizing the M.2 2280 form factor. It operates on the PCI Express 4.0 x4 bus interface, fully compliant with the NVMe 1.4 specification. This drive is classified with a 1 Drive Writes Per Day (DWPD) endurance rating and utilizes 3D TLC NAND flash memory, optimized for enterprise read-centric workloads.

Technical Architecture

The internal architecture of the Dell 4H05X is designed to maximize the potential of the PCIe Gen4 interface, providing a substantial performance uplift over previous-generation PCIe Gen3 drives. Its advanced controller, coupled with high-speed TLC NAND, ensures consistent input/output operations per second (IOPS) and bandwidth.

PCIe Gen4 x4 NVMe Interface

The implementation of the PCIe 4.0 interface doubles the bandwidth per lane compared to PCIe 3.0. With four lanes (x4), the Dell 4H05X achieves a theoretical maximum bandwidth of nearly 8 GB/s, enabling it to saturate the bus and deliver blistering sequential read and write speeds that are essential for data-intensive tasks.

NVMe Protocol Efficiency

The NVMe (Non-Volatile Memory Express) protocol is built from the ground up for flash storage, significantly reducing command overhead and latency compared to legacy protocols like SATA and SAS. The support for NVMe 1.4 introduces features like I/O Determinism, which improves quality of service (QoS) by providing more predictable latency, a critical factor in multi-tenant environments.

Deep Queue Depth Performance

Enterprise applications often generate very high queue depths. The Dell 4H05X is engineered to excel under these conditions, maintaining high levels of IOPS even as the number of outstanding I/O commands increases. This ensures that application performance remains stable during peak demand.

M.2 2280 Form Factor

The M.2 form factor, specifically the 2280 size (22mm wide x 80mm long), allows for a compact, slot-based installation that requires no cables. This saves valuable space within servers and storage arrays, improves airflow for cooling, and simplifies deployment and maintenance.

Endurance and Reliability Specifications

Enterprise SSDs are defined by their endurance and reliability, metrics where the Dell 4H05X excels. Its specifications are tailored for 24/7 operation in demanding server environments.

Write Amplification Factor (WAF)

The onboard controller employs sophisticated techniques to maintain a low Write Amplification Factor. WAF is the ratio of the amount of data written to the NAND flash compared to the amount of data written by the host. A lower WAF directly extends the lifespan of the drive and improves write performance.

TLC NAND Flash Technology

The drive utilizes Triple-Level Cell (TLC) NAND flash, which stores three bits of data per cell. While traditionally associated with consumer drives, enterprise-grade TLC, as used in the 4H05X, is highly refined. It is combined with a large, power-loss protected DRAM cache and robust error correction codes (ECC) to deliver a compelling balance of cost, capacity, and performance for read-centric use cases.

3D NAND Structure

The TLC NAND is built using a 3D stacking process. Instead of scaling transistors horizontally, which becomes increasingly difficult, memory cells are stacked vertically in layers. This 3D structure allows for higher densities, improved reliability, and lower power consumption per bit compared to planar (2D) NAND.

Data Integrity and Retention

Enterprise TLC NAND is subjected to stricter binning and is designed for higher data retention at the elevated operating temperatures commonly found in servers. Advanced ECC engines, such as LDPC (Low-Density Parity Check), are used to detect and correct a much higher number of bit errors, ensuring data integrity over the drive's lifespan.

Use Cases and Application Workloads

The "Read Intensive" classification of the Dell 4H05X makes it purpose-built for specific application profiles common in modern IT infrastructure.

Boot Drives for Servers

Ideal for hosting the hypervisor or operating system for a large number of servers. The fast read speeds ensure quick boot times and snappy system responsiveness, while the 1 DWPD endurance is more than sufficient for the typical write patterns of an OS drive.

Database Servers

In database environments, read replicas and reporting servers handle a disproportionately high number of read queries. The high random read IOPS of the Dell 4H05X accelerate data retrieval, reducing query times and improving the overall user experience for analytics and business intelligence platforms.

OLAP Workloads

Online Analytical Processing (OLAP) workloads, which involve complex queries scanning large datasets, benefit tremendously from the high sequential read speeds of this PCIe Gen4 drive, enabling faster generation of reports and cubes.

Web Servers and Content Delivery

Web servers, especially those serving static content, are inherently read-intensive. Caching servers and local nodes of a Content Delivery Network (CDN) can use the Dell 4H05X to store frequently accessed data, delivering it to end-users with minimal latency.

Virtual Desktop Infrastructure (VDI)

In VDI deployments, the boot storm—when many users log in simultaneously—places a massive read load on the storage infrastructure. The Dell 4H05X is perfectly suited to host golden images or linked clones, ensuring fast and consistent login performance for all users.

Hyper-Converged Infrastructure (HCI)

In HCI solutions, where storage and compute are combined into a single node, the performance of the local storage is critical. The Dell 4H05X can provide a high-performance caching tier or serve as the primary storage for read-intensive virtual machines, improving the density and efficiency of the HCI cluster.

Advanced Features and Firmware

Beyond raw performance, the Dell 4H05X incorporates a suite of enterprise-level features designed to ensure data protection, security, and seamless integration into data center management ecosystems.

End-to-End Data Protection

The drive employs end-to-end data path protection. This means that data is protected by error correction codes from the moment it enters the drive's interface until it is written to the NAND, and again when it is read back. This guards against data corruption that can occur in the DRAM cache or during internal data transfers.

Power Loss Protection

Enterprise SSDs must be resilient to sudden power loss. The Dell 4H05X incorporates robust power-loss protection circuits, which include capacitors that provide enough hold-up power. In the event of an unexpected power failure, this energy is used to flush any data held in the volatile DRAM cache down to the non-volatile NAND flash, preventing data loss.

Security and Sanitization

For data security, the drive supports the TCG (Trusted Computing Group) Opal 2.0 and IEEE 1667 standards for hardware-based encryption. This allows for full drive encryption using AES-256 bit encryption, which is transparent to the host system and incurs no performance penalty.

Sanitize Instant Erase (SIE)

At the end of the drive's life or when redeploying it, it is crucial to securely erase all data. The Sanitize Instant Erase command, part of the NVMe specification, allows the drive to cryptographically erase all user data by instantly deleting the encryption key. This renders the previous data permanently inaccessible and is far faster than a physical overwrite.

NVMe Management Interface

Leveraging the NVMe-MI (Management Interface) over SMBus or PCIe VDM, system management software can monitor the health and status of the drive, even if the host operating system is not loaded. This enables out-of-band management, a staple of modern data center operations.

Power Specifications

Operating within the thermal and power constraints of a server chassis is a key design consideration for any enterprise component.

Active and Idle Power Consumption

The Dell 4H05X is designed for power efficiency. While delivering high performance during active states, it also implements aggressive low-power states during periods of inactivity. This helps to reduce the total cost of ownership (TCO) by lowering the overall power and cooling requirements of the server rack.

Operating Temperature Range

The drive is specified to operate reliably within a standard commercial temperature range, typically from 0°C to 70°C. Consistent operation within this range is ensured through the combination of thermal throttling and the drive's robust component design.

Wide Compatibility

The Dell 4H05X is designed for seamless integration into a broad ecosystem of enterprise hardware and software.

Dell PowerEdge Server Compatibility

This drive is fully tested and validated for use in a wide array of Dell PowerEdge servers that support the M.2 form factor, either on the system board or via an add-in-card adapter. Using a Dell-branded and validated drive ensures full compatibility, optimized firmware, and access to support.

Dell OpenManage Integration

The drive's management features are fully integrated with Dell's OpenManage systems management suite. This allows for centralized monitoring, reporting, and alerting on the drive's health and status across an entire fleet of Dell servers.
