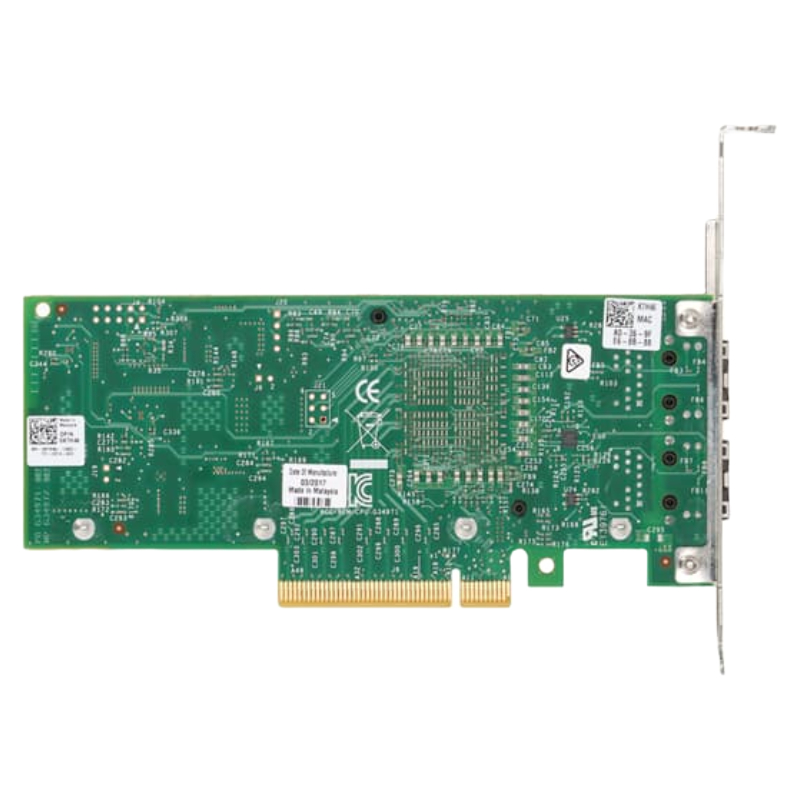

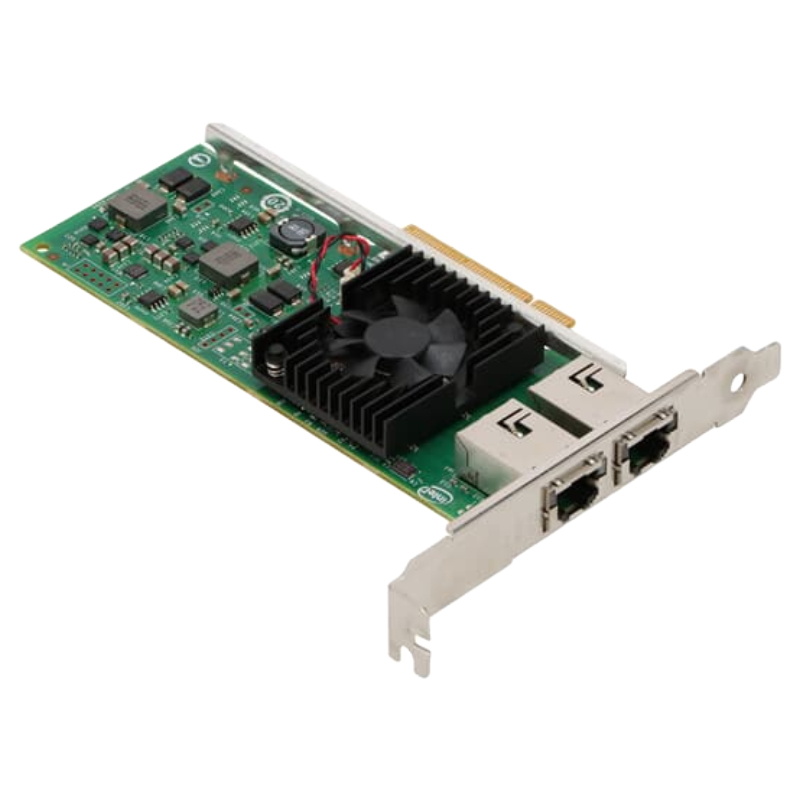

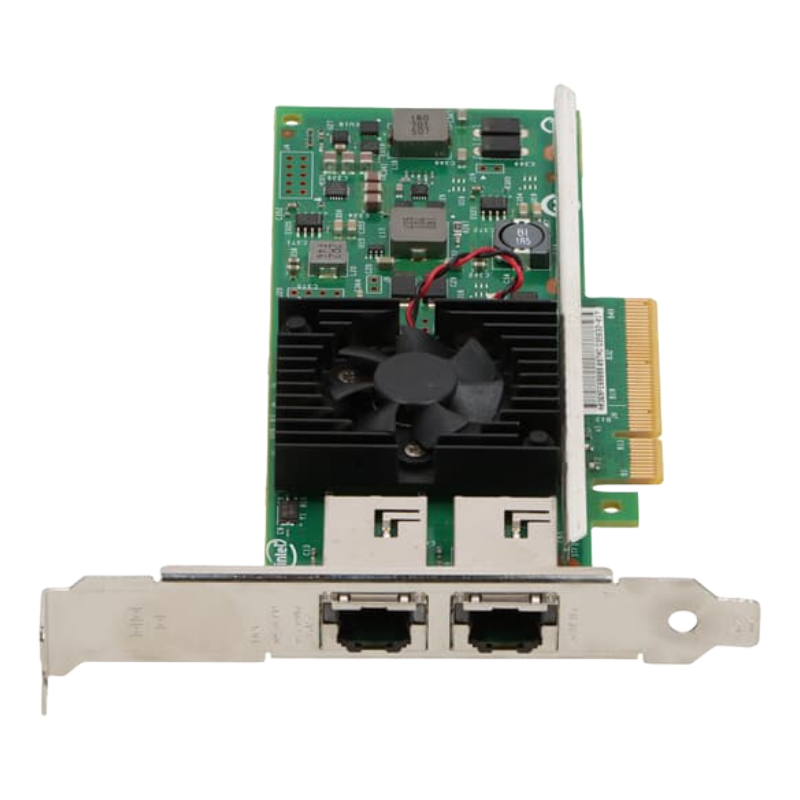

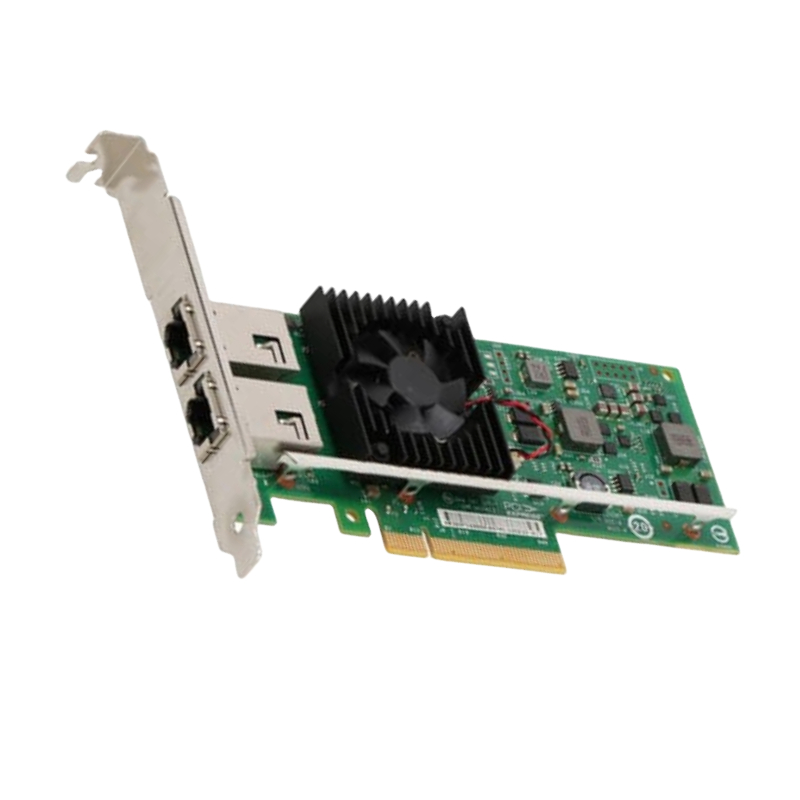

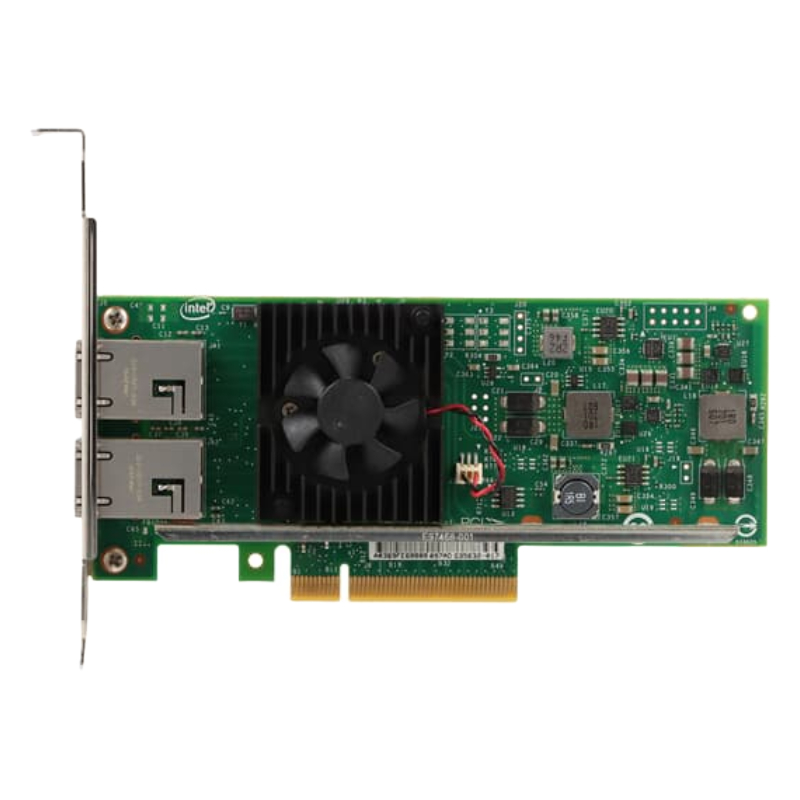

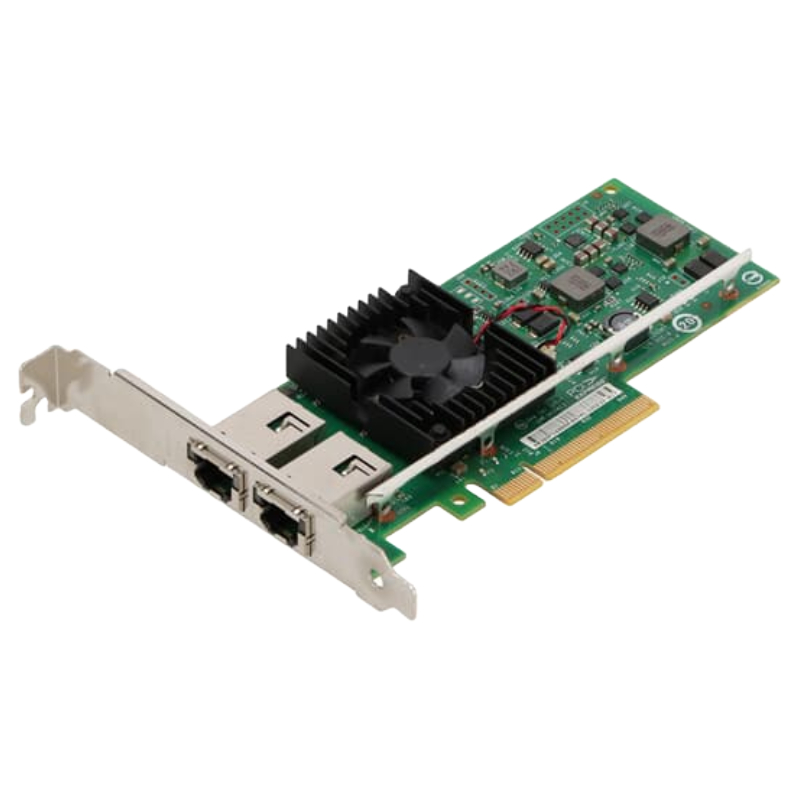

540-BBDT Dell X540 RJ-45 10GBPS PCI-E x8 Dual Port Network Adapters

Product Overview of Dell 540-BBDT 2 Ports Network Adapter

The Dell 540-BBDT X540 Network Adapter is equipped with a PCI-E x8 interface, which provides users with a high-performance and reliable networking solution. The PCI-E x8 interface is designed to deliver fast and efficient data transfer rates, making it an essential feature for users who require a stable and high-speed network connection.

General Information

• Manufacturer: Dell
• Part Number: 540-BBDT
• Product Type: Network Adapter

Technical Information

• Port Configuration: 1 x 10Gb Ethernet port
• Connectivity: Wired technology
• Cabling Standard: Ethernet 10GBase-T
• Data Link Protocol: 10 Gigabit Ethernet (10 GbE)
• Data Transfer Rate: Capable of speeds up to 10 Gbps

Design & Form Factor

• Compact plug-in card with low-profile build
• Optimized for space-saving server integration

Interface Specifications

• Bus Type: PCI Express 1.1 x8
• Ensures stable and efficient data throughput

Networking Capabilities

• Single 10 Gigabit Ethernet port
• RJ-45 connector supporting 10GBase-T cabling

Connectivity & Protocols

• Wired technology for reliable performance
• Supports 10 Gigabit Ethernet protocol
• Maximum transfer speed: 10 Gbps

Advanced Features

• Flow Control for optimized traffic management
• Quality of Service (QoS) for prioritizing workloads
• Tagged VLAN support for secure segmentation

Compliance Standards

• IEEE 802.1Q – VLAN tagging
• IEEE 802.1P – traffic prioritization
• IEEE 802.3X – flow control
• IEEE 802.3AE – 10 Gigabit Ethernet

Expansion & Connectivity

Interface Details

• 1 x 10GBase-T port via RJ-45
• Compatible with high-speed Ethernet cabling

Dell 540-BBDT PCI Express x8 Network Adapter

The Dell 540-BBDT Intel X540 RJ-45 10Gbps PCI-E x8 Dual Port Network Adapter is designed to deliver enterprise-grade Ethernet connectivity for modern data center, virtualization, cloud, and high-performance computing environments. Built around the proven Intel X540 controller architecture, this network adapter provides dual-port 10 Gigabit Ethernet connectivity through standard RJ-45 interfaces, enabling organizations to leverage existing copper network infrastructures while achieving significantly higher throughput than traditional Gigabit Ethernet solutions.

The adapter utilizes a PCI Express x8 interface, ensuring adequate bandwidth between the host system and the network controller. This architecture minimizes bottlenecks and allows servers to fully utilize dual-port 10GbE capabilities across demanding workloads such as virtualization, storage networking, database processing, cloud computing, and large-scale application hosting.

Intel X540 Ethernet Controller Technology

At the core of the Dell 540-BBDT network adapter is the Intel X540 Ethernet controller, engineered specifically for high-bandwidth server environments. The controller integrates advanced packet processing engines, traffic management capabilities, and hardware acceleration technologies that reduce CPU overhead while maintaining consistent network performance.

The Intel X540 controller supports full-duplex 10 Gigabit Ethernet communications, enabling simultaneous transmission and reception of data at maximum line rates. This capability is particularly valuable in environments where bidirectional traffic is common, including virtualization clusters, storage networks, and enterprise application servers.

Integrated Hardware Processing

The controller incorporates dedicated hardware processing functions that accelerate networking operations. By offloading packet processing tasks from the server CPU, the adapter helps improve overall system efficiency and allows processor resources to be allocated to application workloads rather than networking functions.

Hardware acceleration technologies contribute to lower latency, increased throughput, and improved scalability across multi-core server platforms. These enhancements become increasingly important as network traffic volumes continue to grow within enterprise infrastructures.

Dual-Port 10 Gigabit Ethernet Connectivity

The dual-port configuration of the Dell 540-BBDT adapter offers enhanced flexibility and redundancy for enterprise deployments. Each port supports independent 10 Gigabit Ethernet connectivity, allowing organizations to implement multiple networking strategies based on workload requirements and infrastructure designs.

Dual-port networking enables traffic separation, redundancy implementation, load balancing, and increased aggregate bandwidth. Organizations can dedicate individual ports to specific applications, storage traffic, virtual machine communication, or backup operations while maintaining consistent network performance.

Network Redundancy Benefits

High availability remains a critical requirement in enterprise data centers. The dual-port architecture supports failover configurations that help maintain network connectivity even if one network path experiences issues. This redundancy minimizes downtime and supports business continuity objectives for mission-critical applications.

By utilizing both ports in active and standby configurations, administrators can create resilient network infrastructures capable of maintaining operations during maintenance activities, hardware failures, or network disruptions.

Load Balancing Capabilities

Load balancing functionality enables traffic distribution across both network ports, improving bandwidth utilization and network efficiency. This approach can increase aggregate throughput while reducing congestion on individual links.

Load balancing is especially valuable in virtualization environments where numerous virtual machines generate substantial network traffic. Distributing communications across multiple interfaces helps optimize resource utilization and maintain predictable performance levels.

RJ-45 Copper Ethernet Interface Advantages

The Dell 540-BBDT utilizes standard RJ-45 connectors, providing compatibility with widely deployed copper Ethernet infrastructures. This design allows organizations to upgrade to 10 Gigabit networking without requiring extensive fiber optic deployments or specialized transceiver modules.

RJ-45 connectivity simplifies installation, reduces implementation complexity, and supports cost-effective network expansion. Existing Cat6a and compatible structured cabling systems can often be leveraged to support 10GbE connectivity, minimizing infrastructure investment requirements.

10GBASE-T Network Support

The adapter supports 10GBASE-T Ethernet standards, delivering reliable 10 Gigabit communication over twisted-pair copper cabling. This technology combines high-speed networking performance with the convenience and familiarity of traditional Ethernet deployment practices.

10GBASE-T technology enables organizations to extend high-bandwidth connectivity throughout server environments while preserving compatibility with established networking methodologies and management procedures.

Backward Compatibility Features

In addition to supporting 10 Gigabit Ethernet operation, the adapter maintains compatibility with lower-speed Ethernet standards. This flexibility allows gradual infrastructure migrations and supports mixed-speed networking environments commonly found in enterprise deployments.

Automatic speed negotiation capabilities facilitate seamless connectivity across diverse network configurations while simplifying deployment and management tasks.

PCI Express x8 Interface Performance

The PCI Express x8 host interface provides substantial bandwidth capacity for supporting dual-port 10 Gigabit Ethernet operations. Modern server platforms benefit from PCIe architecture's low-latency communication mechanisms and scalable bandwidth characteristics.

The x8 lane configuration ensures sufficient throughput between the network controller and host system, preventing interface limitations from constraining network performance. This capability is essential when supporting bandwidth-intensive applications that generate significant network traffic.

Server Integration Efficiency

The adapter integrates seamlessly with contemporary enterprise servers equipped with PCI Express expansion slots. Standardized PCIe architecture simplifies installation procedures and supports broad platform compatibility across various server generations.

Efficient communication between the network adapter and server memory subsystem contributes to improved data transfer performance and reduced processing overhead.

Enterprise Data Center Networking Applications

The Dell 540-BBDT network adapter is suitable for a wide range of enterprise networking scenarios. High-performance connectivity capabilities make it an ideal solution for application servers, database systems, virtualization hosts, cloud infrastructure nodes, and storage platforms.

Organizations increasingly rely on high-bandwidth networking to support digital transformation initiatives, data-intensive applications, and rapidly growing user demands. The adapter provides the connectivity foundation necessary to address these evolving requirements.

Cloud Infrastructure Deployment

Cloud computing environments depend on reliable, scalable network connectivity to support dynamic workload allocation and resource provisioning. Dual-port 10GbE networking enables efficient communication between compute, storage, and management resources within cloud architectures.

The adapter's performance characteristics support cloud service delivery requirements while maintaining operational flexibility and infrastructure scalability.

Private Cloud Networking

Private cloud deployments benefit from high-speed network connectivity that facilitates resource pooling, workload mobility, and centralized management. The Dell 540-BBDT contributes to efficient private cloud operations through dependable 10 Gigabit Ethernet performance.

Storage Networking Performance

Storage infrastructures increasingly require high-bandwidth connectivity to support modern data protection, backup, replication, and application requirements. The Dell 540-BBDT adapter delivers the performance necessary for storage networking workloads across enterprise environments.

High-speed Ethernet connectivity enables efficient access to network-attached storage systems, software-defined storage platforms, and converged infrastructure deployments. Improved network performance can contribute to faster backup operations, accelerated data replication, and enhanced application responsiveness.

iSCSI Storage Connectivity

The adapter supports iSCSI storage networking environments where Ethernet infrastructure serves as the transport mechanism for storage communications. High-bandwidth 10GbE connectivity helps minimize storage access bottlenecks and improves overall infrastructure efficiency.

Organizations utilizing Ethernet-based storage architectures can leverage the adapter to support demanding storage workloads while maintaining familiar networking management practices.

Data Replication Efficiency

Data replication processes often involve substantial network traffic volumes. Dual-port 10 Gigabit Ethernet connectivity provides the bandwidth necessary to support replication operations without significantly impacting production workloads.

Enhanced network capacity contributes to shorter replication windows and improved recovery point objectives across enterprise data protection strategies.

Advanced Traffic Acceleration Technologies

The Intel X540 controller incorporates multiple acceleration technologies designed to improve networking efficiency and reduce CPU utilization. These features enable servers to process larger traffic volumes while maintaining application performance.

Advanced acceleration capabilities are particularly important in modern environments where servers simultaneously support numerous applications, virtual machines, and services.

Checksum Offload Functions

Checksum processing represents a recurring task within network communications. Hardware-based checksum offload capabilities transfer this responsibility from the host CPU to the network controller, reducing processor overhead and improving overall efficiency.

By accelerating checksum operations, the adapter helps optimize resource utilization and contributes to enhanced networking performance.

Segmentation Offload Support

Large packet segmentation can consume significant processing resources within high-traffic environments. Segmentation offload technologies enable the network controller to handle packet division tasks more efficiently than software-based approaches.

This capability improves throughput and reduces CPU consumption, particularly during large data transfer operations.

Network Security and Reliability Features

Enterprise networking environments require dependable operation and robust security support. The Dell 540-BBDT adapter incorporates technologies that contribute to network stability, data integrity, and operational reliability.

Reliable connectivity is essential for maintaining service availability across business-critical applications and infrastructure components. The adapter's enterprise-focused design supports continuous operation within demanding environments.

Error Detection Mechanisms

Advanced error detection and correction capabilities help maintain communication integrity across high-speed network links. These mechanisms support reliable data transmission and minimize the impact of network anomalies.

Consistent error handling contributes to predictable application performance and enhanced operational confidence.
