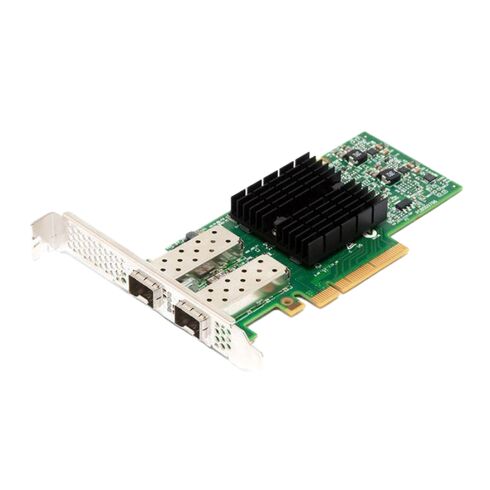

540-BBPC Dell 10GBPS SFP+ PCI Express X8 2 Ports Network Adapter

Overview of the Dell 540-BBPC PCI-E Network Adapter

The 540-BBPC Dell ConnectX-3 Pro is a high-performance network adapter designed to enhance enterprise-level network connectivity. Featuring dual 10Gbps SFP+ ports and a PCI Express X8 interface, this adapter delivers exceptional speed and reliability for data centers, cloud computing environments, and high-performance computing (HPC) applications.

General Information

• Manufacturer: Dell
• Part Number: 540-BBPC
• Product Type: Dual-Port Network Adapter

Technical Highlights

• Wireless Throughput: 10 Gigabits per second
• Supported Frequencies: 2.4 GHz and 5 GHz bands
• Host Connection: PCI Express x8
• Expansion Slot Type: SFP+
• Technology Standard: 10GBase-X
• Card Profile: Low-profile format
• Form Factor: Plug-in card for streamlined installation

Connectivity Options

• Ethernet Ports: 2 (RJ-45/SFP/SFP+)
• Media Standard: Optical Fiber for high-speed data transmission

Compliance & Standards

• RoHS: Restriction of Hazardous Substances compliant
• WEEE: Waste Electrical and Electronic Equipment directive adhered

IEEE Protocols

• 802.3ae – 10 Gigabit Ethernet
• 802.3ba – 40/100 Gigabit Ethernet
• 802.3ad – Link Aggregation
• 802.3az – Energy Efficient Ethernet
• 802.1q & 802.1p – VLAN tagging and priority
• 802.1qau – Congestion Notification
• 802.1qbg – Edge Virtual Bridging
• P802.1qaz – Enhanced Transmission Selection
• P802.1qbb – Priority Flow Control

Dell 540-BBPC 2 Ports Network Adapter

The Dell 540-BBPC ConnectX-3 Pro 2 Ports 10Gbps SFP+ PCI Express X8 Network Adapter represents a high-performance enterprise networking solution designed for data center environments requiring ultra-low latency, high bandwidth throughput, and advanced virtualization capabilities. Built on the Mellanox ConnectX-3 Pro architecture and integrated into Dell’s server ecosystem, this adapter is engineered to support modern workloads including cloud computing, high-performance computing (HPC), storage acceleration, virtualization clusters, and enterprise-grade network fabrics. It delivers dual-port 10 Gigabit Ethernet connectivity through SFP+ interfaces while utilizing a PCI Express X8 host interface for maximum data transfer efficiency.

ConnectX-3 Pro Controller Architecture

At the core of the Dell 540-BBPC adapter lies the ConnectX-3 Pro network controller, a widely adopted silicon platform known for its balanced performance and efficiency in 10GbE deployments. The architecture is optimized for parallel packet processing, allowing simultaneous handling of multiple network streams without performance degradation. It integrates advanced offloading engines that reduce CPU overhead, improving overall server efficiency in virtualized and high-density environments.

Dual-Port 10GbE SFP+ Interface

The adapter is equipped with two SFP+ ports, each capable of sustaining 10Gbps Ethernet speeds. These ports support both direct attach copper (DAC) cables and optical transceivers, offering flexibility in deployment across short-range and long-range network topologies. The dual-port configuration enables redundancy, link aggregation, or segmentation of traffic across different network paths for optimized load balancing and fault tolerance.

PCI Express X8 Host Interface

The PCIe X8 interface ensures high-speed communication between the network adapter and the server motherboard. This configuration provides sufficient bandwidth to handle dual 10GbE streams without bottlenecking. The PCI Express architecture also allows efficient DMA (Direct Memory Access) operations, minimizing latency and improving throughput consistency for data-intensive applications.

Performance Characteristics

High Bandwidth Data Transmission

Designed for 10 Gigabit Ethernet workloads, the Dell 540-BBPC adapter delivers a theoretical maximum throughput of 20Gbps aggregated across both ports. This makes it suitable for environments where large data transfers, real-time analytics, and distributed computing tasks are common. The architecture ensures sustained throughput under heavy network loads without packet loss or jitter.

Low Latency

Latency optimization is a key feature of the ConnectX-3 Pro platform. The adapter reduces end-to-end packet processing delays through hardware acceleration and kernel bypass technologies. This is particularly beneficial for financial trading systems, HPC clusters, and real-time data processing applications where microsecond-level latency differences can significantly impact performance outcomes.

Efficient CPU Offloading Capabilities

By offloading tasks such as checksum calculations, segmentation, and packet steering from the CPU to dedicated hardware engines, the adapter frees up server processing resources. This leads to improved application performance, especially in virtualized environments where multiple workloads compete for CPU cycles.

Cloud Data Center Scalability

In cloud computing environments, scalability and elasticity are critical. The dual-port configuration and advanced offloading features of the Dell 540-BBPC adapter allow cloud infrastructure operators to scale compute nodes without compromising network performance. It is commonly deployed in private cloud and hybrid cloud architectures where high availability and redundancy are required.

Advanced Networking Features

TCP/IP Offload Engine (TOE)

The TCP/IP offload engine reduces CPU involvement in processing network traffic by handling protocol-level operations directly on the adapter hardware. This improves throughput and reduces server load, particularly in environments with high numbers of simultaneous connections.

RDMA over Converged Ethernet (RoCE)

Remote Direct Memory Access (RDMA) support allows direct memory communication between servers without involving the CPU. This results in extremely low latency and high throughput, making it ideal for storage replication, distributed databases, and HPC workloads. RoCE support enhances performance in modern data center fabrics where efficiency and speed are critical.

Enterprise Storage and Data Center Applications

High-Performance Storage Connectivity

The Dell 540-BBPC adapter is widely used in storage area networks (SANs) and network-attached storage (NAS) deployments. Its high throughput and low latency capabilities make it suitable for connecting storage arrays and ensuring rapid data access across distributed storage systems.

Database Acceleration Environments

Enterprise databases such as SQL-based systems and distributed NoSQL architectures benefit significantly from the adapter’s low-latency networking. Faster query responses and reduced replication delays contribute to improved database performance and reliability.

Big Data and Analytics Clusters

In big data environments such as Hadoop or Spark clusters, network performance is often a limiting factor. The Dell 540-BBPC adapter enhances node-to-node communication, enabling faster data shuffling and processing across distributed systems.

Compatibility and System Integration

Server Platform Compatibility

This adapter is designed for Dell PowerEdge server platforms and is validated for enterprise deployment. It integrates seamlessly with server BIOS and firmware, ensuring plug-and-play functionality in supported systems.

Network Protocol Compatibility

The device supports standard Ethernet protocols along with advanced features like VLAN tagging, link aggregation (LACP), and jumbo frames. These capabilities enable flexible deployment in complex enterprise network topologies.

Reliability, Stability, and Thermal Efficiency

Enterprise-Grade Reliability Engineering

Built for continuous operation in mission-critical environments, the adapter is designed with robust error handling and fault tolerance mechanisms. It ensures stable network performance even under sustained high-load conditions.

Thermal Design and Power Efficiency

The hardware is optimized for low power consumption while maintaining high performance output. Efficient thermal design allows it to operate within standard server airflow configurations without requiring additional cooling infrastructure.

Signal Integrity and Data Protection

Advanced signal processing techniques ensure data integrity over long cable distances. Error correction mechanisms reduce packet loss and maintain stable communication between network endpoints.

Deployment Scenarios and Industry Use Cases

Cloud Service Providers

Cloud infrastructure providers deploy this adapter to handle large-scale multi-tenant environments where network segmentation and bandwidth allocation are critical. It supports dynamic workload distribution across server clusters.

Financial Trading Systems

High-frequency trading platforms rely on ultra-low latency networking solutions. The Dell 540-BBPC adapter provides deterministic performance characteristics essential for real-time trading systems.

Telecommunications Infrastructure

Telecom operators use high-speed network adapters for packet aggregation, service routing, and virtualization of network functions. The adapter’s flexibility supports evolving 5G and edge computing architectures.

Security Features and Network Protection

Hardware-Based Security Acceleration

The adapter supports secure data transmission through hardware-accelerated encryption and authentication processes. This reduces CPU overhead while maintaining strong security postures.

Network Isolation Capabilities

Through virtualization and segmentation features, the adapter enables secure isolation between different workloads, preventing unauthorized data access across virtual environments.

Secure Boot and Firmware Integrity

Integrity verification mechanisms ensure that only authenticated firmware runs on the device, reducing risks associated with unauthorized modifications or vulnerabilities.
