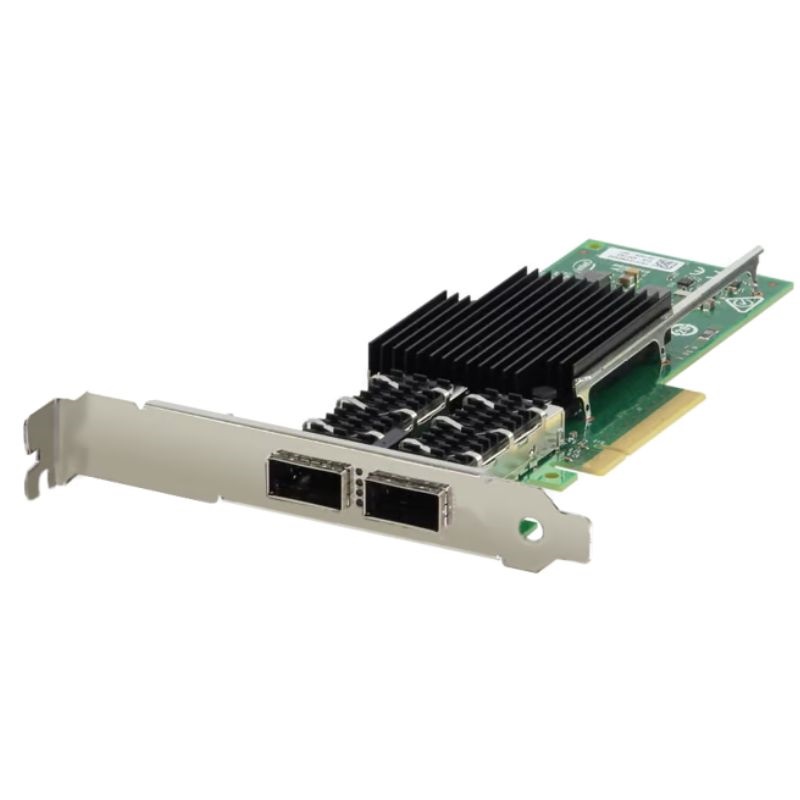

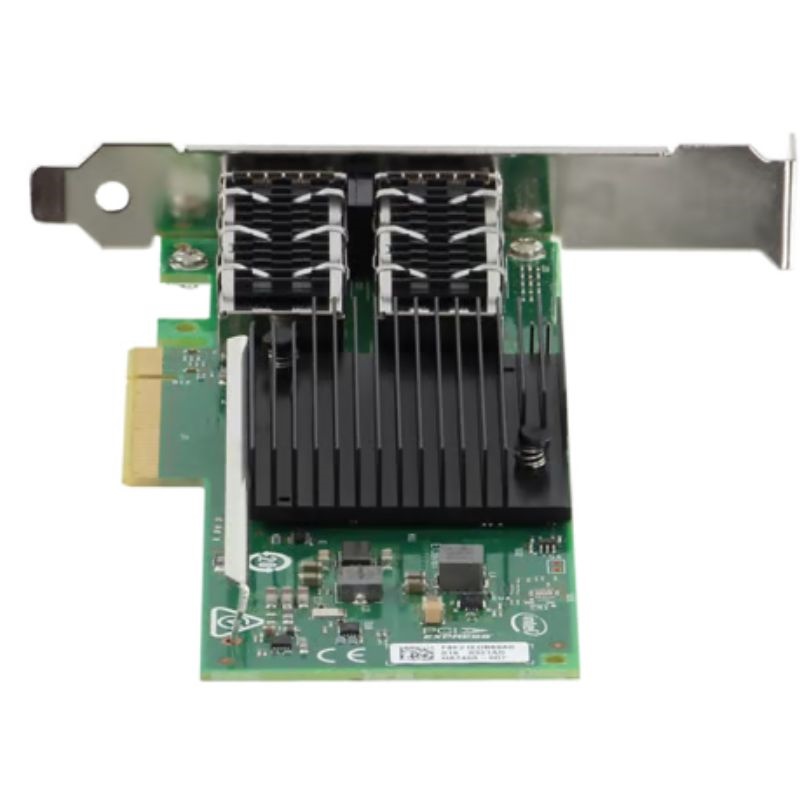

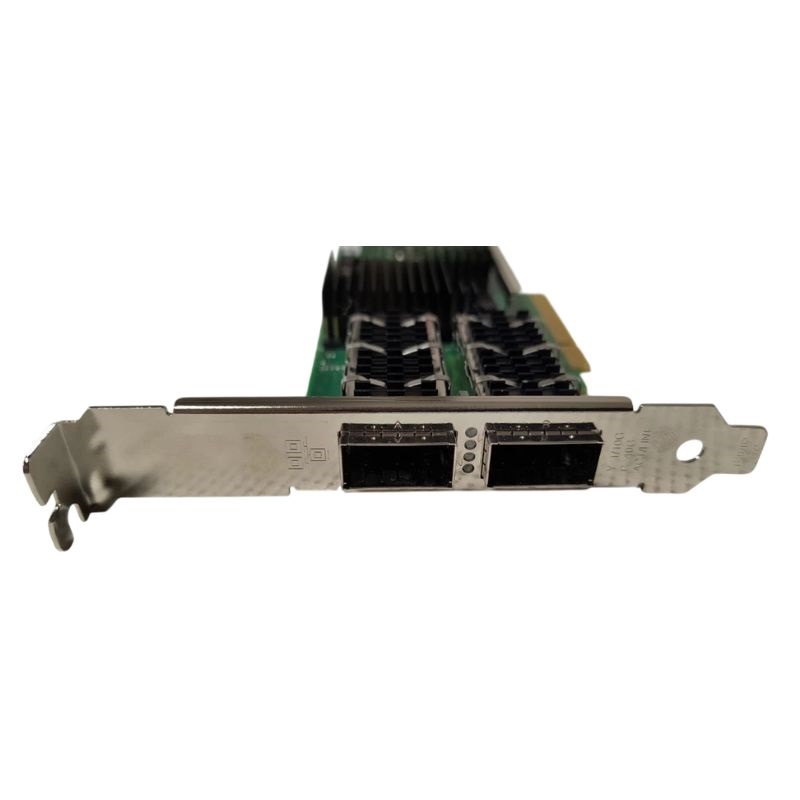

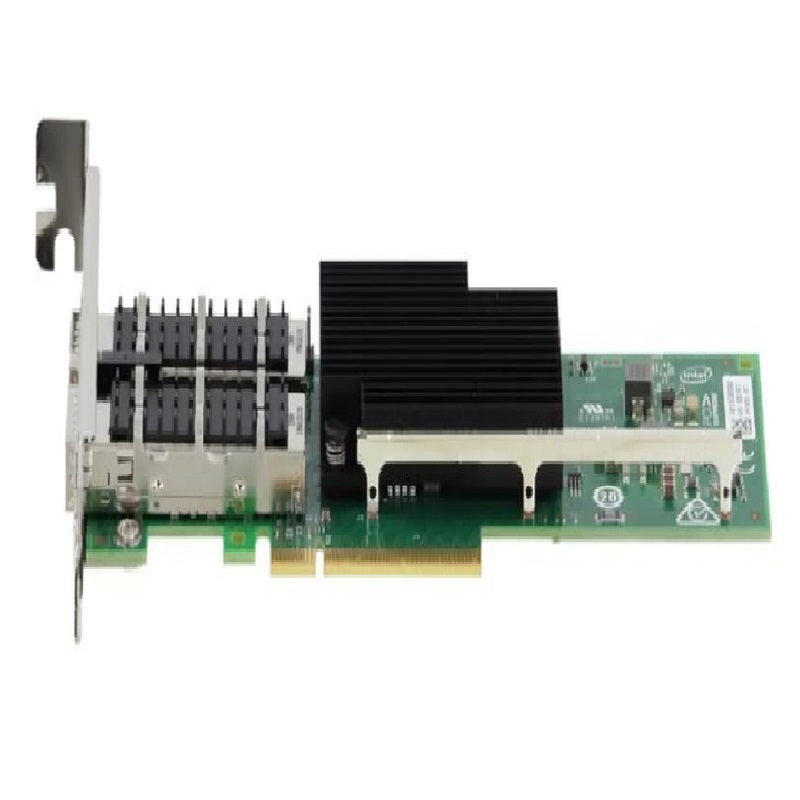

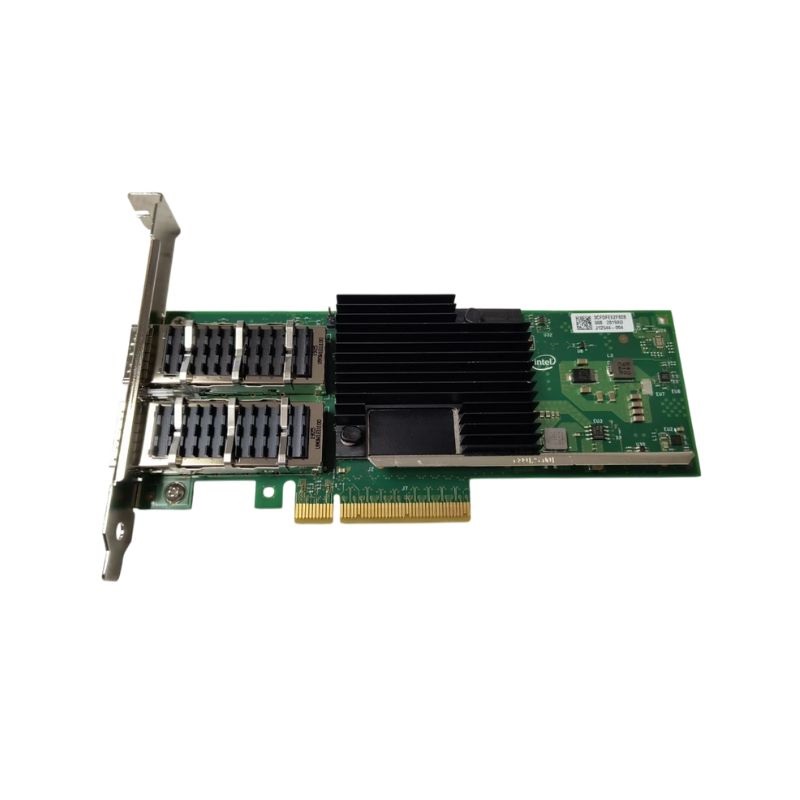

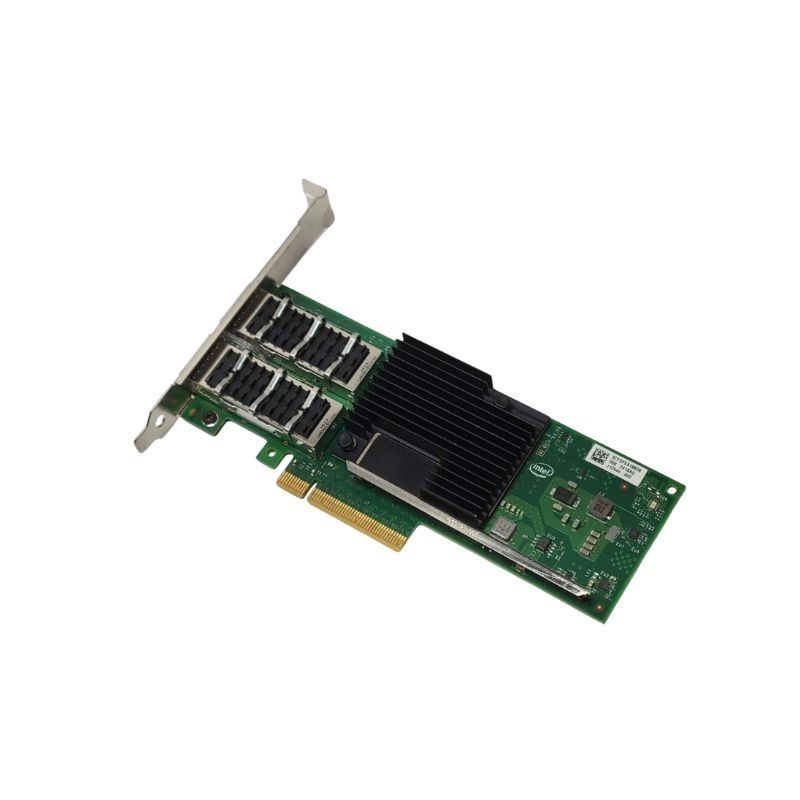

540-BBRH Dell Intel XL710 40GbE QSFP+ 2 Ports CNA

Overview of the Dell 540-BBRH 2 Ports Converged Adapter

The Dell 540-BBRH CNA comes with an impressive interface, offering a lightning-fast connection speed of 40GbE. This feature sets it apart from other network adapters on the market, making it an ideal choice for users who require high-speed data transfers and low latency.

Main Specifications

• Brand: Dell
• Model Number: 540-BBRH
• Product Type: Converged Network Adapter

Technical Specifications

• Number of Ports: Dual
• Form Factor: Low-profile plug-in card
• Interface: PCI Express 3.0 x8
• Port Type: 40 Gigabit QSFP+ x2
• Connection Type: Wired
• Data Link Protocol: 40 Gigabit LAN
• Maximum Data Transfer Rate: 40 Gbps
• Remote Management: Supports SNMP and RMON

Compliance Standards

Supported Protocols

• IEEE 802.3 for Ethernet
• IEEE 802.1Q for VLAN tagging
• IEEE 802.1P for QoS prioritization
• IEEE 802.3ad (LACP) for link aggregation
• IEEE 802.1AS for timing and synchronization
• IEEE 802.1Qbg for virtual bridging

Expansion & Connectivity

Interface Options

• 2 × 40Gb Ethernet via QSFP+ connectors

Compatibility Information

Supported Dell PowerEdge Servers

• R440, R620, R630, R640
• R720, R720xd, R730, R730xd, R730xd XL
• R740, R740xd, R740xd2
• R820, R840, R920, R930
• R940, R940xa

Tower & Rugged Models

• T620, T640
• XR2

Storage Systems

• Powervault NX3240
• Powervault NX3340

Key Advantages

• High-speed dual-port 40Gb connectivity
• Efficient low-profile design for dense server environments
• Broad compatibility across Dell PowerEdge and Powervault systems
• Enhanced monitoring with SNMP and RMON support

Understanding of Dell 540-BBRH 2 Ports Converged Adapter

The Dell 540-BBRH Intel XL710 40GbE QSFP+ 2 Ports Converged Network Adapter represents a high-performance enterprise networking solution engineered for modern data center environments requiring ultra-low latency, high bandwidth throughput, and converged networking capabilities. Built on Intel’s XL710 Ethernet controller architecture, this adapter integrates advanced packet processing engines, hardware offload technologies, and multi-protocol support designed to optimize virtualized workloads, cloud infrastructures, and storage-intensive applications.

As a dual-port 40 Gigabit Ethernet adapter using QSFP+ interfaces, the device is optimized for scalable network infrastructures where aggregation, redundancy, and throughput consistency are critical. The Dell-branded integration ensures compatibility with enterprise Dell PowerEdge server ecosystems, BIOS-level tuning, and validated firmware alignment for stable deployment in mission-critical environments.

Intel XL710 Controller-Based High-Speed Networking

At the core of the Dell 540-BBRH adapter lies the Intel XL710 controller, a silicon design optimized for parallel packet processing and efficient workload distribution. The architecture enables simultaneous handling of multiple traffic flows with minimal CPU intervention, reducing host overhead and increasing overall system efficiency. The controller is engineered to support deep packet inspection offloads, segmentation offload, checksum offload, and intelligent interrupt moderation to maintain stable throughput under heavy network congestion scenarios.

40GbE QSFP+ Interface Implementation

The QSFP+ (Quad Small Form-factor Pluggable Plus) interface provides 40 Gigabit Ethernet connectivity per port, enabling high-density data transmission between servers, switches, and storage fabrics. This interface supports breakout configurations in compatible environments, allowing flexibility in transitioning between 40GbE and multiple 10GbE lanes depending on infrastructure requirements. The design ensures minimal signal degradation and optimized optical or copper transceiver compatibility for long-range and short-range deployments.

Dual-Port High Availability

The dual-port architecture of the Dell 540-BBRH adapter ensures redundancy, load balancing, and traffic segmentation across enterprise workloads. Each port operates independently, enabling simultaneous data streams for different applications such as virtualization clusters, storage replication, or distributed computing tasks. This configuration improves fault tolerance, allowing continuous network availability even in the event of a port failure or link degradation.

Converged Networking Capabilities

Unified Networking for Storage and Data Traffic

The converged nature of the Dell 540-BBRH Intel XL710 adapter allows integration of traditional Ethernet traffic with storage protocols, including iSCSI and Fibre Channel over Ethernet (FCoE). This convergence reduces the need for separate network infrastructure, lowering operational costs and simplifying cable management while maintaining high performance and predictable latency across workloads.

Storage Protocol Acceleration

The adapter supports hardware-level acceleration for storage traffic, reducing CPU utilization and improving I/O throughput for storage-heavy applications. This is particularly beneficial in environments such as virtualization clusters, database systems, and enterprise storage arrays where consistent throughput and low latency are essential for performance stability.

Efficient Traffic Segmentation

Through intelligent hardware offloading and queue management, the adapter separates storage and data traffic into optimized processing pipelines. This ensures that high-priority workloads receive guaranteed bandwidth while maintaining fairness across multiple virtual machines and application instances operating within the same physical server environment.

High Throughput Data Processing

Designed for demanding enterprise workloads, the Dell 540-BBRH Intel XL710 adapter delivers sustained 40GbE throughput per port, enabling aggregate bandwidth suitable for high-performance computing clusters, big data analytics platforms, and large-scale virtualization farms. The architecture minimizes packet loss under load spikes and maintains stable latency across continuous data transfers.

Low Latency Network Optimization

Latency-sensitive applications such as financial trading systems, real-time analytics, and distributed database synchronization benefit from the adapter’s optimized interrupt handling and kernel bypass capabilities. These features reduce processing delays between packet reception and application delivery, ensuring faster response times and improved transactional efficiency.

Hardware Offload Acceleration

The adapter offloads multiple compute-intensive tasks from the host CPU, including TCP segmentation, checksum calculations, and packet classification. This allows server processors to focus on application-level computation rather than network processing overhead, increasing overall system performance efficiency.

Enterprise Compatibility and Server Integration

Dell PowerEdge Server Optimization

The Dell 540-BBRH adapter is validated for seamless integration with Dell PowerEdge server platforms, ensuring BIOS-level recognition, firmware compatibility, and optimized driver support. This tight integration reduces deployment complexity and ensures consistent performance across enterprise infrastructure environments.

PCI Express Interface Architecture

The adapter utilizes a high-speed PCI Express interface designed to support large data throughput between the network controller and system memory. This ensures that the full 40GbE bandwidth is effectively utilized without bottlenecks at the bus level, enabling smooth operation under sustained heavy traffic loads.

Storage Networking Integration and Hybrid Workloads

iSCSI and FCoE Acceleration

The converged networking design enables efficient handling of storage protocols such as iSCSI and Fibre Channel over Ethernet. This reduces infrastructure complexity by consolidating storage and data networks into a unified architecture while maintaining high performance levels.

Database and Enterprise Application Acceleration

High-throughput storage access is essential for database systems, ERP platforms, and large-scale enterprise applications. The adapter ensures rapid data transfer between storage arrays and compute nodes, reducing latency and improving transaction processing speeds.

Backup and Replication Efficiency

The high-bandwidth capability of the 40GbE interface significantly accelerates backup operations and data replication tasks across distributed environments. This improves disaster recovery readiness and reduces backup windows in enterprise IT infrastructures.

Scalability

High-Density Data Center Deployment

The Dell 540-BBRH adapter is optimized for scalable deployment in high-density rack environments where bandwidth efficiency and port consolidation are critical. Its dual-port configuration enables flexible scaling strategies across compute clusters and storage networks.

Infrastructure Modernization Compatibility

As enterprises transition from legacy 1GbE and 10GbE networks to higher-speed architectures, this adapter provides a scalable upgrade path supporting 40GbE environments without requiring complete infrastructure redesign. Its QSFP+ interface supports integration with modern switch fabrics and optical transceivers.

Cloud and Hybrid Environment Integration

The adapter is suitable for hybrid cloud environments where workloads are distributed across on-premises data centers and cloud infrastructure. Its high throughput and virtualization support make it ideal for workload migration, synchronization, and distributed computing architectures.
