Comprehensive Product Overview

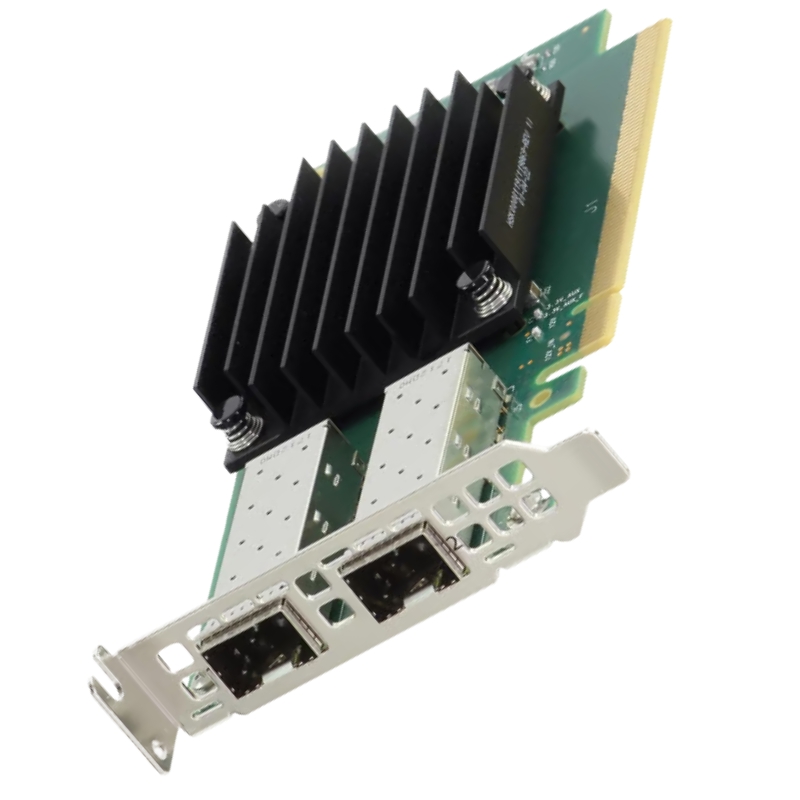

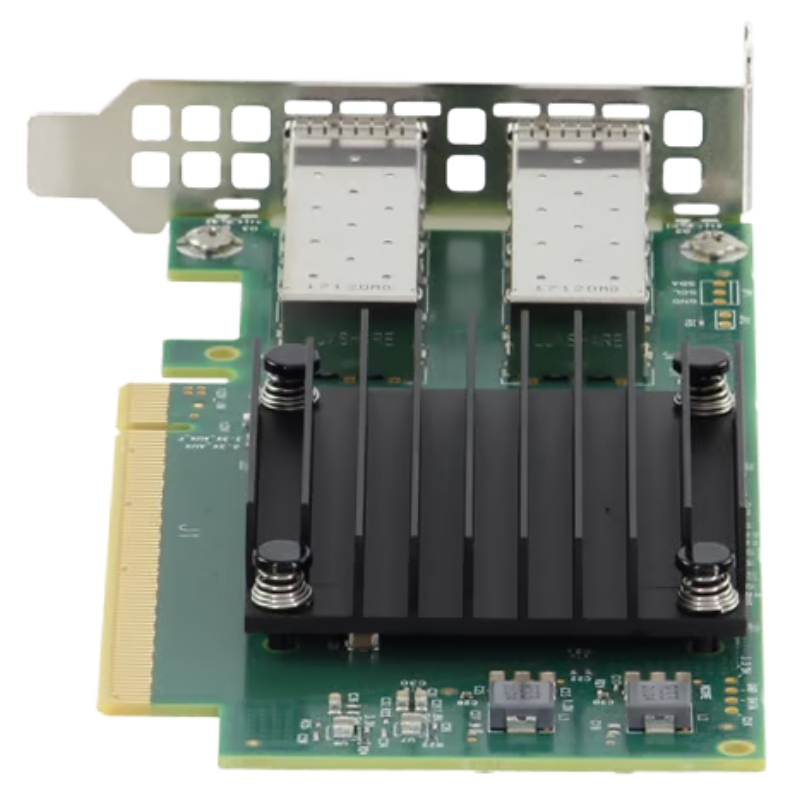

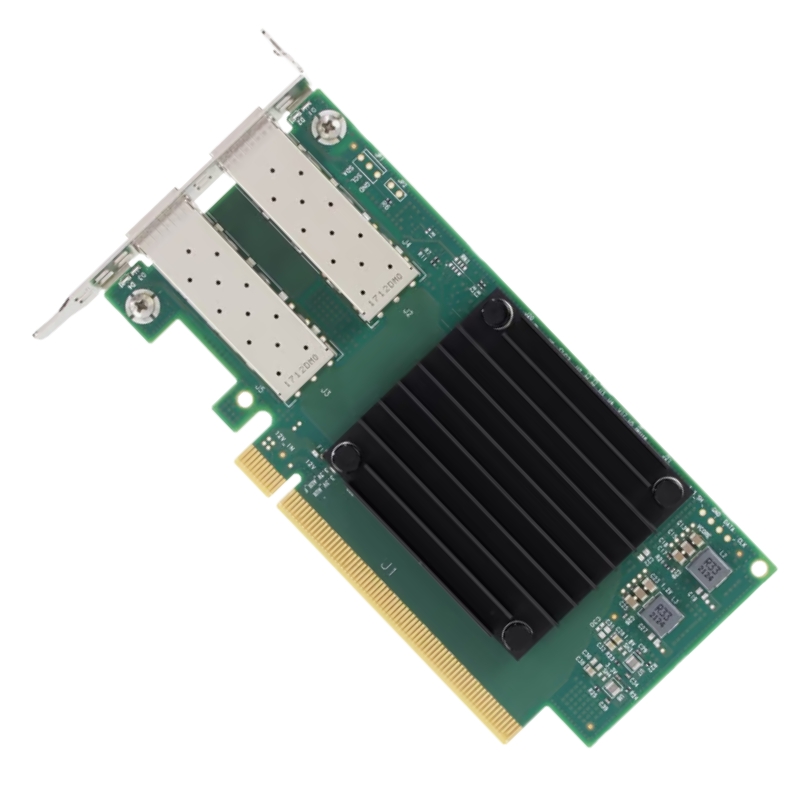

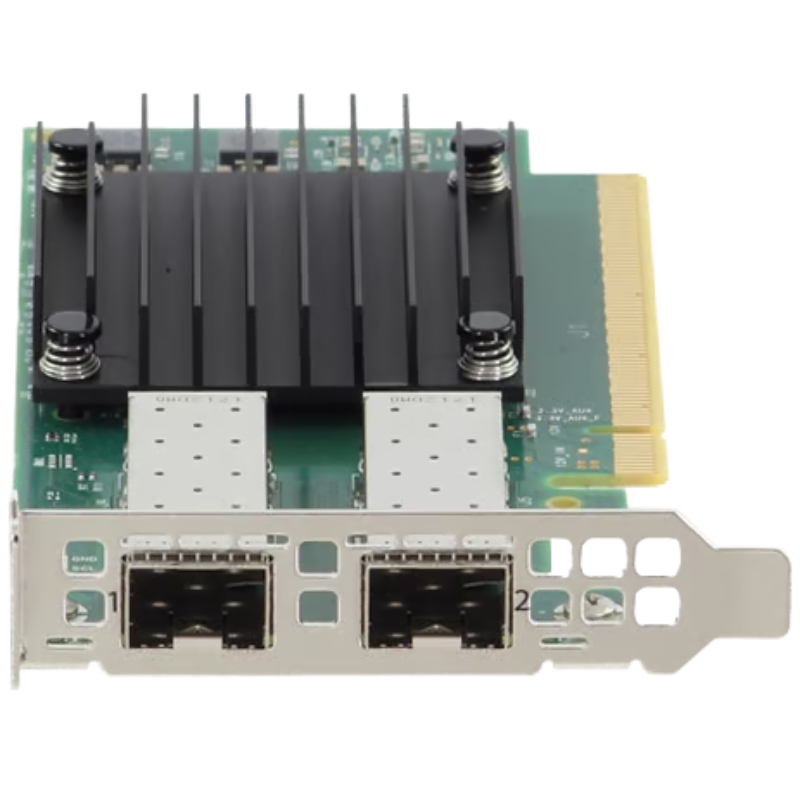

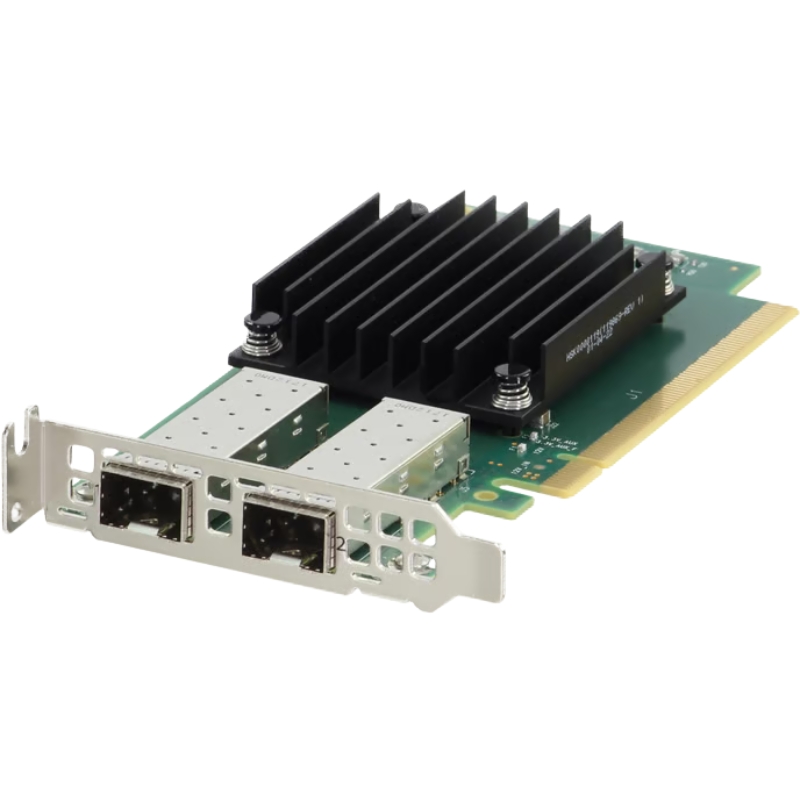

The Dell 540-BCNM ConnectX-5 represents a pivotal component in modern enterprise and data center networking. This adapter is part of the esteemed Mellanox ConnectX-5 family, rebadged and optimized by Dell EMC, designed to deliver exceptional throughput, ultra-low latency, and advanced offload capabilities. It is engineered to meet the escalating demands of cloud, storage, and high-performance computing (HPC) environments, where network speed and efficiency are non-negotiable.
Main Specifications
- Manufacturer: Dell
- Part Number: 540-BCNM
- Product Type: 2 Ports Network Adapter
Technical Specifications
- Compact plug-in card engineered for low-profile slots
- PCI Express 3.0 x16 connectivity
- Compliant with PCIe 3.0 specification revision
- Two SFP28 ports supporting 25 Gigabit Ethernet
- Backward compatibility with 10GbE and Gigabit Ethernet
Data Throughput
- Maximum transfer speed: 25 Gbps
- Optimized for high-bandwidth enterprise workloads
Protocol Support
Data Link Protocols
- Gigabit Ethernet
- 10 Gigabit Ethernet
- 25 Gigabit LAN
Transport Protocols
- TCP/IP
- UDP/IP
- iSCSI for storage networking
Compliance & Standards
IEEE Standards
- IEEE 802.1Q (VLAN tagging)
- IEEE 802.1P (priority tagging)
- IEEE 802.3ad (LACP link aggregation)
Energy Efficiency & Reliability
- IEEE 802.3az (Energy Efficient Ethernet)
- IEEE 802.1AX (link aggregation)
- IEEE 1588v2 (precision time protocol)
Advanced Features
- IEEE 802.1Qbb (priority-based flow control)
- IEEE 802.1Qaz (enhanced transmission selection)
- IEEE 802.1Qau (congestion notification)
- IEEE 802.1Qbg (edge virtual bridging)
- IEEE 802.3by (25 Gigabit Ethernet standard)
Key Takeaways
- Engineered for enterprise-grade networking
- Supports modern virtualization and storage environments
- Delivers scalable bandwidth with robust compliance
Unveiling the Dell ConnectX-5 25GbE Dual-Port Adapter
The Dell part number 540-BCNM, featuring the Mellanox ConnectX-5 EN network interface controller, represents a pivotal component in modern high-performance data center and enterprise networking. This adapter is engineered to deliver exceptional throughput, ultra-low latency, and robust virtualization features, making it an optimal solution for bandwidth-intensive applications, software-defined storage, and converged infrastructure.
Operating on the efficient 25 Gigabit Ethernet standard, it strikes a critical balance between the cost of 10GbE and the raw performance of 40GbE or 100GbE, offering a 2.5x performance boost per lane. Housed in a standard PCI-Express 3.0 x16 form factor, it provides two SFP28 ports capable of supporting both 25GbE and 10GbE connections via appropriate optical or direct-attach copper (DAC) cables, ensuring investment protection and flexible deployment.
Core Specifications
Understanding the foundational specifications of the 540-BCNM is crucial for integration and performance planning. This adapter is a full-height, half-length (FHHL) PCIe card, a form factor that ensures broad compatibility with a wide range of server chassis and rack configurations. The card draws power directly from the PCIe slot, eliminating the need for external power connectors and simplifying cable management within the server enclosure.
Interface and Bus Details
The adapter utilizes a PCI-Express 3.0 x16 host interface. This provides a theoretical maximum bidirectional bandwidth of approximately 128 Gbps (16 lanes * 8 GT/s per lane * 2 for bidirectional). This ample bus bandwidth comfortably saturates the combined capacity of the two 25GbE ports (50 Gbps aggregate) while leaving significant headroom for control traffic and future-proofing the card for more demanding protocols. It is important to note that the card will operate in slots with fewer lanes (e.g., x8, x4) but may experience bandwidth limitations depending on the slot generation and traffic load.
Port Configuration and Transceiver Compatibility
The card features two SFP28 (Small Form-factor Pluggable 28) ports. The SFP28 form factor is the standard for 25GbE and is electrically compatible with SFP+ (10GbE) and QSFP28 (100GbE) ecosystems, offering flexibility in network design. These ports support a wide range of optical and direct-attach copper (DAC) transceivers, allowing network administrators to choose the most cost-effective and appropriate cabling solution for their reach requirements—from short-reach DAC cables for top-of-rack switching to long-reach optical modules for inter-rack or inter-data center links.
Supported Data Rates and Autonegotiation
Each port on the ConnectX-5 adapter is highly versatile in its speed capabilities. While optimized for 25 Gigabits per second, the ports typically support autonegotiation and manual configuration for multiple Ethernet speeds, including 10GbE and 1GbE. This backward compatibility ensures seamless integration into existing network infrastructures, allowing for phased upgrades. The specific speed capabilities can be managed through the adapter's firmware and associated driver utilities.
Performance and Advanced Capabilities
Beyond raw speed, the Dell 540-BCNM ConnectX-5 is distinguished by its sophisticated feature set, which is engineered to reduce CPU overhead, improve application response times, and enhance overall data center efficiency.
RoCE (RDMA over Converged Ethernet) and Low Latency
A cornerstone feature of the ConnectX-5 series is its robust support for RDMA (Remote Direct Memory Access) over Converged Ethernet, specifically RoCE v2. RDMA allows data to be transferred directly from the memory of one computer to another without involving the operating system or the CPU of either machine. This bypasses the traditional TCP/IP stack, dramatically reducing latency and CPU utilization. For applications like distributed databases (e.g., Microsoft SQL Server, Oracle RAC), hyper-converged infrastructure (HCI) platforms like vSAN, and clustered storage, RoCE is a game-changer, enabling near-infiniband levels of performance over standard Ethernet networks.
GPU-Direct and Accelerated Data Movement
In HPC and AI/ML workloads, the adapter's GPU-Direct RDMA (GDR) capability is critical. It enables data to be transferred directly between the network adapter and GPU memory, without bouncing through system RAM. This significantly accelerates data pipelines for training and inference, minimizing bottlenecks and allowing servers to leverage the full potential of their computational accelerators from companies like NVIDIA.
Hardware Offload Engine
The ConnectX-5 adapter incorporates a powerful hardware offload engine that handles complex network processing tasks. This frees the server's CPUs to focus on running applications and virtual machines, rather than managing network traffic.
TCP/UDP/IP Stateless Offloads
The adapter performs checksum calculation and validation for TCP, UDP, and IP headers directly in hardware. It also handles large send offload (LSO) and receive side scaling (RSS), which are essential for maintaining high throughput and efficient multi-core processing of network flows.
Virtualization Offloads: SR-IOV and VirtIO
For virtualized environments, the 540-BCNM offers comprehensive offloads. Single Root I/O Virtualization (SR-IOV) allows the physical adapter to present itself as multiple virtual functions (VFs) that can be assigned directly to virtual machines. This provides near-native network performance to VMs by bypassing the hypervisor's virtual switch for data plane operations. The adapter also supports VirtIO acceleration, further optimizing performance for open-source virtualization stacks like KVM/QEMU.
NVMe over Fabrics (NVMe-oF) Support
The adapter is a key enabler for next-generation storage networks. Its high throughput and ultra-low latency, combined with RDMA, make it an ideal target and initiator adapter for NVMe over Fabrics. This allows organizations to build disaggregated, shared storage pools that deliver local NVMe SSD-like performance across the network, radically transforming storage architecture.
Use Cases and Deployment Scenarios
The Dell 540-BCNM ConnectX-5 adapter is not a general-purpose NIC; it is a strategic component deployed for specific, performance-sensitive workloads.
Hyper-Converged Infrastructure (HCI) Backbone
In HCI solutions such as VMware vSAN, Dell VxRail, or Microsoft Storage Spaces Direct, the network is the backbone of the storage fabric. The low latency and RDMA capabilities of the ConnectX-5 are essential for maintaining high IOPS and low latency for virtualized workloads, especially as cluster sizes and performance demands grow. It is often deployed in a dedicated two-node or four-node switchless configuration for vSAN over RoCE.
Storage Area Network (SAN) Acceleration
The adapter accelerates both traditional iSCSI SANs through TCP offloads and modern NVMe-oF storage arrays. By handling protocol processing in hardware, it reduces storage access latency and improves the efficiency of servers accessing centralized storage resources.
High-Performance Computing
In HPC clusters, the need for fast node-to-node communication is paramount for parallelized scientific and engineering applications. The adapter's RDMA and GPU-Direct capabilities minimize communication overhead in Message Passing Interface (MPI) jobs, leading to faster time-to-solution. Similarly, in AI training clusters, it enables rapid shuffling of training datasets between servers and direct data feeding to GPUs.
High-Frequency Trading and Financial Modeling
In financial industries where microseconds matter, the deterministic ultra-low latency of the ConnectX-5 adapter is leveraged to gain competitive advantages. Its predictable performance profile is critical for algorithmic trading platforms and complex risk modeling applications.
System Requirements
Successful deployment of the 540-BCNM adapter requires attention to several technical details to unlock its full potential.
Server Compatibility
While the PCIe 3.0 interface is universal, users must verify that their Dell PowerEdge or other vendor server has an available x16 (or x8) slot that meets the card's mechanical (FHHL) and power requirements. In the server BIOS, settings such as SR-IOV global enablement, PCIe bandwidth allocation, and above 4G decoding may need to be configured to support all advanced features.
Switch Infrastructure Requirements
To build a 25GbE network, compatible top-of-rack (ToR) switches are required. These switches must also support features like Data Center Bridging (DCB) for lossless Ethernet, which is a prerequisite for RoCE to function reliably. Proper QoS and ECN (Explicit Congestion Notification) configuration on the switches is often necessary for optimal RoCE performance in a shared network.
Cabling and Transceiver Selection
The choice between DAC cables and optical transceivers depends on distance, cost, and power considerations. DAC cables are typically used for short connections within a rack (up to 5 meters) and are the most cost-effective and power-efficient option. For longer runs, SFP28 optical modules (e.g., SR, LR, ER) with corresponding fiber optic cables are necessary. It is recommended to use Dell-branded or Mellanox-verified transceivers to ensure full compatibility and support.
Cooling and Airflow
As a high-performance component, the adapter generates heat. It is designed with a passive heatsink that relies on adequate front-to-back airflow within the server chassis. Ensuring that server fans are operational and not obstructed is vital for maintaining the adapter within its specified thermal operating range, especially in high-ambient temperature environments.
