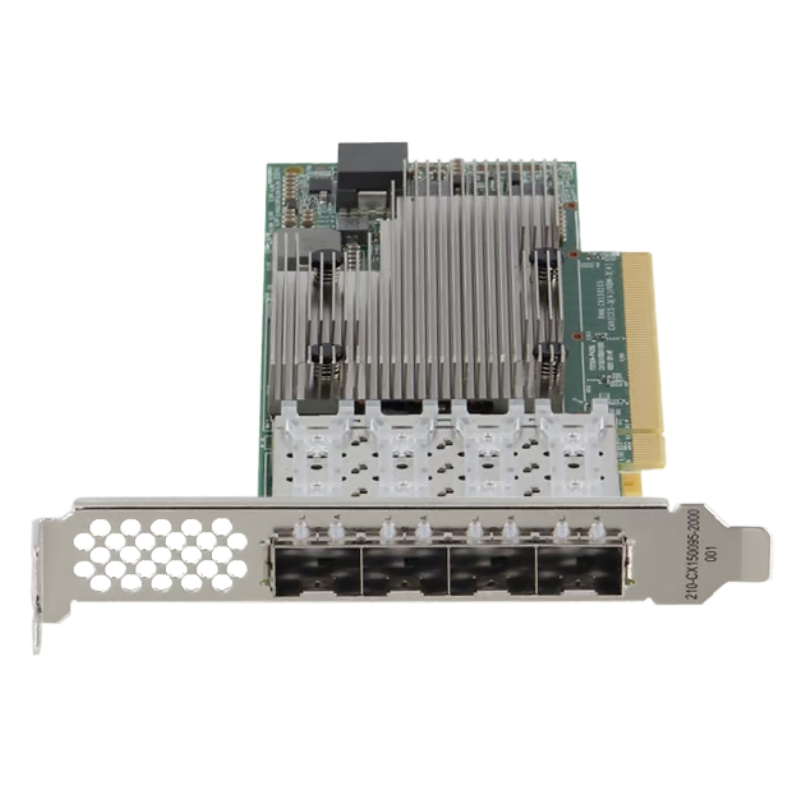

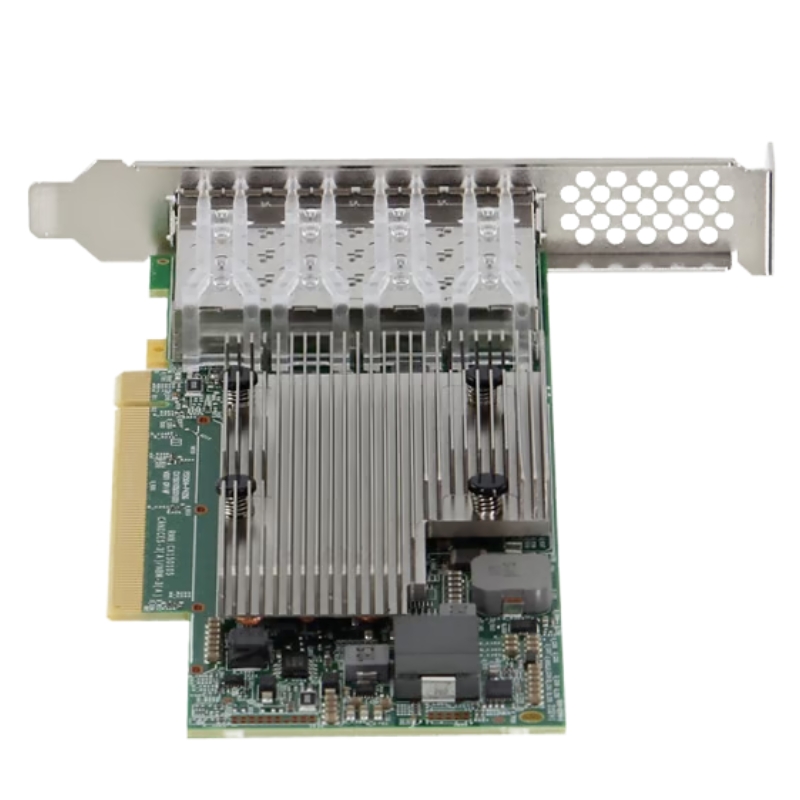

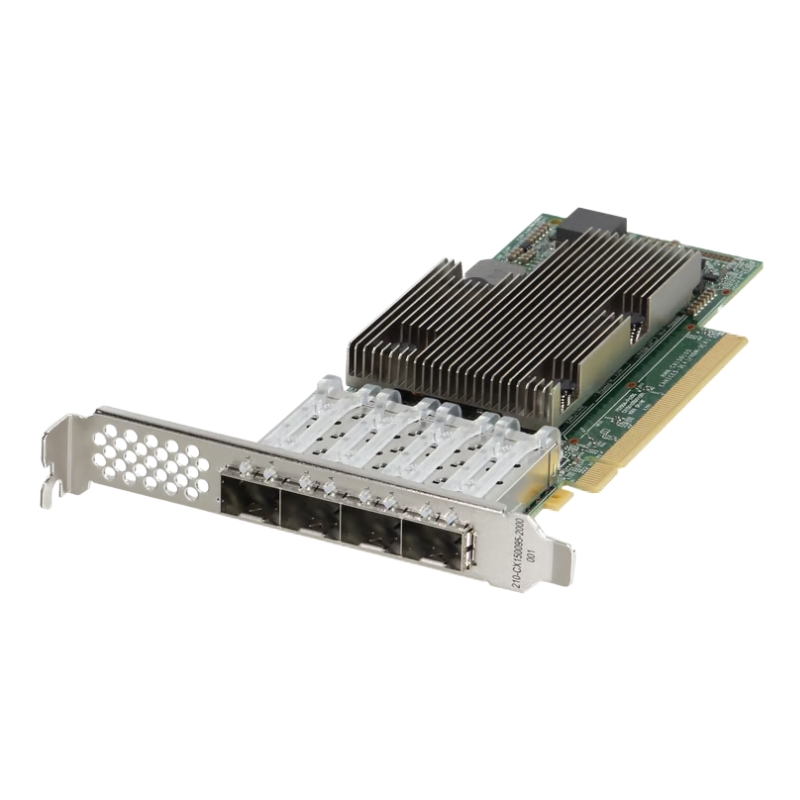

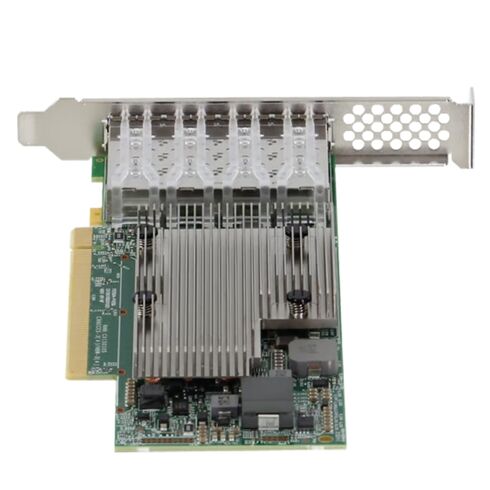

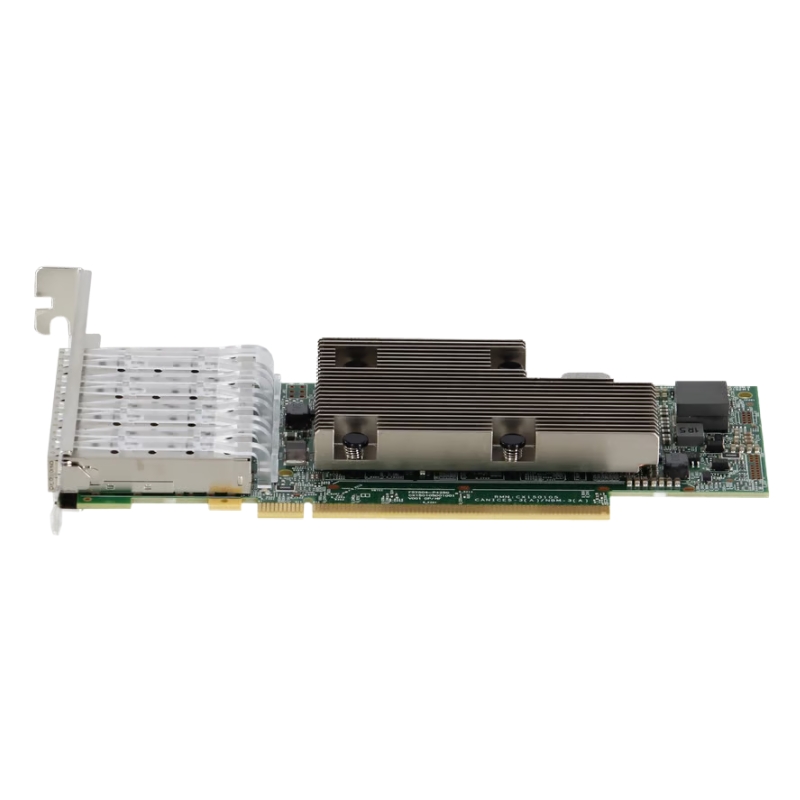

540-BDDB Dell Broadcom 25Gb Ethernet SFP28 PCI-E Network Adapters 4 Ports

Highlights of Dell 25GB SFP28 Adapters

The Dell 540-BDDB Broadcom Quad-Port 25GbE SFP28 PCIe Adapter is a high-performance enterprise networking solution engineered for ultra-fast connectivity. With PCI Express support and four SFP28 ports, this adapter ensures reliable throughput, scalability, and efficiency for modern data centers, virtualization, and cloud infrastructures.

Manufacturer Details

• Brand: Dell Technologies
• Part Number: 540-BDDB
• Device Type: Network Adapter

Technical Specifications

• Form Factor: Plug-in Card with Full-Height Bracket
• Bus Interface: PCI Express (PCIe)

Port Configuration

• Ports: Quad-port (4 x SFP28)
• Port Type: SFP28 (Small Form-Factor Pluggable 28)
• Data Transfer Rate: Up to 25Gbps per port (100Gbps aggregate)
• Supported Speeds: 10GbE / 25GbE Ethernet
• Connectivity Technology: Wired
• Network Technology: 25GBase-X Ethernet

Compatibility

Rack Servers

• PowerEdge R640 / R650 / R660
• PowerEdge R740 / R740xd / R740xd2
• PowerEdge R750 / R750xa
• PowerEdge R760 / R760xa / R760xd2
• PowerEdge R840 / R860
• PowerEdge R940 / R940xa / R960
• PowerEdge R6515 / R6525
• PowerEdge R7515 / R7525
• PowerEdge R6615 / R6625
• PowerEdge R7615 / R7625

Tower Servers

• PowerEdge T560

XE & XR Series (Specialized/Rugged/AI)

• PowerEdge XE8640 / XE9680
• PowerEdge XR11 / XR12
• PowerEdge XR5610 / XR7620

Dell 540-BDDB 25GB SFP28 PCIE Network Adapter Overview

The Dell 540-BDDB Broadcom 25 Gigabit Ethernet SFP28 Full Height PCI-E Network Adapter with 4 Ports represents a high-density enterprise networking solution engineered for modern data center environments where bandwidth scalability, low latency communication, and efficient multi-queue packet processing are critical. Built on Broadcom silicon architecture and integrated within Dell’s validated server ecosystem, this network adapter delivers advanced throughput performance while maintaining stability across virtualization, cloud computing, and high-performance storage workloads.

This category of network adapter is designed to bridge next-generation networking requirements with PCI Express-based server infrastructures, enabling organizations to transition from legacy 10GbE environments to 25GbE high-speed connectivity without a complete overhaul of existing data center architectures. The multi-port design enhances aggregation efficiency, while SFP28 optical compatibility ensures flexible media deployment across short-range and long-range optical links.

High-Speed 25GbE Fundamentals and Performance Scaling

Evolution from 10GbE to 25GbE Architecture

The transition from 10 Gigabit Ethernet to 25 Gigabit Ethernet reflects the exponential increase in data consumption across enterprise workloads. Applications such as real-time analytics, distributed databases, artificial intelligence processing, and hyper-converged infrastructure demand significantly higher bandwidth per server node. The 25GbE standard provides 2.5 times the throughput of traditional 10GbE while maintaining similar physical infrastructure principles, allowing smoother migration paths and cost-effective scalability.

The Dell 540-BDDB adapter leverages this advancement by offering four independent 25GbE channels, effectively delivering aggregated throughput suitable for high-density rack deployments. This makes it ideal for top-of-rack switching architectures where oversubscription ratios must be minimized for predictable performance.

Low Latency Packet Processing Mechanisms

Latency-sensitive environments benefit from the optimized packet processing engine embedded within Broadcom network controllers. The adapter supports hardware offloading capabilities that reduce CPU overhead and improve packet forwarding efficiency. By handling checksum computation, segmentation, and virtualization tagging directly within the NIC, system resources are freed for application-level workloads.

This architecture is particularly beneficial in environments utilizing microservices, containerized applications, and distributed computing frameworks where inter-node communication frequency is extremely high.

SFP28 Optical Interface and Connectivity Flexibility

Modular Transceiver Design Advantages

SFP28 ports provide a modular approach to network connectivity, allowing administrators to choose appropriate transceivers based on distance and medium requirements. Whether deploying direct attach copper cables for short rack-to-rack connections or optical fiber modules for extended data center interconnects, the Dell 540-BDDB adapter ensures adaptability across diverse networking topologies.

The SFP28 interface supports hot-swappable transceivers, enabling minimal downtime during maintenance or upgrades. This feature is essential for mission-critical infrastructures where continuous uptime is required.

Signal Integrity and Transmission Efficiency

Maintaining signal integrity at 25Gbps per lane requires advanced encoding and error correction mechanisms. The adapter employs forward error correction (FEC) to maintain stable transmission even in electrically noisy environments. This ensures consistent performance in dense server racks where electromagnetic interference may otherwise degrade signal quality.

Optical and Copper Media Support

The versatility of SFP28 extends to both optical fiber and copper-based DAC solutions. Optical fiber is preferred for long-distance connectivity within or between data centers, while DAC cables provide cost-efficient short-range connections with minimal latency overhead. The flexibility of media selection makes the adapter suitable for varied deployment scenarios without hardware replacement.

PCI Express Interface and System Integration

High-Bandwidth PCIe Lane Utilization

The Dell 540-BDDB network adapter is engineered for PCI Express architecture, ensuring direct high-speed communication between the network interface and the server CPU. By utilizing multiple PCIe lanes, the adapter minimizes bottlenecks and ensures full utilization of available network bandwidth.

PCIe-based communication also allows advanced features such as direct memory access (DMA), which significantly reduces CPU involvement in packet handling and enhances system efficiency under heavy network loads.

Full Height Form Factor Design Considerations

The full height form factor provides mechanical stability and improved thermal dissipation capabilities, which are essential for sustained high-throughput operations. In dense server environments, heat generation is a critical factor, and the structural design of this adapter supports effective airflow alignment within rack-mounted systems.

Thermal Management Efficiency

Advanced thermal design ensures that the Broadcom controller and supporting components maintain optimal operating temperatures even under continuous maximum throughput conditions. This contributes to long-term hardware reliability and reduces the risk of thermal throttling.

Four-Port Network Architecture and Aggregation Efficiency

Multi-Port Bandwidth Distribution

The presence of four independent 25GbE ports allows for advanced traffic segmentation and workload distribution. Each port can be configured for dedicated tasks such as storage traffic, virtualization networks, backup channels, or cluster communication, ensuring predictable performance isolation.

This architecture significantly enhances network flexibility in environments where multiple application tiers require dedicated bandwidth resources.

Link Aggregation and Load Balancing

Link aggregation allows multiple ports to function as a single logical interface, increasing total throughput and providing redundancy. In enterprise environments, this is essential for maintaining continuous connectivity even in the event of a single link failure.

Redundancy and Failover Capabilities

The adapter supports failover configurations where traffic is automatically rerouted across active links. This ensures uninterrupted service delivery in mission-critical applications such as financial systems, cloud platforms, and database clusters.

Enterprise Data Center Deployment Scenarios

Cloud Infrastructure Optimization

Cloud computing environments rely heavily on horizontal scalability and distributed networking. The Dell 540-BDDB adapter provides the necessary bandwidth backbone for virtual machine migration, container orchestration, and distributed storage access across hypervisor clusters.

Its high port density allows cloud operators to maximize server utilization while minimizing network congestion between compute nodes.

Hyper-Converged Infrastructure Integration

Hyper-converged systems combine compute, storage, and networking into unified architectures. In such environments, 25GbE connectivity ensures that storage replication and compute workloads operate without network-induced delays. The adapter’s performance capabilities support real-time synchronization across nodes.

Storage Acceleration Workloads

High-speed network access is essential for storage-intensive operations such as NVMe over Fabrics and distributed file systems. The adapter ensures consistent low-latency communication between storage nodes, improving overall system responsiveness.

High-Performance Computing Clusters

HPC environments require extremely fast inter-node communication for parallel processing tasks. The 25GbE throughput enables efficient data exchange between compute nodes, reducing bottlenecks in scientific simulations, machine learning training, and computational modeling workloads.

Virtualization and Software-Defined Networking Capabilities

Virtual Machine Network Acceleration

The adapter supports virtualization offloading technologies that reduce overhead in virtualized environments. Features such as SR-IOV allow direct assignment of virtual functions to guest machines, enabling near-native network performance within virtual machines.

This enhances scalability in environments running VMware, Hyper-V, or KVM-based infrastructures.

Software-Defined Network Integration

Software-defined networking architectures benefit from programmable network interfaces that can dynamically adjust traffic flow based on policy rules. The adapter supports advanced tagging and segmentation mechanisms that integrate with SDN controllers for automated traffic orchestration.

Microsegmentation and Traffic Isolation

Microsegmentation allows granular control over network traffic between workloads, improving security posture and reducing lateral movement risks in distributed environments. The adapter’s hardware-level support ensures these policies are enforced efficiently.

Security Enhancements and Data Integrity Protection

Hardware-Level Offload Security Features

Security in enterprise networking is enhanced through hardware-based packet inspection and checksum validation. By offloading these processes from the CPU, the adapter ensures faster packet validation while maintaining system performance.

Secure Network Segmentation

Enterprise environments often require strict separation of workloads for compliance and operational security. The adapter supports VLAN tagging and isolation mechanisms that ensure secure traffic segmentation across multiple departments and services.

Encryption and Data Protection Support

While encryption is often handled at higher network layers, the adapter ensures compatibility with encrypted traffic flows and supports efficient processing of secure communication protocols without degrading throughput.

Performance Optimization and Tuning Strategies

Packet Processing Optimization Techniques

Optimizing packet flow involves adjusting buffer sizes, interrupt moderation, and queue distribution. These settings allow administrators to tailor network performance based on workload requirements, whether prioritizing latency or throughput.

Traffic Prioritization and QoS Implementation

Quality of Service configurations enable prioritization of critical traffic streams such as storage replication or real-time communication services. This ensures that essential workloads maintain consistent performance even under network congestion.

Advanced Queue Management

The adapter supports multiple receive and transmit queues that distribute network load efficiently across CPU cores. This parallel processing model significantly enhances throughput in multi-threaded server environments.
