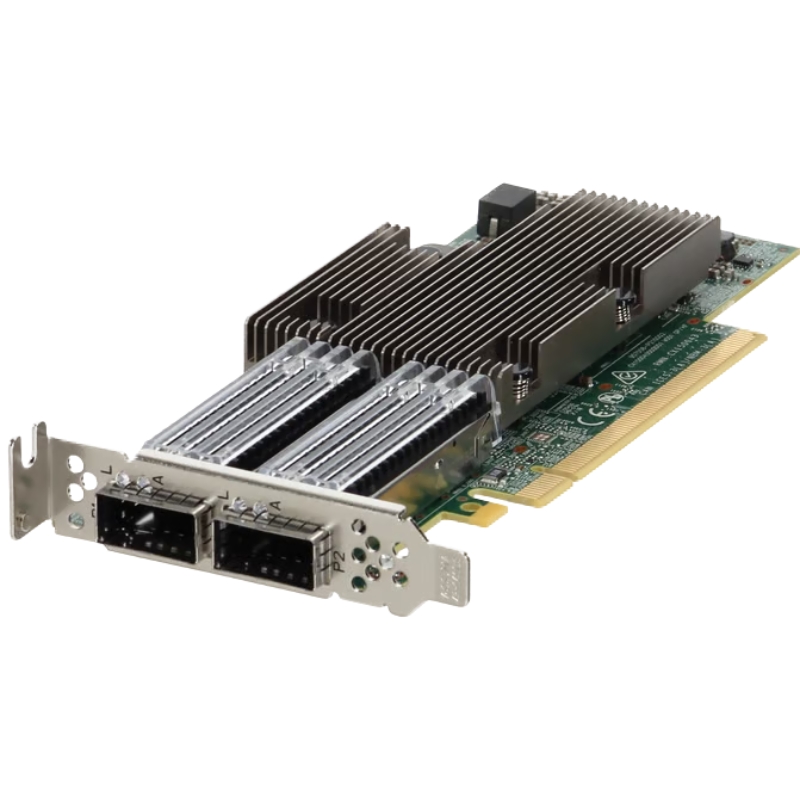

540-BDED Dell Broadcom 100GBPS QSFP56 PCI-E 4.0 2 Ports Network Adapter

Dell 540-BDED 2 Ports Network Adapter

The Dell 540-BDED Broadcom 57508 dual-port network adapter represents a monumental leap in server networking capability. Engineered for the most demanding data center, high-performance computing (HPC), and cloud environments, this adapter transforms server connectivity by providing an aggregate bandwidth of 200 gigabits per second (2x 100GbE). Built on the cutting-edge Broadcom BCM57508 controller and utilizing the high-bandwidth PCI Express 4.0 x16 interface, it is designed to eliminate network bottlenecks, accelerate data-intensive applications, and future-proof IT infrastructure for next-generation workloads. This network interface card (NIC) is the cornerstone for building low-latency, high-throughput spine-leaf architectures and is integral for applications involving artificial intelligence, machine learning, real-time analytics, and large-scale storage.

Core Technology

The power of the Dell 540-BDED stems from its sophisticated internal architecture, which is meticulously designed to handle massive packet processing at line rate with exceptional efficiency.

Broadcom BCM57508 Network Controller

At the heart of the adapter lies the Broadcom BCM57508, a highly integrated Ethernet controller built on a 16nm process. This chip features a powerful multi-core Arm processor complex dedicated to offloading critical networking functions from the host CPU. It incorporates advanced packet processing pipelines, sophisticated buffer management, and hardware accelerators that are essential for modern virtualized and bare-metal deployments. The controller's design emphasizes not just raw speed but intelligent packet handling, which drastically reduces CPU utilization and improves overall system performance.

PCI Express 4.0 x16 Host Interface

The adapter leverages a full PCI Express 4.0 x16 lane interface, providing a staggering 31.5 GB/s of bidirectional host bandwidth. This immense bus bandwidth is critical to fully saturate the 200G capability of the dual 100GbE ports without creating a bottleneck at the slot. It ensures that data flows seamlessly between the network and system memory, enabling applications to realize the full potential of the high-speed network links. Compatibility with PCIe 3.0 systems is maintained, though at correspondingly lower host-side bandwidth.

QSFP56 Form-Factor and 100GbE Standards

Each port utilizes a QSFP56 (Quad Small Form-factor Pluggable 56) cage, supporting a variety of industry-standard 100 Gigabit Ethernet physical layers. The "56" denotes 56 Gbps per lane electrical signaling, enabling 100GbE using four lanes (4x 25G NRZ or 4x 50G PAM4, depending on the transceiver and cable type). This adapter natively supports standards like 100GBASE-SR4, 100GBASE-LR4, and 100GBASE-CR4 via the appropriate pluggable modules or direct-attach cables (DACs). The QSFP56 form-factor is also forward-compatible with next-generation 200G and 400G optics using breakout cables, offering significant investment protection.

Hardware Specifications and Physical Details

Form Factor and Dimensions

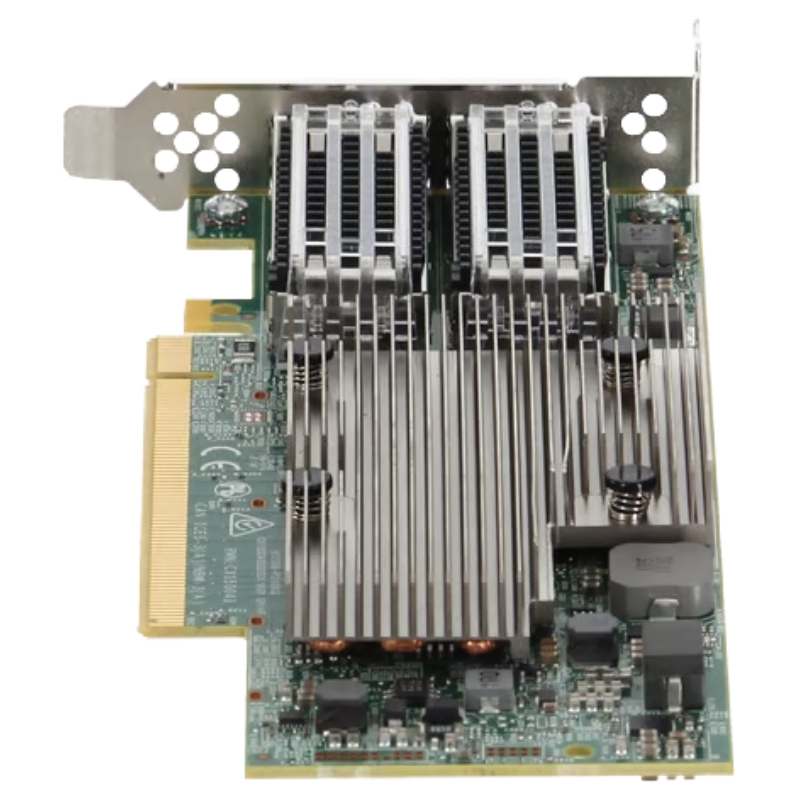

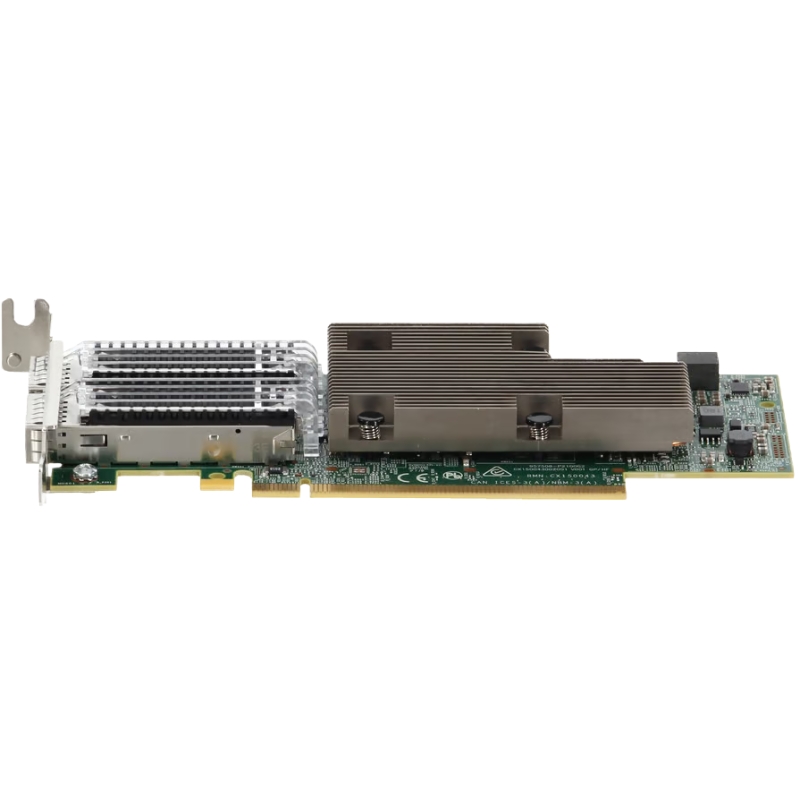

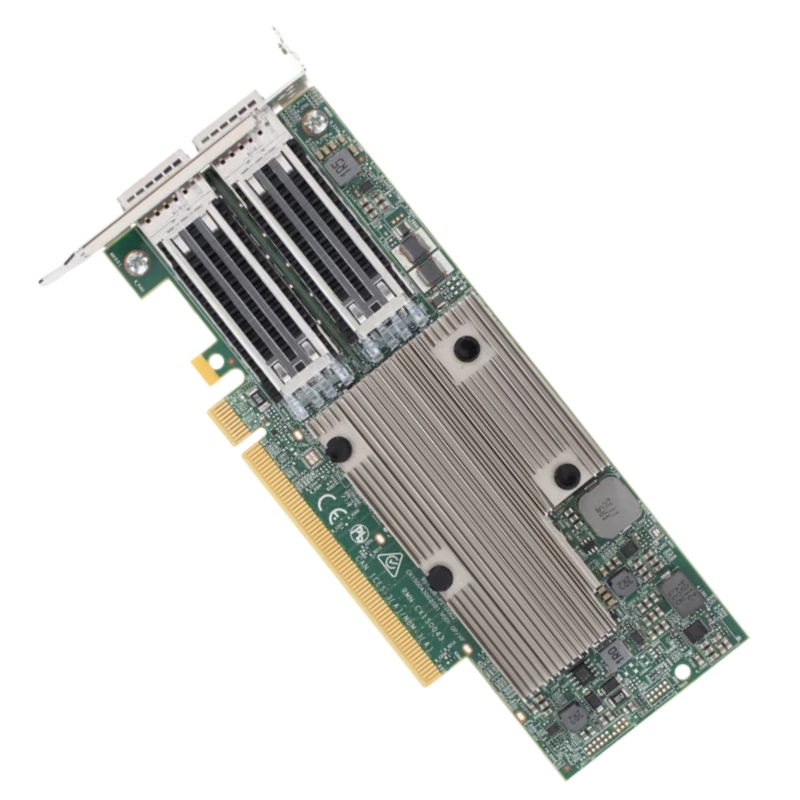

The Dell 540-BDED is a full-height, full-length (FHFL) add-in card, designed to fit into standard server PCIe slots. Its substantial heatsink is engineered for optimal thermal dissipation under constant full-load operation, which is crucial for maintaining performance and reliability in dense server configurations.

Port Configuration and Transceiver Compatibility

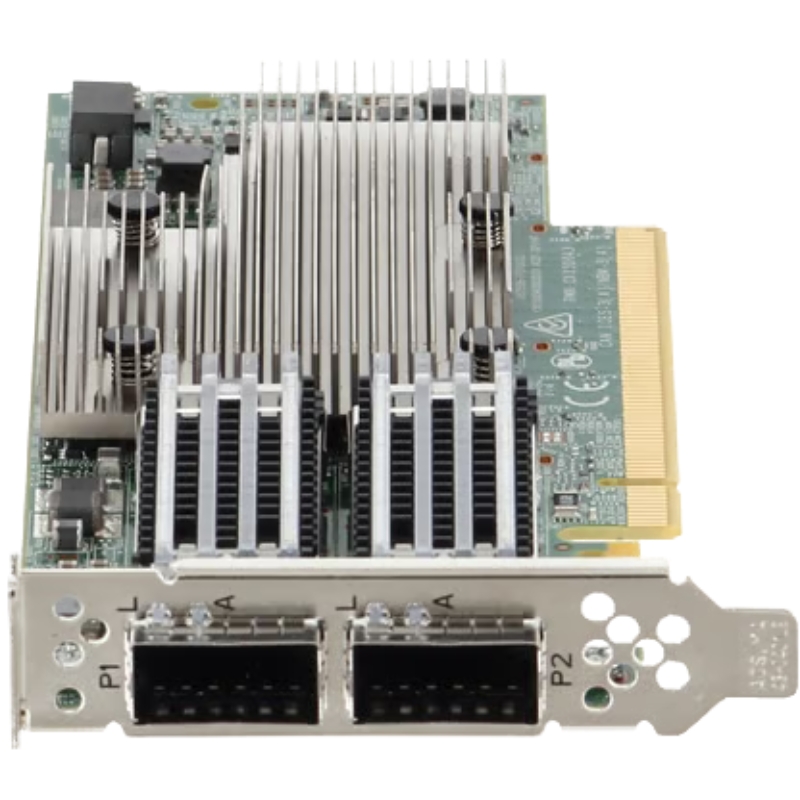

The card features two independent QSFP56 ports. These ports are auto-negotiating and can support a wide array of connectivity options:

Supported Transceivers & Cables: 100GbE QSFP28 optical transceivers (SR4, LR4, etc.), QSFP56 optical transceivers, QSFP28 to QSFP28 Direct Attach Copper (DAC) cables, QSFP28 to 4x SFP28 breakout DACs (for connecting to four 25GbE devices), and Active Optical Cables (AOCs). It is essential to use Dell-qualified or Broadcom-compliant transceivers and cables for guaranteed performance and interoperability.

Advanced Feature Set for Modern Data Centers

Beyond raw throughput, the Dell 540-BDED is packed with features that address the complexities of contemporary network deployments.

Comprehensive Virtualization Offloads (SR-IOV, VxLAN/NVGRE)

The adapter provides robust hardware support for virtualization. Single Root I/O Virtualization (SR-IOV) allows the physical adapter to present itself as multiple virtual functions (VFs), which can be assigned directly to virtual machines or containers. This bypasses the hypervisor's virtual switch for I/O, delivering near-native performance and extremely low latency to VMs. Furthermore, it includes hardware offloads for overlay network protocols like VxLAN and NVGRE, ensuring that encapsulated traffic is processed efficiently without burdening the host CPU.

RDMA over Converged Ethernet (RoCE v2)

A critical feature for HPC and storage networks is support for Remote Direct Memory Access (RDMA) via RoCE v2. This protocol allows one computer to directly access the memory of another over the network without involving the operating system or CPUs of either machine. This dramatically reduces latency and CPU overhead, which is vital for clustered applications, distributed databases like Microsoft SQL Server, and software-defined storage solutions like VMware vSAN or Windows Storage Spaces Direct.

Precision Time Protocol (PTP) and Synchronization

For applications requiring precise time synchronization across the network, such as financial trading, telecommunications (5G), and scientific computing, the adapter offers hardware timestamping support for IEEE 1588 PTP. This allows for microsecond-level clock synchronization across servers, ensuring coordinated operations.

Security and Encryption Offloads

To maintain high performance while securing data in flight, the adapter includes offload engines for standard encryption protocols. It supports IPsec and TLS offloading, enabling line-rate encryption and decryption for VPNs and secure web traffic without imposing a performance penalty on the host system's CPU resources.

Deployment Scenarios and Ideal Use Cases

The Dell 540-BDED is not a general-purpose NIC; it is a strategic component for specific high-performance scenarios.

High-Performance Computing and Grid Computing

For scientific simulations, financial modeling, and genomic sequencing, HPC workloads involve massive parallel communication. The adapter's low latency and high message rate are essential for the Message Passing Interface (MPI) traffic that binds compute nodes together, ensuring efficient scaling of applications across hundreds or thousands of servers.

Hyper-Converged Infrastructure

Solutions like VMware vSAN, Nutanix, and Microsoft's Storage Spaces Direct (S2D) rely on a high-speed, low-latency network backplane for synchronous replication and storage traffic. The Dell 540-BDED, with its RoCE and DCB capabilities, provides the recommended "bump-in-the-wire" hardware acceleration for these environments, ensuring predictable performance and resilience.

Data Center Spine-Leaf Network Fabric

As a server leaf connection in a modern CLOS architecture, this adapter provides the essential 100GbE uplinks from high-value servers to the leaf switches. It enables a non-blocking, any-to-any connectivity model that is scalable and low-latency, forming the foundation of cloud and large enterprise data centers.

High-Frequency Trading and Real-Time Analytics

In environments where microseconds matter, the combination of ultra-low latency, high packet processing rates, and precise timing (PTP) makes this adapter ideal for processing real-time market data feeds and executing algorithmic trades with minimum delay.

Performance Considerations and Best Practices

To achieve the rated performance, careful system design is necessary.

Server Platform Requirements

Deploying this adapter requires a server with an available PCI Express 4.0 x16 slot (or PCIe 3.0 x16, with bandwidth awareness) and a CPU platform capable of handling the data flow. Sufficient cooling airflow across the card's heatsink is mandatory. The host system should have ample memory bandwidth and fast multi-core processors to feed the network pipeline, preventing the server itself from becoming the bottleneck.

Network Infrastructure Considerations

The upstream network switches must be capable of 100GbE switching with matching features (e.g., DCB, RoCE, VxLAN routing). Proper switch configuration for jumbo frames (MTU 9000 or higher), flow control, and QoS is essential to realize the benefits of RDMA and lossless Ethernet. Cable quality and length must adhere to the specifications for the chosen transceiver type to ensure signal integrity.

Application Optimization

Ultimately, applications must be architected or configured to leverage high-speed networking. This may involve using RDMA-enabled libraries (like libfabric or RDMA Core), configuring MPI for low-latency transports, or ensuring storage software is set to use the appropriate network interfaces and protocols.
