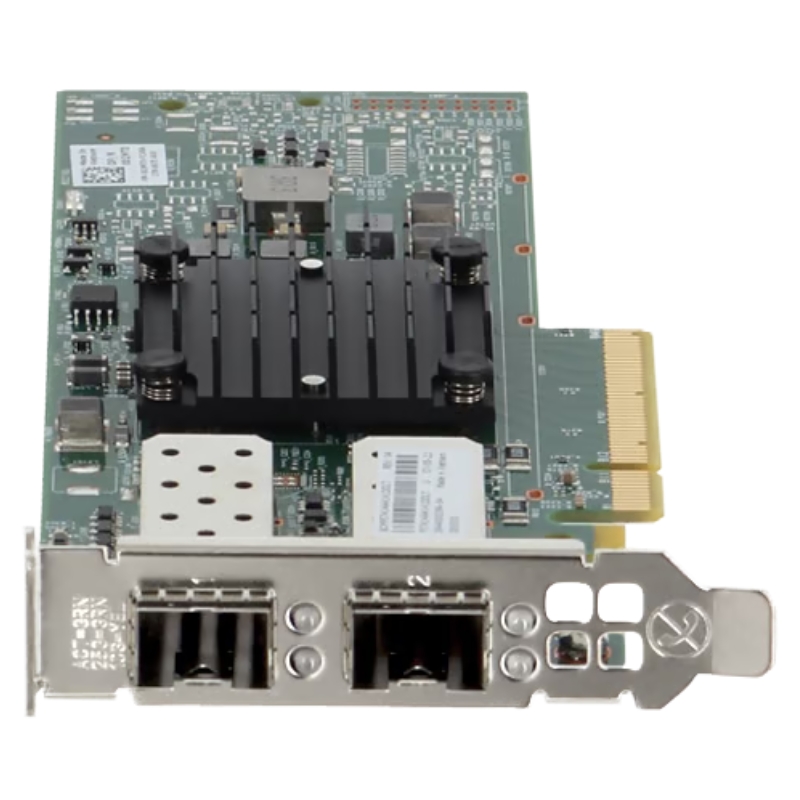

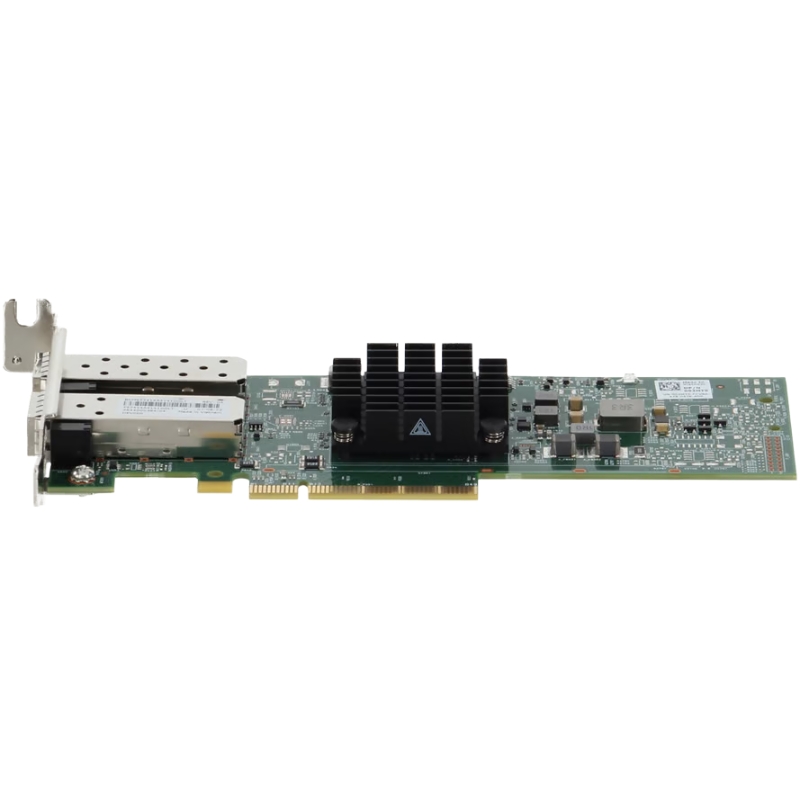

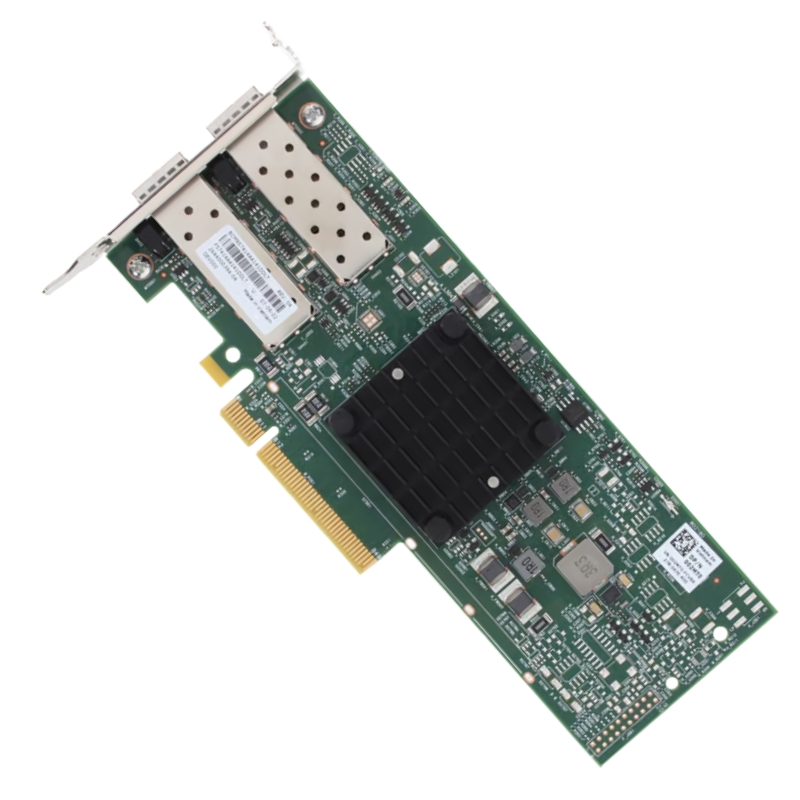

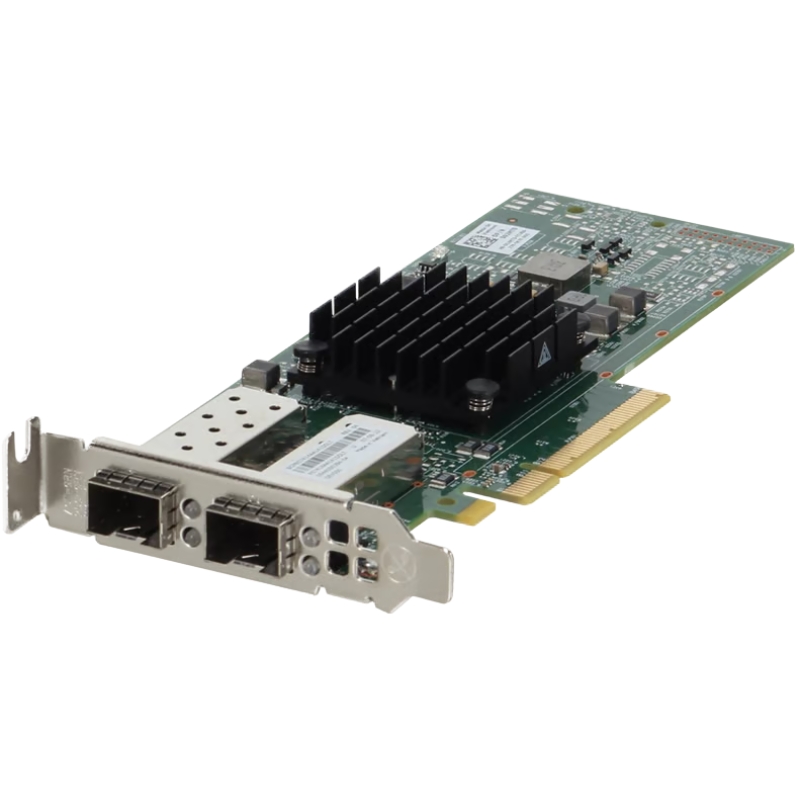

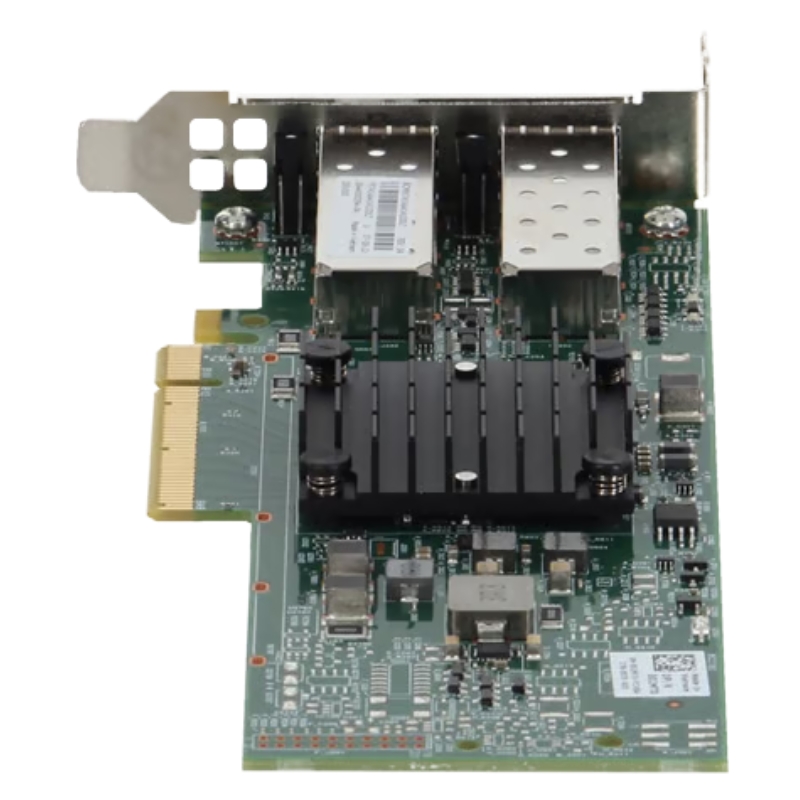

540-BDHY Dell Broadcom 2 Ports 25GB SFP28 PCI-E Network Adapter

Understanding of Dell Broadcom 25GbE Network Adapter

The Dell 540-BDHY Broadcom 57414 is a high-performance, dual-port 25 Gigabit Ethernet (25GbE) PCIe network interface card (NIC) engineered for modern data centers and enterprise server environments. As a critical component for network modernization, it bridges the gap between legacy 10GbE infrastructure and the high-speed demands of next-generation 40/100/200/400GbE backbones. By leveraging the mature and reliable Broadcom NetXtreme®-E BCM57414 controller, this adapter delivers exceptional throughput, ultra-low latency, and advanced virtualization features, making it an ideal solution for bandwidth-intensive applications, virtualized server hosts, and high-performance computing (HPC) clusters where network I/O is a potential bottleneck.

Key Specifications

The adapter's design is centered on delivering raw performance and efficiency through a carefully selected set of components and interfaces.

Interface and Form Factor Details

The card utilizes a PCI-Express 3.0 x8 host interface, providing ample bandwidth to handle the full duplex capacity of both 25GbE ports simultaneously without contention. It is typically offered in a standard full-height, half-length (FHHL) form factor, ensuring broad compatibility with a wide range of server chassis from Dell PowerEdge and other OEM platforms.

Port Configuration and Transceiver Support

This NIC features two independent SFP28 (Small Form-factor Pluggable 28) ports. The SFP28 form factor is the industry standard for 25GbE connectivity and is backward compatible with SFP+ modules. This allows for significant flexibility in network deployment.

Supported Transceiver Types and Speeds

The ports auto-negotiate link speeds, supporting 1GbE, 10GbE, and 25GbE operation depending on the installed SFP/SFP+/SFP28 module and connected switch. Supported optic types include 25GBASE-SR (multimode fiber for short reaches), 25GBASE-LR (single-mode fiber for long reaches), and 25GBASE-CR (Direct Attach Copper/twinax cables for top-of-rack connectivity). This versatility enables seamless integration into existing 10G infrastructure with a clear, cost-effective path to 25G migration.

Broadcom BCM57414 Controller Deep Dive

At the heart of the adapter is the Broadcom NetXtreme-E BCM57414 system-on-a-chip (SoC). This highly integrated controller is a hallmark of modern NIC design, offloading critical network processing tasks from the host CPU to enhance overall system performance.

Network Function Acceleration

The BCM57414 features comprehensive stateless offload engines for TCP/UDP/IP checksum calculation and segmentation offload (TSO for Tx, LRO for Rx). This significantly reduces CPU utilization per gigabit of data transferred, freeing processor cores for application workloads. For storage traffic, the adapter supports RDMA over Converged Ethernet (RoCE) v2, enabling low-latency, kernel-bypass data transfers essential for hyper-converged infrastructure (HCI) and NVMe-oF (Non-Volatile Memory Express over Fabrics) implementations.

Advanced Security and QoS Offloads

The controller includes hardware acceleration for industry-standard AES-GCM 256/128 encryption for both MACsec (IEEE 802.1AE) and IPsec, providing line-rate security without performance degradation. It also supports advanced quality of service (QoS) features like Priority Flow Control (PFC) and Enhanced Transmission Selection (ETS), which are fundamental for implementing lossless data center bridging (DCB) and converged storage networks.

Performance and Deployment Scenarios

The Dell 540-BDHY is purpose-built for environments where network performance directly impacts business operations and application responsiveness.

High-Density Virtualization and Cloud Platforms

In virtualized server hosts (e.g., VMware vSphere, Microsoft Hyper-V, KVM), network I/O virtualization is paramount. The adapter leverages SR-IOV (Single Root I/O Virtualization) technology to create hundreds of virtual functions (VFs), which can be assigned directly to virtual machines. This bypasses the hypervisor's virtual switch for data traffic, delivering near-native network performance, consistent low latency, and improved VM density per host.

NIC Partitioning (NPAR) Feature

Complementing SR-IOV is NIC Partitioning. NPAR allows a single physical port to be divided into multiple, logically distinct physical functions (PFs), each with dedicated bandwidth and traffic classes. This enables efficient infrastructure sharing in multi-tenant environments and simplifies network traffic management for different application tiers (e.g., separating management, vMotion, and VM traffic on a single card).

Defined Storage and HCI Backbone

The combination of high 25GbE bandwidth and RoCE v2 support makes this adapter a cornerstone for software-defined storage (SDS) and HCI platforms like VMware vSAN, Microsoft Storage Spaces Direct, and Nutanix. RDMA facilitates ultra-fast communication between nodes, drastically reducing storage network latency and CPU overhead, which translates to higher IOPS and lower application response times.

Traffic Optimization for Converged Networks

When deployed in converged networks carrying both LAN and SAN traffic, the adapter's DCB capabilities (PFC, ETS) ensure that storage traffic (e.g., iSCSI, NVMe-oF) is allocated a guaranteed, lossless lane. This prevents packet loss due to buffer congestion, which is catastrophic for storage protocols, while efficiently sharing the physical link with other data types.

Key Advantages

The Dell 540-BDHY offers a compelling set of advantages that distinguish it in the 25GbE adapter market.

Protection and Flexible

The SFP28 interface's backward compatibility with ubiquitous SFP+ optics and DAC cables is a major cost-saving benefit. Organizations can upgrade server connectivity to 25G while continuing to use existing 10G switch ports or optics during a phased migration, spreading out capital expenditure.

Enhanced Power Efficiency

The Broadcom 57414 controller is built on an advanced process node and incorporates power-saving technologies like ASPM (Active State Power Management) and adaptive link rate scaling. This results in lower operational power consumption per gigabit compared to previous-generation adapters.

Enterprise-Grade Reliability

As a Dell-branded and supported product, the adapter comes with the assurance of Dell's global service and support network. This includes access to technical resources, firmware/driver updates tailored for Dell platforms, and optional ProSupport warranties. Features like link failover and teaming (via Broadcom Teaming or OS-native capabilities) provide additional resilience for critical workloads.

Comprehensive Virtualization Feature Set

The synergistic combination of SR-IOV, NPAR, and VXLAN/NVGRE offloading creates a comprehensive solution for modern, software-defined data centers. This allows for the creation of highly efficient, scalable, and agile virtualized infrastructure with minimal network-related performance tax.

Deployment Scenarios and Ideal Use Cases

The transition to 25GbE is driven by specific workload demands and architectural shifts in modern IT environments. The Dell 540-BDHY adapter is particularly suited for several key scenarios.

Hyper-Converged Infrastructure (HCI)

In HCI platforms like VMware vSAN or Microsoft Storage Spaces Direct, network bandwidth is a primary determinant of cluster performance and scalability. The 25GbE throughput provided by this adapter significantly reduces data synchronization times, accelerates live migrations (vMotion), and improves storage I/O between nodes. The offload capabilities free up host CPU cycles for virtual machines rather than network processing.

High-Performance Storage Connectivity

Connecting servers to all-flash storage arrays or NAS appliances over iSCSI or NFS often saturates 10GbE links. The Dell 540-BDHY, with its iSCSI offload support, is an ideal solution for high-speed storage area networks (SAN), enabling faster data access, quicker backups, and improved performance for database applications running on local or networked storage.

Data Center Spine-and-Leaf Fabric Uplinks

In modern leaf-spine network architectures, 25GbE has become the standard link speed from servers to top-of-rack (ToR) leaf switches. Deploying this adapter in rack servers provides a cost-effective, high-bandwidth connection to the network fabric, ensuring efficient east-west traffic flow essential for microservices, containerized applications, and big data processing frameworks like Hadoop and Spark.
