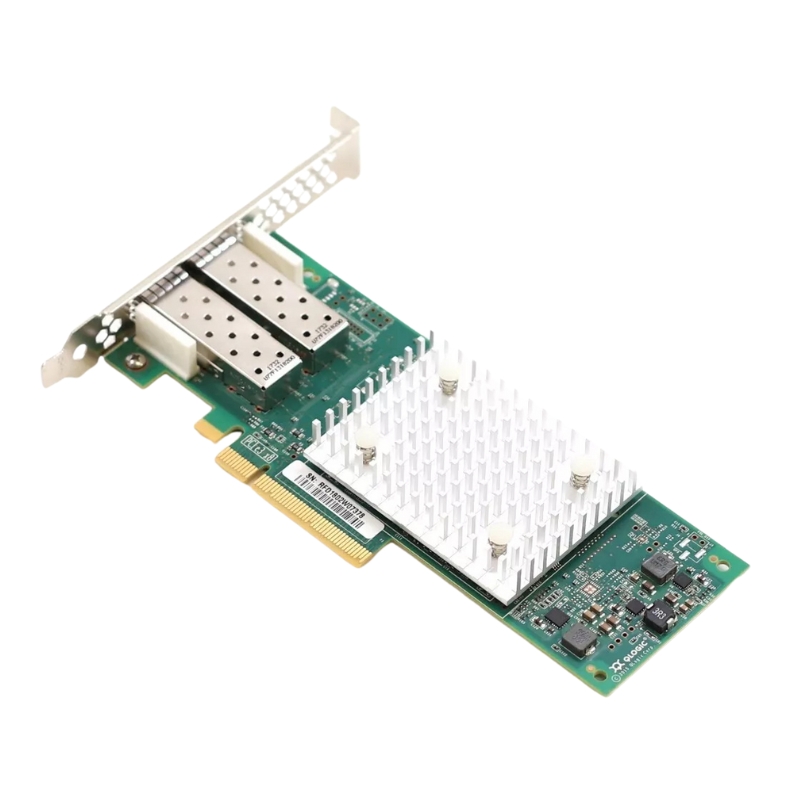

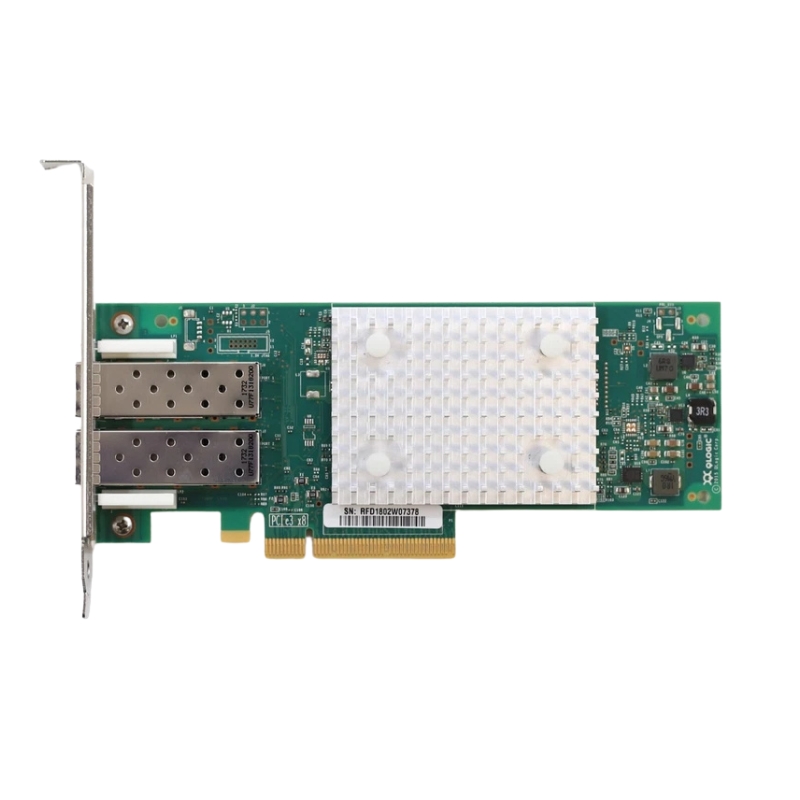

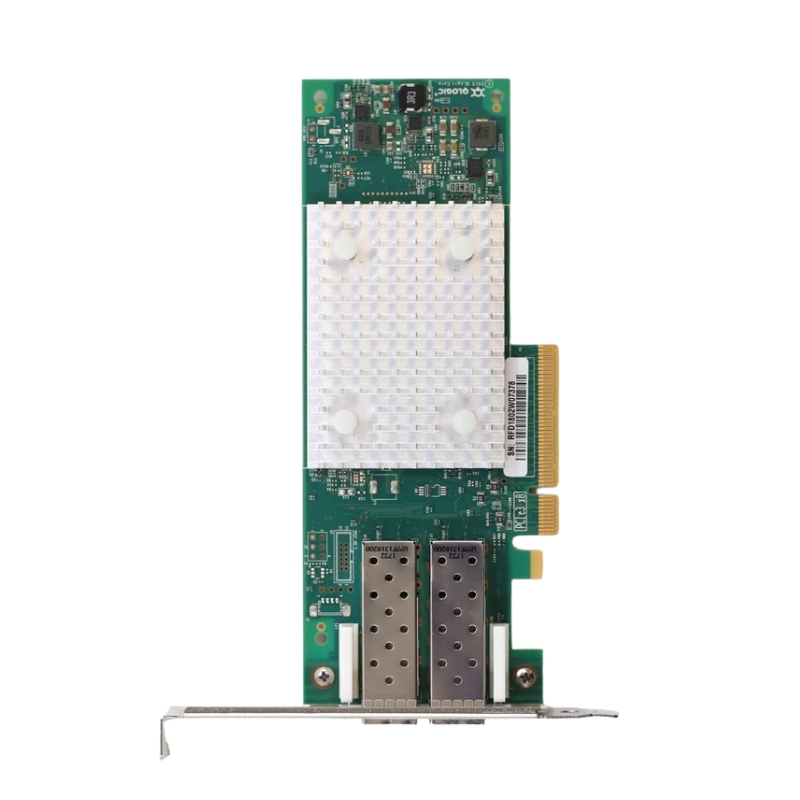

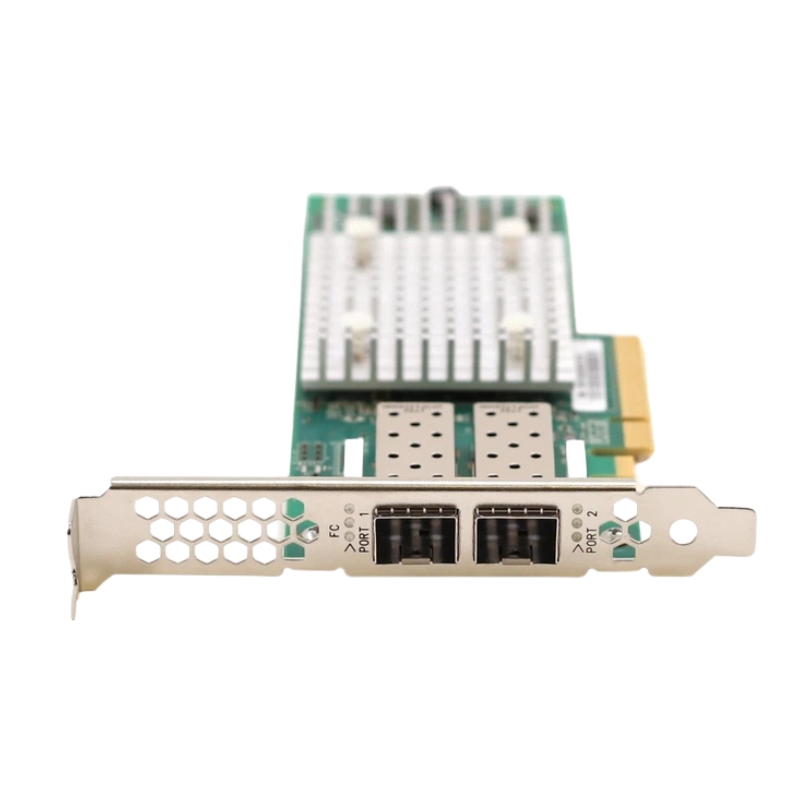

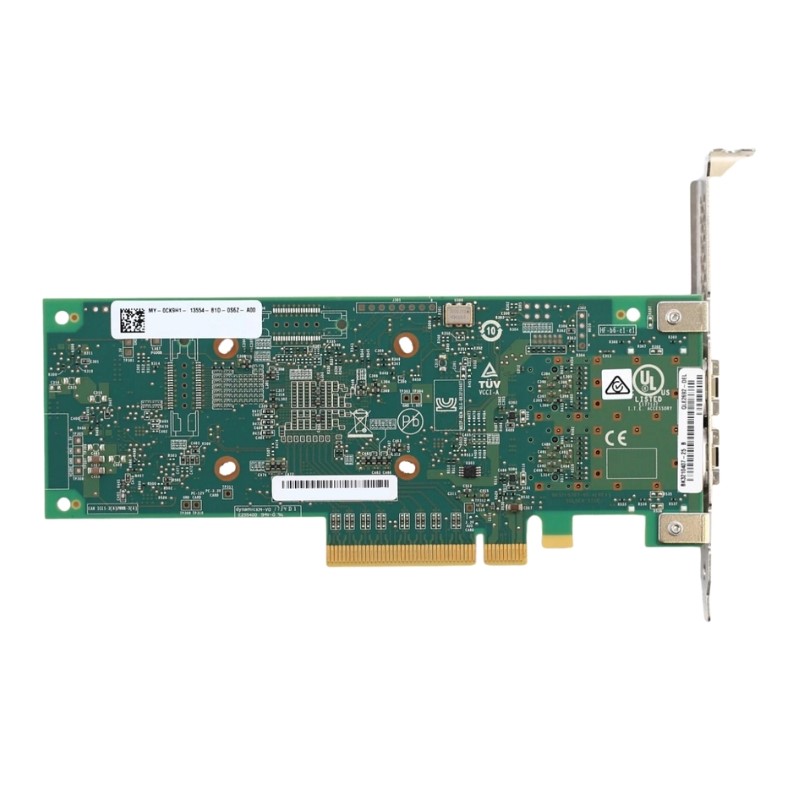

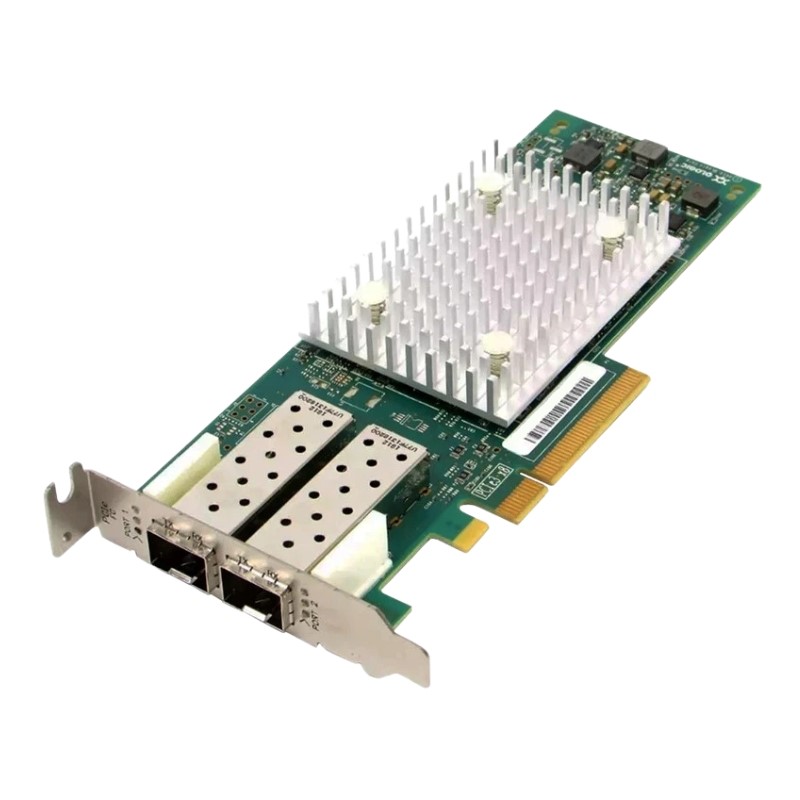

540-BDIB Dell QLogic 2 Ports Fibre Channel Host Bus Adapter.

Dell 540-BDIB QLogic 2692 16GB Host Bus Adapter

The Dell 540-BDIB represents a significant advancement in high-performance Fibre Channel connectivity, engineered specifically for demanding enterprise storage environments. This dual-port 16Gb Fibre Channel Host Bus Adapter (HBA) leverages QLogic's proven 2692 controller technology to deliver exceptional throughput, reliability, and scalability for SAN infrastructures. Designed for seamless integration with Dell PowerEdge servers and storage solutions, this HBA provides the critical connectivity backbone for data-intensive applications, virtualized environments, and high-transaction databases where low latency and consistent performance are paramount.

Key Specifications

At the core of the 540-BDIB adapter is the QLogic 2692 series controller, a field-proven ASIC that delivers full-line-rate performance of 16 Gbps per port simultaneously. With a PCI Express 3.0 x8 host interface, this HBA ensures no bandwidth bottleneck between the adapter and server platform. The adapter supports data transfer rates of 16Gb/s, 8Gb/s, 4Gb/s, and 2Gb/s, maintaining backward compatibility with existing Fibre Channel infrastructure while enabling smooth migration to higher speeds. Each port operates independently, providing aggregate throughput of up to 3200 MB/s (dual-port full duplex), making it ideal for bandwidth-intensive workloads and consolidated virtual environments.

Controller Chipset Details

The QLogic 2692 controller represents the fourth generation of Fibre Channel technology from QLogic, featuring a highly integrated design that reduces component count while increasing functionality. This single-chip solution incorporates the Fibre Channel protocol engine, PCI Express interface, memory controller, and DMA engines all within a single piece of silicon. The integration provides significant advantages in power efficiency, reduced latency, and improved reliability compared to multi-chip designs. The controller supports advanced features like T10 Protection Information (T10 PI) for end-to-end data integrity, hardware-assisted virtualization, and comprehensive diagnostic capabilities.

Physical Dimensions and Form Factor

The Dell 540-BDIB adheres to the standard low-profile (LP) MD2 form factor, measuring 6.6 inches in length and utilizing a half-height bracket design. This compact form factor ensures compatibility with a wide range of server chassis, including space-constrained 1U and blade server configurations. The adapter includes both low-profile and full-height brackets in the package, providing flexibility for deployment in various server form factors. The board features a standard PCI Express edge connector with x8 lane configuration, compliant with PCI Express 3.0 specifications while maintaining backward compatibility with PCI Express 2.0 and 1.0 slots.

Performance Characteristics and Throughput Capabilities

The performance profile of the Dell 540-BDIB HBA is characterized by exceptionally low latency, consistent throughput under load, and efficient CPU utilization. In benchmark testing, the adapter demonstrates port-to-port latency of less than 800 nanoseconds, making it suitable for latency-sensitive applications such as financial trading systems, real-time analytics, and high-frequency database transactions. The sophisticated DMA engine and interrupt coalescing technology minimize host CPU overhead, allowing more processing cycles to be allocated to application workloads rather than I/O processing tasks.

Data Transfer Rates and Bandwidth Management

Each of the two ports on the 540-BDIB adapter supports auto-negotiation of Fibre Channel speeds, automatically establishing the highest mutually supported data rate with connected switches and storage arrays. The adapter delivers sustained throughput of 1600 MB/s per port in full-duplex mode, with aggregate bandwidth of 3200 MB/s when both ports are active simultaneously. Advanced traffic management features include buffer-to-buffer credit management for extended distance connectivity, dynamic path selection, and intelligent queue management that prioritizes I/O streams based on application requirements and quality of service policies.

Queue Depth and I/O Processing

The Dell 540-BDIB supports a maximum queue depth of 1024 commands per port, enabling the adapter to maintain high levels of concurrency for virtualized environments and applications generating substantial I/O workloads. The deep command queue, combined with sophisticated tag management, allows the HBA to efficiently handle I/O bursts characteristic of database applications, virtualization workloads, and consolidated server environments. The adapter implements Native Command Queuing (NCQ) for Fibre Channel, optimizing the execution order of commands to reduce mechanical latency in storage systems and improve overall I/O efficiency.

Interrupt Coalescing and CPU Efficiency

Advanced interrupt coalescing technology represents a critical performance feature of the 540-BDIB adapter, significantly reducing host CPU utilization by minimizing the number of interrupts generated for I/O completions. The adapter intelligently batches multiple I/O completions into single interrupt events, dramatically decreasing the interrupt load on the host system. This technology is particularly beneficial in virtualized environments where CPU resources are shared among multiple virtual machines, as it preserves valuable CPU cycles for application processing rather than I/O handling overhead.

Integration Features

The Dell 540-BDIB HBA is designed for broad compatibility with Dell PowerEdge server platforms, including rack servers, tower servers, and modular infrastructure. The adapter undergoes rigorous testing and validation with Dell operating system drivers, management tools, and firmware to ensure seamless integration and reliable operation. Beyond Dell environments, the adapter maintains compatibility with industry-standard Fibre Channel switches, storage arrays, and management frameworks from leading storage infrastructure vendors.

Server Platform Compatibility

This HBA is qualified for use with Dell PowerEdge servers from the 12th generation onward, including current PowerEdge platforms. The adapter is supported in all major server form factors, including rack servers (R-series), tower servers (T-series), and modular infrastructure (FX2 and MX7000). Compatibility extends to both Windows and Linux operating environments, with specific driver support available for each platform. The adapter also supports boot-from-SAN functionality, enabling diskless server configurations and simplified server provisioning and management.

Storage Array and Switch Interoperability

The Dell 540-BDIB maintains full interoperability with major storage array platforms from Dell EMC (PowerMax, PowerStore, Unity, SC Series) as well as third-party storage systems from vendors including HPE, NetApp, IBM, and Hitachi. Switch compatibility encompasses Brocade (now Broadcom), Cisco MDS, and Dell EMC networking products, with specific interoperability matrices available for each combination. The adapter supports standard Fibre Channel protocols and features, ensuring seamless integration into existing SAN environments without requiring switch or storage configuration modifications.

Reliability, Availability, and Serviceability Features

The Dell 540-BDIB incorporates multiple reliability-enhancing technologies designed for continuous operation in enterprise environments. With a Mean Time Between Failure (MTBF) rating exceeding 2 million hours, this HBA delivers the reliability expected for mission-critical applications. The adapter supports hot-plug capability in compliant systems, allowing for replacement or addition without server downtime. Comprehensive environmental monitoring and reporting capabilities provide early warning of potential issues, while redundant design elements ensure continued operation even in the event of component-level failures.

Error Detection and Correction Mechanisms

Advanced error handling capabilities include end-to-end CRC protection, T10 Protection Information (T10 PI) support, and sophisticated timeout management. The adapter implements multiple layers of error detection and correction, from the physical layer through the protocol layer, ensuring data integrity throughout the I/O path. T10 PI support provides an additional layer of protection by including data integrity fields with each block transfer, allowing the storage system to verify data integrity from the application through to the physical media.

Security Features and Access Controls

Comprehensive security capabilities make the Dell 540-BDIB suitable for deployment in regulated environments and multi-tenant infrastructures. The adapter supports Fibre Channel Security Protocol (FC-SP) for authentication and cryptographic security between devices in the SAN. Fabric binding prevents unauthorized switches from connecting to the SAN, while port binding controls which devices can connect to specific switch ports. These features work together to create a defense-in-depth security approach for the storage network.

Authentication and Authorization Mechanisms

The adapter supports DH-CHAP (Diffie-Hellman Challenge Handshake Authentication Protocol) for bidirectional authentication between the HBA and switch, ensuring that only authorized devices can participate in the SAN. Certificate-based authentication provides an additional layer of security for highly sensitive environments. Integration with directory services enables centralized management of authentication policies and streamlined administration across large-scale deployments. Authorization controls limit the storage resources accessible to each HBA, preventing unauthorized access to sensitive data.

Data Integrity

While the 540-BDIB does not include native encryption capabilities, it works in conjunction with storage array-based encryption and fabric-based encryption solutions to provide comprehensive data protection. The adapter's T10 PI support ensures data integrity throughout the transfer process, detecting any corruption that might occur during transmission. For environments requiring encrypted data transmission, the adapter is compatible with encryption gateways and fabric-based encryption appliances that provide transparent encryption without requiring host-based encryption software.

Power Specifications

The Dell 540-BDIB is designed for operation in standard data center environments with typical operating temperatures between 5°C and 55°C (41°F to 131°F). The adapter can withstand non-operating storage temperatures from -40°C to 70°C (-40°F to 158°F) and relative humidity from 10% to 90% non-condensing. These specifications ensure reliable operation across the full range of data center environmental conditions while maintaining performance and reliability standards.

Power Consumption and Efficiency

Power efficiency represents a key design consideration for the 540-BDIB, with typical power consumption of approximately 12 watts during normal operation and less than 5 watts in low-power states. The adapter supports advanced power management features including Active State Power Management (ASPM) and runtime power scaling based on utilization. These capabilities help reduce overall energy consumption in the data center while maintaining readiness for immediate I/O processing. The power-efficient design also contributes to thermal management, reducing cooling requirements and associated operational costs.

Regulatory Compliance

The Dell 540-BDIB complies with major international regulatory standards including FCC Part 15 Class A, CE Mark, UL/CUL, CB Scheme, and RoHS directives. The adapter meets applicable safety standards for information technology equipment and has been tested for electromagnetic compatibility in typical server environments. These certifications ensure that the adapter can be deployed globally without requiring special accommodations for regional regulatory requirements.

Deployment Scenarios and Use Cases

The versatility of the Dell 540-BDIB makes it suitable for diverse deployment scenarios across enterprise IT environments. Common use cases include database servers supporting OLTP applications, virtualized infrastructure supporting hundreds of virtual machines, high-performance computing clusters requiring low-latency storage access, and business-critical applications demanding high availability and consistent performance. The adapter's balanced performance profile makes it equally suitable for read-intensive and write-intensive workloads.

Database and Transaction Processing Applications

For database platforms including Microsoft SQL Server, Oracle Database, SAP HANA, and MySQL, the 540-BDIB provides the low-latency, high-throughput connectivity required for optimal performance. The adapter's deep queue depth and efficient interrupt handling ensure that database transactions proceed with minimal delay, while the dual-port design enables multipath I/O configurations for increased availability and load distribution. Support for jumbo frames further enhances performance for large block transfers common in data warehouse and analytics workloads.

Virtual Desktop Infrastructure (VDI) Deployments

In VDI environments, the 540-BDIB efficiently handles the boot storms and login storms characteristic of desktop virtualization, where hundreds or thousands of virtual desktops simultaneously access storage resources. The adapter's ability to maintain consistent performance under heavy load ensures responsive user experience during peak usage periods. Virtualization-specific features like NPIV and SR-IOV provide the management granularity and performance isolation required for large-scale VDI implementations with mixed workload profiles.

Storage Area Network Consolidation

For organizations consolidating multiple storage networks or migrating from older Fibre Channel generations, the 540-BDIB offers an ideal balance of performance, compatibility, and management capabilities. The auto-negotiation feature simplifies integration with existing infrastructure, while the dual-speed capability enables phased migration strategies. The adapter's support for extended distance connectivity (through appropriate SFPs and switches) makes it suitable for disaster recovery configurations with geographically separated data centers.
