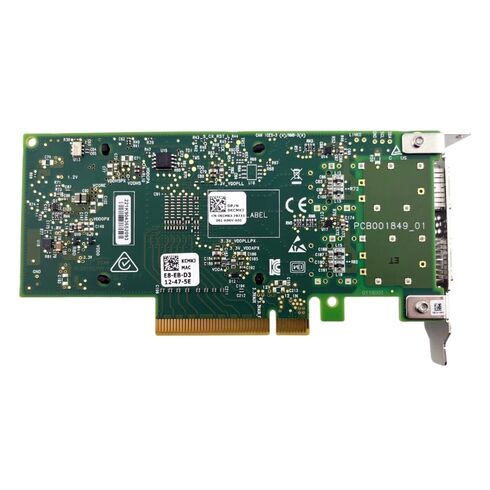

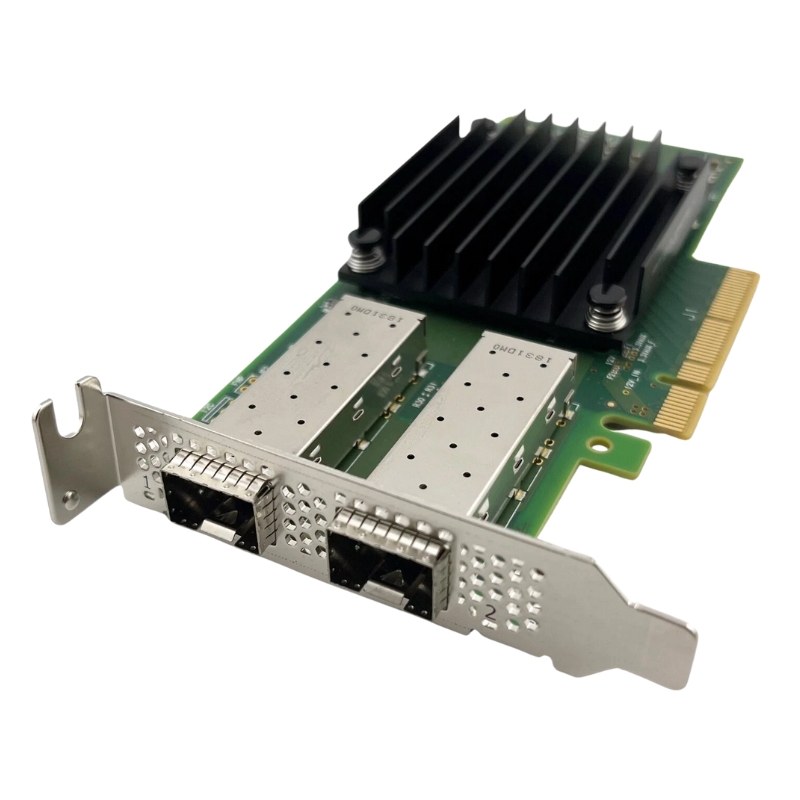

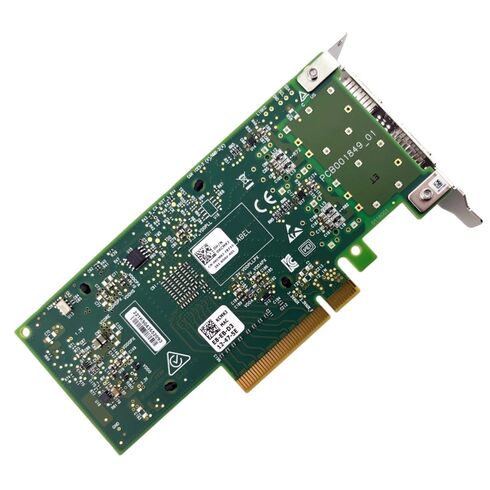

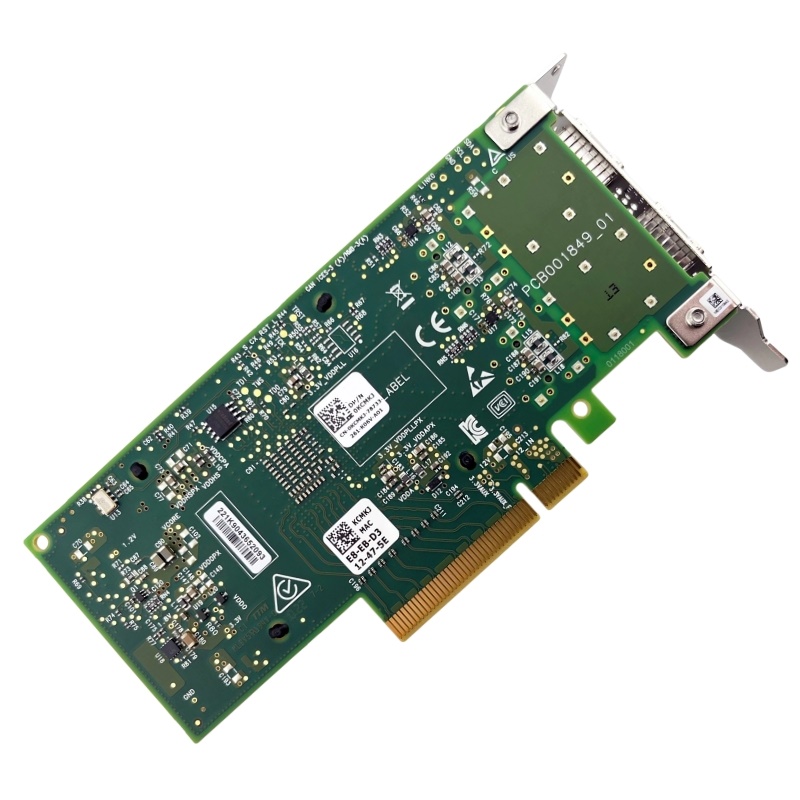

540-BDIG Dell Mellanox ConnectX-5 SFP28 PCI-E 2 Ports Network Adapter

Dell 540-BDIG PCI-Express Network Adapter

In the high-stakes arena of data center and enterprise networking, the ability to move vast quantities of data with minimal latency is paramount. The Dell 540-BDIG Mellanox ConnectX-5 EN (Ethernet) Network Interface Card (NIC) stands as a cornerstone technology in this domain. Representing the confluence of Dell's rigorous hardware validation and Mellanox's (now part of NVIDIA) industry-leading adapter technology, this dual-port SFP28 card is engineered for performance-critical applications. It serves as the essential connectivity bridge for servers requiring reliable, high-throughput, and low-latency network interfaces for 10GbE, 25GbE, and emerging cloud-native infrastructures.

Core Specifications of Dell 540-BDIG Adapter

The Dell 540-BDIG is a dual-port PCI-Express network interface card (NIC) featuring the Mellanox ConnectX-5 EN (Ethernet) controller. It supports 10GbE and 25GbE speeds per port via SFP28 interfaces, offering a flexible upgrade path from legacy 10G infrastructure while providing a clear runway towards 25G and 100G (via breakout cabling) network architectures. This card is sold and supported by Dell EMC, ensuring compatibility, rigorous testing, and reliable warranty service within Dell ecosystem solutions.

Key Specifications at a Glance

Form Factor and Interface

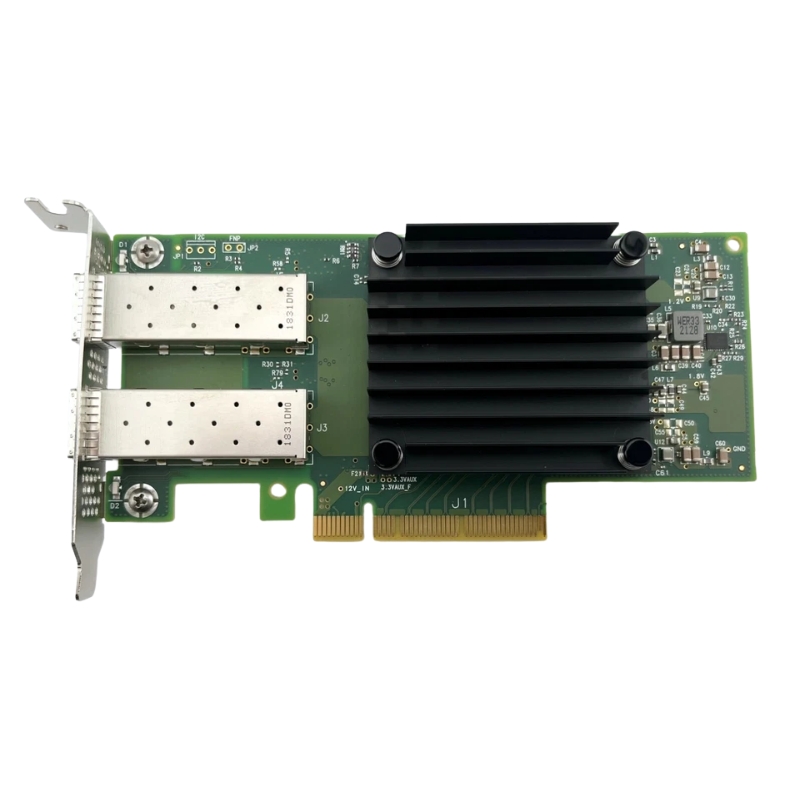

The adapter is built on a standard-height, full-length PCIe card form factor. It utilizes a PCI-Express 3.0 x16 host interface, ensuring maximum bandwidth availability to handle line-rate traffic on both ports simultaneously without bus contention.

Port Configuration and Speed

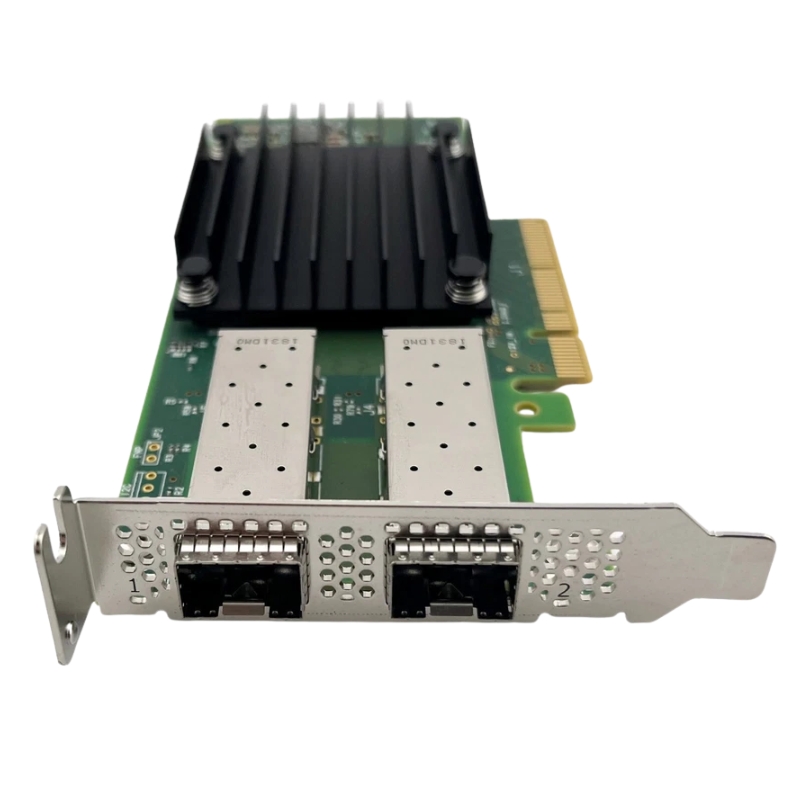

This model features two SFP28 ports. These ports are backward compatible with SFP+ optics and DAC cables, allowing them to operate at 10 Gigabit Ethernet when populated with 10G transceivers. With 25G SFP28 optics or DAC cables, the ports deliver full 25GbE performance. This dual-speed capability offers significant investment protection and deployment flexibility.

Controller and Architecture

At its heart lies the Mellanox ConnectX-5 EN controller chip. This IC is built with a highly efficient, multi-core processing architecture that offloads critical network functions from the host CPU. This includes stateless offloads like checksum and segmentation, as well as more advanced stateful offloads for virtualization and storage.

Features and Capabilities

Moving beyond basic specifications, the true value of the ConnectX-5 adapter is unlocked through its sophisticated feature set, designed for next-generation data centers.

Performance Acceleration Technologies

The card is engineered to deliver not just high bandwidth, but intelligent bandwidth that reduces computational overhead.

Hardware Offload Engine

The ConnectX-5 ASIC incorporates a comprehensive suite of hardware offloads. This includes TCP/UDP/IP checksum offload, Large Send Offload (LSO)/Receive Side Scaling (RSS), and Ethernet flow control. By handling these tasks in silicon, the adapter drastically reduces CPU utilization, freeing server processors for core application workloads and improving overall system efficiency and power consumption.

NVMe over Fabrics (NVMe-of) Offload

A standout feature for storage acceleration is the integrated NVMe-of offload. The adapter can process NVMe-of commands directly in hardware, dramatically reducing latency and CPU overhead associated with accessing remote NVMe storage. This enables the construction of high-performance, disaggregated storage pools that feel like local drives to applications.

GPUDirect RDMA Technology

Crucial for AI, machine learning, and HPC clusters, GPUDirect RDMA allows data to move directly between the GPU memory and the network adapter, bypassing the host CPU and system memory entirely. This "kernel bypass" technique minimizes latency, reduces PCIe bus traffic, and accelerates data-intensive parallel computing tasks like model training and scientific simulations.

Advanced Networking

Enterprise-grade features for robust, manageable deployments.

RoCE (RDMA over Converged Ethernet) v2 Support

The adapter supports RDMA operations over standard Ethernet networks via RoCE v2. This is a transformative technology that enables low-latency, high-throughput communication between servers—essential for distributed databases, clustered applications, and parallel filesystems.

Congestion Control and PFC

To effectively deploy RoCE and lossless Ethernet, the card supports Data Center Bridging (DCB) standards, including Priority Flow Control (PFC). This allows the network to create lossless traffic classes, preventing packet drops for sensitive RDMA traffic and ensuring consistent ultra-low latency.

Comprehensive Manageability

The Dell 540-BDIG supports out-of-band management via standards like NC-SI (Network Controller Sideband Interface) for secure management traffic separation. It is fully manageable by Dell OpenManage systems management suites and supports industry-standard tools like SNMP, RMON, and Mellanox's own tools for firmware updates and diagnostics.

Deployment Scenarios and Use Cases

The versatility of the Dell ConnectX-5 adapter makes it suitable for a wide range of demanding applications.

Hyperconverged Infrastructure (HCI)

In HCI platforms like VMware vSAN or Microsoft Storage Spaces Direct, the network is the backbone of the storage fabric. The combination of 25GbE bandwidth, RDMA/RoCE support, and NVMe-of offloads drastically reduces inter-node communication latency, accelerates storage rebuilds, and improves overall cluster performance and responsiveness.

High-Frequency Trading and Financial Analytics

Where microseconds matter, the adapter’s ultra-low latency and deterministic performance are key. Features like GPUDirect RDMA and kernel-bypass capabilities enable the fastest possible data ingestion and inter-server messaging for algorithmic trading and real-time risk analysis platforms.

Virtualized Desktop Infrastructure (VDI)

For large-scale VDI deployments, especially GPU-enabled virtual desktops, the network must handle a storm of small, random I/O operations. The adapter’s high packet-per-second rate, SR-IOV capabilities, and efficient CPU offloading allow more desktop sessions to be hosted per server with a superior user experience.

High-Performance NAS and File Servers

When serving large files or handling numerous small files, a network-bound file server can benefit immensely from 25GbE throughput. The adapter's hardware offloads ensure that the server's CPU is focused on file system operations rather than network processing, maximizing IOPS and throughput for clients.

Dell PowerEdge Server Compatibility

As a Dell-branded adapter, it undergoes extensive validation and testing across the Dell PowerEdge server portfolio. It is confirmed to work seamlessly in generations of PowerEdge servers supporting PCIe 3.0 slots, from the 13th generation (e.g., R630, R730) up to current platforms. Compatibility details, including BIOS and firmware requirements, are available in the Dell support matrix.

Cabling and Transceiver Options

The SFP28 ports offer flexible connectivity. For short-reach connections within a rack, 25GbE Direct Attach Copper (DAC) cables are a cost-effective and low-power solution. For longer distances or connection to switches, a variety of optical transceivers can be used, including 25G SR (up to 100m over OM4 MMF) and 25G LR (up to 10km over SMF). It is crucial to use Dell-qualified or Mellanox-approved optics and cables for guaranteed compatibility and performance.

Comparison and Positioning

Understanding where the ConnectX-5 fits in the broader adapter landscape is important for informed selection.

Within the Dell Mellanox Portfolio

The ConnectX-5 sits above the previous-generation ConnectX-4 Lx (which typically offers 25GbE but without some advanced offloads like NVMe-of) and below the ConnectX-6 and ConnectX-7 (which introduce higher port densities like 100GbE/200GbE and enhanced crypto/security offloads). The ConnectX-5 represents a sweet spot of proven, feature-rich technology at an attractive performance-to-price ratio.

Contrast with LOM and Alternative Adapters

Compared to standard LOM (Lan-on-Motherboard) solutions, the Dell 540-BDIG offers significantly higher performance, advanced offloads, and RDMA capabilities that are often absent in integrated NICs. Against other branded PCIe adapters, the Mellanox differentiator often lies in the maturity and robustness of its RDMA/RoCE implementation and its deep software ecosystem for HPC and AI.

Network Switch Requirements

To utilize 25GbE speeds and RoCE, the connected top-of-rack switches must also support 25GbE SFP28 interfaces and, for a lossless RoCE fabric, Data Center Bridging (DCB) with PFC. Switch configuration must be aligned with the adapter settings to ensure optimal performance.

Cooling and Power

As a high-performance PCIe card, the adapter consumes more power than a basic 1GbE NIC. Adequate server airflow across the card is necessary to maintain optimal operating temperatures. Most Dell PowerEdge servers are designed with cooling zones that effectively service add-in cards in the specified slots.

Scalability

Investing in a 25GbE-capable adapter today prepares infrastructure for future growth. The card can initially be deployed in 10GbE mode and later upgraded to 25GbE by simply changing transceivers/cables and upgrading switch ports.
