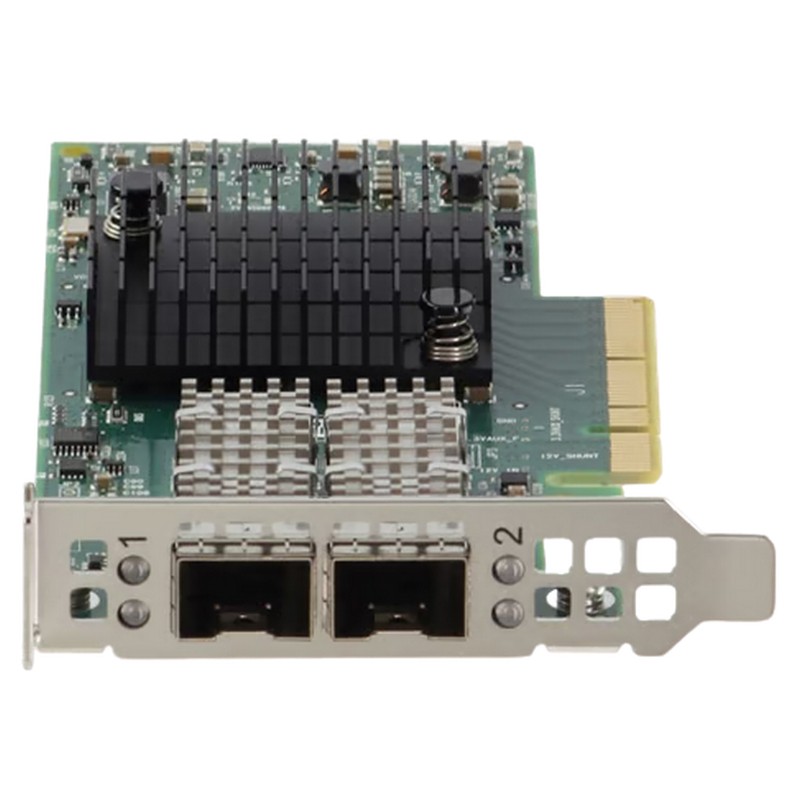

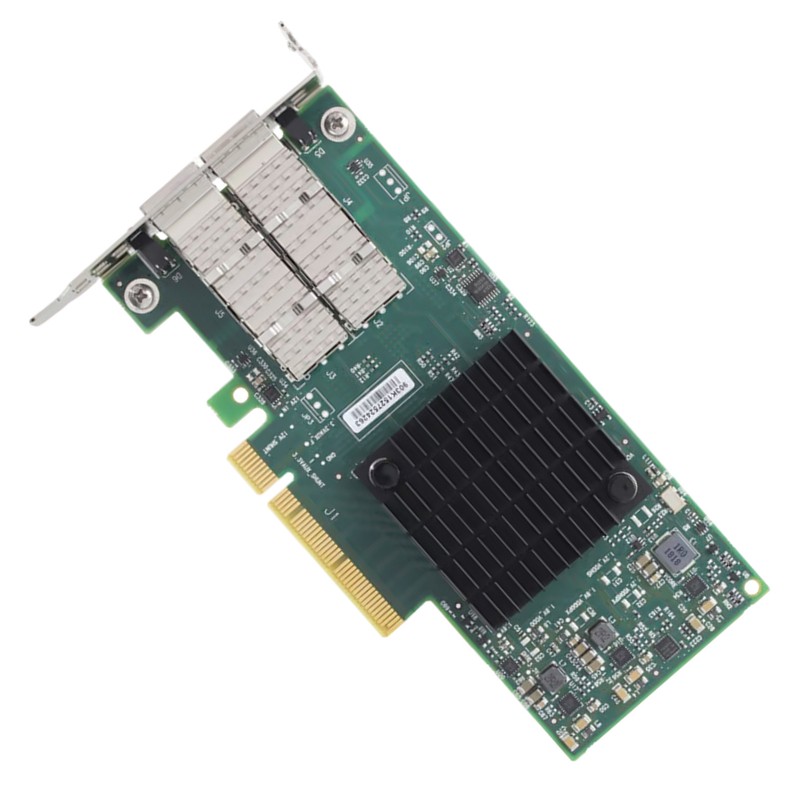

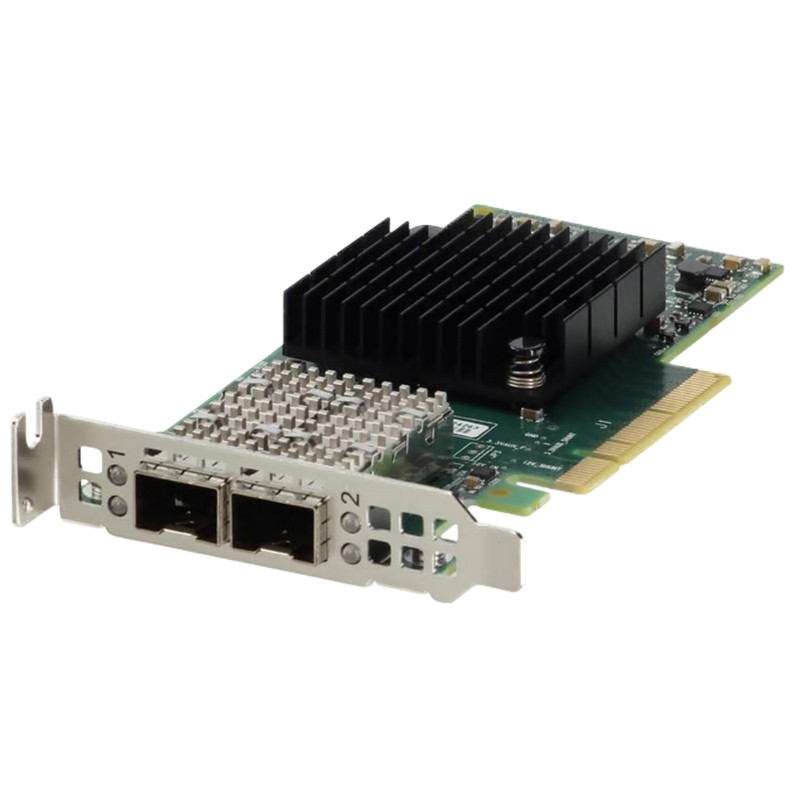

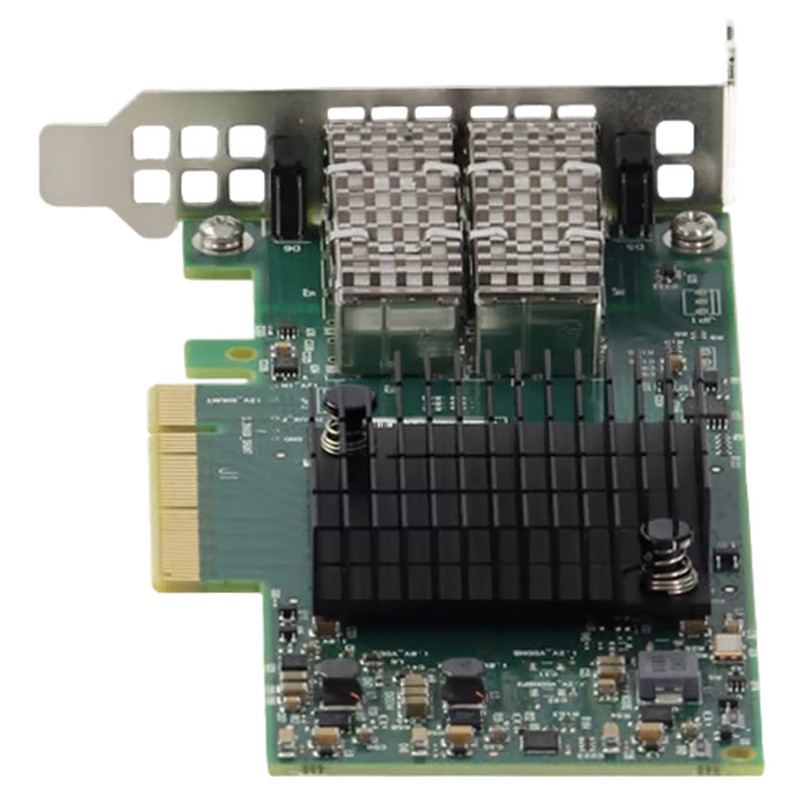

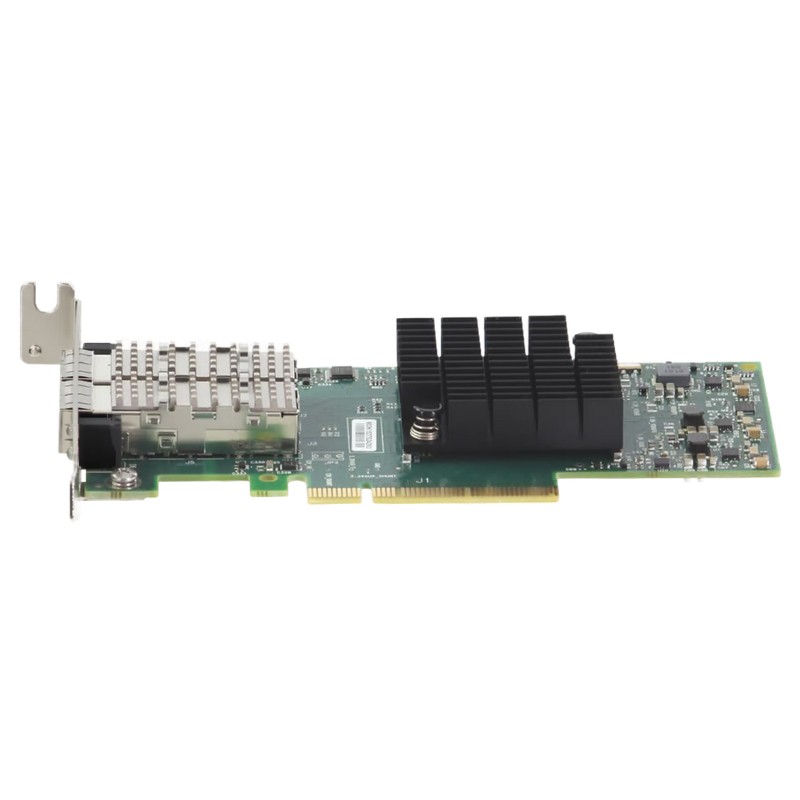

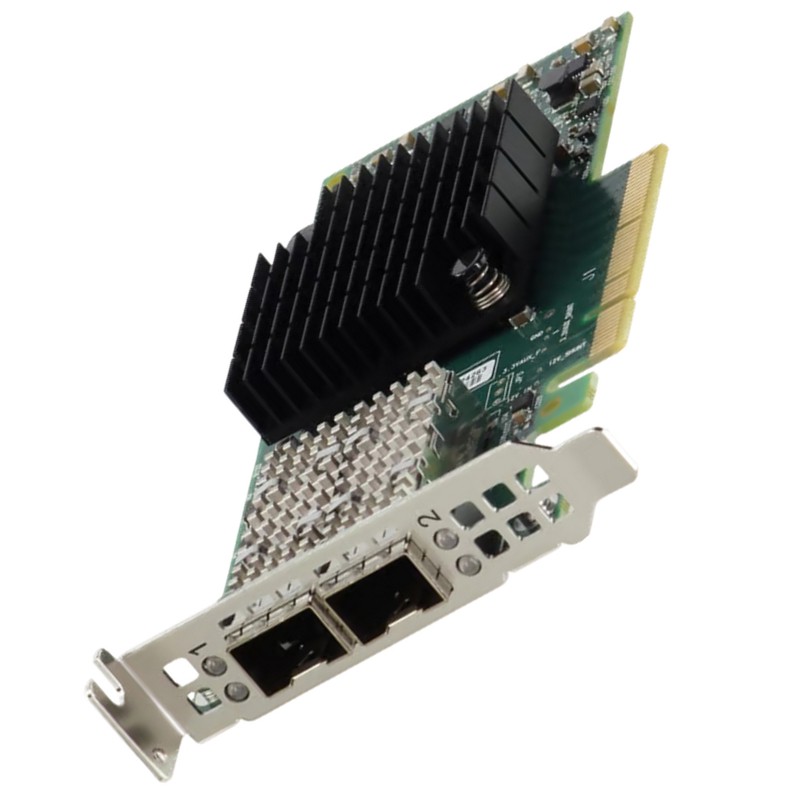

540-BDIY Dell Mellanox ConnectX-4 25GbE 2 Ports Network Adapter

Dell 540-BDIY 25GbE Dual-Port Network Adapter Overview

High-Performance Enterprise Networking Solution

The Dell 540-BDIY Mellanox ConnectX-4 Lx CX4121C is a next-generation dual-port 25 Gigabit Ethernet (25GbE) network interface card engineered for modern data centers, virtualization platforms, and high-throughput server environments. Built on advanced Mellanox architecture, it delivers ultra-low latency, high bandwidth, and optimized CPU offloading for demanding workloads.

Core Product Identification

• Manufacturer: Dell
• Part Number / SKU: 540-BDIY
• Product Type: Network Adapter Card (NIC)
• Speed Category: 25 Gigabit Ethernet
• Architecture: Mellanox ConnectX-4 Lx (CX4121C)

Network Performance Capabilities

• Data Rate: Up to 25GbE per port
• Total Ports: Dual-port configuration
• Low-latency packet processing for optimized traffic flow
• Designed for high-throughput workloads and storage acceleration

Advanced Data Handling Features

• RDMA (Remote Direct Memory Access) support
• RoCE (RDMA over Converged Ethernet) acceleration
• Jumbo frame support for improved efficiency
• Reduced CPU overhead through hardware offloading

Interface, Connectivity & Hardware Design

Port Configuration & Cabling

• 2 x SFP28 ports for 25GbE connectivity
• Compatible with DAC (Direct Attach Copper) and optical modules
• Optimized for short-distance and rack-level interconnects

PCIe Integration

• Interface: PCI Express 3.0 x8
• Low-profile server form factor design
• Compatible with enterprise rack servers and storage systems

Virtualization & Enterprise Features

Cloud and Data Center Optimization

• SR-IOV (Single Root I/O Virtualization) support for VM isolation
• VXLAN and NVGRE offloading for scalable networking
• Multi-tenant environment compatibility
• Efficient traffic segmentation for cloud workloads

Hardware Acceleration Technologies

• TCP/IP stateless offloads for improved performance
• iSCSI and storage networking acceleration
• Packet steering and intelligent load balancing
• Hardware-based checksum and segmentation offload

System Compatibility & Use Cases

Supported Environments

• Enterprise data centers and virtualization clusters
• High-performance computing (HPC) systems
• Cloud computing infrastructure
• Storage area networks (SAN) and software-defined storage

Operating System Compatibility

• Major Linux distributions
• Windows Server environments
• Virtualization platforms such as VMware
• Open-source cloud stacks and hypervisors

Physical Characteristics & Power Efficiency

Design and Build

• Compact low-profile PCIe add-in card format
• Engineered for high-density server deployments
• Durable enterprise-grade hardware construction

Power & Thermal Efficiency

• Low power consumption for data center efficiency
• Optimized thermal design for continuous operation
• Suitable for 24/7 mission-critical workloads

Deployment Advantages in Modern IT Infrastructure

Scalability and Performance Benefits

• Enables high-speed interconnects between servers and switches
• Reduces bottlenecks in virtualized environments
• Enhances storage access performance in distributed systems
• Supports scalable multi-node cluster architectures

Enterprise Networking Efficiency

• Improves data throughput in bandwidth-intensive applications
• Minimizes latency for real-time workloads
• Optimizes CPU utilization through offload engines
• Ideal for big data, AI, and cloud-native applications

Industrial Applications & Integration Scenarios

Data Center & Cloud Computing

• Virtual machine networking optimization
• Software-defined networking (SDN) integration
• Multi-tenant cloud infrastructure support

Storage & High-Speed Computing

• High-throughput storage replication systems
• Distributed database acceleration
• Real-time analytics and processing workloads

Dell 540-BDIY Mellanox ConnectX-4 25GbE Network Adapter

The Dell 540-BDIY Mellanox ConnectX-4 Lx CX4121C 2 Ports 25GbE Network Adapter represents a high-performance networking solution designed for modern data centers, enterprise networks, and cloud environments. This network interface card (NIC) delivers enhanced throughput, low latency, and advanced offload capabilities to optimize server communication and workload performance. Built on the ConnectX-4 Lx architecture, this adapter combines reliability with cutting-edge features to support high-bandwidth applications, virtualized infrastructures, and storage networks.

Advanced Networking Features

The Dell 540-BDIY ConnectX-4 Lx CX4121C provides multiple advanced networking features that enable efficient data handling and resource management. With two 25GbE ports, the adapter ensures that servers can handle high-volume traffic without bottlenecks. The hardware supports RDMA over Converged Ethernet (RoCE), which allows direct memory access from one computer to another, significantly reducing CPU utilization and improving application efficiency. These features make the ConnectX-4 Lx ideal for high-performance computing (HPC), artificial intelligence (AI), and big data analytics workloads.

High Bandwidth and Low Latency Performance

The 25 Gigabit Ethernet ports of the CX4121C adapter are engineered to deliver exceptional bandwidth and minimal latency, ensuring seamless communication between servers and storage systems. By reducing network latency, the adapter enhances the performance of latency-sensitive applications, such as financial trading platforms, real-time analytics, and virtual desktop infrastructure (VDI). The dual-port configuration allows for redundancy, load balancing, and increased overall network throughput.

Virtualization and Offload Capabilities

The ConnectX-4 Lx NIC is fully optimized for virtualized environments, supporting technologies like Single Root I/O Virtualization (SR-IOV). SR-IOV enables the creation of multiple virtual network interfaces directly on the hardware, reducing overhead on hypervisors and improving network performance for virtual machines. Additionally, the adapter offers TCP/IP, UDP, and iSCSI offloads, which offload network processing from the CPU, enhancing server efficiency and freeing computational resources for critical workloads.

Energy Efficiency and Reliability

Energy efficiency is a critical consideration in modern data centers, and the CX4121C excels in this aspect. It incorporates advanced power management features that dynamically adjust energy consumption based on network activity, contributing to lower operational costs and reduced thermal footprint. Dell's rigorous quality standards ensure that the ConnectX-4 Lx maintains reliable performance under continuous, high-demand workloads, offering enterprise-grade reliability and longevity for mission-critical operations.

Wide Compatibility

The Dell 540-BDIY Mellanox ConnectX-4 Lx CX4121C is designed for seamless integration with a wide range of Dell PowerEdge servers and other compatible server platforms. It supports multiple operating systems, including Windows Server, various Linux distributions, and VMware ESXi, allowing organizations to deploy it across heterogeneous IT environments. Compatibility with Dell's management tools, such as OpenManage, simplifies deployment, monitoring, and maintenance, streamlining administrative tasks and enhancing operational efficiency.

Enhanced Security Features

Security is a pivotal aspect of modern networking, and the ConnectX-4 Lx CX4121C addresses this requirement with built-in security features. The adapter supports IPsec offload, which accelerates encryption and decryption tasks, ensuring secure data transfer without compromising performance. Additionally, advanced traffic filtering and firewall offload capabilities protect critical applications and sensitive data from potential network threats, helping organizations maintain a secure computing environment.

Scalability and Future-Ready Architecture

The ConnectX-4 Lx CX4121C network adapter is designed to scale with evolving IT infrastructure needs. Its dual 25GbE ports allow organizations to expand network capacity without extensive hardware upgrades, making it an ideal choice for growing data centers. The adapter’s support for network virtualization overlays, including VXLAN and NVGRE, enables efficient multi-tenant network segmentation, enhancing flexibility and future-proofing network infrastructure for emerging technologies and high-performance applications.

Applications and Workload Optimization

The Dell 540-BDIY ConnectX-4 Lx CX4121C is well-suited for a variety of applications and workloads. It is ideal for database servers, virtualization hosts, cloud infrastructure, and storage area networks (SANs). Its RDMA and offload capabilities improve database query performance, virtual machine network efficiency, and storage replication speed. High-bandwidth applications, such as video rendering, scientific simulations, and machine learning tasks, benefit significantly from the adapter’s 25GbE throughput and low latency characteristics.

Reliability

Dell provides comprehensive support and warranty options for the ConnectX-4 Lx CX4121C, ensuring peace of mind for enterprise deployments. The adapter is backed by Dell’s technical support services, firmware updates, and replacement programs, helping organizations maintain high availability and minimize downtime. Regular driver and firmware enhancements further improve stability, compatibility, and performance over the product lifecycle, reinforcing its role as a dependable networking solution for critical IT infrastructure.

Use Cases and Deployment Scenarios

Enterprise Data Center and Virtualized Infrastructure

For traditional enterprise data centers, the card is an ideal candidate to upgrade from 10GbE infrastructures without leaping to 40GbE, thereby balancing cost and performance. The adapter supports heavy east-west traffic patterns common in virtualized server farms and provides the low latency required for clustered application tiers. Administrators often deploy these adapters in rack servers hosting virtualization clusters, database nodes and application servers that demand consistent network performance.

Cloud Providers and Hyperscale Environments

Cloud operators seeking cost-effective throughput per rack unit use 25GbE adapters to increase network capacity while conserving switch port density. The ConnectX-4 Lx integrates with cloud orchestration platforms and automation frameworks for provisioning SR-IOV backed instances or accelerated virtual networking paths. Hyperscale environments benefit from the adapter's telemetry and remote management features which support bulk firmware updates and fleet-wide configuration changes.

High Performance Computing and Storage Fabrics

In HPC clusters and parallel storage arrays, latency and CPU overhead are primary constraints. The adapter's support for RDMA and RoCE enables direct memory operations across nodes, which is critical for tightly-coupled MPI workloads and storage replication engines that require minimal latency variance. Storage vendors often leverage the card for block-level replication and iSCSI offload deployments where deterministic latency and sustained throughput are obligatory.
