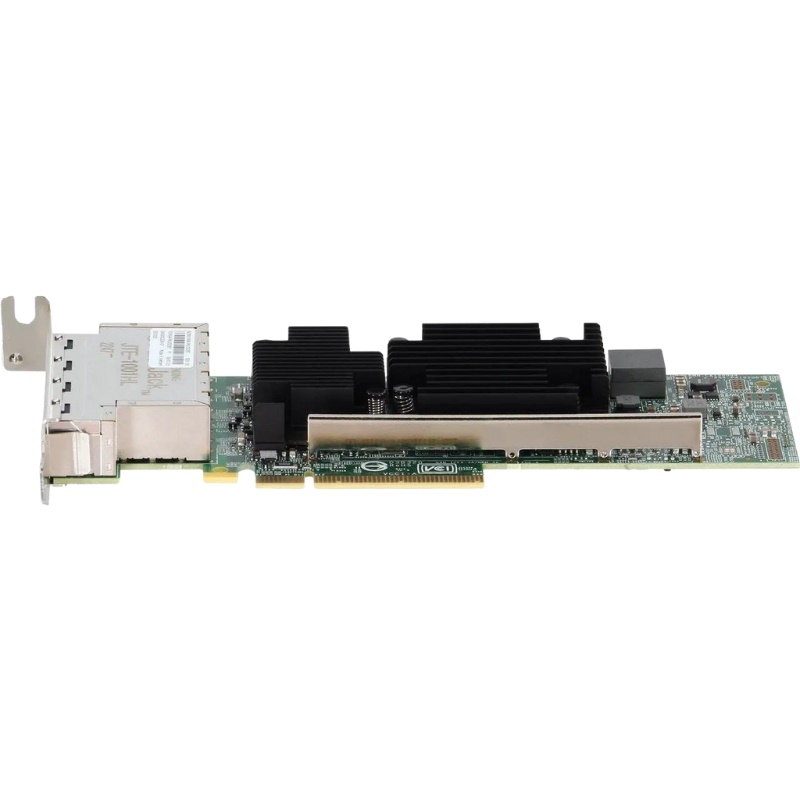

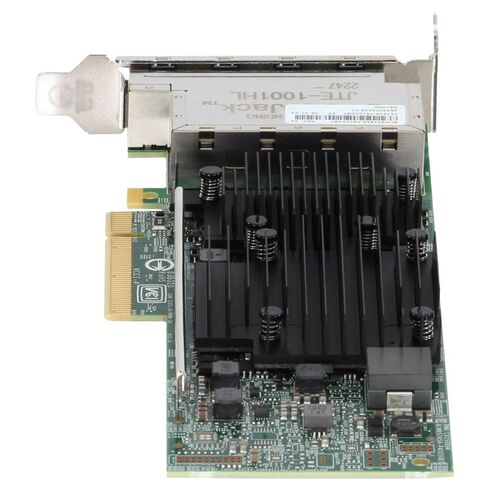

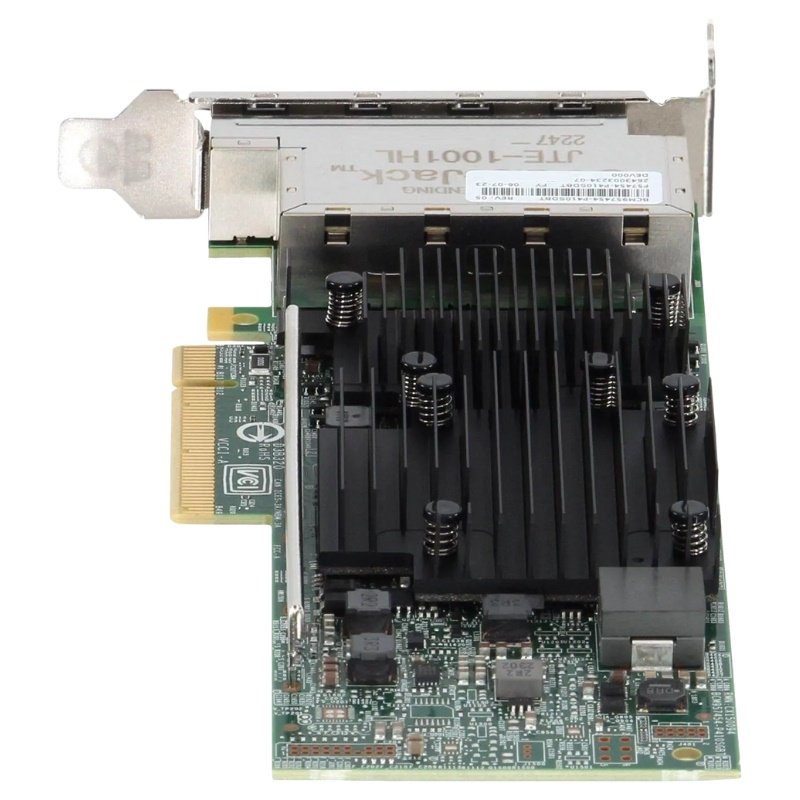

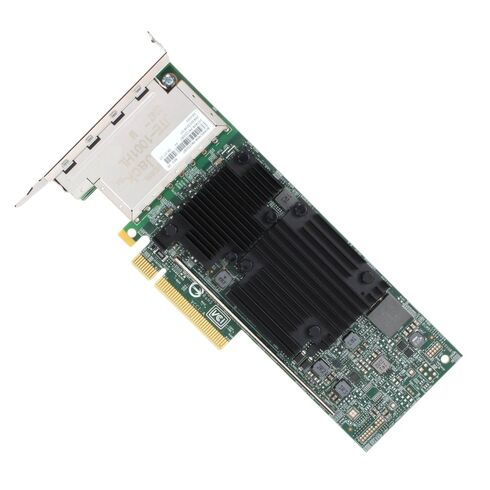

540-BDLK Dell Broadcom PCI-Express 4 Ports Ethernet Network Interface Card

Essential Features of the Dell 540-BDLK 57454 10GbE NIC

The Dell 540-BDLK, powered by the industry-leading Broadcom BCM57454 controller, represents a pinnacle of performance and reliability in the realm of 10 Gigabit Ethernet connectivity. Designed for seamless integration into modern data centers, enterprise servers, and high-performance workstations, this PCI-Express Network Interface Card delivers exceptional throughput, ultra-low latency, and robust management features. Its 4-port 10GBase-T design utilizing standard RJ-45 connectors makes it an ideal, cost-effective solution for organizations transitioning to 10GbE over existing copper cabling infrastructure, eliminating the need for expensive optical transceivers and specialized fiber cabling.

Key Specifications

At the heart of this adapter lies the advanced Broadcom BCM57454 NetXtreme-E® controller, a chip engineered for maximum efficiency and speed. This quad-port card is built to handle the most demanding network workloads with ease.

Interface and Form Factor Details

The card utilizes a PCI-Express 3.0 x8 host interface, ensuring ample bandwidth to sustain full line-rate traffic across all four ports simultaneously without bottlenecking the system bus. It is presented in a standard full-height, full-length form factor, compatible with a wide array of server chassis and tower workstations. The bracket is designed for optimal airflow and secure mounting in demanding environments.

Physical Connectivity and Port Configuration

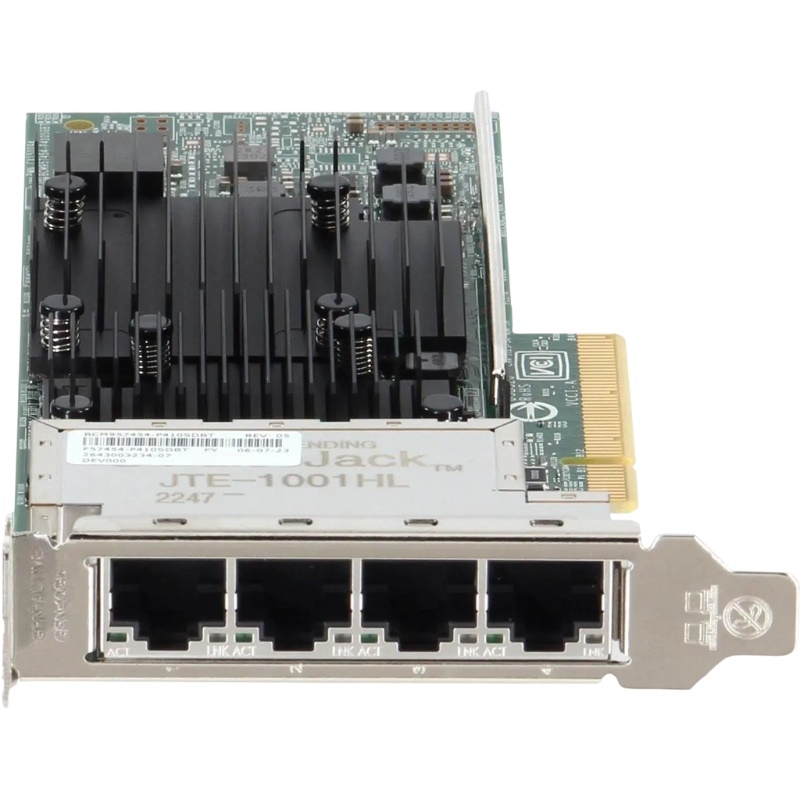

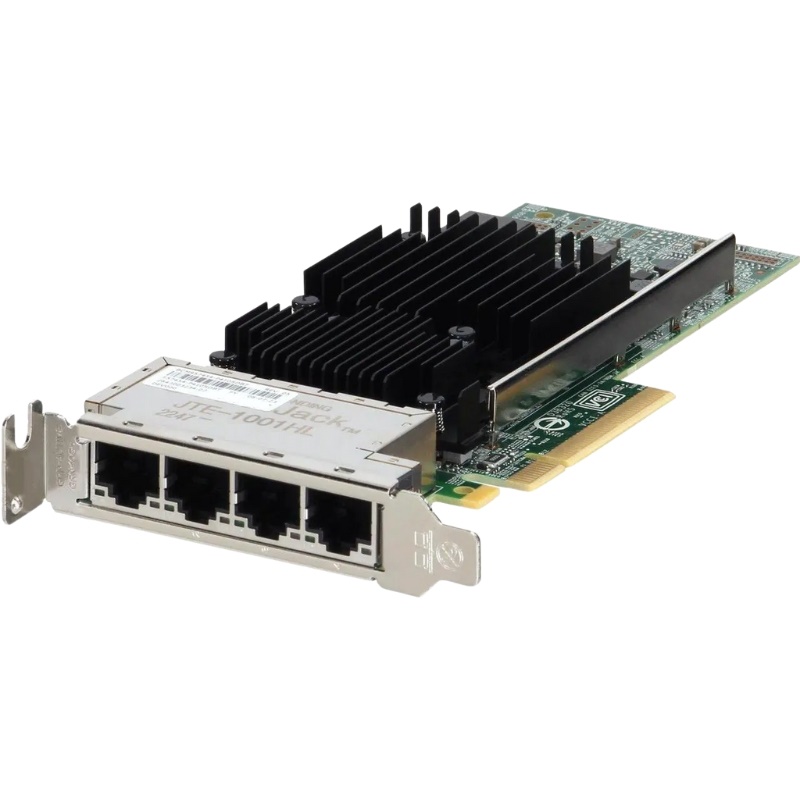

The adapter features four independent 10GBase-T (RJ-45) ports. These ports are fully backward compatible, automatically negotiating speeds of 10Gbps, 5Gbps, 2.5Gbps, 1Gbps, and 100Mbps, providing maximum flexibility when connecting to various switches and end-points. This auto-negotiation capability future-proofs your investment and simplifies network upgrades.

Data Transfer Capabilities and Throughput

With support for jumbo frames up to 9KB, the card optimizes throughput for large data transfers, reducing CPU overhead and improving overall efficiency. It leverages technologies like TCP/IP offload engine (TOE), checksum offload, and large send offload (LSO) to free host CPU resources for application tasks, thereby increasing system performance and scalability.

Advanced Networking Technologies and Protocols

To meet enterprise-grade requirements, the Dell 540-BDLK incorporates a comprehensive suite of advanced networking features that enhance virtualization, traffic management, and network resilience.

Priority Flow Control

Integrated support for Data Center Bridging (DCB) protocols, including Priority-Based Flow Control (PFC) and Enhanced Transmission Selection (ETS), enables lossless Ethernet fabric. This is essential for converging storage traffic (like iSCSI or FCoE) and live migration traffic onto a unified network, ensuring predictable performance and preventing packet loss for priority data streams.

Network Security and Reliability Features

Security is built into the hardware with support for advanced features like IEEE 802.1AE MACsec (Media Access Control Security) link-layer encryption. This provides hop-by-hop security, encrypting and authenticating all traffic on the wire at line rate, protecting against eavesdropping and data manipulation on untrusted networks. For reliability, the card supports advanced teaming capabilities, including failover and load balancing, as well as support for the Precision Time Protocol (PTP) for highly accurate time synchronization across the network.

Ideal Deployment Scenarios and Use Cases

The versatility of the quad-port Dell 540-BDLK makes it suitable for a broad spectrum of applications, from enterprise server consolidation to high-performance computing clusters.

Data Center and Server Connectivity

In modern data centers, this card is perfectly suited for hyper-converged infrastructure (HCI) nodes, storage servers, and application servers. The four ports allow for flexible network design—dedicating ports for storage network (iSCSI/NFS), vMotion/Live Migration, VM traffic, and management traffic—all from a single adapter. This reduces the number of cards required per server, saving PCIe slots and simplifying cabling through ubiquitous Cat6a/Cat7 cabling.

High-Performance Workstation and Media Applications

For creative professionals in video editing, 3D animation, and scientific visualization, the card provides the necessary bandwidth to access massive project files stored on centralized NAS or SAN systems in real-time. It eliminates network bottlenecks, enabling smooth playback of high-resolution, uncompressed video streams and rapid transfer of large datasets, directly boosting productivity.

Virtualization Host and Cloud Platforms

As a cornerstone for virtualized environments, the SR-IOV capability allows hosting providers and enterprise IT departments to achieve near-native network performance for guest VMs. This leads to higher VM density per host and improved performance for latency-sensitive applications like databases and real-time analytics running within virtual machines.

Technical Deep Dive: The Broadcom BCM57454 Controller

The performance and feature set of the Dell 540-BDLK are directly derived from its underlying silicon. The Broadcom BCM57454 is a fourth-generation 10/25GbE controller built on a 16nm process, offering a significant leap in performance-per-watt.

Architecture and Efficiency Enhancements

The controller employs a highly integrated, full-offload architecture. It features a multi-core ARM processor complex that handles all control-path and data-path processing independently from the host CPU. This includes full offloads for NVMe-over-Fabrics (NVMe-oF), TCP/IP, iSCSI, and FCoE, which drastically reduces server CPU utilization—sometimes by as much as 70% compared to software-based implementations—freeing up cycles for revenue-generating applications.

Power Efficiency and Thermal Design

Broadcom's innovative approach includes energy-efficient Ethernet (EEE) and adaptive link rate technology, which lower power consumption during periods of low data activity. The Dell card is engineered with a passive heatsink designed to dissipate heat effectively in properly ventilated server enclosures, ensuring stable operation without the need for noisy fans that can fail.

Signal Integrity and Cable Reach

The integrated PHY (Physical Layer) on the BCM57454 is optimized for 10GBase-T operation, supporting the full 100-meter reach on standard Cat6A (or better) cabling. Advanced signal processing compensates for crosstalk and insertion loss, ensuring a stable, error-free link even in challenging cable plant environments.

Comparative Advantages in the 10GbE Adapter

Choosing the Dell-branded Broadcom 57454 adapter offers distinct benefits over generic or older generation 10GbE cards.

Power and Thermal Design

The Dell 540-BDLK is designed with enterprise thermal management in mind. The card features a large, passive heatsink that efficiently dissipates heat generated by the four 10GBase-T PHYs. Typical power consumption is higher than optical NICs due to the nature of the 10GBase-T signaling, often ranging between 10 to 15 watts under load, depending on cable length and quality. This necessitates good chassis airflow. The card does not require auxiliary power connectors, drawing all necessary power directly from the PCIe slot.

Four-Port Density and Cost Efficiency

Providing four full-speed 10GbE ports on a single PCIe slot offers exceptional port density. This is more cost-effective and space-efficient than deploying multiple single- or dual-port cards, reducing overall hardware costs, power consumption, and simplifying switch port allocation and cable management.

Copper (10GBase-T) Versus SFP+ Consideration

While SFP+ adapters are popular, the 10GBase-T approach of this card offers operational advantages. It uses familiar, low-cost RJ-45 connectors and Cat6a cable, which is easier to terminate, more durable for frequent connections, and generally less expensive than optical cabling. This makes it ideal for top-of-rack (ToR) switch connections where distances are within 100 meters and operational simplicity is valued.

Storage Protocol Acceleration

For environments leveraging network-based storage, the card provides full hardware offload for iSCSI. This includes header and data digest calculation for iSCSI PDU, significantly accelerating storage traffic and reducing latency for SAN applications. Support for RDMA over Converged Ethernet (RoCE) v2 is a critical feature, enabling direct memory access between servers and storage arrays for ultra-low latency and high-efficiency data transfers.

Security Features

Network security is bolstered by stateless offloads for IPsec and TLS. The card can offload the encryption/decryption and authentication algorithms for these protocols, providing high-speed secure communications without burdening the host CPU. For manageability, the card supports the Data Center Bridging Capability Exchange Protocol (DCBX), Wake-on-LAN (WoL), and Preboot Execution Environment (PXE) for remote booting. It is fully manageable through industry-standard interfaces like SNMP and integrates with Dell OpenManage systems management suite.

Power Consumption

10GBase-T PHYs traditionally consume more power than SFP+ counterparts due to the complex signaling required over copper. The Dell 540-BDLK, utilizing the advanced 16nm process of the Broadcom chip, manages power efficiently. Typical power consumption is in the range of 12-15 watts under load, varying based on cable length and traffic. Adequate chassis airflow is recommended to maintain optimal operating temperatures, ensuring long-term reliability and performance stability.
