540-BDLL Dell Broadcom 57454 10GbE PCI-E 4 Ports Network Adapters

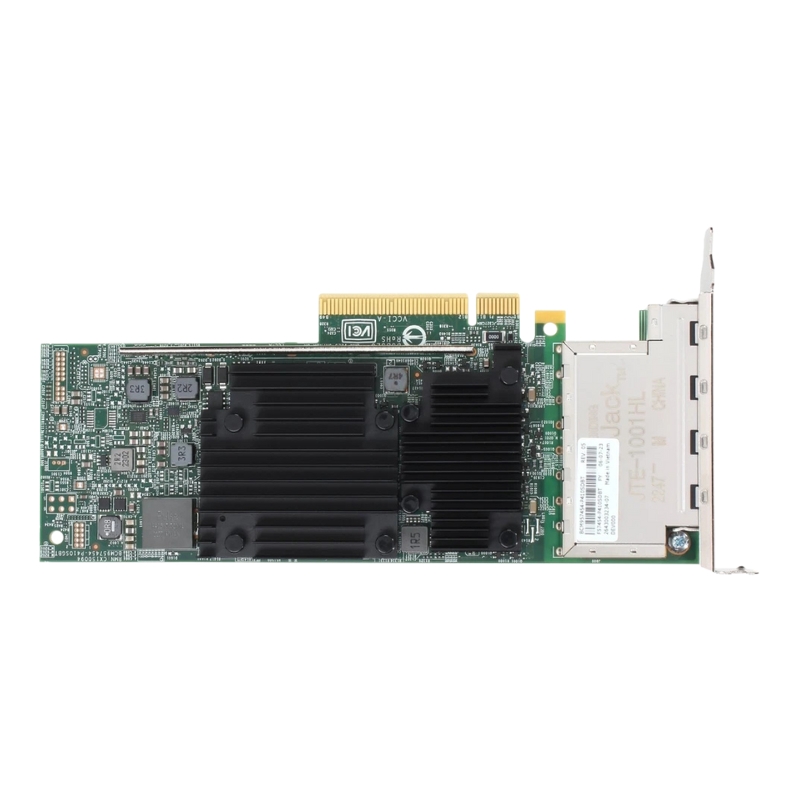

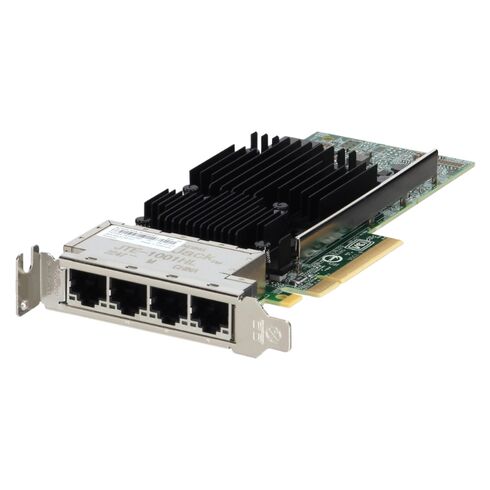

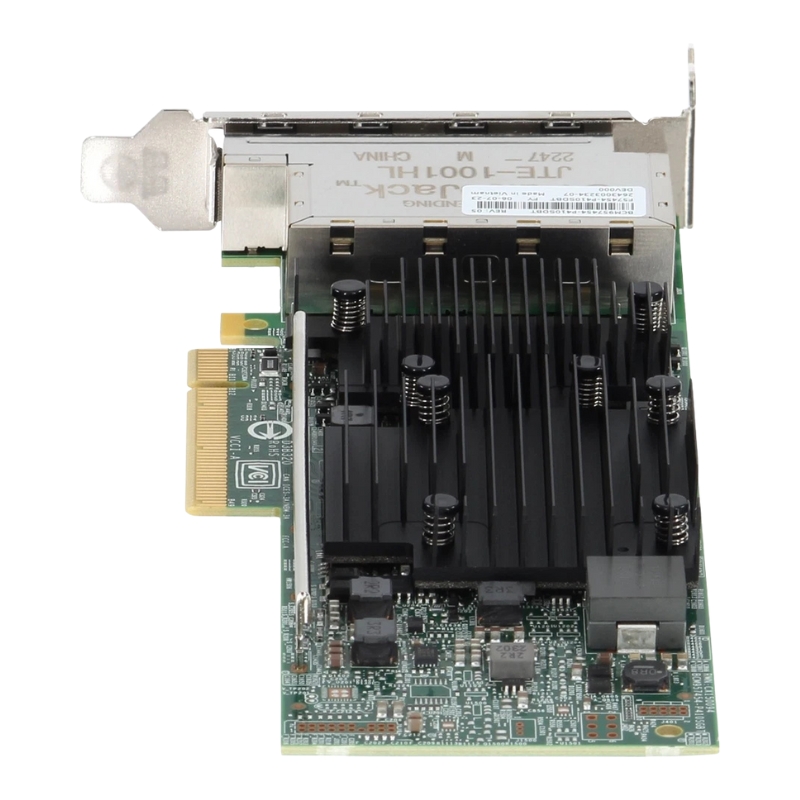

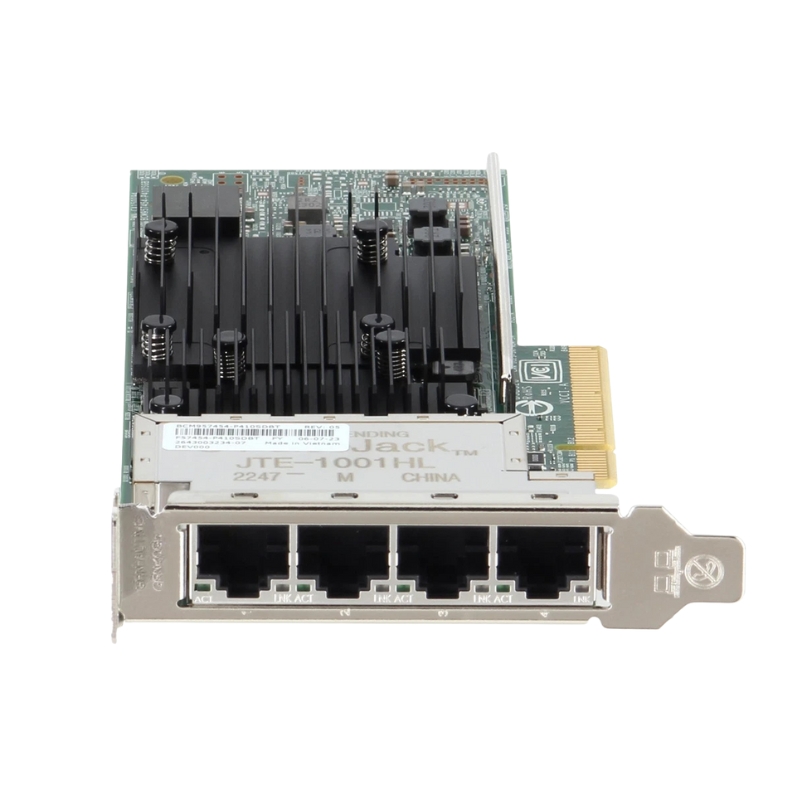

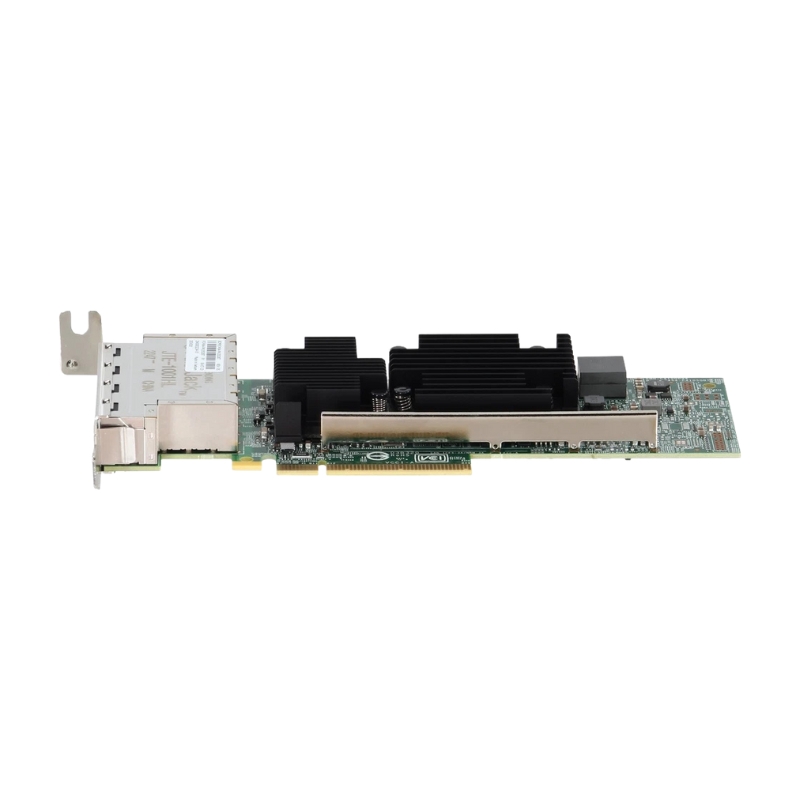

Dell 540-BDLL Broadcom 57454 10GbE 4-Port Network Adapter

High-Performance Server Networking Solution

The Dell 540-BDLL Broadcom 57454 10 Gigabit Ethernet PCI-Express network adapter is engineered to deliver reliable multi-port connectivity for enterprise-grade server environments. Designed for scalability and speed, this quad-port Base-T NIC ensures stable and efficient data transmission across demanding workloads.

Key Highlights of Dell 540-BDLL Adapter

• Manufacturer: Dell
• Part Number / SKU: 540-BDLL
• Product Category: Network Interface Card (NIC)
• Interface Type: PCI-Express
• Port Configuration: 4-Port Ethernet Adapter

Advanced Technical Capabilities

Enterprise-Grade Connectivity Features

Built for modern data center infrastructure, this Broadcom-based adapter provides high-speed networking performance with optimized throughput and low latency. It is fully tested and validated on Dell PowerEdge platforms, ensuring seamless integration and operational stability.

Performance-Oriented Design Benefits

• Supports high-bandwidth applications and virtualization workloads
• Ensures reliable multi-gigabit data transfer efficiency
• Optimized for server-to-network communication stability
• Designed for continuous enterprise operation environments

Compact and Efficient Architecture

This network adapter features a space-saving form factor that allows efficient installation within dense server configurations. Its PCIe-based structure ensures fast communication between the motherboard and network infrastructure, improving overall system responsiveness.

Design Advantages

• Low-profile and space-efficient construction
• Enhanced airflow compatibility in server chassis
• Reduced hardware footprint for rack optimization

System Compatibility and Supported Platforms

Validated Dell PowerEdge Servers

The Dell 540-BDLL adapter is certified and validated for use across multiple Dell PowerEdge systems, ensuring dependable performance and full hardware compatibility.

Supported Server Models

• PowerEdge C6620
• PowerEdge HS5610
• PowerEdge HS5620
• PowerEdge R360
• PowerEdge R660 / R660xs
• PowerEdge R6615
• PowerEdge R6625
• PowerEdge R760 / R760xd2 / R760xs
• PowerEdge R7615
• PowerEdge R7625
• PowerEdge R860
• PowerEdge R960
• PowerEdge XR7620

Dell 540-BDLL 10 Gigabit Ethernet PCI-E 4-Port Network Adapter

The Dell 540-BDLL Broadcom 57454 10 Gigabit Ethernet PCI-E 4 Ports Network Adapter is a high-performance enterprise-grade networking solution designed to meet the demanding requirements of modern data centers, virtualization environments, cloud infrastructure, and high-throughput server applications. Built on Broadcom’s advanced 57454 controller architecture, this adapter delivers reliable multi-port 10GbE connectivity with exceptional bandwidth efficiency, low latency, and advanced offloading capabilities. It is widely deployed in server environments where scalability, redundancy, and performance are critical factors.

Core Architecture and Design Principles

Broadcom 57454 Controller Technology

At the heart of the Dell 540-BDLL adapter lies the Broadcom 57454 Ethernet controller, engineered to deliver enterprise-class throughput and stability. This chipset is optimized for multi-queue networking, enabling efficient distribution of network traffic across CPU cores. It significantly reduces bottlenecks in high-density environments and improves overall server responsiveness under heavy workloads.

PCI Express Interface Integration

The adapter utilizes a PCI Express (PCI-E) interface to ensure high-speed communication between the network card and the host system. PCI-E architecture enables scalable bandwidth allocation, making it suitable for servers handling intensive workloads such as virtualization clusters, database servers, and large-scale storage networks.

Key Features of Dell 540-BDLL Network Adapter

Quad-Port 10 Gigabit Ethernet Connectivity

One of the most significant features of this adapter is its four independent 10GbE ports. These ports allow simultaneous high-speed connections, enabling link aggregation, redundancy, and load balancing. Enterprises benefit from improved fault tolerance and optimized traffic distribution across multiple network paths.

Advanced Offload Capabilities

The Broadcom 57454 controller supports a wide range of hardware offloading functions including TCP/IP offload engine (TOE), large send offload (LSO), checksum offload, and segmentation offload. These features reduce CPU utilization, allowing server processors to focus on application-level tasks rather than network processing overhead.

Virtualization Optimization Support

Designed with virtualization in mind, the adapter supports technologies such as VMware NetQueue and Microsoft VMQ (Virtual Machine Queue). These features allow efficient distribution of network traffic across virtual machines, ensuring consistent performance in heavily virtualized environments.

Energy Efficient Ethernet (EEE)

Energy Efficient Ethernet functionality helps reduce power consumption during periods of low network activity. This makes the adapter suitable for environmentally conscious data centers aiming to optimize energy usage without compromising performance.

Performance Advantages in Enterprise Environments

High Bandwidth Throughput

With four 10GbE ports, the Dell 540-BDLL adapter provides an aggregate bandwidth potential of up to 40Gbps. This high throughput makes it ideal for environments with heavy data transfer requirements such as backup systems, virtualization clusters, and high-performance computing (HPC) workloads.

Low Latency Communication

The architecture of the Broadcom 57454 controller is optimized for low latency data processing. By minimizing packet processing delays, the adapter ensures real-time responsiveness, which is essential for latency-sensitive applications such as financial trading systems and real-time analytics platforms.

Load Balancing and Link Aggregation

Network administrators can configure link aggregation (LACP) across the four ports to enhance bandwidth utilization and redundancy. Load balancing distributes traffic efficiently, ensuring no single link becomes a bottleneck while maintaining high availability.

Data Center and Cloud Deployment Scenarios

Virtualized Infrastructure Integration

In virtualized data centers, the Dell 540-BDLL adapter plays a crucial role in ensuring consistent network performance across multiple virtual machines. Its support for SR-IOV (Single Root Input/Output Virtualization) enables direct hardware access for virtual instances, reducing overhead and improving throughput efficiency.

Cloud Computing Environments

Cloud service providers rely on high-density networking solutions to manage massive workloads. This adapter supports scalable network architectures, making it suitable for private and hybrid cloud deployments where flexibility and reliability are essential.

Enterprise Storage Networks

The adapter is also widely used in storage area networks (SANs) and network-attached storage (NAS) environments. Its high-speed connectivity ensures fast data replication, backup operations, and seamless access to distributed storage systems.

Technical Specifications and Hardware Capabilities

Interface and Form Factor

The Dell 540-BDLL is designed in a PCI Express form factor suitable for rack servers and enterprise-grade workstations. Its compact yet powerful design allows installation in high-density server environments without compromising airflow or thermal performance.

Supported Protocols and Standards

The adapter supports a wide range of networking standards including IEEE 802.3ae (10GbE), VLAN tagging (802.1Q), and advanced flow control mechanisms. These standards ensure interoperability with modern networking infrastructure.

Protocol Acceleration Features

Protocol acceleration capabilities help improve packet processing efficiency. This includes checksum offloading, segmentation offloading, and receive-side scaling (RSS), which distributes network processing across multiple CPU cores.

Memory and Buffer Architecture

The adapter incorporates advanced packet buffering systems to handle traffic bursts efficiently. This reduces packet loss during peak traffic periods and ensures consistent network reliability.

Compatibility and System Integration

Supported Server Platforms

The Dell 540-BDLL adapter is compatible with a wide range of Dell PowerEdge servers and other enterprise-grade x86 server platforms. It is commonly deployed in rack-mounted servers used in enterprise and cloud environments.

Operating System Support

The adapter supports multiple operating systems including Windows Server editions, Linux distributions (such as Red Hat Enterprise Linux, SUSE Linux Enterprise Server, and Ubuntu Server), and virtualization hypervisors like VMware ESXi.

Driver and Firmware Management

Proper driver installation and firmware updates are critical for maintaining optimal performance. Broadcom and Dell provide regular updates to ensure compatibility with evolving enterprise network standards.
