540-BDOQ Dell Intel XXV710-DA2 25GB Ethernet PCI-Express 2 Ports Network Adapter

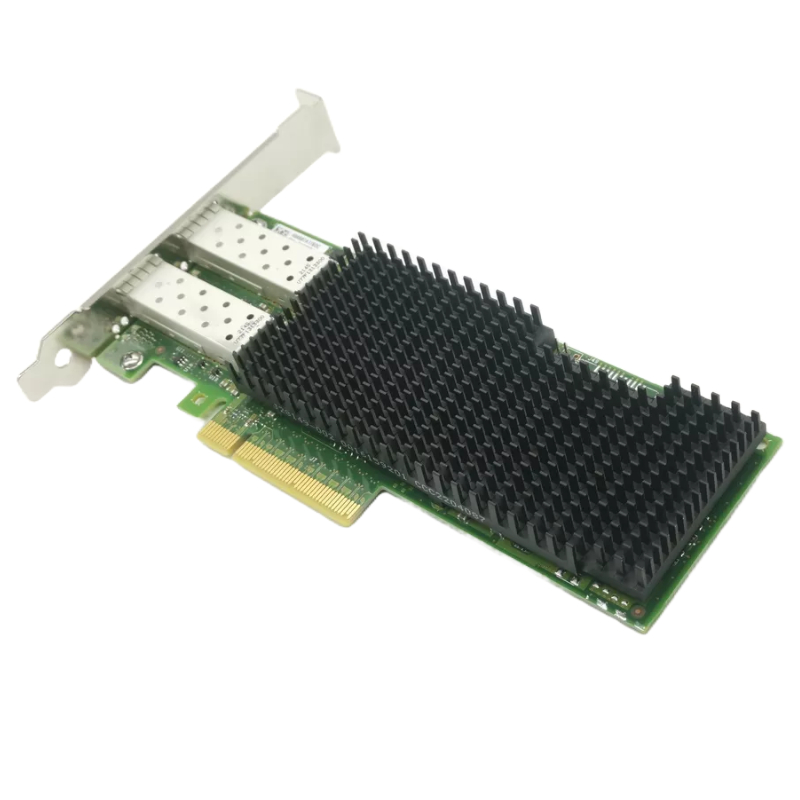

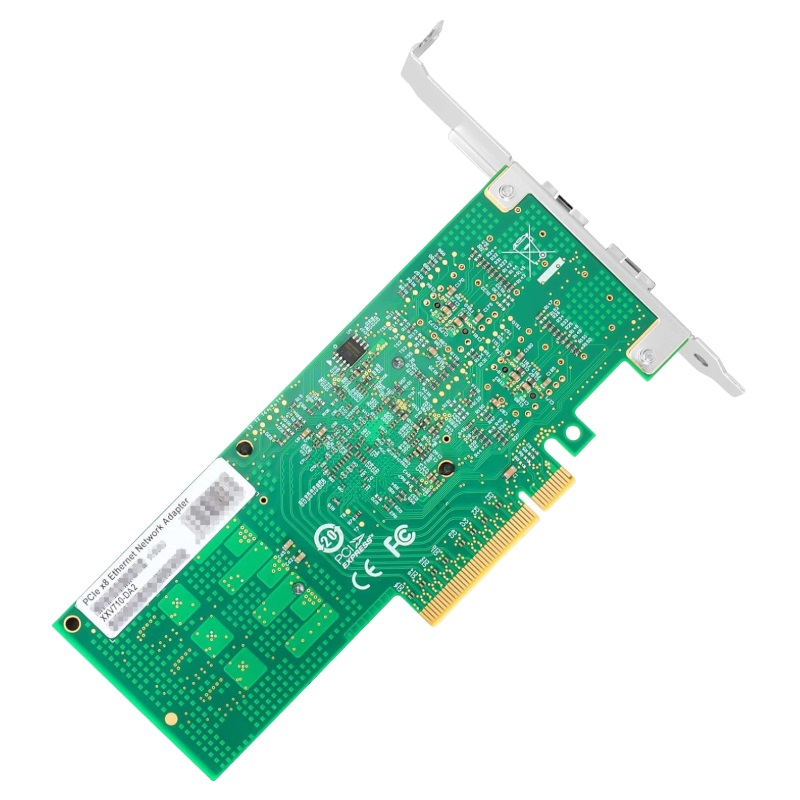

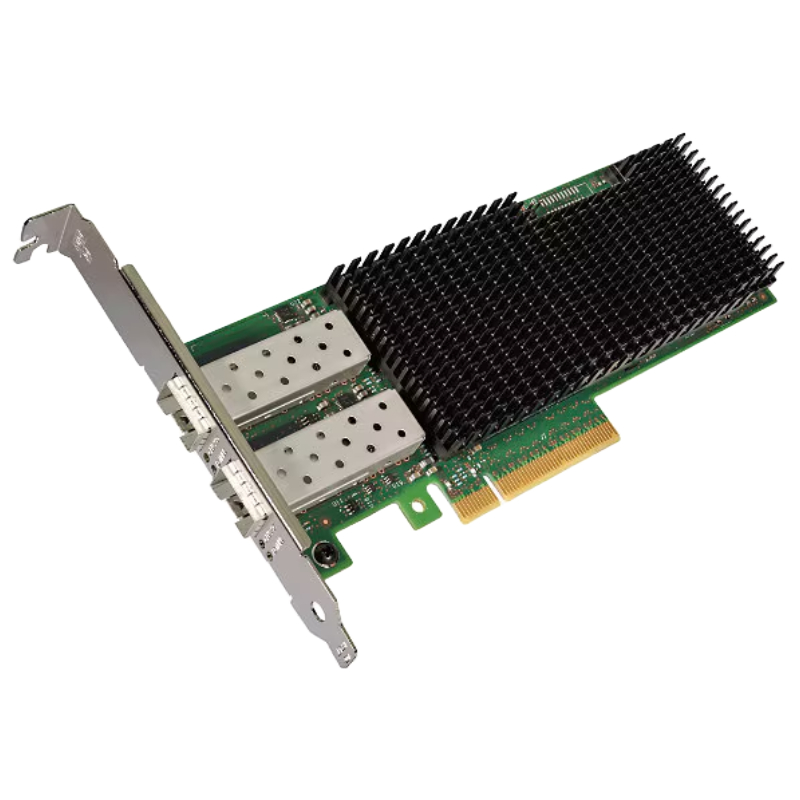

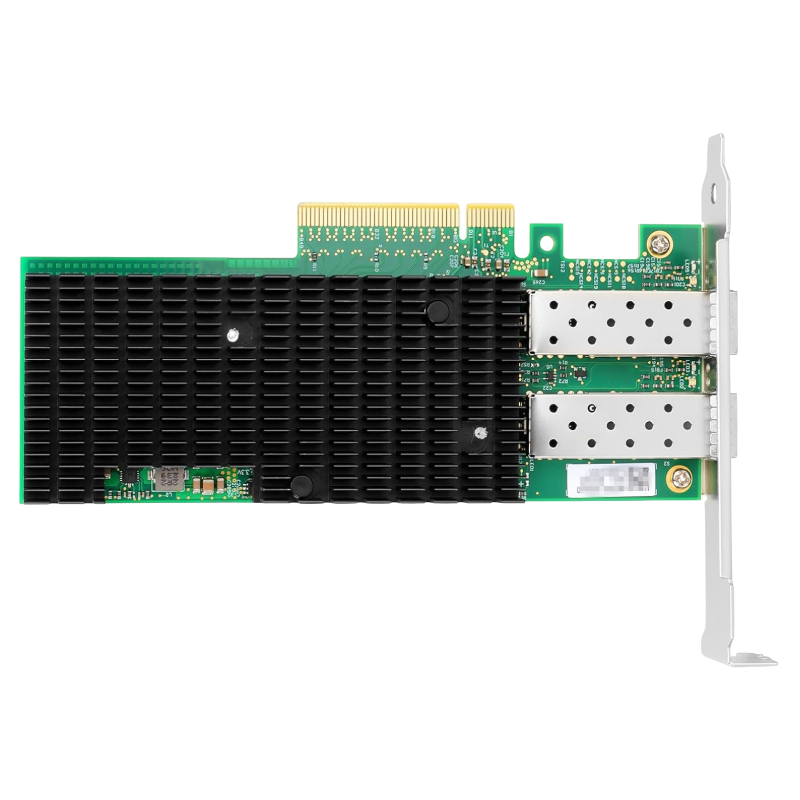

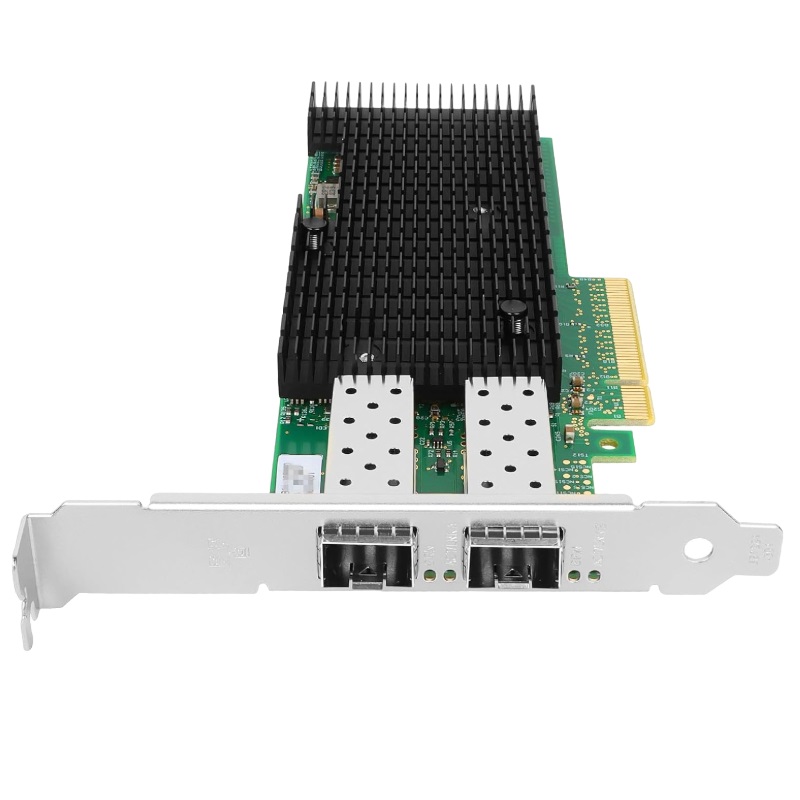

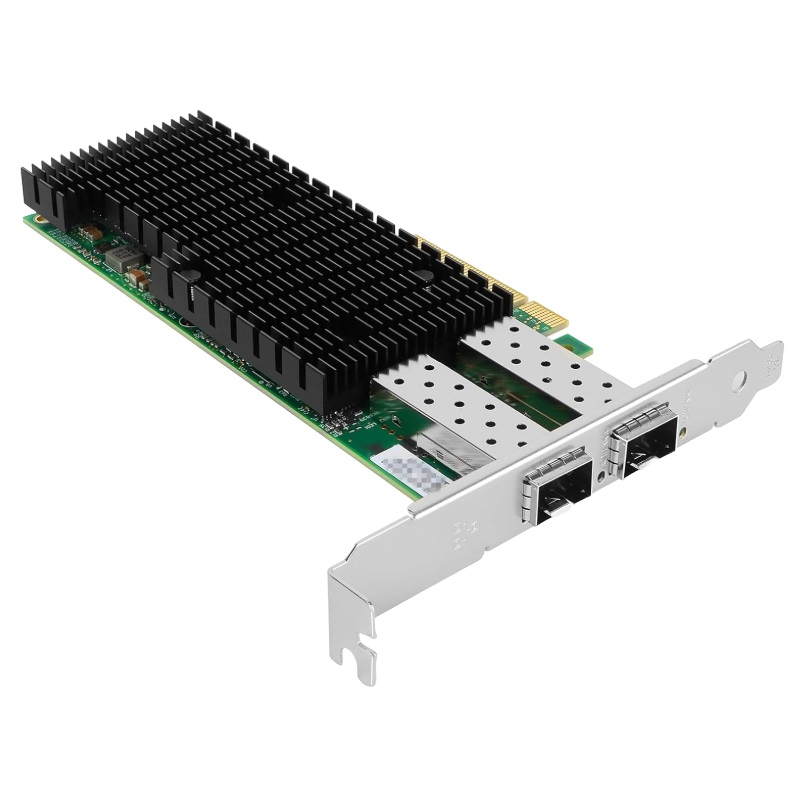

Dell 540-BDOQ Intel XXV710-DA2 25GbE 2-Port Network Adapter

High-Performance Enterprise Networking Solution

The Dell 540-BDOQ Intel XXV710-DA2 is a dual-port 25 Gigabit Ethernet network adapter engineered for modern data-intensive environments. Designed for scalability and reliability, it delivers ultra-fast throughput for enterprise servers, virtualization platforms, and cloud infrastructures.

Key Highlights of Dell 540-BDOQ Adapter

• Manufacturer: Dell Technologies
• Model / Part Number: 540-BDOQ
• Product Category: High-speed network interface card (NIC)
• Port Configuration: Dual 25GbE SFP28 interfaces
• Optimized for data centers, virtualization, and storage networks

Advanced Hardware Architecture & Design

Compact Low-Profile Form Factor

This adapter features a space-saving low-profile plug-in card design, making it suitable for dense server environments where efficient hardware utilization is essential.

Physical Specifications

• Form Factor: Low-profile PCI Express add-in card
• Dimensions: 6.6 inches x 2.7 inches
• Connectivity: Fully wired Ethernet solution

PCI Express Interface

• Bus Type: PCI Express 3.0 x8
• High-bandwidth channel support for maximum throughput

Network Performance & Connectivity Capabilities

Ultra-Fast Data Transfer Speeds

The Dell XXV710-DA2 adapter is built for high-speed networking, offering robust performance across multiple Ethernet standards.

• Maximum Data Rate: Up to 25 Gbps per port
• Supports backward compatibility with 10GbE and 1GbE networks
• Optimized for low latency and high throughput workloads

Supported Data Link Protocols

• Gigabit Ethernet (GbE)
• 10 Gigabit Ethernet (10GbE)
• 25 Gigabit Ethernet (25GbE)

Transport & Network Protocol Support

• TCP/IP and UDP/IP communication stacks
• iSCSI for storage networking
• SMB and NFS file sharing protocols

Industry Standards & Compliance

Broad IEEE Standards Support

• IEEE 802.3 Ethernet standards compliance
• IEEE 802.1Q VLAN tagging support
• IEEE 802.1P traffic prioritization
• IEEE 802.3ad (LACP) link aggregation
• IEEE 802.1AS time synchronization
• IEEE 802.3by for 25GbE operations

Dell 540-BDOQ 25Gb Ethernet PCI-E 2-Port Network Adapter

The Dell 540-BDOQ Intel XXV710-DA2 25Gb Ethernet PCI-Express 2 Ports Network Adapter belongs to the high-performance enterprise networking category designed for modern data centers, virtualization environments, and cloud-scale infrastructures. Built on advanced Intel Ethernet controller technology, this dual-port 25GbE adapter is optimized for high-throughput workloads, ultra-low latency communication, and efficient CPU utilization in mission-critical server environments. It is widely deployed in scalable storage networks, hyper-converged infrastructures (HCI), and next-generation cloud platforms where bandwidth density and reliability are essential.

As enterprise workloads continue to grow in complexity, the demand for faster and more efficient network interfaces has increased significantly. This adapter addresses those needs by providing two high-speed 25Gb Ethernet ports through a PCI Express interface, ensuring seamless integration into Dell PowerEdge servers and other compatible enterprise systems.

Core Architecture and Design of Intel XXV710-DA2 Technology

Intel Ethernet Controller XXV710 Foundation

At the heart of the Dell 540-BDOQ adapter lies the Intel XXV710 controller, a proven silicon architecture engineered for 10GbE, 25GbE, and scalable multi-speed networking. This controller is designed to optimize packet processing efficiency while minimizing CPU overhead through hardware offloading capabilities.

Hardware Acceleration Features

The adapter supports advanced hardware acceleration technologies including checksum offload, TCP segmentation offload (TSO), large receive offload (LRO), and intelligent interrupt moderation. These features significantly reduce CPU load, allowing servers to allocate more processing power to application workloads rather than network processing.

Dual-Port 25GbE Interface Design

The dual-port configuration provides redundancy and increased throughput capacity. Each port supports up to 25 gigabits per second, enabling aggregated bandwidth performance suitable for high-density virtualization clusters and storage replication networks.

Load Balancing and Failover Capabilities

Network administrators can configure both ports for load balancing or failover redundancy. This ensures continuous uptime in mission-critical applications such as financial systems, cloud-hosted applications, and large-scale databases.

PCI Express Interface and System Integration

PCIe High-Speed Connectivity

The Dell 540-BDOQ adapter utilizes a PCI Express interface, ensuring high-bandwidth communication between the network controller and the host system. This enables efficient data transfer without bottlenecks, particularly in environments that demand sustained high throughput.

Lane Configuration and Bandwidth Optimization

Designed for modern server architectures, the adapter typically leverages multiple PCIe lanes to maximize data flow. This ensures that both 25GbE ports can operate at full capacity without contention or latency issues.

Server Compatibility and Deployment Flexibility

This adapter is commonly deployed in Dell PowerEdge server platforms but may also be compatible with other enterprise-class servers supporting PCIe-based NIC expansion. Its flexible design ensures broad integration across diverse IT infrastructures.

Performance Optimization in Enterprise Environments

High Throughput Networking for Data Centers

The 25GbE capability of the adapter makes it ideal for modern data centers transitioning from 10GbE to higher bandwidth networks. It supports high-speed east-west traffic commonly found in distributed applications, microservices architectures, and virtual machine migrations.

Virtualization Workloads

In virtualized environments such as VMware vSphere, Microsoft Hyper-V, and KVM-based systems, the adapter ensures stable and predictable network performance even under heavy VM density. It supports multiple virtual NICs and advanced traffic segmentation.

Low Latency Communication

Latency-sensitive applications such as high-frequency trading platforms, real-time analytics systems, and AI training clusters benefit significantly from the adapter’s optimized packet processing pipeline.

Advanced Networking Features and Capabilities

RDMA and Low-Overhead Data Transfer

Depending on configuration, the adapter may support Remote Direct Memory Access (RDMA) technologies such as RoCE (RDMA over Converged Ethernet). This enables direct memory-to-memory data transfers between servers, bypassing CPU intervention and significantly reducing latency.

Benefits of RDMA Implementation

RDMA support improves throughput efficiency in storage networks and distributed computing clusters. It is especially beneficial for applications like big data analytics, machine learning pipelines, and high-performance computing workloads.

Virtualization and Network Offloads

The adapter supports Single Root I/O Virtualization (SR-IOV), allowing multiple virtual machines to share a single physical network adapter while maintaining near-native performance levels.

SR-IOV Virtual Functions

Each virtual function operates as an independent network interface, reducing hypervisor overhead and improving VM-to-VM communication efficiency.

VXLAN, NVGRE, and Overlay Network Support

Modern cloud infrastructures rely heavily on overlay networking technologies. This adapter provides hardware acceleration for encapsulation and decapsulation of VXLAN and NVGRE traffic, reducing CPU workload in software-defined networking environments.

Energy Efficiency and Thermal Management

Optimized Power Consumption

Despite its high-performance capabilities, the adapter is designed with energy-efficient components that minimize power draw under both idle and full-load conditions. This contributes to lower operational costs in large-scale deployments.

Adaptive Power Management

Dynamic power scaling adjusts performance states based on traffic load, ensuring that energy consumption is aligned with real-time usage requirements.

Thermal Design Considerations

The adapter is engineered for enterprise server chassis with optimized heat dissipation characteristics. Proper airflow in rack-mounted systems ensures stable operation even under sustained workloads.

Security and Data Integrity Features

Hardware-Based Security Enhancements

Security is a critical component in enterprise networking. The adapter supports secure boot mechanisms and firmware-level integrity checks to prevent unauthorized modifications.

Data Protection Mechanisms

Advanced checksum offloading and packet validation ensure data integrity during transmission, reducing the risk of corruption in high-throughput environments.

Network Isolation and Segmentation

Support for VLAN tagging and advanced segmentation allows administrators to isolate sensitive workloads within secure network domains.

Deployment Scenarios and Use Cases

Cloud Data Centers

In cloud environments, the adapter provides scalable bandwidth for multi-tenant architectures, enabling efficient workload distribution across virtualized clusters.

High-Performance Computing (HPC)

HPC clusters benefit from the adapter’s low latency and high throughput, particularly in scientific simulations, computational modeling, and AI training environments.

Enterprise Storage Networks

The adapter is widely used in storage area networks (SANs) and network-attached storage (NAS) systems, where fast and reliable data access is critical.

Big Data and Analytics Platforms

Distributed analytics frameworks such as Hadoop and Spark rely on high-speed inter-node communication, making this adapter an ideal choice for such workloads.
