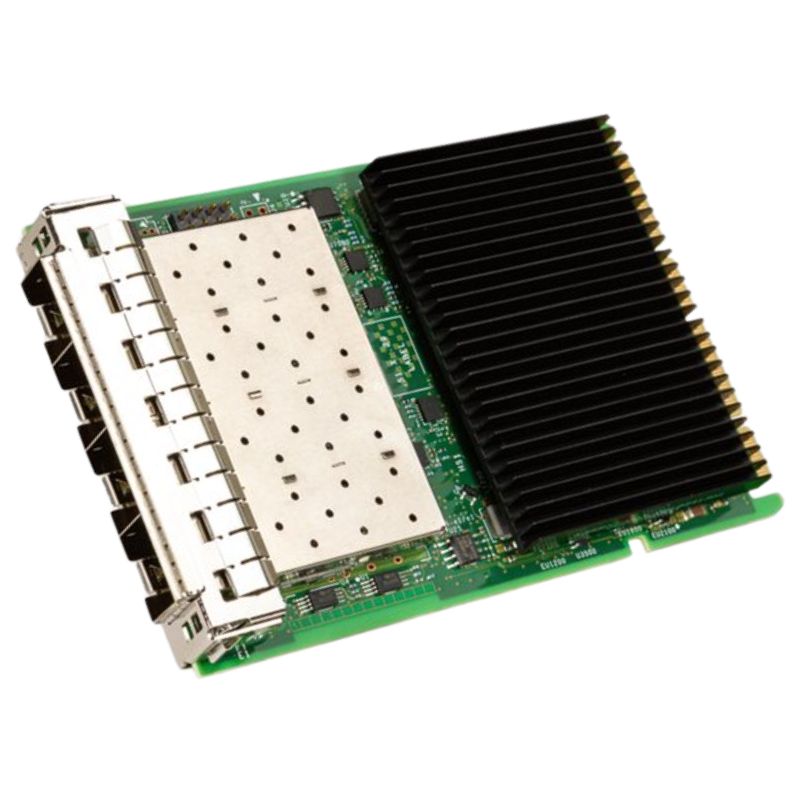

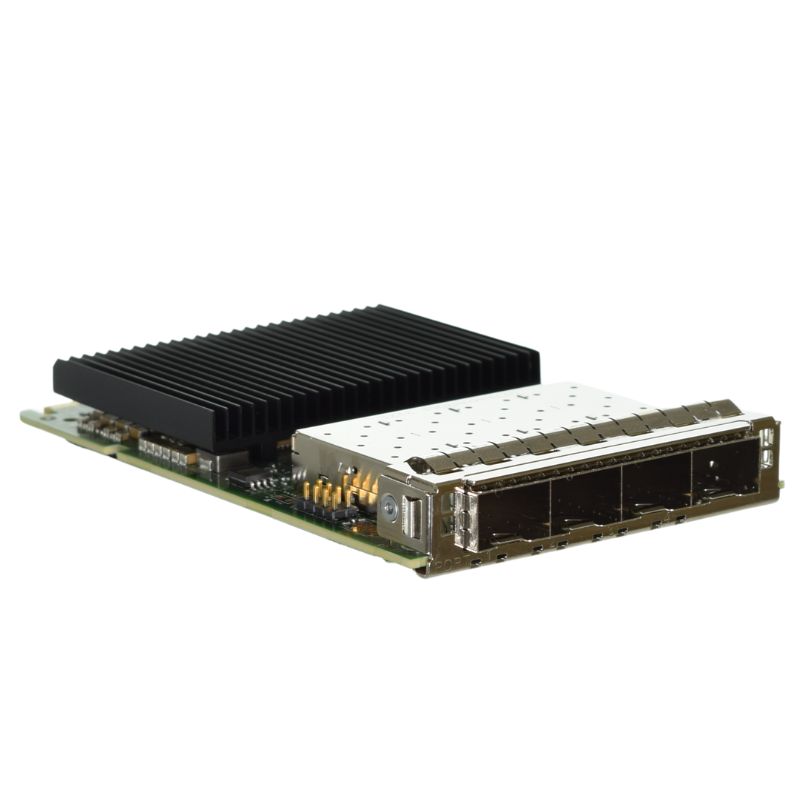

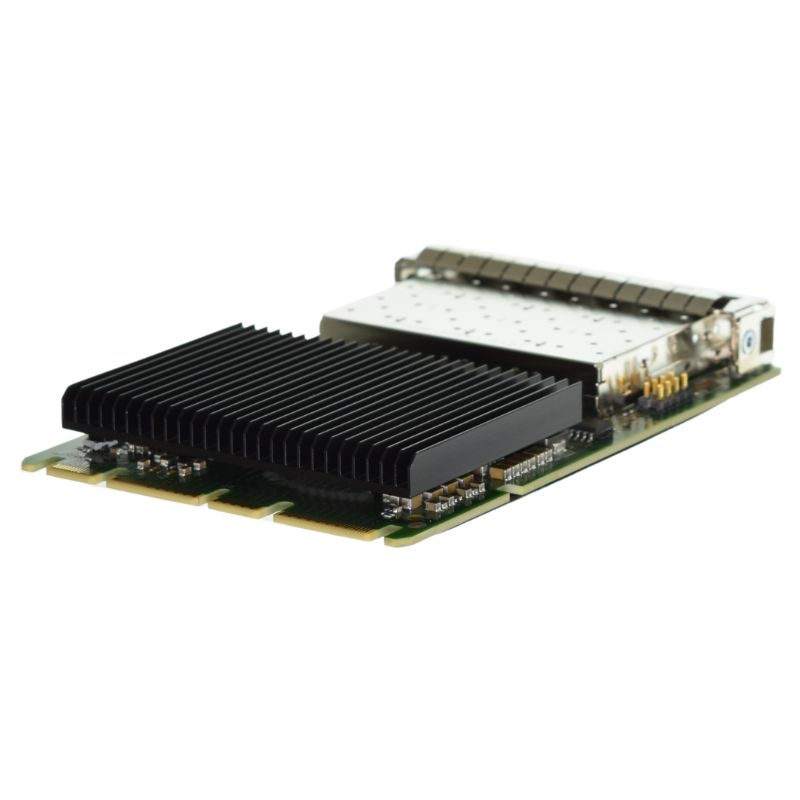

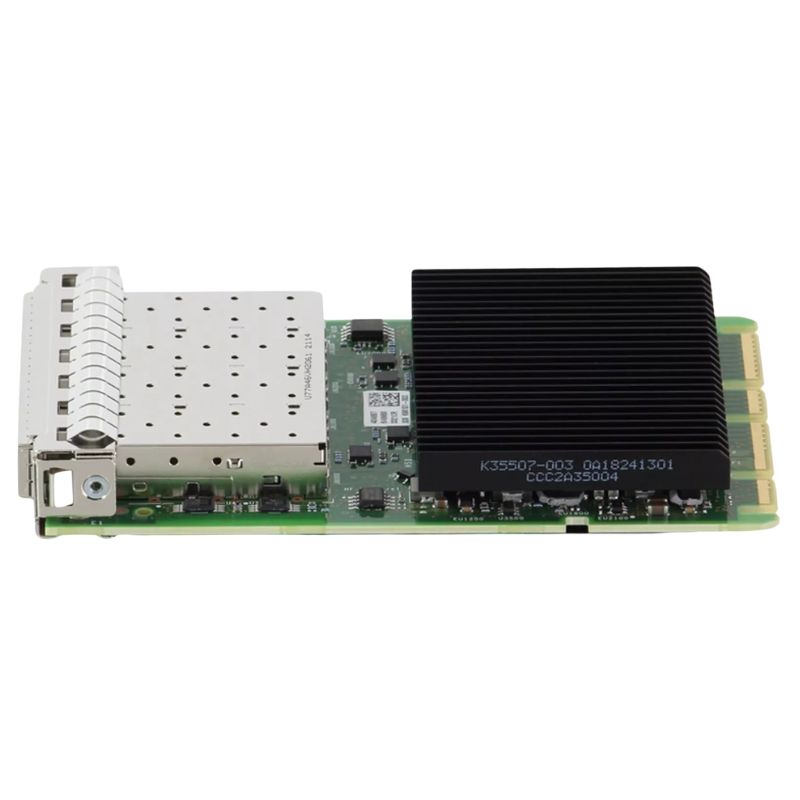

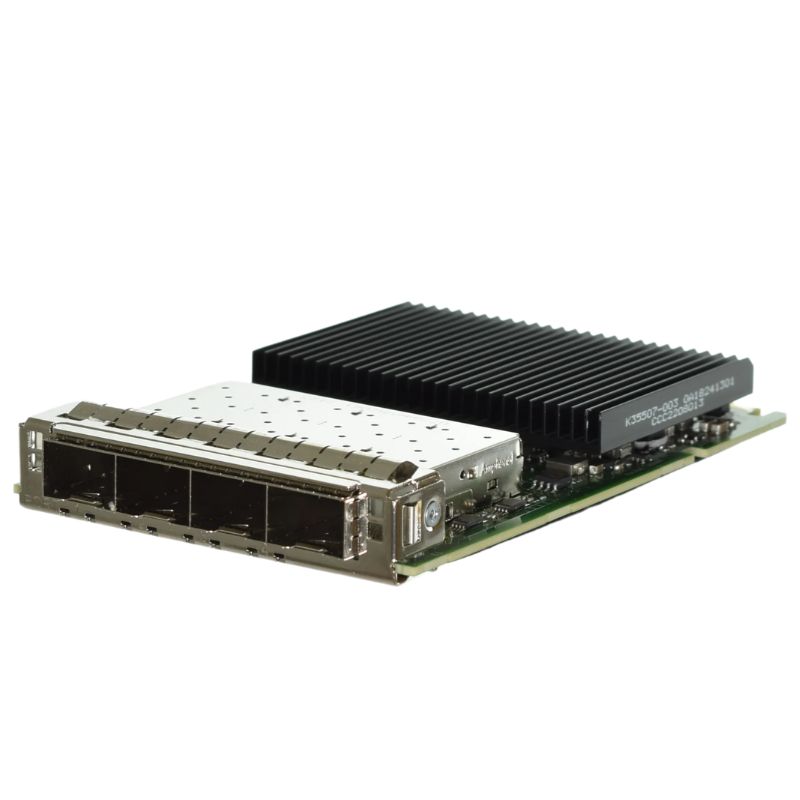

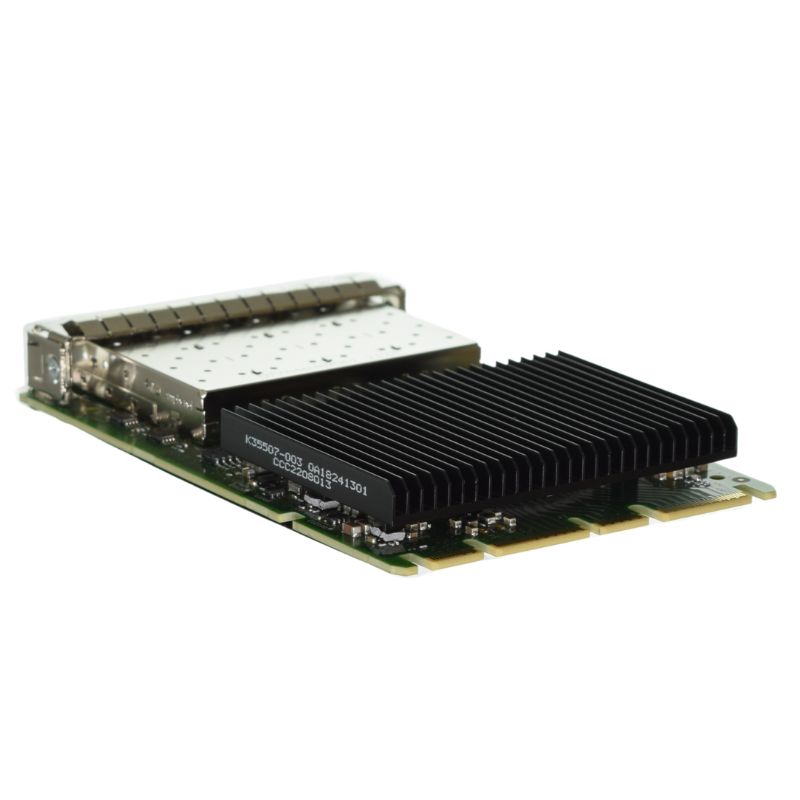

540-BDPI Dell Intel E810-xxvda4 Quad Port 10/25GBe Sfp28 Adapter

Dell 540-BDPI 4 Port 25GbE SFP28 Network Adapter Overview

Enterprise-Grade High-Speed Networking Solution

The Dell 540-BDPI Intel E810-XXVDA4 is a premium quad-port network interface card engineered for modern data centers and enterprise workloads. Designed and validated by, this adapter delivers ultra-fast connectivity, scalable throughput, and optimized server integration for mission-critical environments.

Key Product Identification

• Manufacturer: Dell Technologies
• Part Number (SKU): 540-BDPI
• Device Type: High-performance network adapter
• Port Configuration: Quad-port (4 ports)

Advanced Technical Specifications

High-Performance Architecture

Interface & System Integration

• Form Factor: OCP 3.0 optimized design for compact server deployment
• Interface Standard: PCI Express 4.0 x16 for maximum bandwidth efficiency
• Compatibility Focus: Designed for seamless integration in Dell PowerEdge infrastructure

Data Throughput Capabilities

• Speed Support: Up to 10/25GbE per port
• Total Bandwidth: High aggregate throughput for demanding workloads
• Latency Optimization: Reduced delay for real-time applications and virtualization

Port and Connectivity Configuration

Quad SFP28 Ports

• 4 × SFP28 optical ports for flexible fiber connectivity
• Supports 10GbE and 25GbE network environments
• Ideal for scalable cloud and enterprise network architectures

Performance and Networking Advantages

Enhanced Data Center Efficiency

High-Speed Connectivity Benefits

• Improved workload balancing across multiple network channels
• Reliable performance for virtualization and storage traffic
• Optimized for cloud computing and AI-driven workloads

Low-Latency Design

• PCIe 4.0 x16 interface minimizes bottlenecks
• Efficient packet processing for high-throughput environments
• Stable performance under heavy network loads

Form Factor and Hardware Compatibility

OCP 3.0 Server Integration

Compact and Efficient Design

• OCP 3.0 standard ensures flexible deployment in modern servers
• Space-efficient architecture for dense rack environments
• Enhanced airflow and thermal efficiency in server chassis

Dell Certified Reliability

• Fully tested and validated for Dell PowerEdge systems
• Backed by Dell Technical Support for enterprise reliability
• Guaranteed compatibility with supported server configurations

Compatible Dell PowerEdge Server Systems

Supported Server Series

PowerEdge C Series

• C6620

PowerEdge R Series

• R660
• R660xs
• R6625
• R760
• R760xd2
• R760xs
• R860
• R960

PowerEdge T Series

• T560

PowerEdge XE Series

• XE8640
• XE9680

PowerEdge XR Series

• XR5610
• XR7620

Dell 540-BDPI Intel E810-XXVDA4 4 Port SFP28 Adapter

The Dell 540-BDPI Intel E810-XXVDA4 Quad Port 10/25GbE SFP28 Adapter is a high-performance network interface solution designed for modern enterprise data centers, cloud infrastructure, virtualization environments, and high-throughput computing systems. Built on Intel’s advanced Ethernet 800 Series architecture, this adapter delivers exceptional bandwidth scalability, ultra-low latency performance, and enhanced workload optimization capabilities for mission-critical networking environments. With quad-port SFP28 connectivity, it enables flexible deployment options supporting both 10GbE and 25GbE speeds, making it ideal for organizations transitioning toward next-generation high-speed networking infrastructures.

Enterprise-Class Network Performance and Scalability

Next-Generation Intel E810 Controller Architecture

At the core of the Dell 540-BDPI adapter lies the Intel Ethernet E810 controller, a powerful chipset engineered to meet the demands of modern data-intensive applications. This architecture introduces enhanced packet processing efficiency, improved hardware offloading capabilities, and optimized support for virtualization workloads. The controller is specifically designed to handle high-density traffic environments, ensuring minimal packet loss and consistent throughput under heavy load conditions.

Advanced Packet Processing Engine

The E810 controller integrates an advanced packet processing engine that significantly reduces CPU overhead by offloading networking tasks such as checksum calculations, segmentation, and encapsulation. This allows server CPUs to focus on application-level workloads rather than network processing, resulting in improved overall system efficiency.

Low-Latency Optimization Features

Low latency is a critical requirement for financial services, real-time analytics, and cloud-native applications. The Dell 540-BDPI adapter minimizes latency through hardware-based optimizations such as intelligent queuing, traffic prioritization, and direct data path acceleration, ensuring predictable performance across demanding workloads.

Quad Port SFP28 Interface for Maximum Connectivity

This adapter features four SFP28 ports, each capable of supporting 10GbE or 25GbE connectivity depending on transceiver configuration and network requirements. The quad-port design provides high-density networking capabilities, making it suitable for servers requiring multiple redundant or aggregated network connections.

Flexible Deployment Options

The SFP28 interface allows administrators to deploy the adapter in diverse networking scenarios, including spine-leaf architectures, top-of-rack switching, and converged network infrastructures. This flexibility enables seamless integration into both legacy 10GbE environments and modern 25GbE deployments.

Support for Optical and Direct Attach Copper (DAC)

The adapter supports both optical transceivers and direct attach copper cables, giving IT teams flexibility in designing cost-effective and performance-optimized network topologies. DAC cables are ideal for short-range, low-cost connections, while optical modules are suitable for long-distance, high-bandwidth communication between data center racks.

Data Center Optimization and Workload Efficiency

Virtualization and Cloud Workload Acceleration

The Dell 540-BDPI Intel E810-XXVDA4 adapter is optimized for virtualization platforms such as VMware, Microsoft Hyper-V, and KVM-based environments. It provides advanced support for virtual machine (VM) traffic isolation, hardware-assisted virtualization, and multi-queue packet processing to ensure efficient distribution of network traffic across virtual workloads.

SR-IOV and Virtual Function Support

Single Root I/O Virtualization (SR-IOV) enables the adapter to partition a single physical network port into multiple virtual functions. This improves network efficiency in virtualized environments by allowing direct hardware access to VMs, reducing hypervisor overhead and improving throughput consistency.

Enhanced Multi-Tenant Security

In cloud and multi-tenant environments, network isolation is critical. The adapter enforces secure traffic separation between virtual instances, ensuring that workloads remain isolated while maintaining high-speed data exchange within authorized channels.

Load Balancing and Traffic Management

Efficient load balancing is essential in high-performance networks. The adapter supports intelligent traffic distribution mechanisms that evenly allocate network flows across multiple ports and queues, preventing congestion and ensuring consistent performance.

Adaptive Queue Management

Adaptive queue management dynamically adjusts packet handling priorities based on workload conditions. This ensures that latency-sensitive applications receive prioritized bandwidth while bulk data transfers are efficiently managed in the background.

Quality of Service (QoS) Optimization

Built-in QoS capabilities allow administrators to define traffic priorities based on application requirements. This is particularly useful in environments running mixed workloads such as storage replication, database synchronization, and real-time analytics.

High-Speed Networking Capabilities

10GbE and 25GbE Dual-Speed Support

One of the key strengths of the Dell 540-BDPI adapter is its dual-speed capability. Supporting both 10GbE and 25GbE, it allows organizations to scale network infrastructure gradually without requiring immediate full-scale hardware replacement. This ensures cost-effective upgrades and long-term investment protection.

Bandwidth Aggregation for High Throughput

Through link aggregation (LACP), multiple ports on the adapter can be combined to form a single logical high-bandwidth connection. This significantly enhances throughput for data-heavy applications such as storage replication, big data processing, and virtualization clustering.

Scalable Infrastructure Design

The adapter is designed for scalable architectures where network demands evolve over time. Organizations can start with 10GbE deployments and transition to 25GbE as workload requirements increase, without replacing existing infrastructure components.

Low Power and Energy Efficient Design

Despite its high-performance capabilities, the Dell 540-BDPI Intel E810-XXVDA4 adapter is engineered for energy efficiency. Advanced power management features dynamically adjust power consumption based on network activity, reducing operational costs in large-scale data centers.

Thermal Optimization

Efficient thermal design ensures stable performance even under sustained high-load conditions. The adapter minimizes heat generation, contributing to improved server cooling efficiency and longer hardware lifespan.

Green Data Center Compatibility

With growing emphasis on sustainability, this adapter aligns with green data center initiatives by reducing power consumption while maintaining enterprise-grade performance levels.

Advanced Networking Features and Protocol Support

RDMA over Converged Ethernet (RoCE) Support

The adapter supports RDMA over Converged Ethernet (RoCE), enabling direct memory access between servers without involving CPU intervention. This significantly reduces latency and improves throughput for storage and high-performance computing applications.

High-Performance Storage Networking

RoCE support is particularly beneficial for storage systems such as NVMe over Fabrics (NVMe-oF), where ultra-low latency and high bandwidth are essential for maintaining optimal performance.

Distributed Computing Acceleration

In distributed computing environments, RoCE enables faster node-to-node communication, improving cluster performance and reducing synchronization delays across compute nodes.

TCP/IP Offload and Stateless Offloads

The adapter includes advanced offloading capabilities for TCP/IP processing, reducing CPU workload and improving system efficiency. Stateless offloads handle tasks such as segmentation, checksum validation, and packet filtering directly in hardware.

Checksum and Segmentation Offload

By offloading checksum calculations and segmentation tasks, the adapter ensures that network traffic is processed more efficiently, reducing latency and improving throughput in high-demand environments.

Optimized CPU Utilization

Reducing CPU involvement in networking tasks allows servers to dedicate more processing power to application workloads, improving overall system performance and responsiveness.

Compatibility and Integration in Enterprise Environments

Dell Server Ecosystem Integration

The Dell 540-BDPI adapter is fully validated for compatibility with a wide range of Dell PowerEdge servers. This ensures seamless installation, firmware compatibility, and optimized performance within Dell’s enterprise hardware ecosystem.

BIOS and Firmware Synchronization

Integrated firmware synchronization ensures that the adapter operates in harmony with server BIOS and system firmware, reducing compatibility issues and improving stability across deployments.

Enterprise Management Support

The adapter supports enterprise management tools that allow administrators to monitor performance, update firmware, and configure network settings remotely, improving operational efficiency in large-scale IT environments.

Operating System and Driver Support

This network adapter is compatible with major operating systems including Windows Server, Linux distributions, and virtualization platforms. Extensive driver support ensures smooth deployment across heterogeneous environments.

Open Source and Enterprise Linux Compatibility

The adapter is optimized for popular Linux distributions used in cloud and enterprise deployments, including Red Hat Enterprise Linux and SUSE Linux Enterprise Server.

Automated Driver Updates

Automated driver update mechanisms help ensure that systems remain up-to-date with the latest performance enhancements and security patches.
