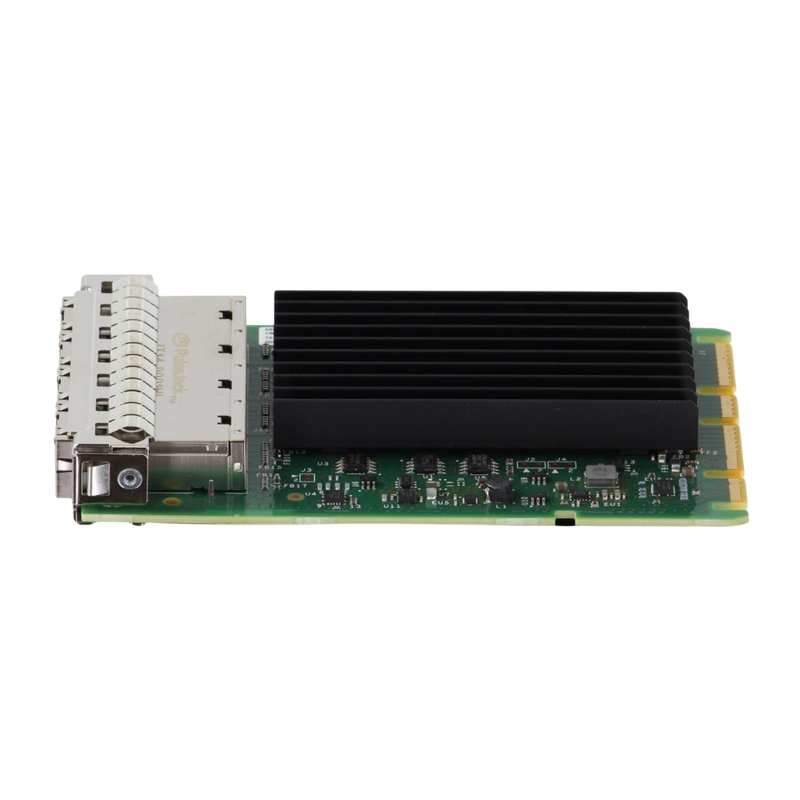

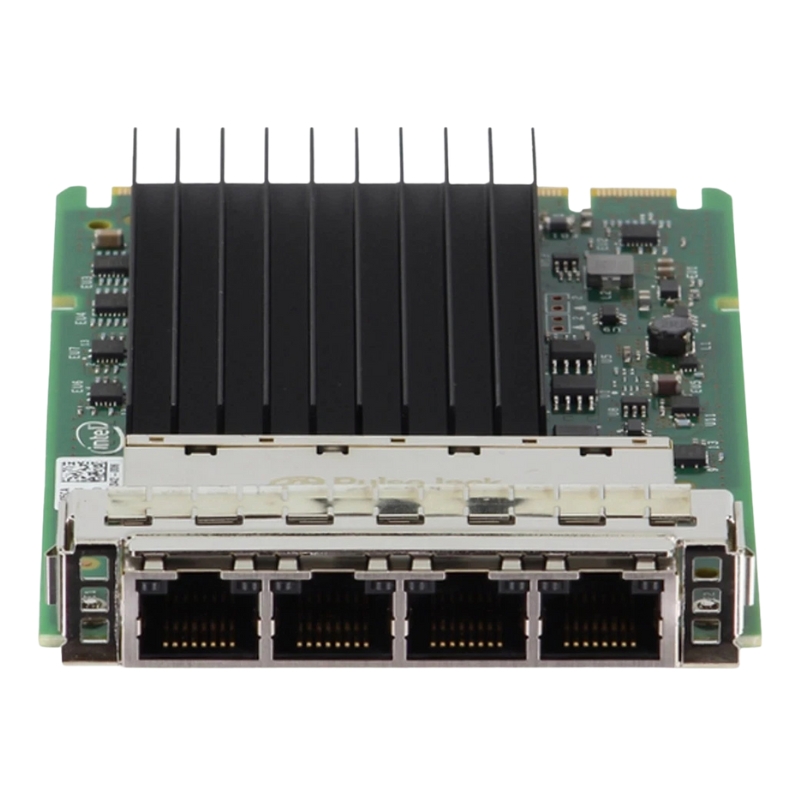

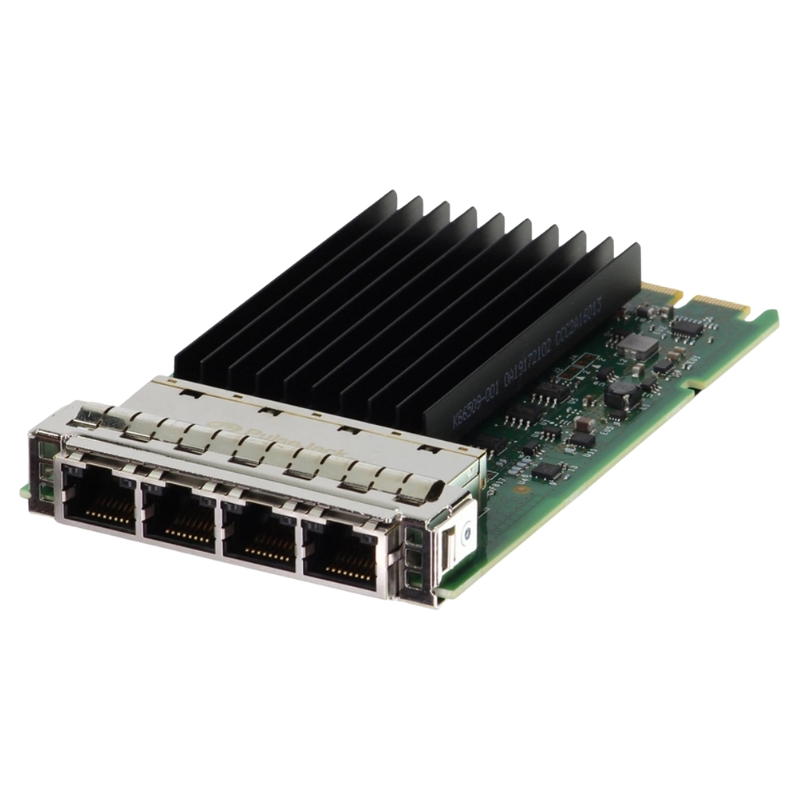

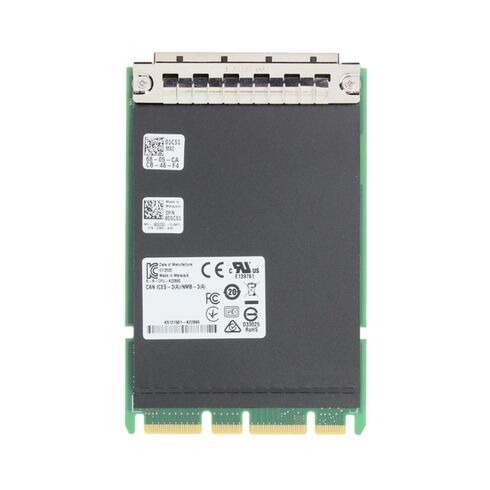

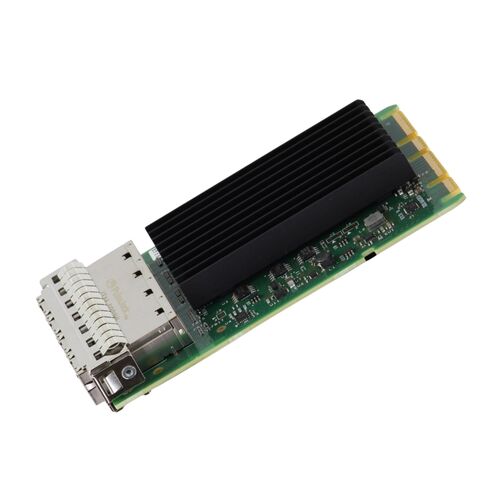

540-BDQF Dell I350T4OCPV3 Ethernet PCI-Express Network Adapters with 4 Ports

Dell 540-BDQF OCP Ethernet PCIe Network Adapter Overview

High-Performance 4-Port Networking Solution

The Dell 540-BDQF Intel I350T4OCPV3 is a compact and efficient OCP Ethernet PCIe network adapter designed to deliver stable multi-port connectivity for enterprise and data center environments. Built with Intel I350 controller technology, it ensures reliable throughput and optimized network performance across multiple workloads.

Key Product Highlights

• Manufacturer: Dell
• Part Number / SKU: 540-BDQF
• Product Category: Network Adapter
• Port Configuration: 4 Ethernet ports
• Designed for OCP NIC 3.0 small form factor systems

Advanced Connectivity and Performance Features

Supported Data Rates Per Port

• 10 Mbps for legacy compatibility
• 100 Mbps for standard networking
• 1000 Mbps (1 Gbps) for high-speed transmission

Bus Architecture and Interface

• PCI Express 2.1 interface with 5 GT/s transfer rate
• x4 PCIe lane width for balanced performance
• Advanced interrupt support including INT A, B, C, D
• MSI and MSI-X capability for optimized system signaling

Integrated Controller Technology

• Powered by Intel Ethernet Controller I350
• Enhanced stability for virtualized and enterprise workloads
• Efficient packet processing and reduced latency

Environmental and Operational Specifications

Temperature and Humidity Tolerance

• Operating temperature range: 0°C to 65°C (32°F to 149°F)
• Storage temperature range: -40°C to 70°C (-40°F to 158°F)
• Humidity tolerance: up to 90% non-condensing at 35°C

Cooling and Airflow Conditions

• Zero LFM airflow requirement for optimized chassis integration
• Designed for efficient heat management in dense server environments

Power Efficiency and Consumption

Energy Usage Details

• Typical power consumption: 4.63W at 1000BASE-T
• Maximum power consumption: 5.16W at 1000BASE-T
• Low-power design suitable for continuous operation

Physical Design and Form Factor

Compact Hardware Structure

• Dimensions: 115mm x 76mm
• OCP NIC 3.0 small form factor compatibility
• Space-efficient layout for high-density server deployment

Installation and Deployment Benefits

• Easy integration into supported Dell server systems
• Optimized for multi-port networking environments
• Ideal for virtualization, cloud infrastructure, and enterprise networking

Enterprise Use Case Advantages

Ideal Applications

• Data center networking and virtualization workloads
• High-availability server environments
• Cloud computing infrastructure setups
• Multi-tenant enterprise network systems

Performance Benefits

• Improved network throughput with 4-port design
• Reduced latency through Intel controller optimization
• Stable long-term operation under heavy workloads

Dell 540-BDQF OCP Ethernet PCI-Express Network Adapter

The Dell 540-BDQF Intel I350T4OCPV3 OCP Ethernet PCI-Express Network Adapter with 4 Ports is a high-performance, enterprise-grade networking component designed to deliver stable, scalable, and efficient connectivity for modern data center environments. Built on Intel’s proven Ethernet controller architecture, this OCP (Open Compute Project) compatible network adapter is engineered to meet the growing demands of virtualization, cloud computing, high-throughput workloads, and mission-critical server applications. Its four-port configuration provides enhanced bandwidth aggregation, redundancy, and load balancing capabilities, making it an essential choice for organizations requiring resilient and high-speed network infrastructure.

Core Architecture and Hardware Design

Intel I350 Controller Technology

At the heart of the Dell 540-BDQF adapter lies the Intel I350 Ethernet controller, known for its reliability, efficiency, and advanced networking features. This controller is designed to support multiple gigabit Ethernet connections while maintaining low latency and optimized CPU utilization. It ensures consistent packet processing and stable throughput across all four ports, making it ideal for enterprise workloads that require uninterrupted network performance.

Efficient Packet Processing Engine

The Intel I350 architecture incorporates a dedicated packet processing engine that offloads network tasks from the host CPU. This reduces system overhead and improves overall server performance, particularly in environments with high network traffic such as virtualization clusters and storage networks.

PCI-Express Interface Integration

The adapter utilizes a PCI-Express interface, ensuring high-speed data transfer between the network card and the server motherboard. This interface is essential for maintaining low latency and high bandwidth, especially in data-intensive applications such as database replication, cloud service hosting, and distributed computing systems.

Optimized Lane Utilization

The PCIe architecture supports efficient lane utilization, enabling the adapter to handle multiple gigabit streams simultaneously. This ensures that each of the four Ethernet ports operates at peak efficiency without bottlenecks.

OCP (Open Compute Project) Compatibility

Designed for Modern Data Centers

The OCP specification is designed to standardize and optimize hardware for large-scale data centers. The Dell 540-BDQF adapter conforms to these principles by offering a modular, energy-efficient, and scalable networking solution. Its OCP form factor allows for easy integration into compatible server systems, reducing deployment complexity and improving infrastructure consistency.

Hot-Swap and Serviceability Advantages

One of the key advantages of OCP-compliant network adapters is enhanced serviceability. The Dell 540-BDQF allows IT administrators to perform maintenance, upgrades, and replacements with minimal system downtime, making it ideal for enterprise environments where uptime is critical.

Energy Efficiency and Thermal Optimization

OCP-based designs prioritize energy efficiency and optimized airflow. This adapter is engineered to consume minimal power while maintaining high throughput performance. Its thermal design ensures stable operation even under sustained workloads in dense server racks.

4-Port Ethernet Configuration Benefits

High Bandwidth Aggregation

With four independent Ethernet ports, the Dell 540-BDQF adapter enables bandwidth aggregation strategies such as link aggregation (LACP). This allows multiple connections to function as a single logical link, significantly increasing overall network throughput.

Improved Network Redundancy

The multi-port configuration also enhances redundancy. In the event of a port or cable failure, traffic can be automatically rerouted through remaining active ports, ensuring uninterrupted connectivity and reducing the risk of downtime in critical environments.

Load Balancing Capabilities

The adapter supports intelligent load balancing across all four ports. This ensures even distribution of network traffic, preventing congestion and optimizing resource utilization across server workloads.

Use Cases in Virtualized Environments

In virtualized infrastructure, load balancing is especially important. Multiple virtual machines can share network resources efficiently without overwhelming a single interface, ensuring consistent performance across all workloads.

Performance Optimization Features

Advanced Offloading Technologies

The Dell 540-BDQF adapter incorporates multiple offloading technologies designed to improve system efficiency. These include TCP/IP checksum offload, segmentation offload, and large send offload capabilities. By transferring these tasks from the CPU to the network adapter, overall system performance is significantly enhanced.

Reduced CPU Utilization

By offloading network processing tasks, servers experience reduced CPU usage, allowing more computational resources to be allocated to application workloads such as virtualization, analytics, or database processing.

Quality of Service (QoS) Support

Quality of Service features ensure that critical network traffic is prioritized over less important data streams. This is essential in enterprise environments where latency-sensitive applications such as VoIP, streaming, or real-time analytics must be prioritized.

Enterprise Use Cases and Applications

Data Center Networking

The Dell 540-BDQF adapter is widely used in modern data centers where high-speed, reliable connectivity is essential. Its four-port configuration and Intel I350 architecture make it suitable for large-scale server deployments and cloud infrastructure environments.

Cloud Computing Infrastructure

In cloud environments, scalability and redundancy are critical. This adapter supports dynamic workloads and can handle high volumes of virtual machine traffic, making it ideal for Infrastructure-as-a-Service (IaaS) platforms.

Virtualization Platforms

Virtualization platforms such as VMware, Hyper-V, and KVM benefit greatly from multi-port network adapters. The Dell 540-BDQF provides the bandwidth and stability required to support multiple virtual machines operating simultaneously.

Network Segmentation for VMs

Administrators can assign different ports for different virtual machine groups, enabling effective network segmentation and improved security isolation between workloads.

Enterprise Storage Networks

Storage area networks (SAN) and network-attached storage (NAS) systems rely heavily on consistent and high-speed data transfer. The adapter ensures reliable connectivity for storage replication, backup operations, and distributed file systems.
