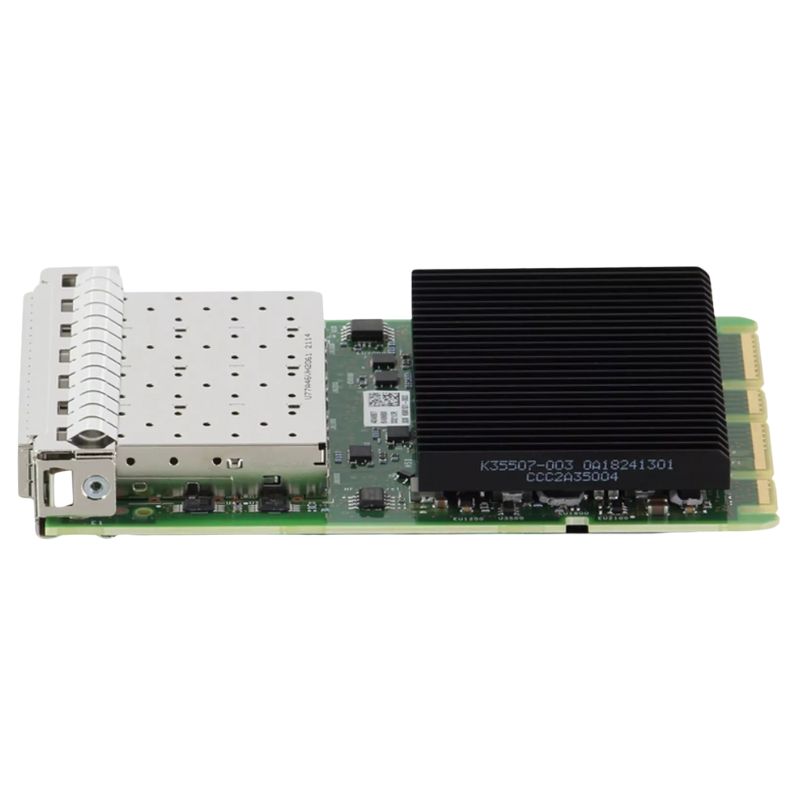

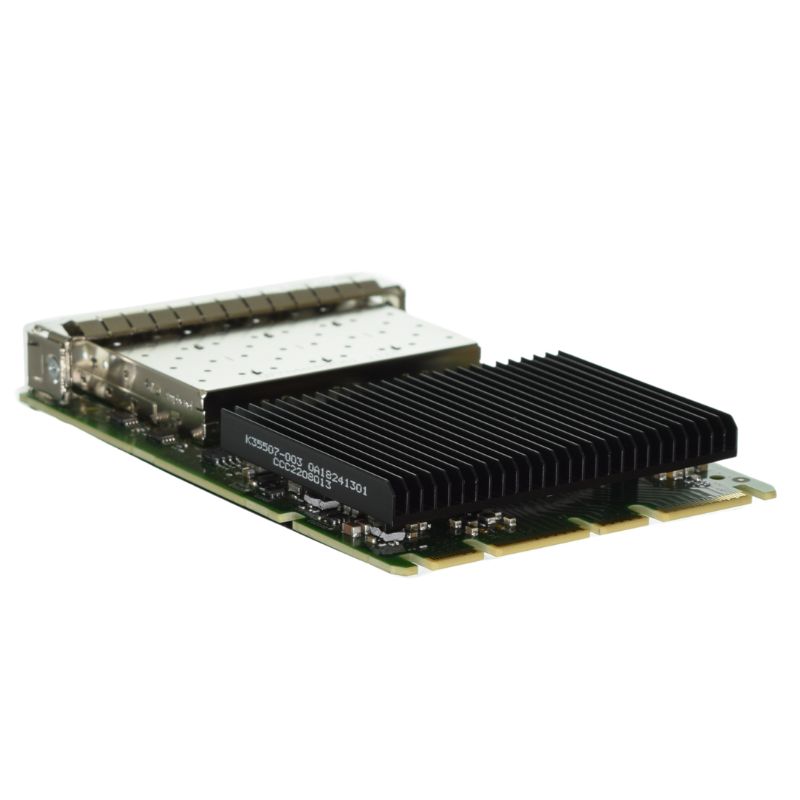

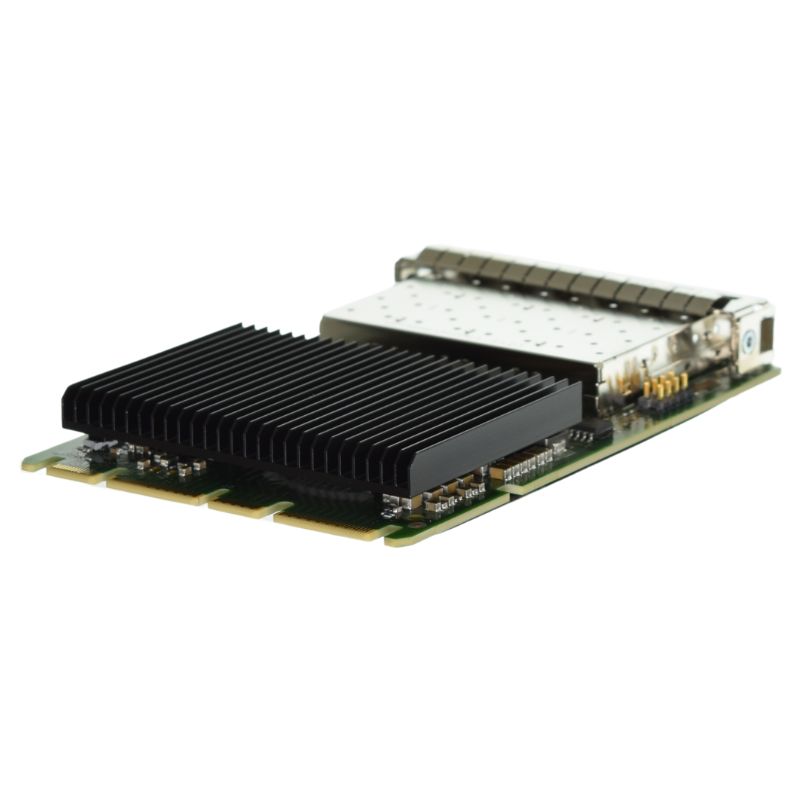

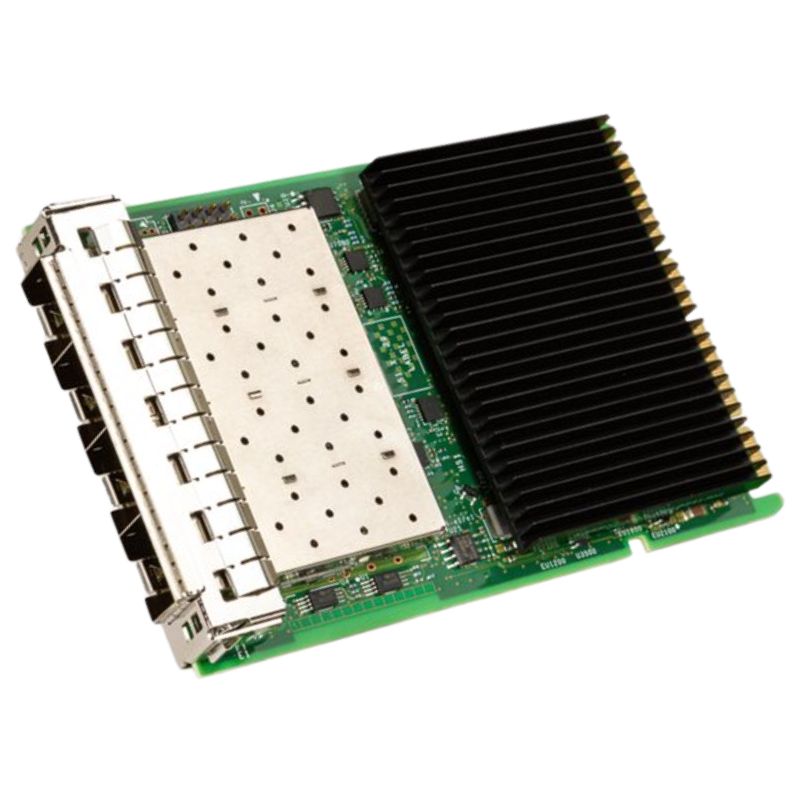

540-BDSM Dell Quad Ports E810-XXVDA4 10/25GbE SFP28 Adapter

Dell 540-BDSM Quad Port 10/25GbE SFP28 Adapter

The Dell 540-BDSM Quad Port E810-XXVDA4 Network Adapter is a high-performance enterprise networking solution designed to deliver ultra-fast 10GbE and 25GbE connectivity for modern data centers. Built on advanced Intel Ethernet E810 architecture, this adapter provides exceptional throughput, low latency, and scalable network performance for virtualization, cloud computing, AI workloads, and high-density server environments.

Product Information

• Manufacturer: Dell
• Part Number: 540-BDSM
• Product Type: Enterprise Network Adapter
• Interface Type: PCI Express 4.0 x16 (OCP 3.0 form factor)
• Network Speed: 10GbE / 25GbE (SFP28)
• Number of Ports: 4 High-Speed Ports

Key Networking Advantages

• Ultra-low latency for real-time workloads
• High-bandwidth 25GbE data transmission
• Improved virtualization efficiency
• Optimized cloud and AI workload performance
• Scalable multi-port architecture

Benefits of Quad-Port Architecture

• Increased aggregate bandwidth capacity
• Improved load balancing across servers
• Enhanced redundancy and failover support
• Optimized network traffic management
• Flexible deployment configurations

PCIe 4.0 Advantages

• Higher bandwidth compared to PCIe 3.0
• Reduced latency for network processing
• Improved data packet handling efficiency
• Optimized for modern server platforms
• Future-ready infrastructure support

Advantages of OCP 3.0 Design

• Compact and efficient server integration
• Improved airflow and thermal management
• Reduced cabling complexity
• Enhanced serviceability
• Standardized data center deployment

Key SFP28 Benefits

• Dual-speed support (10GbE and 25GbE)
• Hot-swappable optical transceivers
• Low power consumption
• High signal integrity
• Scalable network expansion

Supported Dell PowerEdge Systems

• Dell PowerEdge C6620
• Dell PowerEdge R660
• Dell PowerEdge R660xs
• Dell PowerEdge R6625
• Dell PowerEdge R760
• Dell PowerEdge R760xd2
• Dell PowerEdge R760xs
• Dell PowerEdge R860
• Dell PowerEdge R960
• Dell PowerEdge T560
• Dell PowerEdge XE8640
• Dell PowerEdge XE9680
• Dell PowerEdge XR5610
• Dell PowerEdge XR7620

Dell 540-BDSM Quad Ports 10/25GbE SFP28 Adapter Overview

The Dell 540-BDSM Quad Ports E810-XXVDA4 10/25GbE SFP28 Adapter represents a high-performance networking solution designed for enterprise-grade data centers, cloud infrastructures, and virtualization-heavy environments. Built on advanced Ethernet controller architecture, this adapter delivers scalable throughput, low latency communication, and exceptional flexibility for modern server ecosystems. It is engineered to support growing bandwidth demands driven by virtualization, software-defined networking, big data analytics, and high-performance computing workloads.

As organizations continue to transition toward cloud-native and hybrid infrastructures, the demand for efficient, reliable, and high-speed network interfaces has increased significantly. This adapter meets those requirements by offering quad-port configuration and support for 10GbE and 25GbE SFP28 optical connectivity, enabling seamless integration into existing and next-generation networking architectures.

High-Speed Networking Architecture and Design Philosophy

Intel Ethernet E810 Controller Integration

At the core of the Dell 540-BDSM adapter lies the Intel Ethernet E810 controller architecture, which is engineered for scalable cloud and data center environments. This controller is designed to deliver high packet processing efficiency, reducing CPU overhead while maximizing throughput across multiple network streams. The architecture supports advanced offloading features that enhance system performance in virtualized and containerized workloads.

Quad-Port Connectivity Design

The quad-port configuration provides significant advantages for redundancy, load balancing, and traffic segmentation. Each port operates independently while sharing the same controller intelligence, ensuring consistent performance across multiple network channels. This design allows enterprises to distribute workloads efficiently, reduce bottlenecks, and maintain high availability in mission-critical applications.

Multi-Channel Data Distribution Efficiency

The multi-channel design enables simultaneous data transmission across all four SFP28 interfaces. This ensures optimized utilization of available bandwidth, particularly in environments where multiple virtual machines or containerized services rely on shared network resources. The architecture is optimized for deterministic performance even under peak traffic conditions.

10/25GbE SFP28 Interface Capabilities

Flexible Bandwidth Scaling

One of the defining features of the Dell 540-BDSM E810-XXVDA4 adapter is its ability to support both 10 Gigabit Ethernet and 25 Gigabit Ethernet speeds using SFP28 transceiver modules. This flexibility allows organizations to deploy the adapter in diverse networking environments without requiring immediate infrastructure overhauls.

Compatibility and Future Readiness

The 10GbE compatibility ensures seamless integration with legacy systems, while the 25GbE support enables future-ready scalability. This dual-speed capability makes the adapter a strategic investment for data centers planning gradual network upgrades without service disruption.

SFP28 Optical Module Integration

SFP28 interfaces provide enhanced signal integrity and reduced power consumption compared to older transceiver standards. The Dell 540-BDSM adapter leverages these advantages to maintain high-speed data transfer over both short-range and long-range optical connections. This is particularly beneficial for distributed data centers and inter-rack communication scenarios.

Enterprise Data Center Performance Optimization

Low Latency Packet Processing

Latency optimization is critical in modern networking environments, especially for financial services, real-time analytics, and cloud computing platforms. The E810 controller architecture reduces packet processing delays through hardware acceleration and optimized data pathways. This results in faster response times and improved application performance.

High Throughput for Demanding Workloads

The adapter is engineered to handle high throughput workloads, making it suitable for environments where massive data transfer is routine. This includes big data clusters, virtualization farms, and storage-intensive applications. The quad-port configuration further amplifies throughput potential by enabling parallel data transmission channels.

Load Balancing Across Network Interfaces

Load balancing capabilities ensure that traffic is evenly distributed across all available ports. This reduces congestion and prevents performance degradation during peak usage periods. Enterprises benefit from improved network efficiency and reduced risk of bottlenecks in critical infrastructure components.

Virtualization and Cloud Integration Capabilities

Optimized for Virtual Machine Environments

The Dell 540-BDSM adapter is optimized for virtualization platforms such as VMware, Hyper-V, and KVM. It supports advanced virtualization offloads that reduce CPU overhead and improve VM density per host. This enables organizations to maximize hardware utilization while maintaining consistent network performance across virtual workloads.

Support for Software-Defined Networking

Software-defined networking environments require adaptable and programmable network interfaces. The adapter supports SDN integration by enabling dynamic configuration of network policies, traffic segmentation, and workload prioritization. This enhances flexibility in managing complex cloud infrastructures.

Network Function Virtualization Compatibility

The hardware is also compatible with network function virtualization frameworks, allowing network services such as load balancing, firewalls, and routing to be deployed as virtual instances. This reduces reliance on dedicated hardware appliances and improves scalability.

Advanced Reliability and Enterprise Resilience

Fault Tolerance Through Multi-Port Architecture

The quad-port design inherently supports redundancy and fault tolerance. If one port experiences issues, traffic can be rerouted through alternative channels without disrupting overall network operations. This ensures continuous availability in mission-critical systems.

Thermal Efficiency and Power Optimization

Energy efficiency is a key consideration in data center hardware design. The Dell 540-BDSM adapter is optimized for low power consumption while maintaining high performance. Advanced thermal management ensures stable operation even under heavy workloads, reducing the need for excessive cooling infrastructure.

Adaptive Power Scaling Mechanisms

The adapter dynamically adjusts power usage based on network activity levels. During low traffic periods, it reduces energy consumption, while during peak loads it scales up performance to maintain consistent throughput. This adaptive mechanism improves overall data center energy efficiency.

Use Cases Across Enterprise IT Environments

Cloud Service Providers

Cloud service providers benefit significantly from the scalability and performance of the Dell 540-BDSM adapter. Its high-speed connectivity and virtualization support make it ideal for multi-tenant cloud environments where resource isolation and performance consistency are essential.

High-Performance Computing Clusters

High-performance computing environments require ultra-low latency and high-bandwidth communication between nodes. The adapter ensures efficient inter-node communication, improving computational efficiency in scientific simulations, AI training models, and engineering computations.

Big Data Analytics Infrastructure

Big data platforms rely heavily on fast and reliable data movement between storage and compute nodes. The adapter supports these workflows by providing consistent high-speed connectivity that minimizes data transfer delays and improves processing throughput.

Enterprise Virtual Desktop Infrastructure

Virtual desktop infrastructure deployments benefit from the adapter’s ability to handle multiple concurrent user sessions with stable network performance. This ensures smooth user experiences even during peak access periods.

Security and Network Integrity Features

Hardware-Level Offload Security Enhancements

Security is integrated at the hardware level to reduce CPU overhead and improve performance. The adapter supports encryption offloading and secure packet processing, which enhances protection without compromising throughput.

Isolation and Traffic Segmentation

The quad-port architecture allows for effective traffic segmentation, enabling administrators to isolate workloads based on security policies. This reduces the risk of cross-traffic interference and enhances overall network security posture.

Enterprise Compliance Alignment

The adapter supports configurations that align with enterprise compliance requirements, including secure data handling and controlled network access policies. This makes it suitable for regulated industries such as finance, healthcare, and government sectors.

Scalability and Infrastructure Expansion Benefits

Seamless Data Center Expansion

As organizations scale their IT infrastructure, the Dell 540-BDSM adapter provides a reliable foundation for network expansion. Its compatibility with modern networking standards ensures that it can be deployed in both existing and newly built environments without compatibility concerns.

Interoperability with Enterprise Switch Fabrics

The adapter is designed to work seamlessly with enterprise-grade switch fabrics supporting 10GbE and 25GbE configurations. This ensures consistent performance across the entire network stack, from server to switch to storage systems.

Future-Proof Networking Investment

By supporting dual-speed Ethernet and advanced controller features, the adapter ensures long-term viability in evolving IT environments. Organizations can upgrade their infrastructure gradually without replacing existing hardware prematurely.

Driver Support and Operating System Compatibility

Multi-Platform Support

The Dell 540-BDSM E810-XXVDA4 adapter supports a wide range of operating systems including enterprise Linux distributions, Windows Server environments, and virtualization hypervisors. This broad compatibility ensures easy deployment across heterogeneous IT ecosystems.

Optimized Driver Architecture

The driver architecture is optimized for performance and stability, ensuring efficient communication between hardware and software layers. Regular updates enhance compatibility and introduce performance improvements for evolving workloads.

Deployment Scenarios in Modern IT Infrastructure

Hyperscale Data Centers

Hyperscale environments require highly efficient and scalable network interfaces. The quad-port design and high-speed capabilities make the adapter suitable for distributed computing architectures where performance consistency is essential.

Edge Computing Deployments

Edge computing environments benefit from compact yet powerful networking hardware. The adapter provides the necessary bandwidth and reliability for edge nodes handling real-time processing and localized data analysis.

Hybrid Cloud Infrastructure Integration

Hybrid cloud environments require seamless connectivity between on-premises and cloud resources. The adapter ensures stable and high-speed data transfer between these environments, supporting hybrid IT strategies effectively.
