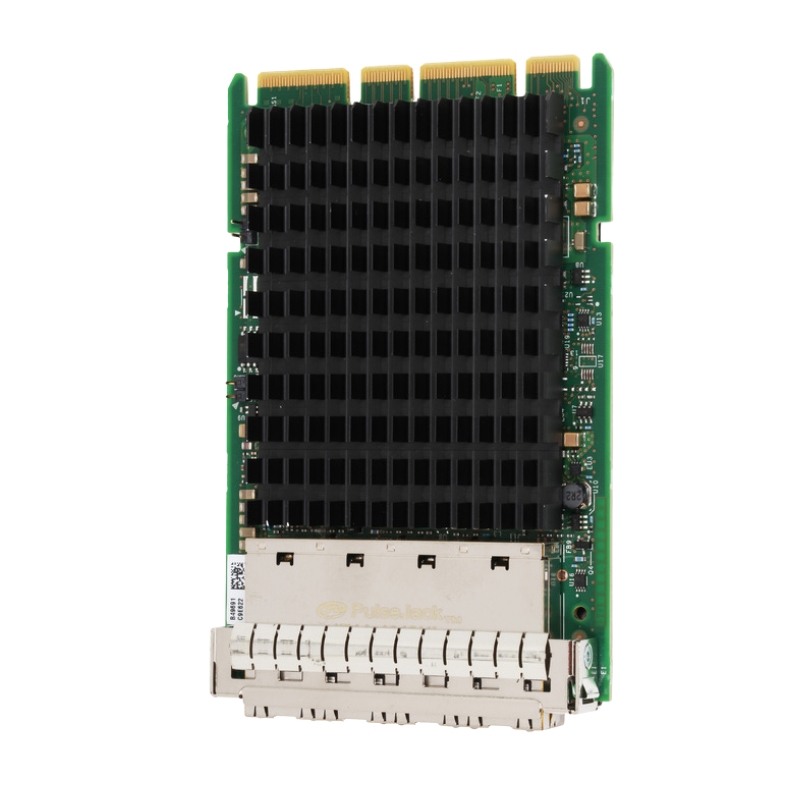

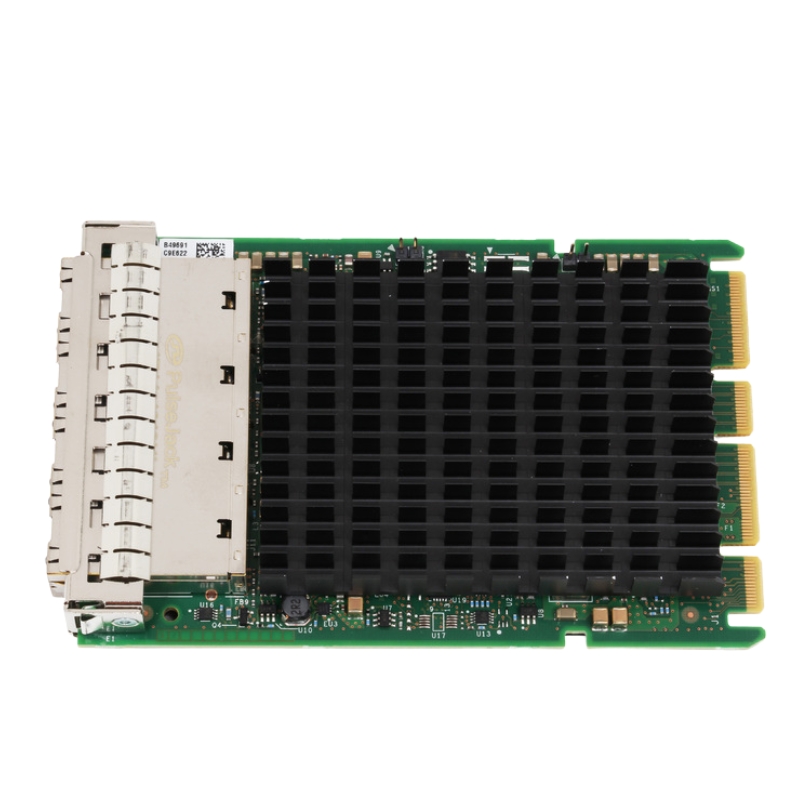

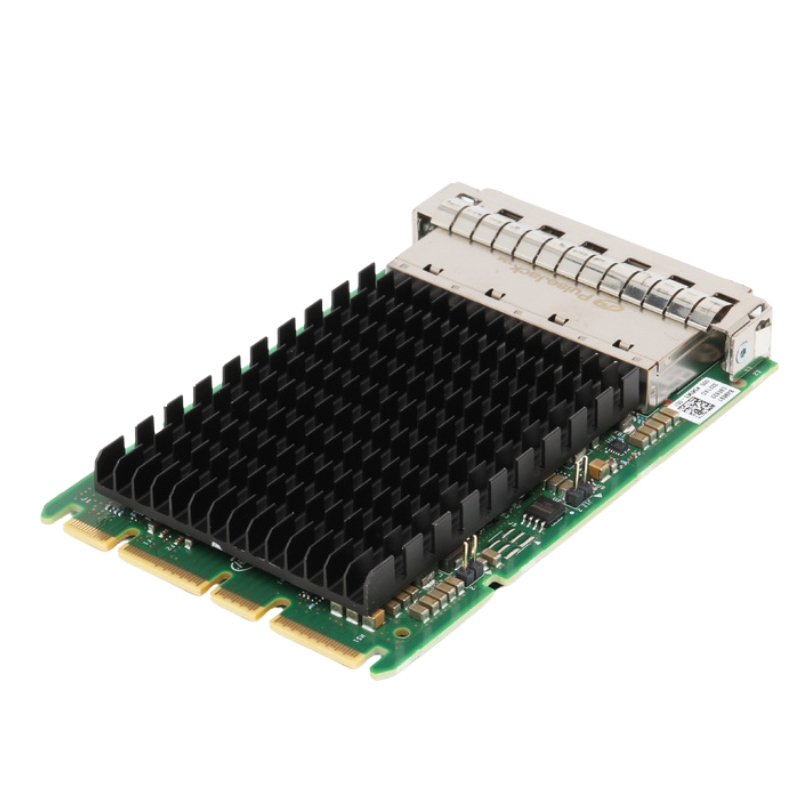

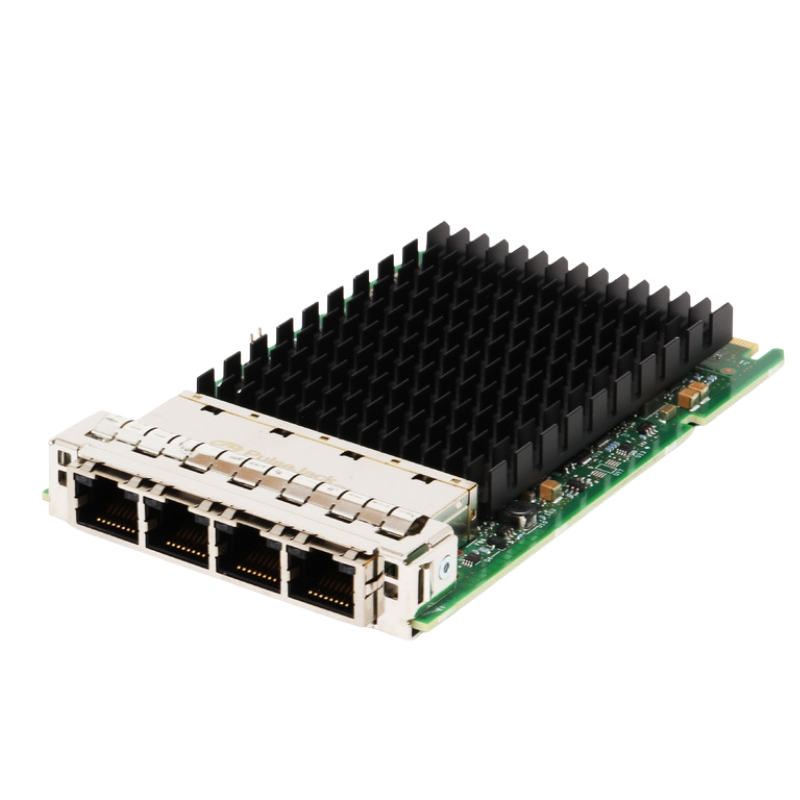

540-BFDN Dell Intel X710-T4L OCP PCI-Express 4 Ports Network Adapter

Dell 540-BFDN Intel OCP PCIe 4-Port Adapter Overview

The Dell 540-BFDN Intel X710-T4L OCP Network Adapter is a high-performance Ethernet networking solution designed for modern enterprise servers and data center environments. Featuring four high-speed RJ-45 ports and support for multiple Ethernet speeds, this PCI Express 3.0 x8 adapter delivers exceptional throughput, low latency, and reliable connectivity for virtualization, cloud computing, storage networking, and business-critical applications.

General Information

• Manufacturer: Dell
• Part Number: 540-BFDN
• Product Type: Network Adapter
• Model: Intel X710-T4L
• Form Factor: Plug-in Card
• Host Interface: PCI Express 3.0 x8
• PCIe Specification: PCIe 3.0

Supported Ethernet Speeds

• 100 Mbps Ethernet
• 1 Gigabit Ethernet (1GbE)
• 2.5 Gigabit Ethernet (2.5GbE)
• 5 Gigabit Ethernet (5GbE)
• 10 Gigabit Ethernet (10GbE)

Benefits of Four-Port Networking

• Higher aggregate bandwidth capacity
• Enhanced network redundancy
• Improved load balancing capabilities
• Support for multiple network segments
• Reduced risk of network bottlenecks
• Optimized server communication

Advantages of PCIe 3.0 Connectivity

• High-speed communication between server and adapter
• Reduced network latency
• Improved throughput performance
• Efficient handling of large data transfers
• Support for advanced virtualization environments

Key Features of the Intel X710 Platform

• High-performance packet processing
• Low-latency networking
• Scalable bandwidth management
• Enhanced virtualization support
• Reliable enterprise networking performance

Performance

• Up to 10 Gigabit Ethernet throughput
• Fast access to network resources
• Reduced application response times
• Efficient large-file transfers
• Enhanced user productivity

Supported Network Protocols

• iSCSI (Internet Small Computer Systems Interface)
• NFS (Network File System)

Supported Standards

• IEEE 802.1AS
• IEEE 802.3az Energy Efficient Ethernet

Physical Specifications

• Width: 4.5 Inches
• Depth: 3 Inches
• Compact OCP design
• Space-efficient installation

Dell 540-BFDN Intel X710-T4L OCP PCI-Express 4-Port Adapter

The Dell 540-BFDN Intel X710-T4L OCP PCI-Express 4-Port Network Adapter represents a high-performance, enterprise-grade networking solution engineered for modern data centers requiring scalable throughput, low latency communication, and robust virtualization support. Developed in collaboration between this adapter is designed to meet the increasing demand for flexible OCP (Open Compute Project) network architectures while ensuring maximum compatibility with PowerEdge server platforms and advanced cloud infrastructure environments.

Enterprise Networking Evolution and Role of OCP Adapters

The evolution of enterprise networking has shifted toward modular, scalable, and open-standard architectures, where OCP NICs play a critical role. The Dell 540-BFDN X710-T4L adapter integrates seamlessly into this ecosystem, offering a standardized form factor that simplifies deployment in hyperscale environments. As workloads grow more complex, organizations require network interfaces that not only deliver high bandwidth but also support advanced offloading capabilities and virtualization features.

OCP-based designs provide a significant advantage by reducing system complexity and enabling faster upgrade cycles. The Dell 540-BFDN fits into this strategy by delivering four independent 10GbE ports, allowing administrators to segment traffic efficiently while maintaining consistent performance across virtualized workloads.

Importance of Multi-Port Network Architectures

Multi-port adapters such as the X710-T4L series enable parallel traffic handling, which is essential for environments running storage-heavy applications, distributed computing frameworks, and high-frequency transaction systems. Each of the four ports operates independently, allowing workload isolation, redundancy configurations, and optimized traffic balancing across physical and virtual interfaces.

Technical Architecture of Dell 540-BFDN Intel X710-T4L Adapter

At its core, the Dell 540-BFDN is built on Intel’s X710 Ethernet controller architecture, known for its efficiency, reliability, and advanced offloading features. The PCI-Express interface ensures high-speed communication between the network adapter and the server motherboard, significantly reducing bottlenecks commonly associated with legacy network interfaces.

PCI-Express Integration and Bandwidth Optimization

The PCIe interface of the adapter is designed to handle substantial data throughput with minimal latency overhead. By leveraging multiple PCIe lanes, the adapter ensures efficient data transfer between CPU and network interfaces. This is particularly important in environments running virtualization clusters, where network saturation can severely impact application performance.

The architecture supports dynamic bandwidth allocation, ensuring that critical workloads receive priority routing when system resources are constrained. This enhances reliability in mission-critical deployments such as financial systems, cloud computing nodes, and storage replication clusters.

Intel X710 Controller Capabilities

The Intel X710 controller integrated within the adapter provides advanced networking capabilities, including hardware offload for TCP/IP processing, virtualization acceleration, and adaptive interrupt moderation. These features significantly reduce CPU utilization, allowing servers to allocate more resources to application-level processes rather than network management tasks.

Additionally, the controller supports advanced error handling mechanisms, ensuring packet integrity and reducing retransmission overhead in high-density traffic environments.

Virtualization and SR-IOV Support

The adapter supports Single Root I/O Virtualization (SR-IOV), enabling multiple virtual machines to share a single physical network interface with near-native performance. This capability is essential for cloud service providers and enterprise virtualization clusters where resource efficiency and isolation are critical.

SR-IOV reduces hypervisor overhead by assigning virtual functions directly to guest operating systems, resulting in lower latency and improved throughput consistency across virtual workloads.

4-Port 10GbE Network Design and Performance Advantages

The Dell 540-BFDN provides four independent 10 Gigabit Ethernet ports, enabling aggregate bandwidth scaling up to 40GbE in total throughput capacity depending on configuration and workload distribution. This multi-port configuration is essential for organizations that require redundancy, load balancing, and segmented traffic channels.

Load Balancing and Traffic Segmentation

With four available ports, network administrators can distribute traffic based on application type, priority level, or security zone segmentation. This reduces congestion and ensures optimal performance for latency-sensitive applications such as real-time analytics, database replication, and virtualization management traffic.

High Availability and Failover Mechanisms

The adapter supports advanced failover configurations that automatically reroute traffic in case of port or link failure. This ensures continuous availability of critical services, minimizing downtime and maintaining service-level agreements in enterprise environments.

In redundant network setups, the four ports can be configured to provide active-active or active-passive redundancy models, depending on infrastructure requirements.

Open Compute Project (OCP) Form Factor Advantages

The OCP form factor is a key feature of the Dell 540-BFDN adapter, providing a standardized and modular design optimized for hyperscale data centers. Unlike traditional PCIe NICs, OCP adapters are designed for easier servicing, improved airflow efficiency, and higher density deployment.

Scalability in Modern Data Centers

OCP-based networking components allow data center operators to scale infrastructure rapidly without requiring extensive hardware redesigns. The Dell 540-BFDN fits seamlessly into OCP-compatible servers, enabling faster deployment cycles and simplified maintenance procedures.

Thermal Efficiency and Power Optimization

The design of the adapter emphasizes efficient heat dissipation, ensuring stable operation even under sustained high-load conditions. This contributes to lower overall power consumption and improved energy efficiency across large-scale deployments.

Advanced Networking Features and Offloading Capabilities

The Dell 540-BFDN Intel X710-T4L adapter integrates a wide range of offloading technologies that significantly reduce CPU workload. These include checksum offload, segmentation offload, and receive-side scaling, which collectively enhance system performance and reduce processing latency.

Checksum and Segmentation Offload

Checksum offloading allows the network adapter to handle data integrity verification tasks, reducing CPU intervention. Similarly, segmentation offload enables large data packets to be broken down efficiently at the hardware level, improving throughput and reducing processing overhead.

Receive Side Scaling (RSS) Optimization

RSS distributes incoming network traffic across multiple CPU cores, ensuring balanced processing loads and improved performance in multi-threaded environments. This is particularly beneficial for high-traffic servers running web applications or distributed databases.

Use Cases in Enterprise and Cloud Environments

The versatility of the Dell 540-BFDN Intel X710-T4L adapter makes it suitable for a wide range of enterprise and cloud computing applications. Its high bandwidth capacity and virtualization support make it ideal for modern IT infrastructures.

Cloud Data Centers and Virtualization Clusters

In cloud environments, the adapter supports large-scale virtualization workloads, enabling efficient resource allocation and network segmentation. Its SR-IOV capability ensures that virtual machines maintain high performance even under heavy network loads.

High-Performance Computing (HPC) Environments

HPC systems require ultra-low latency and high throughput networking to process complex computational tasks. The Dell 540-BFDN provides the necessary performance characteristics to support scientific simulations, financial modeling, and AI-driven workloads.

Security and Network Reliability Enhancements

Security is a critical aspect of modern network infrastructure, and the Dell 540-BFDN incorporates features that help protect data integrity and network stability. These include secure firmware architecture, traffic isolation capabilities, and hardware-level packet filtering support.

Traffic Isolation and Virtual Segmentation

The adapter allows logical segmentation of network traffic, ensuring that sensitive workloads remain isolated from general traffic streams. This is essential in multi-tenant environments where data privacy and security compliance are mandatory.

Firmware Integrity and Update Mechanisms

Secure firmware updates ensure that the adapter remains protected against vulnerabilities while maintaining compatibility with evolving server environments. These updates are designed to minimize downtime and ensure continuous operation.

Deployment Flexibility and Compatibility

The Dell 540-BFDN Intel X710-T4L adapter is compatible with a wide range of Dell PowerEdge servers and OCP-compliant systems. Its flexible architecture allows it to be deployed in both legacy and modern infrastructures, making it a versatile networking solution for enterprises undergoing digital transformation.

Integration with Hybrid IT Environments

In hybrid IT environments, the adapter plays a crucial role in connecting on-premises infrastructure with cloud-based services. Its high-speed connectivity ensures consistent data flow between distributed systems.

Operating System and Driver Support

The adapter supports major enterprise operating systems and virtualization platforms, ensuring seamless integration into existing IT ecosystems without requiring extensive reconfiguration.
