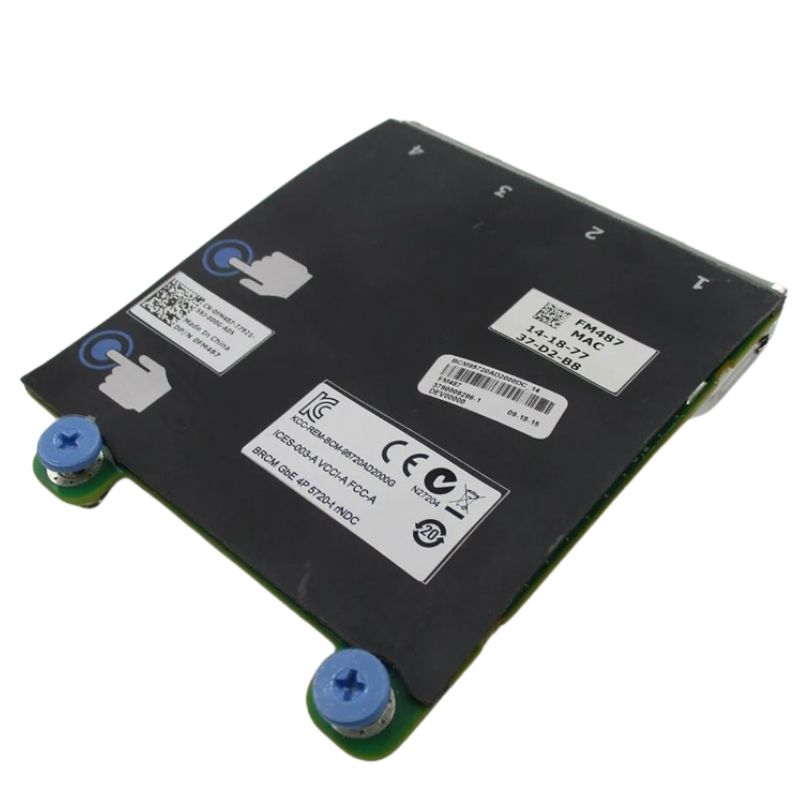

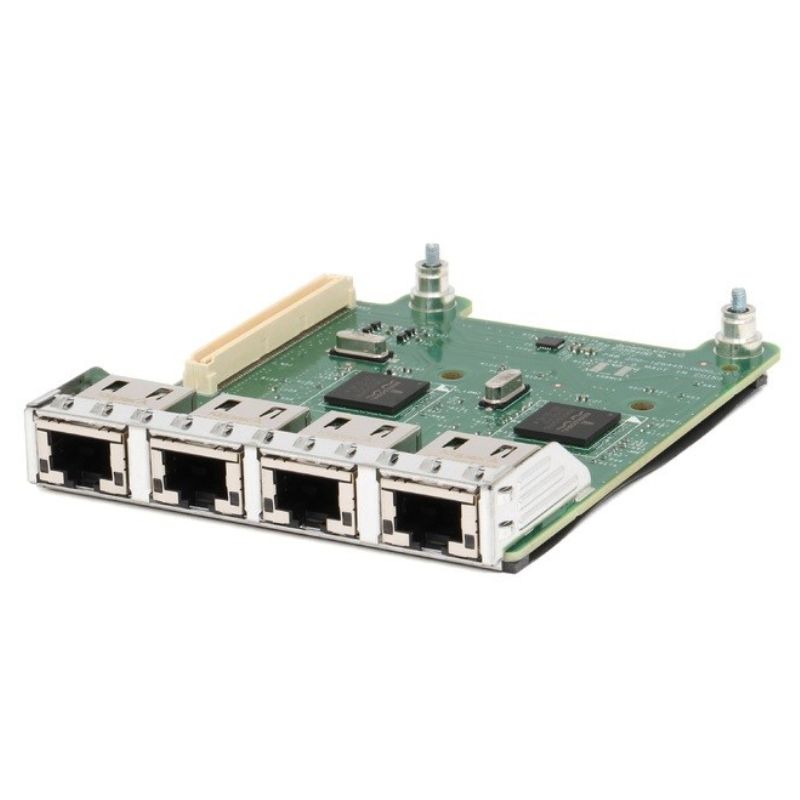

542-BBBP Dell Broadcom 5720 1GBPS Rack 4 Ports Network Daughter Card

Dell 542-BBBP 1Gbps Rack 4-Port Network Daughter Card

The Dell 542-BBBP is a high-performance enterprise-grade networking solution designed for rack server environments. Built on Broadcom 5720 architecture, this quad-port daughter card delivers stable 1Gbps connectivity, optimized for data centers, virtualization workloads, and multi-server infrastructures requiring reliable Ethernet throughput.

Core Product Highlights

• Manufacturer: Dell
• Part Number / SKU: 542-BBBP
• Product Category: Network Adapter / Daughter Card
• Port Configuration: 4 x Gigabit Ethernet ports
• Target Environment: Rack-mounted Dell PowerEdge servers

Advanced Technical Architecture

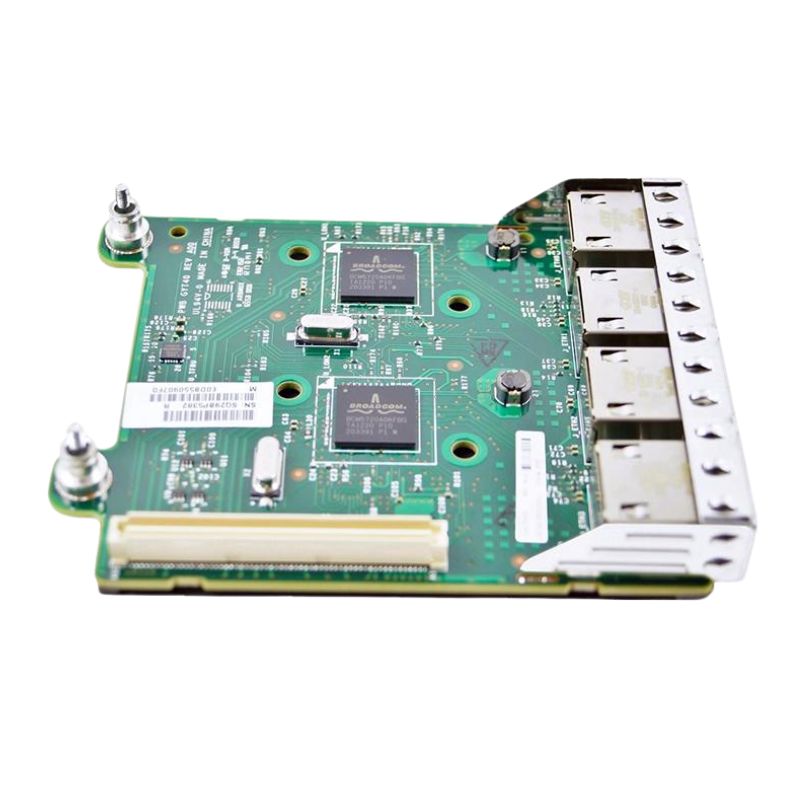

Broadcom 5720 Chipset Integration

This network daughter card is powered by the Broadcom 5720 controller, engineered for efficient packet processing, low latency communication, and consistent multi-port performance in enterprise-grade networks.

Performance-Oriented Networking Features

• Full line-rate throughput across all ports
• Optimized support for virtualized server environments
• Energy-efficient Ethernet design for reduced power consumption
• High stability under heavy data traffic conditions

Connectivity and Interface Capabilities

Multi-Port Ethernet Configuration

The quad-port layout enables simultaneous network connections, improving redundancy, load balancing, and system scalability in demanding IT infrastructures.

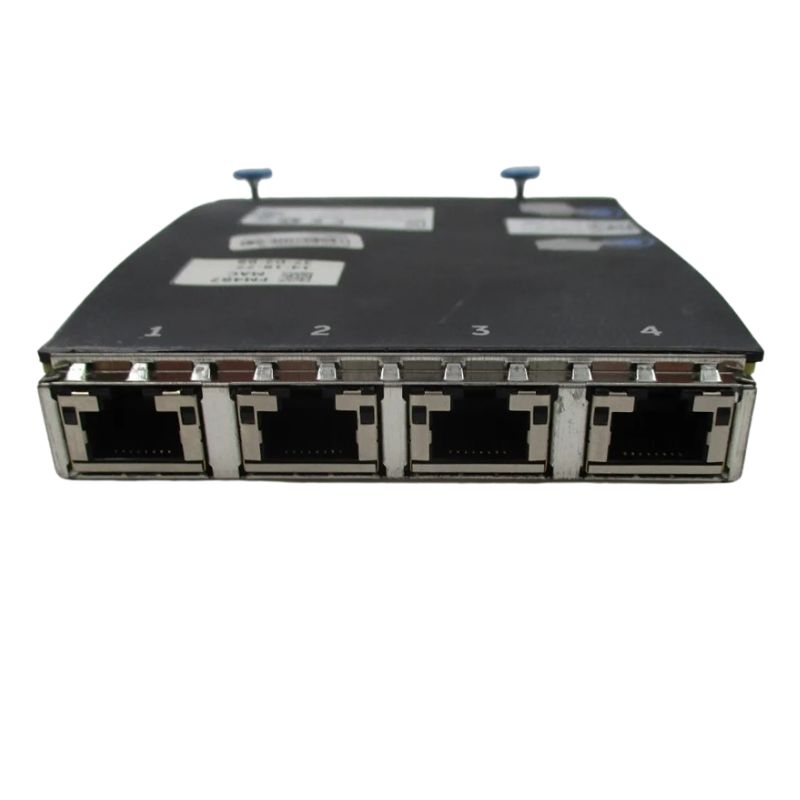

• 4 x RJ-45 Gigabit Ethernet interfaces
• Supports high-speed data transfer up to 1Gbps per port
• Designed for seamless integration with Dell rack servers

System Compatibility and Integration

The Dell 542-BBBP is engineered for compatibility with select Dell PowerEdge rack servers, ensuring smooth installation and efficient system recognition through integrated server architecture.

• Optimized for Dell server ecosystems
• Supports PXE boot and remote network deployment
• Compatible with virtualization and enterprise OS platforms

Enterprise Networking Advantages

Data Center Optimization

This network daughter card is tailored for scalable data center operations, where consistent uptime, bandwidth efficiency, and network stability are critical requirements.

• Enhanced traffic management for multi-user environments
• Reduced latency for server-to-server communication
• Improved bandwidth distribution across multiple ports

Virtualization and Workload Efficiency

Designed with modern virtualization demands in mind, the Broadcom 5720 architecture supports efficient workload distribution across virtual machines and clustered server systems.

Key Virtualization Benefits

• Improved network offloading capabilities
• Stable performance under virtual machine density
• Optimized packet handling for cloud environments

Dell 542-BBBP 1Gbps 4 Ports Network Daughter Card Overview

The Dell 542-BBBP Broadcom 5720 1Gbps Rack 4 Ports Network Daughter Card is a high-performance enterprise networking component engineered for Dell rack servers, designed to deliver reliable multi-port Gigabit Ethernet connectivity in dense data center environments. Built on Broadcom’s proven network controller architecture, this daughter card provides four independent 1Gbps Ethernet ports that significantly enhance network throughput, redundancy, and virtualization efficiency for enterprise workloads. It is commonly deployed in mission-critical server infrastructures where stability, scalability, and low-latency communication are essential.

As modern data centers evolve toward cloud-native applications, virtualization, and high-availability clusters, the demand for multi-port network interface solutions like the Dell 542-BBBP Broadcom 5720 continues to increase. This card integrates seamlessly with Dell PowerEdge rack servers, offering optimized firmware support, driver compatibility, and hardware-level performance tuning for enterprise operating systems and hypervisors.

Key Technical Architecture of Broadcom 5720 1Gbps Network Daughter Card

Broadcom Controller Integration and Chipset Design

At the core of the Dell 542-BBBP module lies the Broadcom 5720 controller chipset, engineered to provide stable 1 Gigabit Ethernet performance per port. The architecture is optimized for low CPU overhead, allowing server processors to focus on application workloads rather than network packet processing. The integration of hardware offloading capabilities ensures efficient handling of checksum calculations, segmentation, and interrupt moderation.

Hardware Offload Capabilities

The Broadcom 5720 supports advanced offload features such as TCP segmentation offload (TSO), large receive offload (LRO), and checksum offloading. These features reduce system latency and improve throughput consistency under heavy traffic conditions, particularly in virtualized environments where multiple virtual machines share the same physical network interface resources.

Multi-Port Architecture Benefits

With four independent Gigabit Ethernet ports, the Dell 542-BBBP daughter card enables flexible network segmentation strategies. Each port can be configured independently for different VLANs, redundant uplinks, or dedicated storage traffic paths such as iSCSI or NFS, ensuring efficient workload distribution across the server network stack.

PCIe and Server Integration Layer

The daughter card is typically installed in compatible Dell PowerEdge rack servers via a dedicated internal expansion slot or mezzanine interface. The PCI Express-based communication pathway ensures high-speed data transfer between the network controller and the server’s main system bus, minimizing bottlenecks and maximizing packet forwarding efficiency.

Low Latency Interconnect Design

The internal PCIe interface of the Dell 542-BBBP Broadcom 5720 ensures minimal propagation delay between CPU and network hardware. This is especially important in latency-sensitive applications such as financial trading systems, database clustering, and real-time analytics platforms.

Performance Features and Network Optimization Capabilities

1Gbps Per Port Throughput Efficiency

Each of the four ports on the Dell 542-BBBP provides a dedicated 1Gbps full-duplex connection. When aggregated using link aggregation control protocol (LACP), the card can deliver significantly higher combined throughput, enabling scalable bandwidth expansion for enterprise workloads such as virtualization clusters and storage replication systems.

Load Balancing and Traffic Distribution

The network card supports intelligent traffic distribution across multiple links, reducing congestion and improving reliability. Load balancing ensures that no single port becomes a bottleneck, particularly in high-density server environments running multiple services simultaneously.

Redundancy and Failover Mechanisms

In enterprise environments, uptime is critical. The Dell 542-BBBP supports failover configurations where multiple ports can act as backups for each other. In the event of a link failure, traffic is automatically rerouted through active ports without service interruption, maintaining continuous network availability.

Quality of Service (QoS) Optimization

The Broadcom 5720 controller enables advanced QoS configurations, allowing administrators to prioritize critical traffic types such as VoIP, database queries, and virtual machine synchronization over less sensitive data streams. This ensures consistent performance across mixed workloads.

Traffic Prioritization Models

Administrators can define traffic classes and assign priority levels based on VLAN tags, IP ranges, or application-level requirements. This allows mission-critical services to maintain optimal bandwidth even under heavy network load conditions.

Virtualization and Cloud Computing Compatibility

Support for VMware, Hyper-V, and KVM Environments

The Dell 542-BBBP Broadcom 5720 1Gbps 4-port network daughter card is fully compatible with major virtualization platforms including VMware ESXi, Microsoft Hyper-V, and Linux KVM. Its hardware acceleration features reduce virtualization overhead, allowing hypervisors to manage higher VM densities per physical host.

VM Network Segmentation

Each physical port can be mapped to multiple virtual switches, enabling granular control of virtual machine traffic. This segmentation enhances security and performance isolation between workloads running on the same physical server.

SR-IOV and Virtual Function Support

Single Root I/O Virtualization (SR-IOV) allows the Broadcom 5720 controller to create multiple virtual network interfaces directly accessible by virtual machines. This reduces hypervisor intervention and improves near-native network performance for virtual workloads.

Cloud Infrastructure Optimization

In cloud computing environments, this network daughter card enables efficient east-west traffic handling between distributed nodes. It is particularly beneficial in private cloud deployments where high-speed internal communication between compute nodes is essential.

Deployment in Dell Rack Server Ecosystems

Compatibility with Dell PowerEdge Series

The Dell 542-BBBP is engineered for seamless integration with various Dell PowerEdge rack server models. Its firmware and driver stack are optimized to work with Dell OpenManage systems, enabling centralized monitoring and configuration.

Server Management Integration

Through Dell OpenManage tools, administrators can monitor port status, bandwidth usage, and error rates in real time. This allows proactive network management and reduces downtime caused by unnoticed hardware degradation.

Enterprise Data Center Applications

This network daughter card is widely used in enterprise data centers for workloads such as virtualization clusters, storage area networks, web hosting platforms, and enterprise application hosting. Its reliability and multi-port flexibility make it ideal for high-density rack environments.

High Availability Clustering

In clustered server environments, the Dell 542-BBBP ensures consistent inter-node communication with minimal packet loss. This is essential for maintaining synchronization across database clusters and distributed computing systems.

Storage Networking Integration

The card is also commonly used for iSCSI and NAS-based storage systems, where dedicated network channels are required for storage traffic separation from general application traffic.
