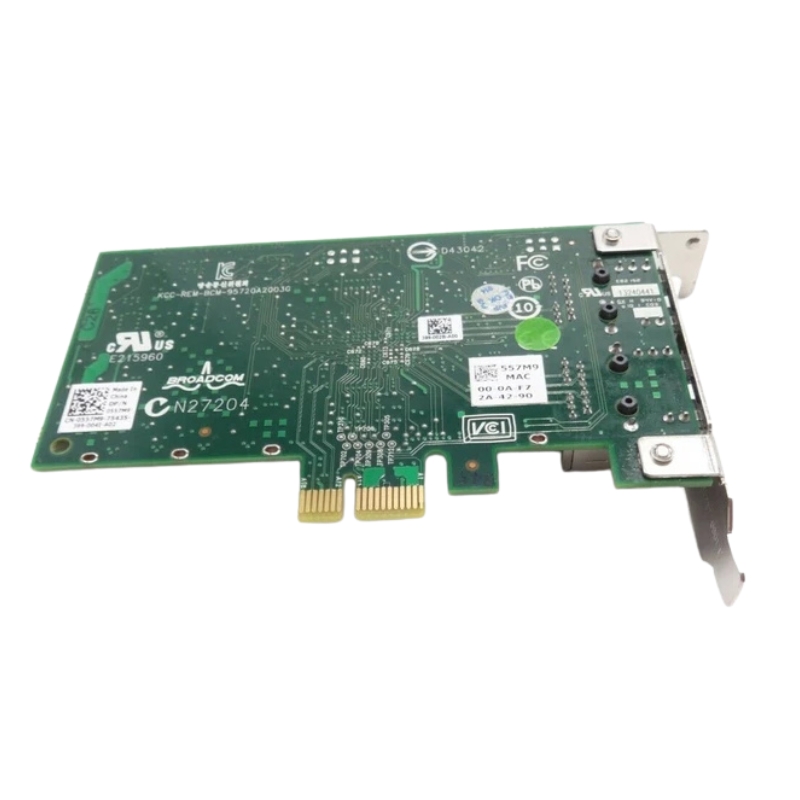

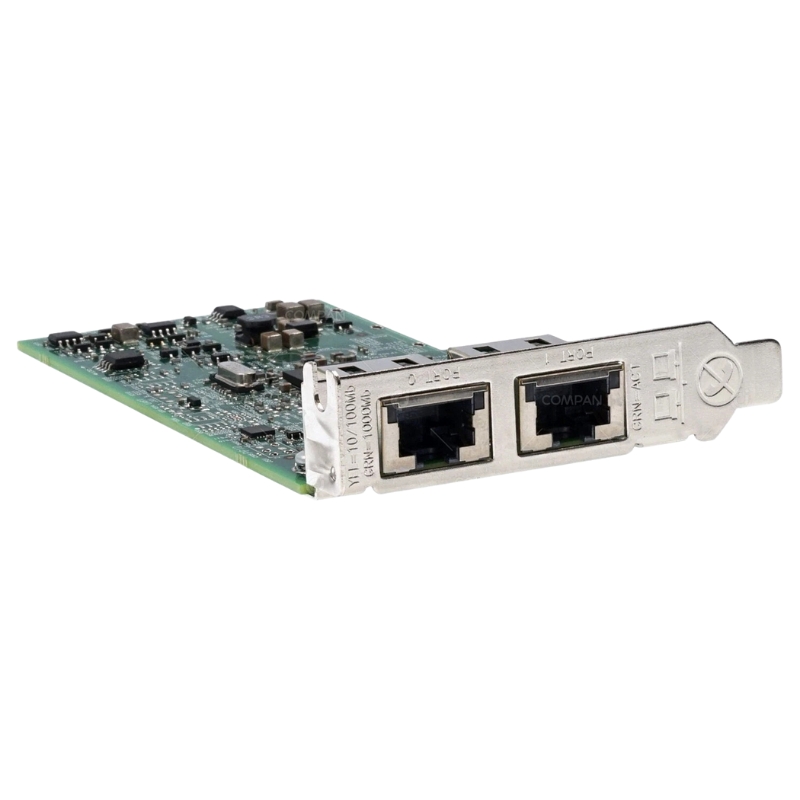

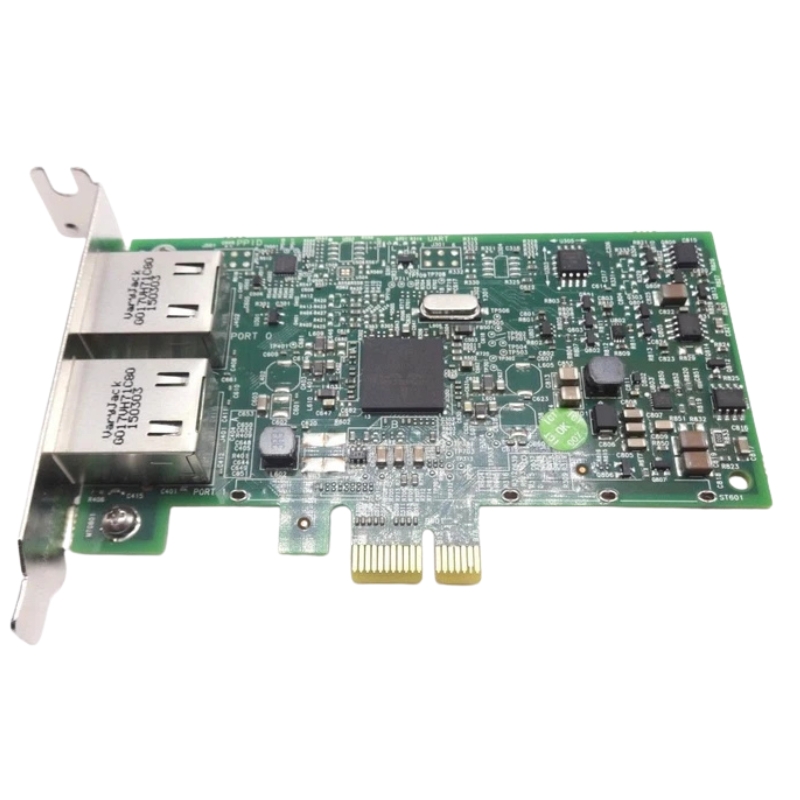

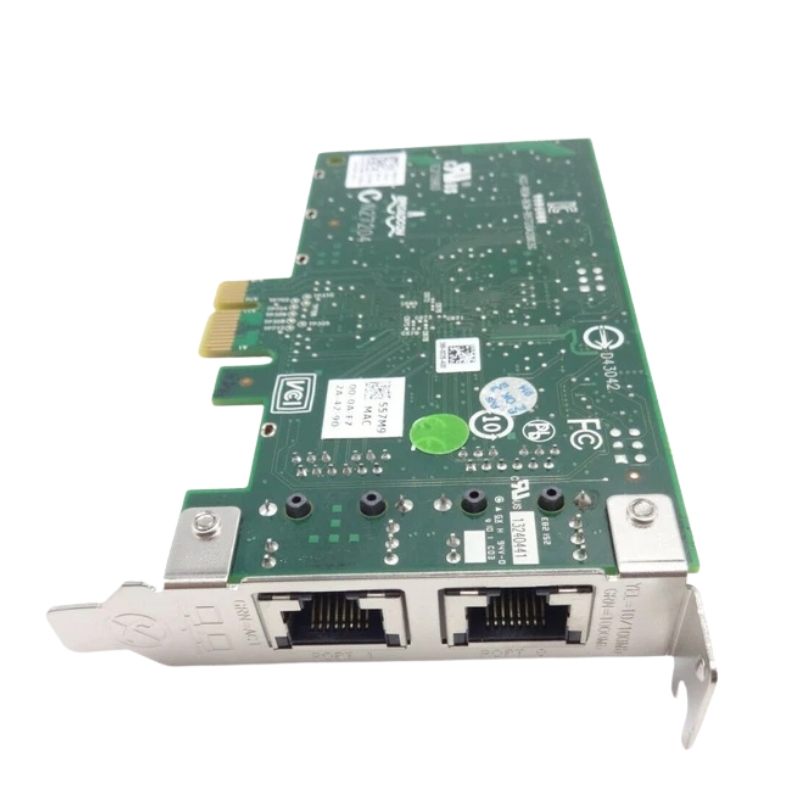

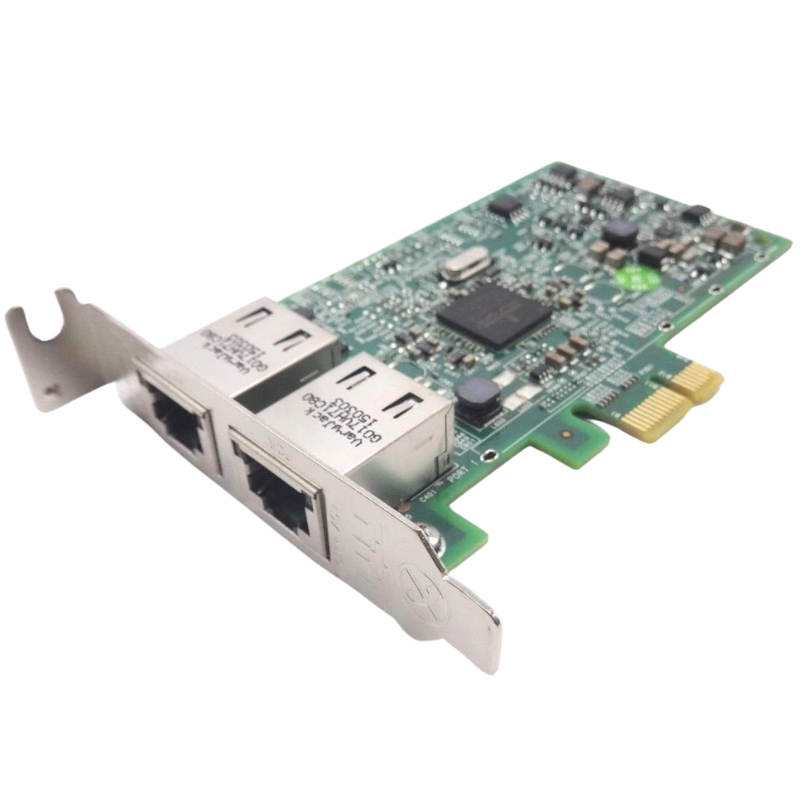

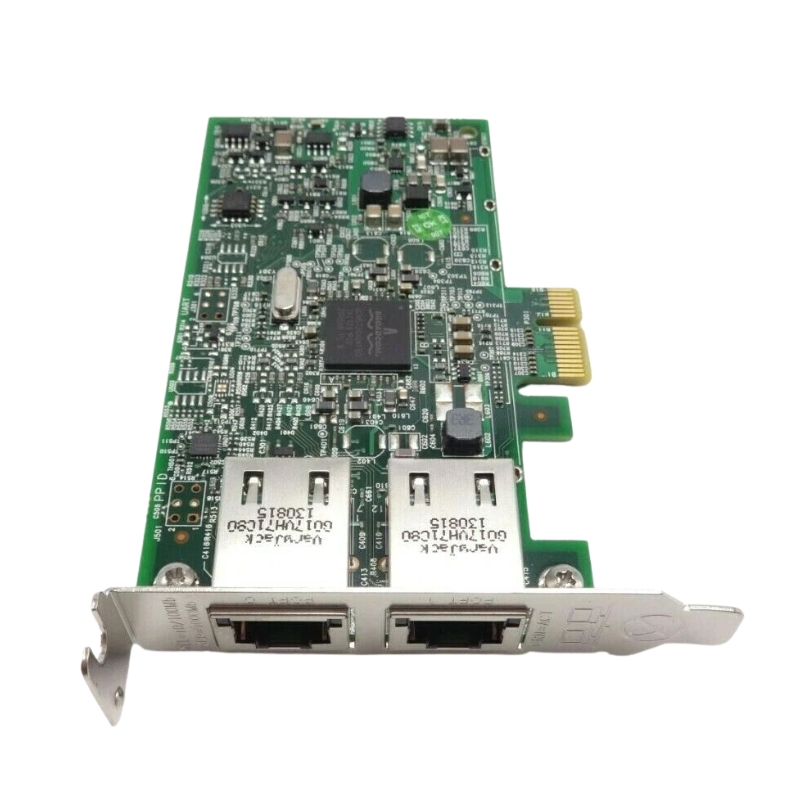

557M9 Dell Broadcom 5720 2-port Pci-e 2.0x1 1GBPS Rj45 Half-height W/o Bracket

Dell 557M9 Dual-Port PCIe 1GbE Network Interface Card

The Dell 557M9 Broadcom 5720 dual-port network interface card is engineered to enhance server connectivity with reliable Gigabit Ethernet performance. Designed for enterprise-grade environments, it delivers stable, high-speed data transmission and seamless integration into compatible systems.

Core Product Identification

• Manufacturer: Dell
• Part Number / SKU: 557M9
• Device Category: Network Interface Card (NIC)
• Configuration Type: Dual-Port Adapter

Technical Architecture & Interface Details

Host Connectivity

• PCI Express interface for fast and stable system communication
• PCIe 2.0 x1 lane configuration for efficient bandwidth utilization

Network Port Configuration

• Total Ethernet ports: 2
• RJ-45 connectors: 2 standard Gigabit ports

Supported Networking Standards

• 10/100/1000Base-T Ethernet compatibility
• Auto-negotiation for optimized link performance
• Twisted pair cabling support for structured networking setups

Performance & Connectivity Capabilities

Data Transfer Efficiency

• Supports full Gigabit throughput up to 1 Gbps per port
• Enhanced stability for server workloads and virtualization environments

Enterprise Networking Use Cases

• Data center server connectivity
• Enterprise network expansion
• High-availability systems requiring redundant links

Physical Design & Build Characteristics

Form Factor Specifications

• Plug-in expansion card design
• Half-height profile suitable for compact server chassis
• Bracket-less configuration for flexible installation scenarios

Durability & Integration

• Engineered for long-term server operation
• Optimized for seamless Dell server compatibility

System Compatibility & Device Support

Supported Hardware Environment

• Designed primarily for server-class systems
• Compatible with enterprise-grade Dell infrastructures
• Ideal for network-intensive computing environments

Operational Reliability Features

• Stable dual-port redundancy for failover scenarios
• Consistent performance under heavy network loads

Dell 557M9 2-Port PCIe 1Gbps Network Adapter Overview

The Dell 557M9 Broadcom 5720 2-port PCIe 2.0 x1 1Gbps RJ45 half-height network adapter without bracket is a specialized enterprise-grade networking component designed to deliver reliable and stable wired Ethernet connectivity in server and workstation environments. Built around the Broadcom 5720 controller, this network interface card (NIC) is optimized for high-efficiency data transmission, low latency communication, and consistent throughput performance across demanding IT workloads. It is commonly deployed in Dell server ecosystems, especially where compact expansion capabilities and dual-port redundancy are essential for maintaining continuous network availability.

As a PCI Express 2.0 x1 card, this adapter is designed to balance performance with compatibility across a wide range of server motherboards and industrial systems. The dual RJ45 ports enable simultaneous network connections, offering redundancy, link aggregation, or segmented network traffic handling depending on system configuration. This makes it particularly suitable for enterprise environments where uptime, scalability, and predictable networking behavior are critical.

Core Design Philosophy and Enterprise Use Case Positioning

The design philosophy behind the Dell 557M9 Broadcom 5720 adapter focuses on stability, compatibility, and cost-efficient enterprise networking rather than consumer-grade speed enhancements. Unlike gaming or high-throughput 10GbE adapters, this NIC is tailored for environments where consistent 1Gbps performance per port is sufficient but reliability is non-negotiable. This includes virtualization hosts, database servers, entry-level rack servers, file storage systems, and managed network appliances.

The dual-port configuration is particularly important for enterprise network topology design. Organizations often require multiple network paths for redundancy or separation of traffic types such as management networks, storage networks, and production traffic. The Dell 557M9 helps achieve these objectives without requiring additional PCIe slots, which are often limited in compact server chassis.

Technical Architecture of Broadcom 5720 Controller

Integrated Ethernet Processing Engine

This controller is designed to handle dual Gigabit Ethernet streams efficiently using hardware-based packet processing techniques. It offloads critical networking tasks from the host CPU, including checksum calculations, TCP segmentation, and interrupt moderation, thereby improving overall system performance.

The architecture is optimized for low CPU utilization, which is particularly important in virtualized environments where compute resources are shared among multiple workloads. By reducing CPU overhead, the Broadcom 5720 enables more virtual machines or services to operate on the same hardware without degrading network performance.

PCI Express 2.0 x1 Interface Efficiency

The PCIe 2.0 x1 interface provides a theoretical bandwidth sufficient to handle dual 1Gbps Ethernet ports with overhead headroom. This ensures that the adapter can fully utilize both ports simultaneously without bottlenecking at the bus level. PCIe 2.0 also provides improved signaling efficiency compared to earlier PCIe generations, making it suitable for enterprise server deployments where legacy and modern components often coexist.

This efficient lane usage is particularly valuable in dense server architectures where PCIe slots are limited and must be shared among multiple expansion cards such as RAID controllers, GPU accelerators, and storage adapters.

Physical Design and Half-Height Form Factor

Space-Optimized Hardware Configuration

The half-height design of the Dell 557M9 adapter is specifically engineered for rack-mounted servers and compact chassis systems. These environments often restrict expansion cards to low-profile brackets due to limited vertical clearance. The absence of a full-height bracket in this version further emphasizes its integration into specialized server builds where custom mounting solutions are used.

This compact form factor allows system integrators and IT administrators to maximize hardware density while maintaining essential network expansion capabilities. It is particularly useful in blade server environments and dense virtualization clusters.

Thermal and Mechanical Efficiency

Despite its compact size, the adapter is engineered for continuous operation under standard server thermal conditions. The Broadcom controller is designed with low power consumption characteristics, minimizing heat output and ensuring stable performance even in multi-adapter server configurations. The simplified mechanical structure also reduces airflow obstruction within the server chassis, contributing to overall system cooling efficiency.

Network Performance Characteristics and Capabilities

Dual-Port 1Gbps Throughput Behavior

Each RJ45 port on the Dell 557M9 supports up to 1Gbps full-duplex communication, allowing simultaneous send and receive operations at full capacity. When both ports are active, the adapter can theoretically deliver up to 2Gbps aggregate throughput depending on network configuration and switch support. This is particularly beneficial in load-balanced environments where traffic distribution is handled at the network layer.

The adapter also supports advanced traffic management features such as VLAN tagging and priority-based packet handling. These capabilities allow administrators to segment network traffic logically and ensure that critical services receive priority bandwidth allocation.

Latency Optimization and Packet Handling

One of the key strengths of the Broadcom 5720 chipset is its ability to maintain low latency under heavy network load. Through intelligent interrupt moderation and buffer management, the adapter reduces packet processing delays, ensuring smoother data flow for latency-sensitive applications such as database replication, virtual machine migration, and real-time monitoring systems.

Link Aggregation and Redundancy Support

The Dell 557M9 is commonly deployed in configurations that utilize link aggregation (LACP) to combine both Ethernet ports into a single logical connection. This enhances both throughput and redundancy. In the event of a link failure, traffic can automatically fail over to the remaining active port without service interruption, making it ideal for mission-critical environments.

Compatibility with Dell Server Ecosystems

Integration with Dell PowerEdge Systems

It integrates seamlessly into Dell’s hardware management ecosystem, allowing administrators to monitor network health through integrated system management tools.

Its compatibility extends across multiple generations of PowerEdge servers, particularly those designed for virtualization, file serving, and enterprise application hosting. The NIC is often used as an upgrade or replacement part in existing deployments to maintain consistent network performance standards.

Workstation and Embedded System Applications

Beyond servers, the Dell 557M9 is also used in high-performance workstations and embedded computing platforms where reliable Ethernet connectivity is required. Its low-profile design and stable driver support make it suitable for industrial control systems, edge computing nodes, and laboratory computing environments.

Driver Support and Operating System Compatibility

Windows Server Compatibility

The Broadcom 5720 controller is widely supported across Windows Server editions, including environments used for enterprise virtualization and application hosting. Drivers are typically included in server operating system distributions or available through OEM support channels, ensuring quick deployment and minimal configuration overhead.

Linux Kernel Integration

In Linux environments, the adapter benefits from native kernel driver support through the Broadcom tg3 or bnx2 driver families depending on distribution and kernel version. This ensures stable performance in open-source server environments, cloud infrastructure nodes, and containerized deployments.

Virtualization Platform Support

The Dell 557M9 is compatible with major virtualization platforms, including VMware ESXi and Microsoft Hyper-V. Features such as virtual NIC offloading and VLAN tagging support make it suitable for multi-tenant environments where network isolation and performance efficiency are required.

Advanced Networking Features and Offloading Technologies

TCP/IP Offloading Engine

The adapter includes hardware-based TCP/IP offloading capabilities that reduce CPU load by handling repetitive networking tasks directly on the NIC. This includes checksum offloading, segmentation offloading, and large send offload (LSO). These features collectively enhance system efficiency and allow higher application density on virtualized hosts.

VLAN and Traffic Segmentation

VLAN tagging support allows administrators to create logically separated network segments over the same physical infrastructure. This is essential for enterprise environments where security and traffic isolation are required between departments, services, or customer environments.

PXE Boot and Remote Deployment

The Dell 557M9 supports Preboot Execution Environment (PXE) boot functionality, enabling network-based system installation and provisioning. This is especially useful in large-scale IT environments where automated deployment of operating systems is required across multiple servers without physical media.

Deployment Scenarios and Real-World Applications

Data Center Infrastructure

In data center environments, the Dell 557M9 is used to provide redundant network paths for entry-level servers and auxiliary systems. Its cost-effective design makes it ideal for large-scale deployments where thousands of nodes require consistent network access without high per-unit cost.

Edge Computing Systems

Edge computing applications benefit from the adapter’s compact design and low power consumption. It can be deployed in remote systems that require reliable connectivity without the complexity of high-end networking hardware.

Enterprise File Servers

File servers often rely on dual-port NICs like the Dell 557M9 to ensure continuous availability. In the event of network congestion or failure on one port, the secondary port maintains operational continuity, minimizing downtime.
