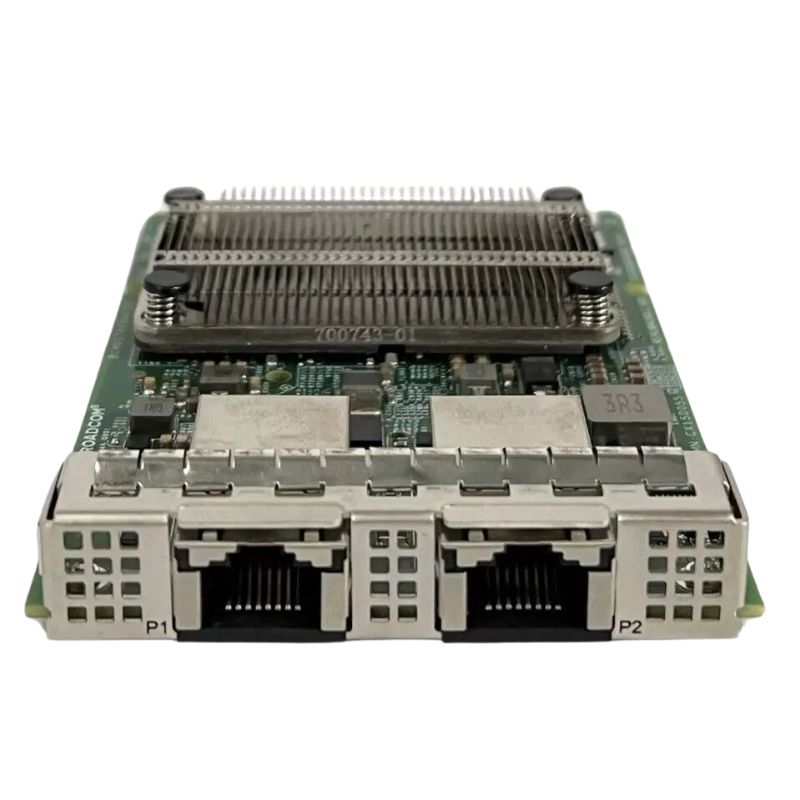

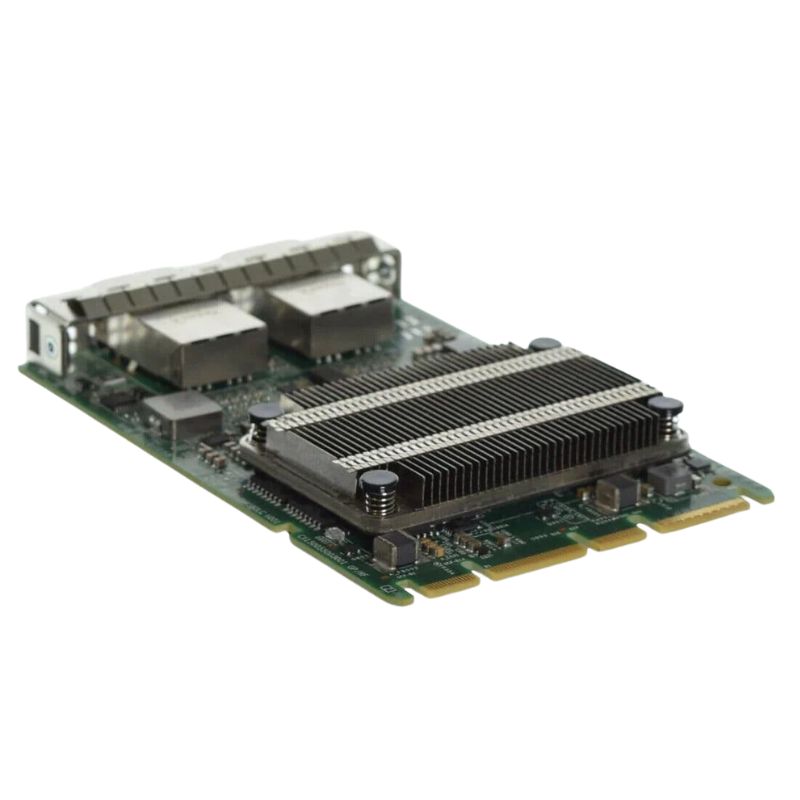

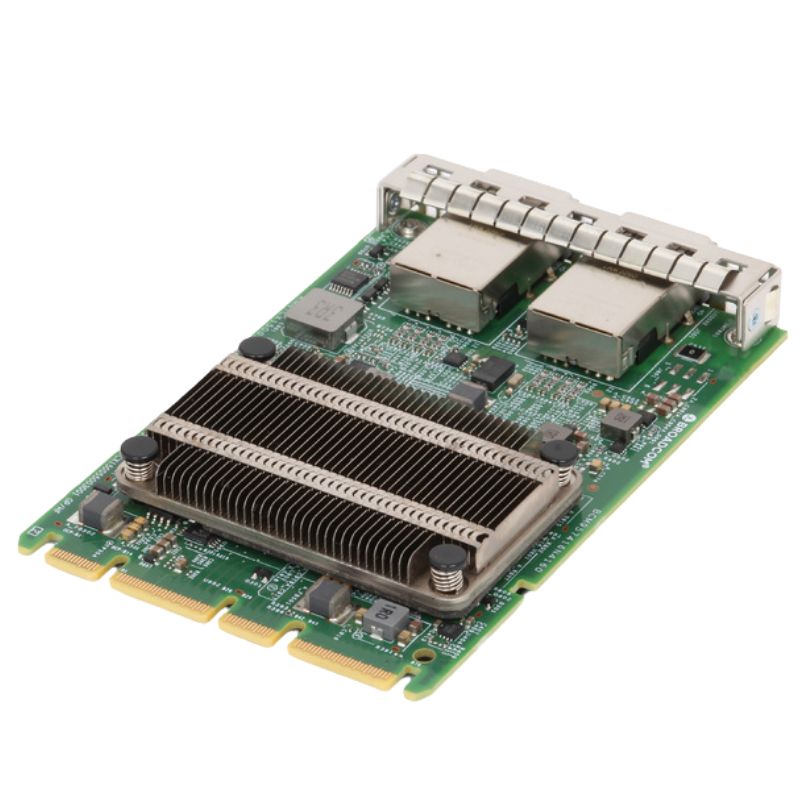

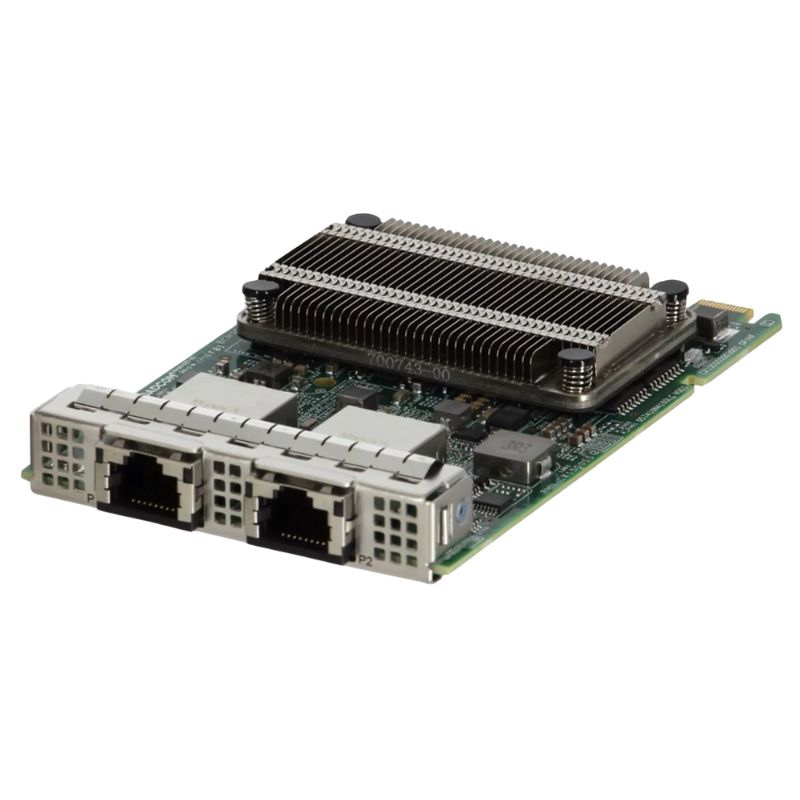

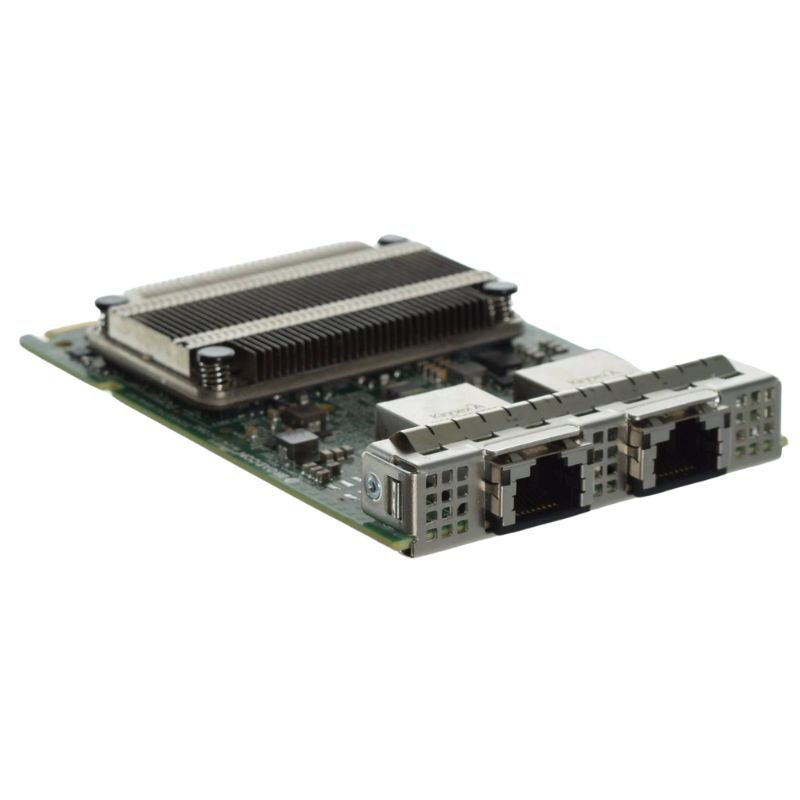

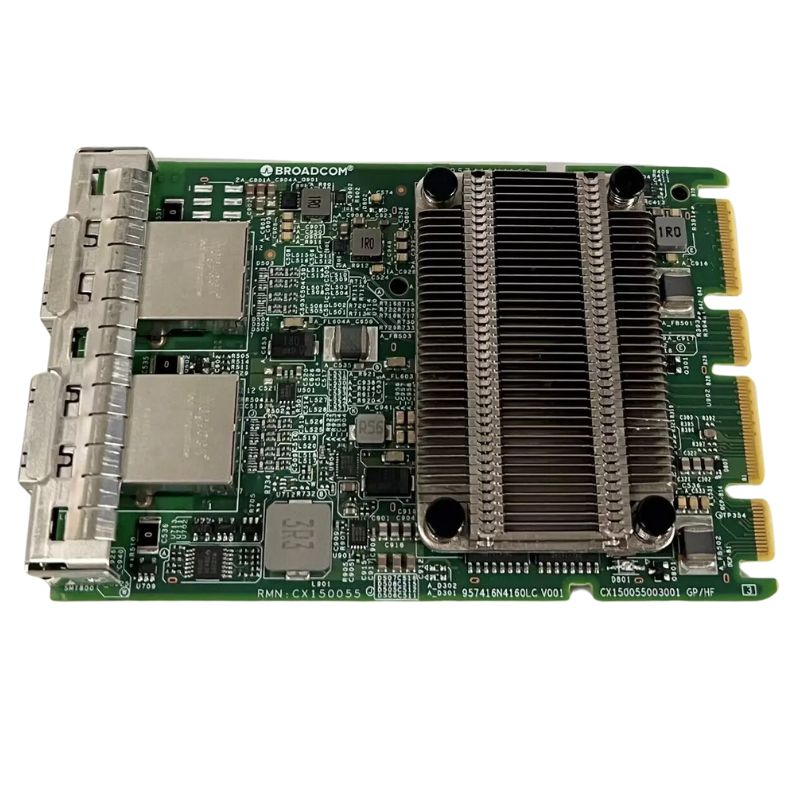

540-BDQJ Dell 57416 Broadcom 10GB RJ-45 OCP 3.0 2 Ports Network Adapter

Dell 540-BDQJ 10Gb RJ-45 OCP 3.0 Dual-Port Network Adapter

High-Performance Dell Networking Solution for Enterprise Servers

The Dell 540-BDQJ Broadcom 57416 is a robust dual-port 10Gb Ethernet network adapter designed for modern enterprise environments. Built on Open Compute Project (OCP) 3.0 architecture, this plug-in mezzanine card delivers stable, high-speed wired connectivity for data-intensive workloads.

Key Product Identification Details

• Manufacturer: Dell
• Part Number: 540-BDQJ
• Device Category: Network Adapter
• Port Configuration: Dual-Port (2 Ports)

Technical Specifications of Dell Broadcom 57416 Adapter

Architecture and Interface Type

• Form Factor: Plug-in Card (Mezzanine)
• Interface Standard: Open Compute Project (OCP) 3.0
• Connectivity Type: Wired Ethernet

Network Performance Capabilities

• Maximum Speed: 10 Gigabit Ethernet per port
• Total Ports: 2 × 10GbE RJ-45
• Cabling Standard: 10GBASE-T Ethernet
• Supported Protocol: High-speed 10Gb Ethernet data link protocol

Interface Configuration

• Dual 10GBASE-T copper Ethernet interfaces
• Optimized for reliable low-latency network transmission
• Designed for scalable enterprise workloads

Compatible Dell PowerEdge Server Systems

Rack and Tower Server Support

• PowerEdge C6520, C6525, C6620
• PowerEdge HS5610, HS5620
• PowerEdge R450, R550, R650, R650xs
• PowerEdge R6525, R660, R660xs, R6615, R6625
• PowerEdge R750, R750xa, R750xs, R7525
• PowerEdge R760, R760xa, R760xd2, R760xs
• PowerEdge R7615, R7625, R860, R960

Tower and Edge Infrastructure Compatibility

• PowerEdge T550, T560
• PowerEdge XR5610, XR7620

Deployment Advantages in Enterprise Environments

Performance and Scalability Benefits

• Enhanced network throughput for virtualization workloads
• Efficient handling of high-volume data traffic
• Reduced latency for mission-critical applications

Infrastructure Optimization Features

• Space-efficient OCP 3.0 mezzanine design
• Improved airflow and thermal efficiency in server chassis
• Seamless integration with Dell PowerEdge ecosystem

Use Cases for Dell 540-BDQJ 10Gb Network Adapter

Enterprise Networking Scenarios

• Data center virtualization environments
• Cloud computing infrastructure deployments
• High-performance storage networking

Workload Optimization Areas

• Big data processing clusters
• High-availability enterprise applications
• AI and machine learning server farms

Dell 540-BDQJ 10Gb RJ-45 OCP 3.0 2-Port Network Adapter

The Dell 540-BDQJ Broadcom 57416 10Gb RJ-45 OCP 3.0 2-Port Network Adapter represents a high-performance networking solution designed for modern enterprise servers, data centers, virtualization environments, and cloud computing infrastructures. Built on the Broadcom 57416 controller chipset, this adapter delivers dual-port 10 Gigabit Ethernet (10GbE) connectivity over RJ-45 copper cabling, ensuring cost-effective, high-bandwidth networking for scalable IT operations. As part of the Open Compute Project (OCP) 3.0 ecosystem, it is optimized for modular server architectures, enabling simplified deployment, maintenance, and upgradeability.

Understanding the Role of 10Gb RJ-45 OCP 3.0 Network Adapters

10Gb RJ-45 network adapters such as the Dell 540-BDQJ are essential components in high-density computing environments where data throughput, latency reduction, and network reliability are critical. Unlike traditional PCIe network interface cards (NICs), OCP 3.0 adapters are designed to fit into standardized OCP slots, which reduces motherboard clutter and improves airflow efficiency inside servers. This architectural approach enables data centers to scale more efficiently while reducing operational overhead.

Evolution of Enterprise Networking with OCP Standards

The Open Compute Project (OCP) was developed to redefine server hardware design by promoting open, efficient, and scalable architectures. OCP 3.0 introduces a more refined form factor compared to earlier versions, supporting better thermal design, improved serviceability, and flexible networking expansion. The Dell 540-BDQJ adapter leverages this standard to provide seamless integration with compatible Dell PowerEdge servers and OCP-ready platforms.

Key Advantages of OCP 3.0 Architecture

OCP 3.0 networking modules reduce the dependency on traditional PCIe slot configurations, allowing server manufacturers to allocate more space for GPUs, storage controllers, and accelerators. This enhances system flexibility and supports high-performance workloads such as AI training, virtualization clusters, and big data analytics platforms.

Broadcom 57416 Chipset Architecture and Performance Capabilities

At the core of the Dell 540-BDQJ adapter is the Broadcom 57416 Ethernet controller, engineered to deliver high-throughput, low-latency networking performance. This chipset supports dual 10GbE ports over RJ-45 interfaces, enabling backward compatibility with lower-speed Ethernet standards while providing upgrade paths for modern data center infrastructures.

Advanced Offload Engine Technology

The Broadcom 57416 incorporates advanced hardware offload capabilities that reduce CPU utilization by handling networking tasks directly on the adapter. These include TCP segmentation offload (TSO), large receive offload (LRO), and checksum offloading. By delegating these tasks to dedicated hardware, system performance is significantly improved, especially in virtualized environments where CPU efficiency is critical.

Virtualization Optimization Features

Virtualized environments benefit significantly from SR-IOV (Single Root I/O Virtualization), which allows multiple virtual machines (VMs) to share a single physical network interface without performance degradation. The Dell 540-BDQJ leverages this feature to deliver near-native network performance to each VM, making it ideal for VMware ESXi, Microsoft Hyper-V, and KVM-based infrastructures.

Network Packet Processing Efficiency

The adapter is designed to handle high packet-per-second (PPS) workloads efficiently, which is essential for modern applications such as real-time analytics, financial trading systems, and distributed microservices architectures. Its architecture ensures minimal packet loss and consistent throughput under heavy load conditions.

10Gb RJ-45 Connectivity and Copper-Based Infrastructure Benefits

The Dell 540-BDQJ utilizes RJ-45 copper interfaces instead of fiber optics, providing a cost-effective and flexible networking solution for enterprises upgrading from 1GbE or 2.5GbE infrastructures. This allows organizations to leverage existing Cat6a or Cat7 cabling while achieving 10Gbps data transfer speeds.

Backward Compatibility and Infrastructure Flexibility

One of the most significant advantages of RJ-45-based 10GbE networking is backward compatibility with lower speeds such as 1GbE and 100MbE. This ensures smooth migration paths without requiring complete infrastructure overhauls. Enterprises can gradually upgrade their network backbone while maintaining operational continuity.

Cabling Requirements and Recommendations

To achieve optimal performance, Cat6a cabling is recommended for distances up to 100 meters, while Cat6 may support shorter distances with reduced reliability. Proper cable management is critical in high-density environments to avoid signal interference and maintain consistent throughput.

Signal Integrity and Data Transmission Efficiency

The adapter ensures strong signal integrity through advanced equalization techniques and noise reduction mechanisms, minimizing packet loss and latency even in electrically noisy server environments.

Enterprise Use Cases for Dell 540-BDQJ Network Adapter

The Dell 540-BDQJ Broadcom 57416 adapter is widely deployed across various enterprise environments due to its scalability, reliability, and high-speed performance. It is particularly suited for workloads requiring stable and high-bandwidth network connectivity.

Data Center Networking Environments

In modern data centers, this adapter is used to connect blade servers and rack servers to high-speed switching fabrics. It supports east-west traffic optimization, enabling efficient communication between servers within distributed computing clusters.

Cloud Computing Infrastructure

Cloud service providers rely on 10GbE connectivity to ensure seamless communication between compute nodes, storage systems, and orchestration layers. The Dell 540-BDQJ supports multi-tenant environments where network isolation and performance consistency are critical.

High Availability and Redundancy Configurations

Dual-port design enables redundancy and load balancing, ensuring uninterrupted network availability. In case one port fails, traffic can automatically failover to the secondary port, maintaining system stability.

Virtualization and Hyper-Converged Infrastructure (HCI)

Hyper-converged infrastructure platforms benefit from the high throughput and low latency provided by the Dell 540-BDQJ adapter. It supports distributed storage systems and software-defined networking (SDN), making it suitable for VMware vSAN, Nutanix, and Microsoft Azure Stack environments.

Storage Networking and iSCSI Optimization

The adapter is optimized for storage traffic, including iSCSI and NFS workloads. Offload features reduce CPU overhead during storage-intensive operations, improving overall system efficiency and responsiveness.
